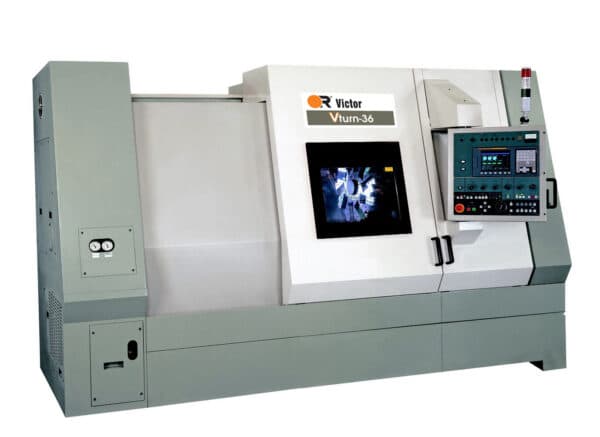

Genuine 45° slant bed for minimum distance from Z-axis ball screw to the tool tip. Z-axis ballscrew diameter 50mm. 91mm bar capacity. Box slideways with hardness HRC 55 for heavy cutting. Hydraulic 12″ chuck is offered as standard. 2-step gearbox is included to further enhance the cutting torque at low rpm. Maximum turning length 855mm for Vturn-36/85 and 1255mm for Vturn-36/125. Available with C-axis spindle and live tooling by Victor’s own VDI turret. Special LSB option with spindle nose A2-11 for bar capacity160mm/1300rpm.
Location : United Kingdom
Seller : GM Machinery Ltd
Manufacturer: Horizon
Location : United Kingdom
Seller : GM Machinery Ltd
Manufacturer: Horizon
