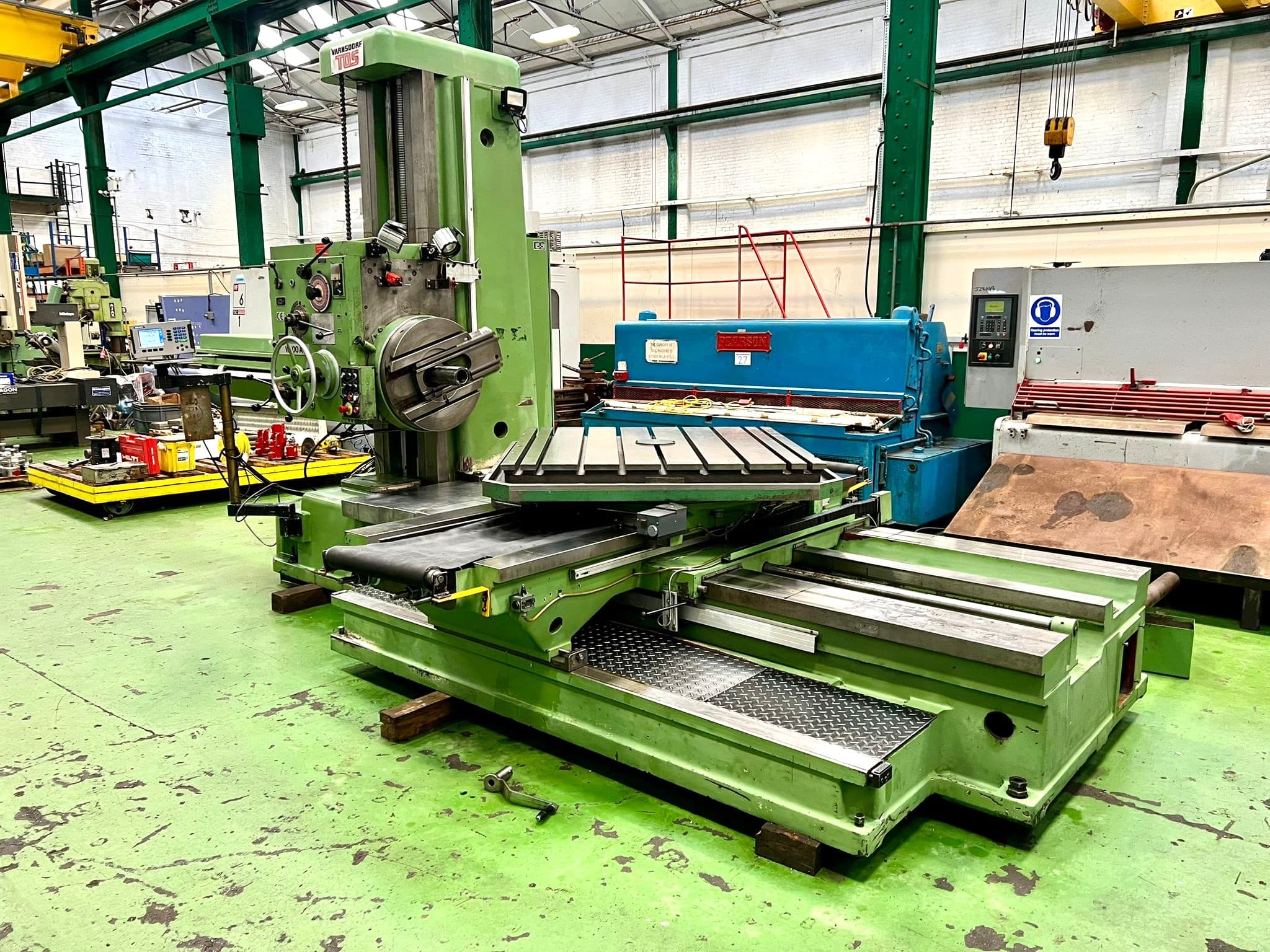

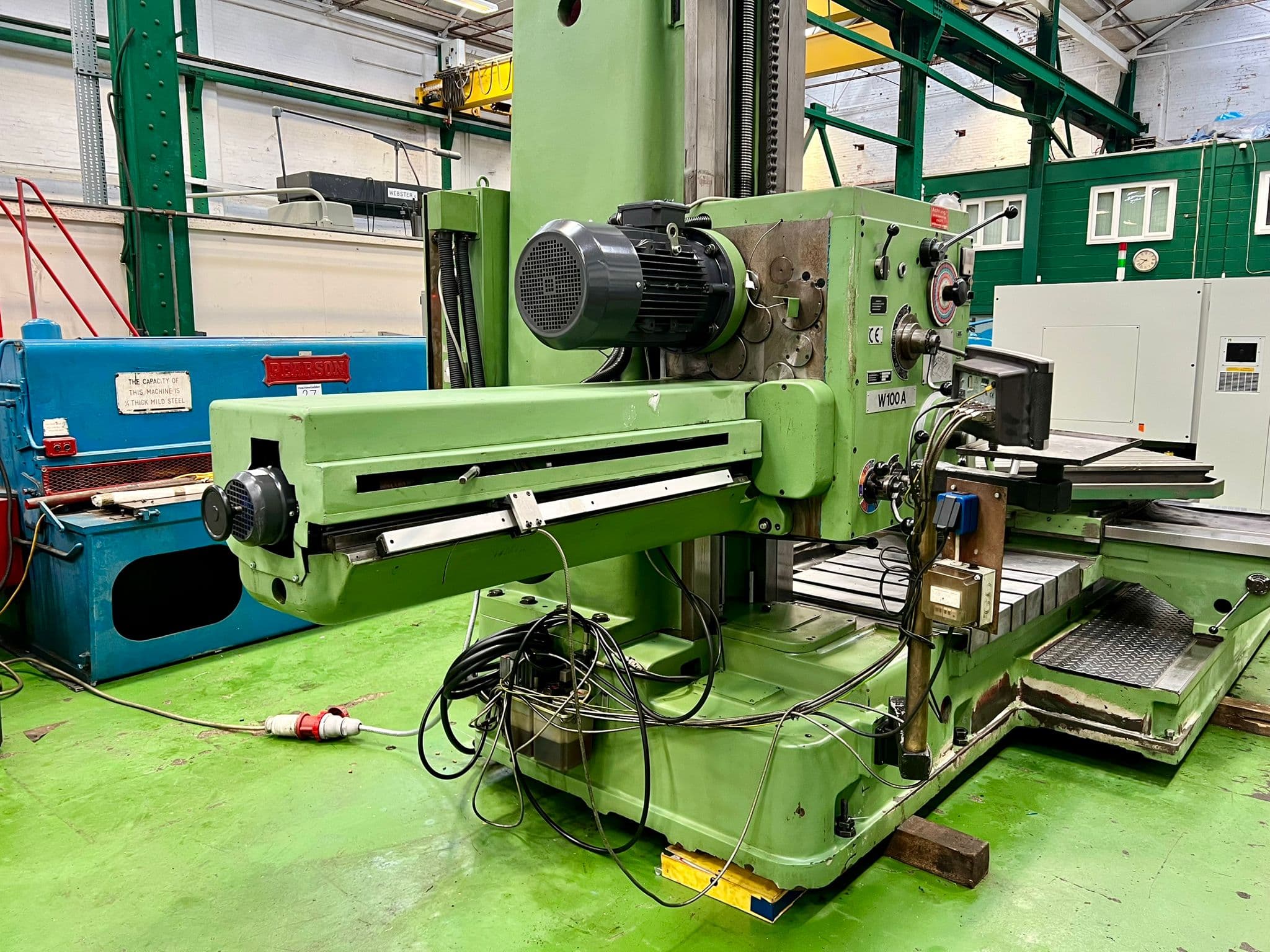

TOS W100A Table Type Horizontal Borer with Acu-rite 3 Axis Digital Readout. Year 1998

Description

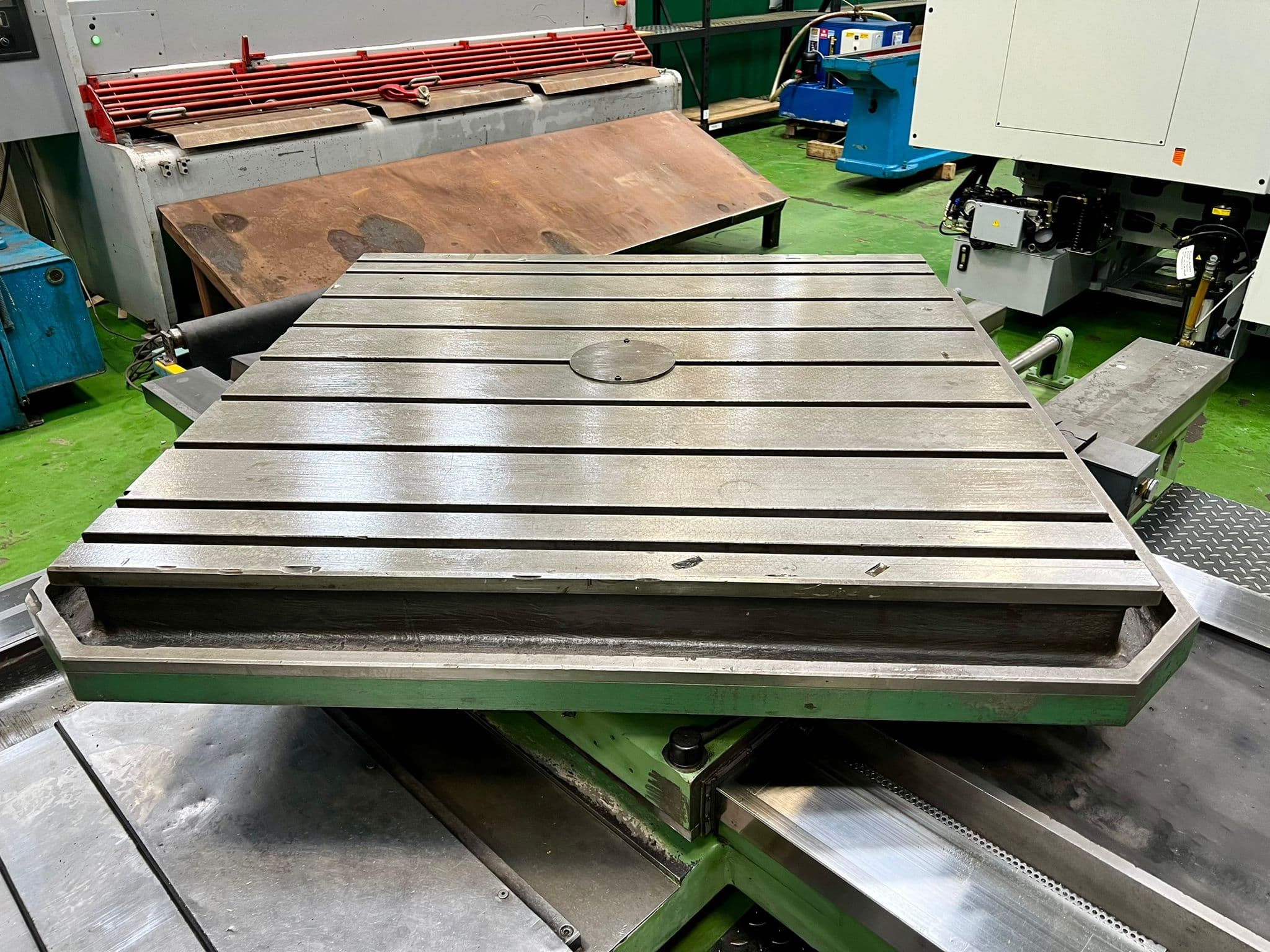

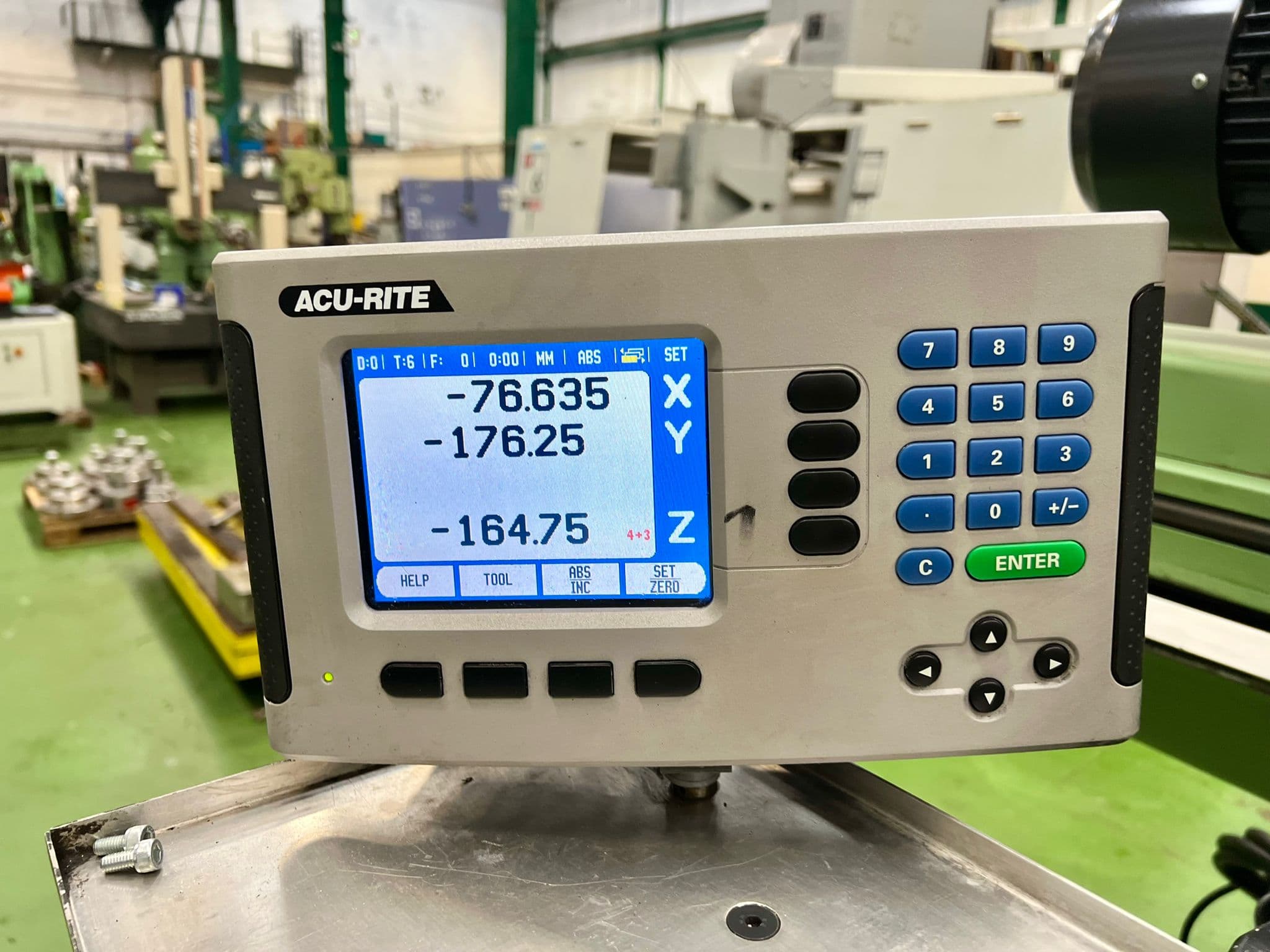

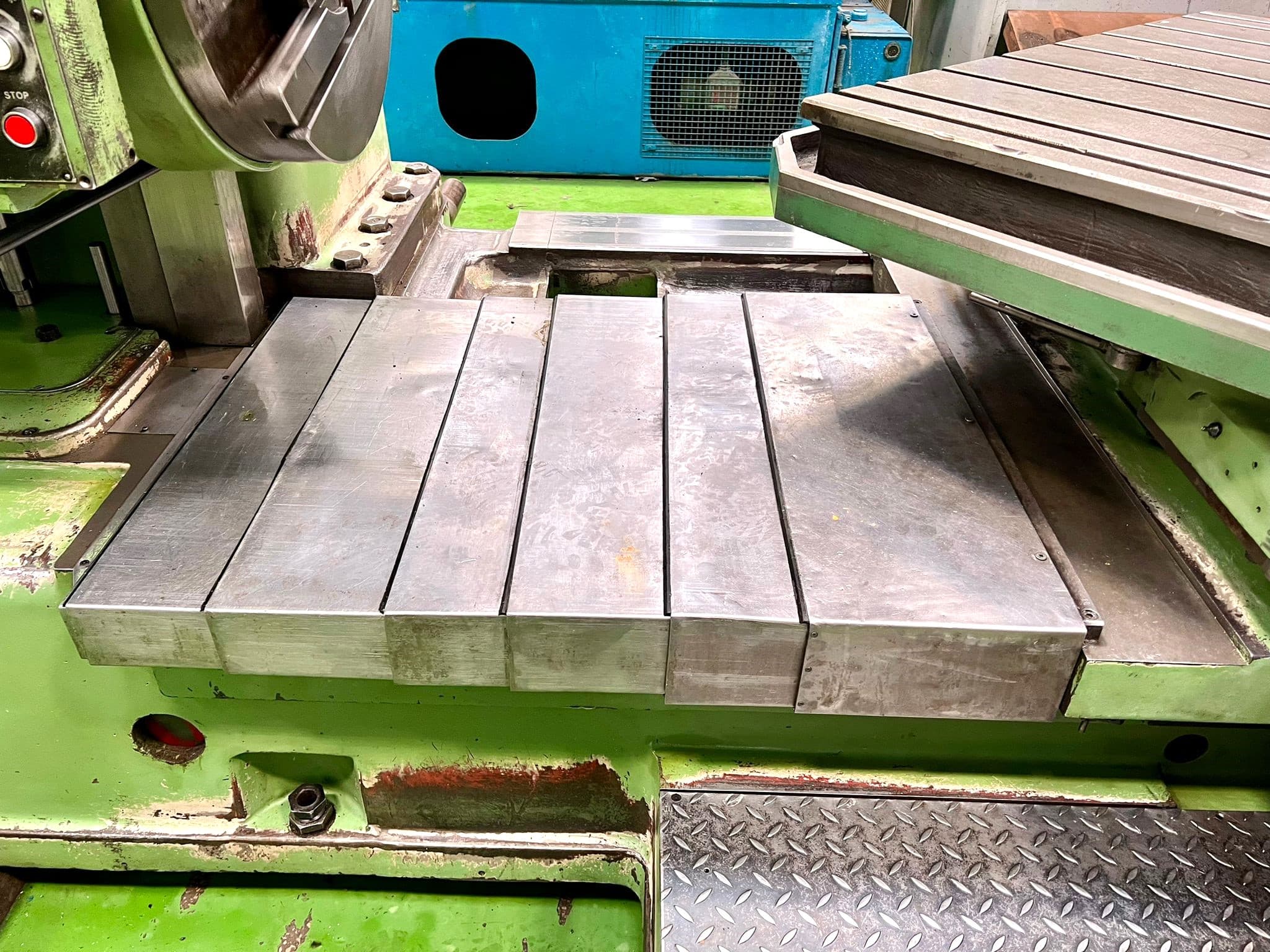

Spindle dia. 100mm.Spindle taper ISO 50. Spindle stroke (W Axis) 900mm. Height of work spindle above table (Y Axis) (min/max) 0/1120mm.Facing head dia. 600mm.Maximum facing dia. 900mm. Table traverse (X Axis) 1600mm. Table longitudinal (Z Axis) 1250mm.Table size 1250mm x 1250mm. Maximum table loading 3000kg.No. of T slots 9. Size & Pitch of T Slots 22mm/160mm/80mm. No. of spindle speeds (23). Range of spindle speeds 7.1 – 1120rpm. No. of faceplate speeds (16). Range of faceplate speeds 7.1 – 224 rpm. No. of drilling feeds (23). Range of drilling feeds 0.02 – 12mm/rev. No. of milling feeds (18). Range of milling feeds 18 – 900mm/min. No. of Faceplate slide feeds (32). Range of faceplate slide feeds 0.02 – 12mm/rev. No. of rotary feeds of the table (18). Range of rotary feeds  25 – 1400 mm/min. Rapid traverse of rotary work table 1 rpm. Rapid traverse of spindle, headstock, table & faceplate slide 2800mm/min. No. of metric threads (18).Range of metric threads 0.25mm – 12mm. No. of Imperial threads (18). Range of imperial threads 120/2.5 Threads per inch. Machine fitted with Acu-rite 3 Axis Digital Readout. Outriggers. Coolant Pump &Tank. Overall dimensions L x W x H 5900mm x 2950mm x 3000mm. Approximate weight 14,000 kg.
