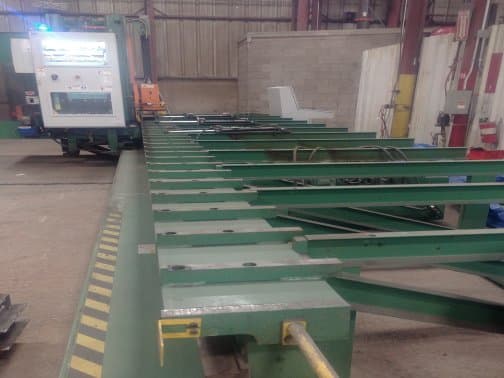

PEDDINGHAUS OCEAN AVENGER PLUS 1250/1C SINGLE SPINDLE DRILL LINE,MFG:2016

Description

DRILL SPINDLE SPECIFICATIONSNUMBER OF DRILL SPINDLES - 1DRILL SPINDLES PER AXIS - 1POWER PER SPINDLE - HP (KW) 25 (18.7)DRILL SPINDLE RAPID ADVANCE SPEED - FEET/MIN (M/MIN) 60 (18)VARIALBE FEEDS (SPINDLE CONTROLLED BY CNC)- INCHES/MIN (MM/MIN)0-60 (O-1800)MOTOR SPEEDS CONTROLLED BY CNC - 0-3375MINIMUM DRILL DIAMETER - INCHES (MM) - 3/8 HSS, 3/8 CARBIDE (8HSS, 8 CARBIDE)MAXIMUM DRILL DIAMTER - INCHES (MM) - 19/16 HSS, 1 1/4 CARBIDE(40 HSS, 32 CARBIDE)MAXIMUM DRILL GAUGE LENGHT FOR AUTOMATIC TOOL CHANGE (SPINDLEFACE TO DRILL POINTS) - INCHES (MM) - 14.56 (370.0)MAXIMUM DRILL GAUGE LEGTH FOR MANUAL TOOL CHANGE (SPINDLE FACE TODRILL POINT) - INCHES (MM) - 16.25 (412.7)MINIMUM DRILL GAUGE LENGTH (SPINDLE FACE TO DRILL POINT) -INCHES (MM)STANDARD HYDRAULIC OIL SPECIFICATIONSMINIMUM TEMPERATURE - F (C) - 54 (12)STANDARD OPERATING TEMPERATURE - F (C) - 100-120 (38 - 49)MAXIMUM TEMPERATURE - F (C) - 130 (55)STANDARD OPERATING VISCOSITY RANGE - SSU (CST) - 80-1000 (17-180)VISCOSITY RANGE 100 DEGREE F (38C) - SSU (CST) - 150-250 (30-50)MAXIMUM START-UP VISCOSITY - SSU (CST) - 4000 (1000)EQUIPMENT AND MODULE WEIGHTSMDL 1250/1C MAIN MACHINE LBS (KG) - 7,250 (3290)MACHINE DIMENSIONS(HEIGHT X WIDTH X LENGHT) - INCHES (MM) - 103.6 X 67 X 100 (2631X 17202 X 2540)UNIT OF MEASUREMENTMAXIMUM MACHINING WIDTH - INCHES (MM) - 49.2 (1250)MAXIMUM MACHINGING HEIGHT - INCHES (MM) - 49.2 (1250)MAXIMUM BAR STOCK THICKNESS - INCHES (MM) - 6 (150)MINIMUM BAR STOCK THICKNESS - INCHES (MM) - 1/4 (6)MAXIMUM LENGHT PIECE PART - INCHES (MM) 720 (18288)MAXIMUM WORK PIECE WEIGHT - POUNDS (KG) - 18,000 OR 300 LBS/FT(8165 OR 447 KG/METER)AXIS SPEED SPECIFICATIONSMAXIMUM HORIZONTAL TRAVEL (X-AXIS) - 150 (46)MAXIMUM VERTICAL TRAVEL (Y-AXIS) - FT/MIN (M/MIN) - 60 (18)OPERATING POWER REQUIREMENTSSTANDARD VOLTAGE/PHASE/HERTZ - 480/3/60 (380/3/50)POWER CONSUMPTION - KVA - 44HYDRAULIC POWER UNIT SPECIFICATIONSMOTOR POWER - hp (kw) - 7 (5.2)HYDRAULIC PRESSURE - PSI(BAR) - 1750 (121)AIR USAGE SPECIFICATIONSAIR CONSUMPTION - CU. FT/MIN (CU. M/HR) - 20 (34)AIR PRESSURE - PSI (BAR) - 90 (6)MAX AIR PRESSURE - PSI (BAR) - 125 (8.6)MAINTENANCE UNIT/CONNECTION SIZE - 1/2"METAL CLAMPING PRESSUREMAXIMUM VERTICAL CLAMPING PRESSURE - PSI (BAR) - 1750 (120.7)AVAILABLE VERTICAL CLAMPING FORCE - MIN-MA LBS (MIN-MAX KG) -2050-10300 (9120 - 45800)MAXIMUM TOOL WEIGHT - LBS (KG) - 8 (3.6)
