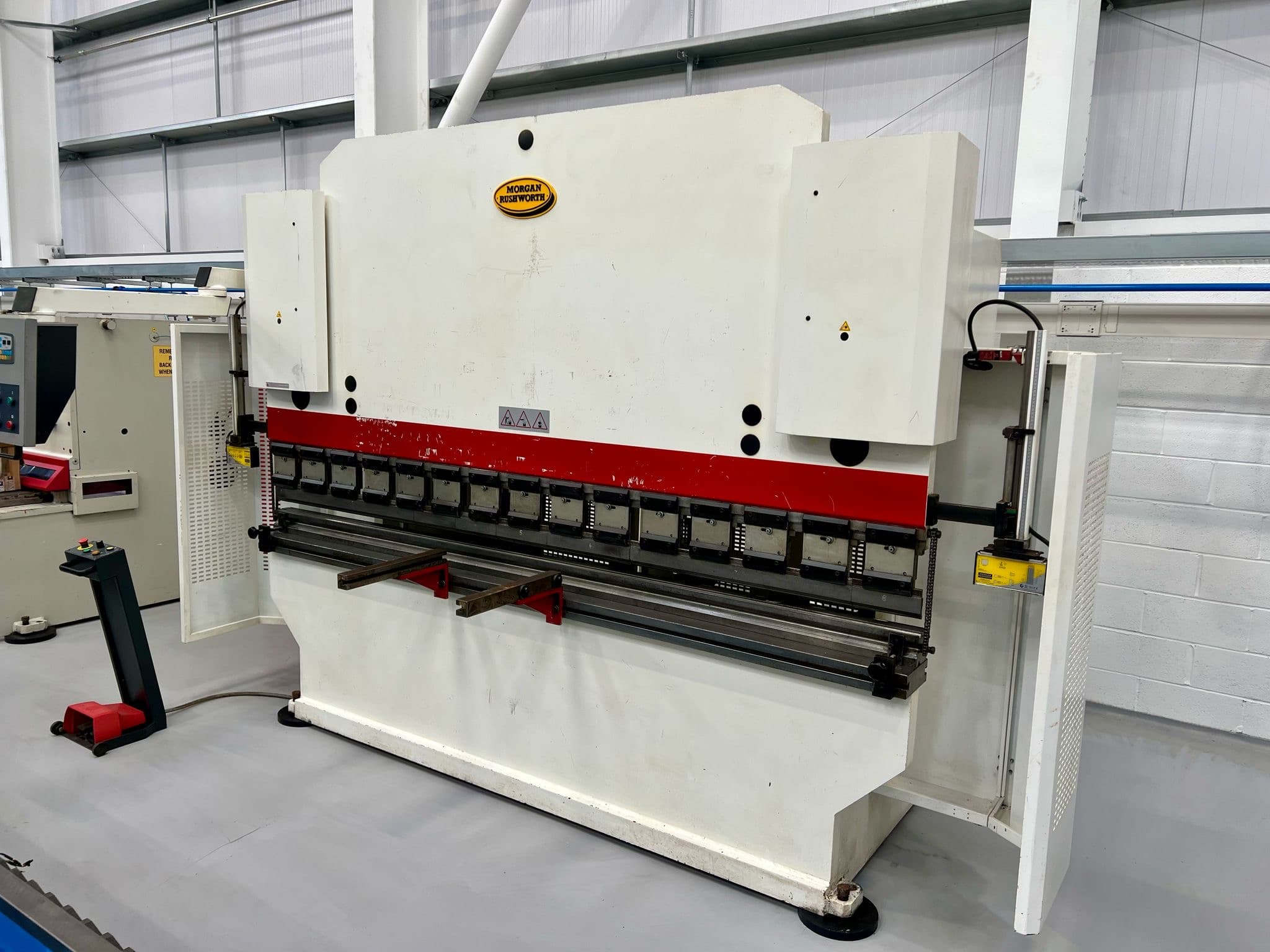

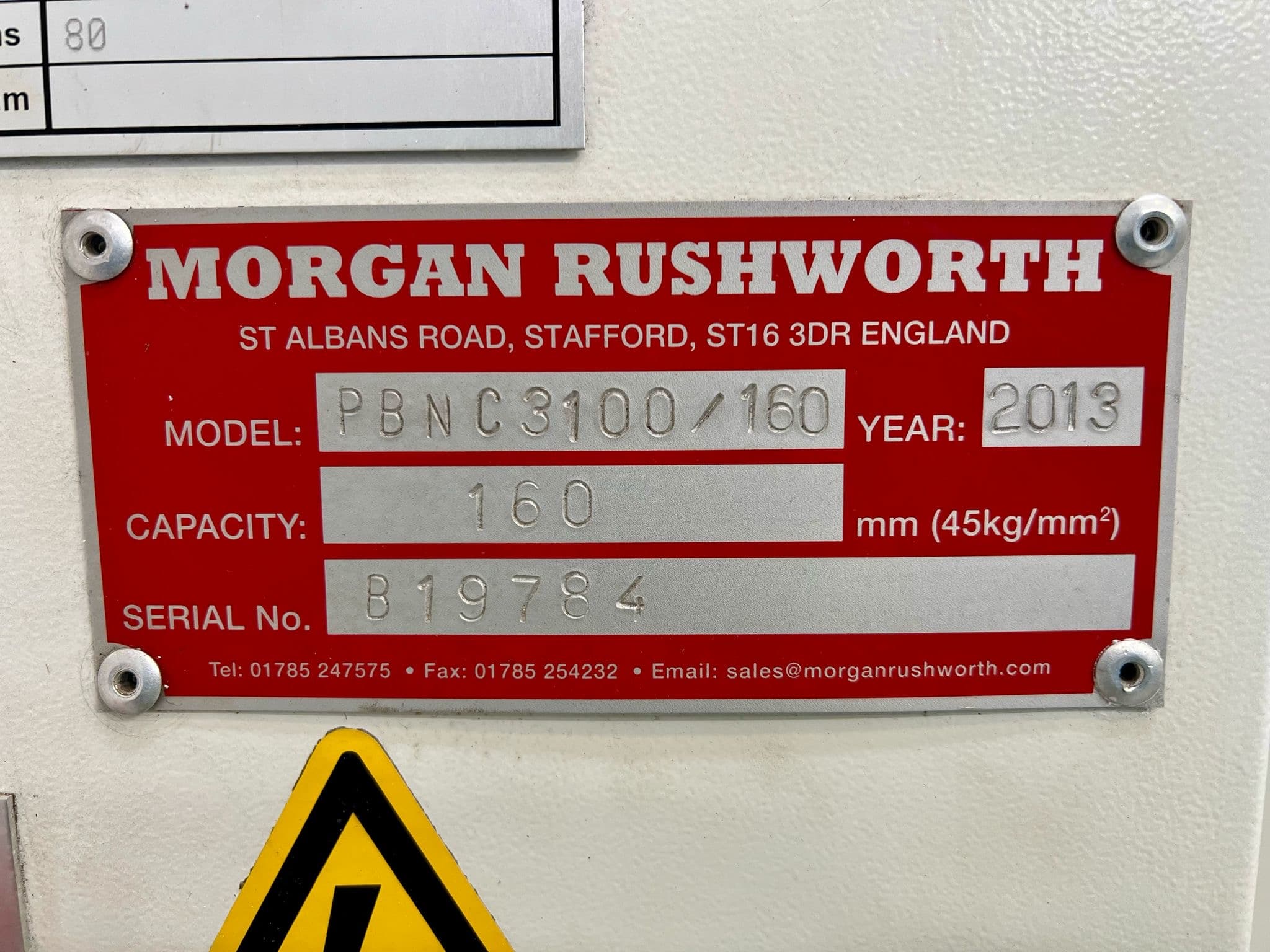

MORGAN RUSHWORTH PBNC 3100-160 Hydraulic Downstroking Pressbrake. Year 2013

Description

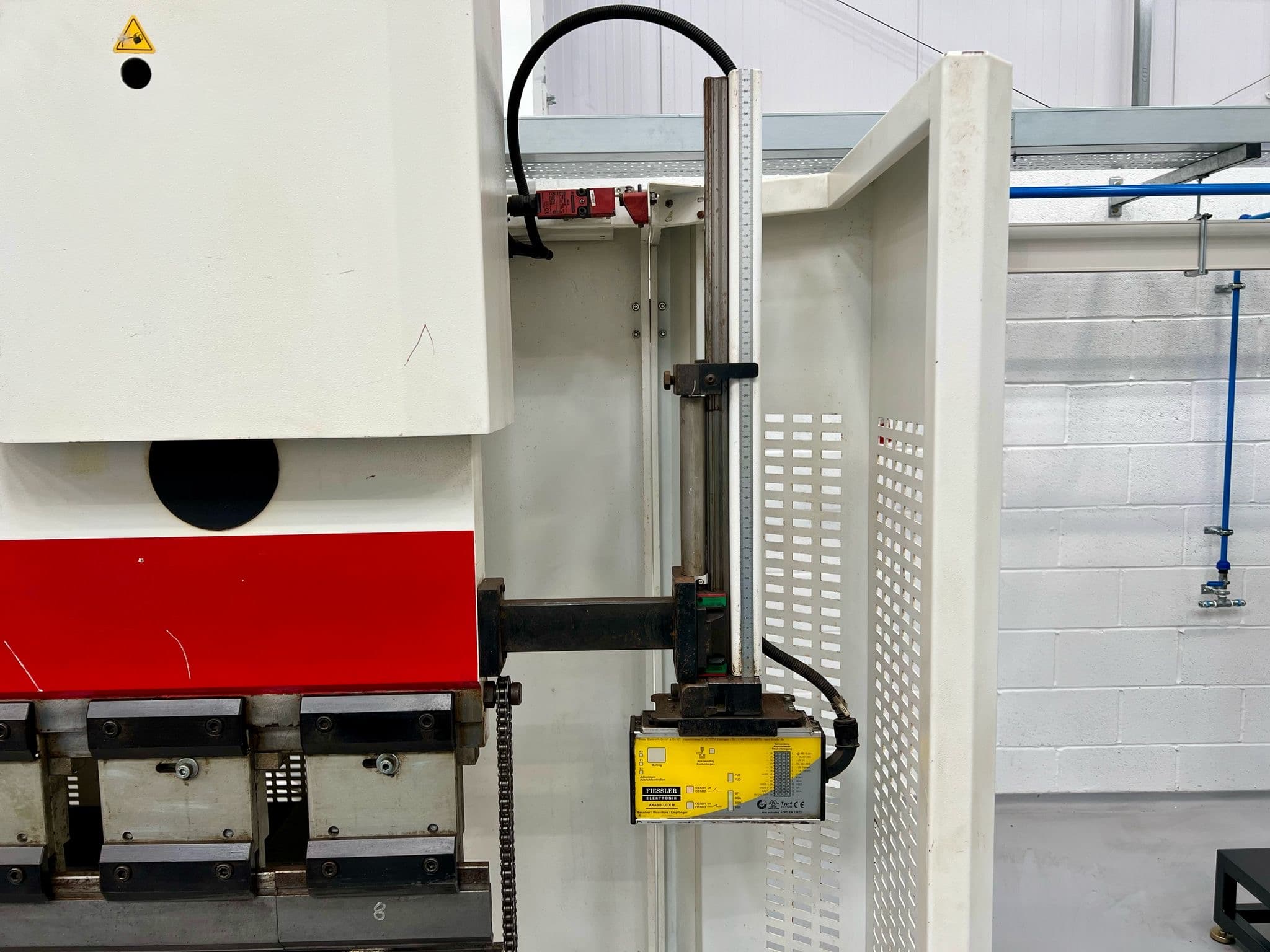

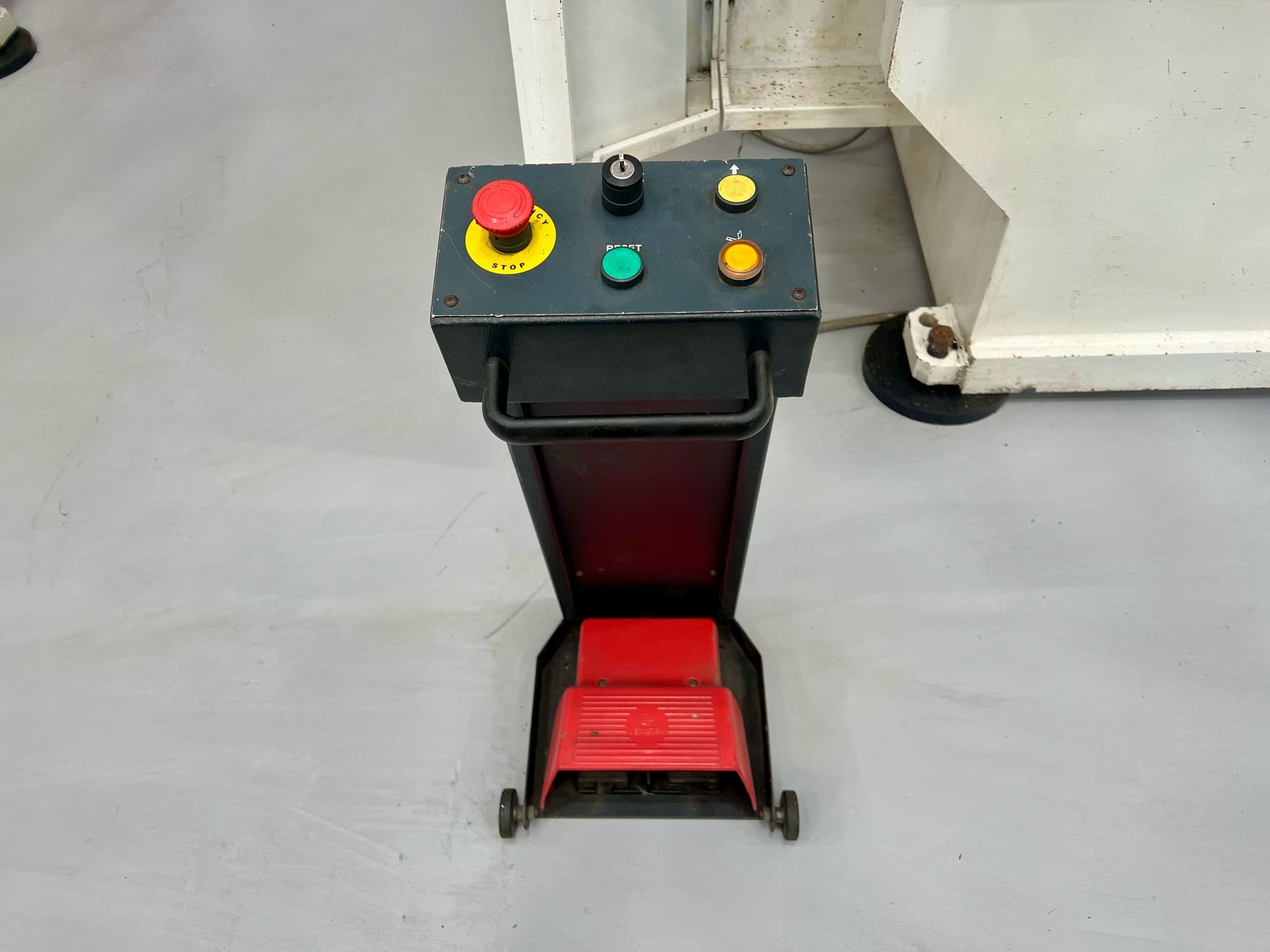

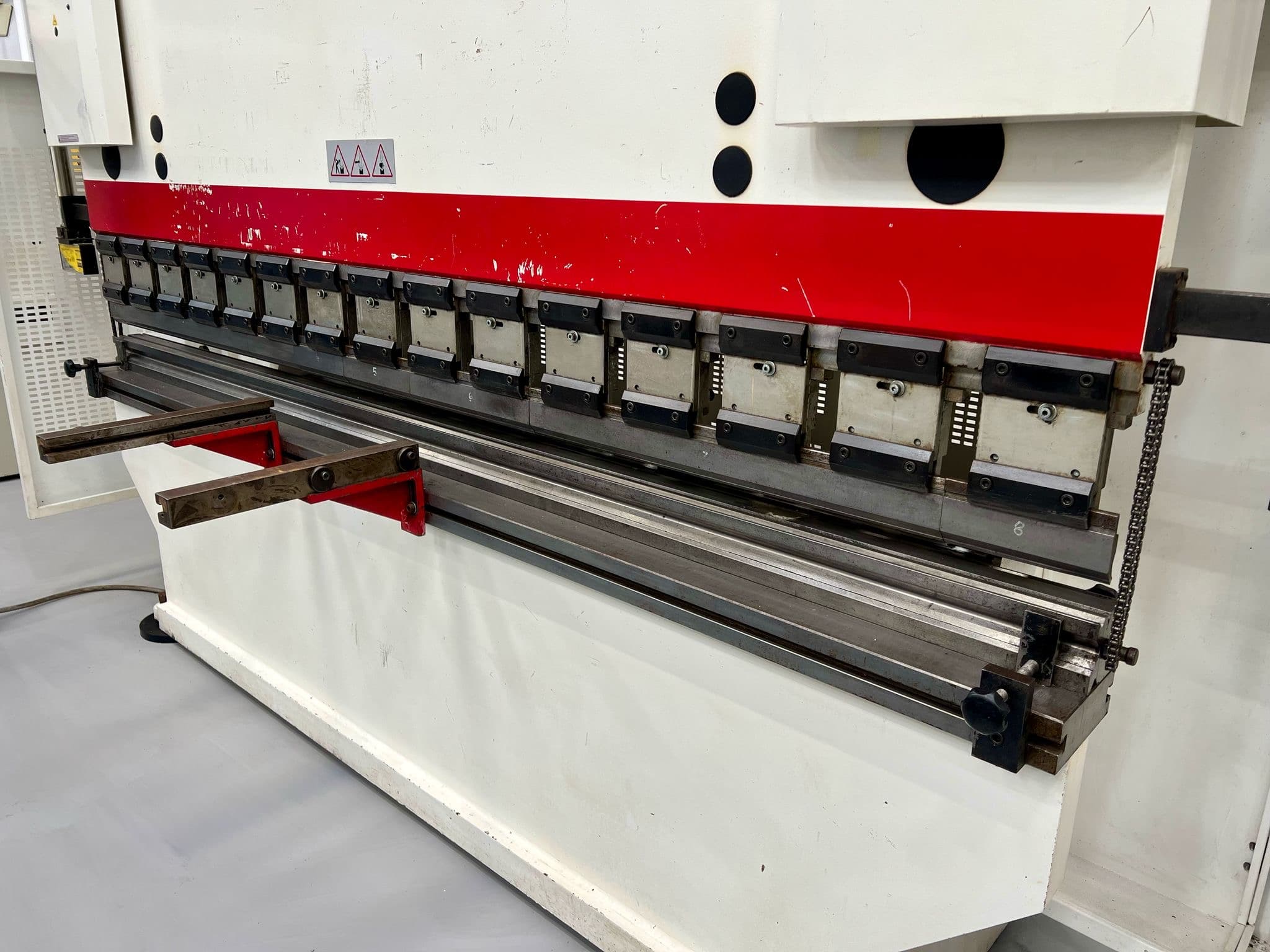

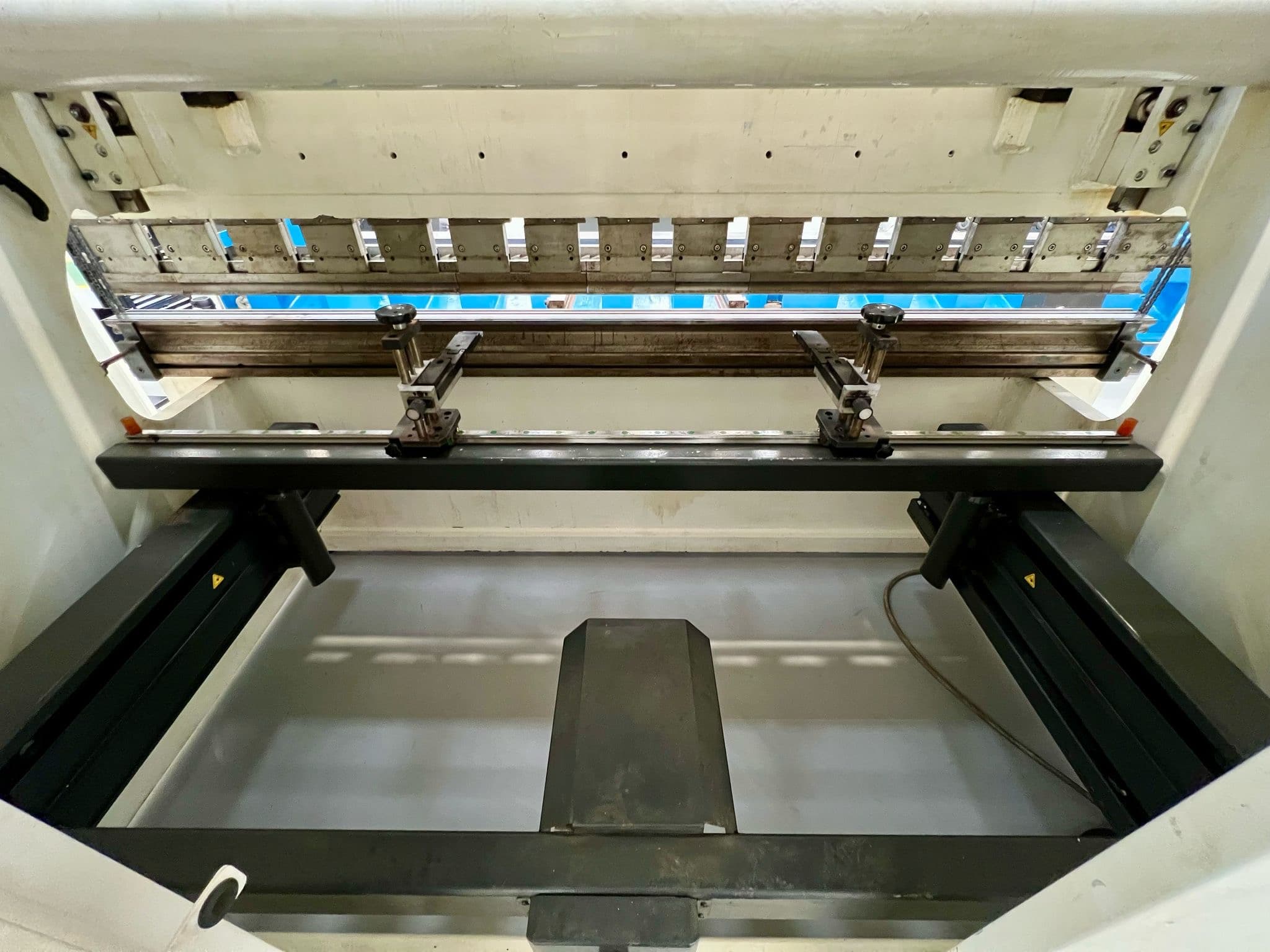

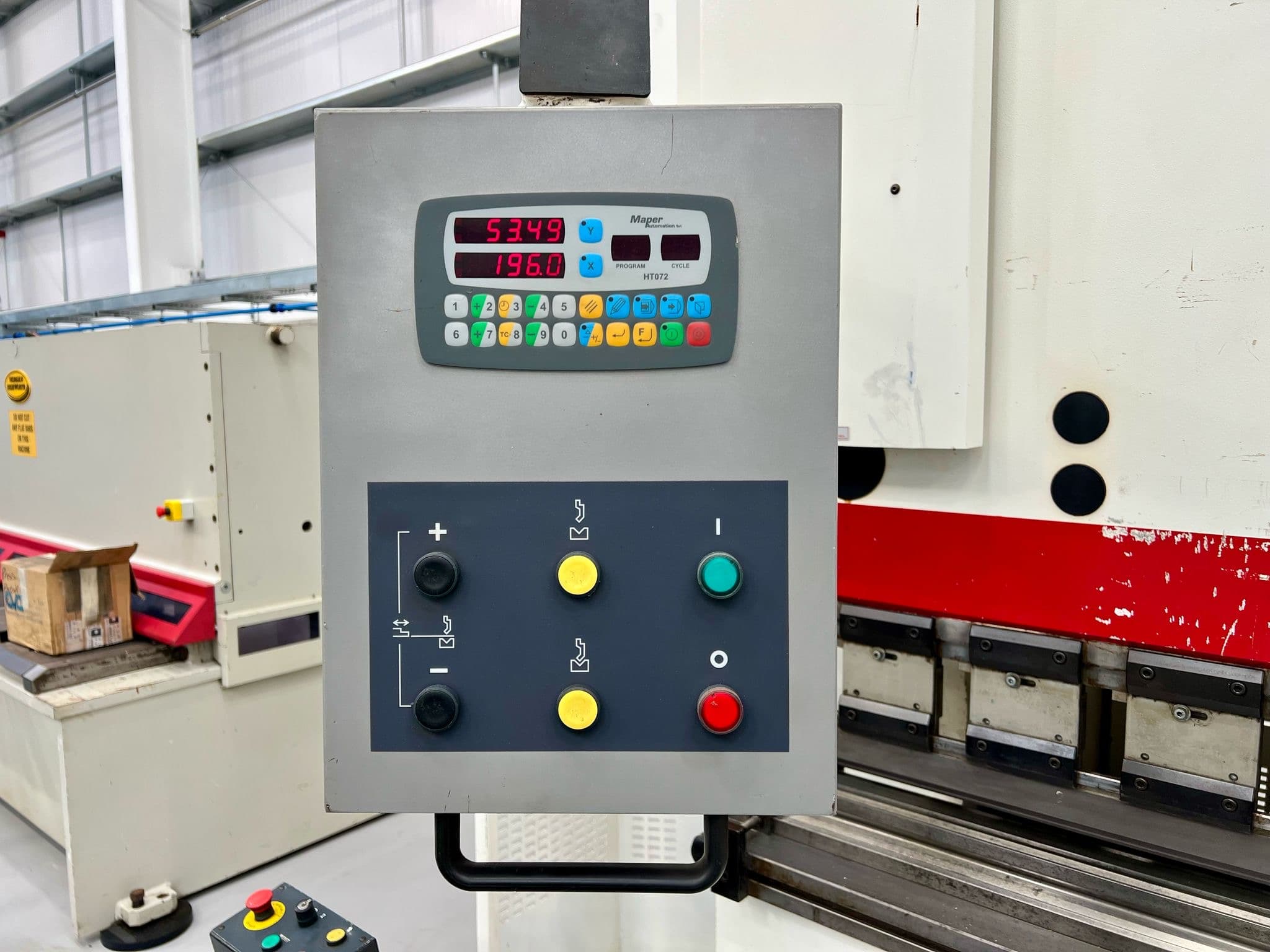

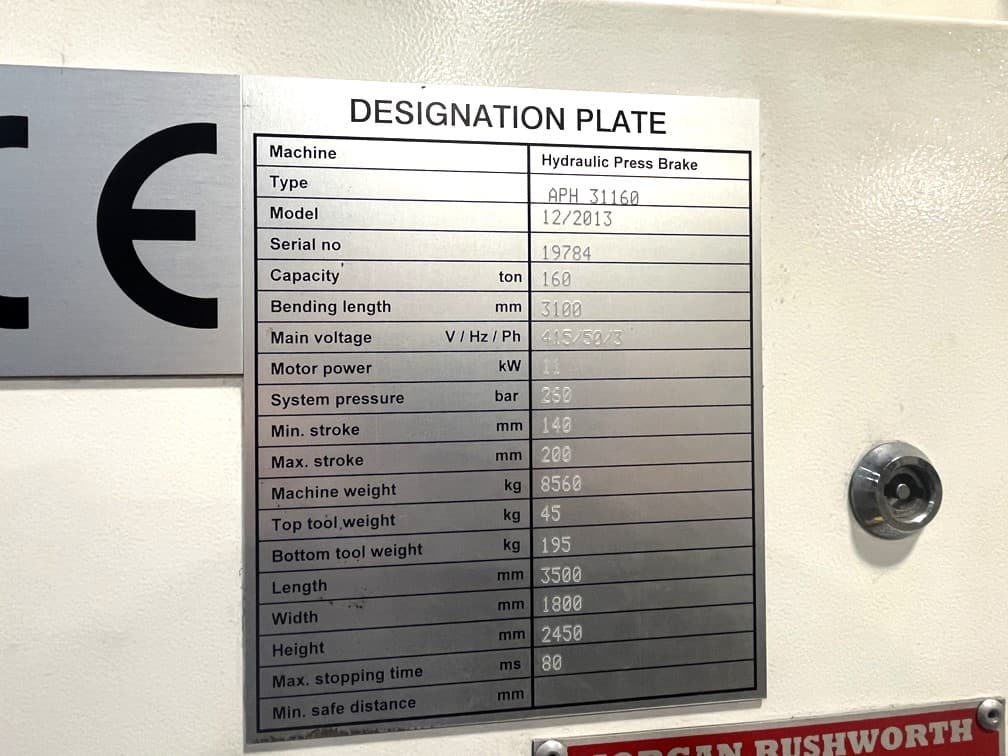

Bending power tonnes 160. Bending length 3100 mm. Distance between columns 2550mm. Y rapid speed 90mm/sec. Y working speed 10mm/sec. Y return speed75 mm/sec. Travel in X axis 750 mm. Hydraulic Oil capacity 180 Litres. Motor power 11kW. Stroke140 mm. Daylight 510mm. Throat depth 310mm. Table height 870mm. Table width 200mm. Pendant Control Unit. Machine dimensions L x W x H 4350mm x 2250mm x 2450mm. Approximate weight 8700 kg. Features: European style top tool holders with wedge adjustment. Standard tooling: Gooseneck top tool and multi-vee bottom tool. Front operated, 750mm ballscrew backgauge with digital readout control (to 0.1mm precision) and two finger-stops with micro-adjustable height. Ram stroke control by precision mechanical-stops built into each cylinder and electrically adjusted by pushbuttons with a digital position display. Independent position control of one cylinder-stop to provide fine angle adjustment and/or conical bending possibility. Pressure switch and gauge to regulate bending tonnage and to prevent overbending due to bottoming of tools. Pre-set, two-speed bending cycle giving fast approach, slow bending and fast return. 3-function footswitch: normal bending, beam pause at any stroke point, automatic beam return upon release of footswitch. Pendant control unit. Hand screw clamps and chains to align and secure bottom die. Two backgauge fingers. Two front support arms.
