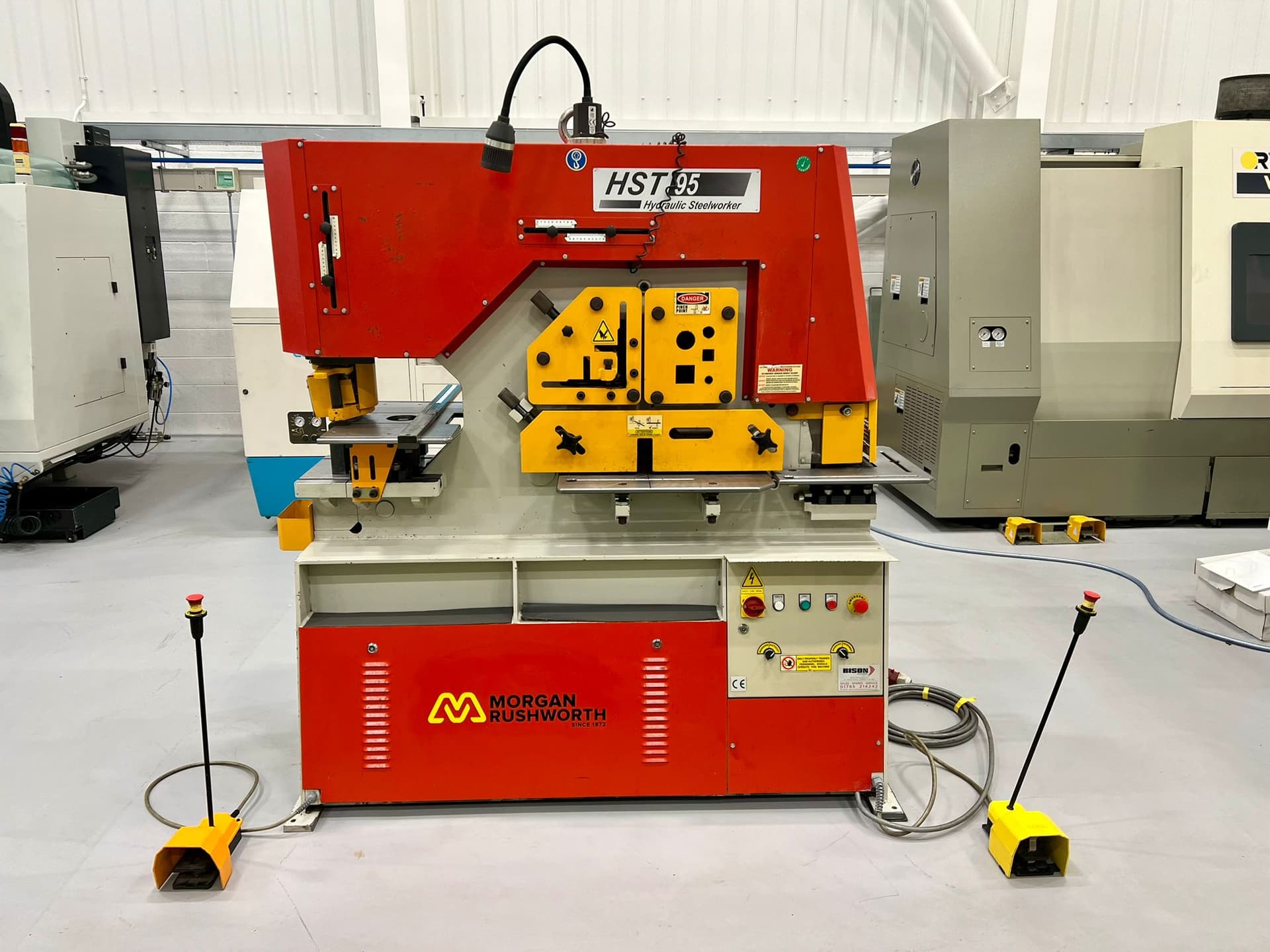

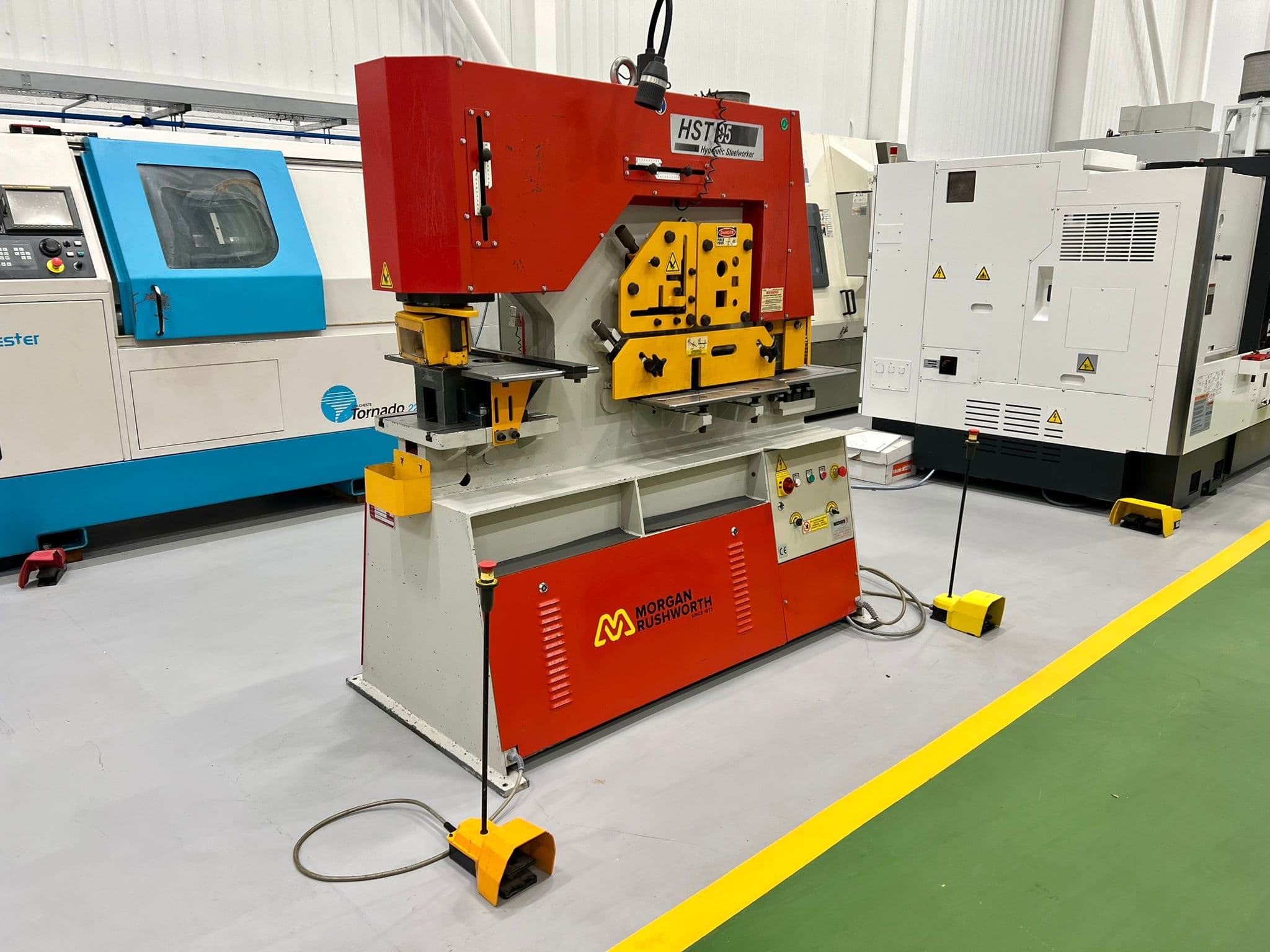

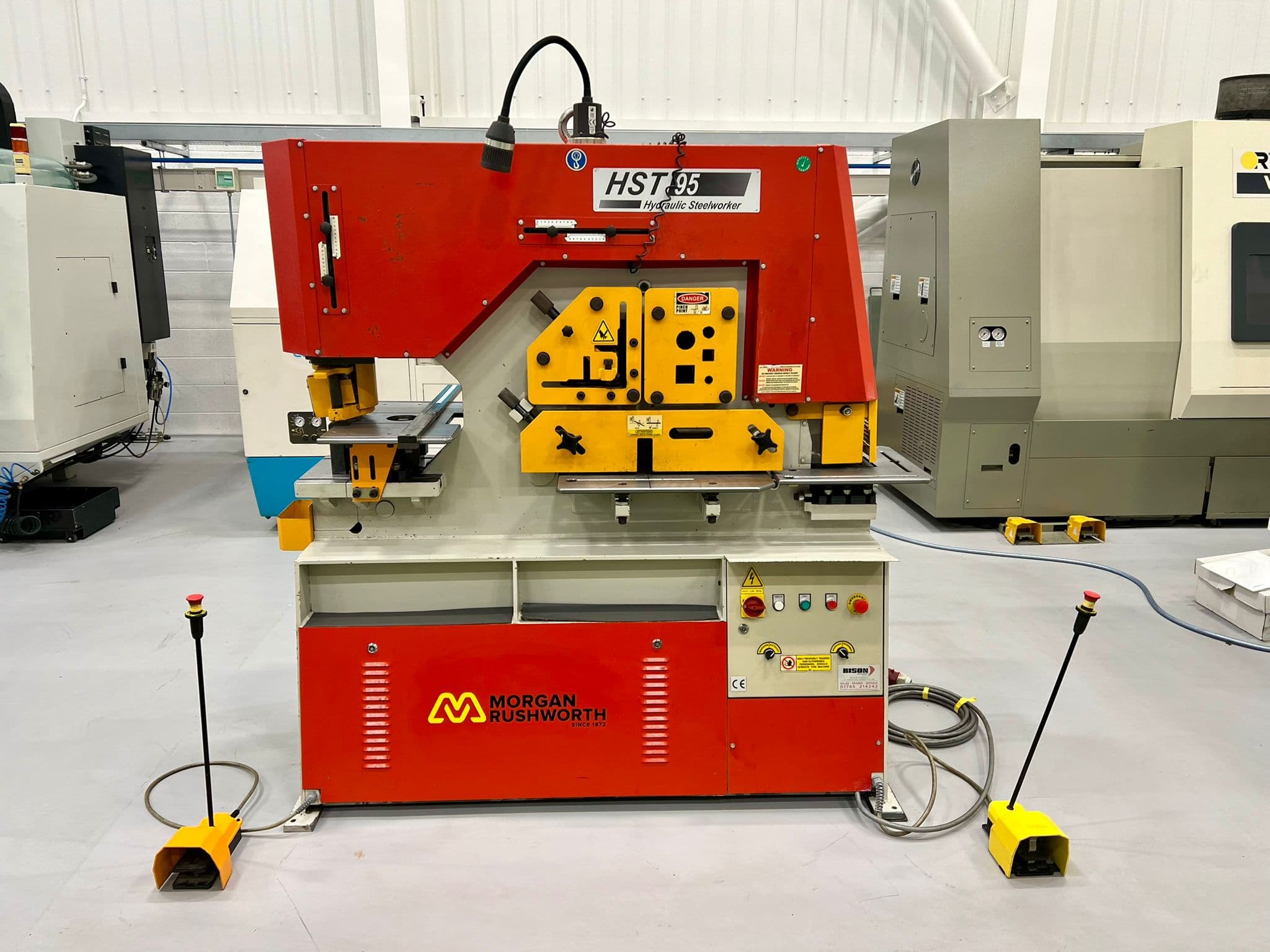

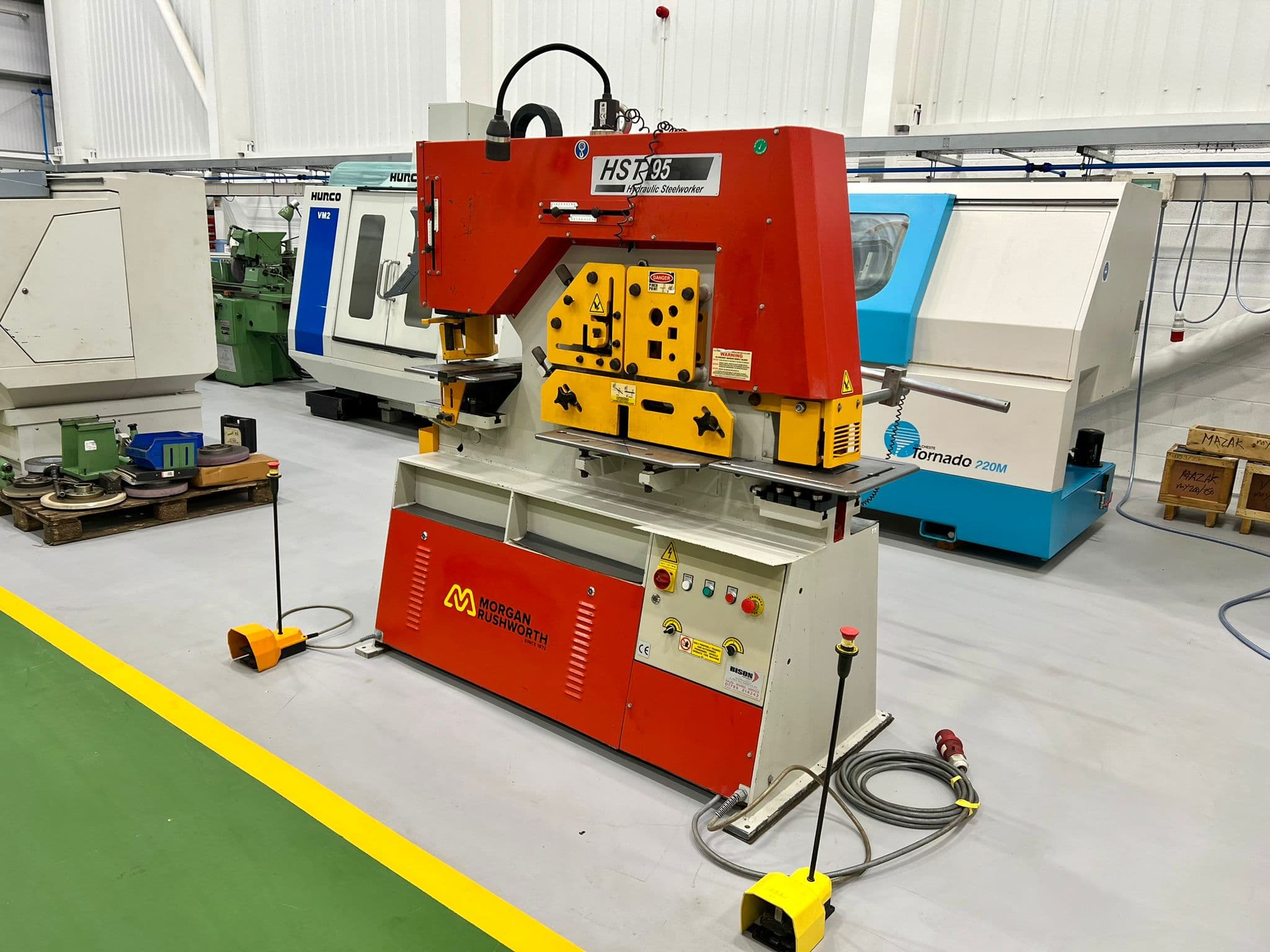

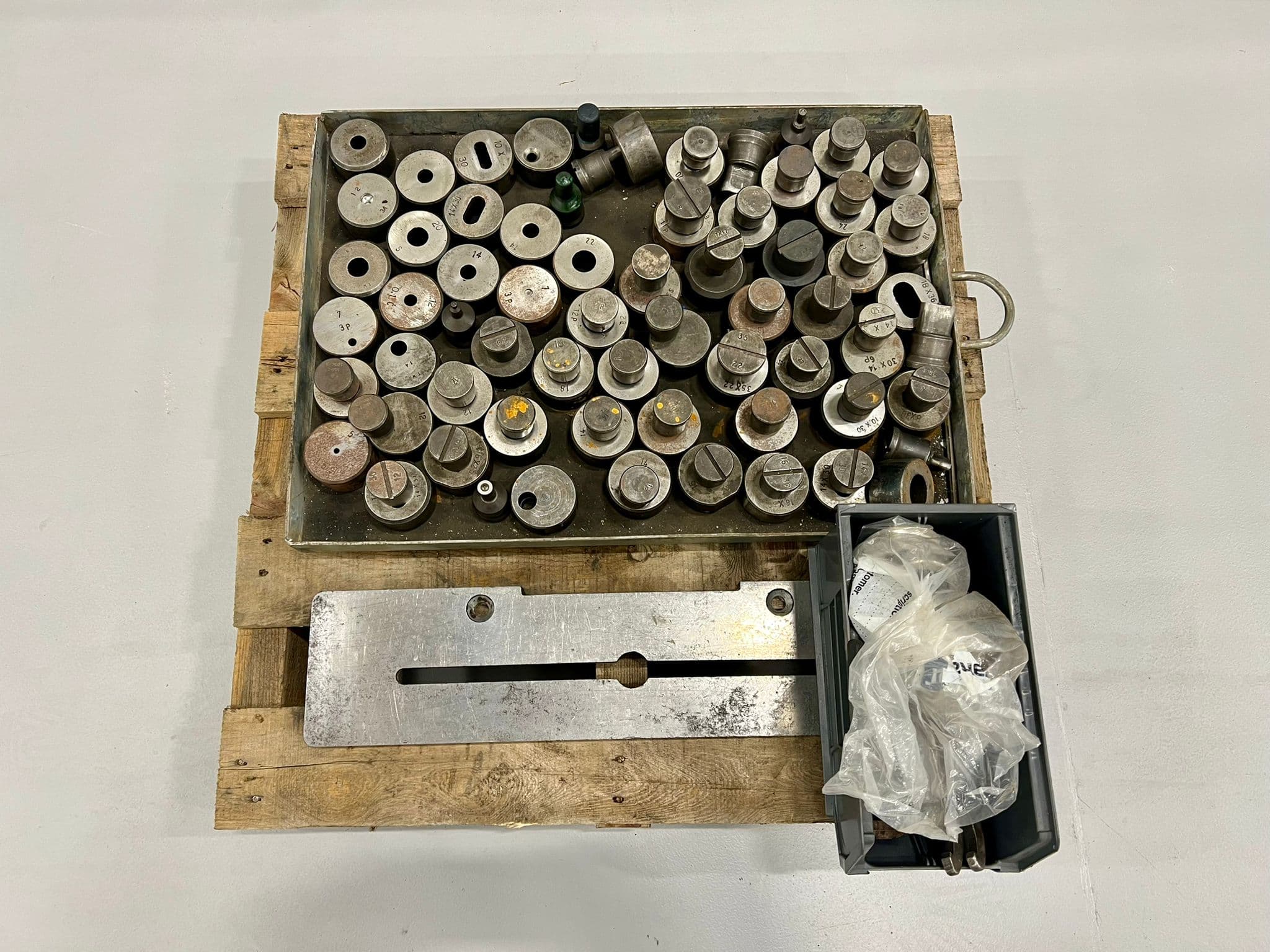

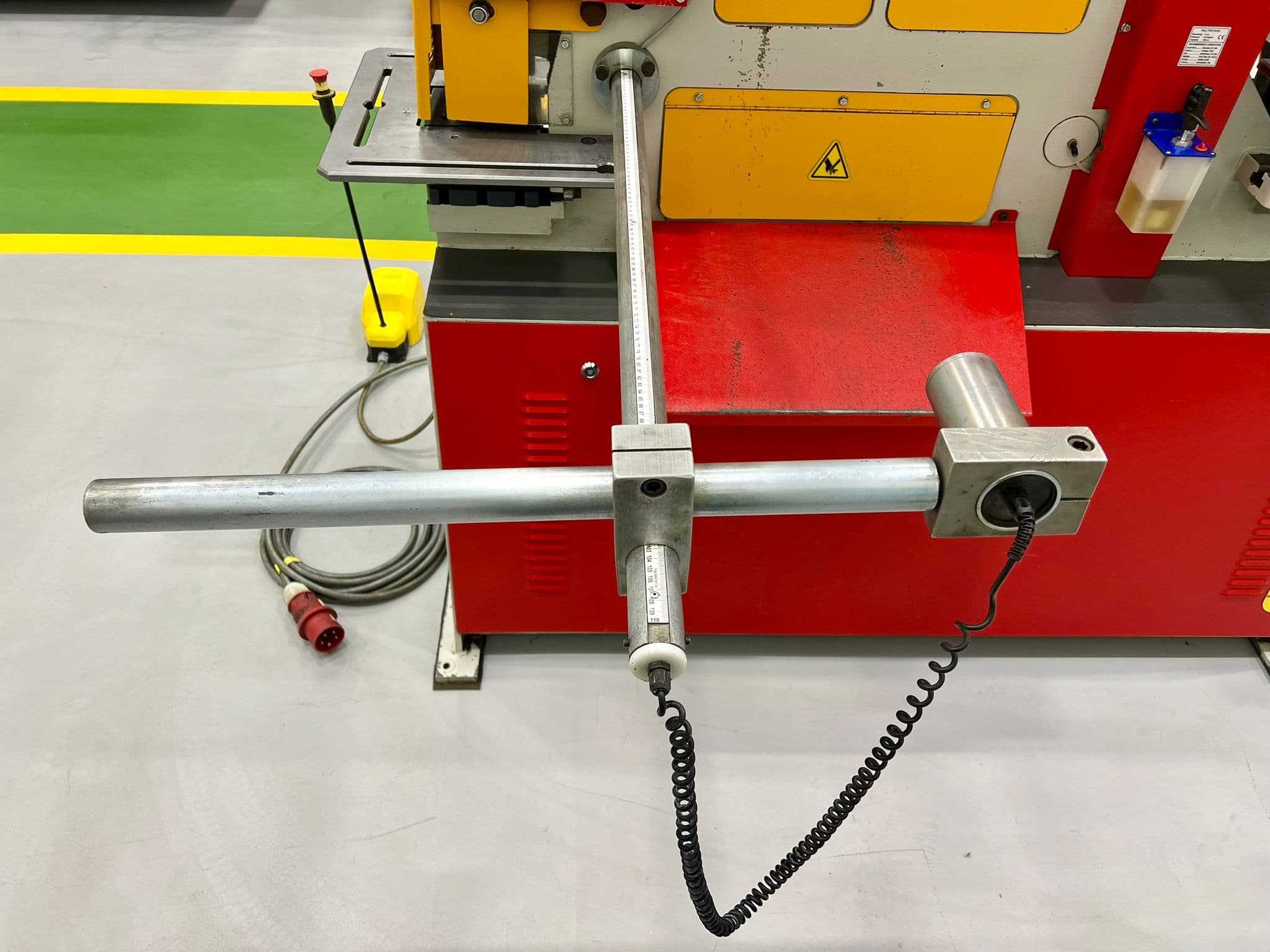

MORGAN RUSHWORTH HST 95 Hydraulic Steelworker with Tooling. Year 2017

Description

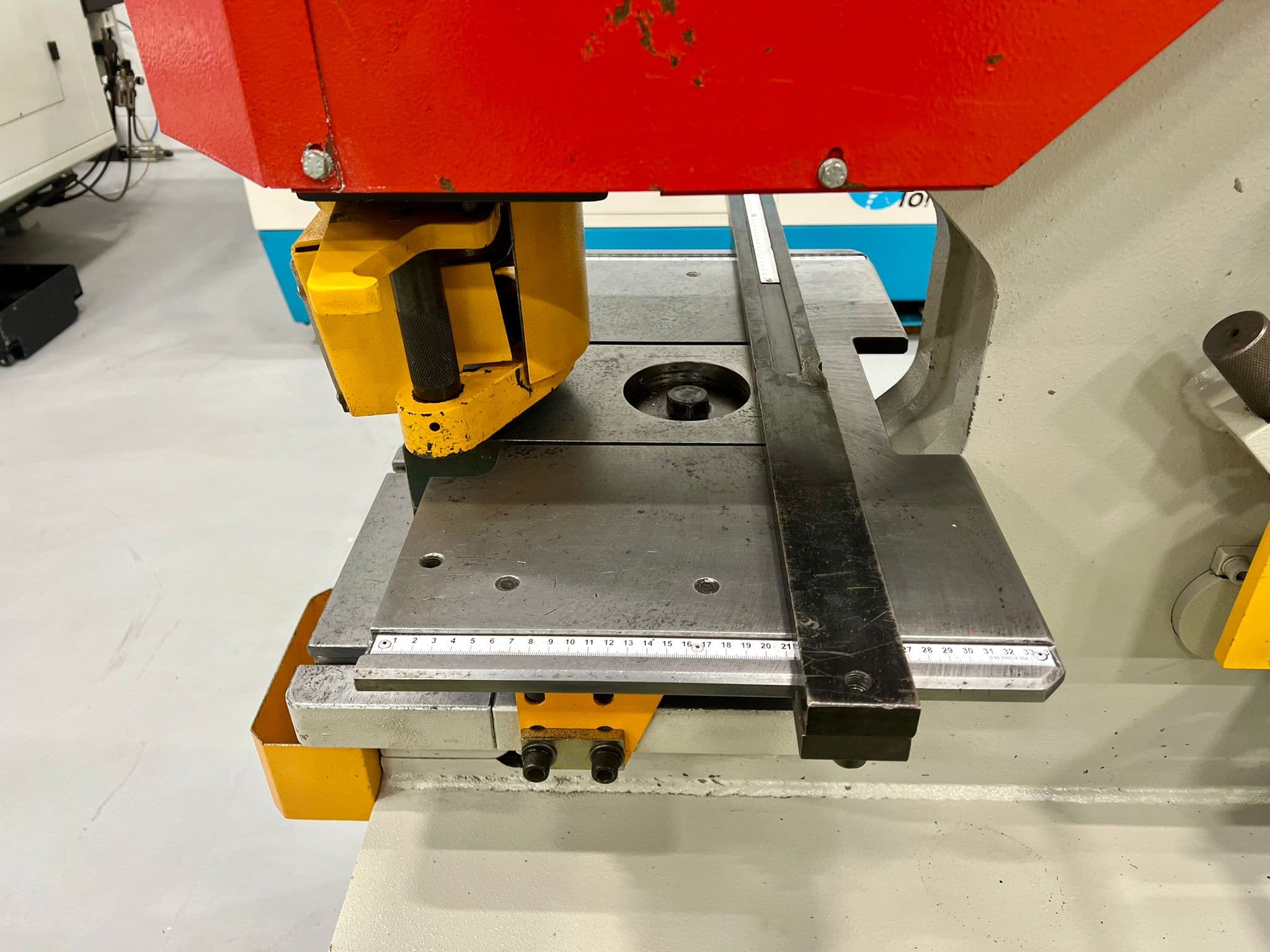

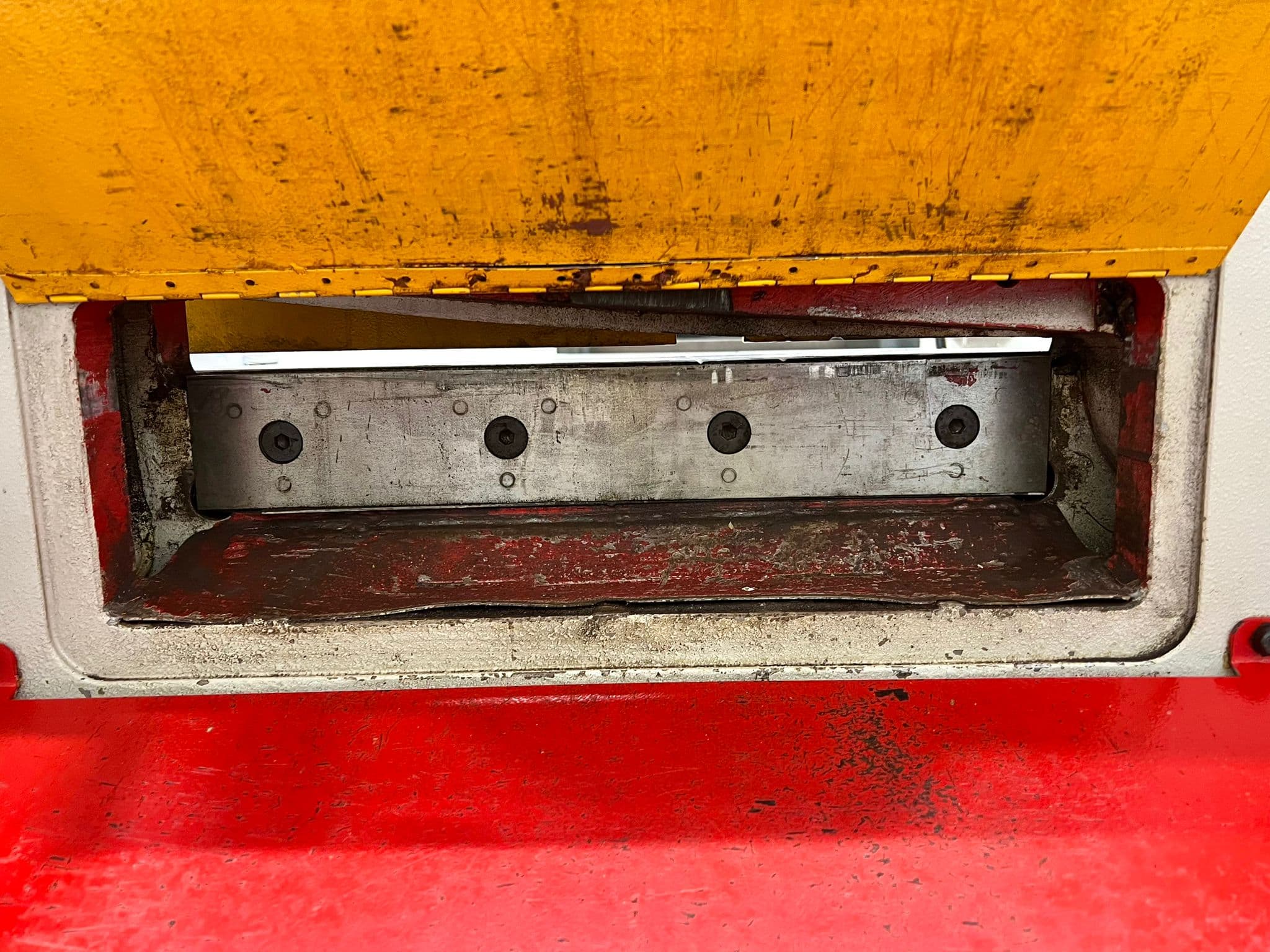

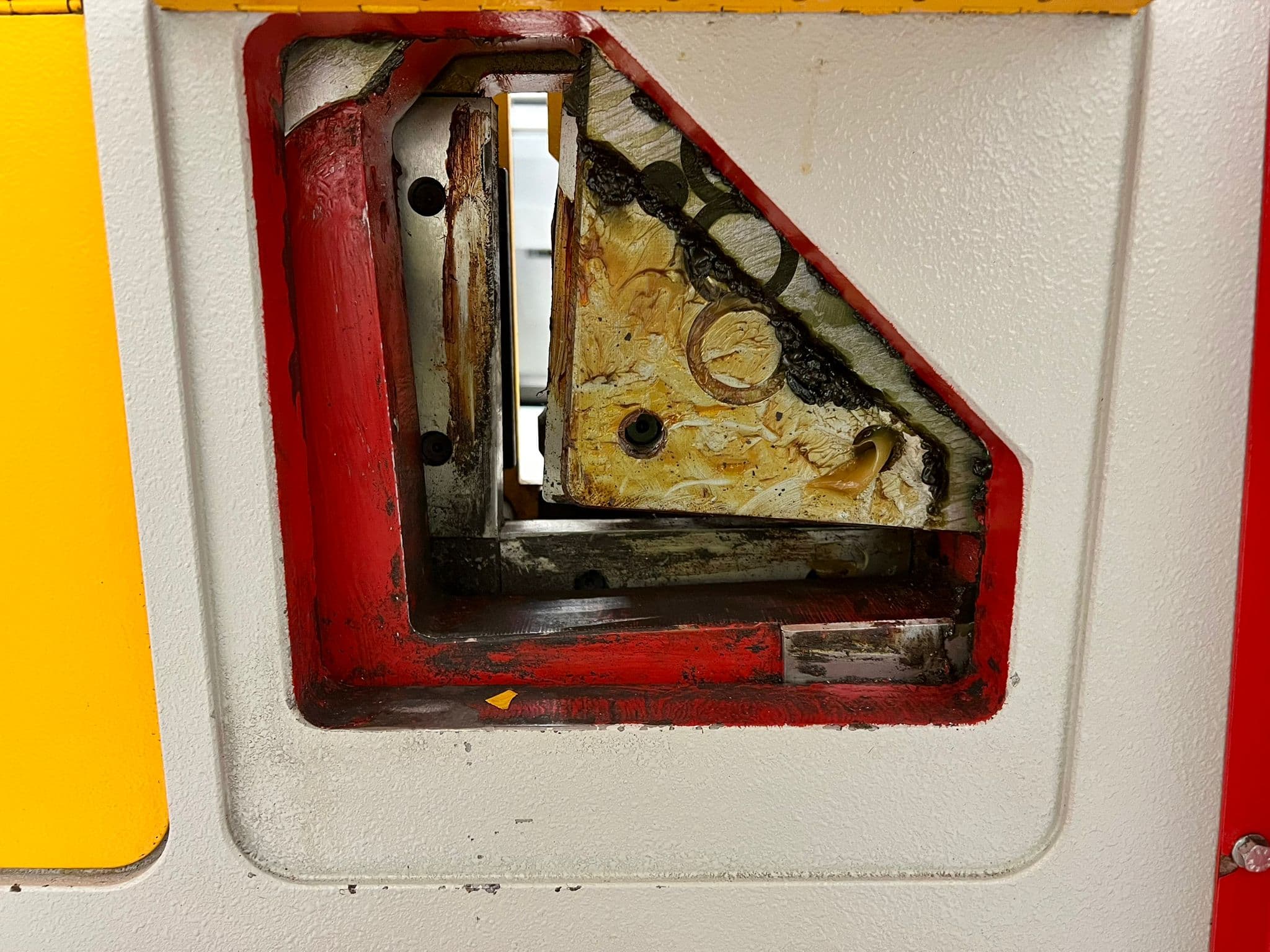

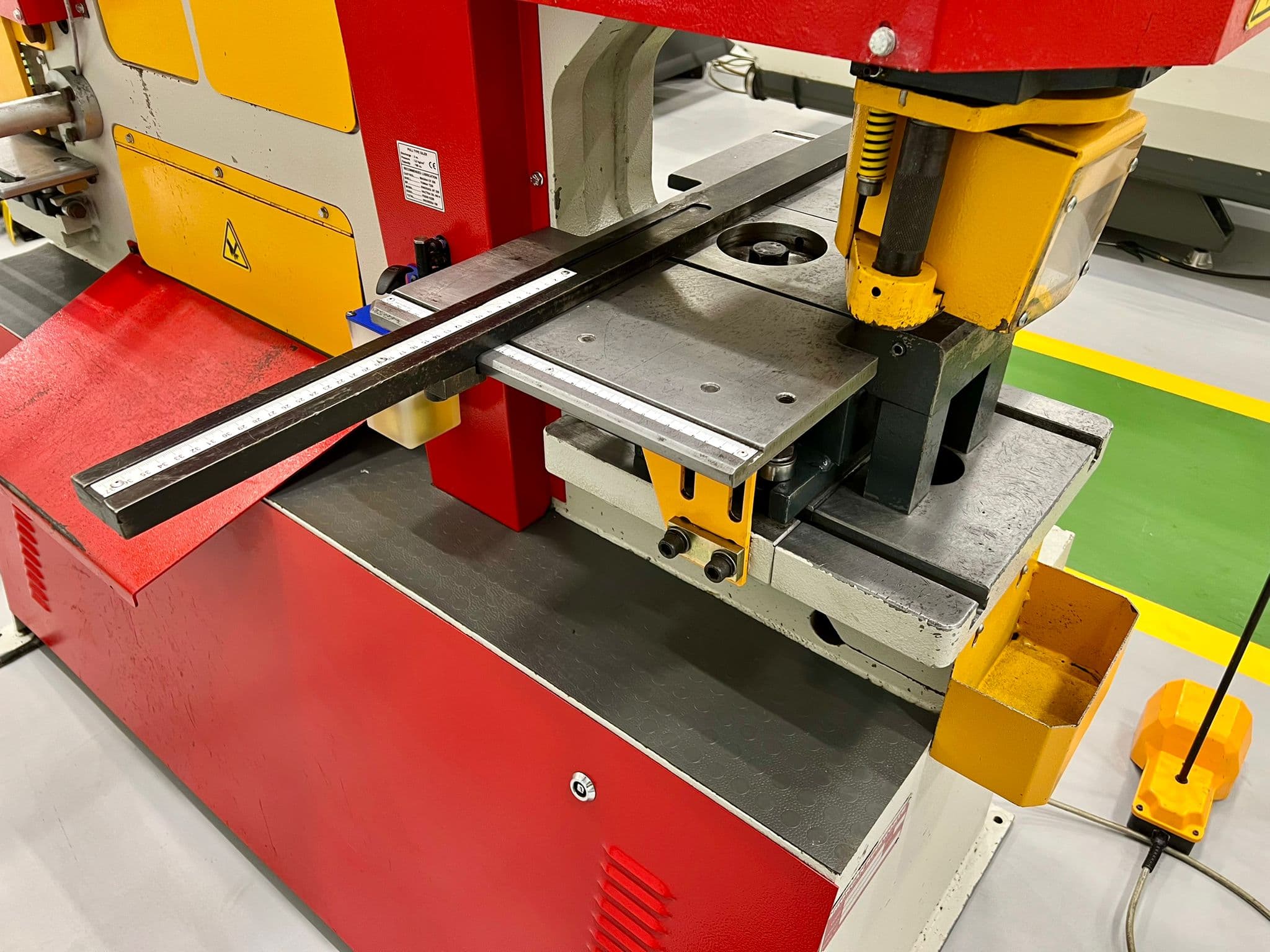

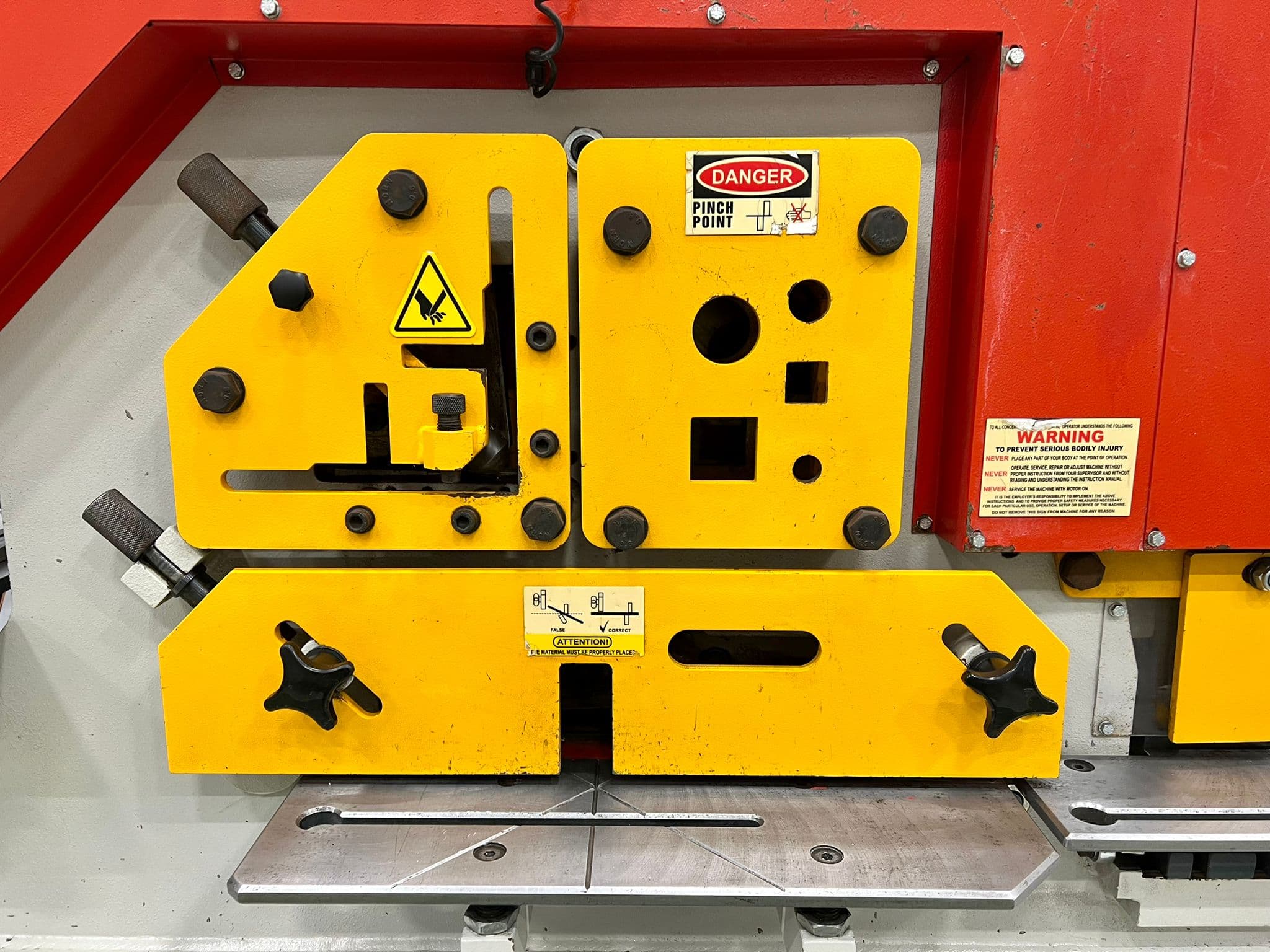

Punching:Diameter x Maximum Thickness 33mm x 20mm. Maximum Diameter x Thickness mm 57mm x 12mm. Stroke Length 80mm. Throat Depth 355mm. Largest Hole Diameter standard 57mm. Largest Hole Diameter – Optional 160mm.Shearing:Flat Bar – Width x Maximum Thickness 380mm x 20mm. Flat Bar – Maximum Width x Thickness 480mm x 15mm. Angle Flange Trim – Max 45º 120mm x 15mm.Angle Cutting:90º Cut 150mm x 15mm. 45º Mitre (True Int./Ext.) 80mm x 8mm.Section Cutting:Round/Square 50mm. Channel/Beam – (Optional) 160mm x 74mm.Notching:Material Thickness 13mm. Width – Rectangle 52mm. Depth – Rectangle 100mm. Depth – Vee 70mm. Motor Power 7.5 kW.Machine dimensions L x W x H 1920mm x 790mm x 1910mm. Approximate weight 2430 kg. Tee – (Optional):100mm x 11mm. Tube Notch (Optional): Maximum Outside Diameter 108mm.Bending (Optional):Bar Bending – Maximum Capacities 250mm x 20mm. Sheet Bending – Maximum Capacities mm 500mm x 3mm.Punching at Notch Station (Optional):Throat Depth mm 125.Maximum Capacity – Diameter x Thickness 38mm x 10mm.Features include:PUNCH STATION: Easy tool change system and swing away stripper with fast manual adjustment ensure a quick setup.ANGLE STATION: This station provides large capacity angle cutting at 90º and 45º. Angles between 45º and 90º can be achieved by first cutting at 90º and then flange trimming to the required angle in the shearing station.SECTION CUTTING STATION: The machines are fitted as standard with blades for cutting round and square bars. With extra equipment, the machines are able to cut, inthis aperture, channel, joist, T-sections and many other special profiles.NOTCHING STATION: The notching station is fitted with a table with adjustable back stops allowing repetitive positioning.SHEARING STATION: The shearing unit is fitted with a simple robust hold down which is adjustable to any thickness of material within the cutting capacity of the machine. The shear feed table with adjustable guides is fitted to allow accurate feeding of materials. The guide can be adjusted to allow mitre cutting up to 45º for flat bars or to trim the flanges of angle.AUTO CROP RULED LENGTH STOP:  Standard 1m stop with automatic shearing bypassing the foot switch for production applications. Can be used on all shear stations.Available in 2m and 3m options.
