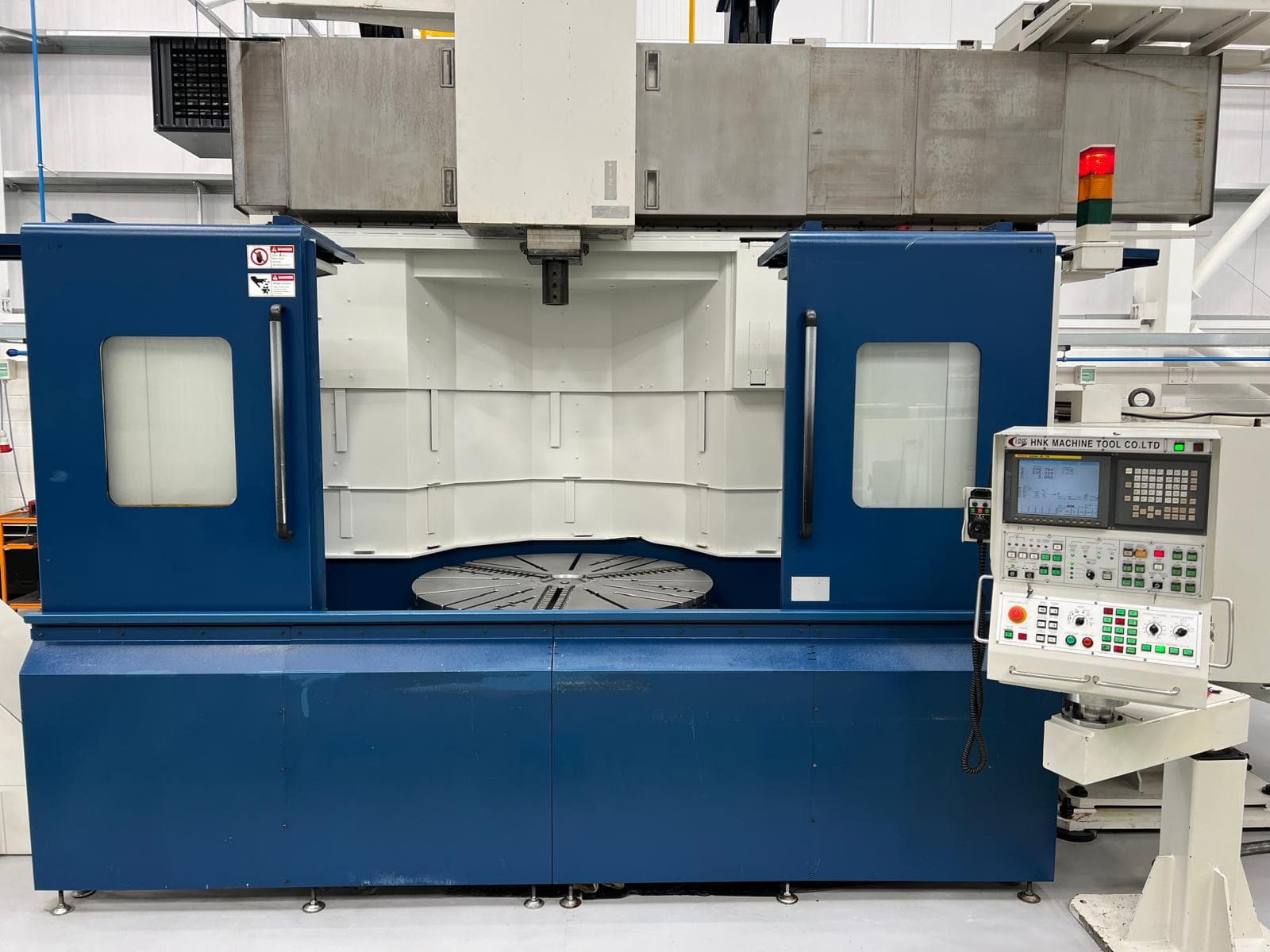

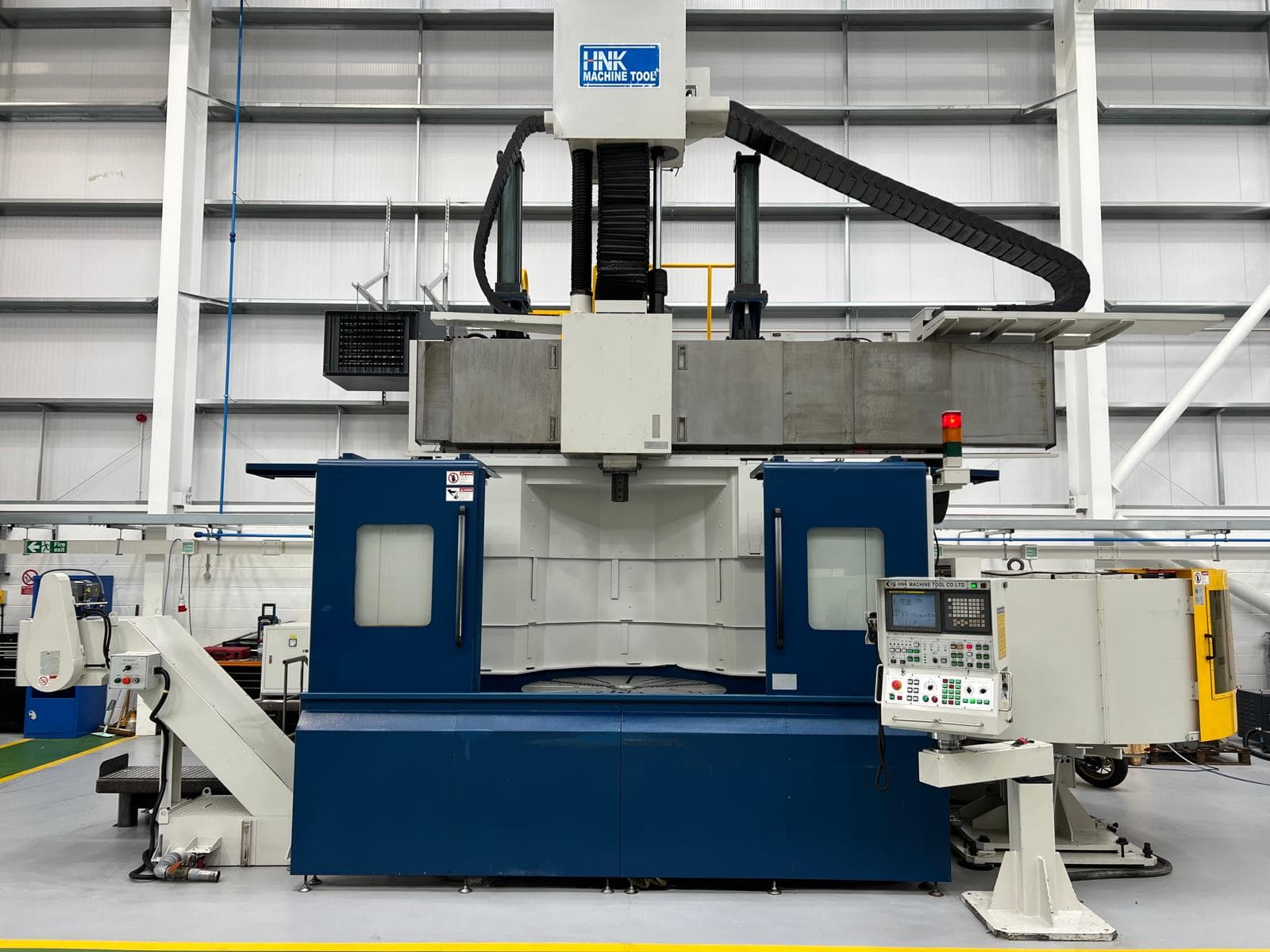

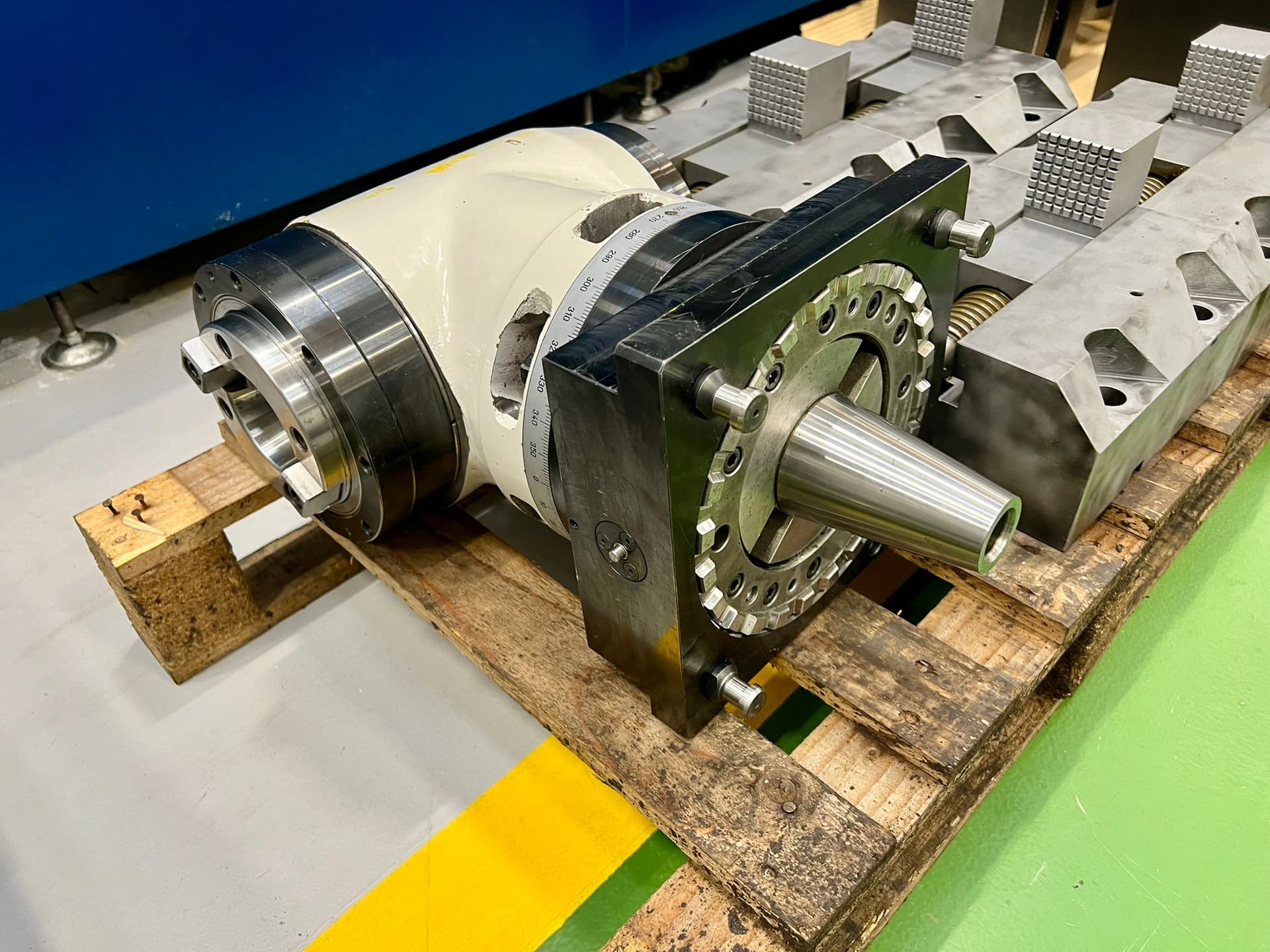

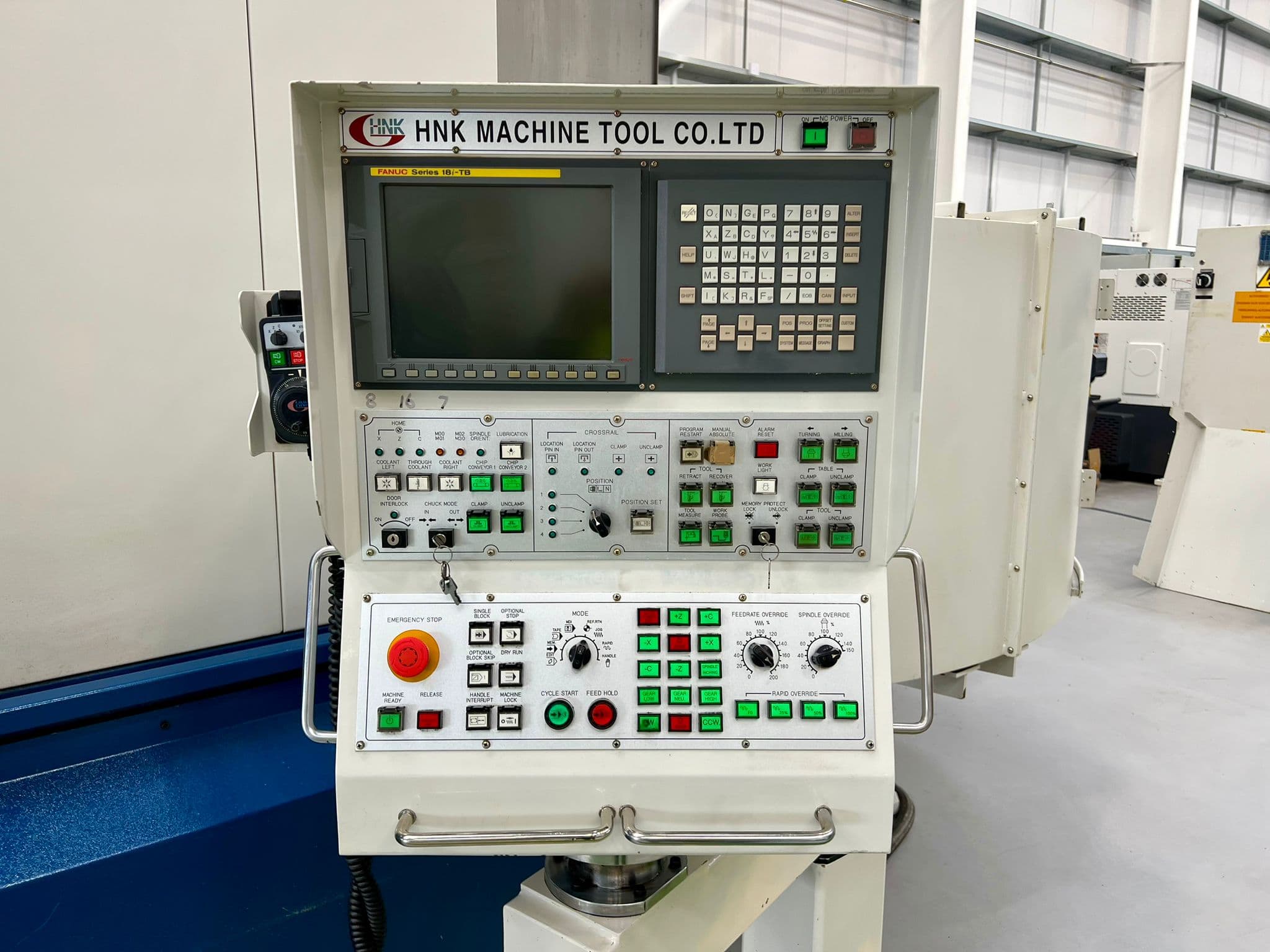

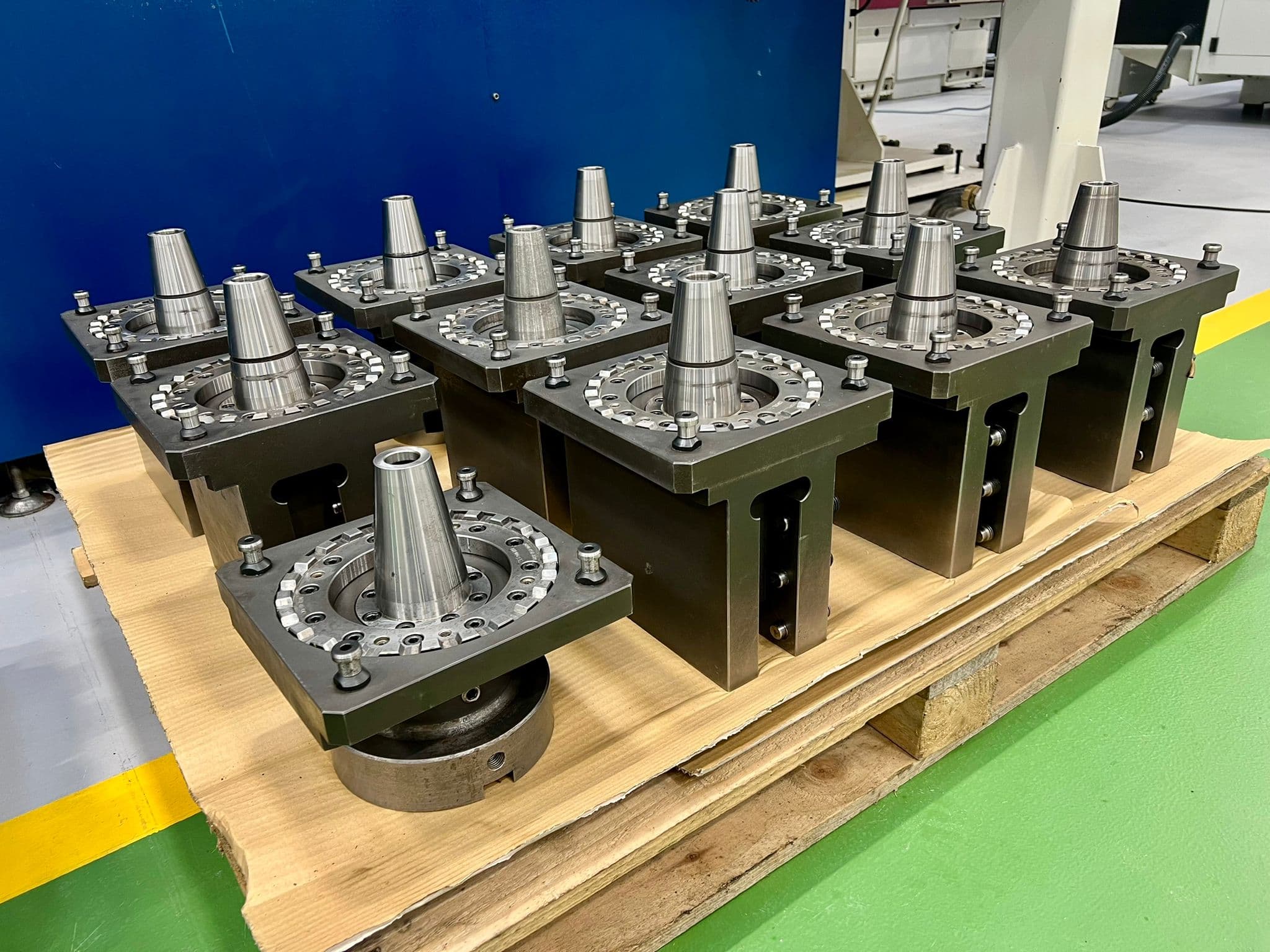

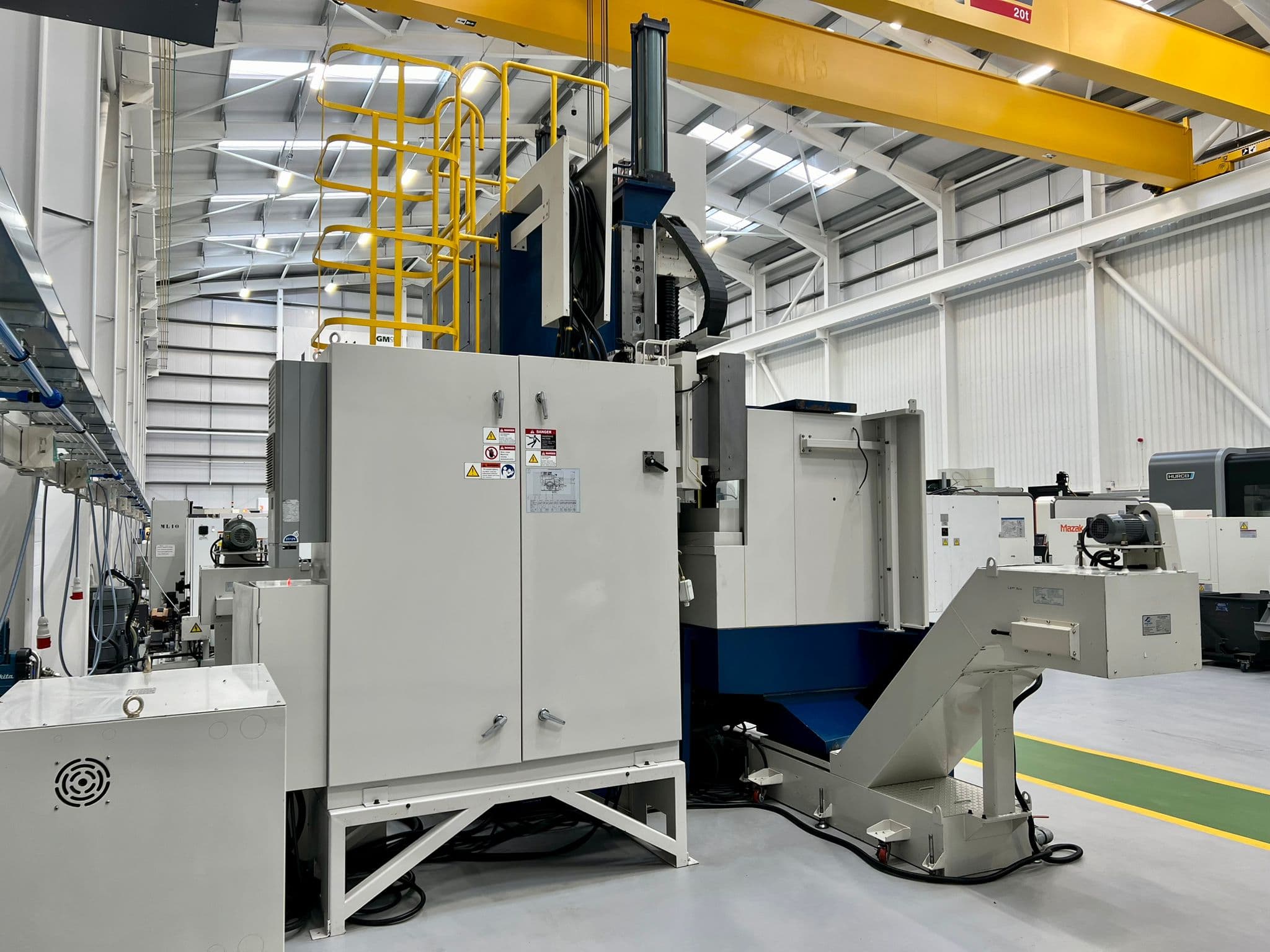

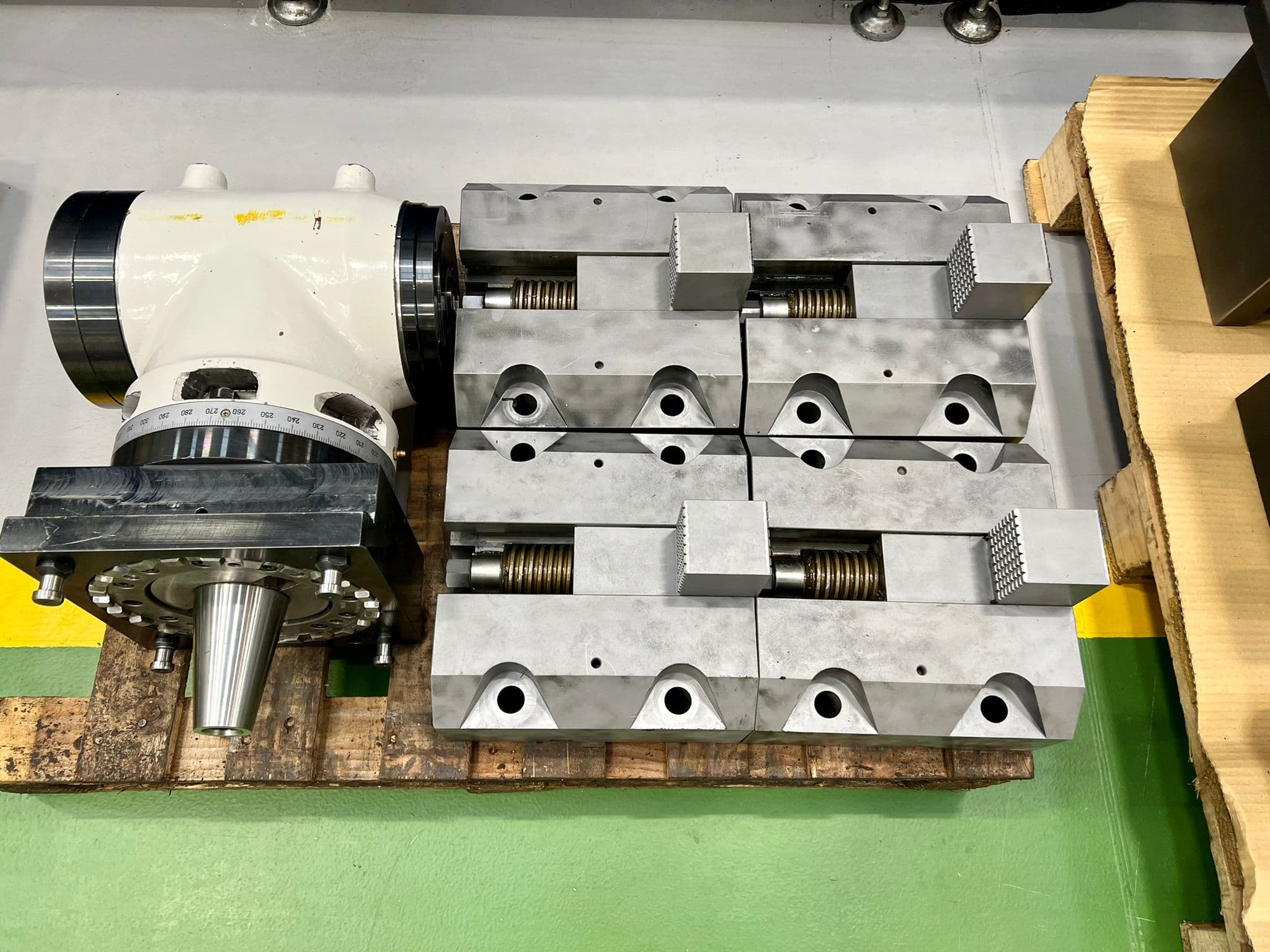

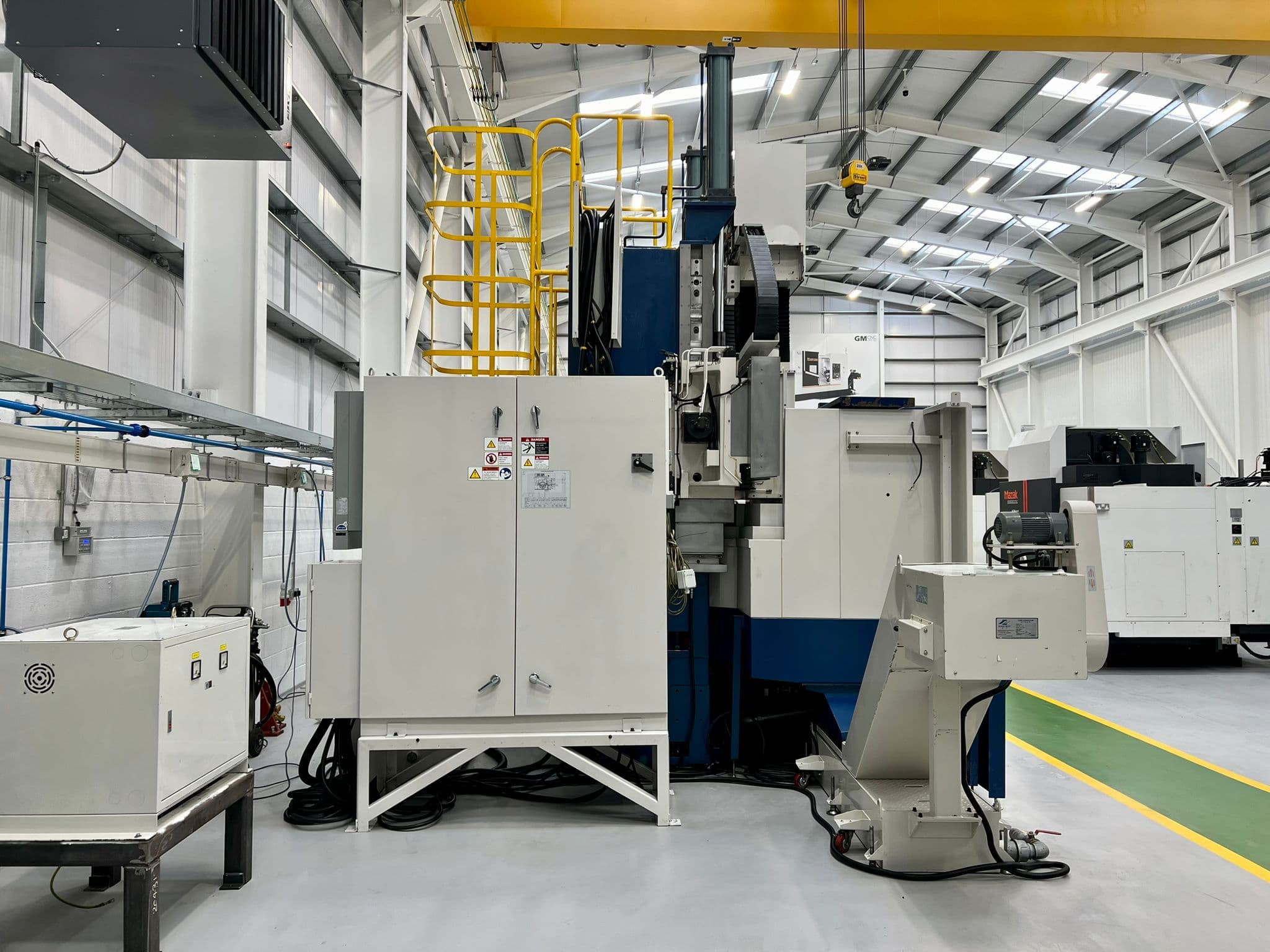

HNK Model VTC14/16 Vertical Turning Centre with C Axis, Live Spindle, Driven Tooling, Universal Milling Attachment. Fanuc 18i-TB Control. Year 2011.

Description

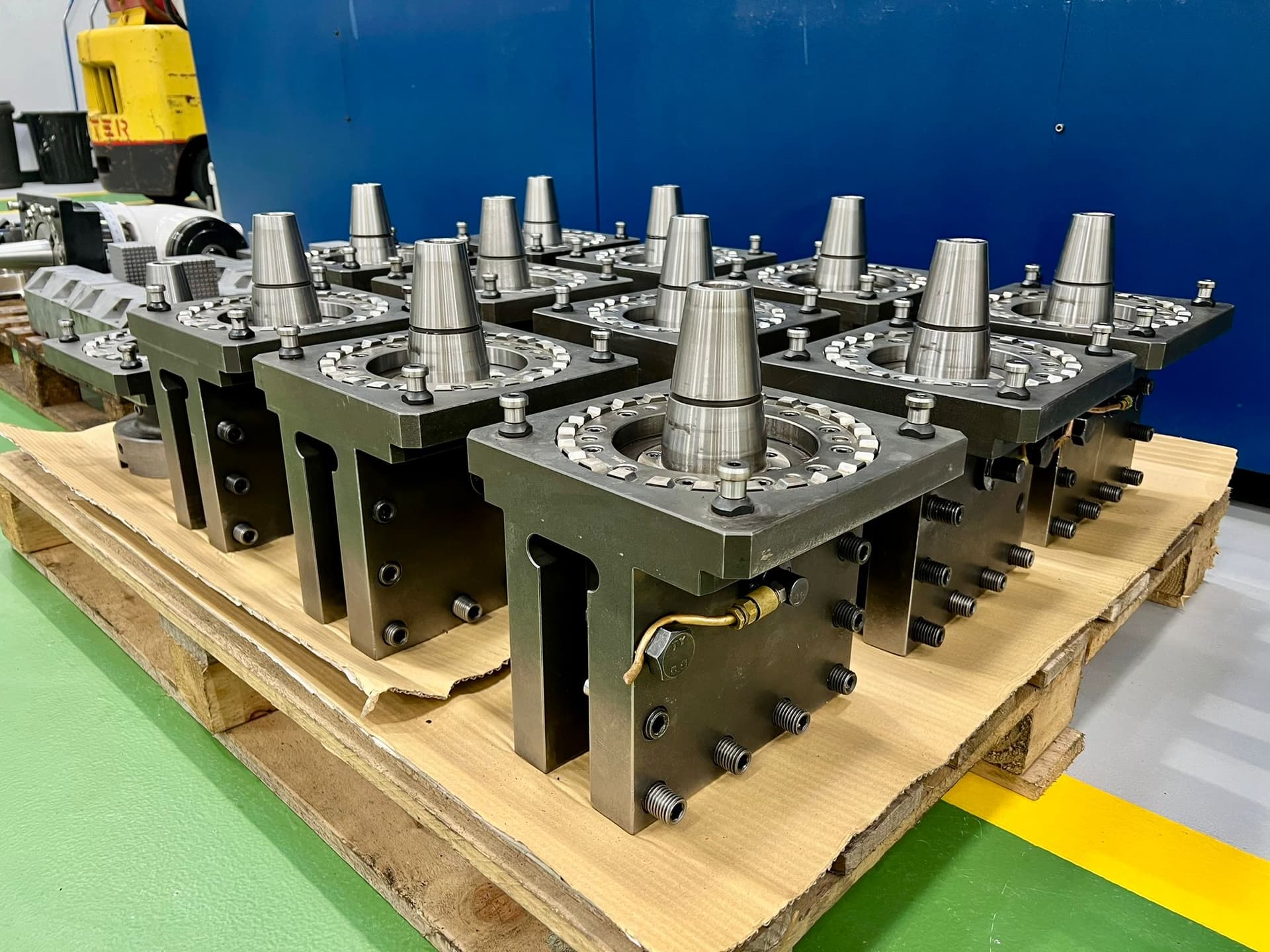

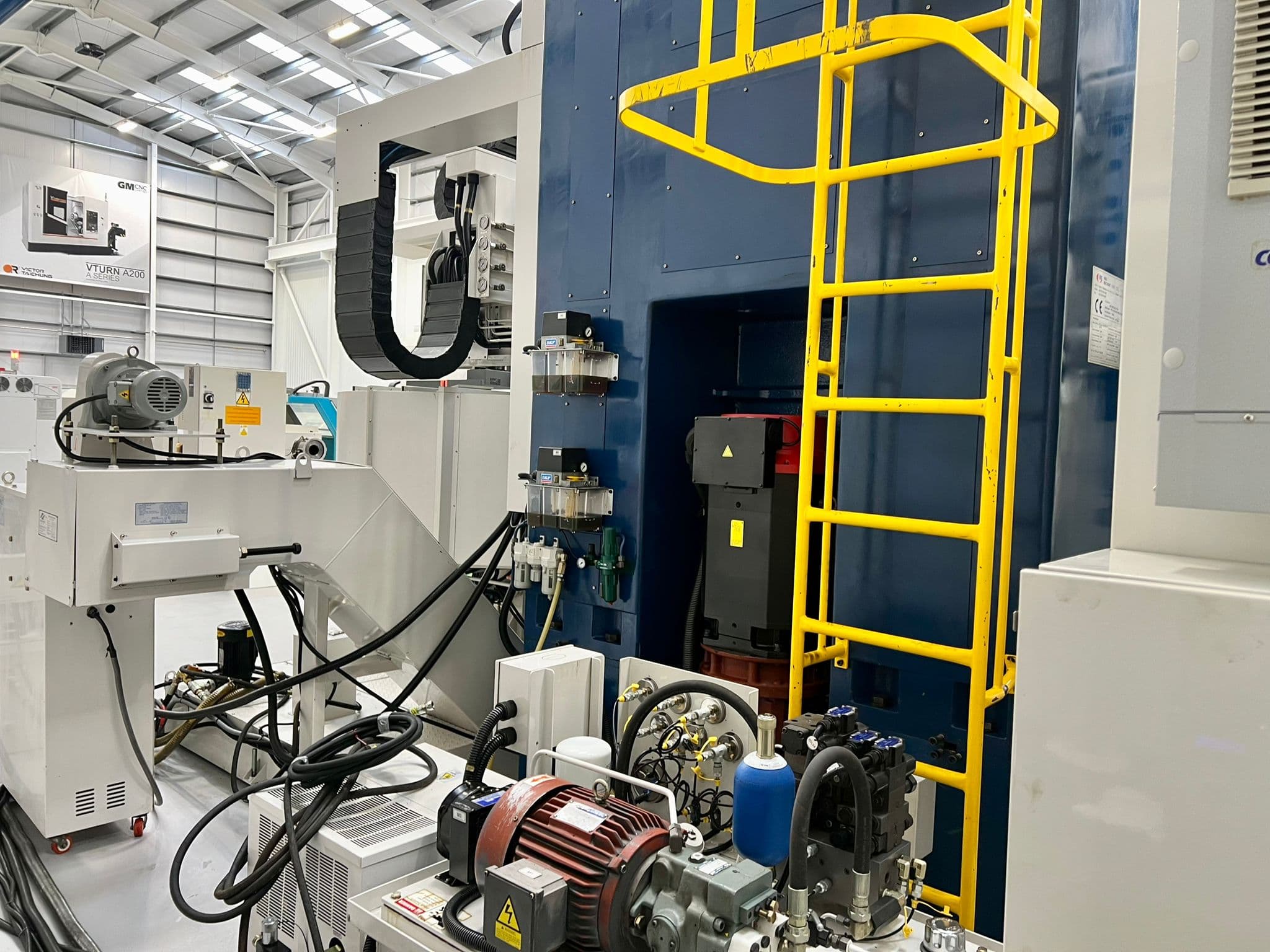

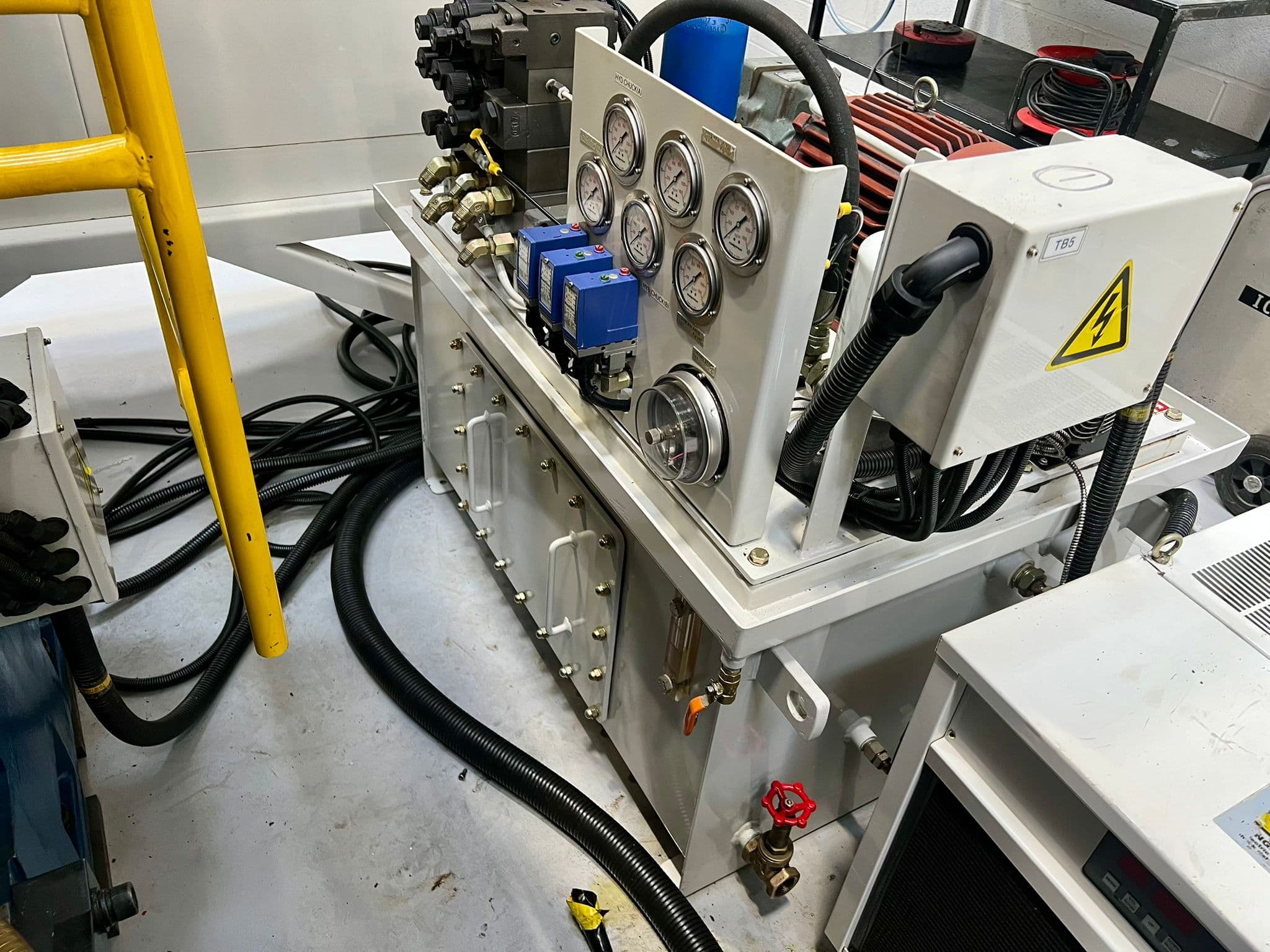

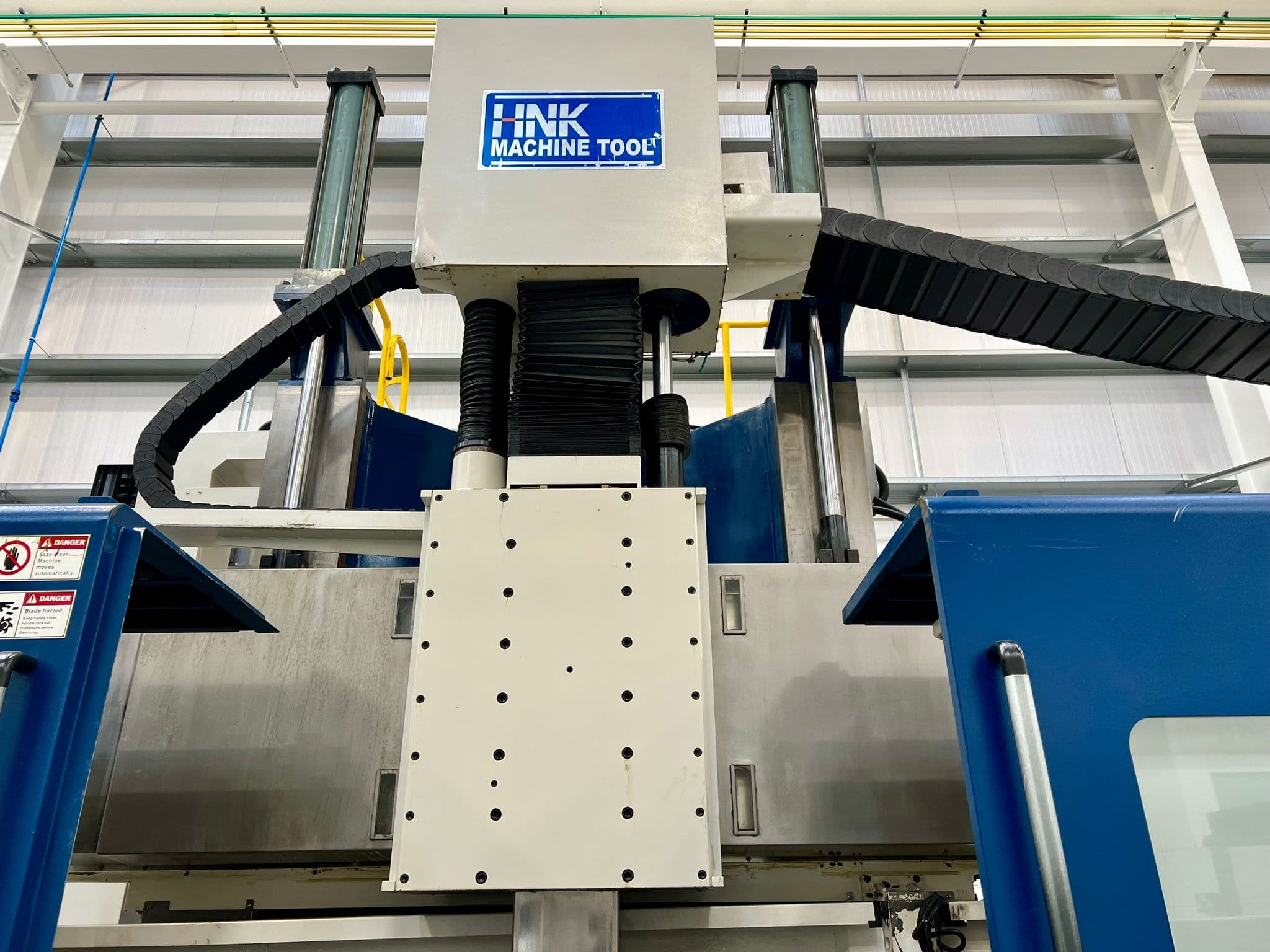

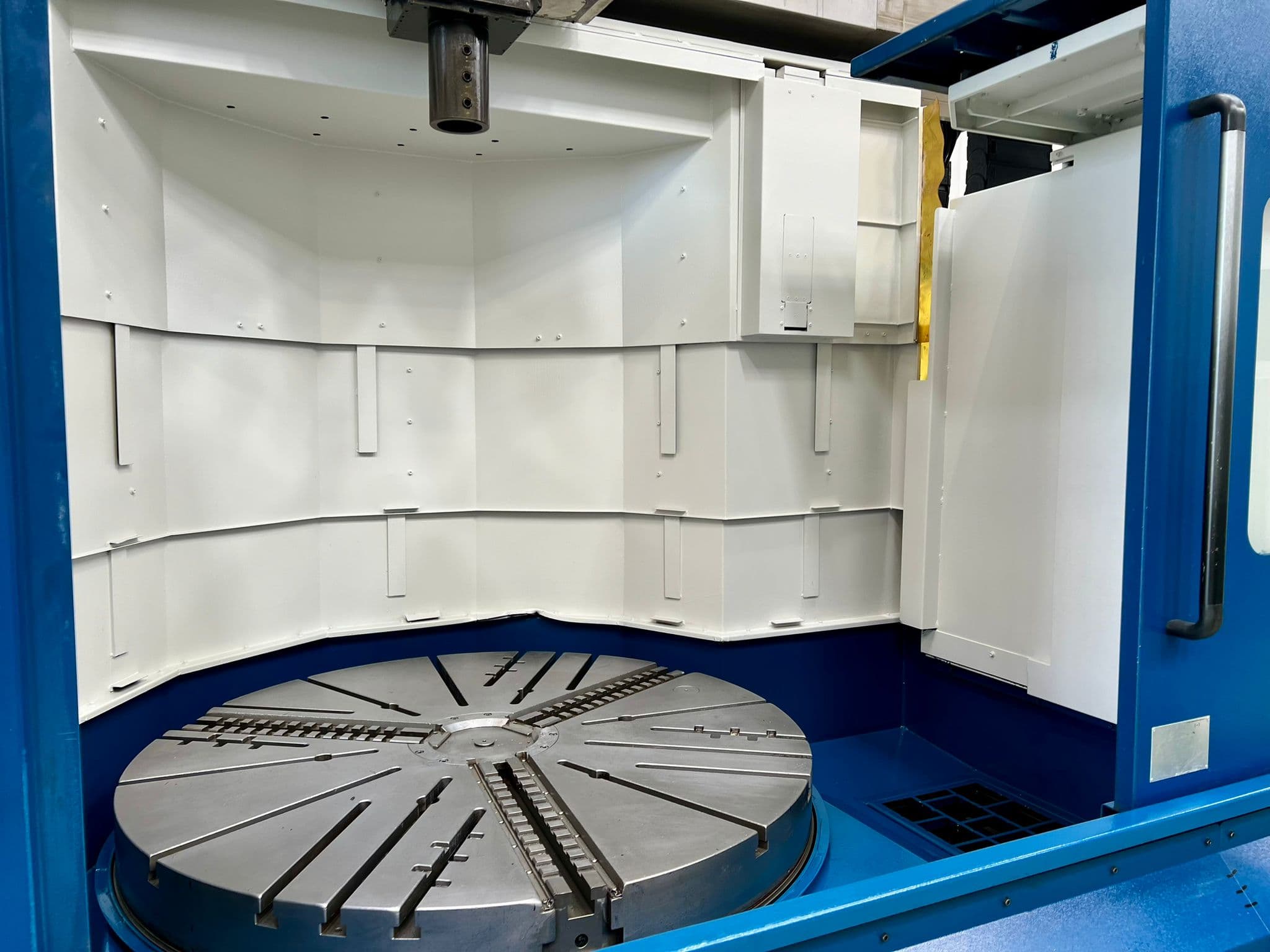

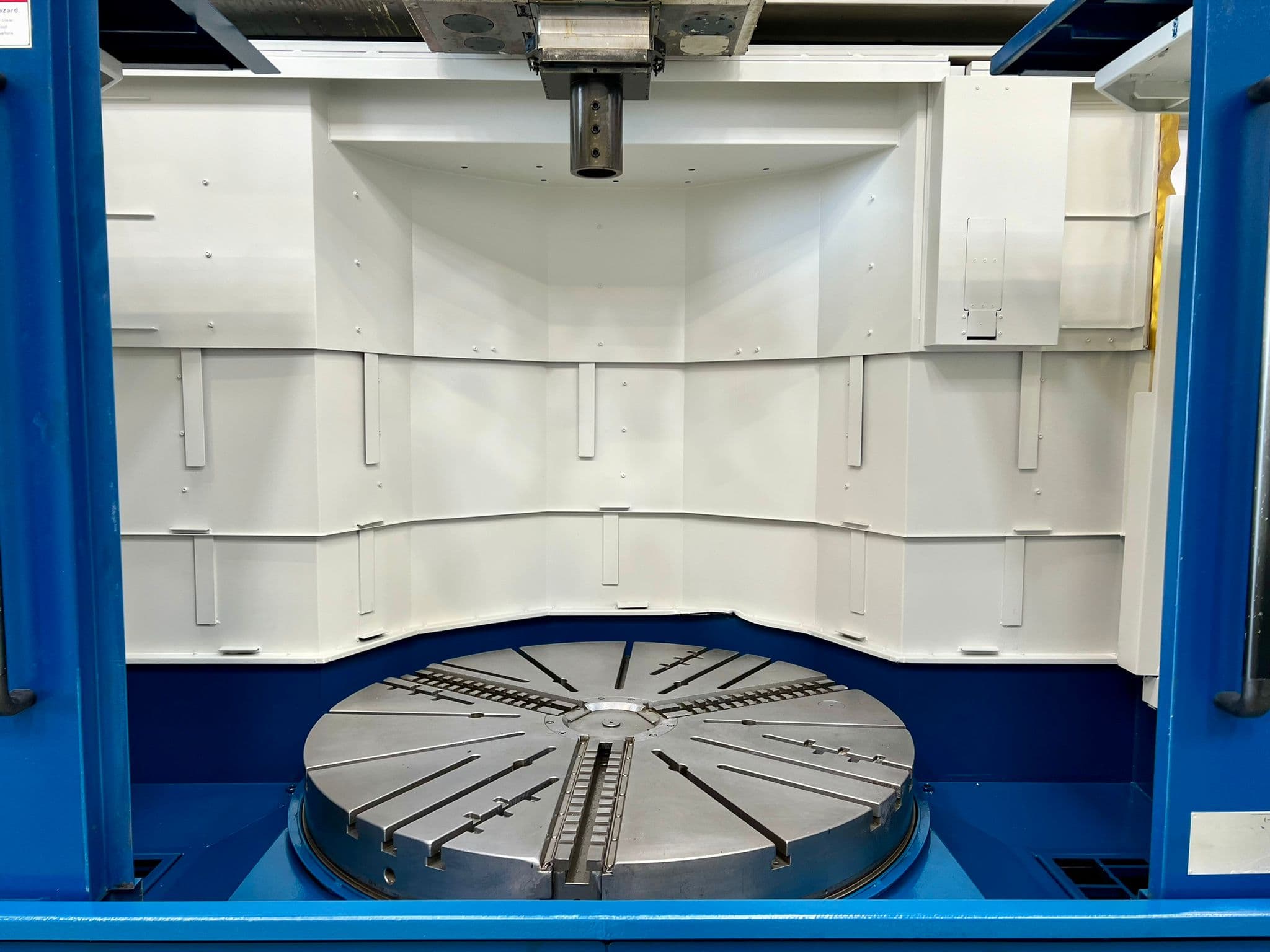

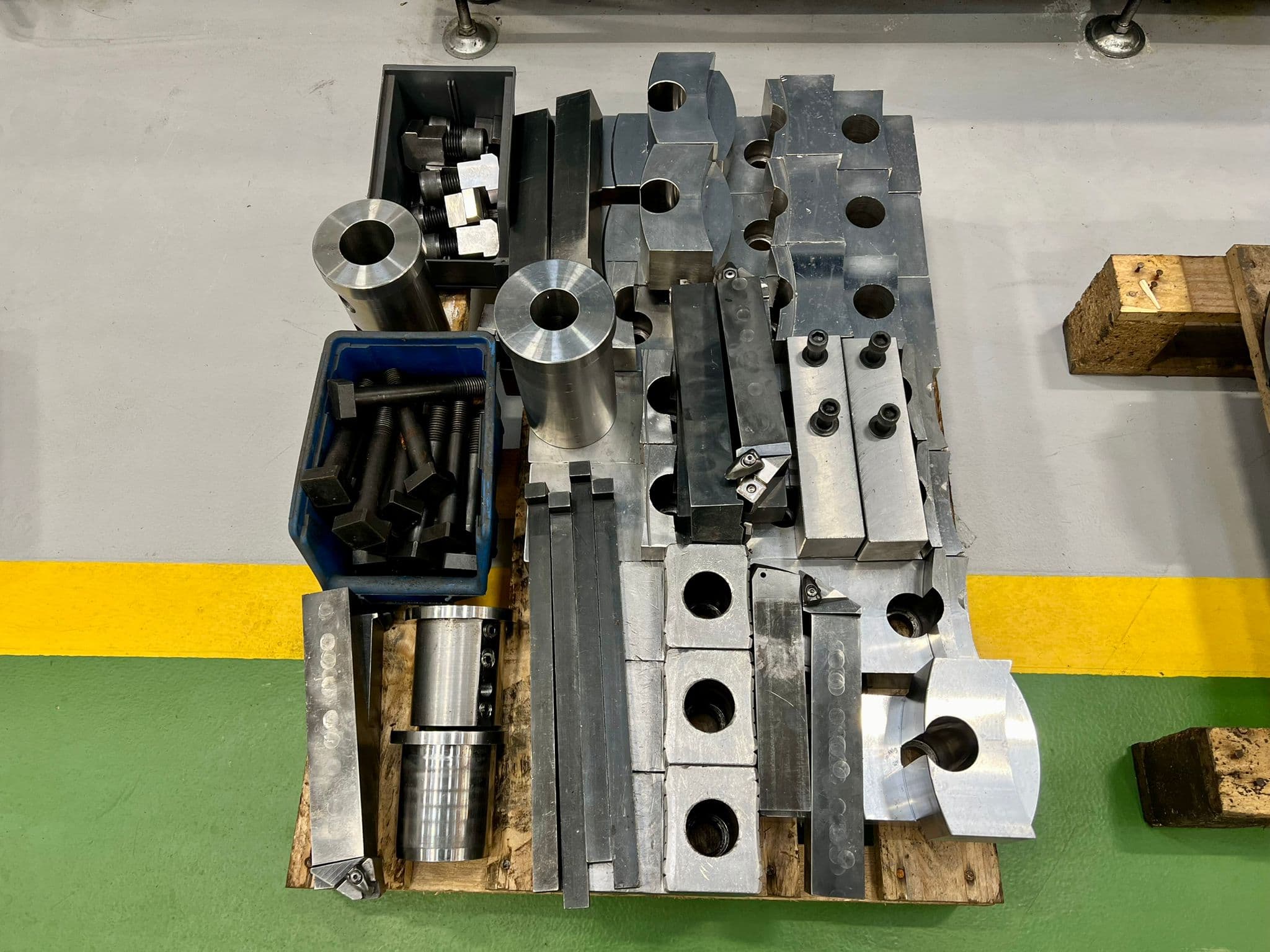

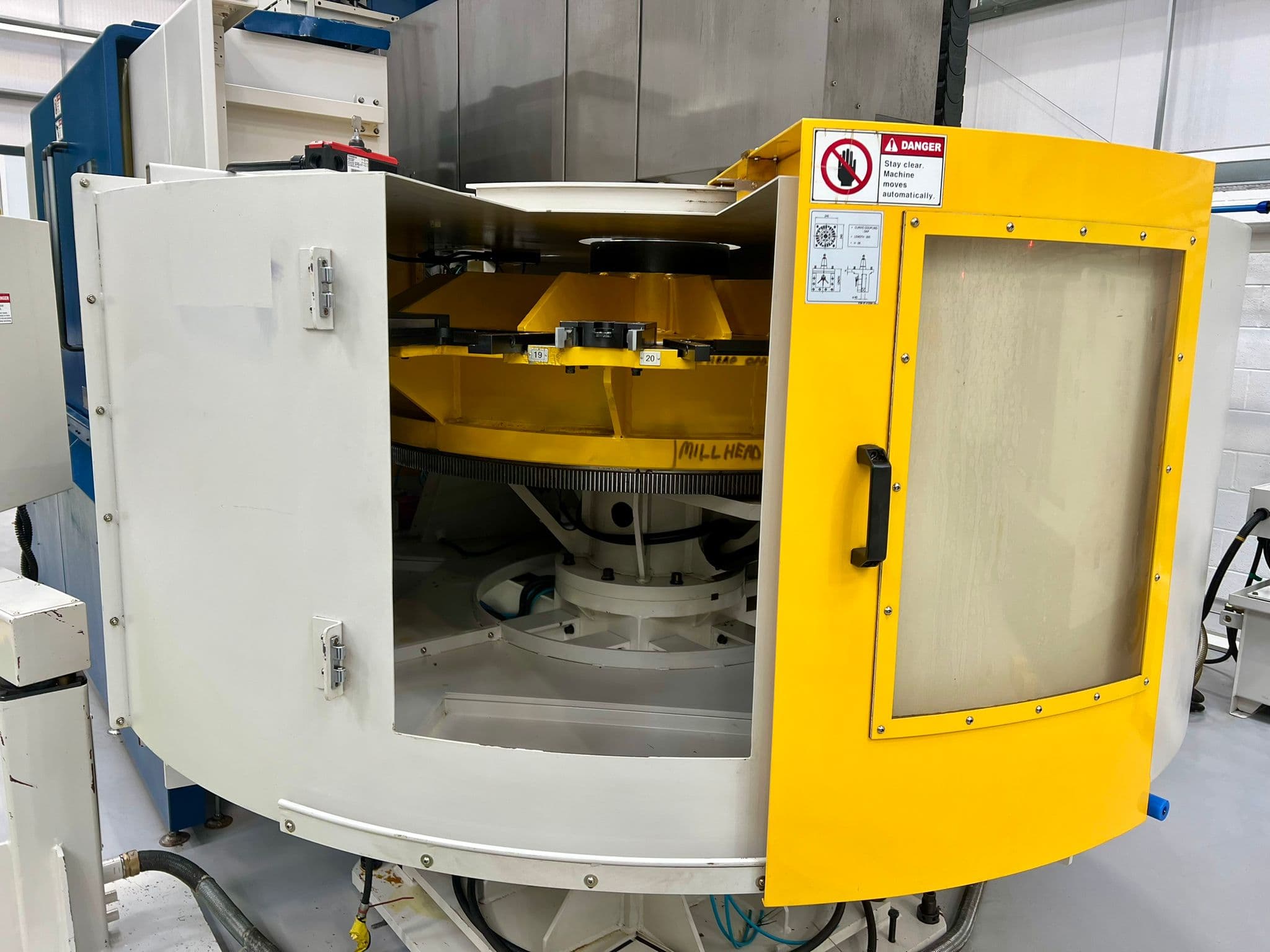

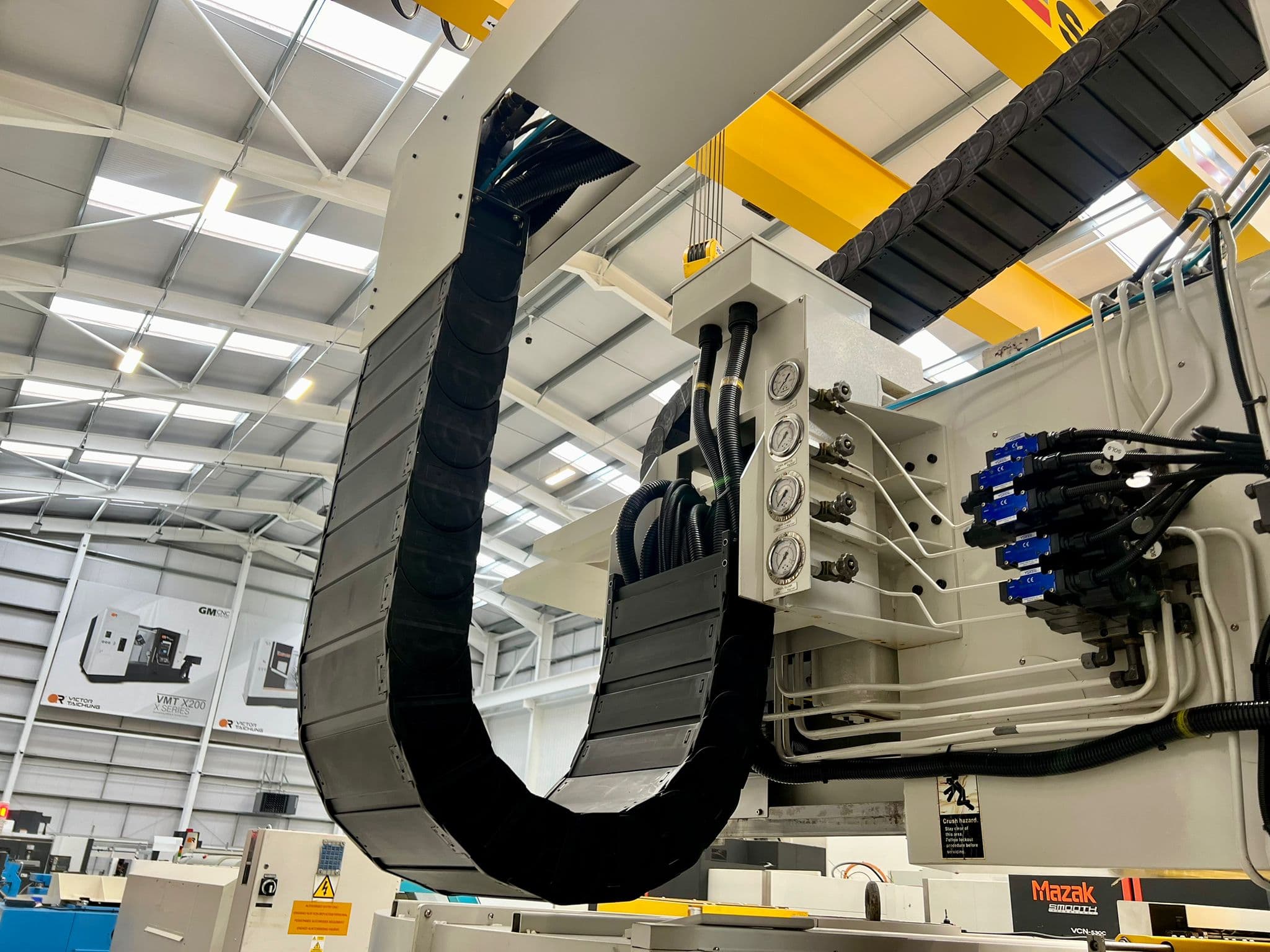

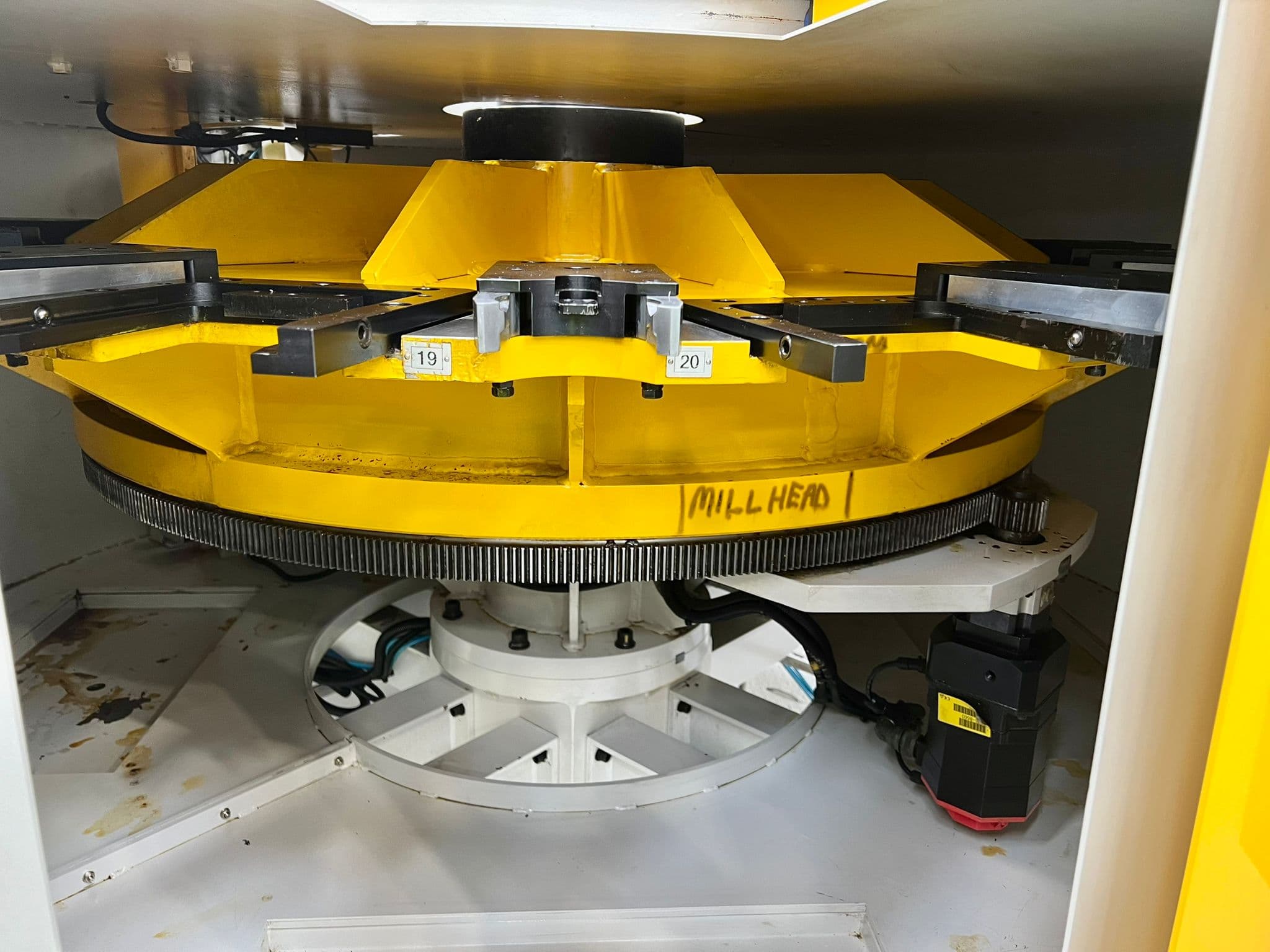

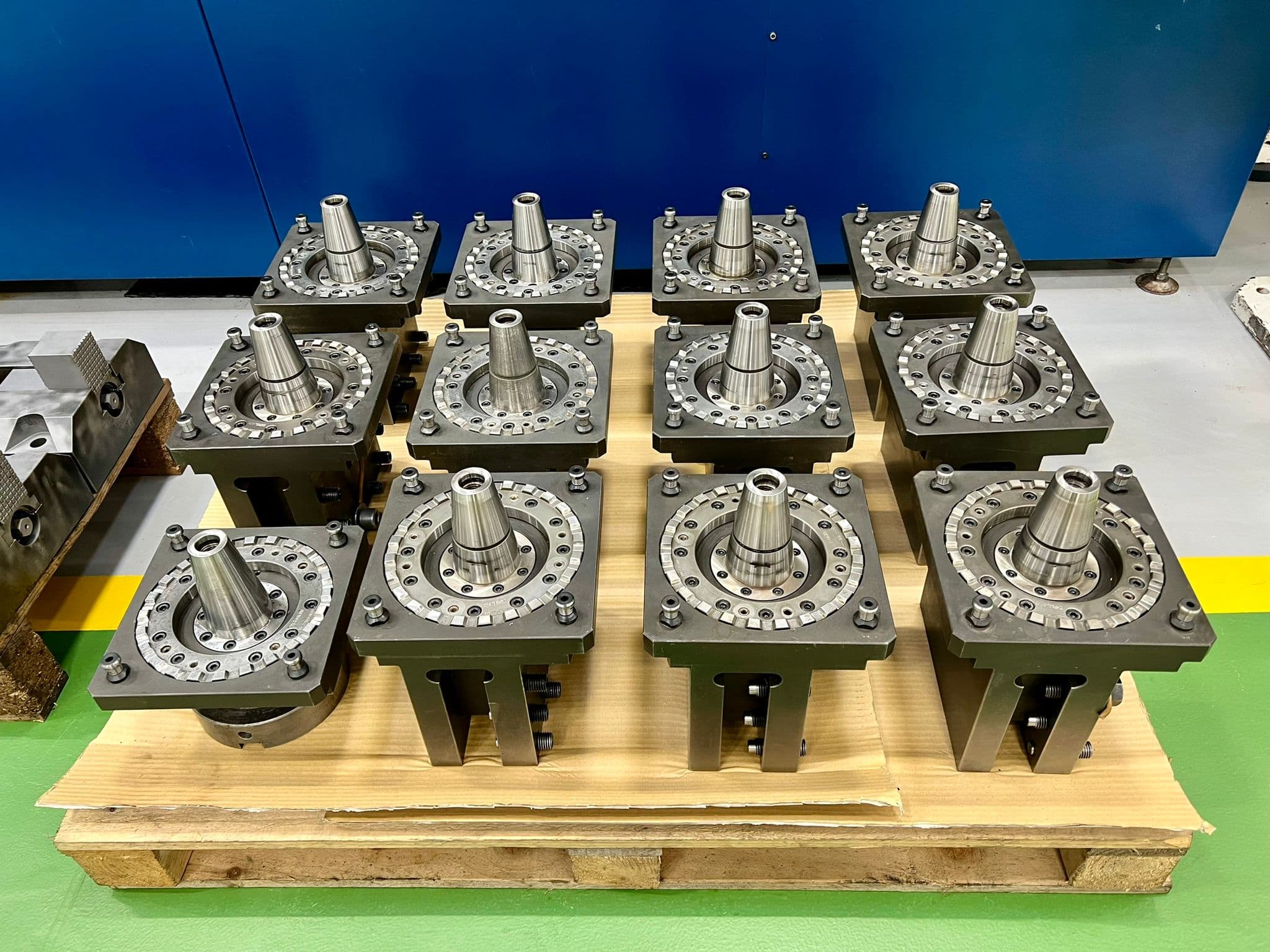

Chuck dia. 1400mm. Maximum swing dia. 1600mm. Minimum inside dia. 350mm. Maximum distance from chuck surface to toolholder 1200mm. Maximum loading on chuck 8,000 kgs. 3 & 4  jaw position Powered Hydraulic Chuck. Speeds (low range) 1 – 103.6 rpm. (high range) 1 – 360.4 rpm. Speed change 2 step/infinite. Chuck torque 1844-m (55kW,29 rpm). Chuck support type (Thrust ball bearing) Type 511/600 P5. (Taper roller bearing) type 32230 – P5. Ram size 240mm x 240mm. X Axis travel (Horizontal) -200 – + 970mm (1170mm). Z Axis travel (Vertical) 900mm. Rapids X/Z 120mm/100m/min. Milling speed – Maximum 1500 rpm. C Axis. Spindle taper ISO 50. Full stud BT50. Tool shank size 40mm x 40mm. Balancing type – Hydraulic. Cross rail travel 750mm. Cross rail movement speed 300mm/min. Position setting pitch 250mm x 3 steps. Position setting method by hydraulic locating pin. Position setting order by M Code & Switch order. Motors: Chuck operation AC 45/55kW. Spindle operation AC 15/18.5 kW. Ram head horizontal AC 4 kW. Ram head vertical AC 4kW. Chuck indexing (C Axis) AC 4 kW. Chuck lubrication AC 0.75kW. Hydraulic pump AC 5.5kW. Surface lubrication of cross rail AC 120W. Ram head saddle X/Z Axis AC 120W. Coolant pump (550 litre capacity) AC 1.5 kW. Swarf conveyor AC 0.75kW. Auto Toolchanger servo AC 1.2kW. Machine complete with milling & turning tools, universal milling attachment, coolant & filtration unit, chuck jaws, Fanuc 18i-TB Control Machine dimensions L x W x H 7976mm x 4710 x 5760mm. Approximate weight 30,000 kg.
