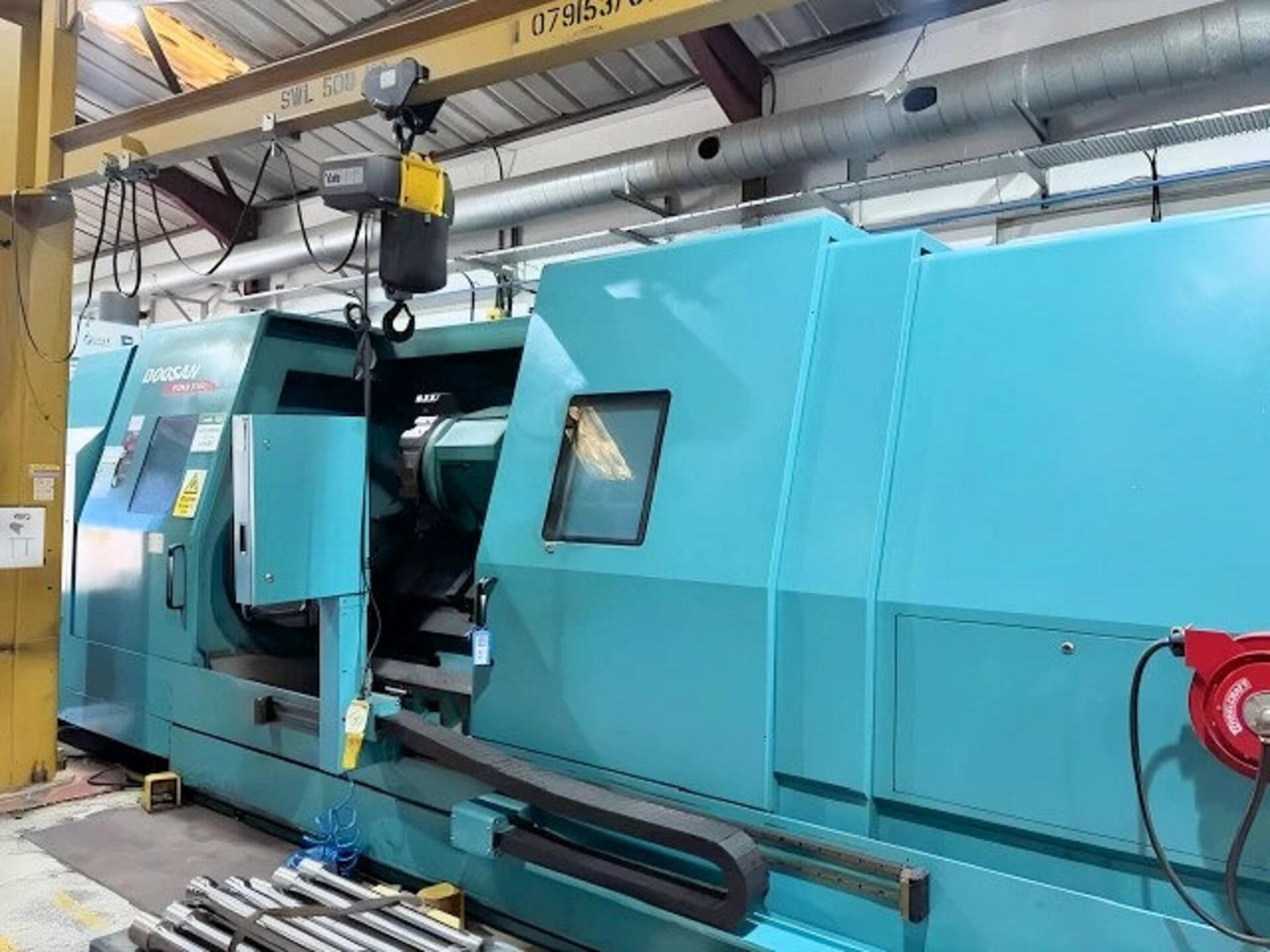

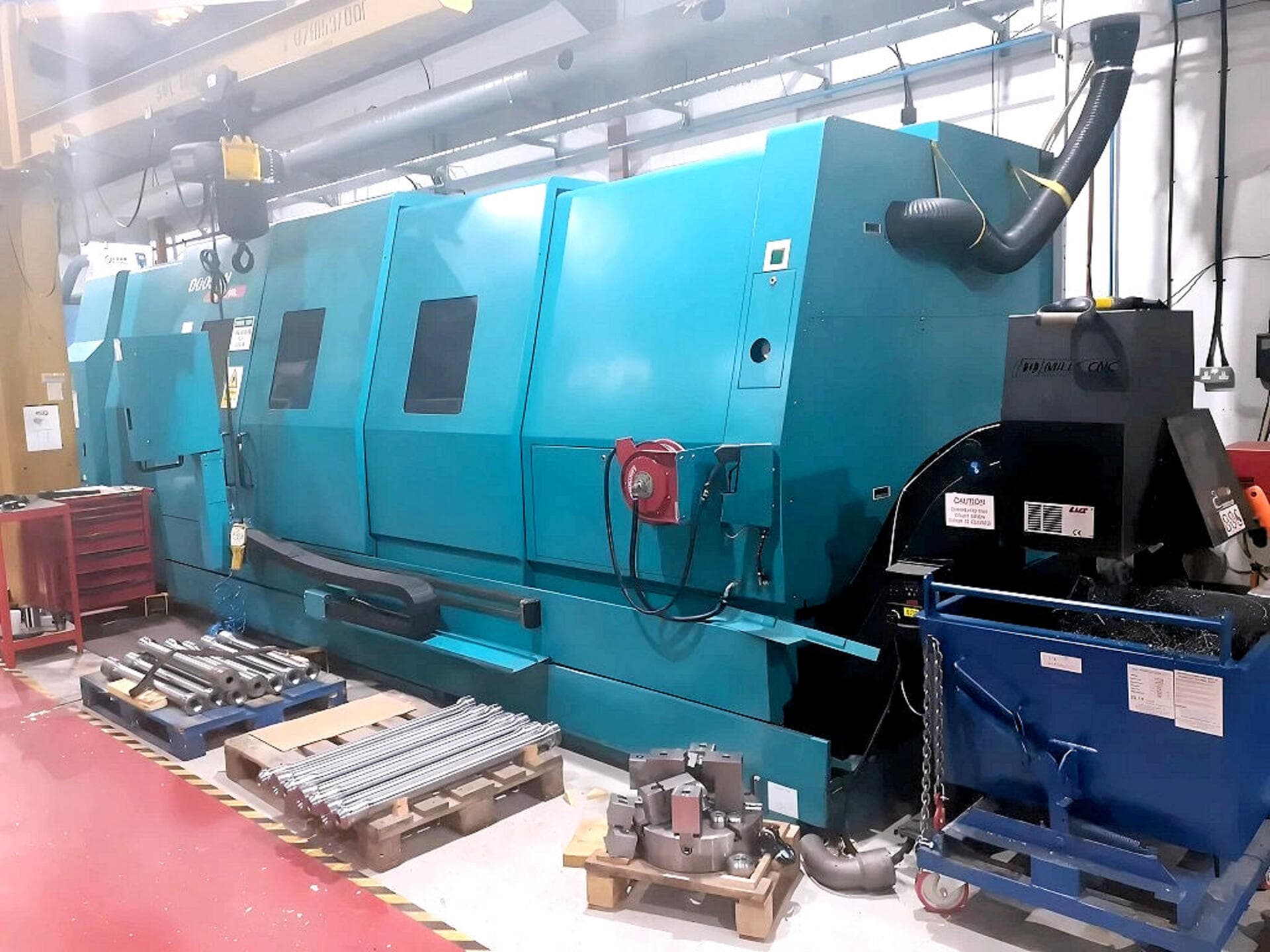

Doosan Puma 700 L CNC Lathe

Description

Code: ST3962

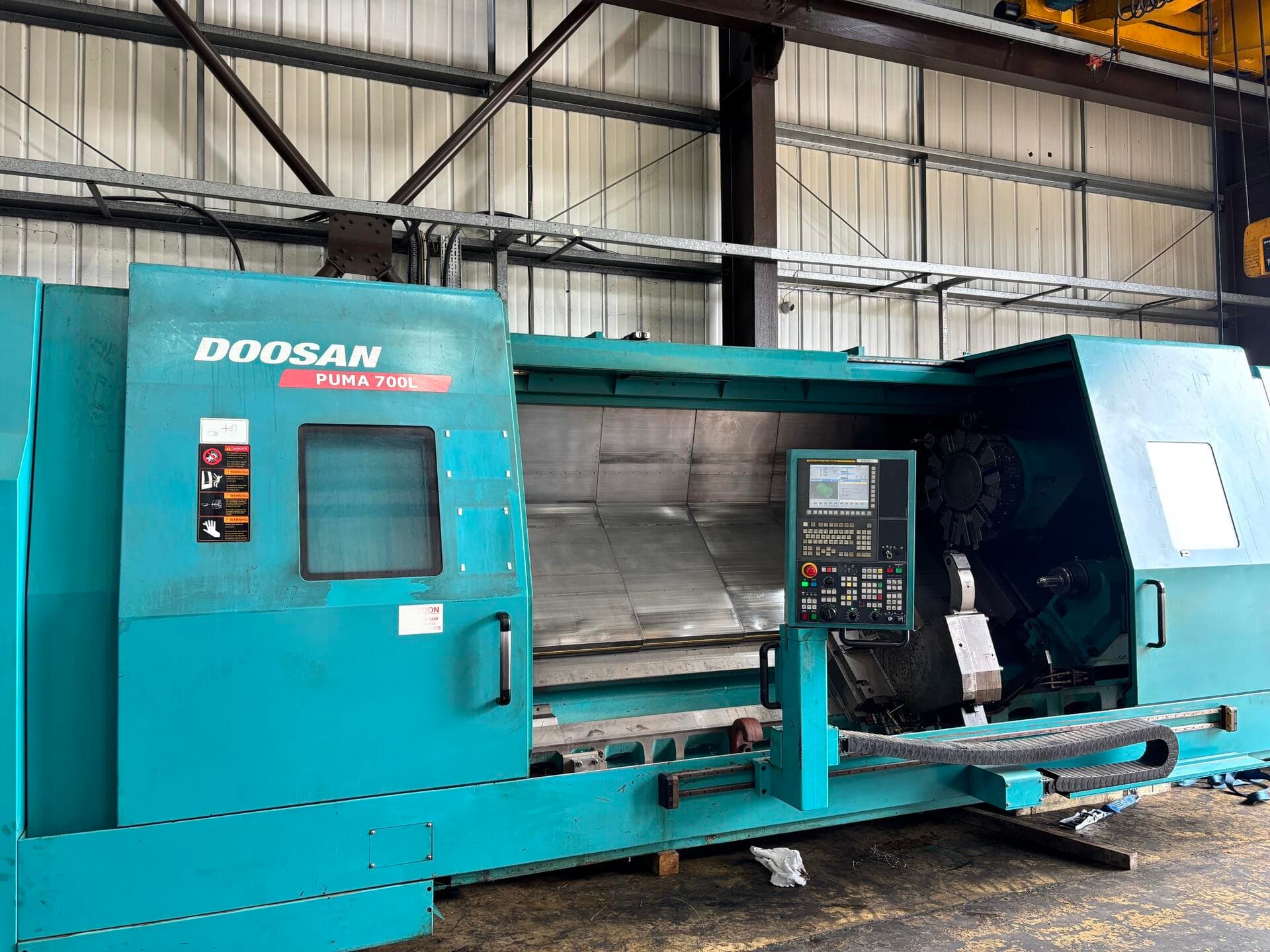

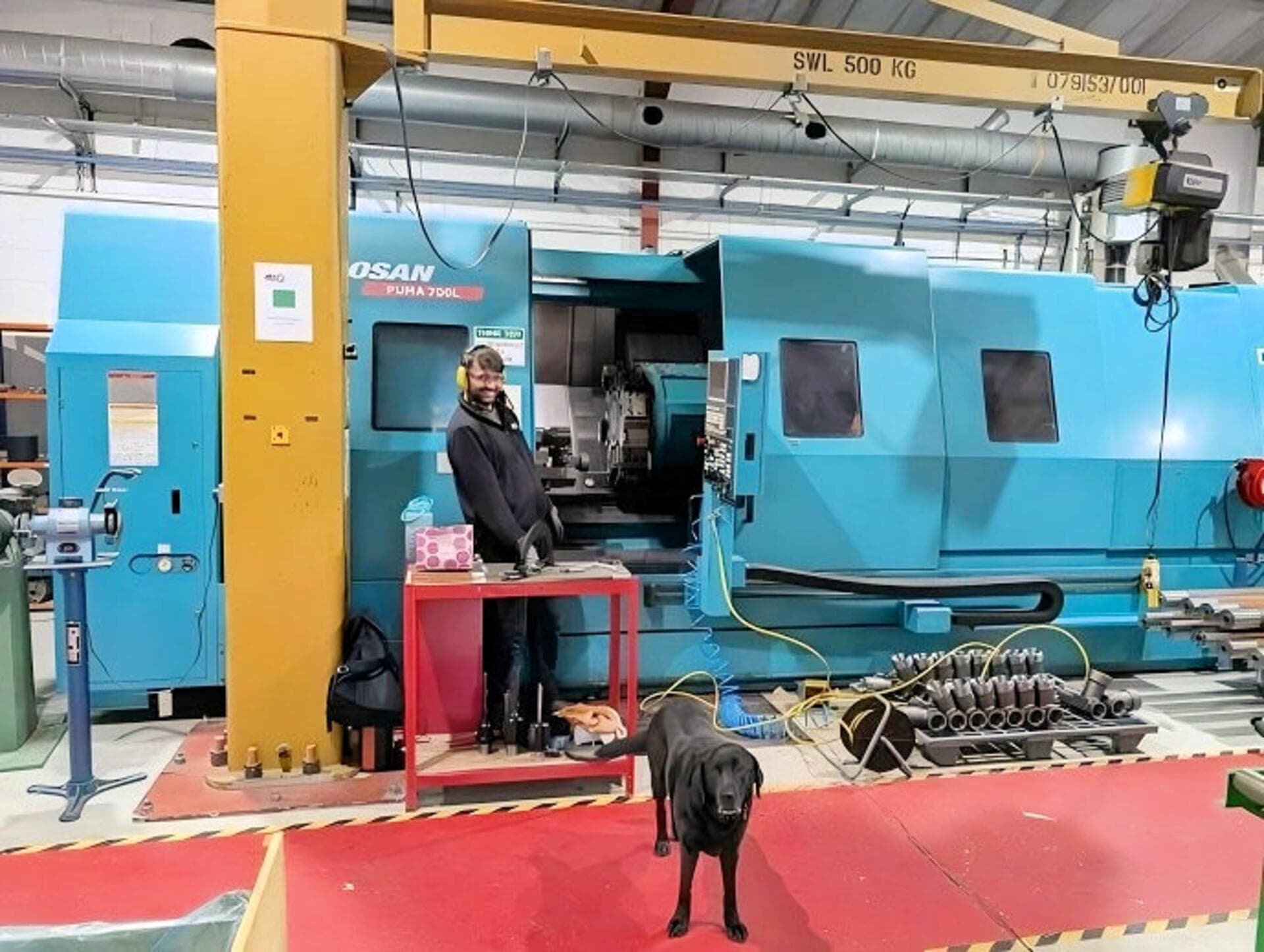

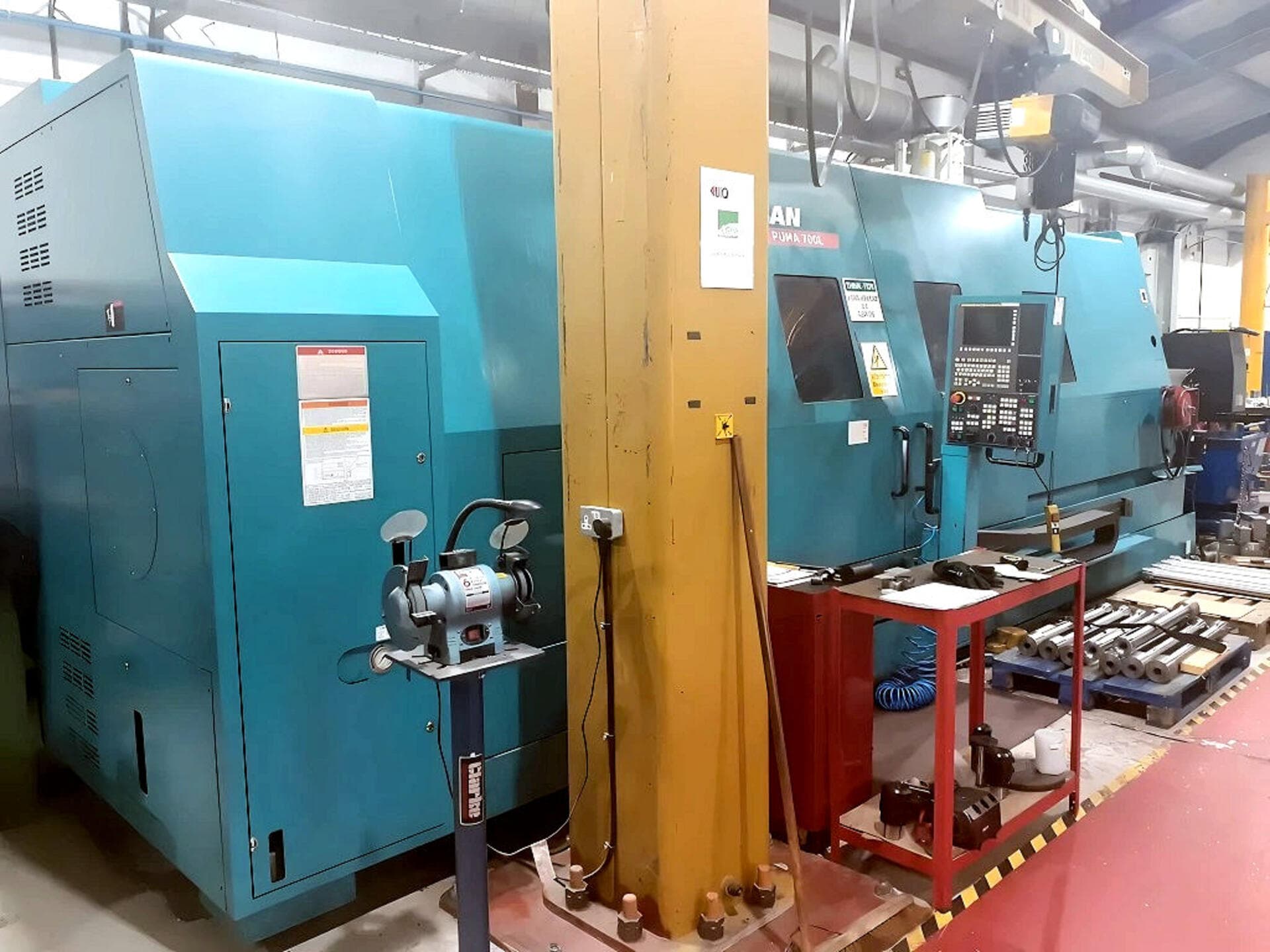

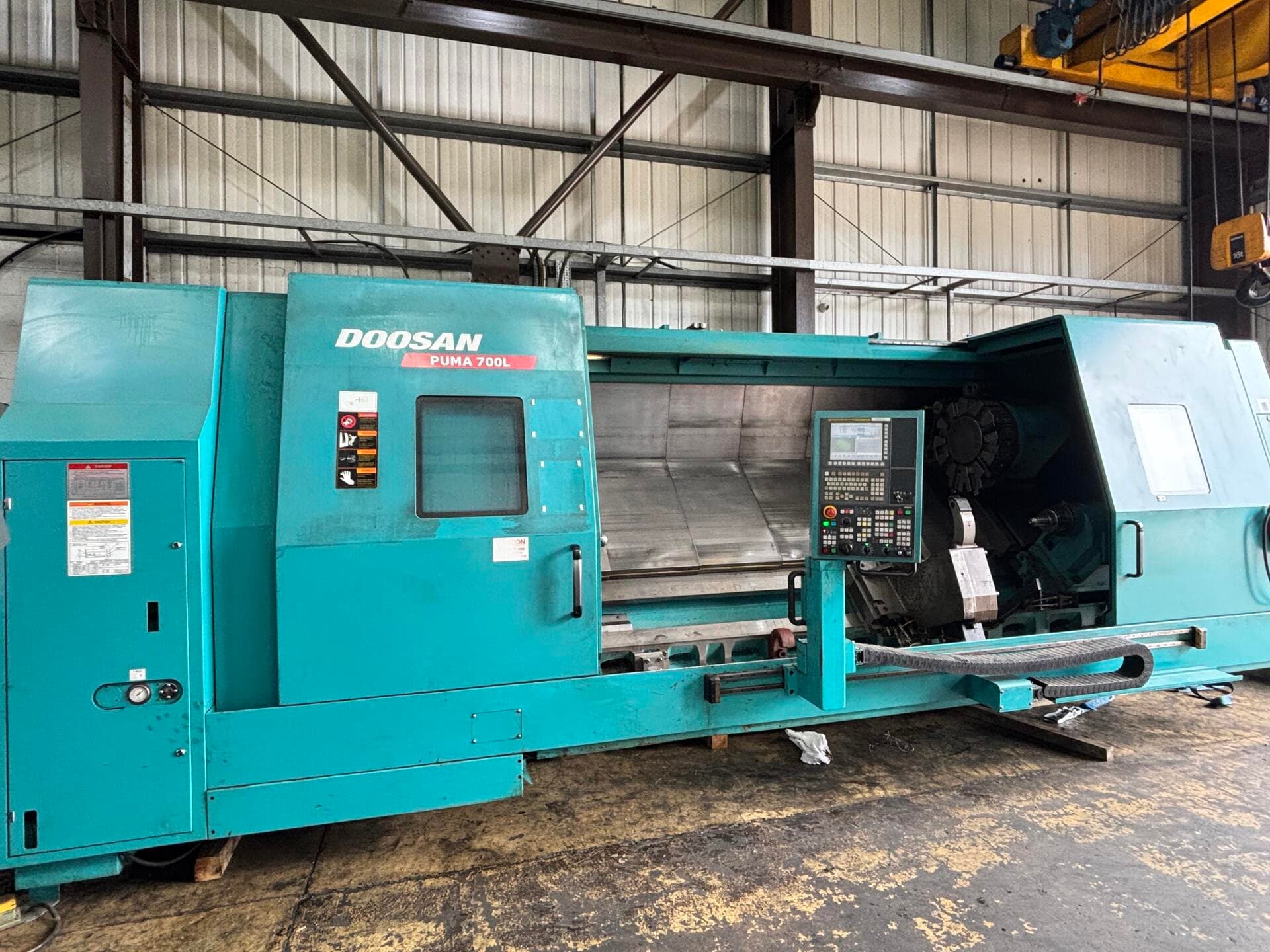

Doosan Puma Heavy Duty CNC Lathe

Model: 700 L
Year: 2014 - October

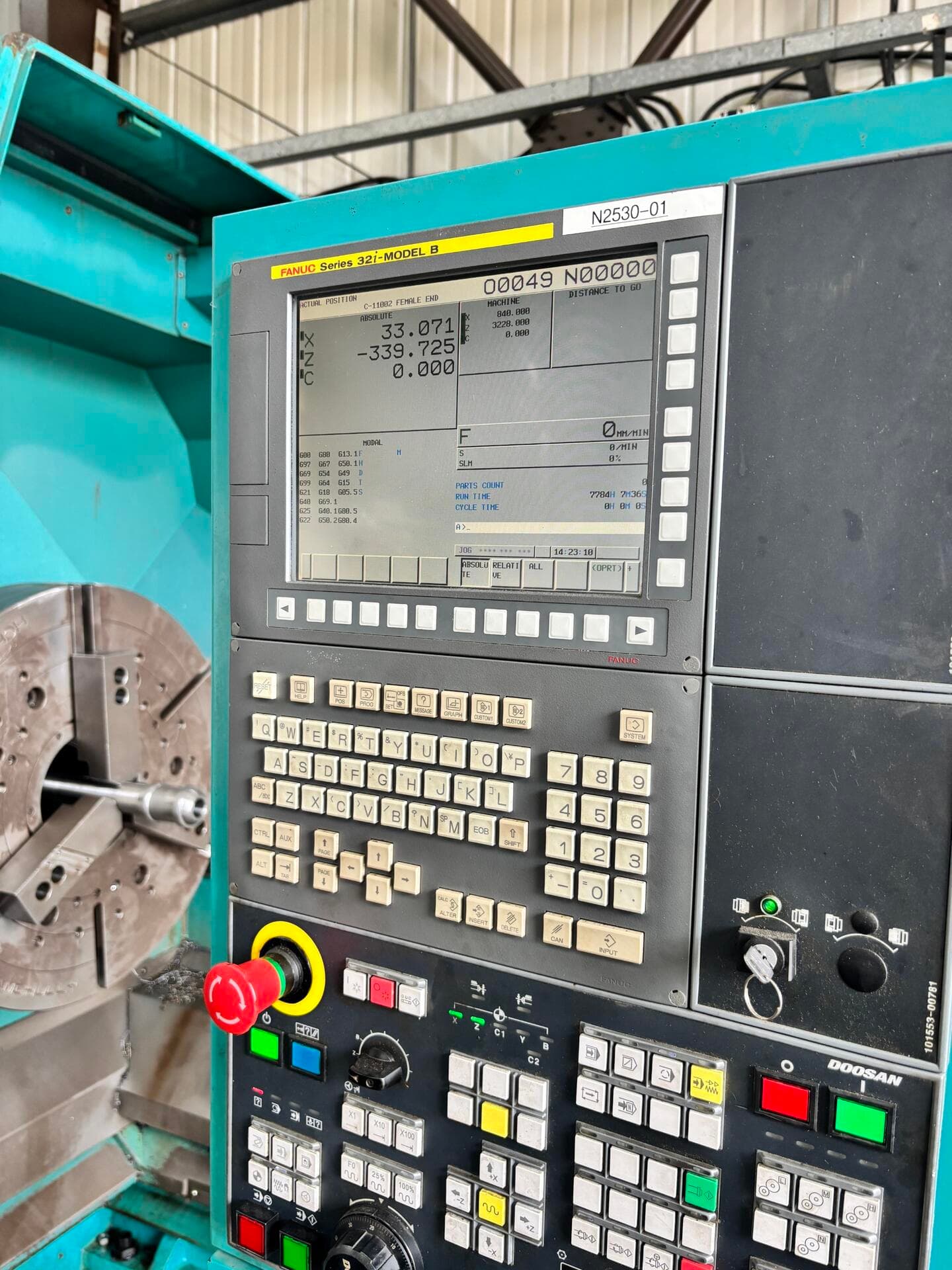

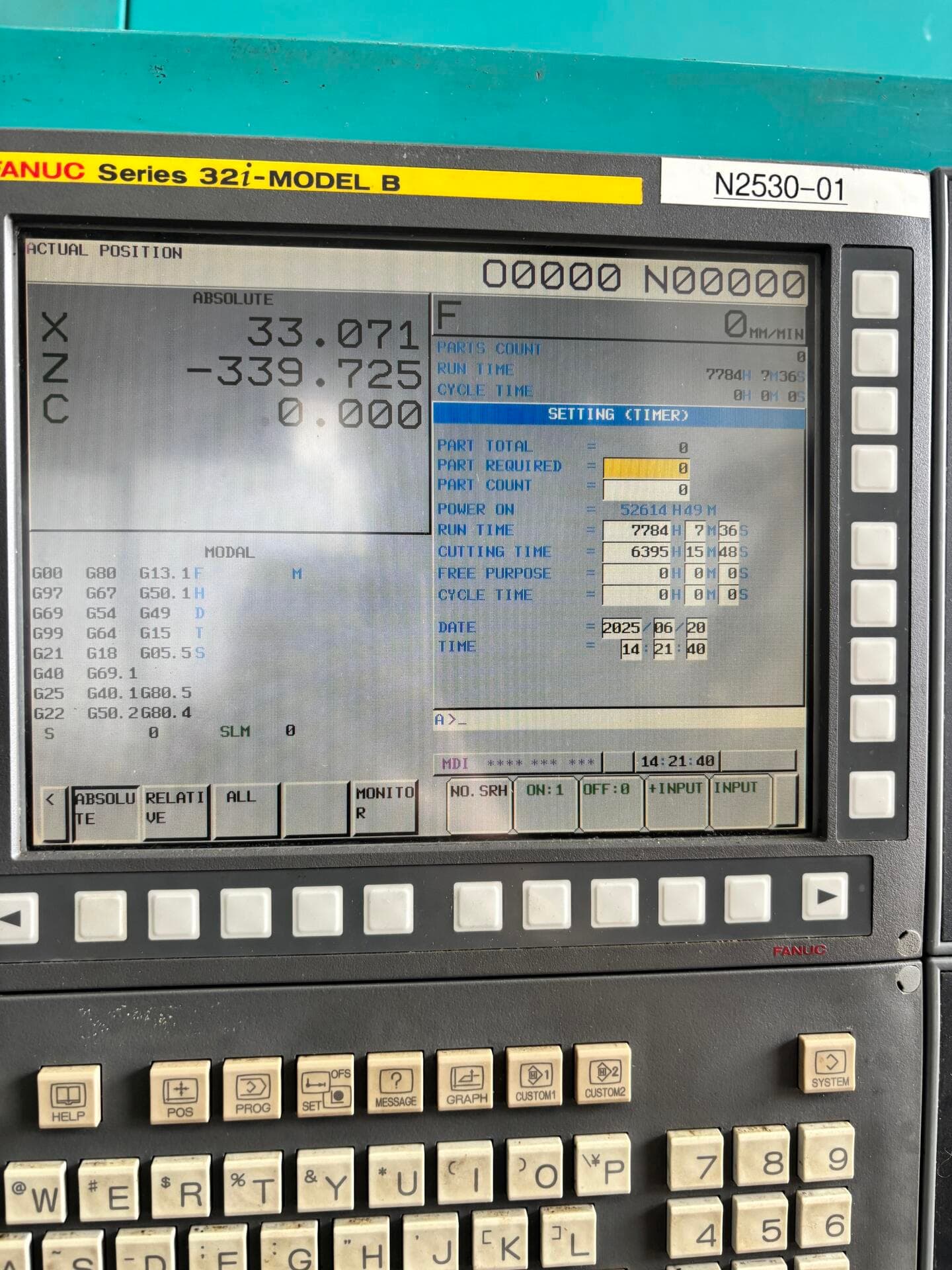

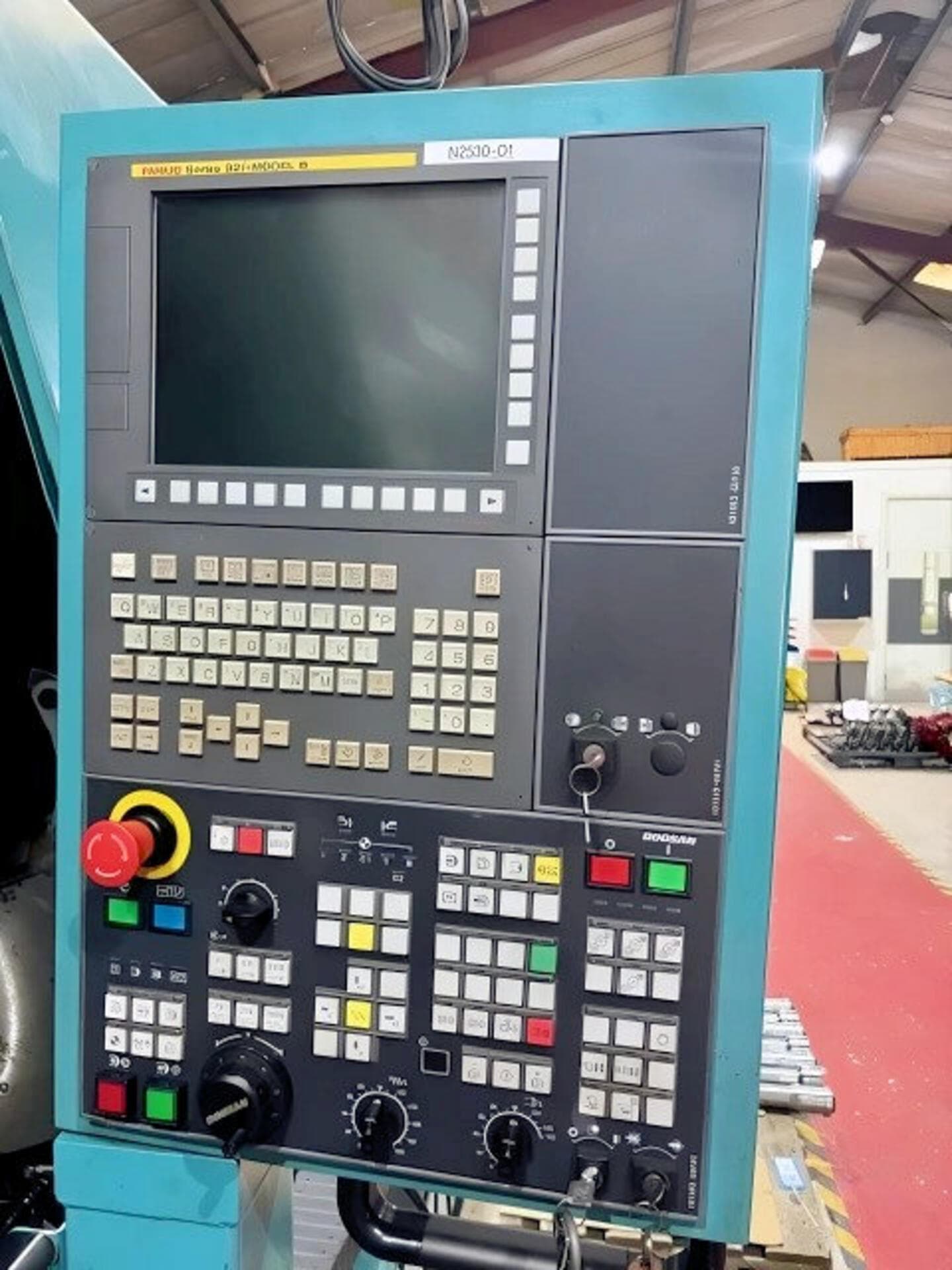

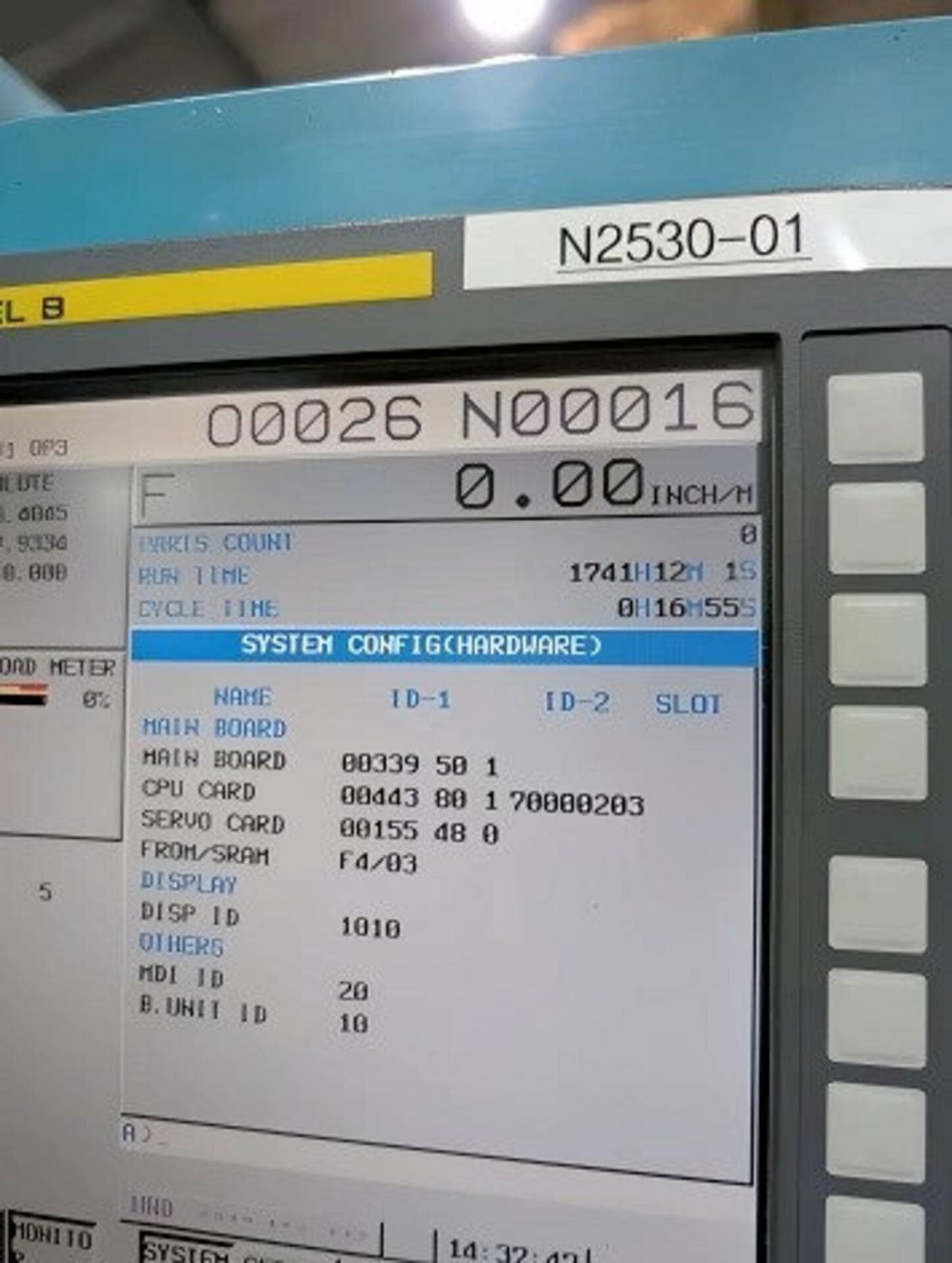

Control: Fanuc 31i Model B

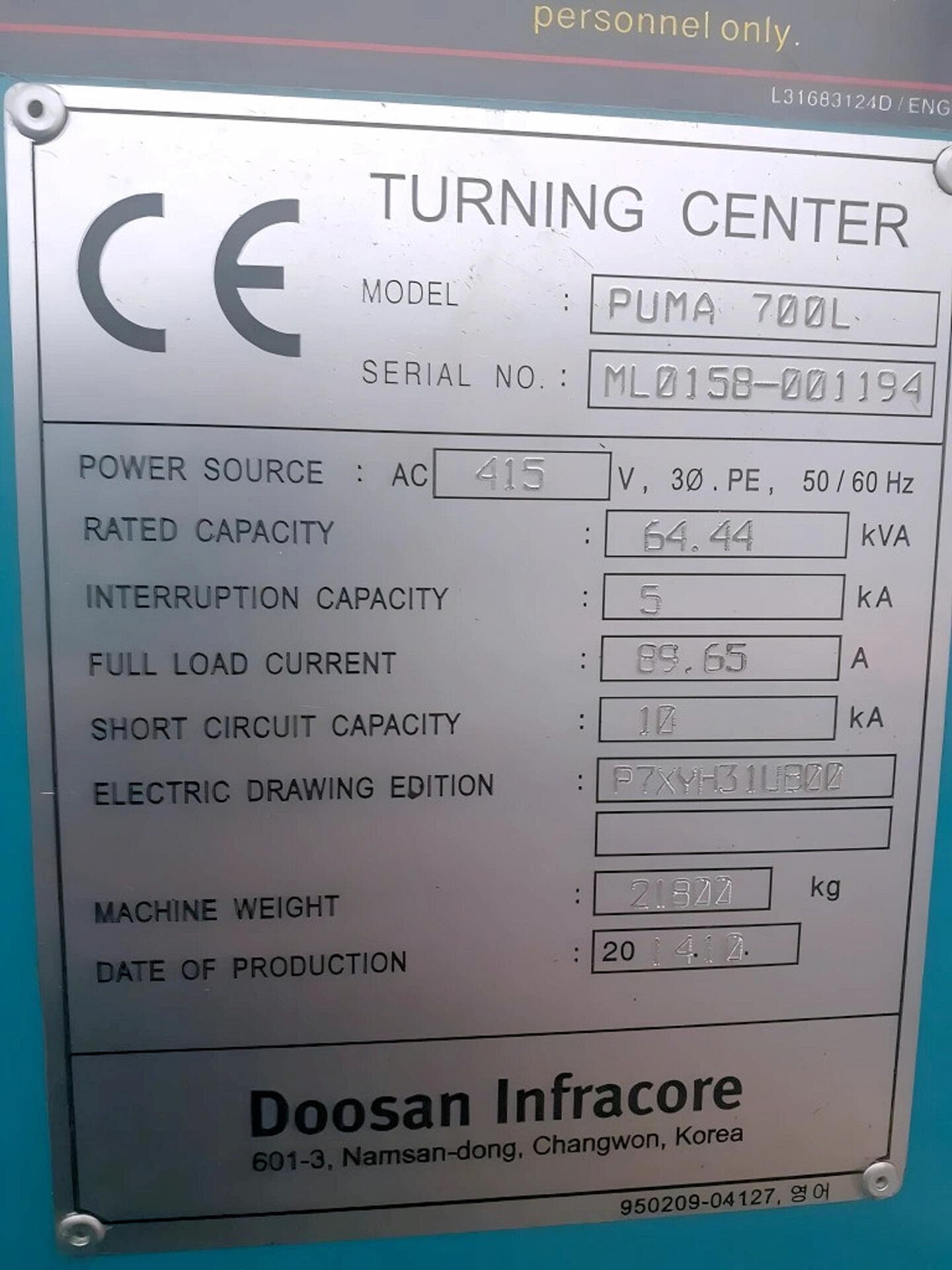

Serial No: ML015800194

Swing over bed: 1030mm
Swing over saddle: 800mm
Maximum turning diameter: 900mm
Maximum turning length: 3200mm
Bar Capacity: 164mm
Spindle speed: 1500 rpm
spindle power: 45/37KW
X axis Travel : 470mm
Z axis Travel : 3235mm
Spindle Nose: A1-15
OD tool size: 32 x 32mm

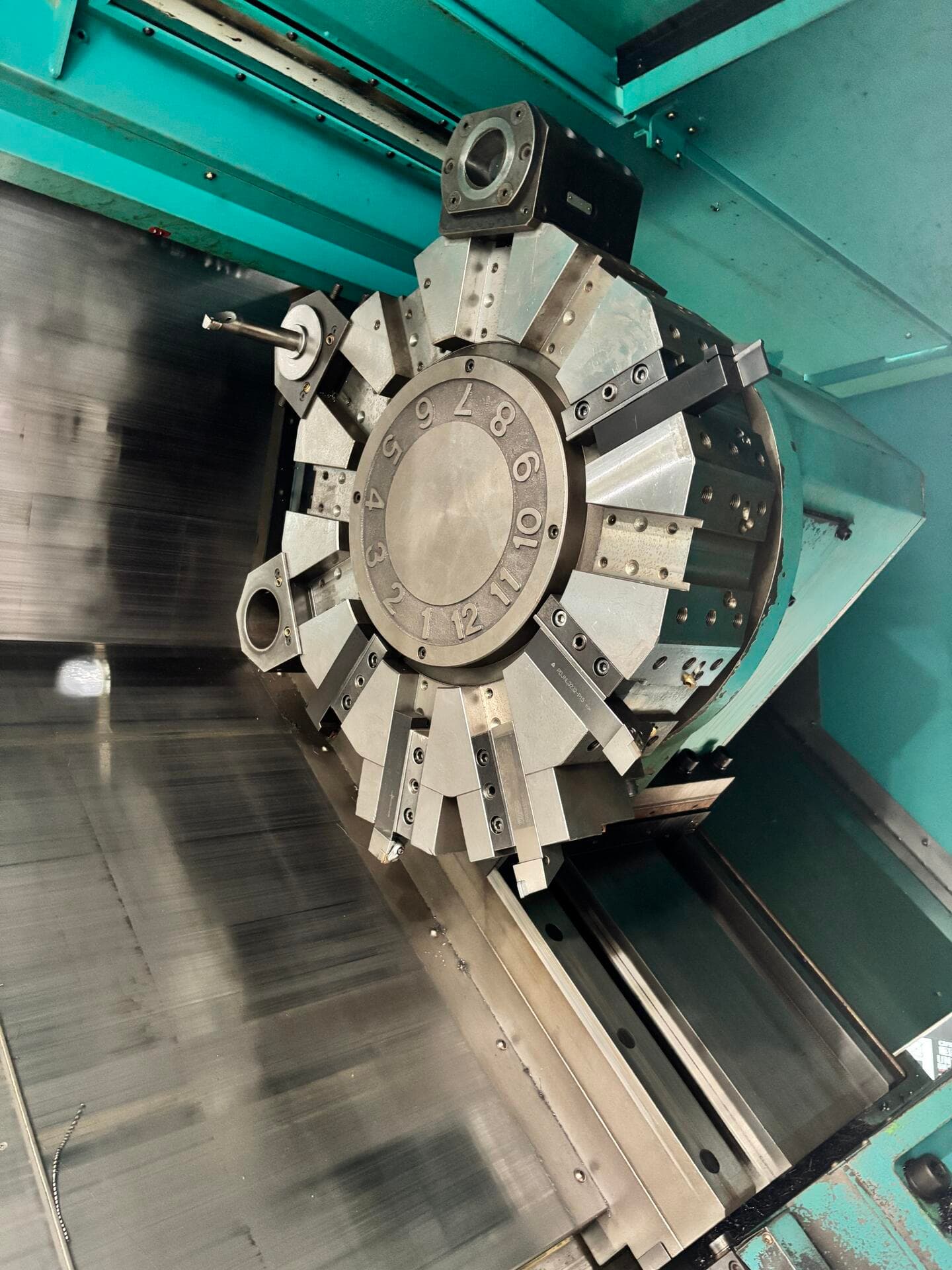

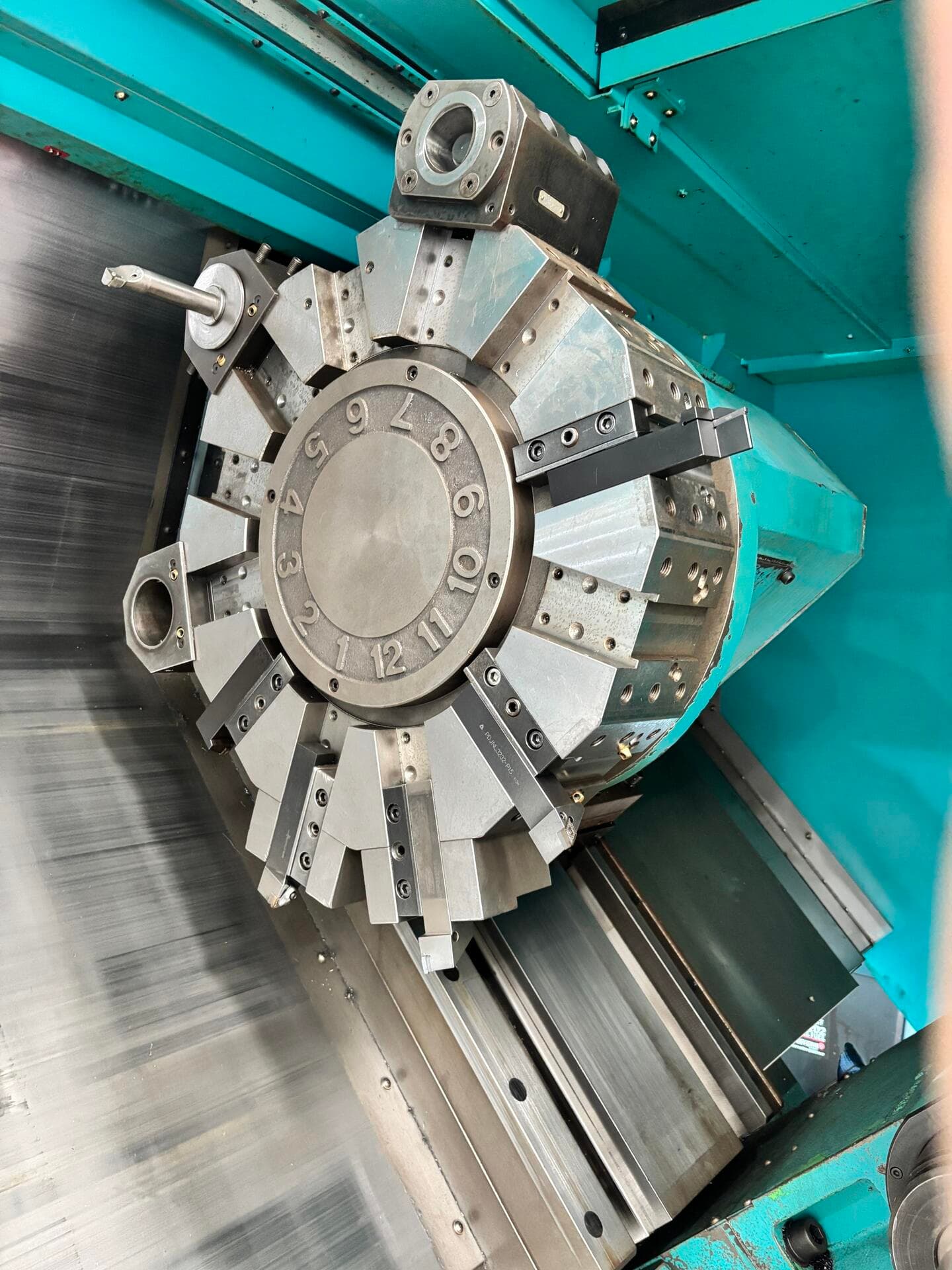

12 station turret

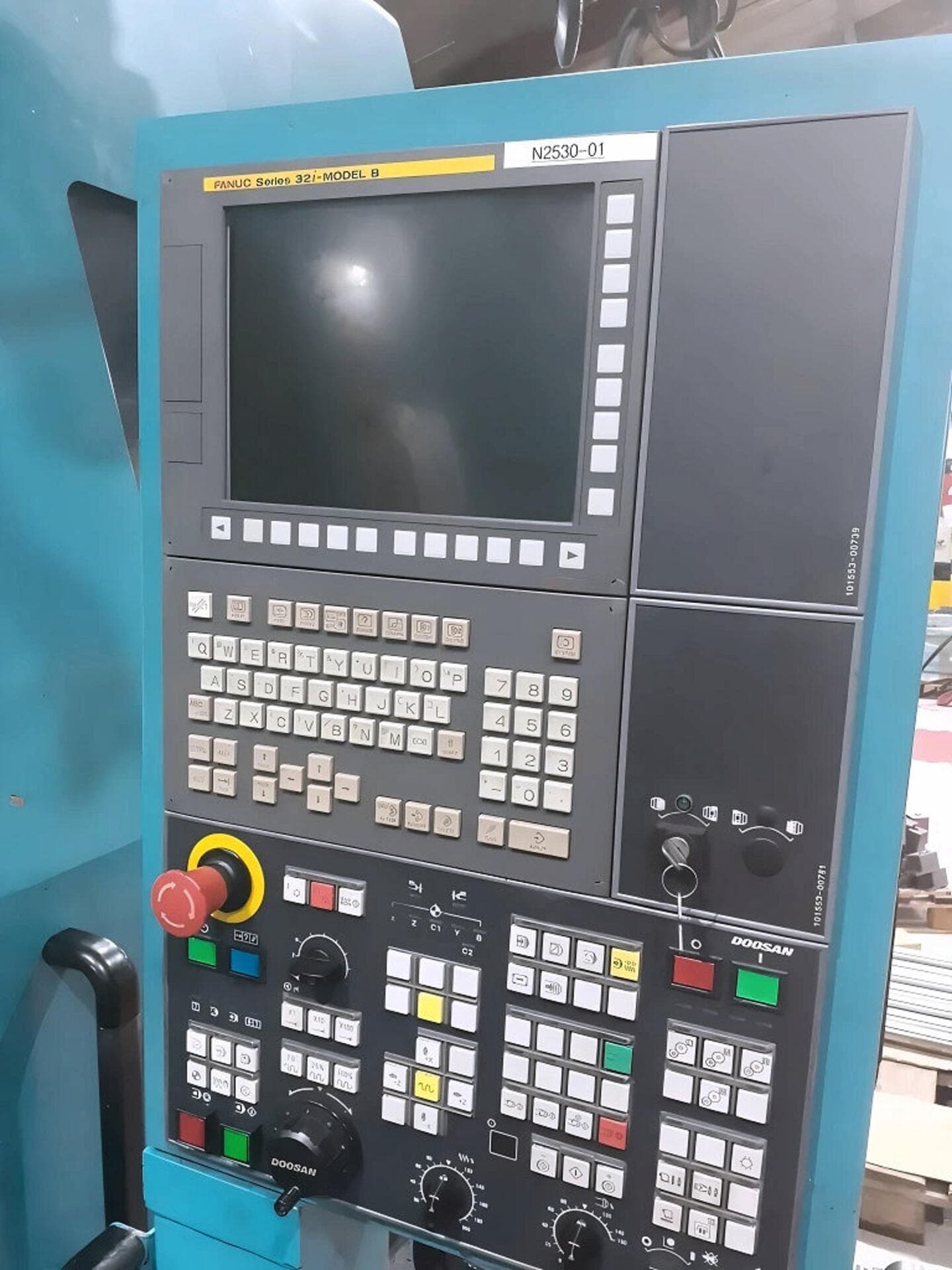

Fanuc 32i control

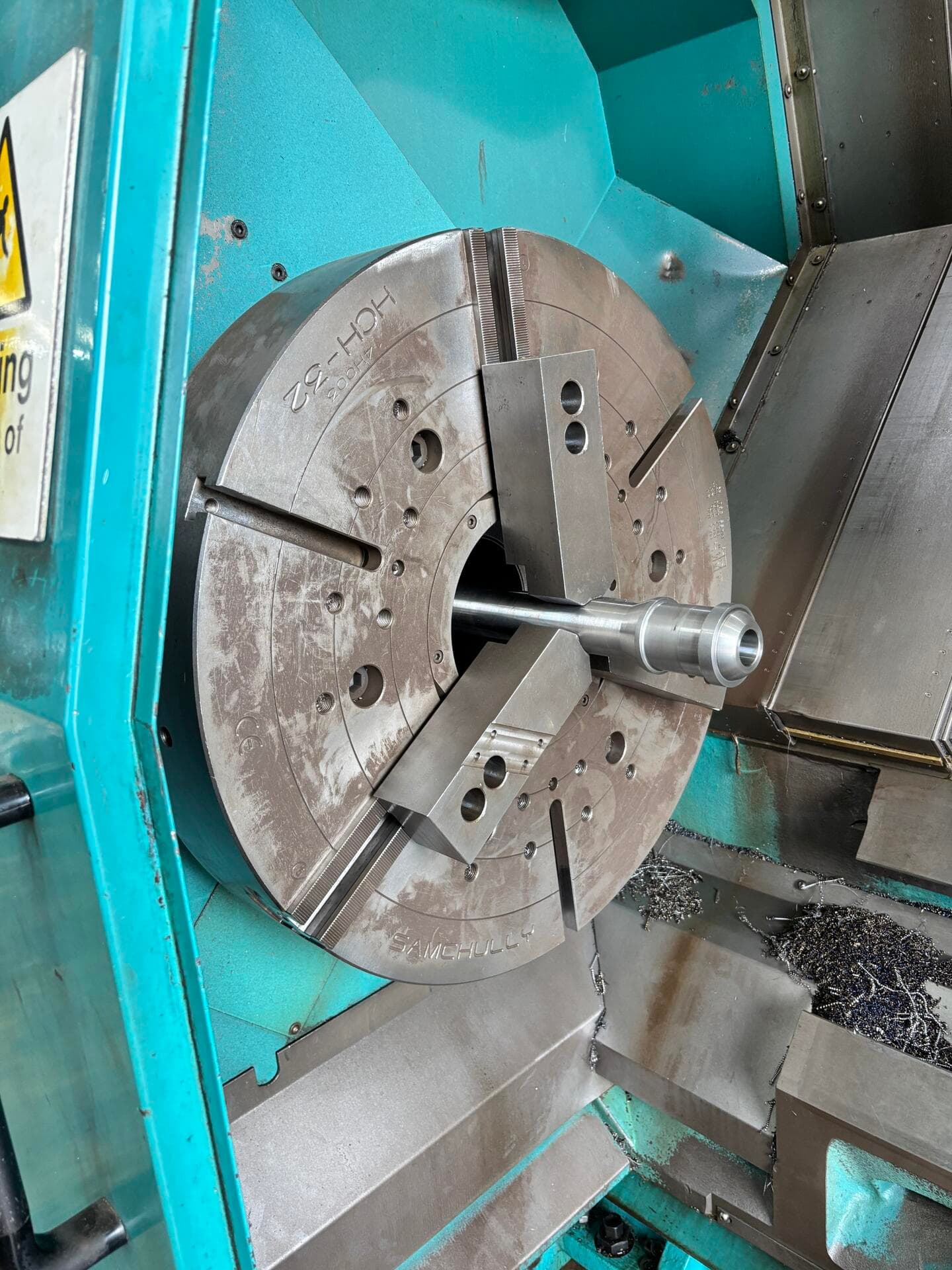

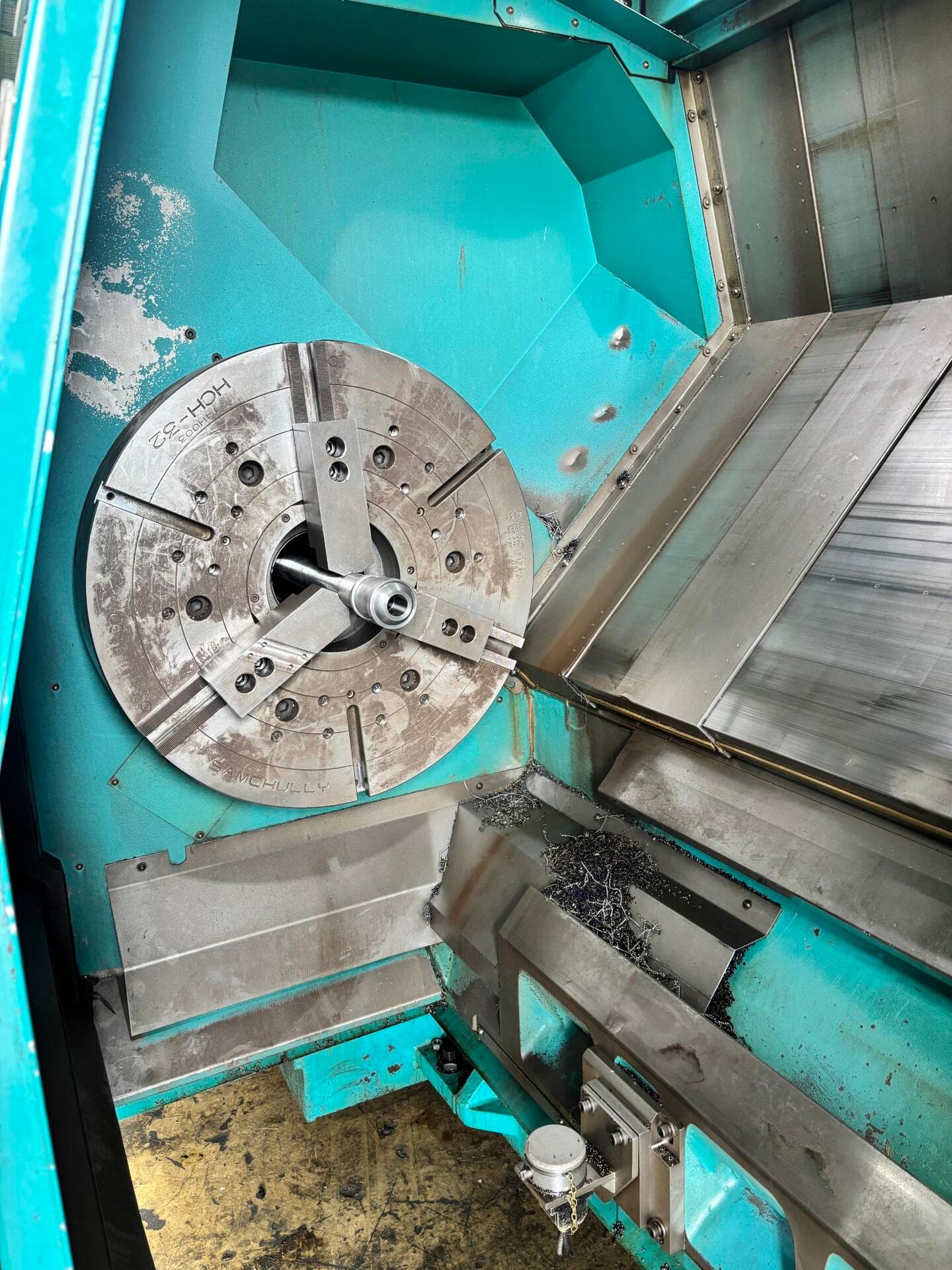

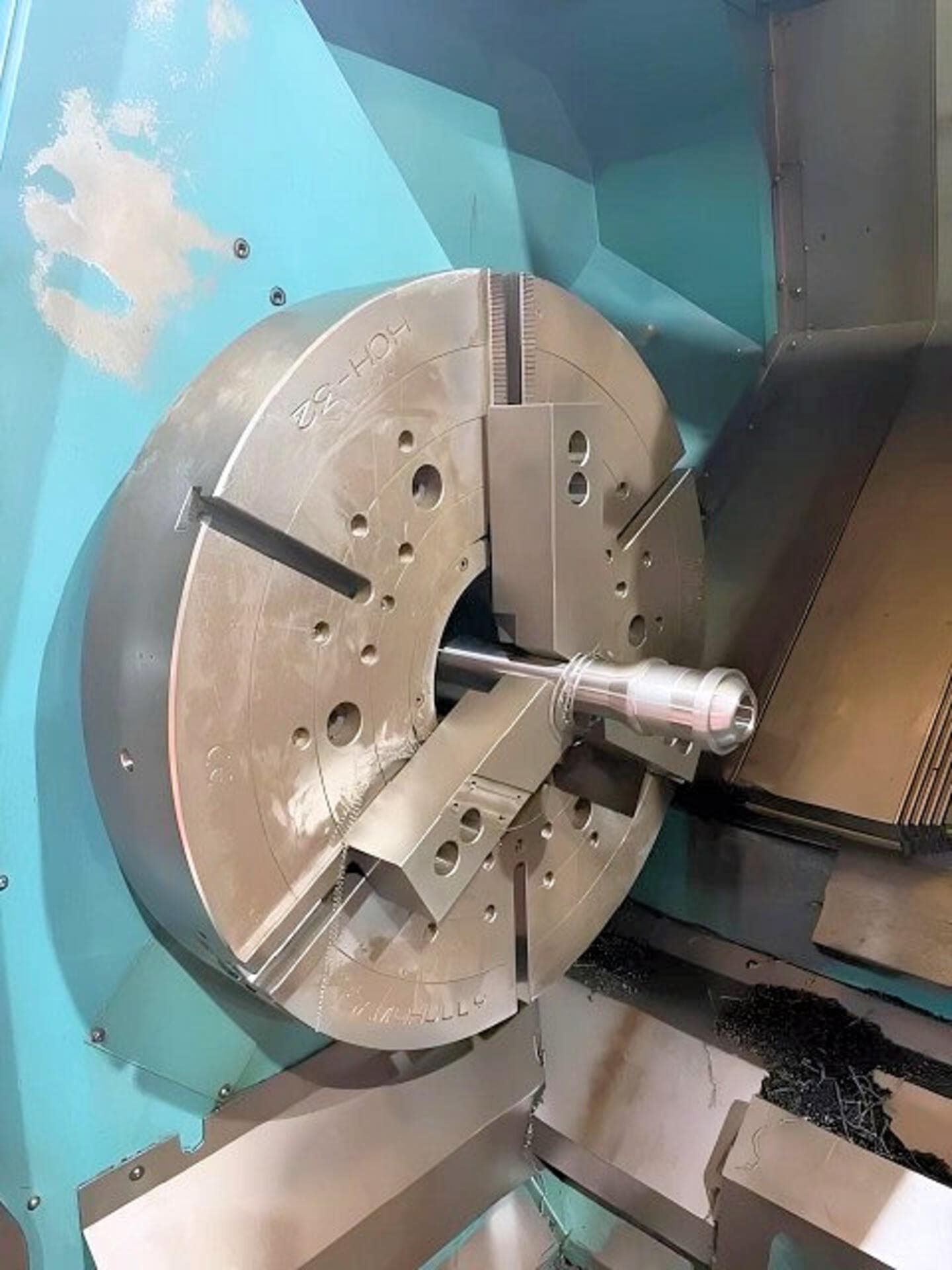

800mm 3 jaw chuck (32”)

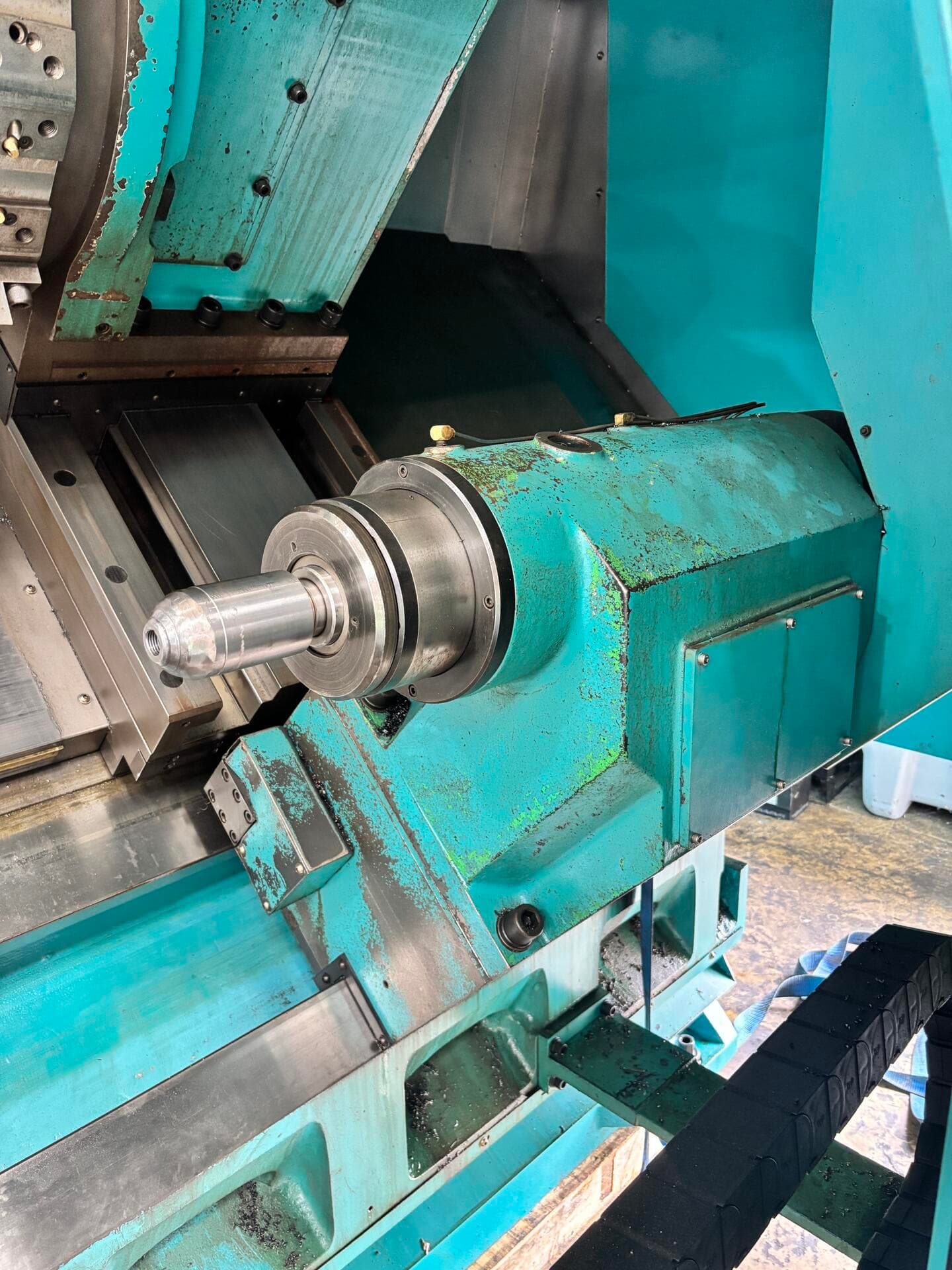

Tailstock Body 3135mm
Tailstock Quill Stroke 150mm
Tailstock Quill Diameter 160mm
Tailstock Taper MT #6
Tool setter

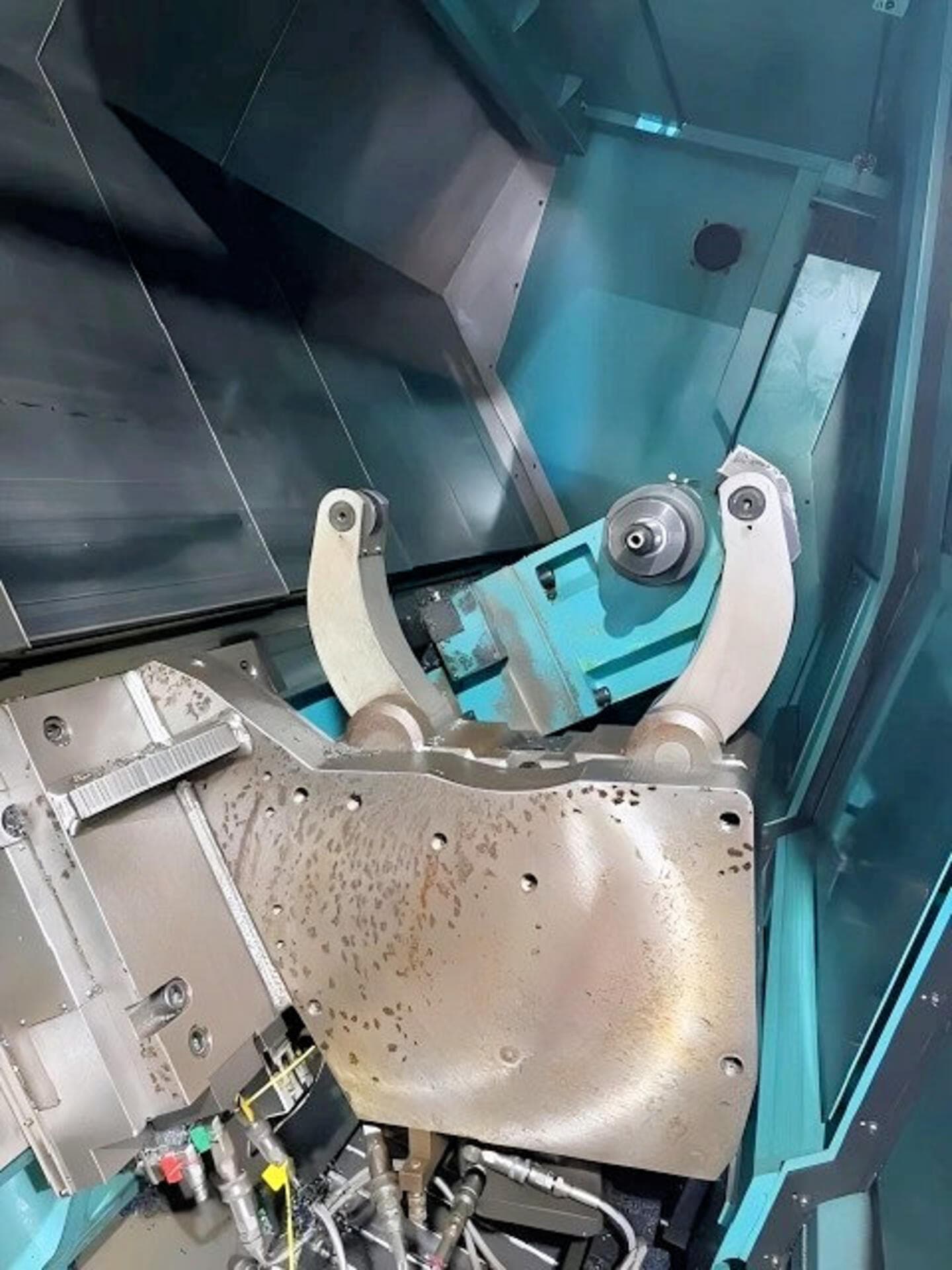

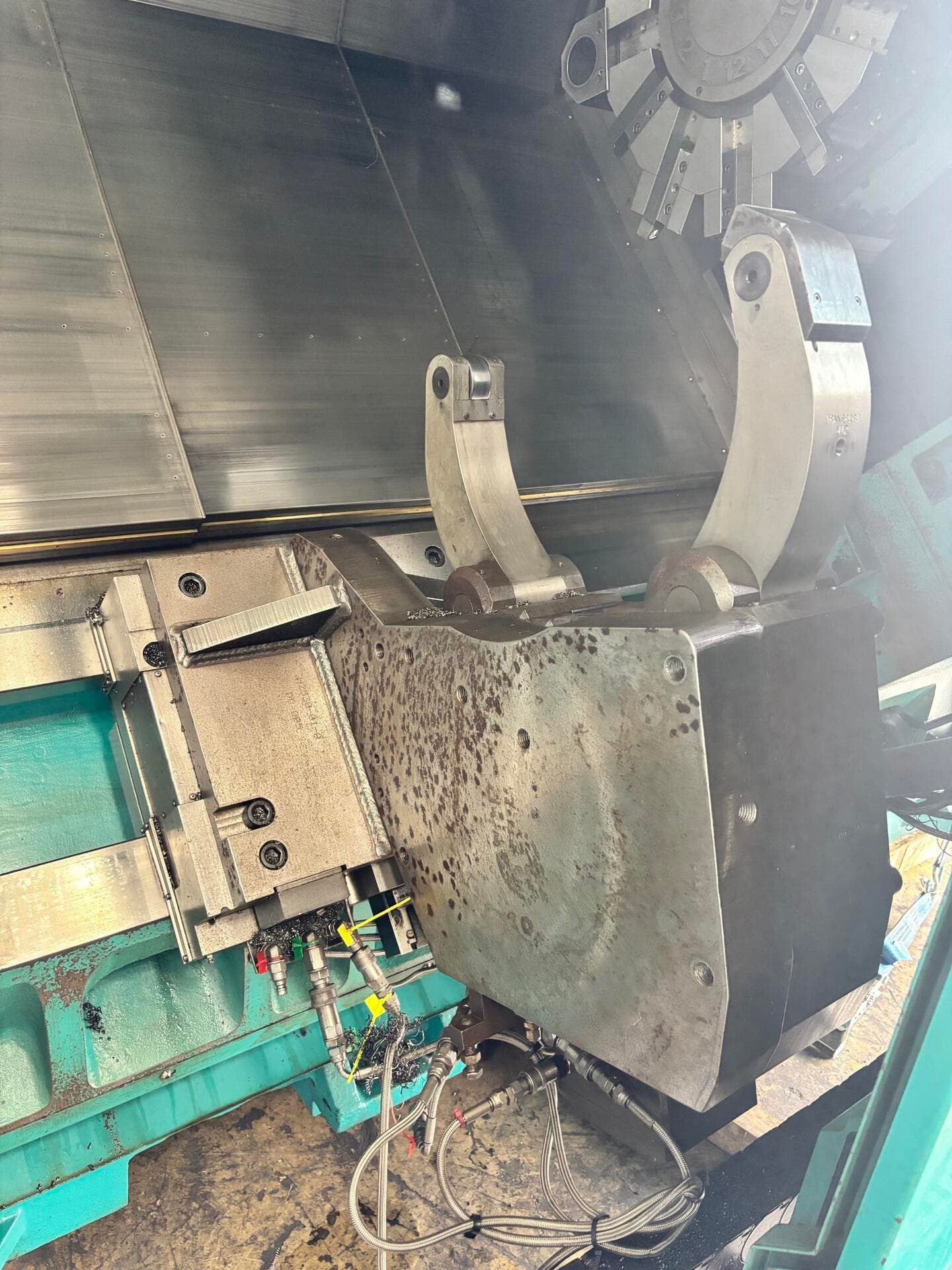

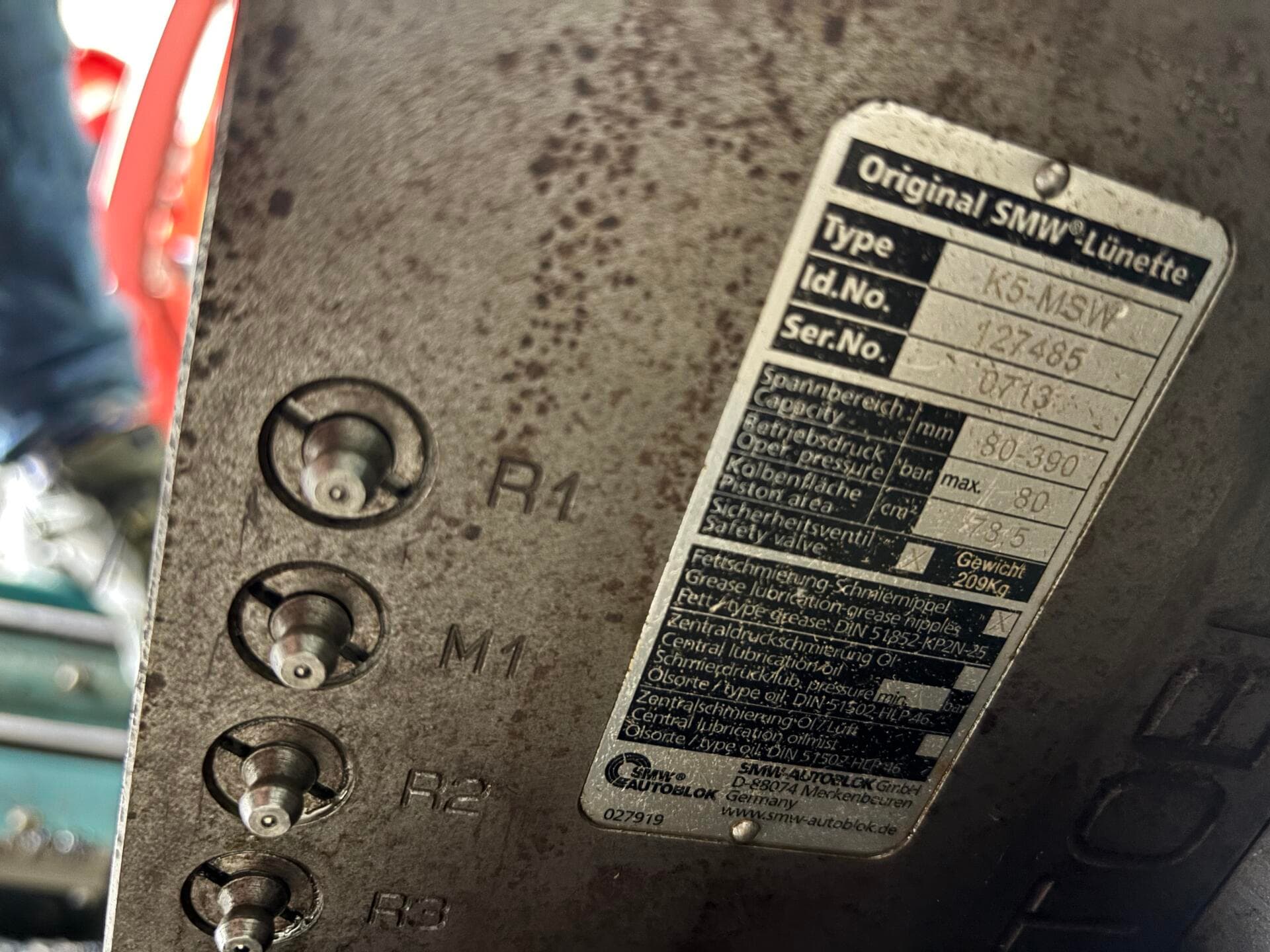

Hydraulic steady

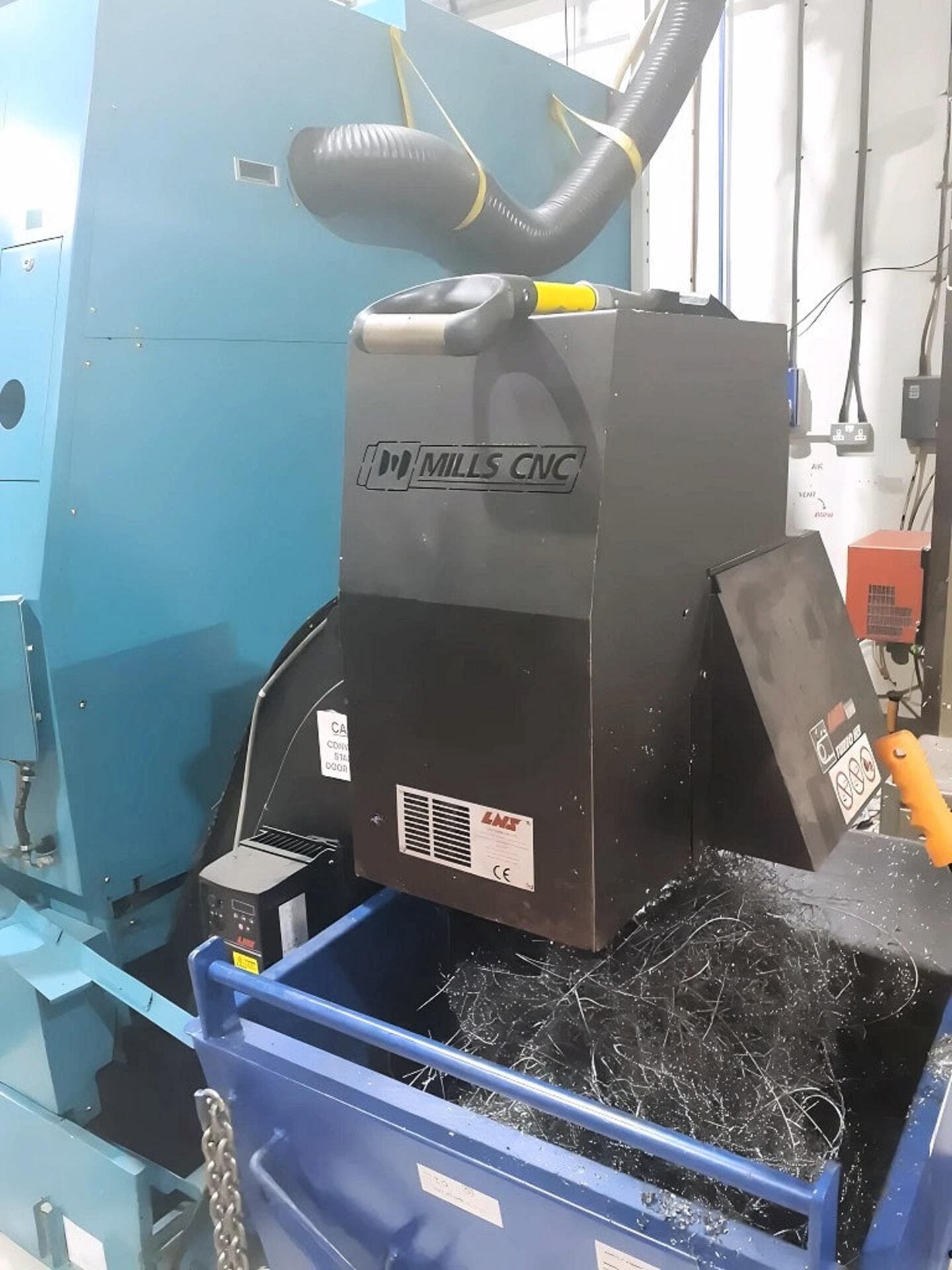

Swarf conveyor
Machine Dimension 7360 x 2770 x 2780mm
Machine Weight 21800kg
