Deckel FP5 NC Toolroom Milling Machine

Description

Code: ST3945

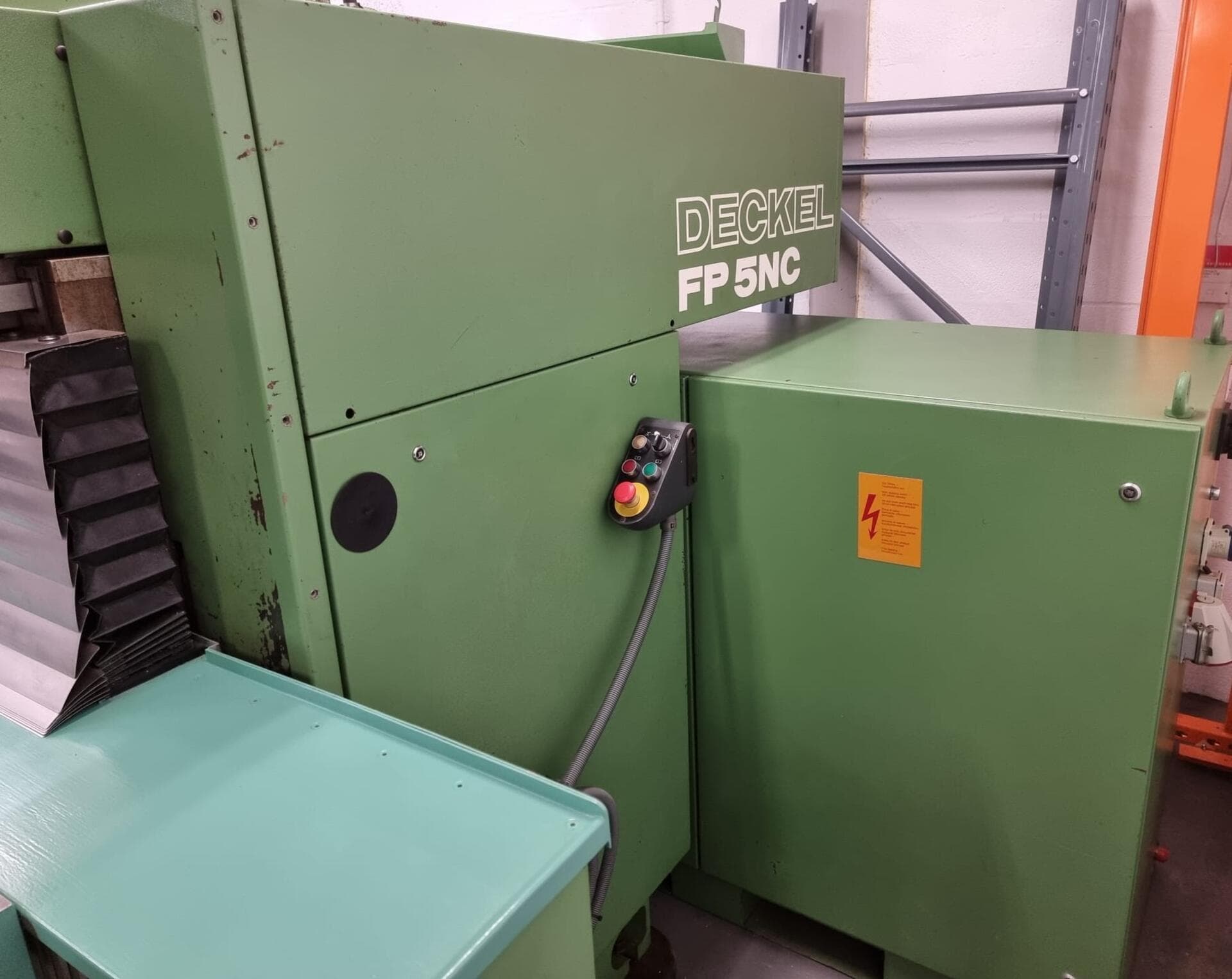

Deckel FP5 NC Toolroom Milling Machine

Model: FP5 NC
Original Year of manufacture: 1986

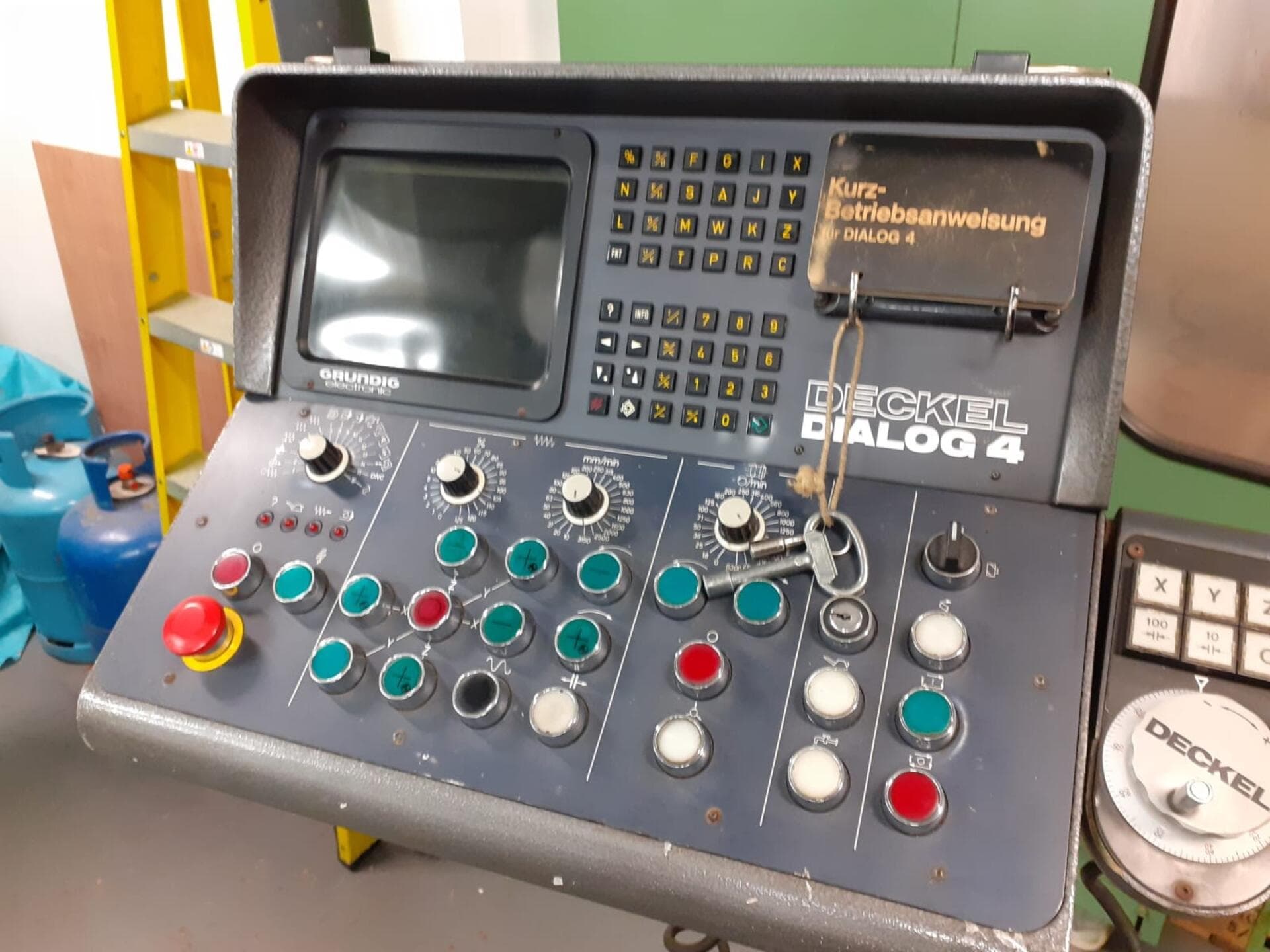

Control: DECKEL DIALOG 4

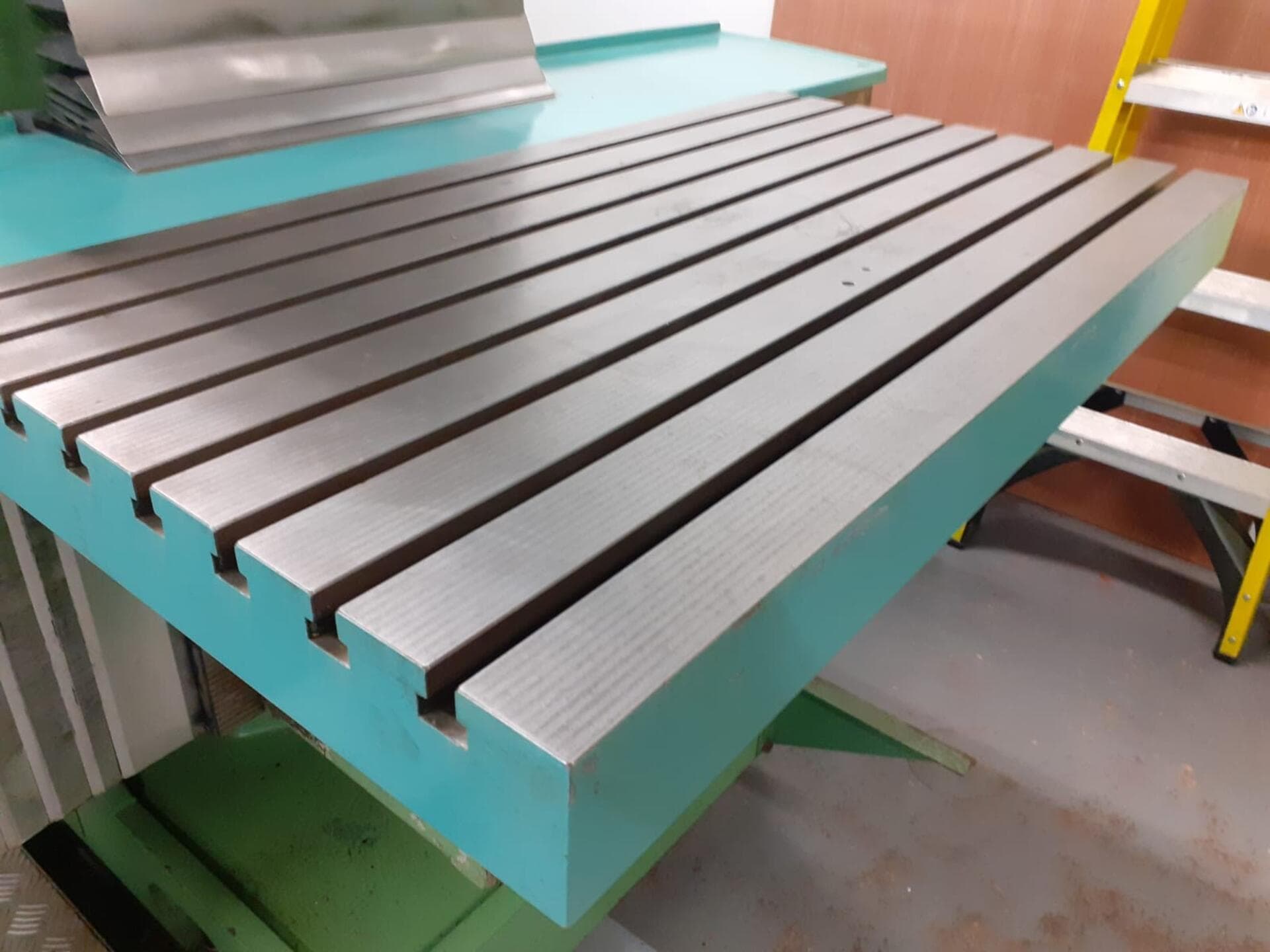

Table Area: 1000 x 550mm
'X' axis Travel: 710mm
'Y' axis Travel: 600mm
'Z' axis Travel: 500mm
Spindle Taper: SK 40
Spindle Speeds: 18 - 6300 RPM
Spindle Power 7.5 kw
380V - 3 PHASE

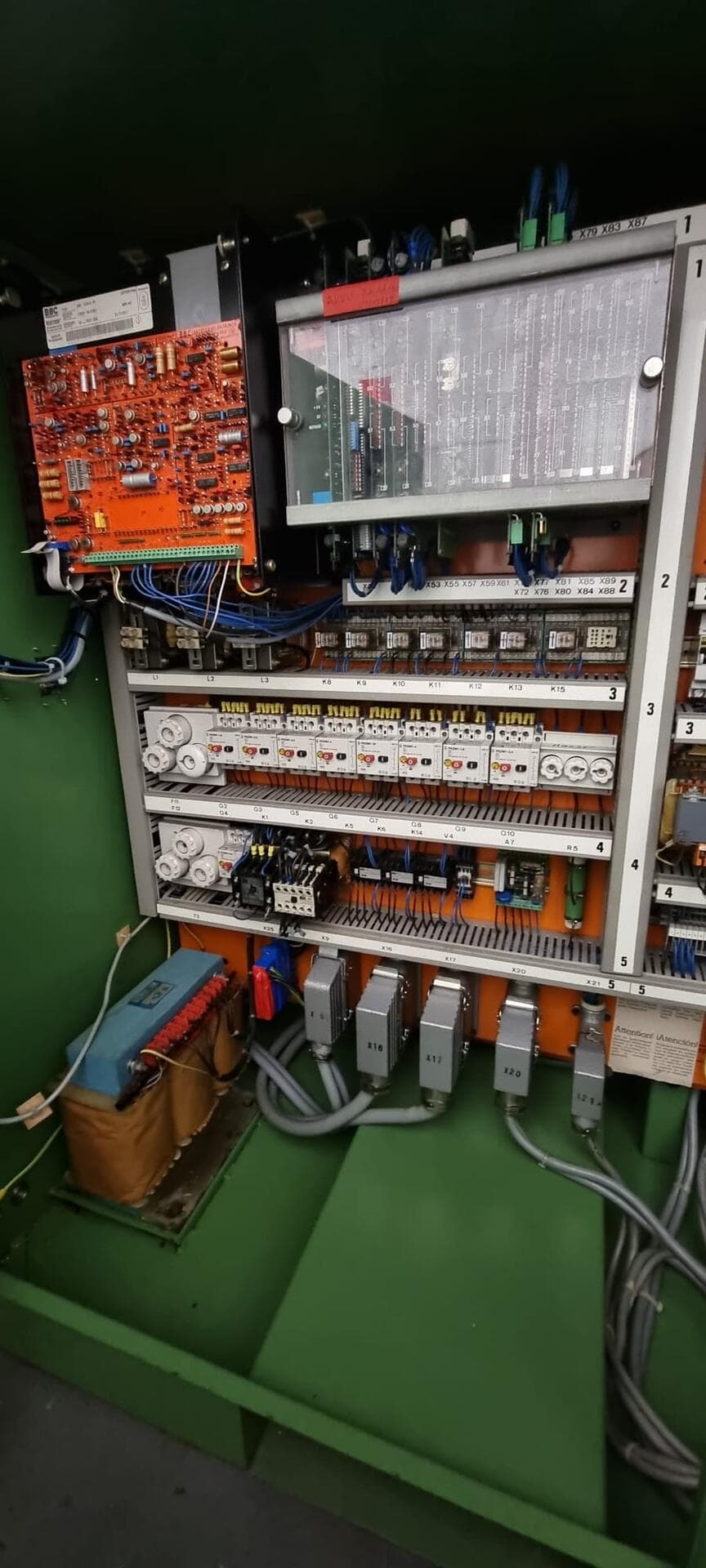

Machine Weight = Approx 3665 kg'sControl cabinet = Approx 460 kg'sSplash Cabinet = Approx 300Kg.s

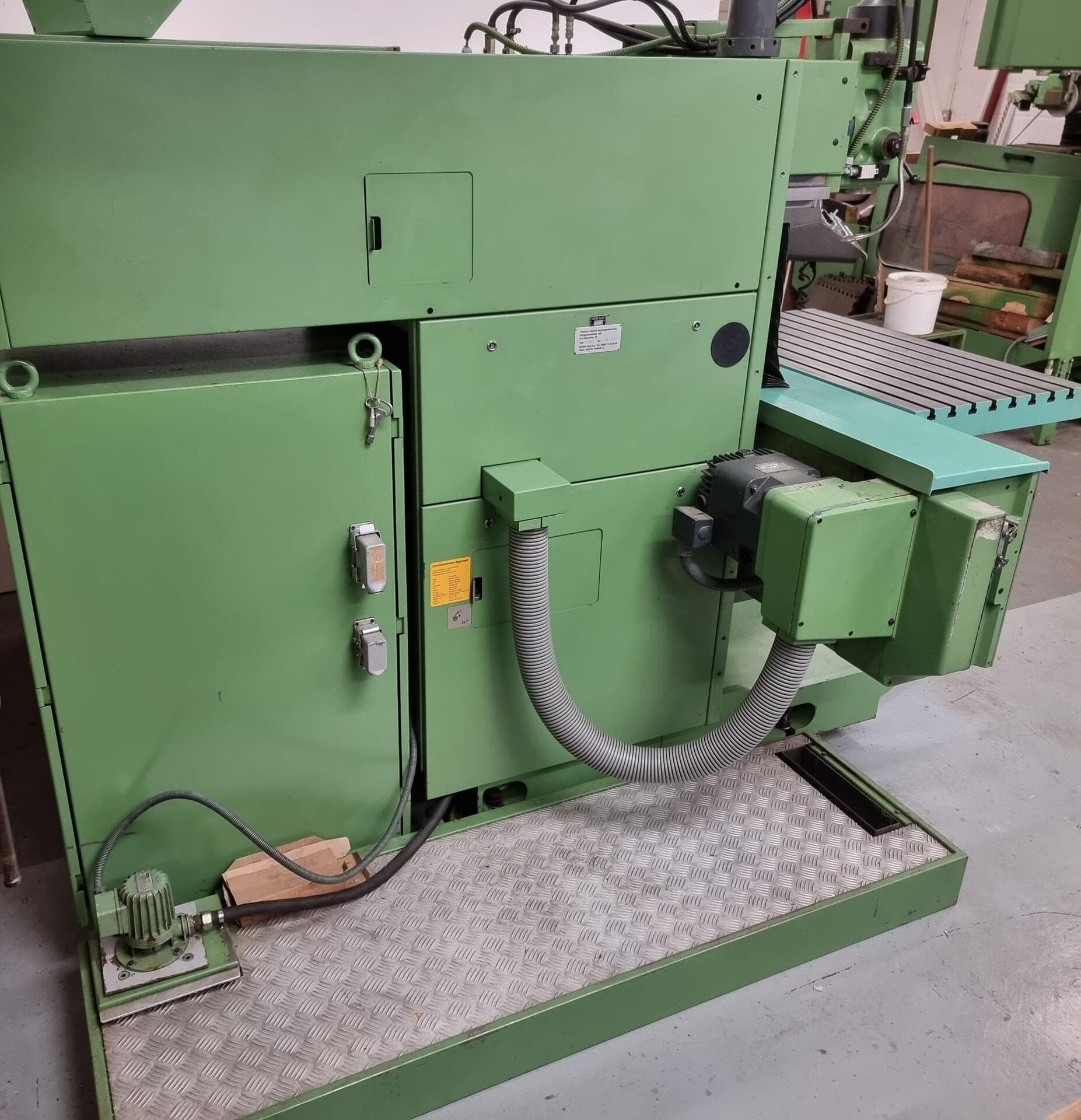

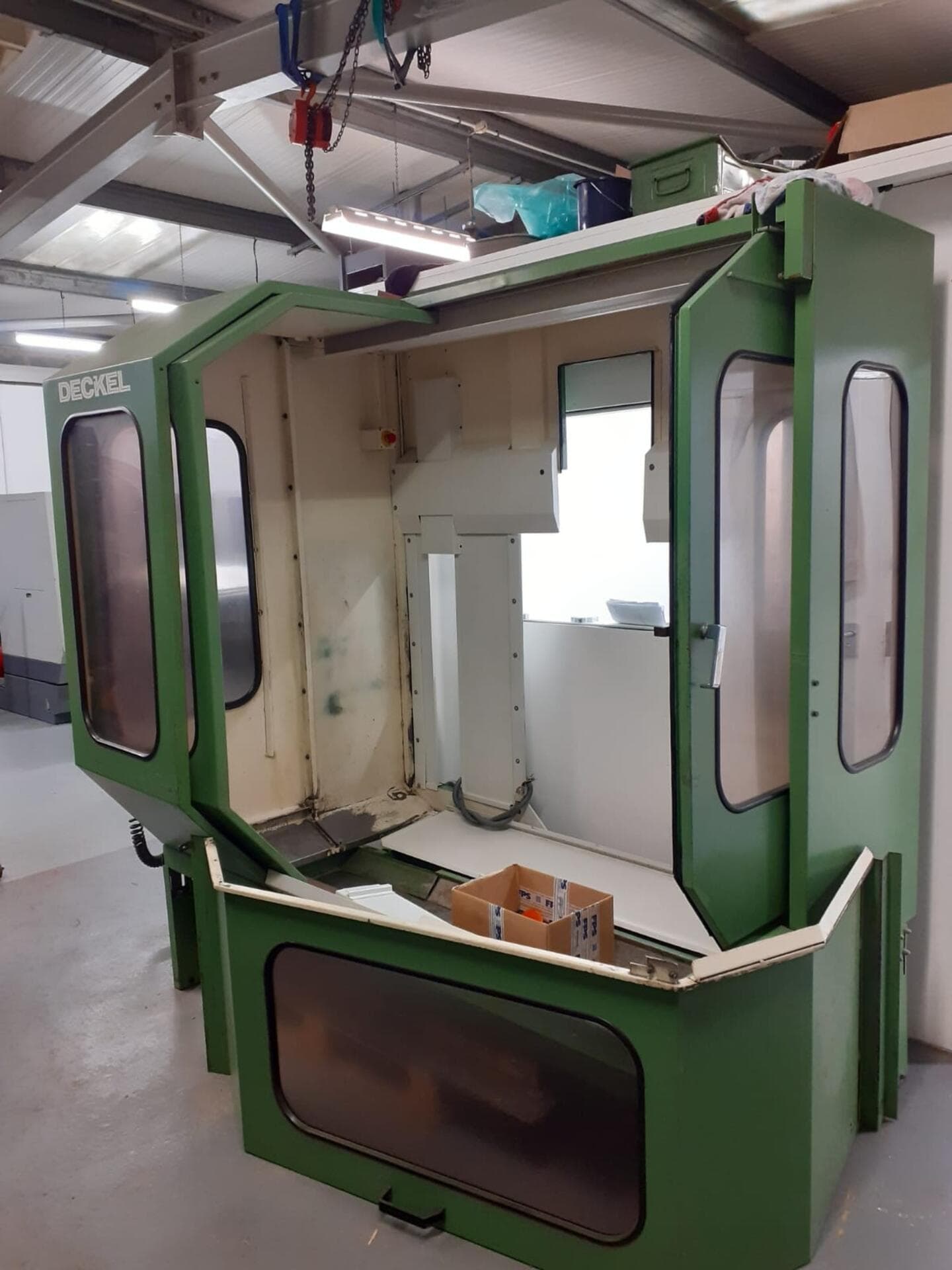

The machine is in very good working order.The splash cabinet is included and has been partially restored. New Linear bearings have been fitted for all the door rails & some of the internal panels have been Re-Powder coated.This machine has not had a lot of run hours for its years and still quite a very nice machine.

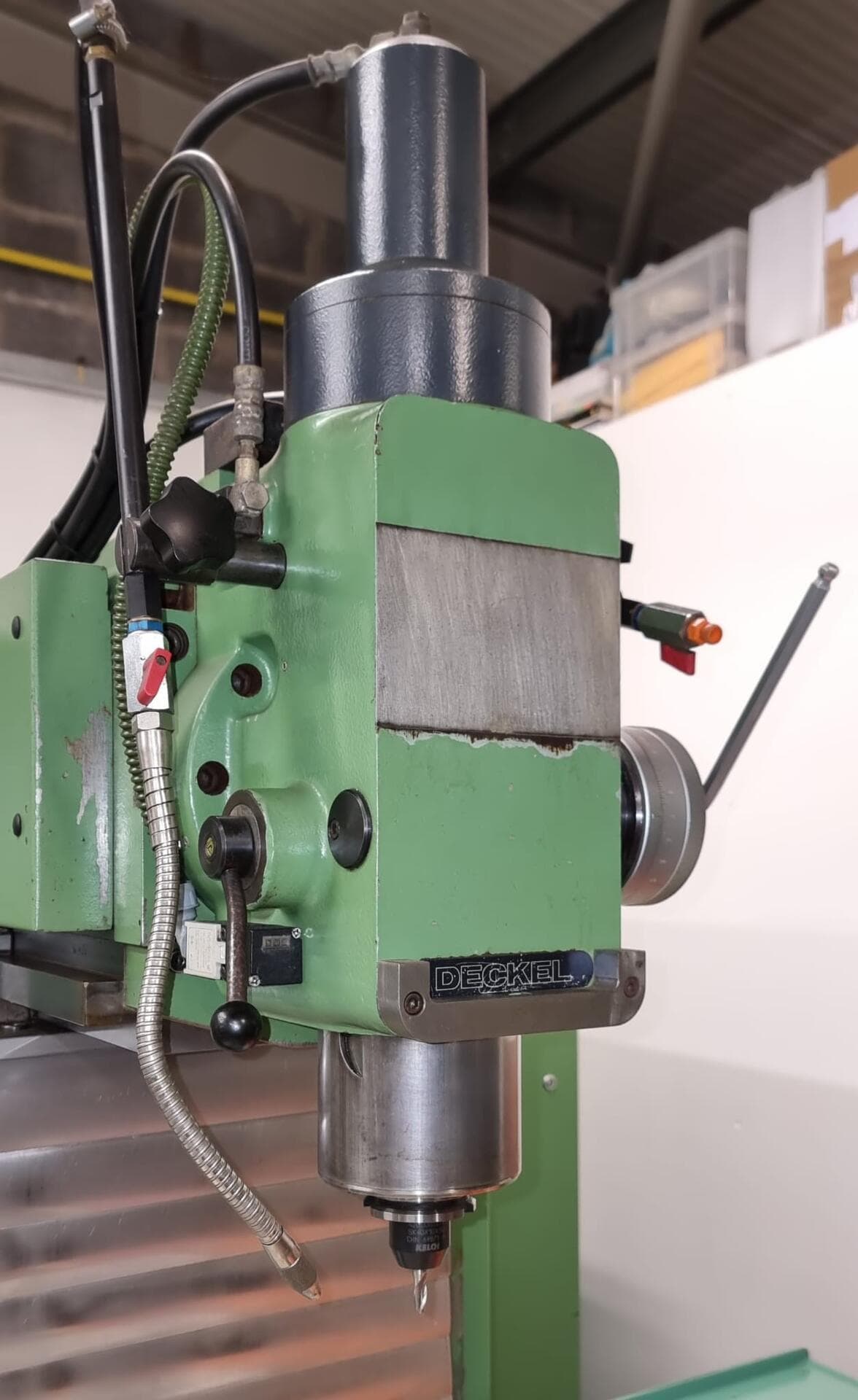

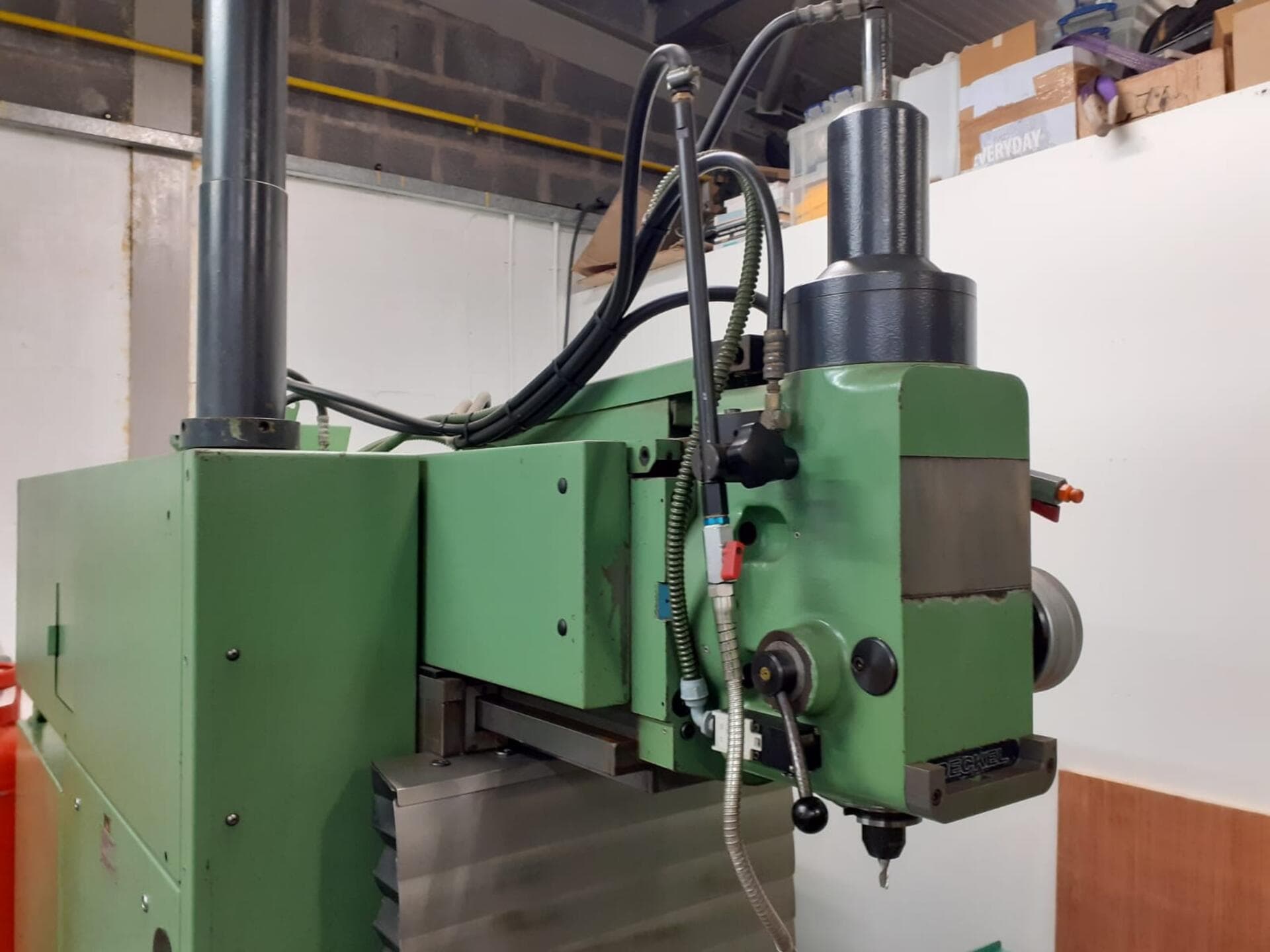

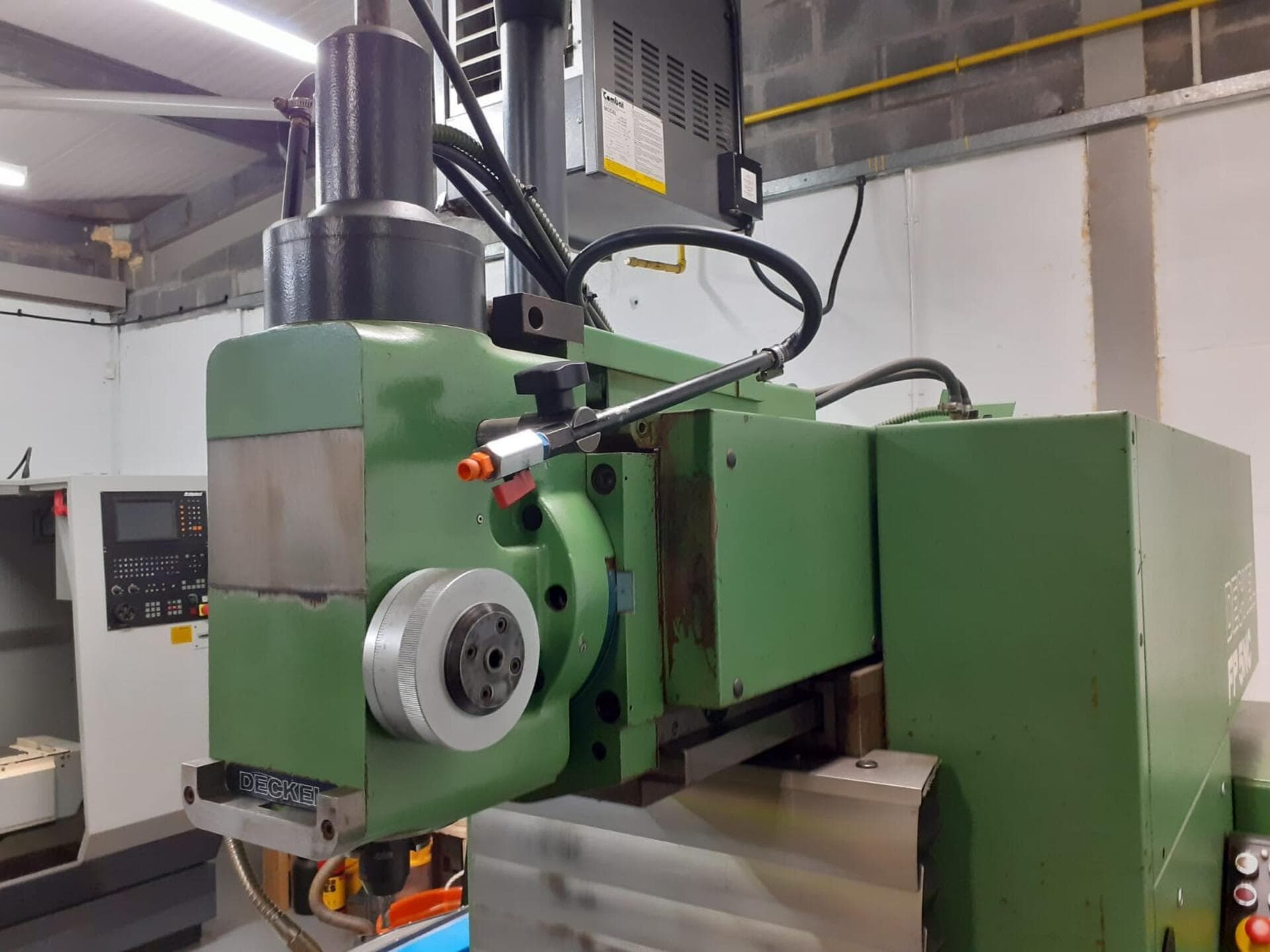

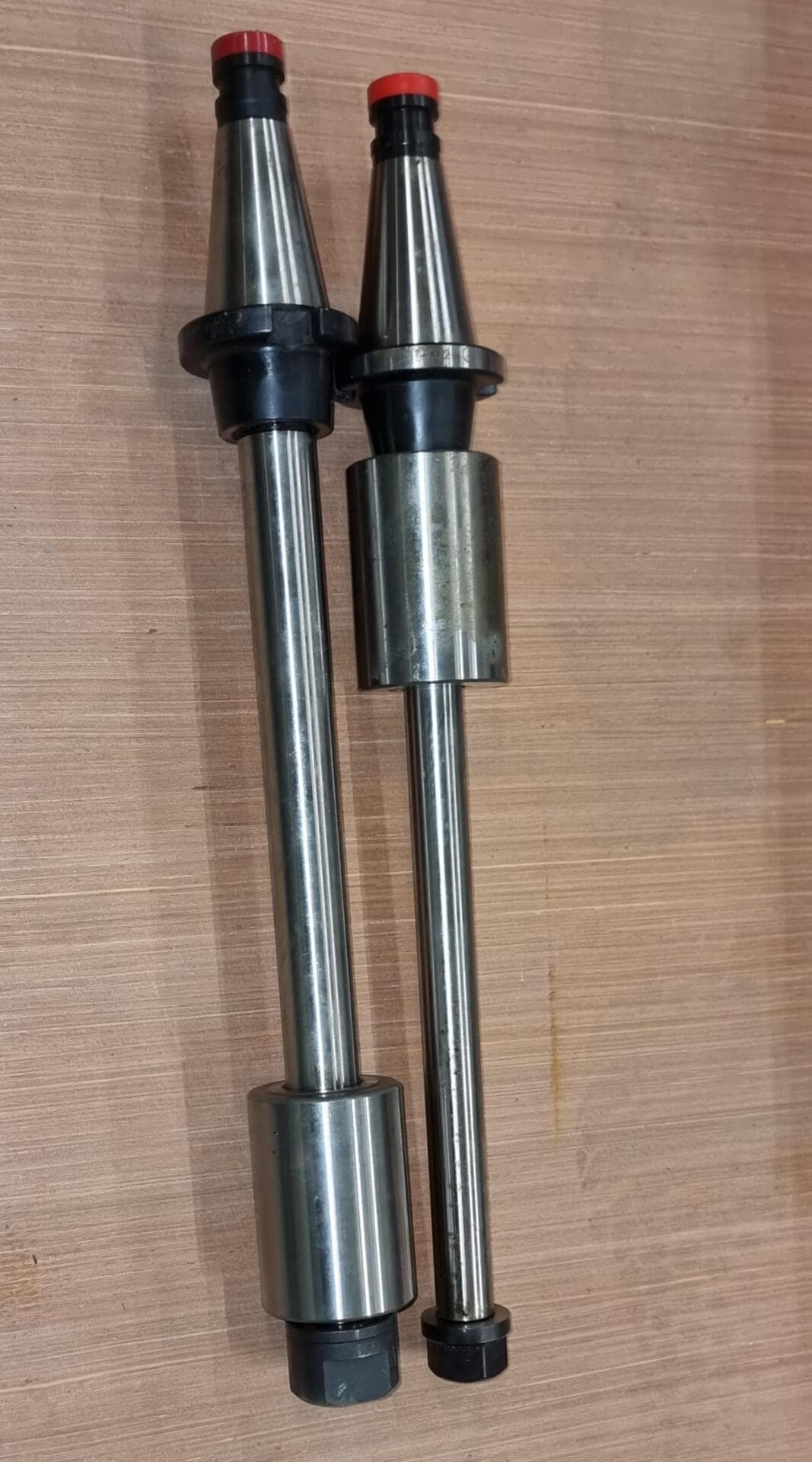

Note: Machine Is currently fitted with Vertical spindle Head.Machine has capability for use with Horizontal milling attachment, however the Horizontal Spindle support arm is not included.The Horizontal Spindle arbors and spacers are however included.
