DAHLIH MCV2100 Vertical Machining Centre with 4th Axis Attachment. Fanuc Series 0i-MD Control. Year 2013

Price on request

Condition: NEW· Manufacturer: Fanuc· Country: United Kingdom

Description

Table size 2300mm x 970mm. T slots no. & size 22 x 5mm. Table load 3000kg. X/Y/Z travels 2100/870mm/760mm. Min/Max distance table to spindle 200/960mm. Distance between spindle centre and column surface 850mm. Cutting feeds 1- 10,000mm/min. Rapids X/Y/Z 10/10/8m/min. Spindle nose BT50. Maximum spindle speed 45 – 6000 rpm (low/high gearbox). 32 ATC. Spindle motor (rated output 30min) 18.5 kW. X/Y/Z motor power 4.2 kW. Power requirement 50 kVA. Max tool dia/length 110/350mm. Max tool weight 15Kg. Tool selection Random. Swarf conveyor. Complete with Parkson MNC-401 4th Axis Attachment & Tailstock with 400mm dia. 3 Jaw Chuck. Centre Height 280mm. Centre height with packing piece 360mm. Minimum increment 0.001. Machine dimensions L x W x H 7700mm x 4694mm x 3250mm. Approximate weight 18,000 kg

Send Enquiry

Seller

GM Machinery Ltd

Similar Machines

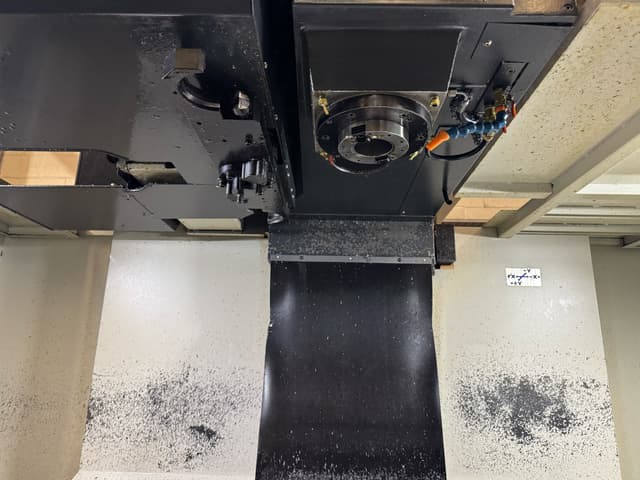

DAHLIH MCV1450 Vertical Machining Centre with Fanuc Series 0i-MF Control. Year 2019
