BROTHER Speedio MX200 X3 Compact Multi-Tasking Machine. Year 2021. Complete with UR10 Collaborative robot

Description

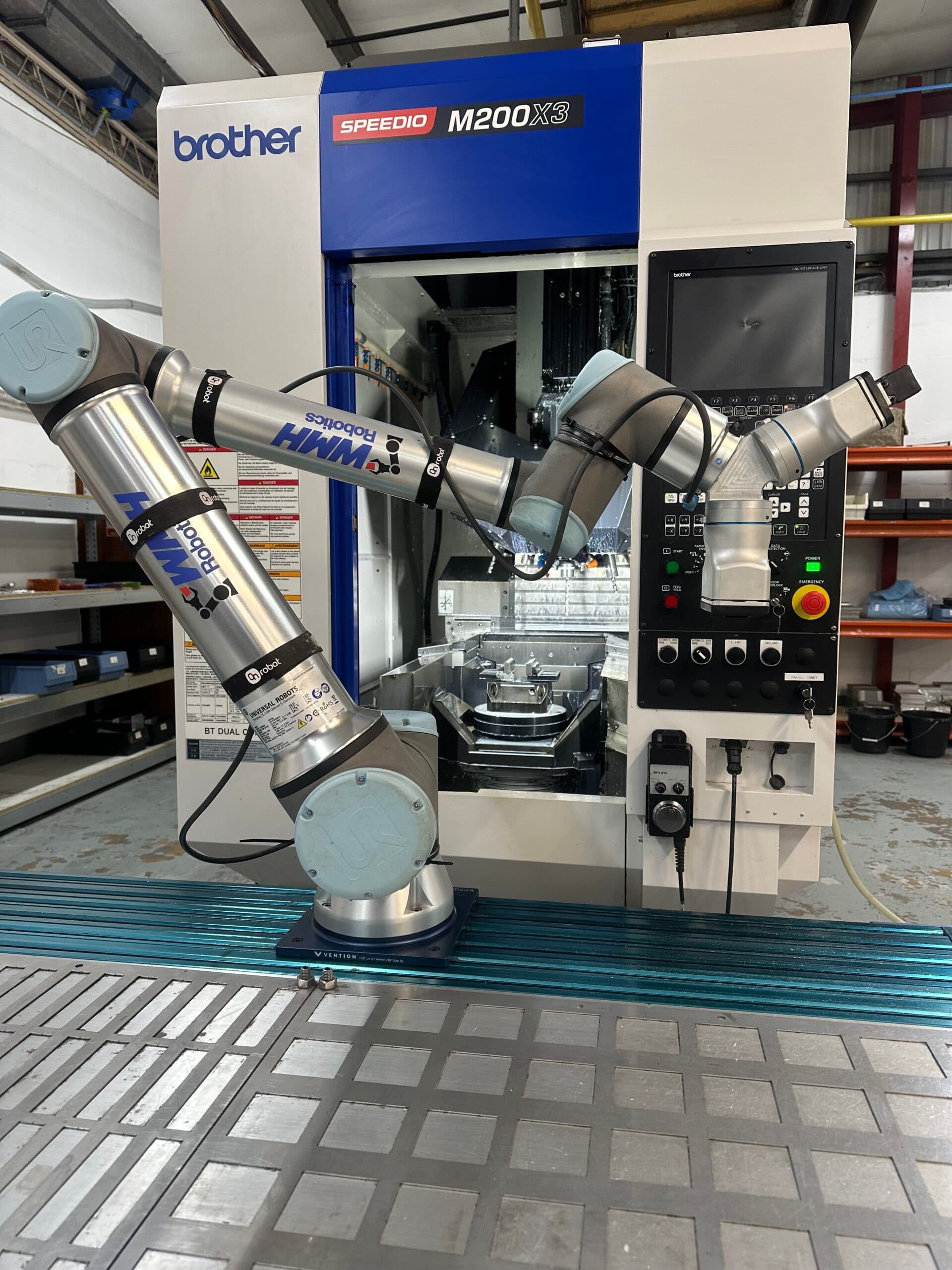

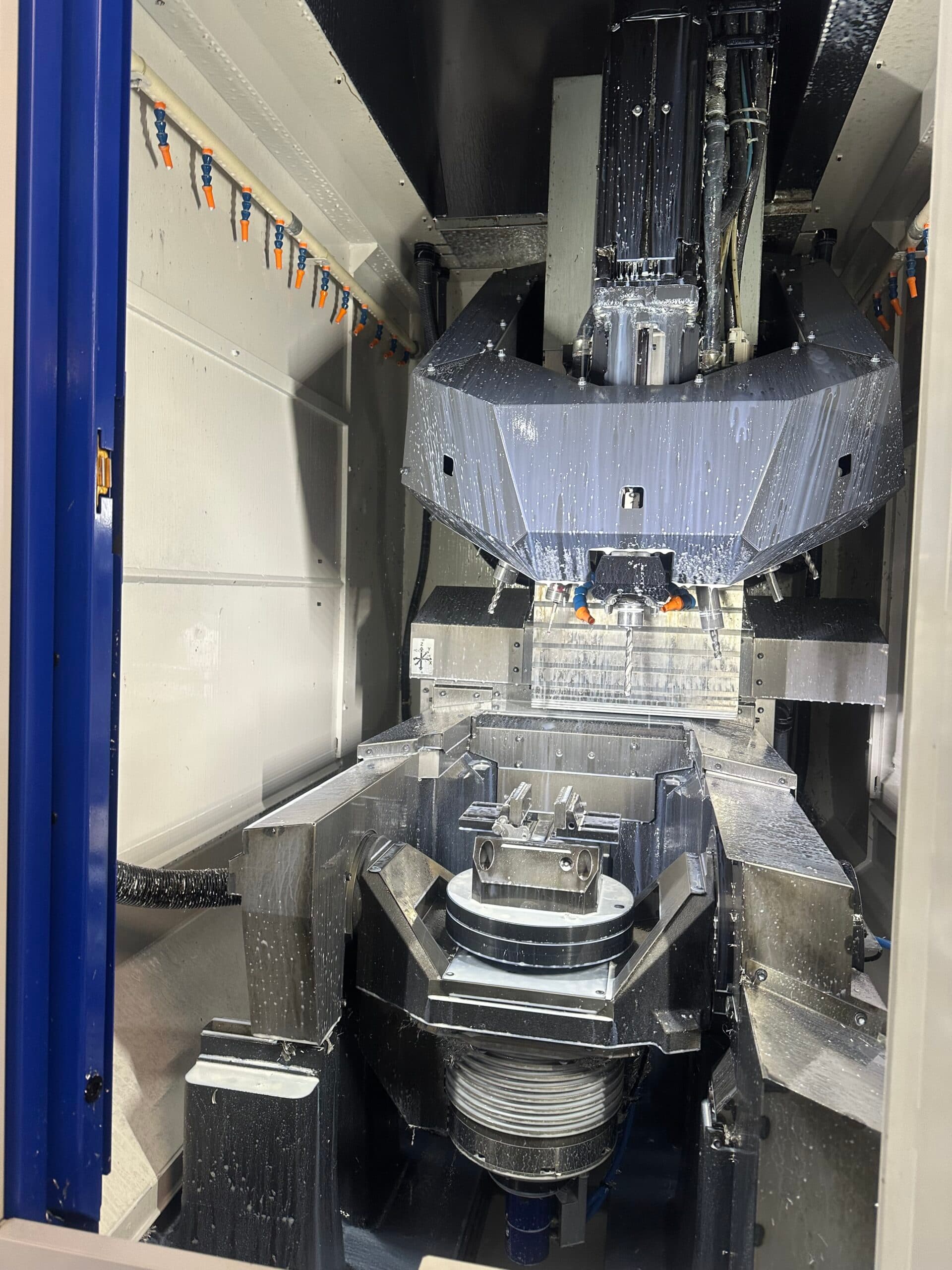

Table size 140mm dia. Travels X/Y/Z 200/440/305mm A travel 120 ～ －30 deg. C travel 360 deg. Distance between table top and spindle nose end 150 ～ 455 (5.9 ～ 17.9). Max. loading capacity Table side 40 (88.2) / Tale side 11 (24.3). Max. table load inertia Table side 0.29 (991) / Tale side 0.04 (137). Spindle speed 16000RPM. Speed during tapping 6000RPM. Tapered hole 7/24 tapered No.30. Coolant Through Spindle(CTS). High pressure coolant. Auto door. Probing.Turning Spindle – Max. spindle speed 2000RPM. Rapid traverse rate(XYZ-area) 50 × 50 × 50. Cutting feed rate X, Y, Z axis ： 1 ～ 30,000. Indexing feedrate(A and C) A axis : 60 C axis : 200. Tool shank type MAS-BT30. Pull stad type ＊4 MAS-P30T-2. Tool storage capacity 22. Max. tool length 200mm. Max. tool diameter 80mm. Max. tool weight 3Kg. Tool selection method Random shortcut method.Dimension L x W x H 1280 x 3862 x 2603mm.Weight 3050Kg The machine is currently integrated to a Collaborative robot. The cobot can easily be removed.UR10 Collaborative robot, 10kg, On Robot Dual Gripper, rigid base with dowels for multiple setups
