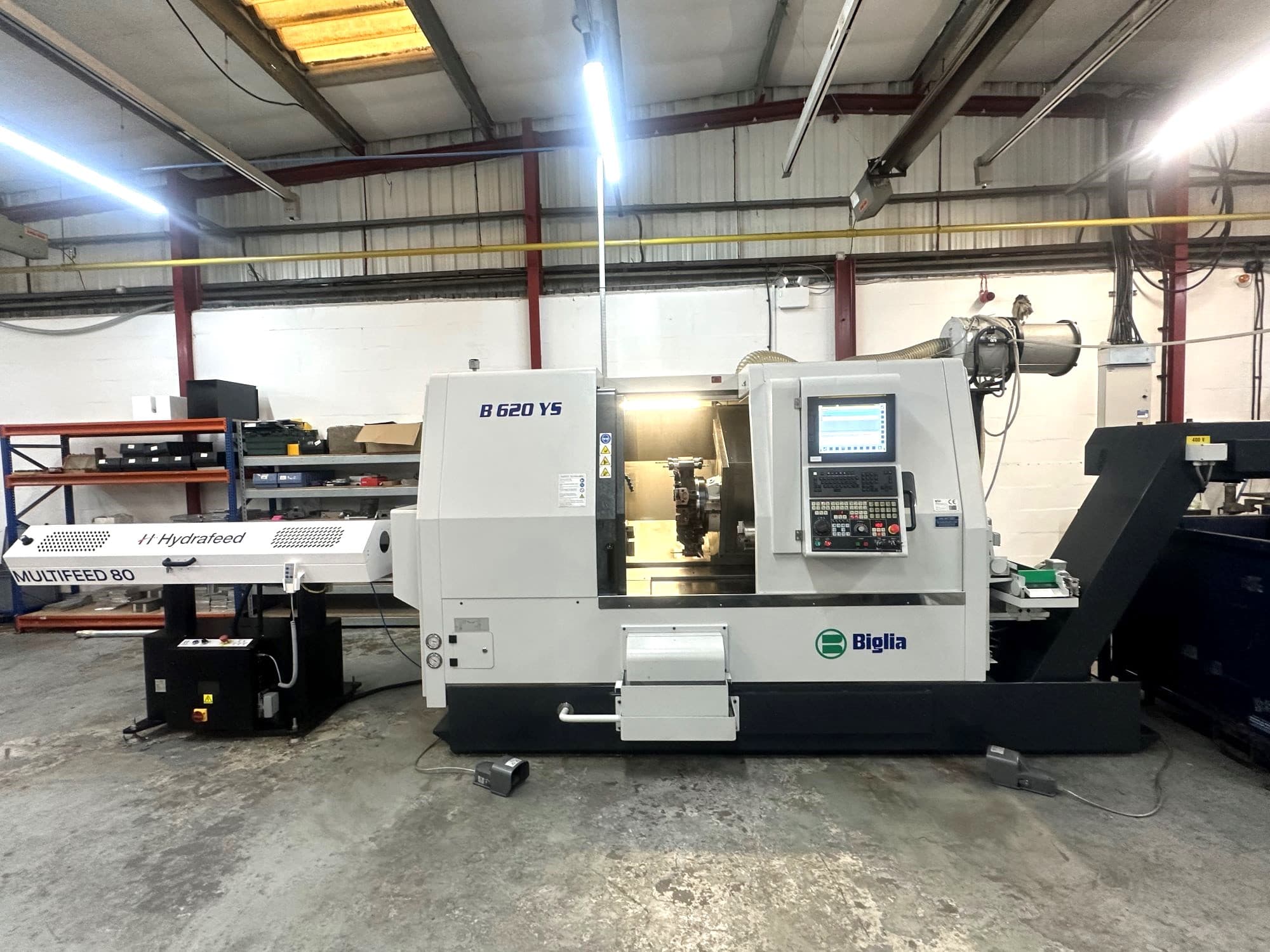

BIGLIA Model B620 YS CNC Lathe with C Axes, Y Axis & Sub Spindle. Fanuc 0i-TF Control. Year 2021

Description

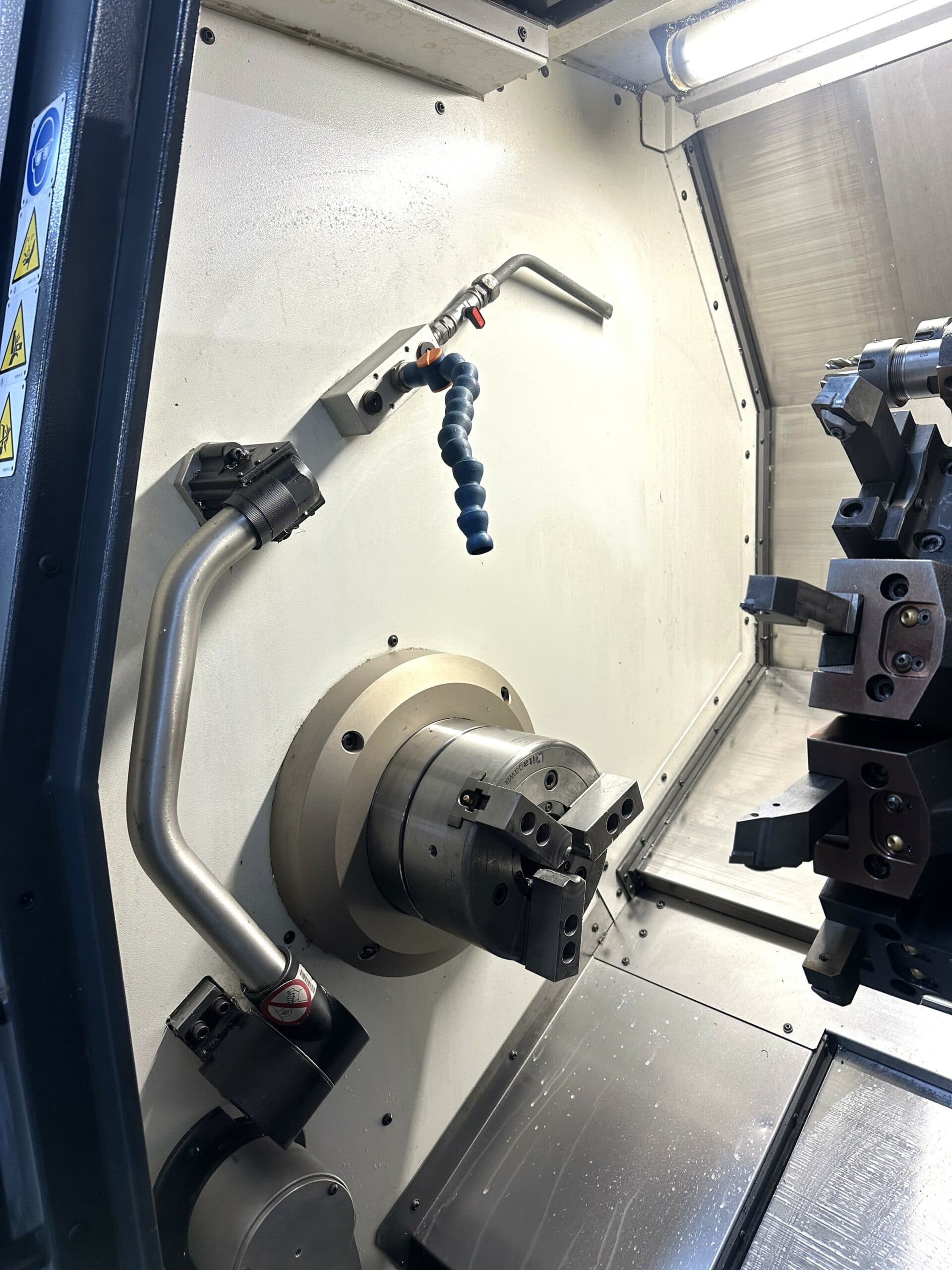

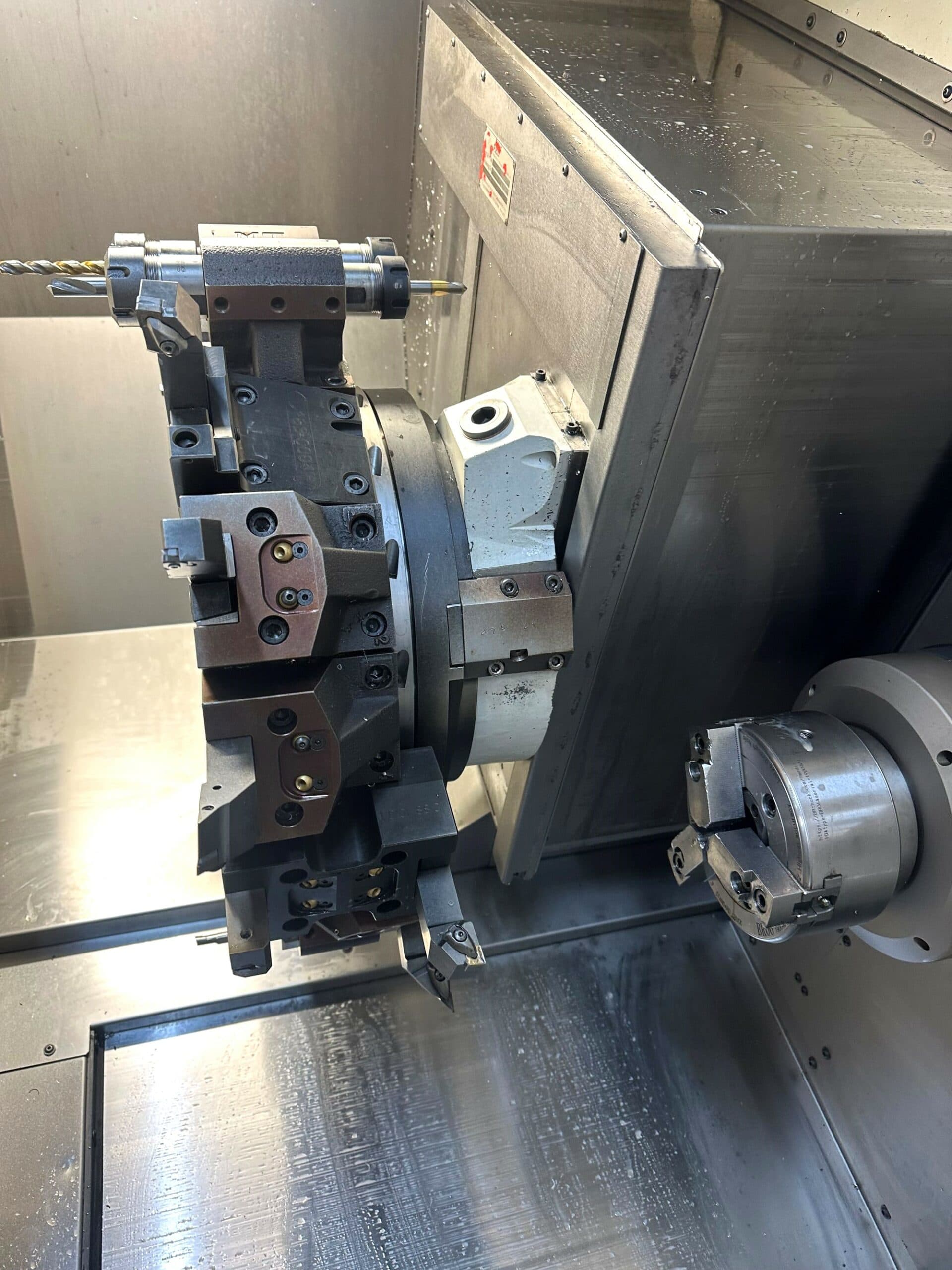

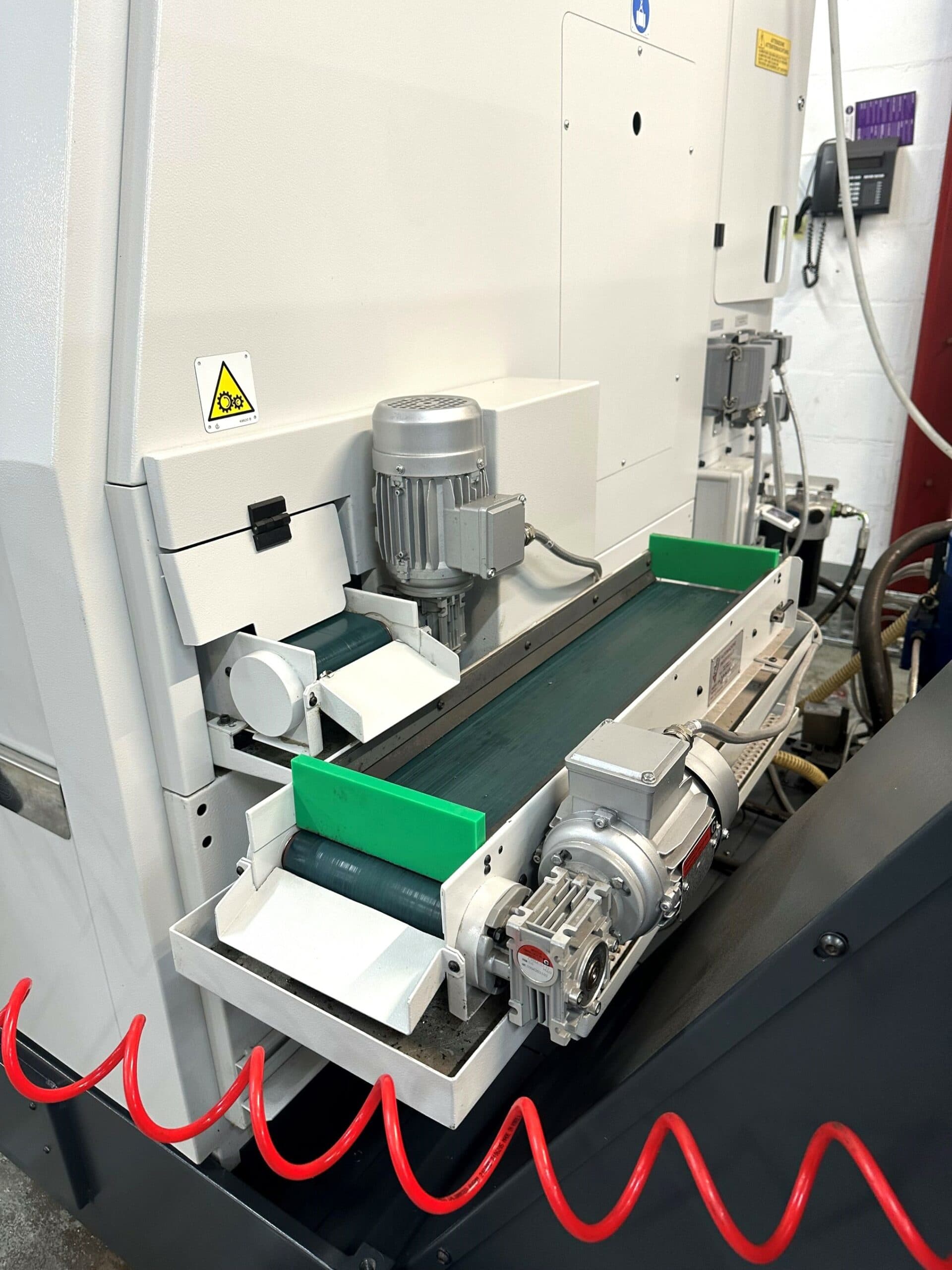

Swing over bed 700mm. Swing over carriage 250mm. Max turning dia. On sub spindle 250mm. Maximum turning dia. 250mm on main spindle at a length of 360 mm. Main spindle nose ASA 8” (optional extra). Maximum bar dia. 80mm (optional extra). Main spindle speeds 5000 rpm. Sub spindle speeds 5000 rpm. Spindle power 17/25 kW. 5-station motor-driven turret (all stations driven tools), two “C”-axes, “Y”-axis and sub-spindle. Sub spindle nose ASA5”. X/Y/Y Axis travels 620mm/120mm/90mm (+45/-45). Max speed of live tools 6000 rpm. Live tool power 11-13.1 kW. Maximum chuck dia. on main spindle 210mm. Maximum chuck dia. on sub spindle 165mm. Tool probing. High pressure coolant (25 bar). Tool load monitoring. Automatic parts catcher. Auto power off. Losma Darwin 1200M Fume extraction. Oil skimmer. Kitagawa BB208 Chuck on main spindle. Kitagawa BB206 Chuck on sub spindle. Hydrafeed Multifeed 80 – 1.5m short magazine barfeed (including spindle liner kit). Machine complete with 1 x Radial driven tool WTO to suit ER25 collets/quick change and 1 x Axial driven tool WTO H80 to suit ER25 collets. Selection of toolholders, boring bar holders & reduction sleeves. Machine only has 900 hours. Machine dimensions L x W x H 4385mm (includes swarf conveyor) x 1890mm x 1985mm high. Approximate weight 6500 kg.
