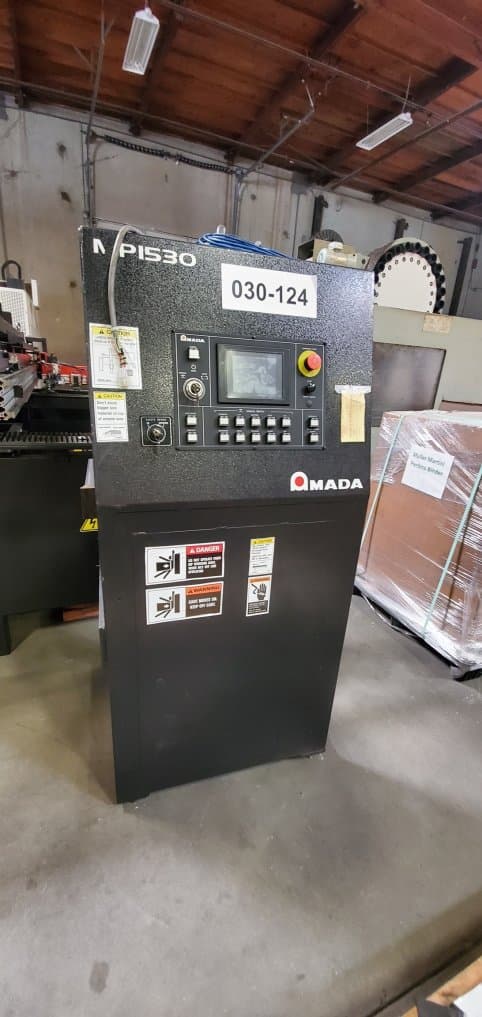

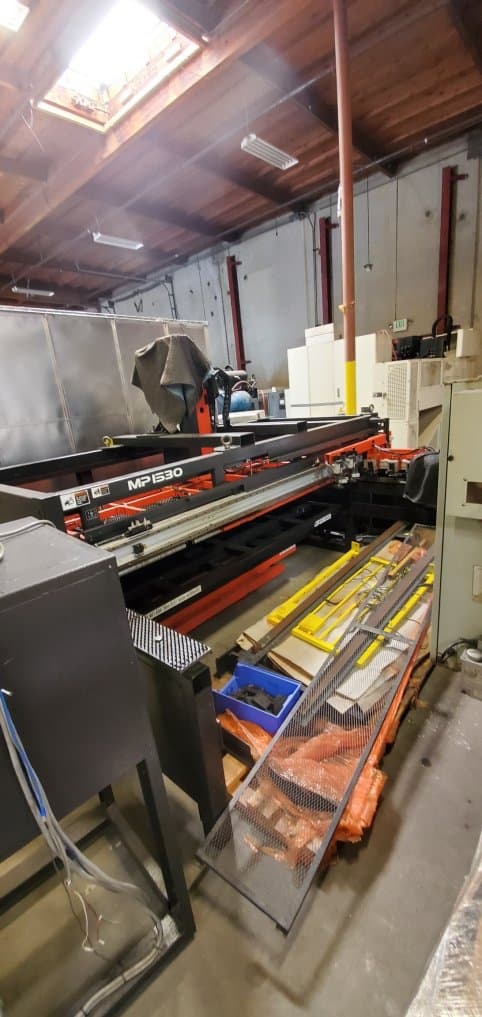

The MP 1530 auto robotic load/unload system automates the loading andunloading of Amada turret punch presses. This allows unmanned operation of thepunch press and enables the machine to be run during the day, during breaksand lunches, and after hours.The MP 1530 will consistently load and unload one sheet every 34 secondswithout operator assistance. Once the punching process is complete, sheets areautomatically removed and neatly stacked, after which a new sheet is loaded.Through unattended operation, you can significantly increase profitability byreducing labor costs and enabling round-the-clock production.Working in tandem with your Amada turret punch press, the MP 1530 load/unloadsystem will dramatically increase your production output. The MP 1530 handlesautomatic loading and unloading of individual sheets of material to the punchpress of up to 5' x 10'.Technical SpecificationsMaximum Sheet Size 5' x 10'Minimum Sheet Size 27.5" x 11.8"Material Mild Steel, Stainless Steel, AluminumMaterial Thickness Range .24 gauge - " (.6mm - 6.3mm)Loading Height Max. 10.25" including skid height of 4"Material Cart Weight Capacity 5,500 lbs.Material Separation Edge Lifter, Magnetic Separator, Air KnifePallet 2 pallets (raw materials & finished parts)Electrical Requirements 230V/460V - 3 phaseElectrical Supply Capacity 10 KVA (not including NCT machine)Air Requirements 75 PSI., 31.8 CFMOverall Dimensions (L x W x H) 201" x 163" x 105"<br>
Dealer: Fanuc
