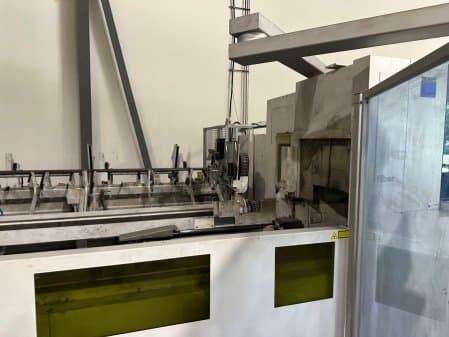

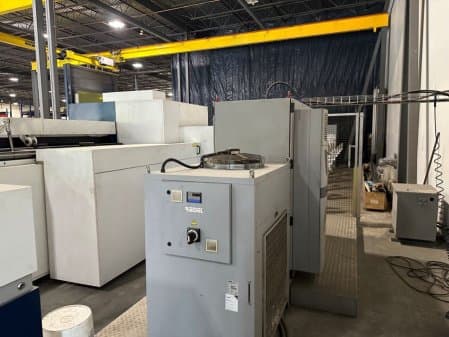

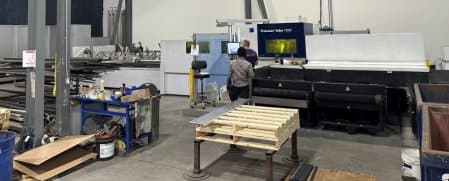

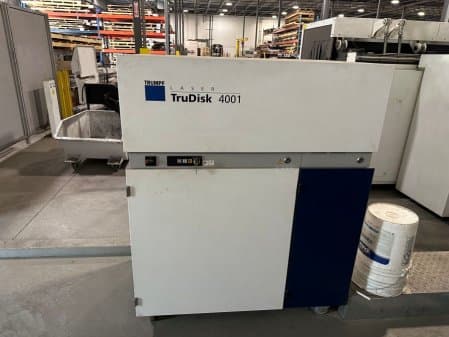

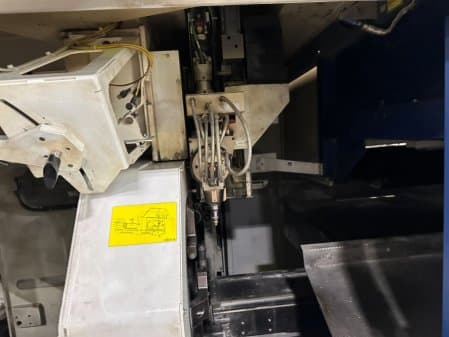

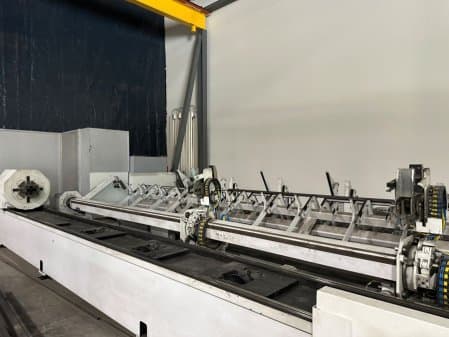

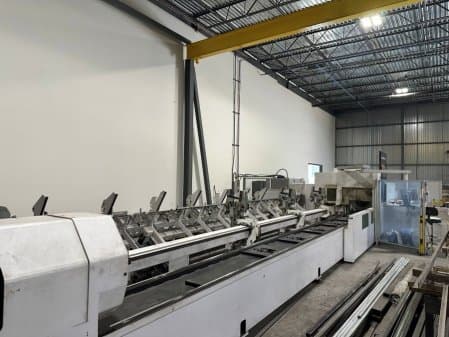

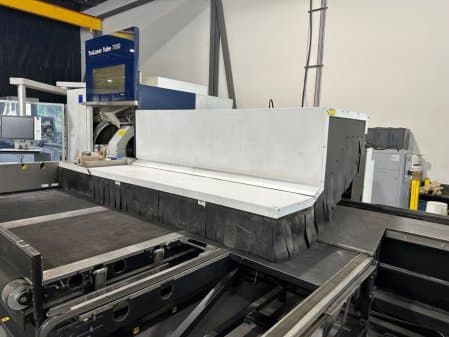

Machine SpecificationsRound TubeMax. Outer Diameter: 254 mm (10")Rectangular ProfileMax. Side Length and Outer Circle Dimeter: 220 mm/ 254 mm (8.66"/10")Max. Raw Length for Automatic LoadingFor Loadmaster Tube 6.5 M: 6500 mm (255.9")For Loadmaster Tube 9.2 M: 9200 mm (362.2")For Loadmaster Tube 12.5 M: 12500 mm (492.1")Finished Part LengthFor Unloading Unit 4.5 M: 4500 mm (177.2")For Unloading Unit 4.5 M + 1.5 M: 6000 mm (236.2")For Unloading Unit 6.5 M: 6500 mm (255.9")For Unloading Unit 6.5 M + 1.5 M: 8000 mm (315")Workpiece WeightMax. Path Weight (standard/optional) 40 kg/mMax. Raw Material Weight with Automatic LoadingWith Loadmaster Tube 6.5 M: 260 kg (573 lbs)With Loadmaster Tube 9.2 M: 368 kg (811 lbs)With Loadmaster Tube 12.5 M: 368 kg (811 lbs)Laser-Specific Data - TruDisk 4001Maximum Laser Power: 4000 WattsMax. Sheet Thickness, Mild Steel: 10 mm (.39")Max. Sheet Thickness, Stainless Steel: 6 mm (.24")Max. Sheet Thickness, Aluminum: 6 mm (.24")Max. Sheet Thickness, Brass: 5 mm (.20")Consumption Values (Average Power Input in Production): 10 kWEquipped With30' Load and 20' Offload StationTapping and DrillingBevel Cutting HeadSeam Camera4kW TruDisk ResonatorChillerDust Collector
Location : United States of America
Seller : Jordan Craig Machinery
Manufacturer: Messer
