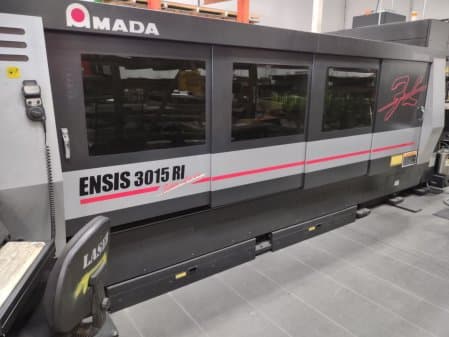

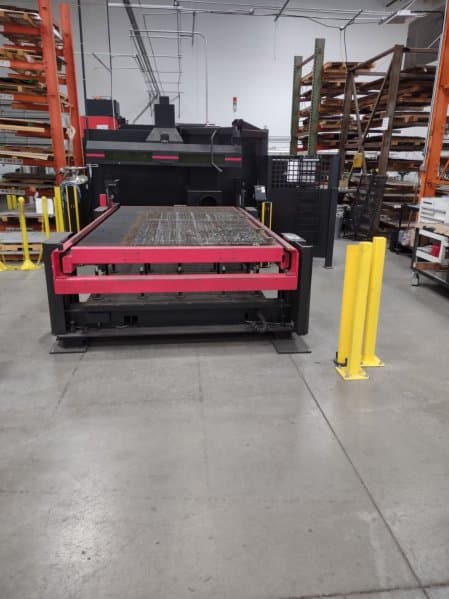

3000 WATT AMADA ENSIS3015RI,ROTARY INDEX,FLAT,TUBE & BAR FIBER LASER,INSTAL 2020

Description

SpecificationsMotion Package:Travel method: Stationary table X,Y and Z axis movement for cutting headControl method: X,Y and Z simultaneous 3-Axis controlDrive motors: Fanuc AC Servo motorsMaximum sheet size (X,Y): 120" x 60"Maximum axis travel (X,Y,Z): 121" x 61" x 3.93"Maximum positioning speed (X,Y)Per axis: 4,724 inches per minute45 degree vector: 6,693 inches per minuteMaximum speed Z-axis: 4,724 inches per minuteRepeatability: +/- 0.0002"Maximum material weight: 2,000 lbs.Maximum material thicknessMild steel: 1.0"Stainless steel: 0.500"Aluminum: 0.500"Assist gas: 4 ports with NC Pressure controlElectrical requirements: 200V, 3 Phase, 60 HzControl:Model: AMNC 3i ControlControl function: X,Y,Z axis simultaneous and focus lens, B-axis and laserpower control (CW, gated plus, pierce routines etc.)Data storage: Compact flash driveRI Rotary Index specifications:Table shapes: Round, square, rectangular, angle and channelRound tube: _" - 8.66"Square tube: _" - 6"Rectangle: 8.66"Angle iron: 3.54"C-Channel: 6"Maximum weight: 441 lbs.Maximum tube length: 236.2"Rotation speed: 100 RPMDust collection: Automatic switching for tube length up to 236"Scratch prevention: Controllable pneumatic chuck and aluminumFiber Laser resonator (Engine):Model: AJ3000 with ENSIS TechnologyResonator style: LD Excited Yb fiberCW output power: 3 KWLaser Wavelength: 1.08 micronsLaser power mode selection: CW, gated pulse (CNC controlled)Laser beam mode output: Multimode modeChiller water requirement: > or = 41 L/MinuteElectrical power consumption: 9kWEquipped with:AMNC 3i controlRI Rotary IndexInterlock enclosureNC Assist gasB-Axis NC focusIntegrated beam purge150 mm lens, 190 mm lensHigh speed cutting headActive cutClean cutChillerDust Collector
