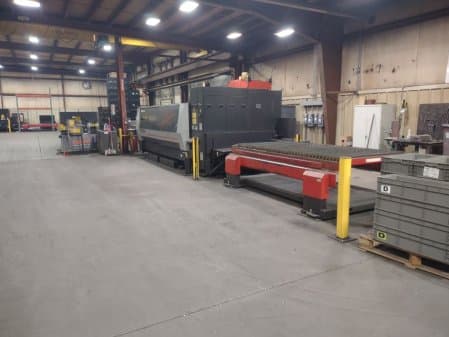

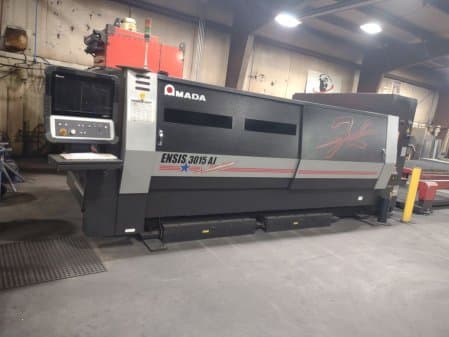

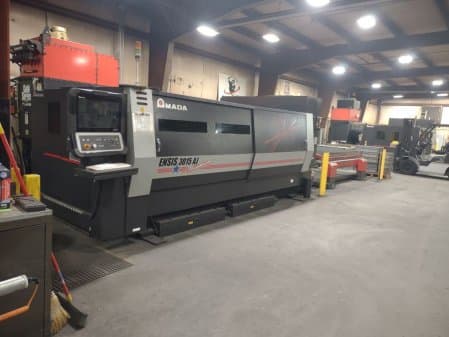

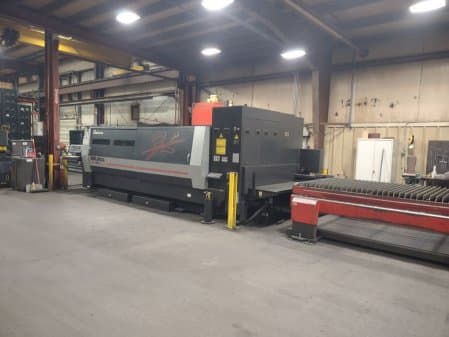

3000 WATT AMADA ENSIS-3015AJ FIBER LASER,MFG:2018

Description

SpecificationsMotion Package:Travel method: Stationary table X,Y and Z axis movement forcutting headControl method: X,Y and Z simultaneous 3-Axis controlDrive motors: Fanuc AC Servo motorsMaximum sheet size (X,Y): 120" x 60"Maximum axis travel (X,Y,Z): 121" x 61" x 3.93"Maximum positioning speed (X,Y)Per axis: 4,724 inches per minute45 degree vector: 6,693 inches per minuteMaximum speed Z-axis: 4,724 inches per minuteRepeatability: +/- 0.0002"Maximum material weight: 2,000 lbs.Maximum material thicknessMild steel: 1.0"Stainless steel: 0.500"Aluminum: 0.500"Assist gas: 4 ports with NC Pressure controlElectrical requirements: 200V, 3 Phase, 60 HzControl:Model: AMNC 3i ControlControl function: X,Y,Z axis simultaneous and focus lens, B-axisand laser power control (CW, gated plus, pierce routinesetc.)Data storage: Compact flash driveFiber Laser resonator (Engine):Model: AJ3000 with ENSIS TechnologyResonator style: LD Excited Yb fiberCW output power: 3 KWLaser Wavelength: 1.08 micronsLaser power mode selection: CW, gated pulse (CNC controlled)Laser beam mode output: Multimode modeChiller water requirement: > or = 41 L/MinuteElectrical power consumption: 9kWEquipped with:AMNC 3i controlChillerDust Collector
