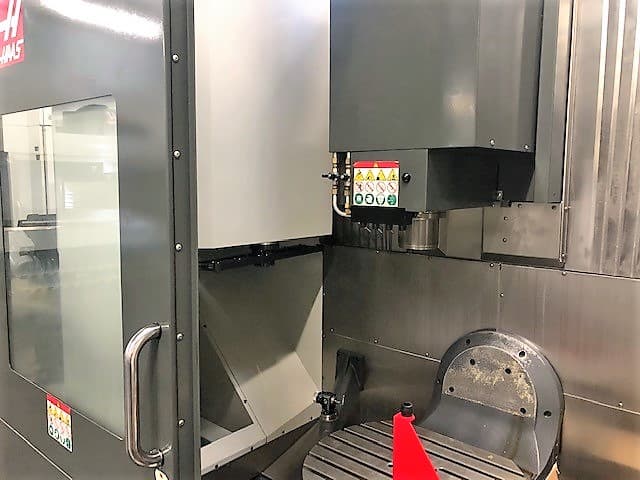

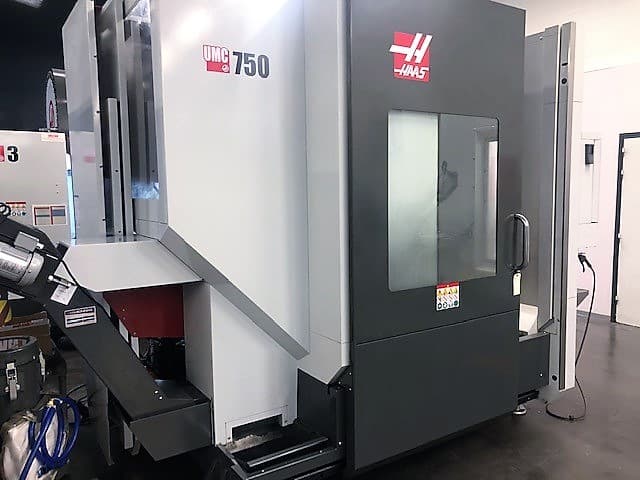

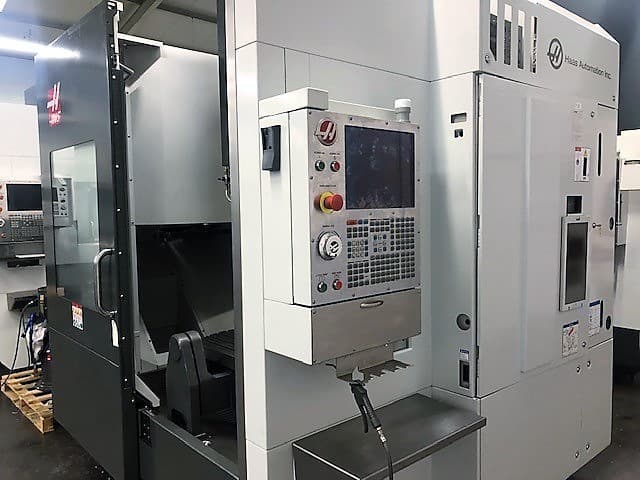

2017 HAAS UMC 750, used 5axis CNC Machining Centre

Description

PRICE: € P.O.AFull 5 axis universal machining centre with turning and swivelling table and vertical spindle.Technical informationX-travel 762 mmY-travel 508 mmZ-travel 508 mmControl HaasSpindle speeds 12,000 1/minSpindle drive 22,4 kWTorque of milling spindle 122 NmFeed x/y/z 16,5 m/minRapid travel x/y/z 30,5 m/min+110.000 -35.000 x 0,001 °C-axis 360.000 x 0,001 °Distance spindle nose and table 102 – 610 mmTable dimensions 630 x 500 mmWorkpiece weight 300 kgSpeed of turning table 8,3 1/minSpindle Taper BT 40Tool changer 40+1 ToolsMax. tool diameter 76 mmMax. tool-dia with free toolbox 127 mmMax. Tool weight 5,4 kgTotal power requirement 53,3 kWWeight of the machine ca. 12,5 tDimensions of the machine ca. 4,115 x 2,870 x 2,950 mExtra infoProgrammable CoolantRemote Jog Hand wheelChip ConveyorWIPS Laser Tool Probe & Table ProbeUSB portSynchronized tappingRotate / scale macros and coordinatesHigh Speed MachiningCoolant through spindle 20 barAuxiliary Filtration CONTACT US FOR A PRICE |
