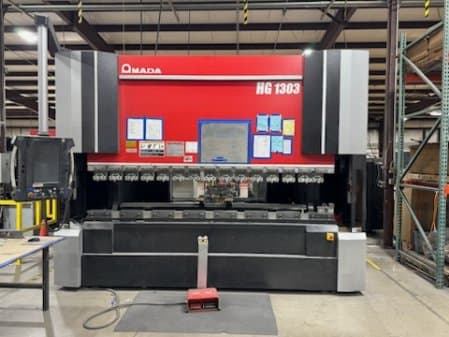

146 TON X 122" AMADA HG 1303-15 SERVO-HYDRAULIC CNC PRESS BRAKE, MFG:2017

Price on request

Condition: NEW· Manufacturer: Amada· Country: United States of America

Description

Specifications HG 1303Tonnage (US) 146 tonsMaximum Bend Length 122.4"Distance Between Frames 106.3"Stroke Length 9.8"Open Height (no holders) 20.5"Throat Depth 17.7"Machine Stroke 9.8"Table Height 37.4"Approach Speed 8.7" per secondBending Speed 0.79" per secondReturn Speed 9.8" per secondNumber of Cylinders 2Hydraulic Fluid Capacity 19 gallonsMachine Length 159"Machine Width 95"Machine Height 121"Machine Weight 25,355 lbs.Nominal Supply Current 60 AProvided Power 21 kVABackgauge Range 27.5"Control Type AMNC 3iProgram Capacity Unlimited via netPossible Axis Under CNC Control 11RAM D1 & D2Backgauge L1 & L2Backgauge Horizontal Y1 & Y2Backgauge Vertical Z1 & Z2Ram Repeatability 0.00004"Backgauge Speed (L-axis) 1,181" per minuteBackgauge Speed (Y-axis) 3,543" per minuteBackgauge Speed (Z-axis) 787" per minute

Send Enquiry

Seller

Jordan Craig Machinery
