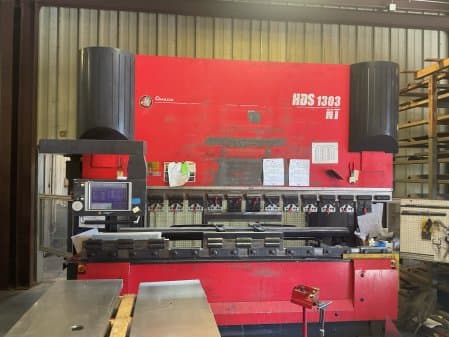

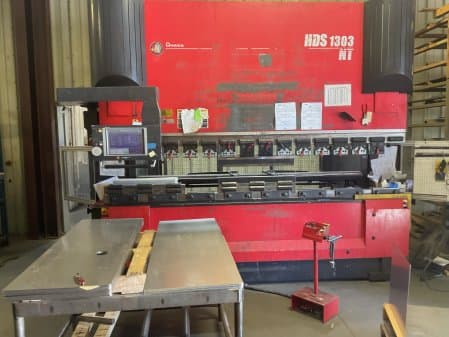

143 TON X 127" AMADA HDS-1303NT,AMNC-PC 8-AXIS SERVO-ELECTRIC, MFG:2012

Description

System SpecificationsPress BrakeMaximum Tonnage: 143 U.S. tonsBend Length: 127 inchesMaximum Stroke Length: 7.87 inchesOpen Height: 19.7 inchesThroat Depth: 16.3 inchesDistance Between Housings: 106.3 inchesRam Repeatability: +/- 0.00004 inchesApproach Speed: 7.87 inches per secondBending Speed: 0.78 inches per second (Max) programmableReturn Speed: 7.87 inches per secondOverall Machine Dimensions: 139" (L) x 116.9" (H) x 60" (W)(174" (L) w/control to far left)(88.6" (W) w/control in forward position)Hydraulic Oil Capacity: 17.8 gallonsMachine Weight: 26,400 lb. Approx.BackgaugeRepeatabilityL Axis +/- 0.00008 inchesMovement RangeL Axis 27.55 inchesY Axis 106.3 inchesR Axis 9.8 inchesFeed SpeedL Axis 1,180 inches per minuteY Axis 2,362 inches per minuteX Axis 393 inches per minuteMinimum Command UnitRam 0.0001 inchBackgauge 0.001 inchCNC Controller, Model: Amada AMNC-PCAxes of Control: EightD1 & D2 - Ram depth(+/- 0.098" ram tilt)L1 & L2 - Backgauge(19.68" gauge taper maximum)Z Vertical finger positionY1 & Y2 - Horiz. finger movement, side to sideCC - Ram crowningClick on link for videos under power:https://youtu.be/81ZclRUryVAhttps://youtu.be/Mjnng1YQBdchttps://youtu.be/Mg8V5uPBbnkhttps://youtu.be/HSQFva5YTU4https://youtu.be/3z2Ug08xDeg
