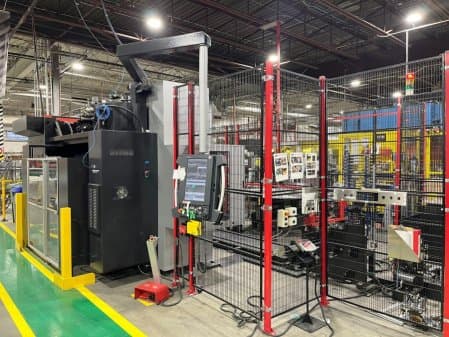

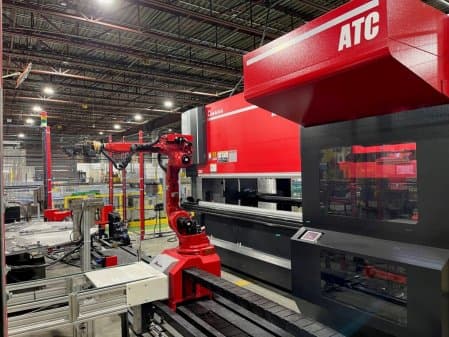

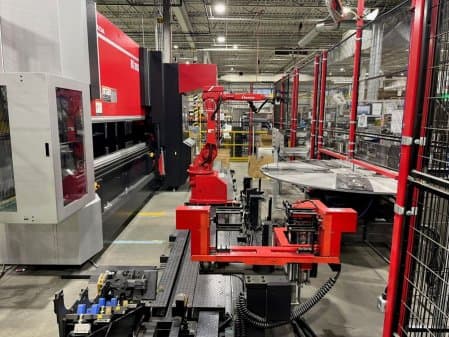

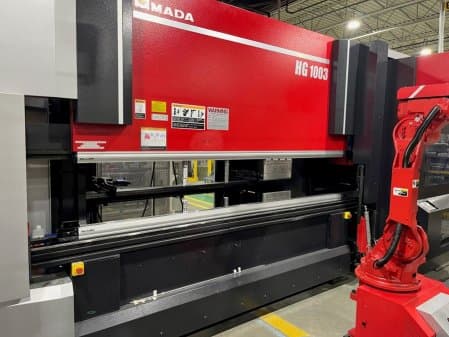

110 TON AMADA HG-1003ARS ROBOTIC BENDING CELL W/AUTOMATICTOOL CHANGER,MFG:2017

Description

Specifications BrakeModel: HG1003ARSTonnage (US): 110 TonsTable Length: 122.4"Max Bending Length: 120.5"Distance Between Uprights: 106.3"Throat Depth: 17.7"Length of Stroke: 9.8"Open Height: 23.5"Hydraulic Oil Reservoir: 15.7 galBackgauge: 6 axis plus 2 axis L-shiftMaximum Approach Speed: 8.66 inches per secondMaximum Bending Speed: 0.78 inches per secondMaximum Return Speed: 9.84 inches per secondControl: AMNC 3iBrake DimensionsOverall Length: 244.5"Overall Width: 126.8"Overall Height: 115.9"Ground Height: 115.9"Net Weight: 26896 lbEnvironmental Temperature: 32~104FSpecifications Automatic Tool Changer (ATC)Tool style: AMTS IIIS ATCPunch stockers: 15Die stockers: 18.ATC location: Right handAuto tool layout range: 118.1"Minimum tool pitch: 0.196""V" Range: 0.157-1.57"Punch reversal unit: Stocker 1-12 reversible onlyPunch height: 8.7" standard, 9.4" specialSpecifications RobotModel: HGROBOT020Mass of Capacity: 44 lbMass of Machine: 6173 lbMotor Rated Out Put: 1.8 kWAxis Max Range Max SpeedS Axis 360 150/sL Axis 265 150/sU Axis 420 170/sR Axis 400 200/sB Axis 280 200/sT Axis 720 200/sE Axis 6.4 m 2.0 m/s252.0" 78.7 in/sEquipped WithSome Tools
