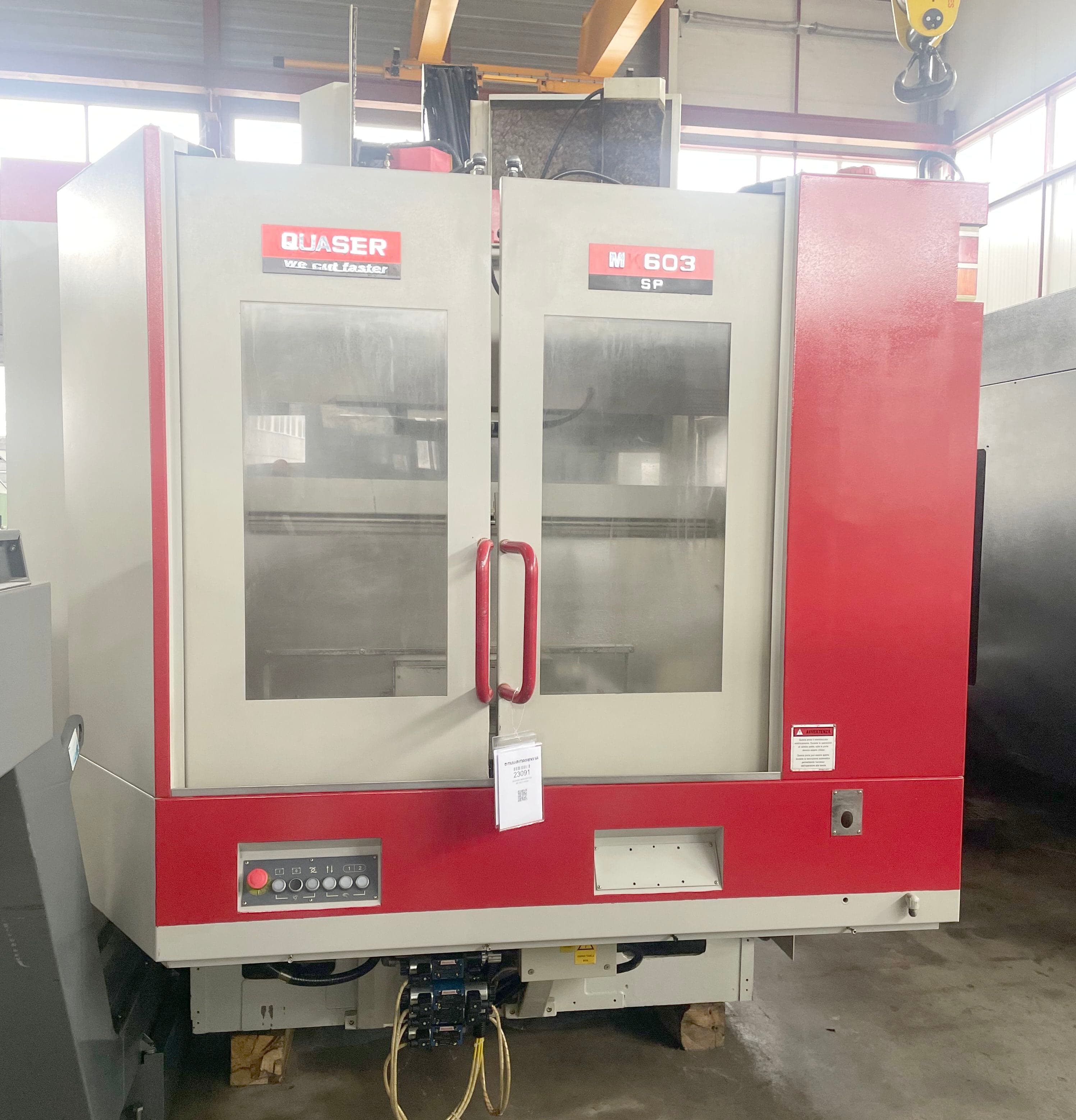

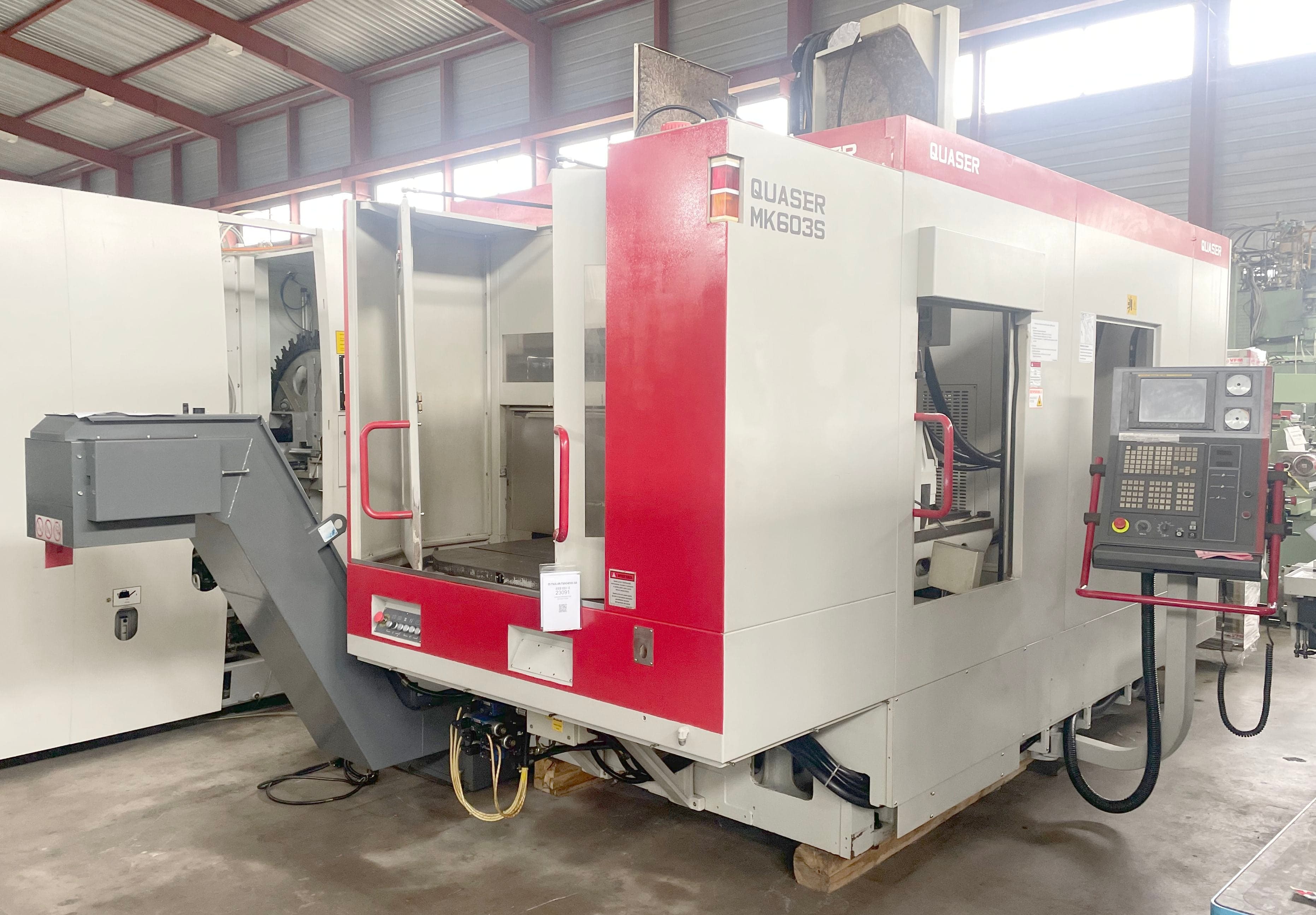

023091 - QUASER MK603SP/12B

Description

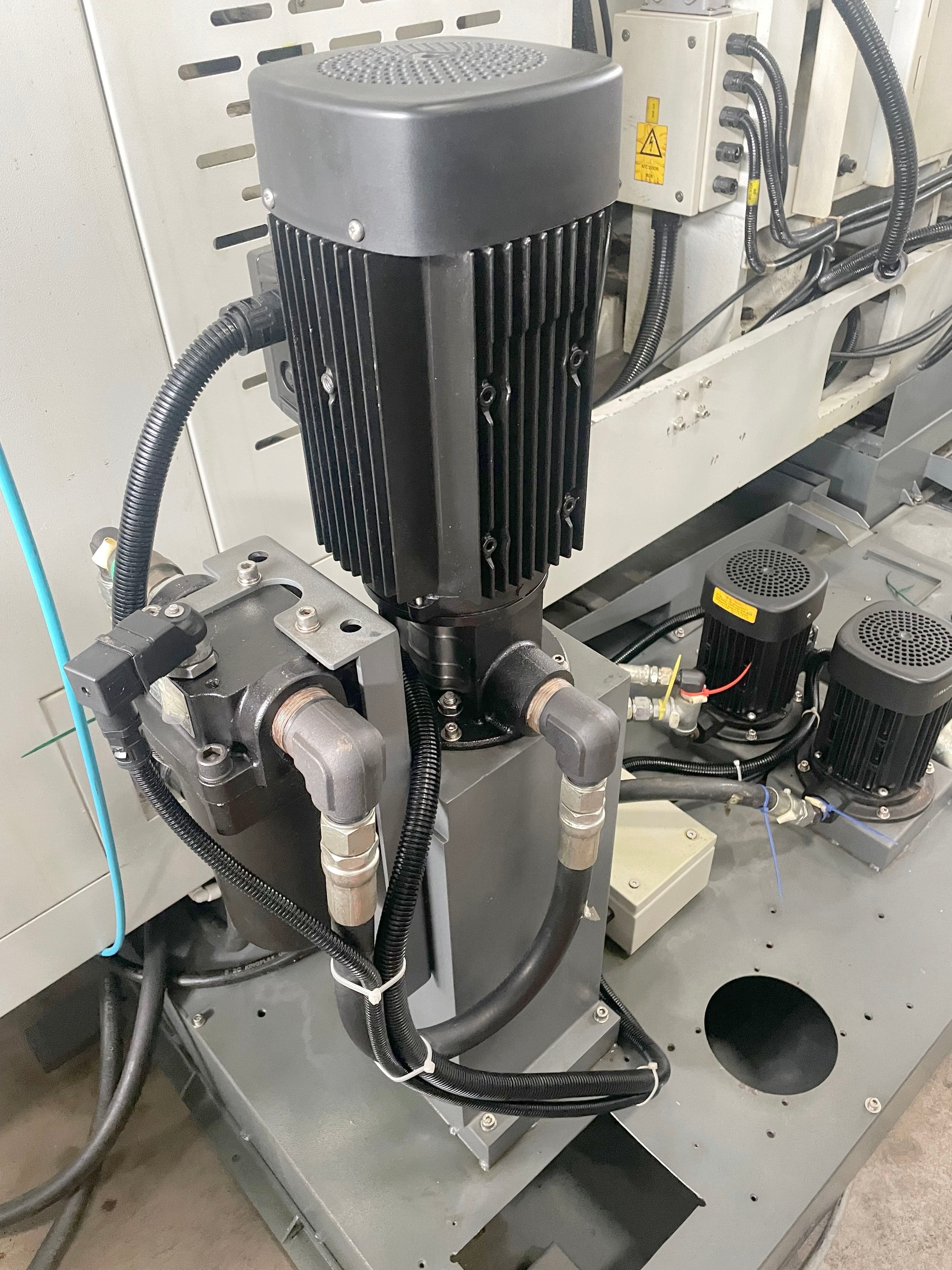

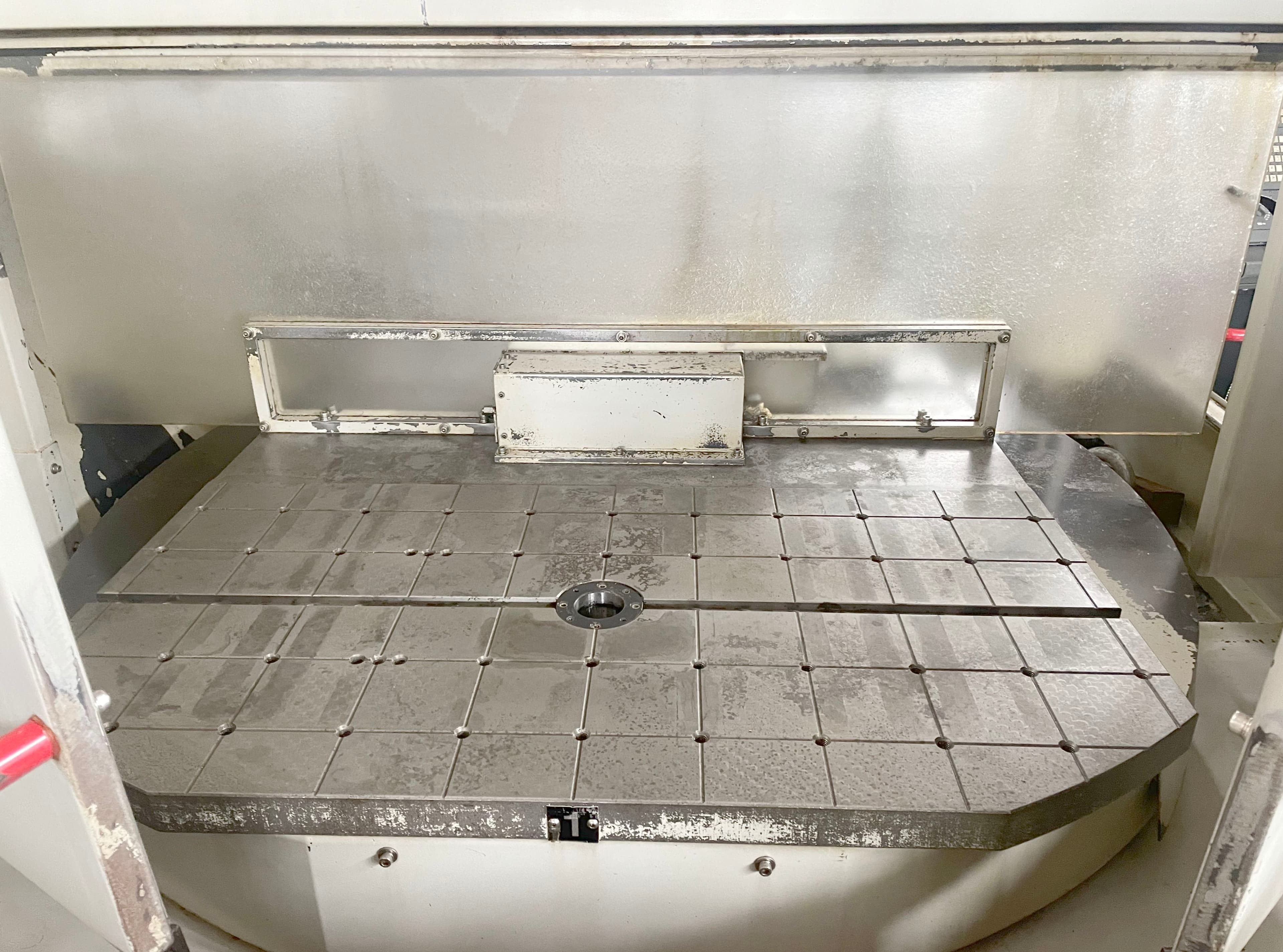

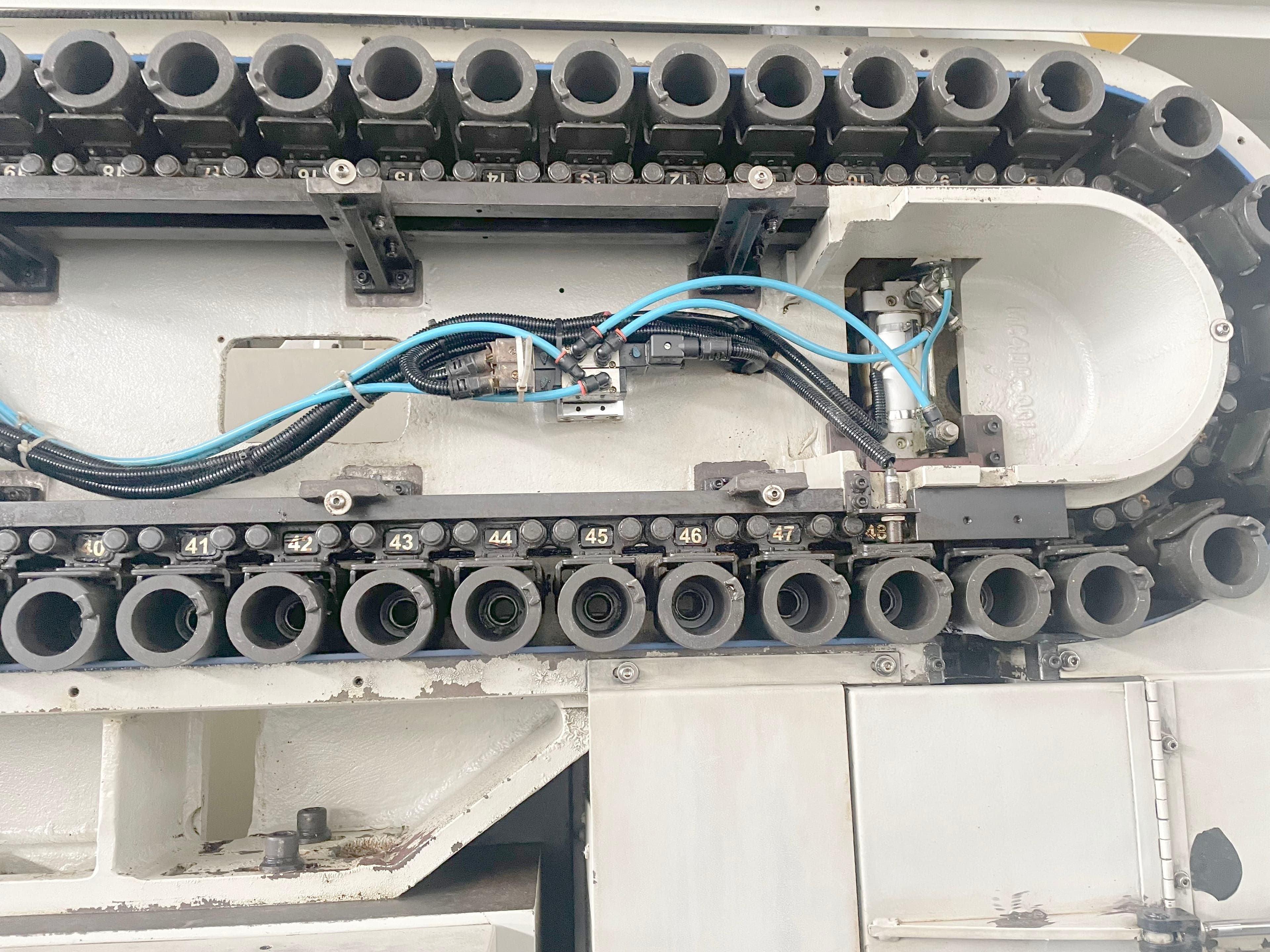

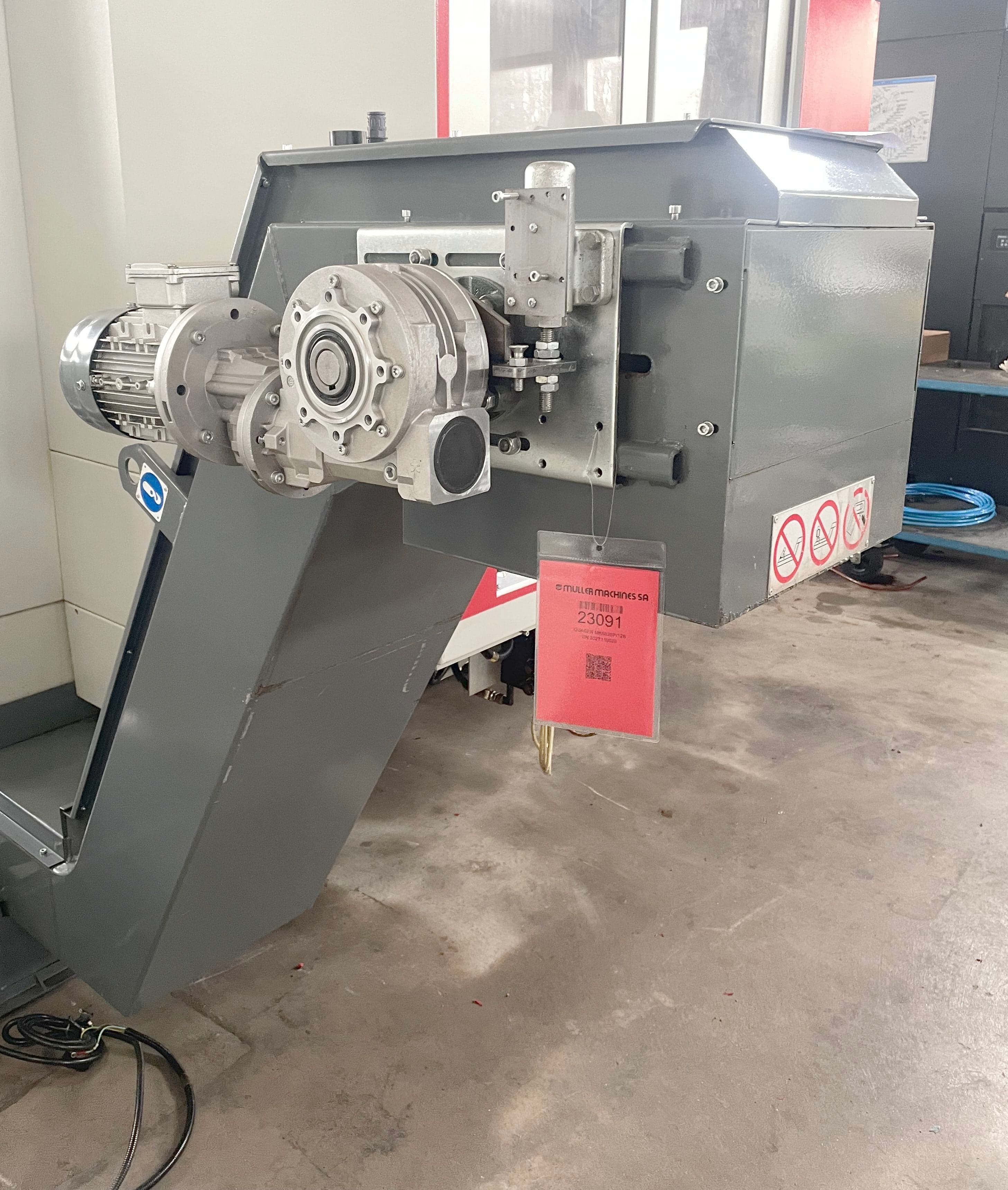

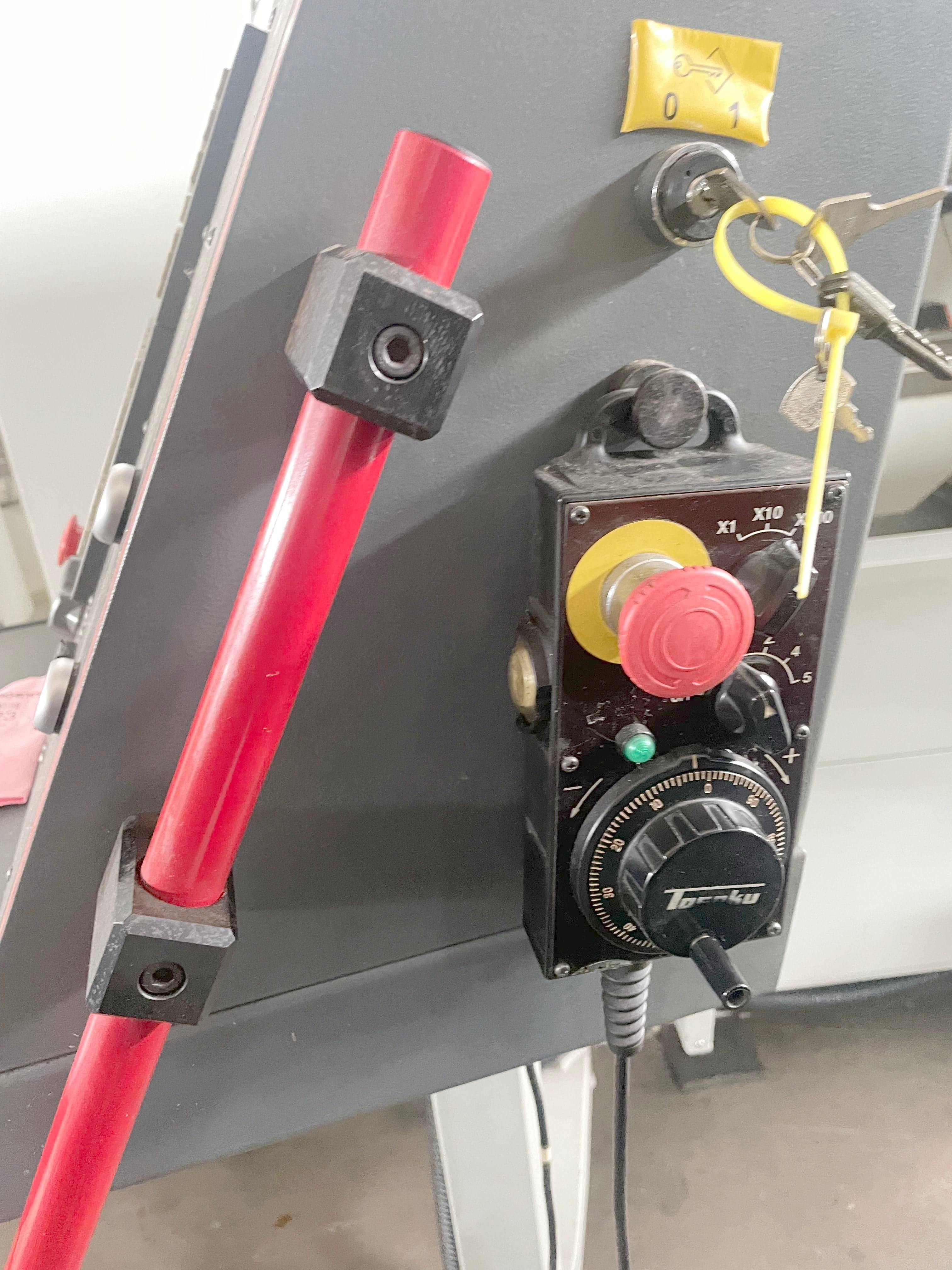

{"Number of tables": "", "Table length": "1050 mm", "Table width": "550 mm", "Table load max.": "300 kg", "Longitudinal travel (X-axis)": "1020 mm", "Transversal travel (y-axis)": "610 mm", "Vertical travel (z axis)": "600 mm", "Dimension of the workpice:": "", "Height": "3300 mm", "Diameter": "1630 mm", "Tool magazine number of tool places": "48", "Tool diameter": "75 mm", "Diameter with free adjacent pockets": "125 mm", "Tool lenght": "300 mm", "Max. tool-weight": "7 kg", "Time of tool changing": "2.5 s", "Average chip-to-chip time": "6 s", "Spindle nose: ISO": "40", "Pull-Studs": "DIN 69871", "Distance from vertical": "", "spindle to table": "130-730 mm", "Spindle diameter": "70 mm", "Spindle speeds:": "", "stepless": "", "from": "80 t/min", "up to": "1200 t/min", "Torque max.": "192 Nm", "Feed range": "20000 mm/min", "Feeds:": "36", "Air connect": "6-8 bar", "Voltage 50 Hz 3x": "400 Volt", "Spindle power": "30 / 22 kW", "Total power required": "45 kVA", "Machine's weight about": "12000 kg", "Length": "4650 mm", "Width": "2930 mm", "Various accessories:": "", "Coolant system": "400 l", "Coolant through spindle (cts)": "20 bar", "Chip conveyor": "", "Handwheel electroinic": "", "Spindle oil cooler": "", "Interface serial port RS 232": "", "Interface Ethernet": ""}
