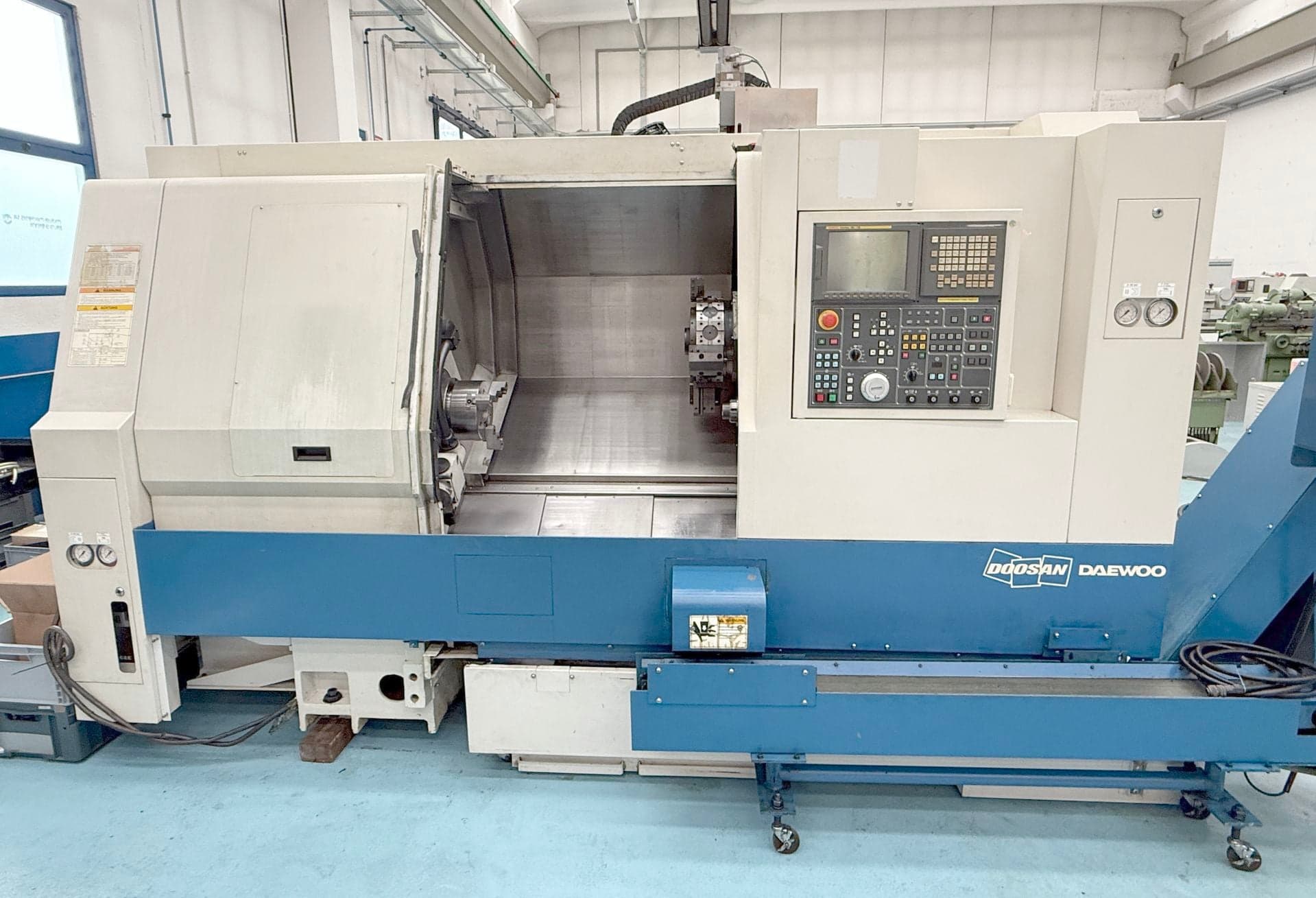

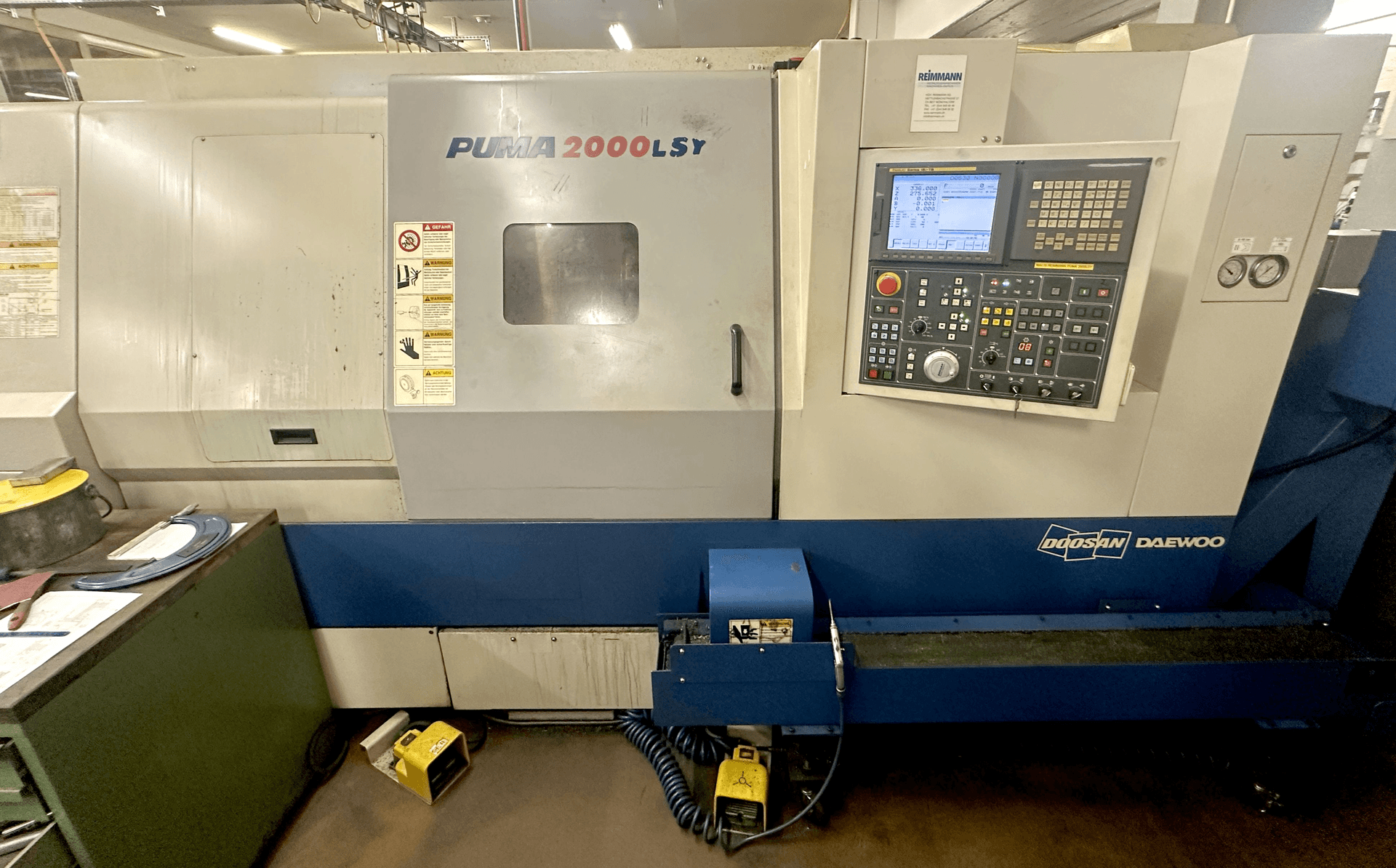

023078 - DOOSAN PUMA 2000 LSY

Description

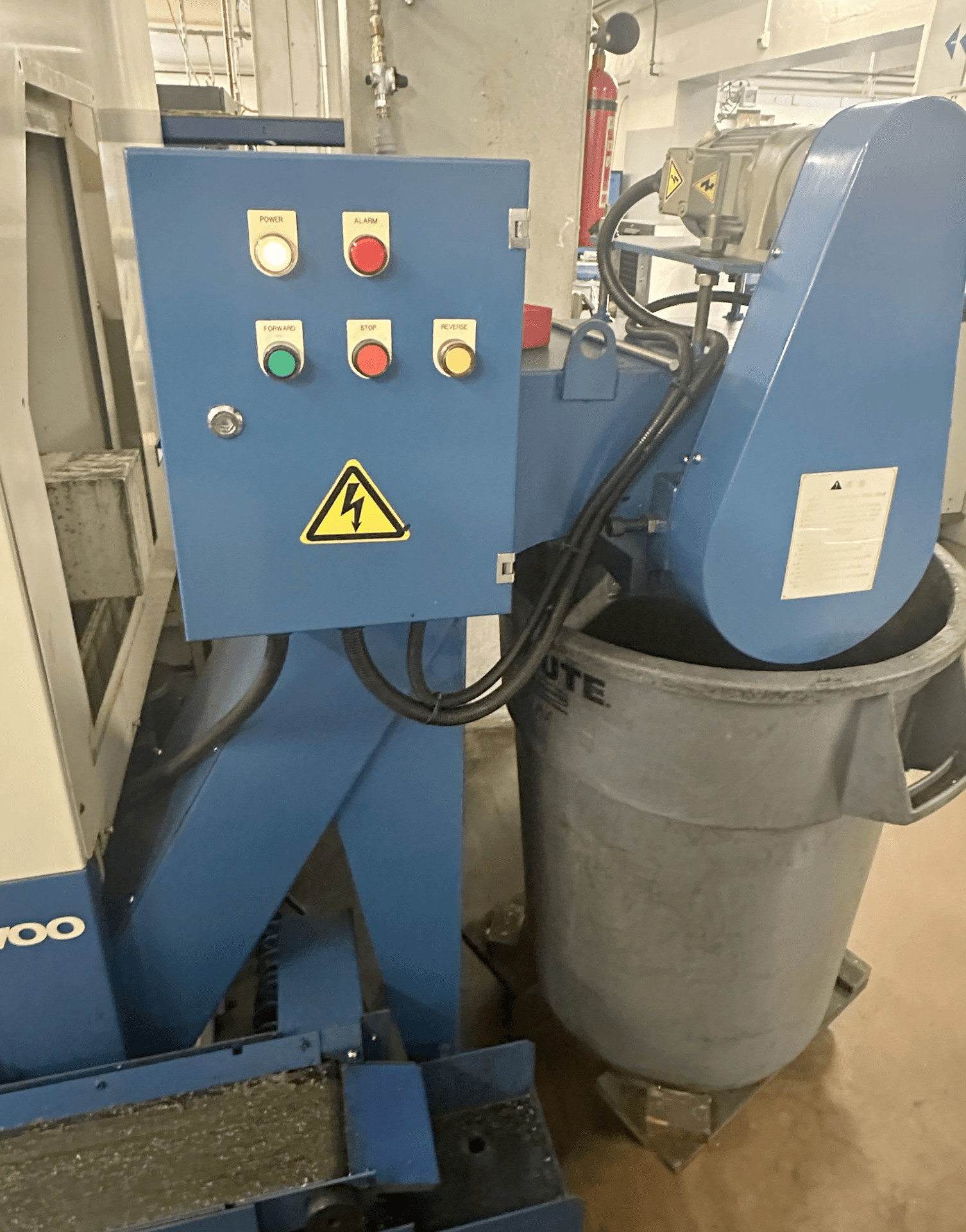

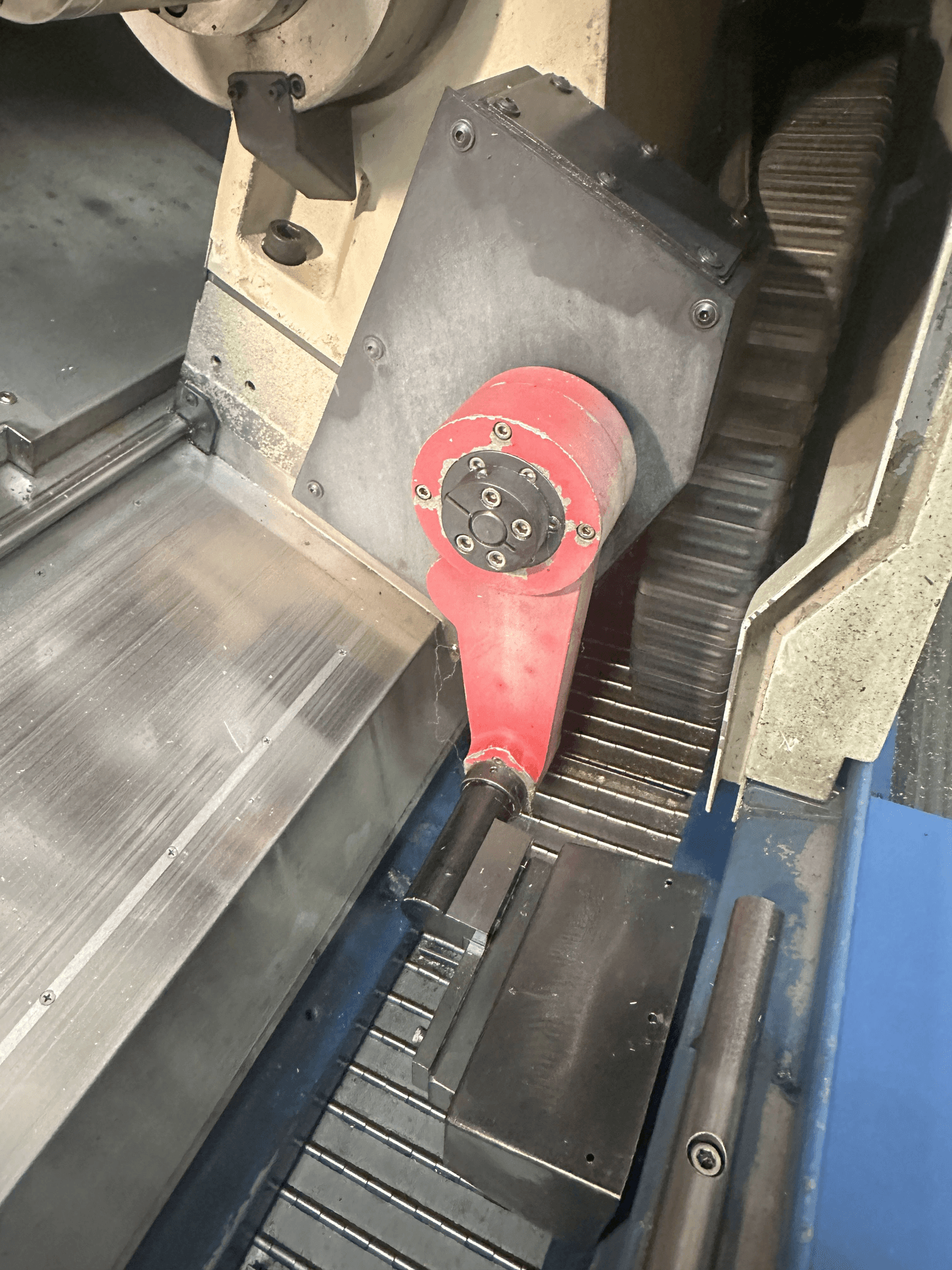

{"Swing over cross-slide": "600 mm", "Swing over bed": "750 mm", "Spindle hole": "86 mm", "Turning diameter": "540 mm", "Bar diameter": "76 mm", "Clamping chuck diameter": "255 mm", "Turning length": "1520 mm", "Turret slide: number": "BMT 65P", "Number of positions turret 1": "12", "Driven tools turret 1": "12", "Spindle speeds": "40-4000 t/min", "Tool magazine mobile, number of tool": "80", "Taper in spindle:": "", "Camlock": "A2-8", "Spindle speeds:": "C-Achse", "stepless": "", "up to": "3500 t/min", "Milling units:": "Capto C6", "Milling cutter speeds": "10000 t/min", "Spindle motor": "22/26 kW", "Voltage 50 Hz 3x": "400 Volt", "Total power required": "85 kVA", "Machine's weight about": "15500 kg", "Overall dimensions machine:": "", "Length": "5500 (tot. ca. 7300mm) mm", "Width": "2565 mm", "Height": "2600 mm", "Various accessories:": "", "Travelling steady": "hydr. SLU 3.1 \u00d820 - 165 mm", "Coolant system": "1.5 + Option 6 bar", "Paper filtration system": "", "Y axis": "", "Tool break control": "", "Chip conveyor": "", "Set of toolholders": "ca 70x CAPTO C6"}
