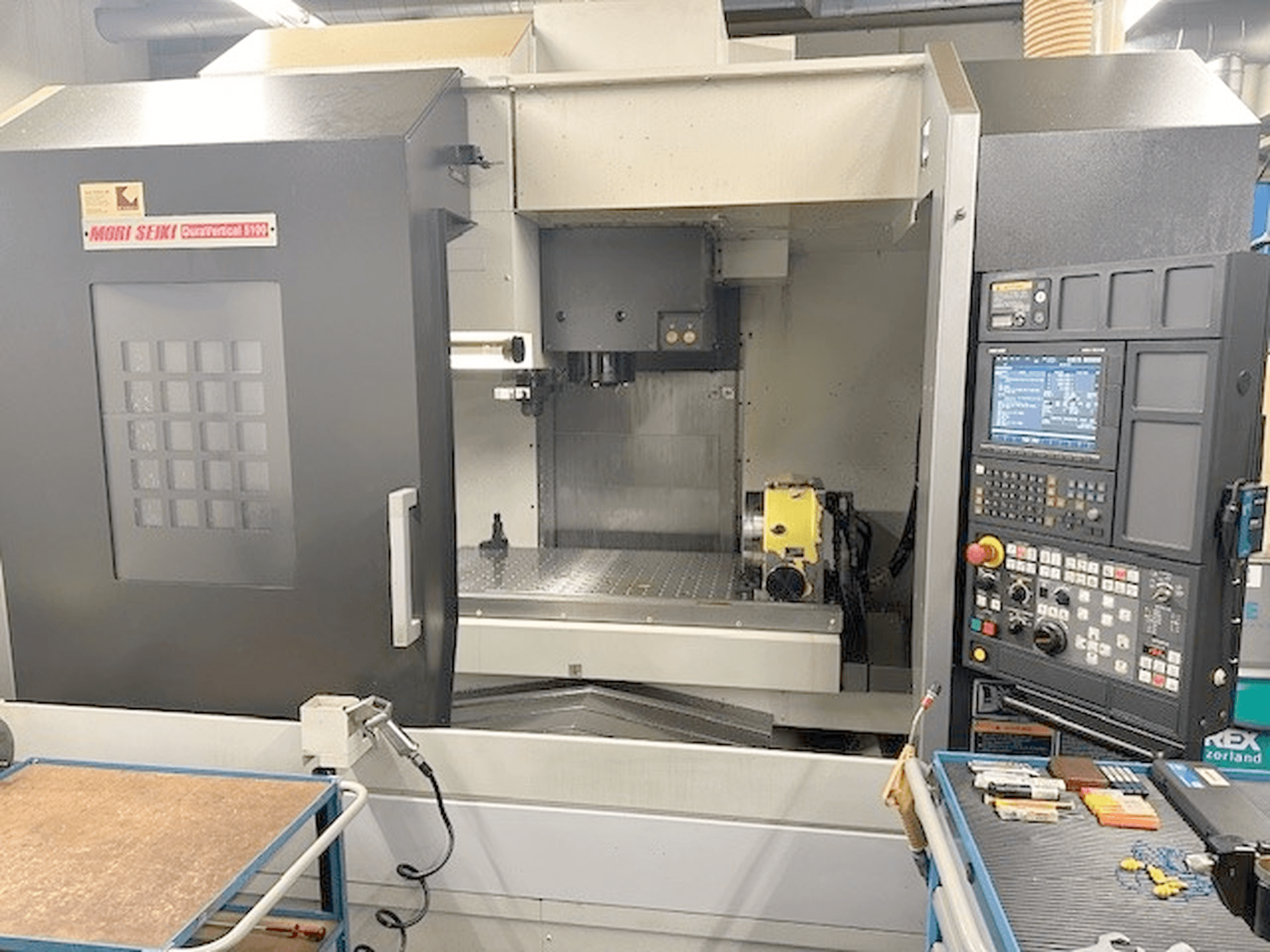

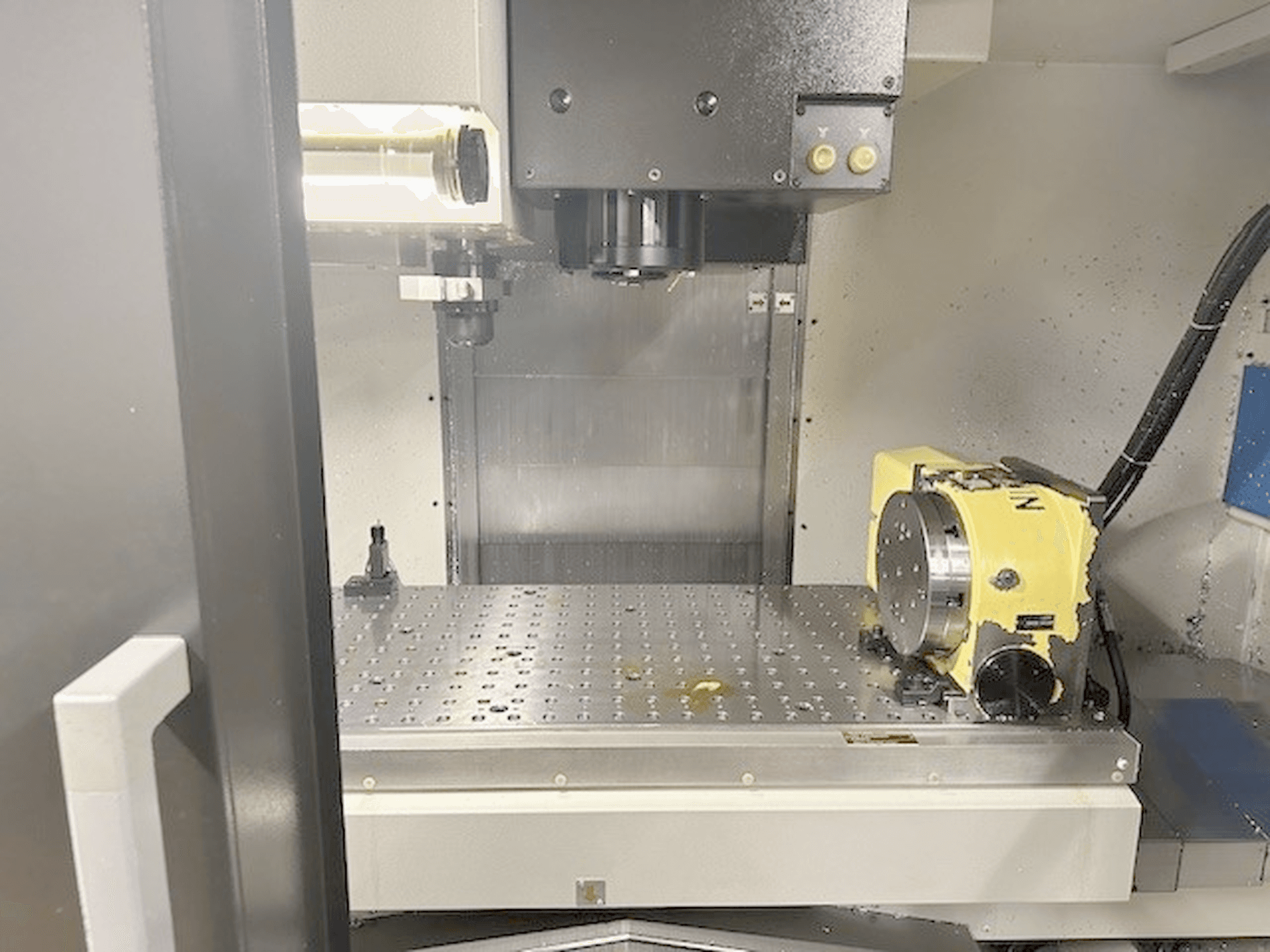

023028 - MORI SEIKI DuraVertical 5100

Description

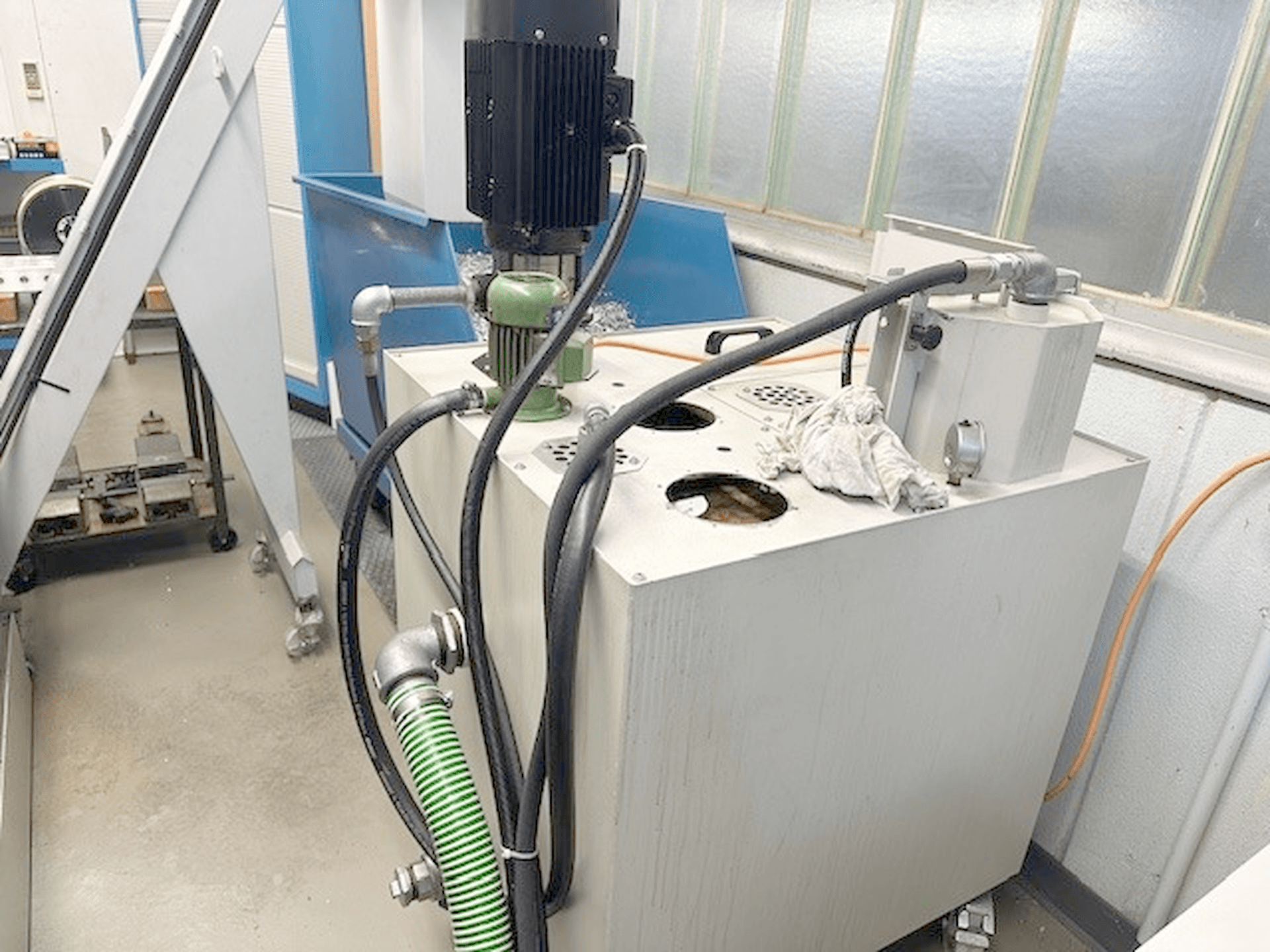

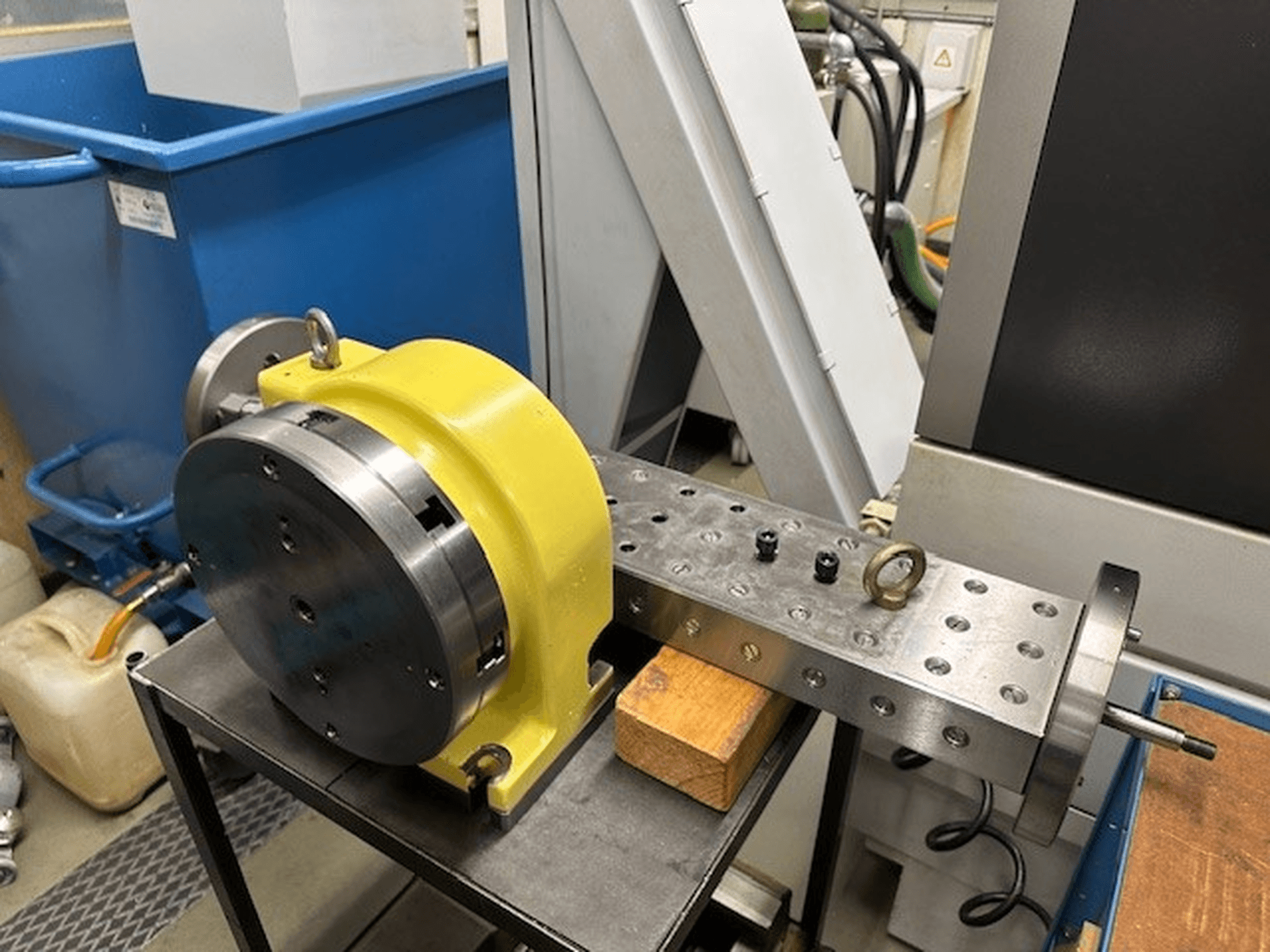

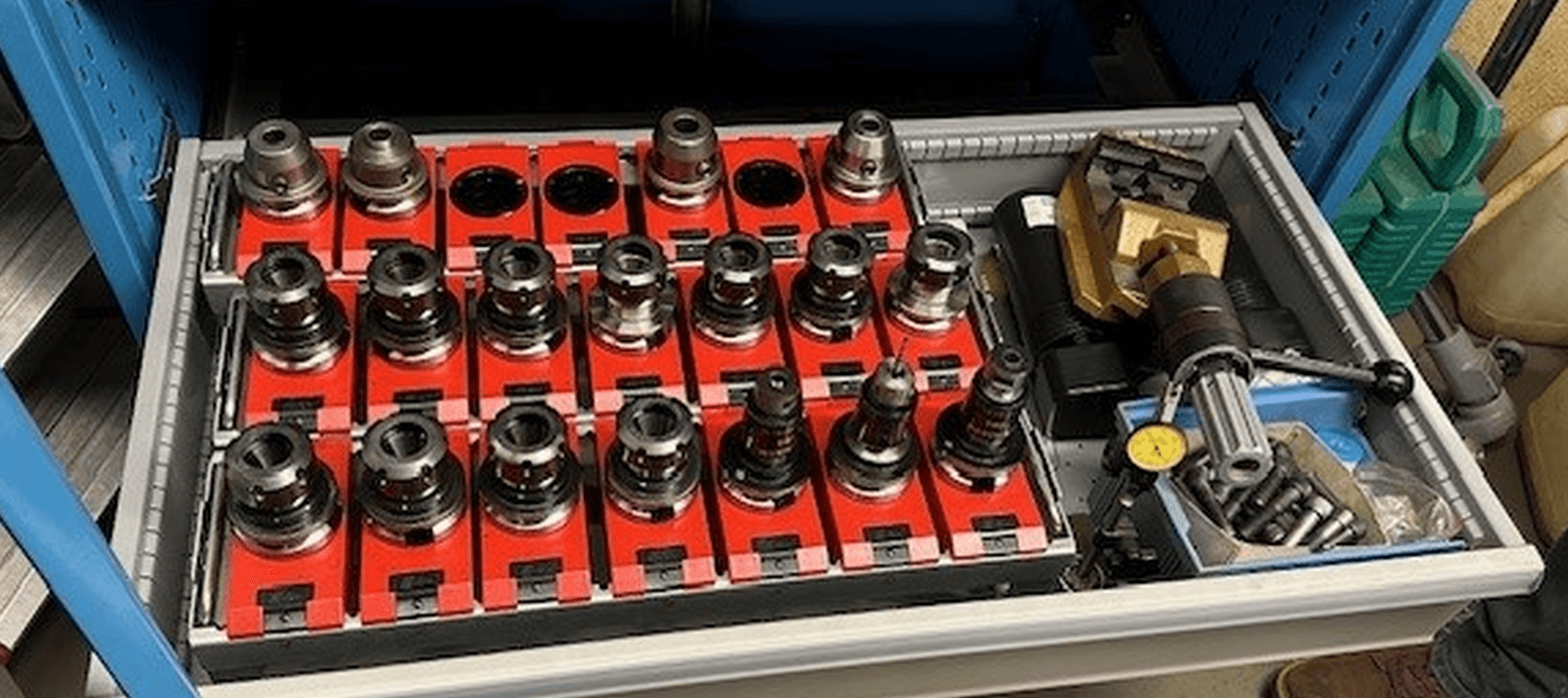

{"Number of axis total": "4", "Table length": "1350 mm", "Table width": "600 mm", "Number of T-channels": "6", "T-channel width": "18 mm", "Table load max.": "1000 kg", "Longitudinal travel (X-axis)": "1050 mm", "Transversal travel (y-axis)": "530 mm", "Vertical travel (z axis)": "510 mm", "Tool diameter max.": "125 mm", "Max. tool-weight": "8 kg", "Spindle nose: BT": "40", "Distance spindle nose to table": "150 - 660 mm", "Spindle speeds:": "", "stepless": "", "from": "0 t/min", "up to": "10000 t/min", "Voltage 50 Hz 3x": "400 Volt", "Spindle power": "22 kW", "Total power required": "58 kVA", "Machine's weight about": "8030 kg", "Overall dimensions machine:": "", "Length": "2500 mm", "Width": "2350 mm", "Height": "2700 mm", "Various accessories:": "", "Vice: width": "120 mm", "Set of toolholders": "", "Set of collet-/ tool holder": "", "Set of collets": "", "Coolant system": "", "Dividing attachment": "", "Dividing attachment 4th axis": "NIKKEN", "Lamp": "", "Status light": ""}
