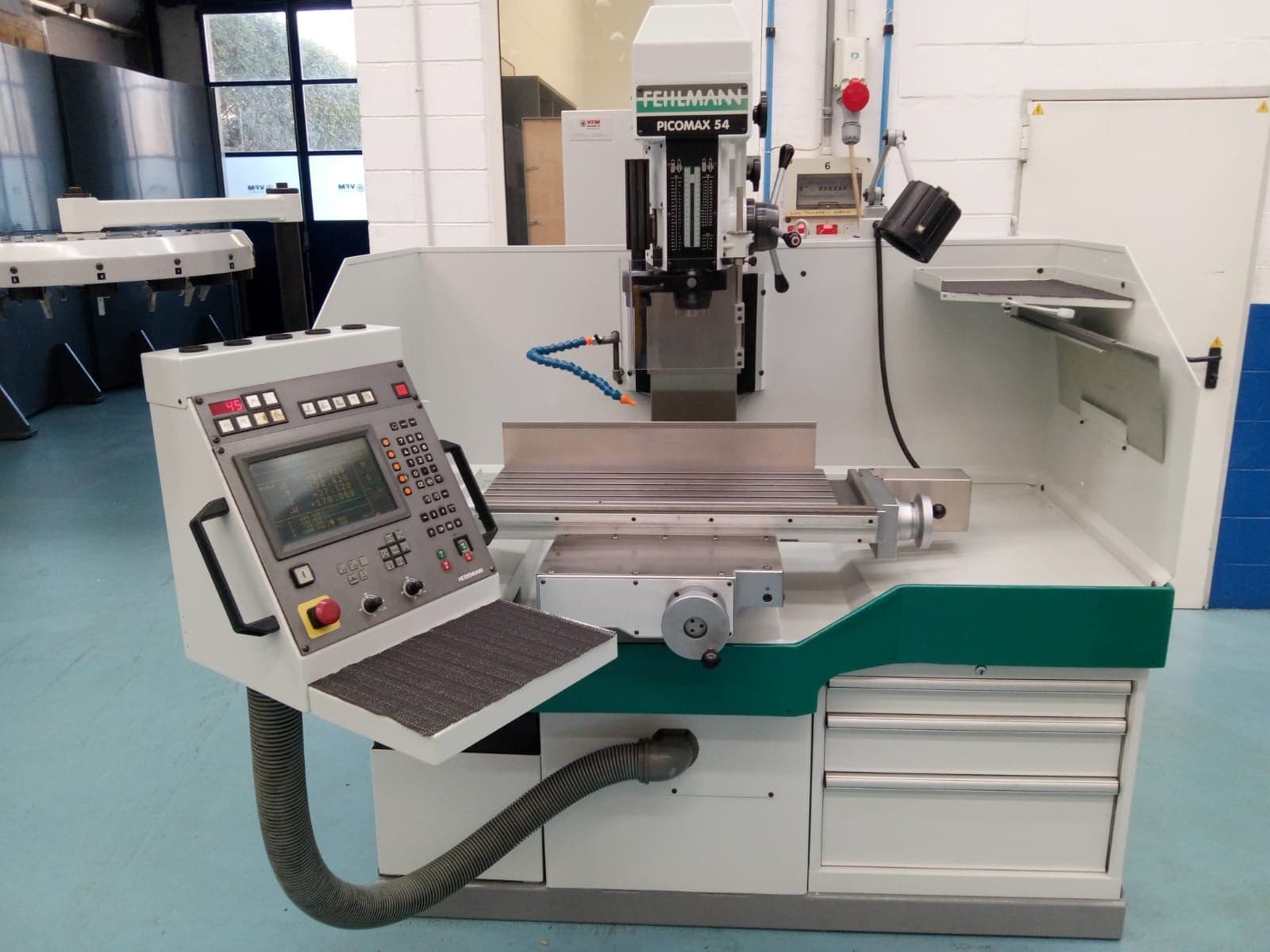

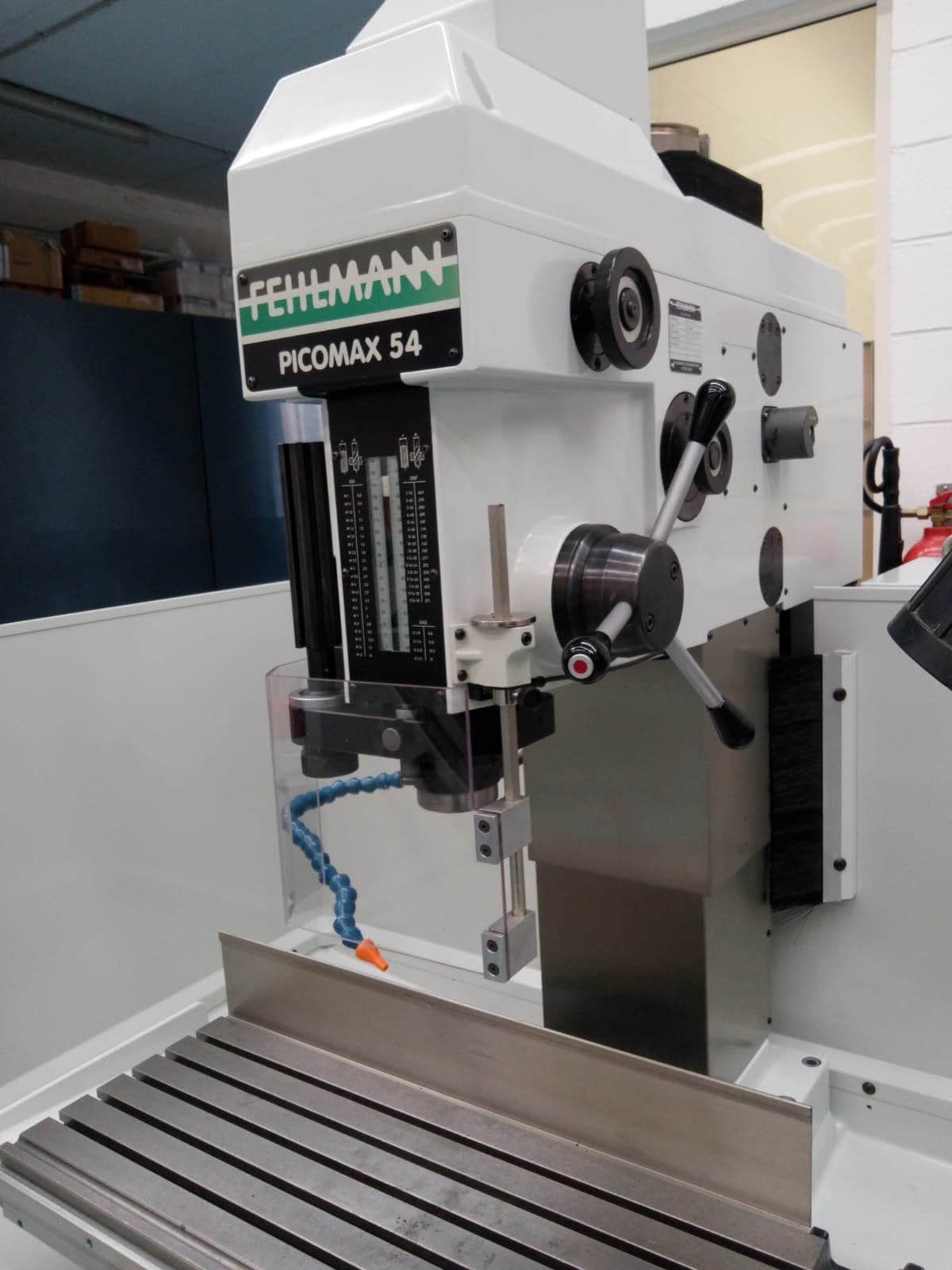

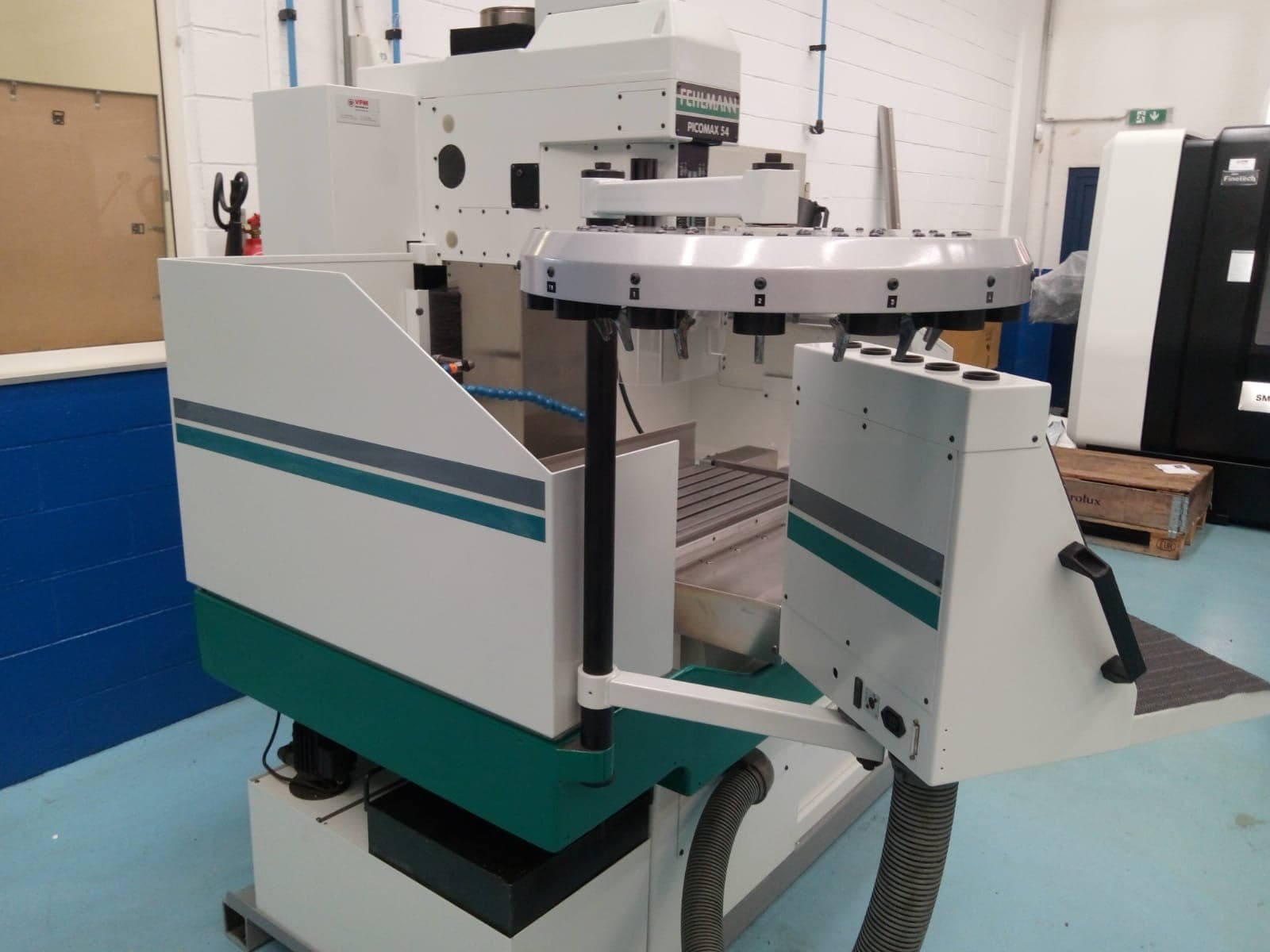

023011 - FEHLMANN PICOMAX 54

Description

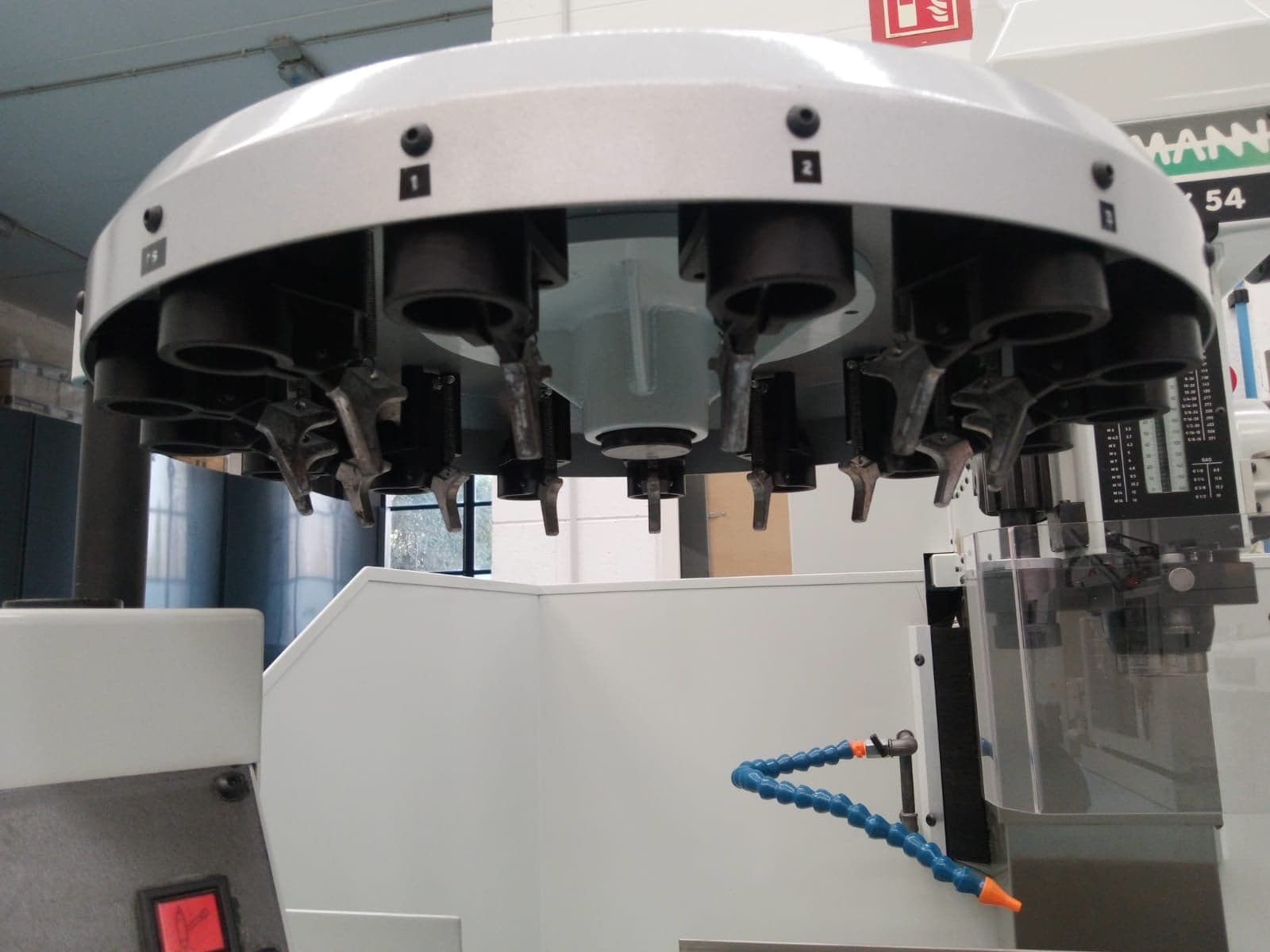

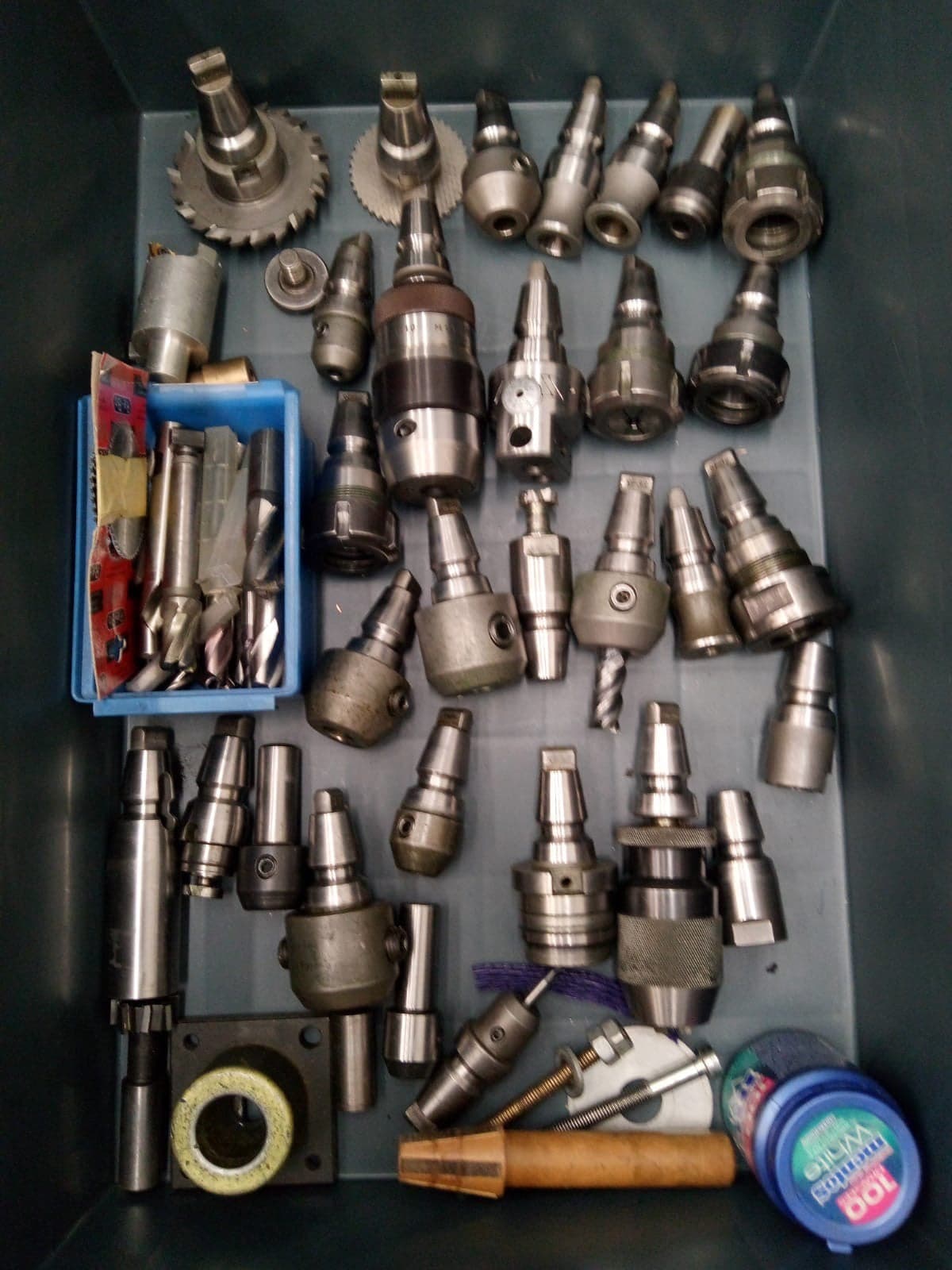

{"Drill capacity in steel": "28 mm", "Threat cutting in steel M": "24", "Milling capacity": "100 cm3/min", "Spindle stroke": "160 mm", "Spindle speeds :stepless": "", "from": "50 t/min", "up to": "7100 t/min", "Table length": "880 mm", "Table width": "320 mm", "Min. distance from table to spindle": "0 mm", "Max. distance from table to spindle": "610 mm", "Longitudinal travel": "500 mm", "Transversal travel": "260 mm", "Vertical travel": "480 mm", "Feeds:": "", "X axis": "1 - 2000 mm/min", "Y axis": "1 - 2000 mm/min", "Z axis": "10 - 1200 mm/min", "W axis": "500 - 2000 mm/min", "Table load max.": "300 kg", "Voltage 50 Hz 3x": "400 Volt", "Spindle power": "8 kW", "Total power required": "10 kW", "Machine's weight about": "895 kg", "Overall dimensions machine:": "", "Length": "2200 mm", "Width": "1800 mm", "Height": "2400 mm", "Various accessories:": "", "Set of drill chucks": "", "Tool storage": "", "Lamp": "", "Set of toolholders": ""}
