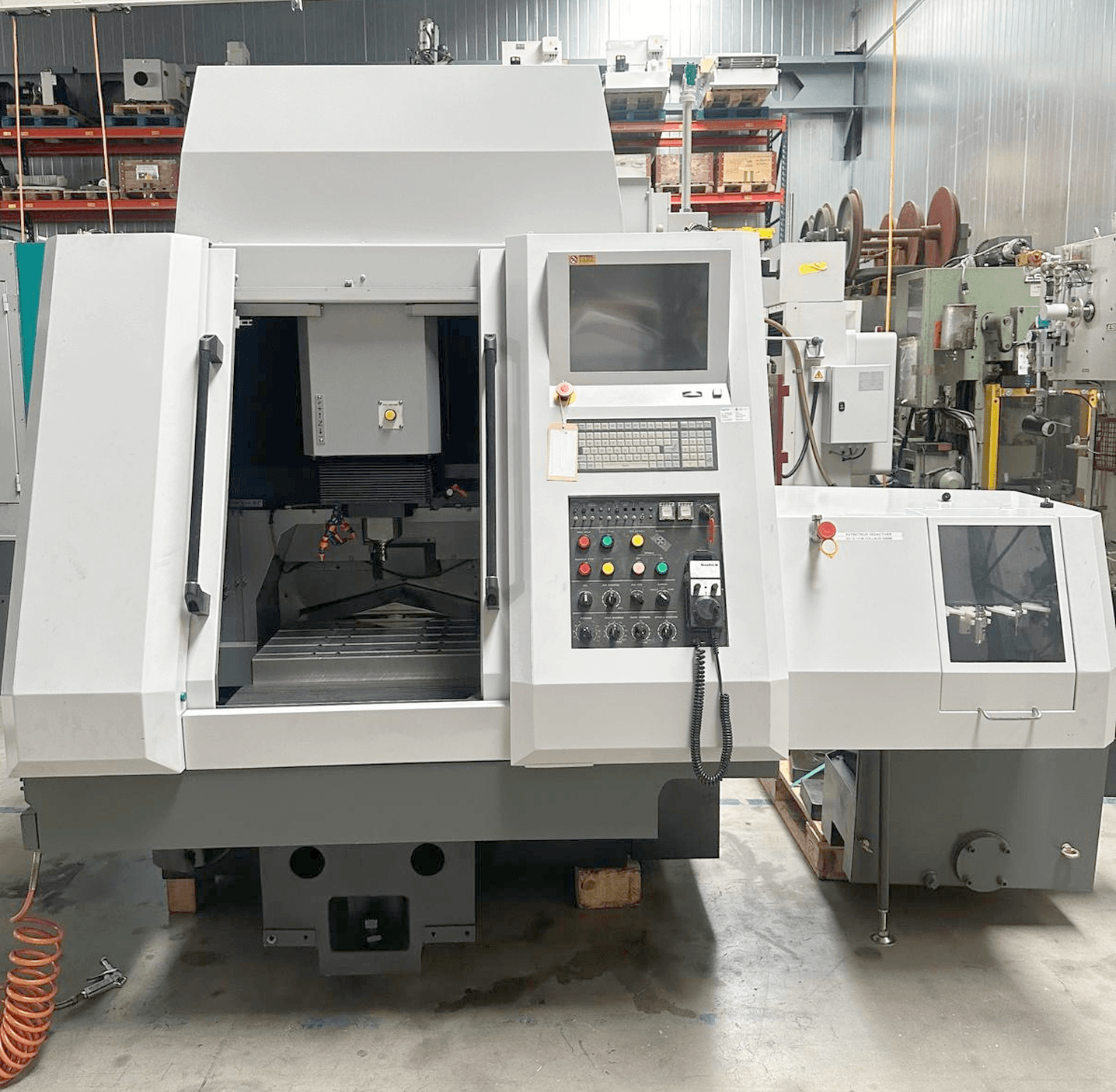

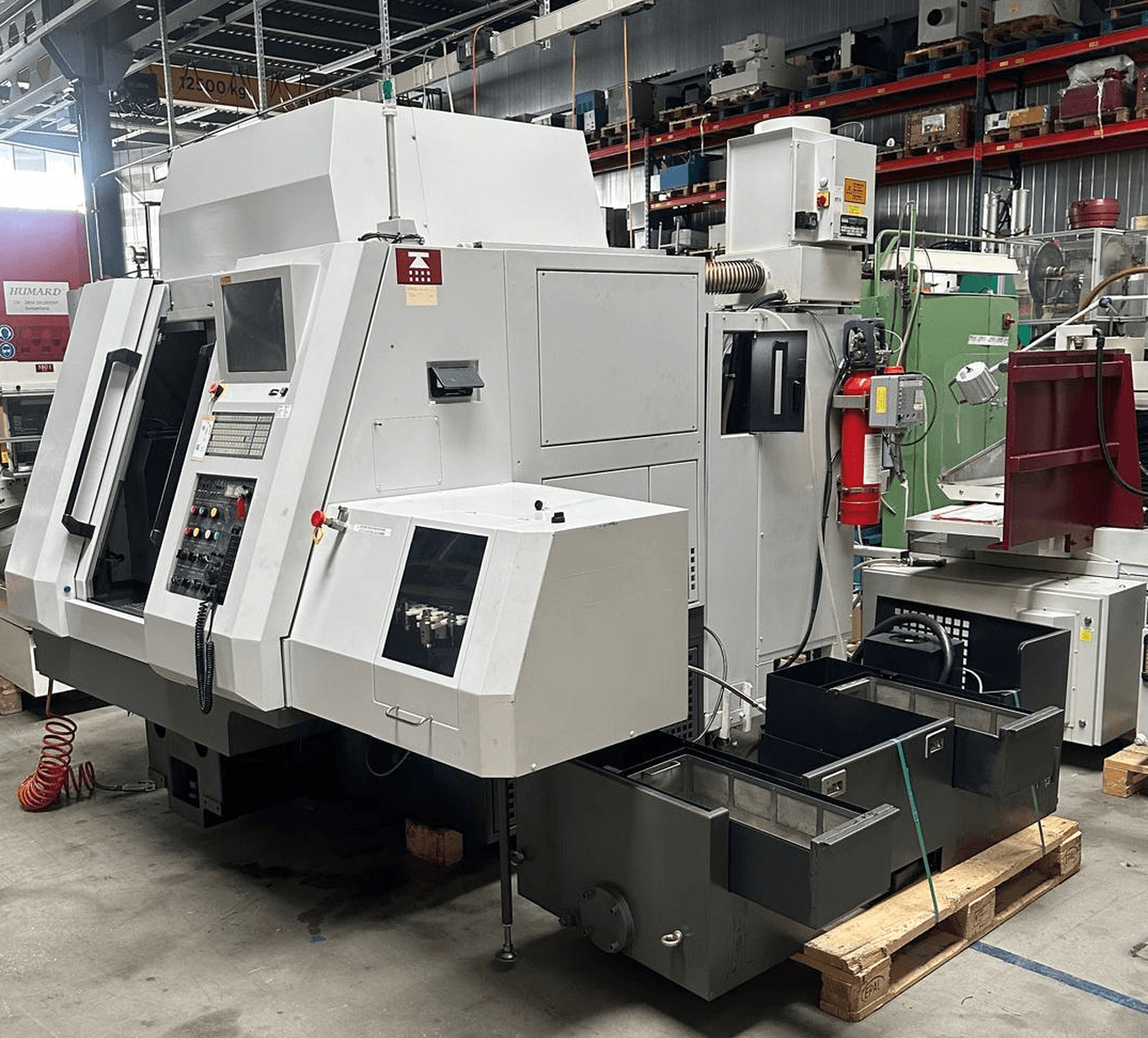

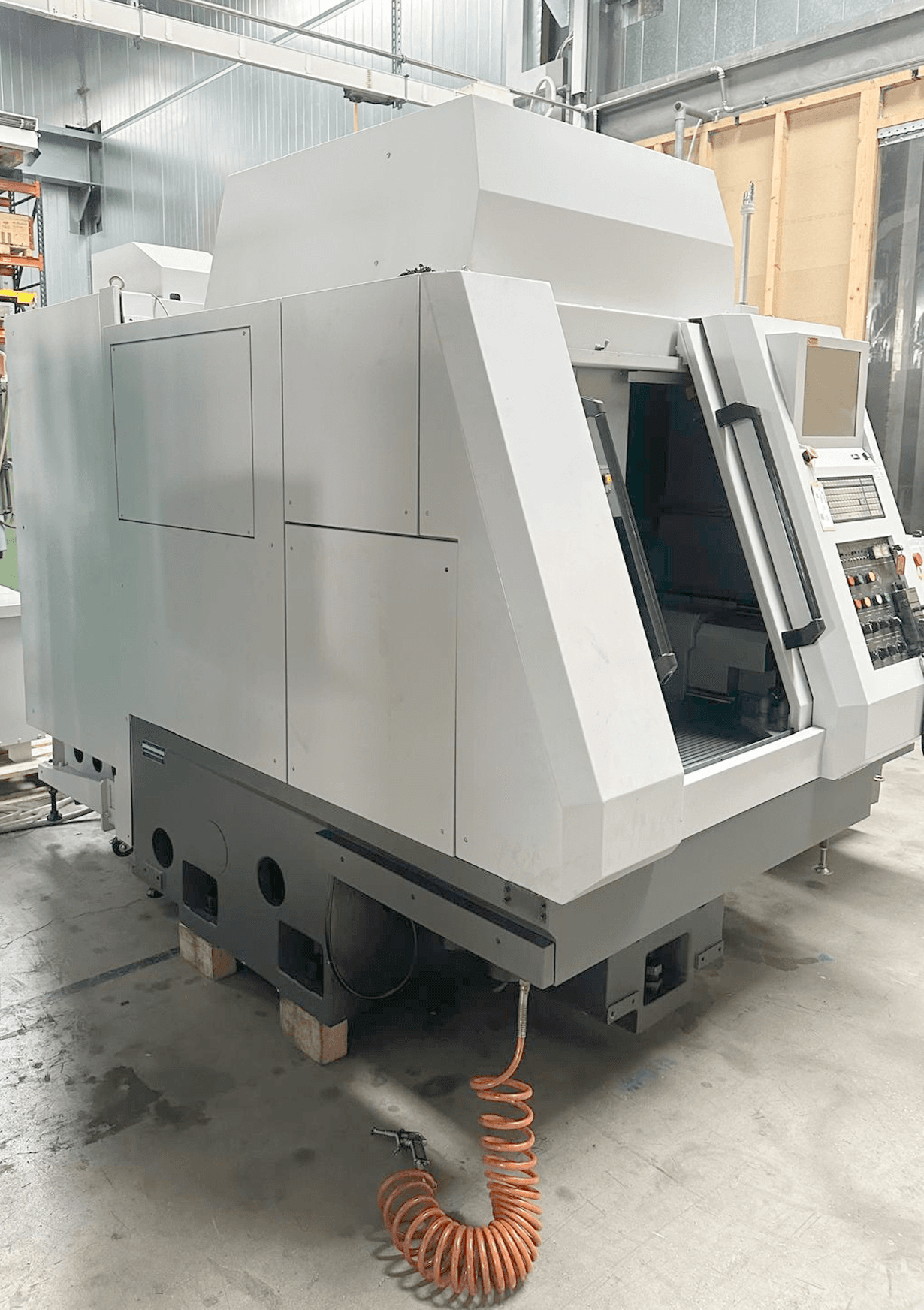

022920 - SODICK MC430L

Description

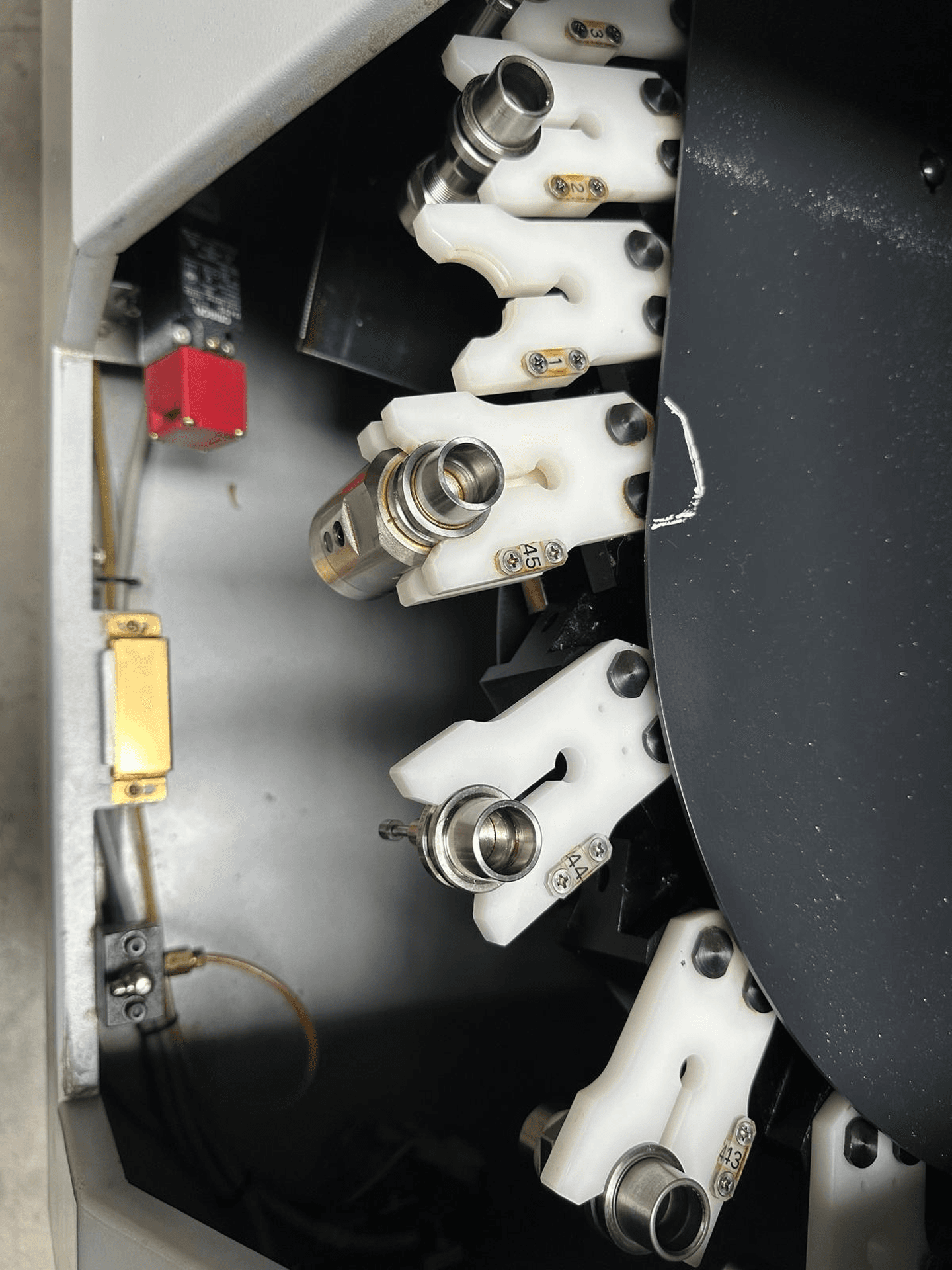

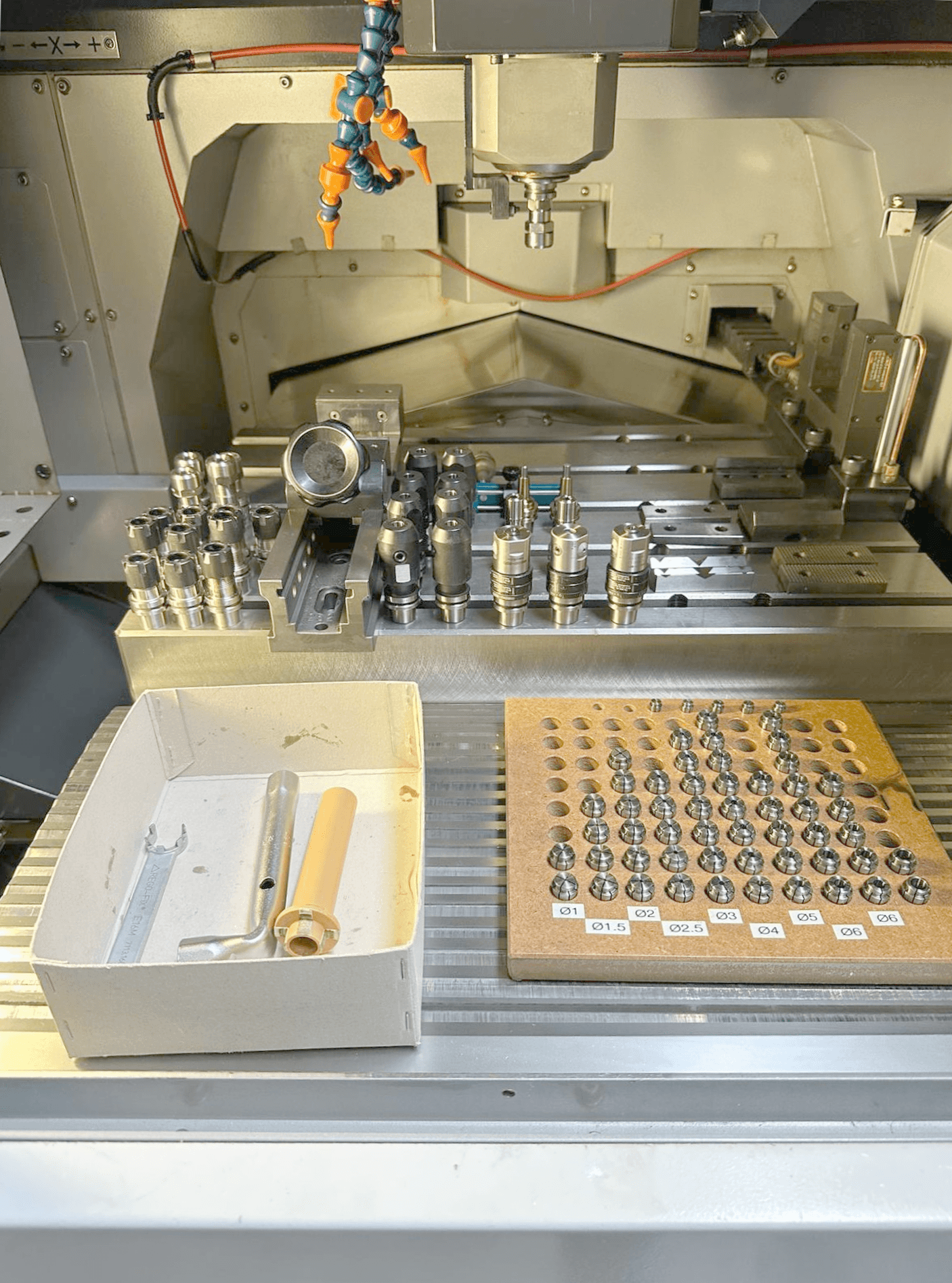

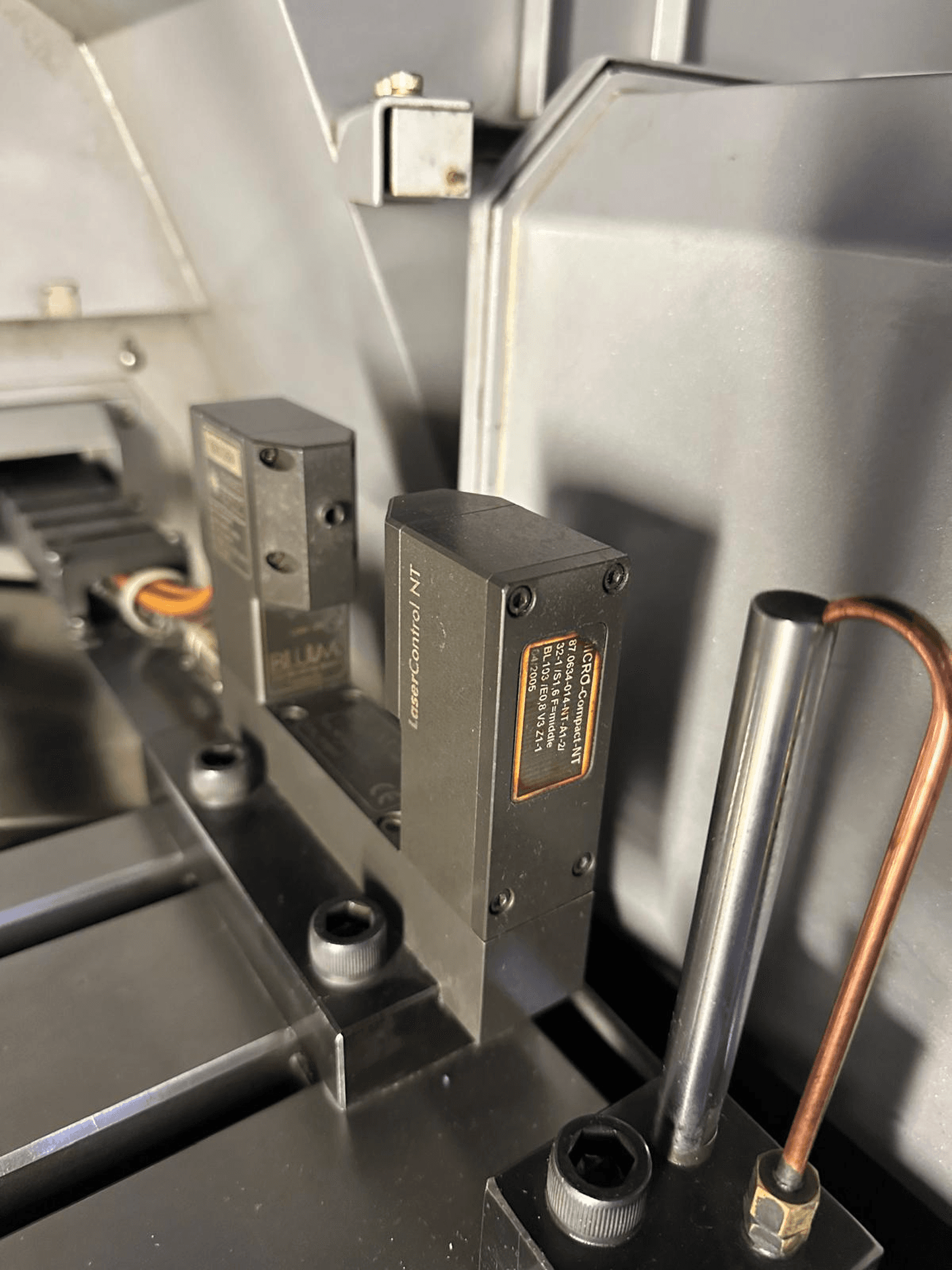

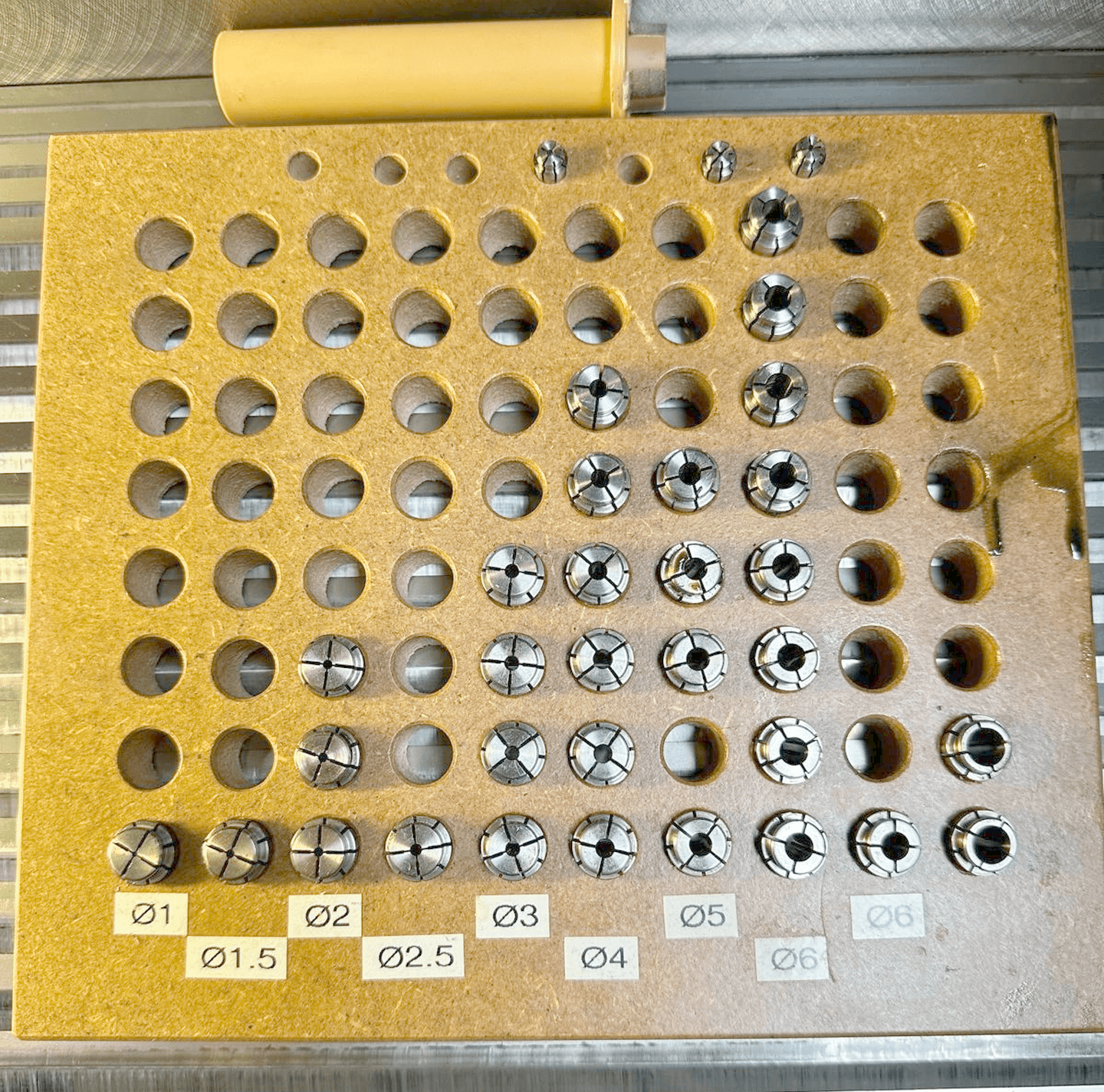

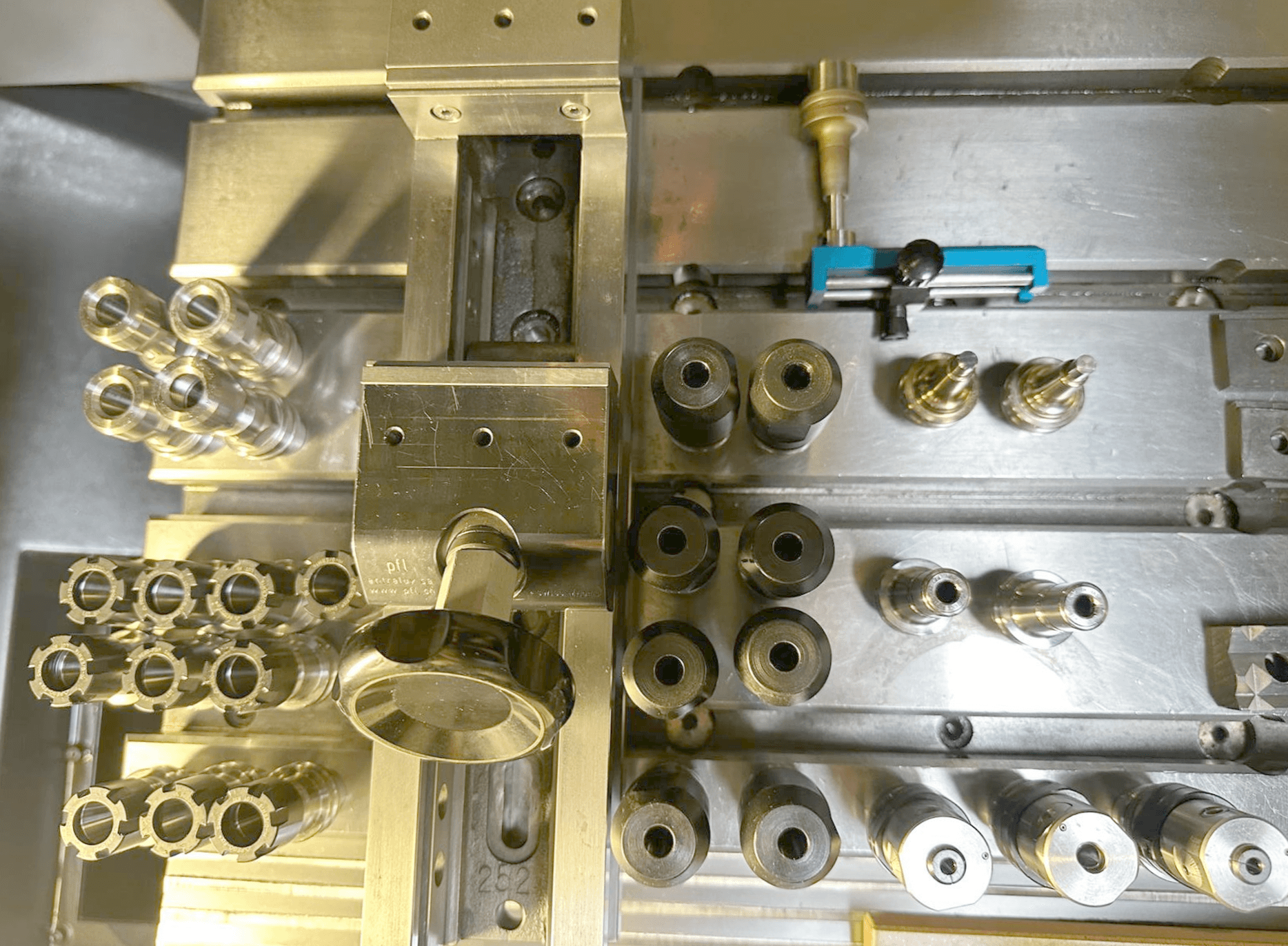

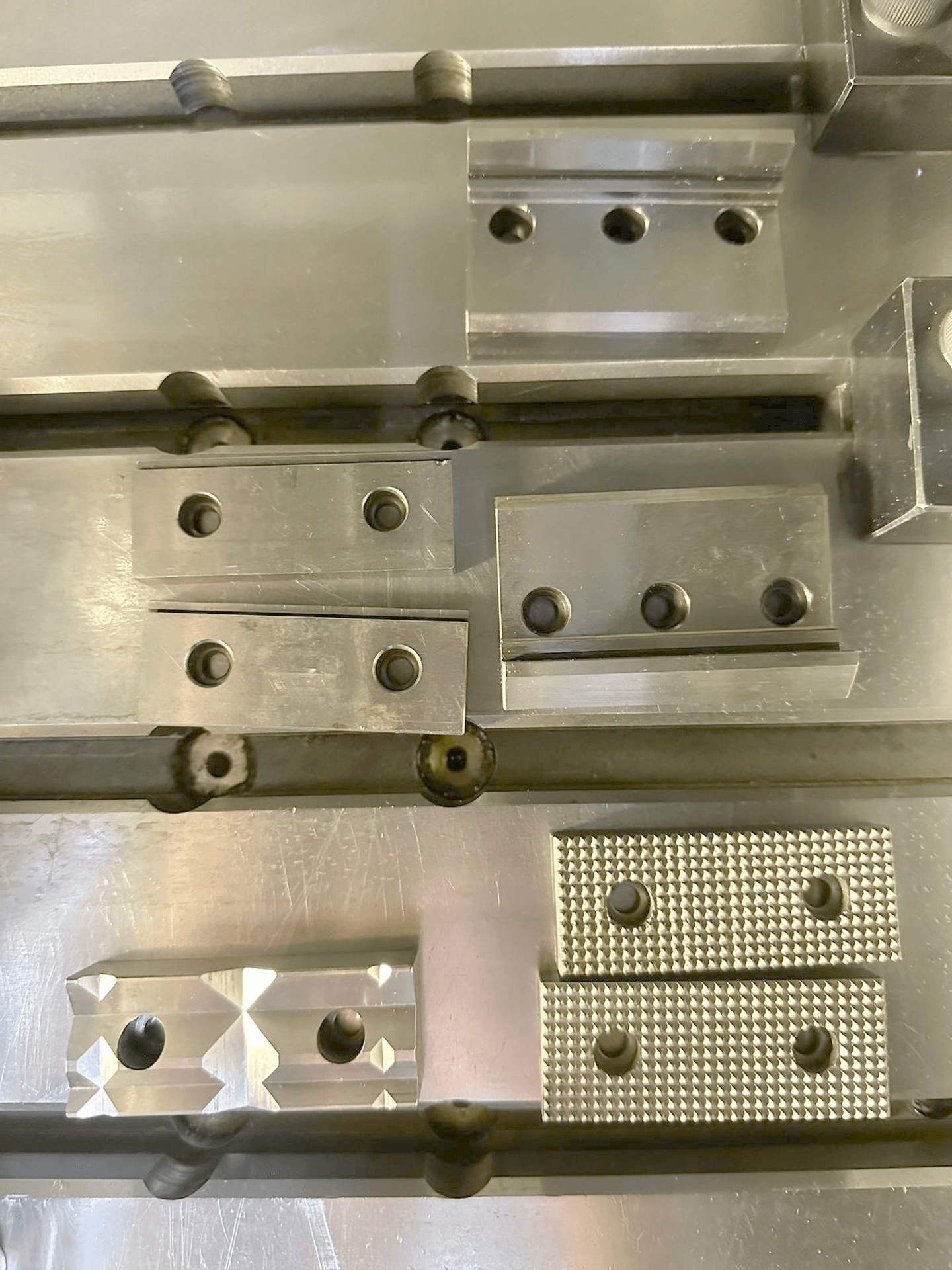

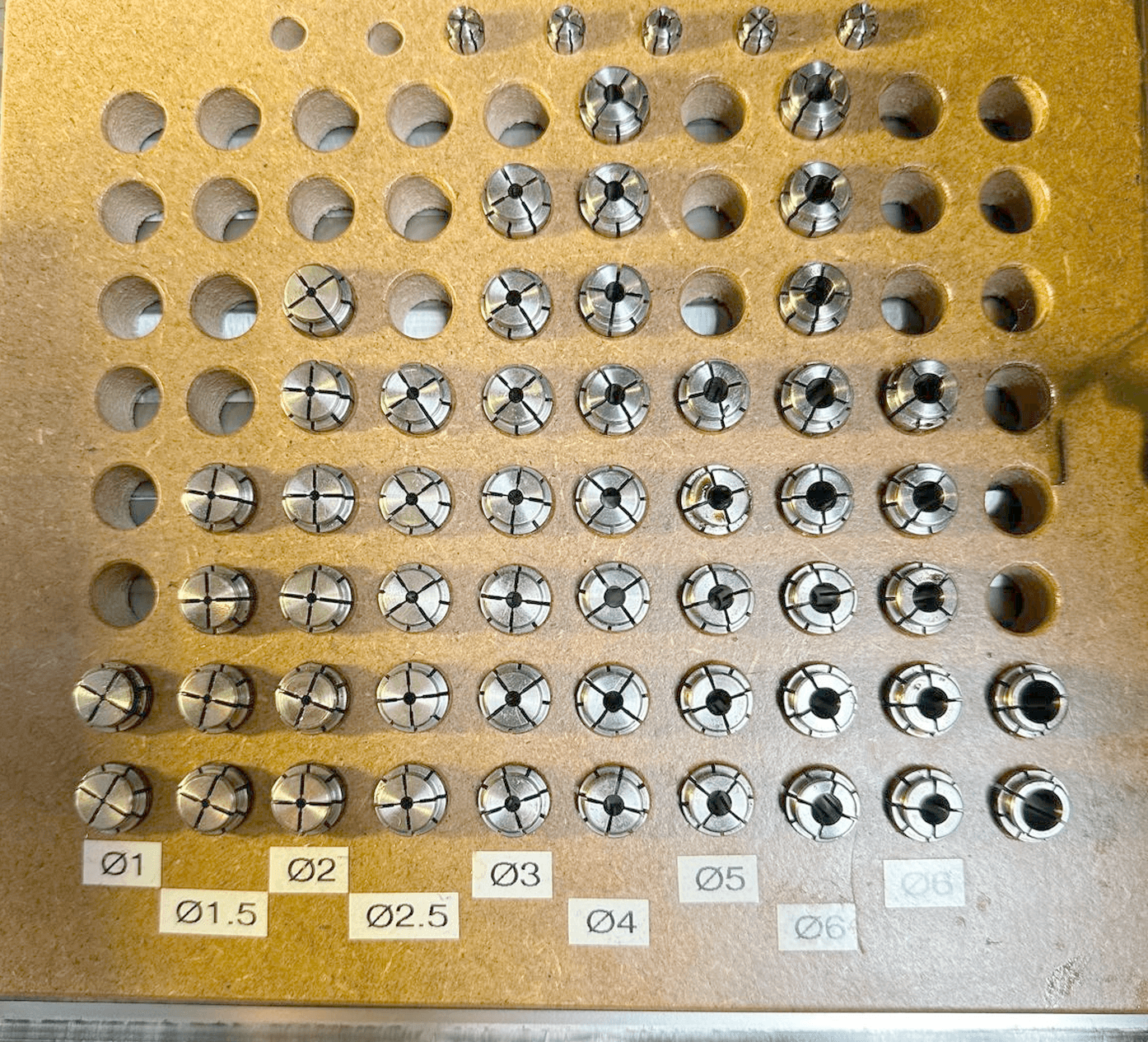

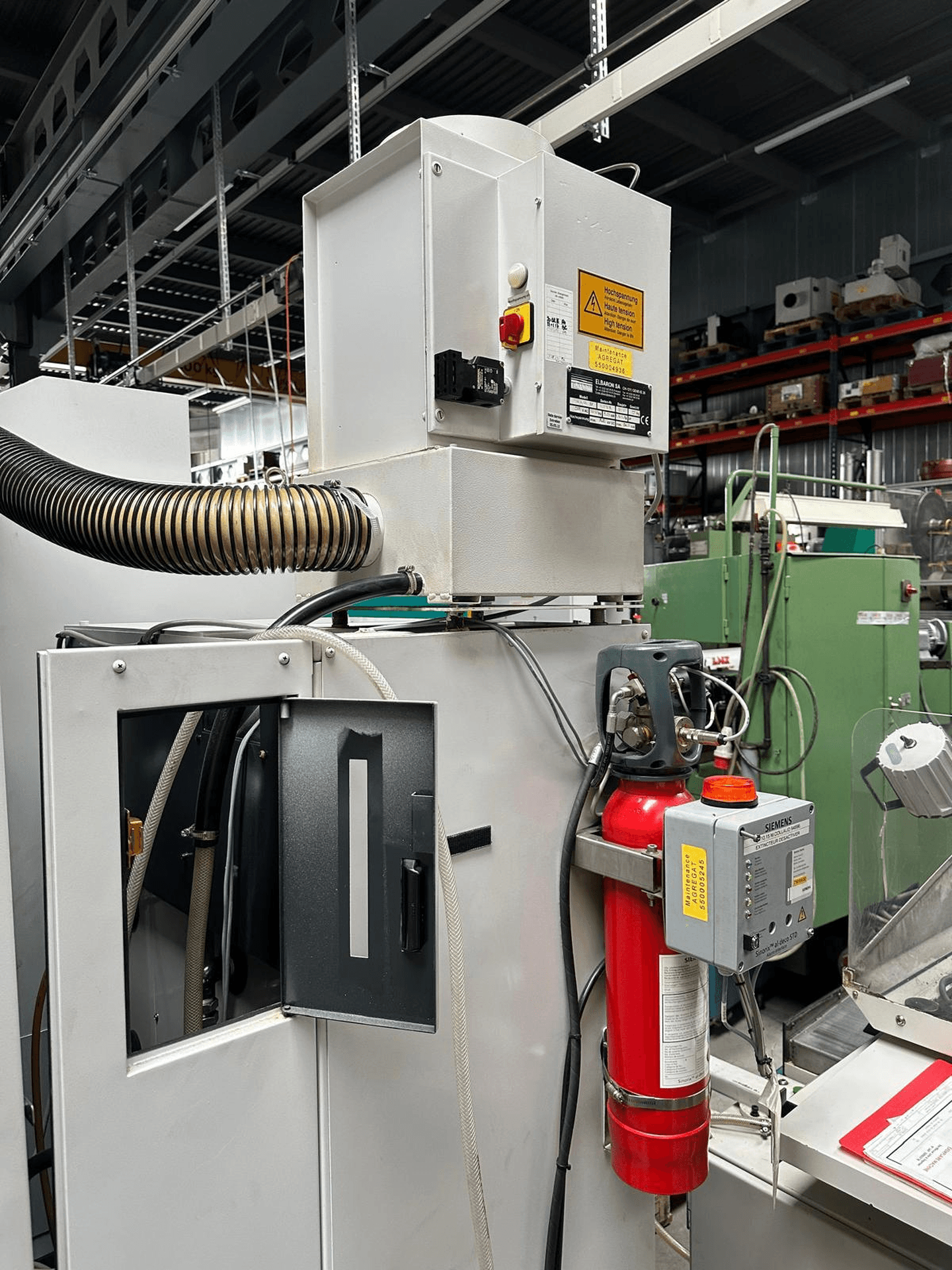

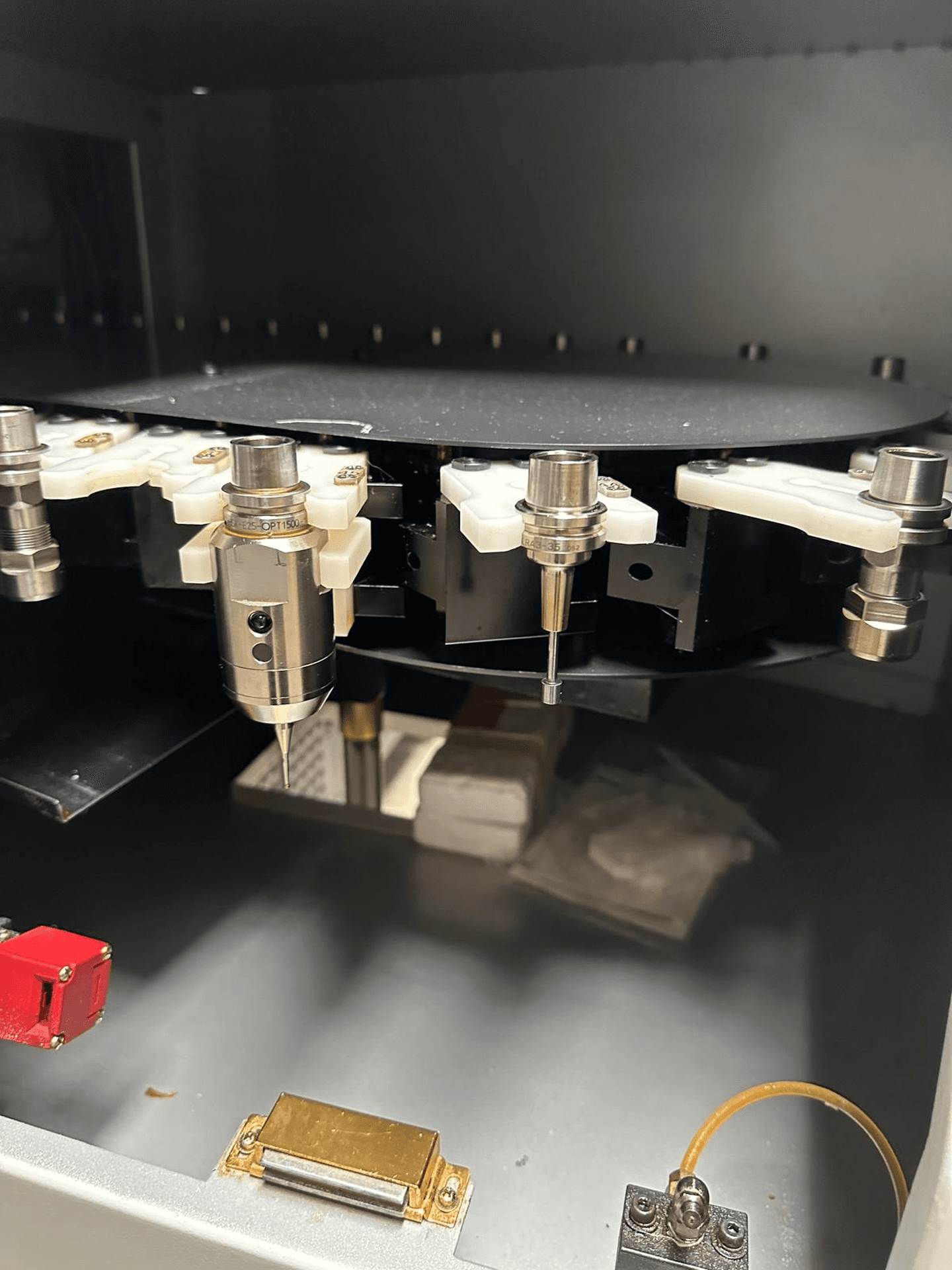

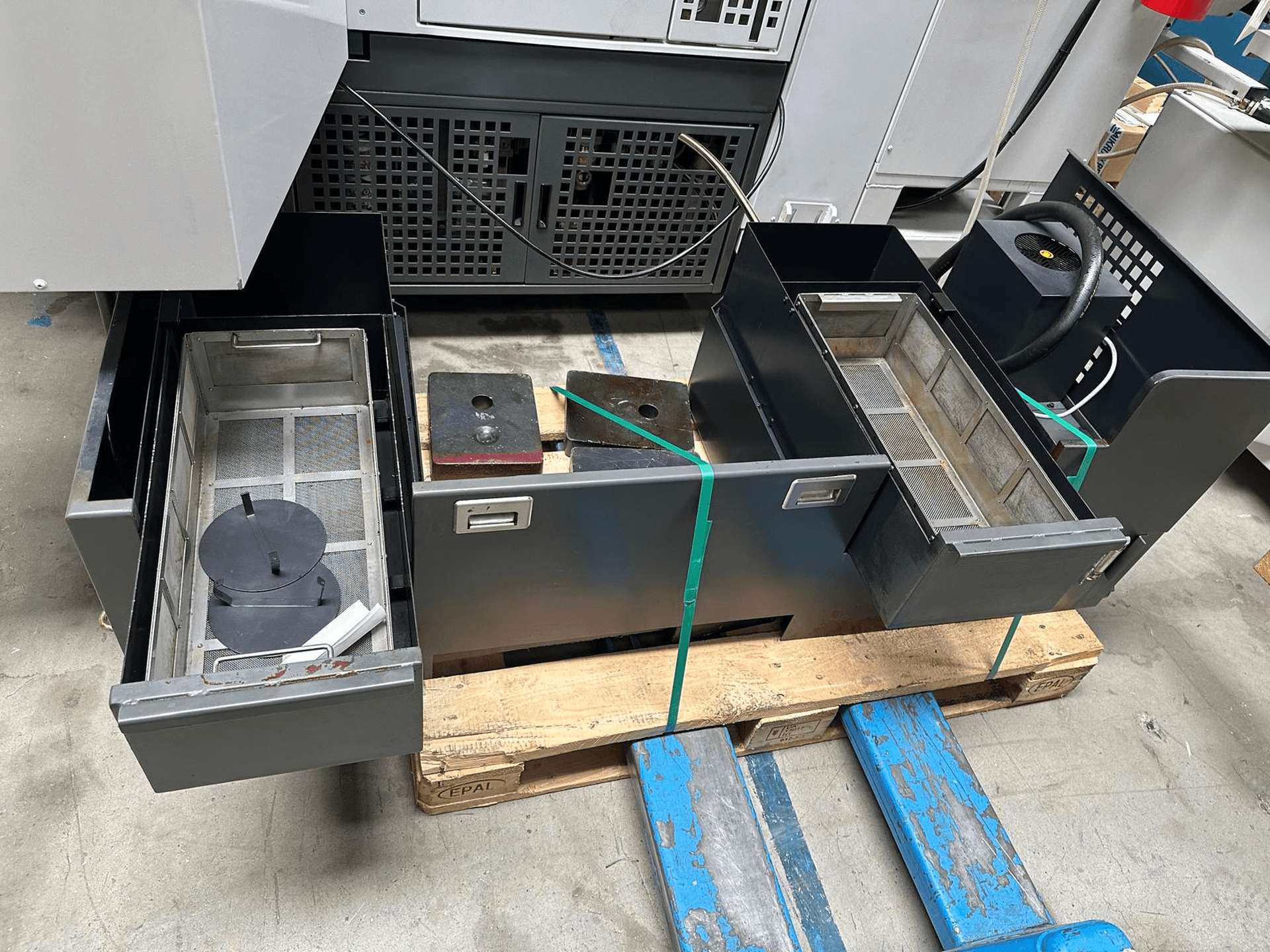

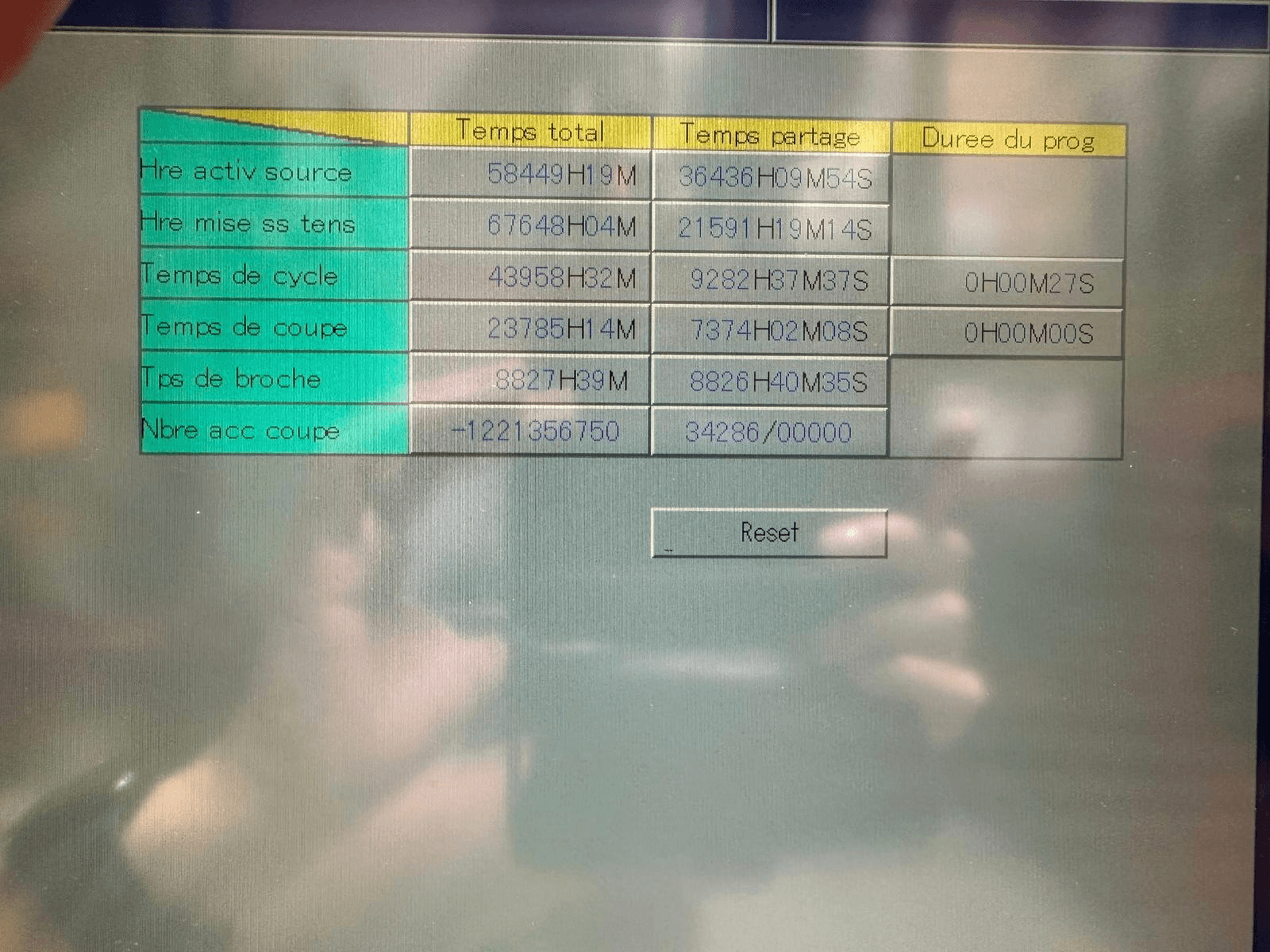

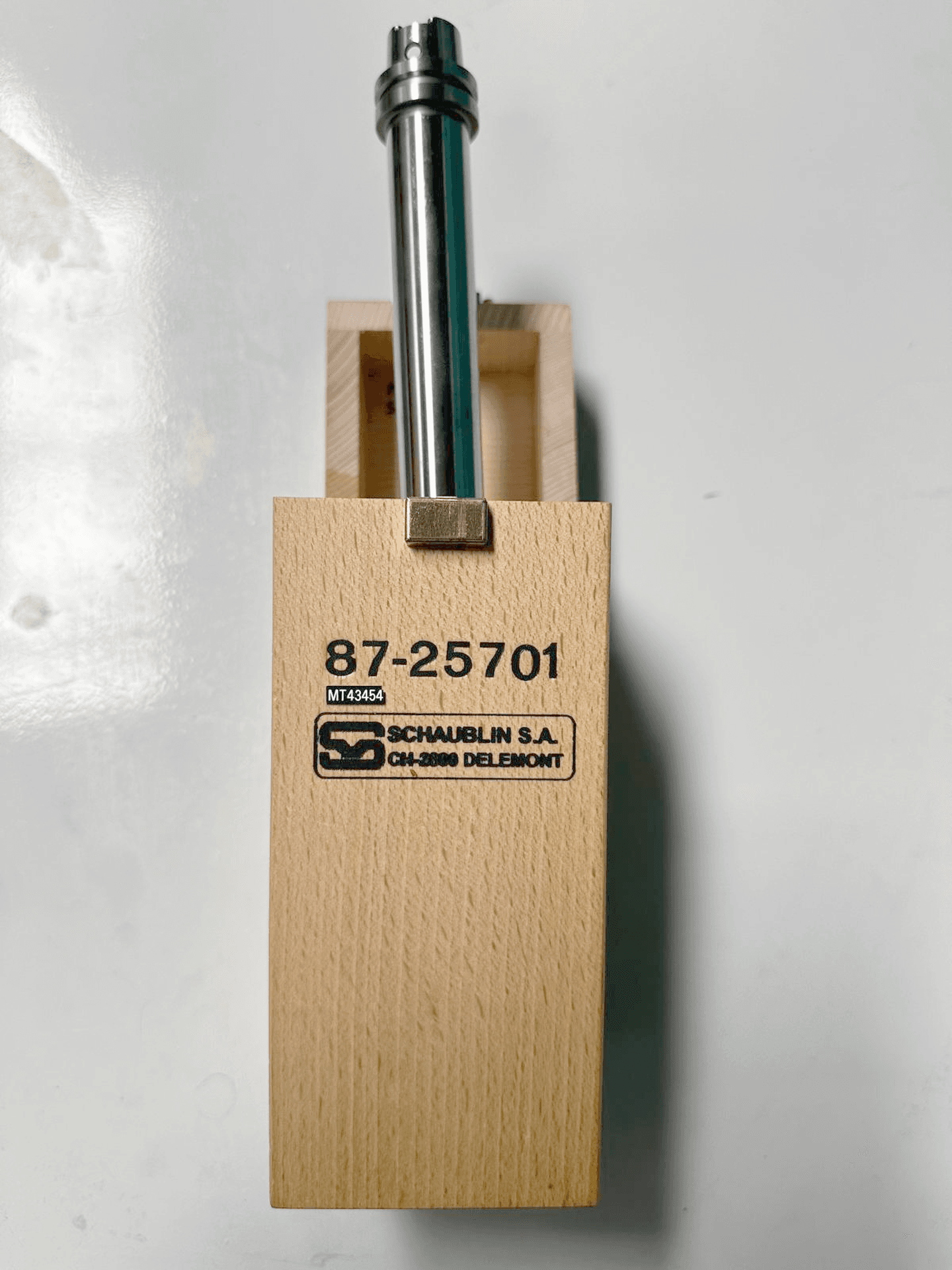

{"Time under power": "67648 Heures", "Operating time": "58449 Heures", "Working time": "23785 Heures", "Spindle run time": "8827 Heures", "Number of axis total": "3", "Table length": "600 mm", "Table width": "400 mm", "Number of T-channels": "5", "Distance of the T-slots": "80 mm", "T-channel width": "14 mm", "Table load max.": "60 kg", "Longitudinal travel (X-axis)": "420 mm", "Transversal travel (y-axis)": "350 mm", "Vertical travel (z axis)": "200 mm", "Dimension of the workpice:": "", "Diameter": "6 mm", "Tool changer:": "", "Number of tools": "45", "Spindle nose: HSK": "E25", "Distance spindle nose to table": "115 - 315 mm", "Spindle speeds:": "", "stepless": "", "from": "6000 t/min", "up to": "40000 t/min", "Feed range": "0 - 4000 mm/min", "Rapid traverse:": "36 m/min", "Voltage 50 Hz 3x": "400 Volt", "Machine's weight about": "5800 kg", "Overall dimensions machine:": "", "Length": "1625 mm", "Width": "1500 mm", "Height": "2105 mm", "Various accessories:": "", "Direct measurement by glass scales": "", "Vice": "", "Set of toolholders": "", "Set of collets": "", "Coolant system": "l", "Touch Probe": "", "Handwheel electroinic": "", "Oil mist extractor": "ELBARON", "Laser tool measurement": "", "Fire extinguishing system": ""}
