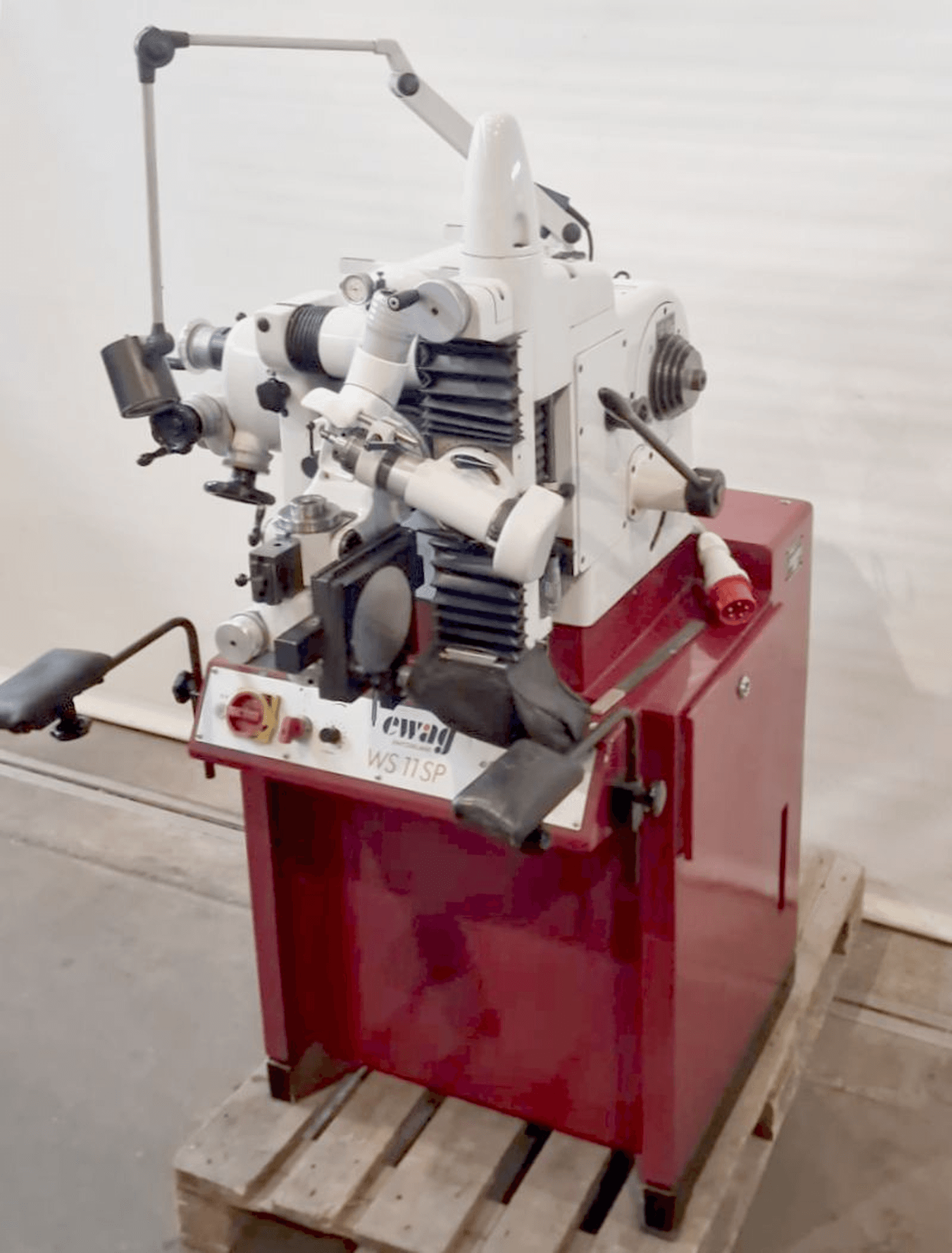

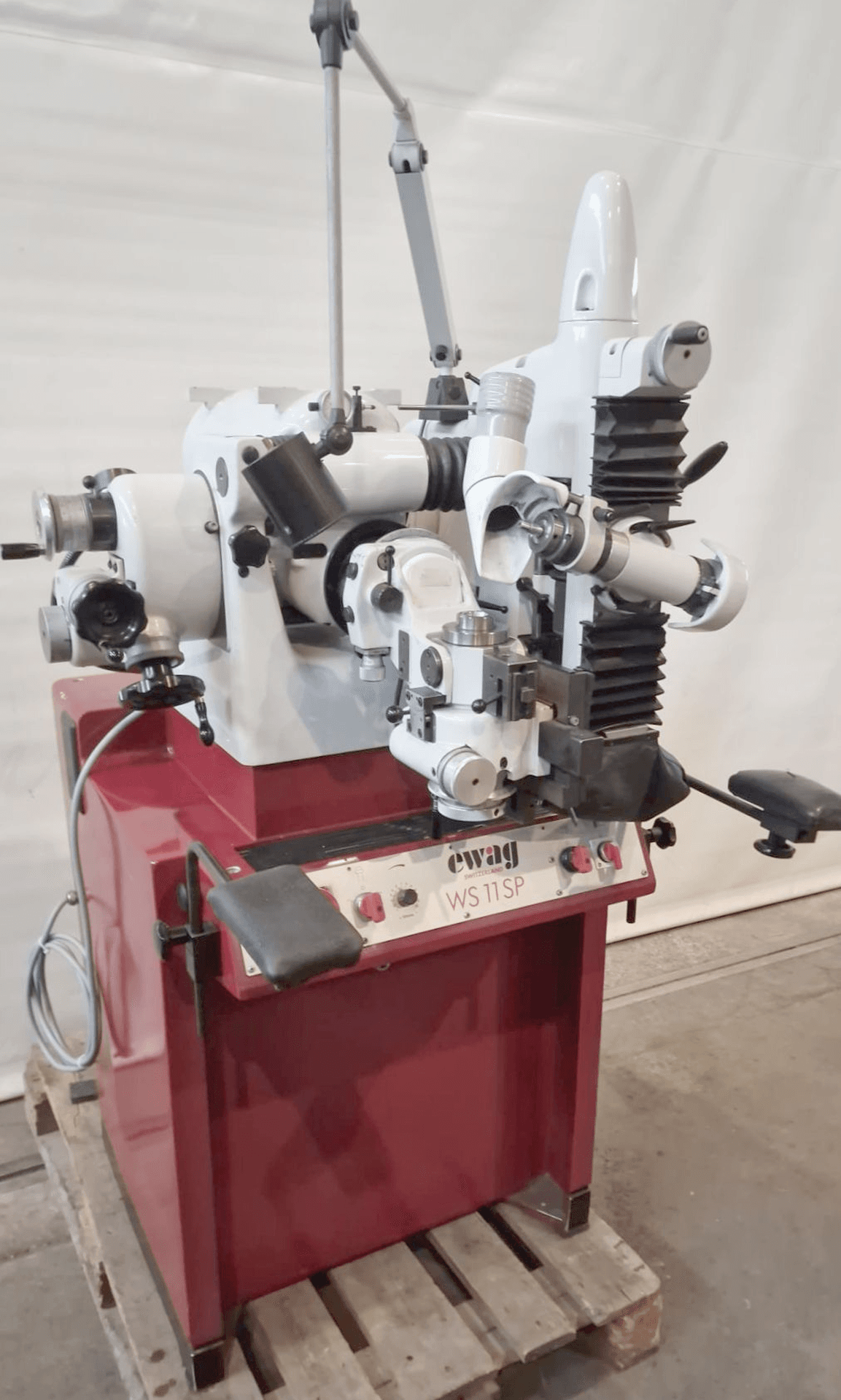

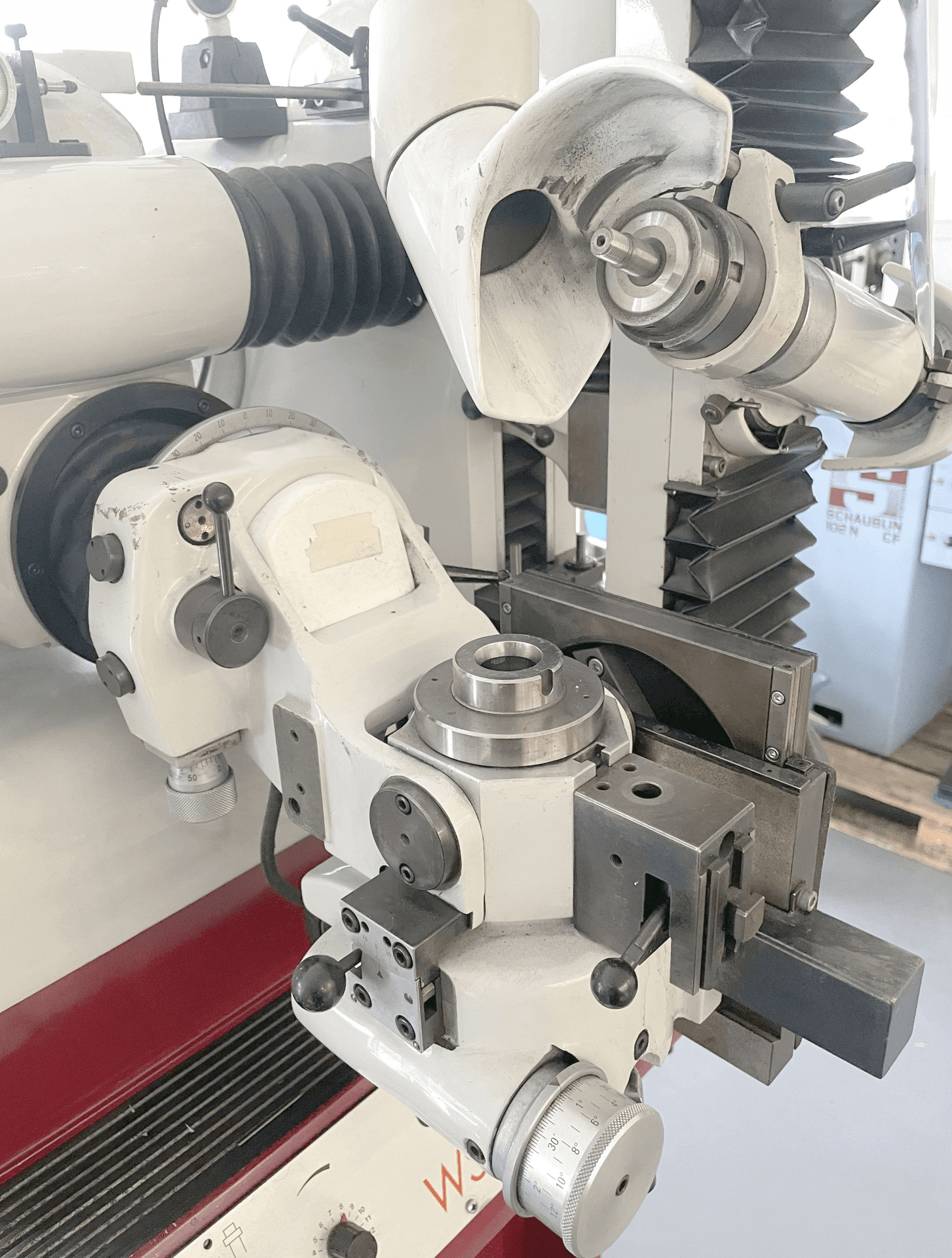

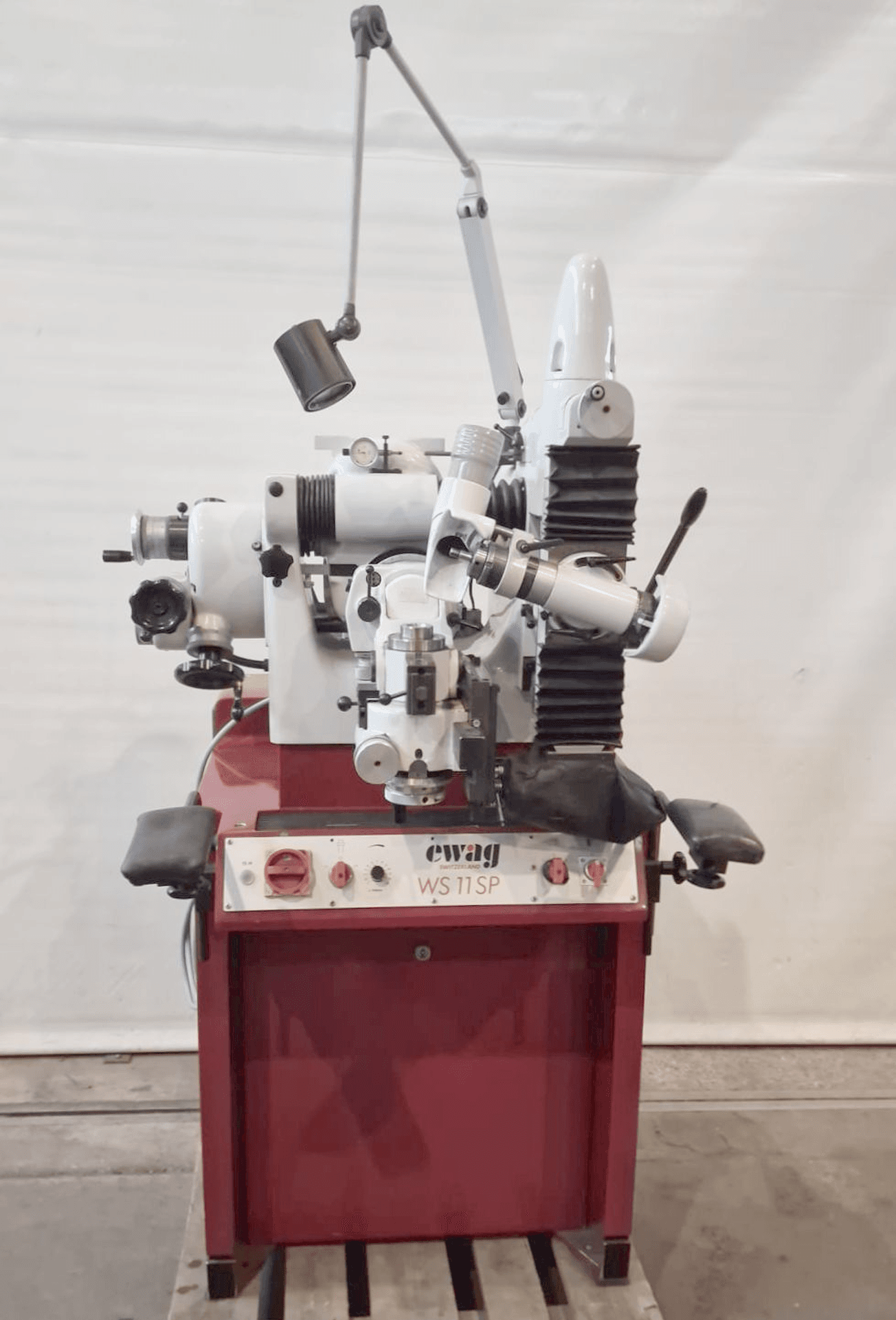

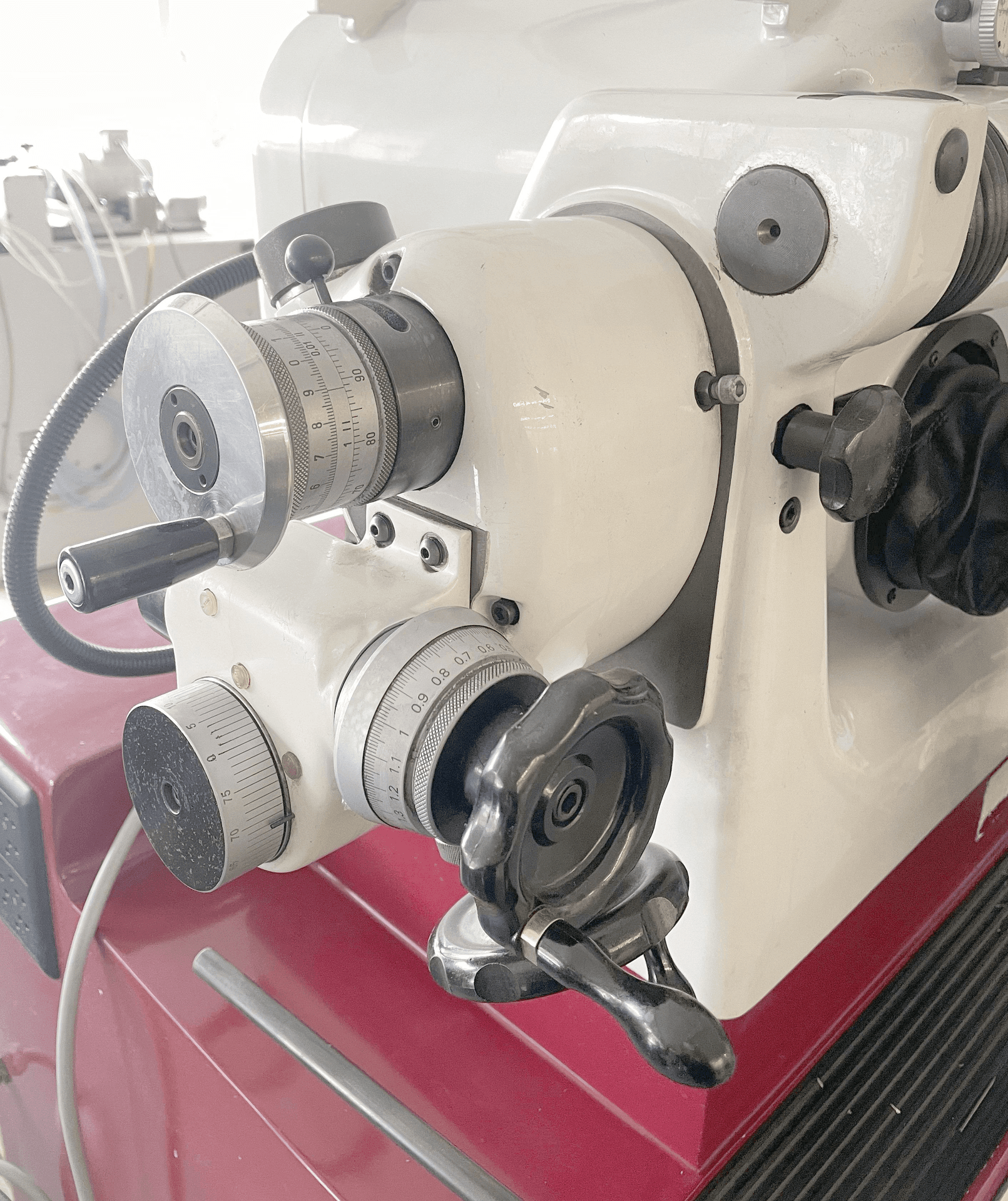

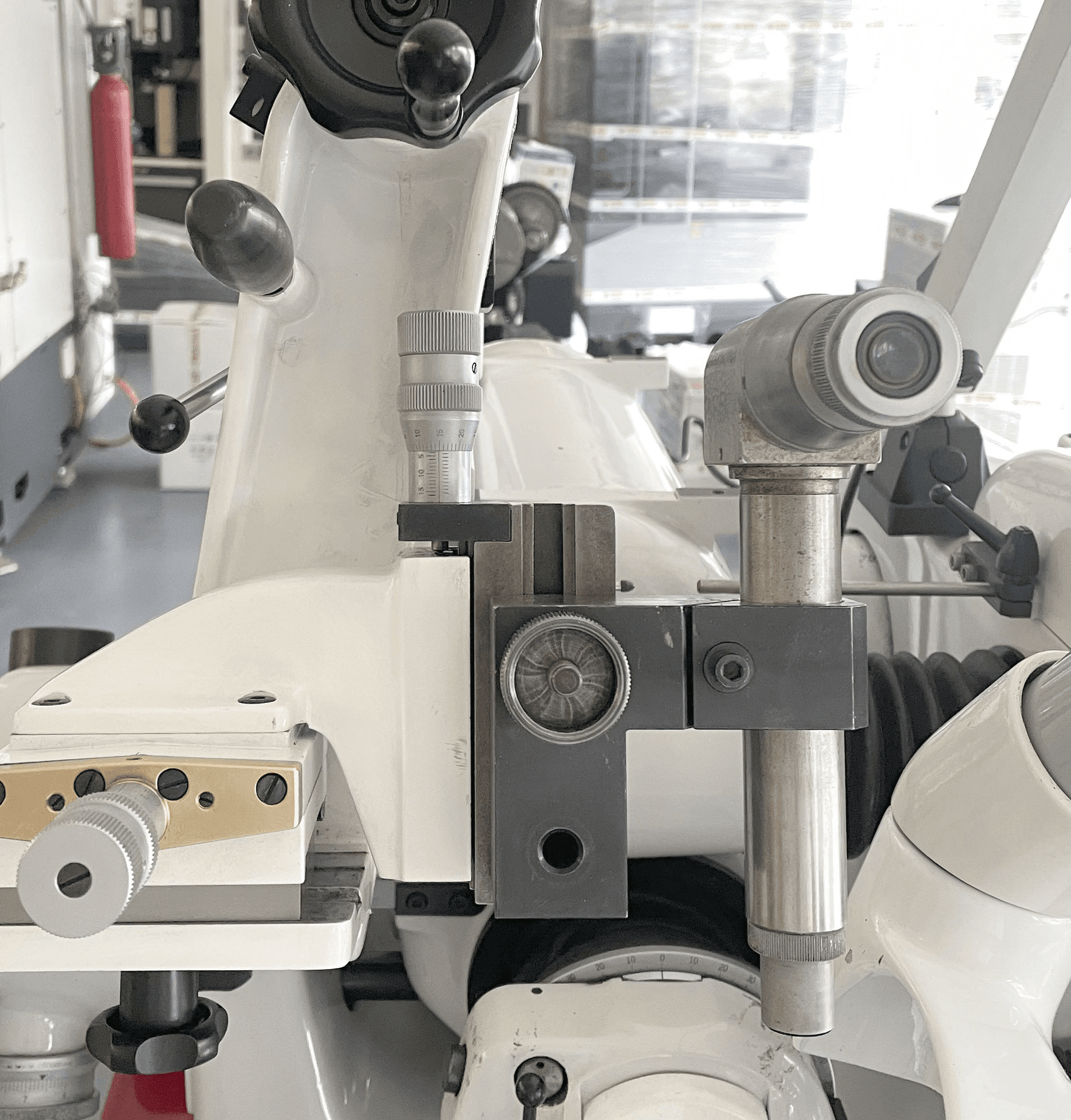

022808 - EWAG WS 11 SP

Price on request

Condition: NEW· Manufacturer: EWAG· Country: Switzerland

Description

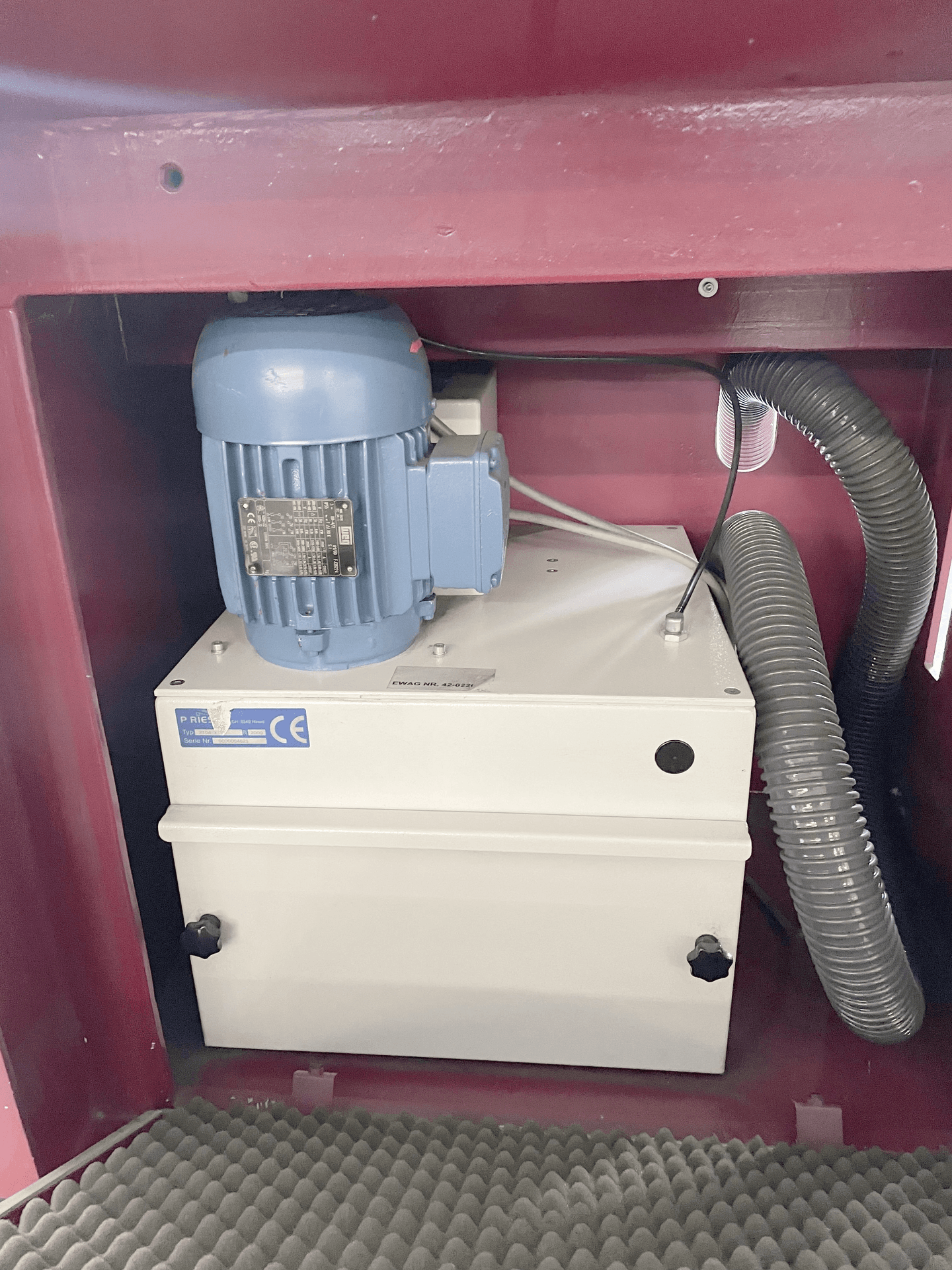

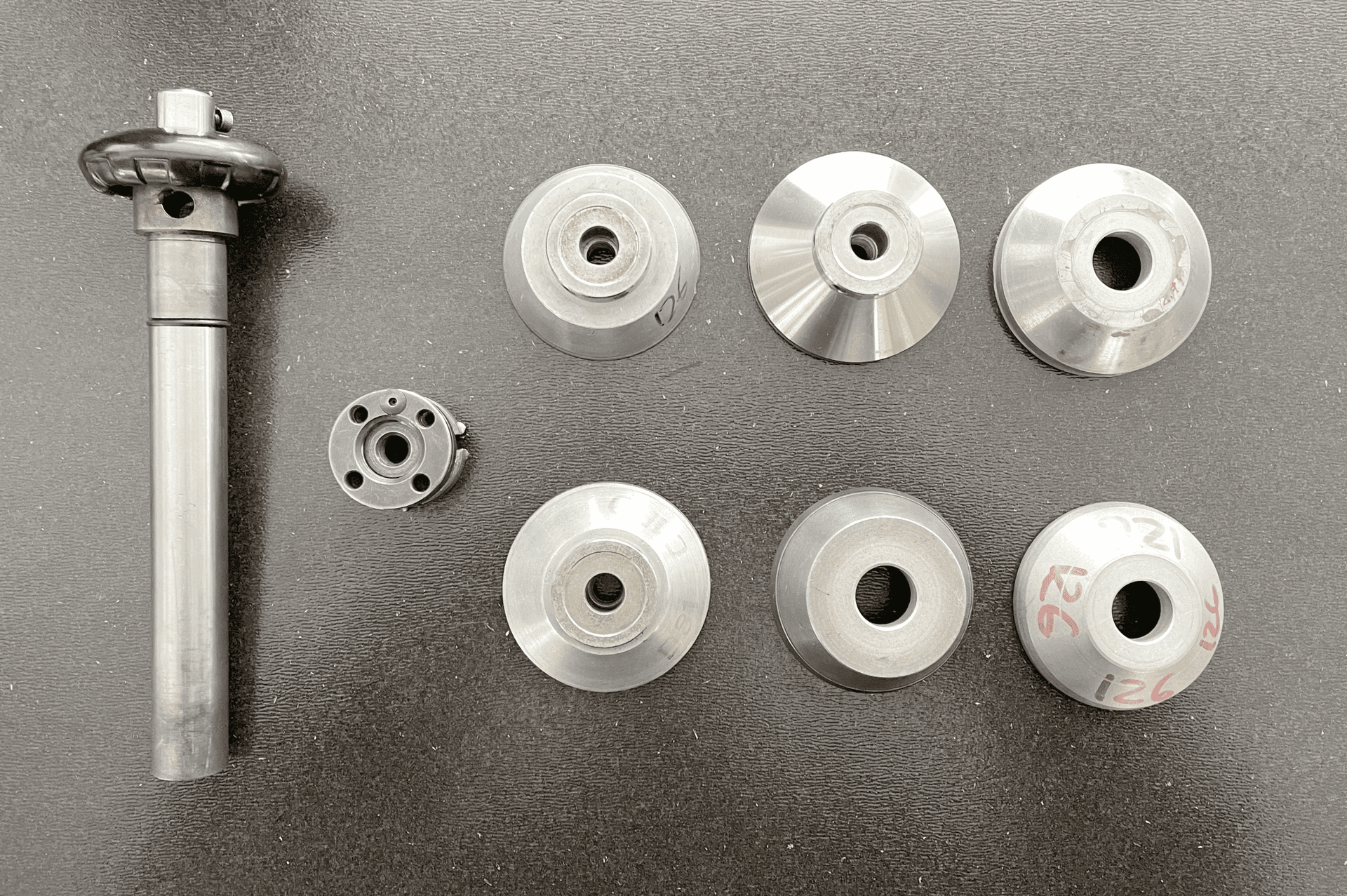

{"X axis": "100 mm", "Y axis": "100 mm", "Z axis": "100 mm", "Grinding-wheel diameter": "75 mm", "Work piece spindle speed": "100 - 1300 t/min", "Vertical adjustment of grinding head": "100 mm", "Collet attachment": "20 W", "Slewing range of grinding head:": "", "horizontal": "165 \u00b0", "Grinding spindle speeds:": "", "from": "2500 t/min", "up to": "7100 t/min", "Voltage 50 Hz 3x": "380 Volt", "Workpiece spindle motor": "kW", "Total power required": "2 kVA", "Machine's weight about": "400 kg", "Overall dimensions machine:": "", "Length": "850 mm", "Width": "850 mm", "Height": "1580 mm", "Various accessories:": "", "Flange for wheel": "", "Dust extraction": "", "Set of grinding wheels": "", "Lamp": "", "Helical grinding device W20": "", "Feed unit (Z-axis)": "4 E-M", "Grinding stroke 3 J": ""}

Send Enquiry

Seller

Muller Machines SA
