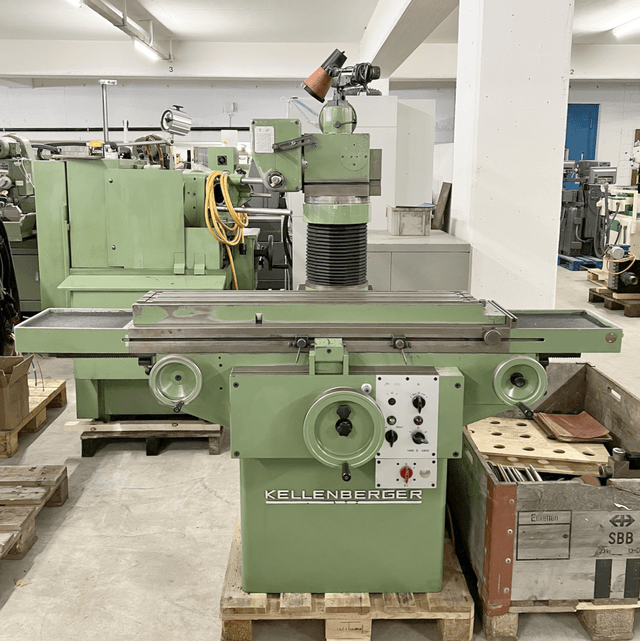

022760 - KELLENBERGER 57 W

Description

{"Centre height": "125 mm", "Distance between centres": "780 mm", "Table length": "1030 mm", "Table width": "214 mm", "Max. grinding diameter": "250 mm", "Grinding-wheel diameter": "250 mm", "Longitudinal way of table": "600 mm", "Vertical adjustment of grinding head": "300 mm", "Transversal way of grinding head": "300 mm", "Table swivels": "90 \u00b0", "Slewing range of grinding head:": "", "horizontal": "360 \u00b0", "vertical": "350 \u00b0", "Grinding spindle speeds:": "", "number (steps)": "6", "from": "2000 t/min", "up to": "6000 t/min", "Voltage 50 Hz 3x": "380 Volt", "Grinding spindle motor": "1 CV", "Machine's weight about": "1250 kg", "Overall dimensions machine:": "", "Length": "460 mm", "Width": "150 mm", "Height": "1900 mm", "Various accessories:": "", "Tool cabinet": "", "Dial gauge": "", "Set of flanges": "", "Dividing attachment": "", "Tailstock": "", "3-jaw chuck diameter": "130 mm", "Coolant system": "", "Set of grinding wheels": "", "Set of diamant wheels": "", "Set of centers": "", "Lamp": "", "Universal swivelable Vice (width)": "100 mm", "Three-jaw bezel folds open": "", "Magnetic plate:": "", "Set of service tools": "", "Set of workpiece drivers": "", "Notes:": "", "Machine refurbished": "2013"}
