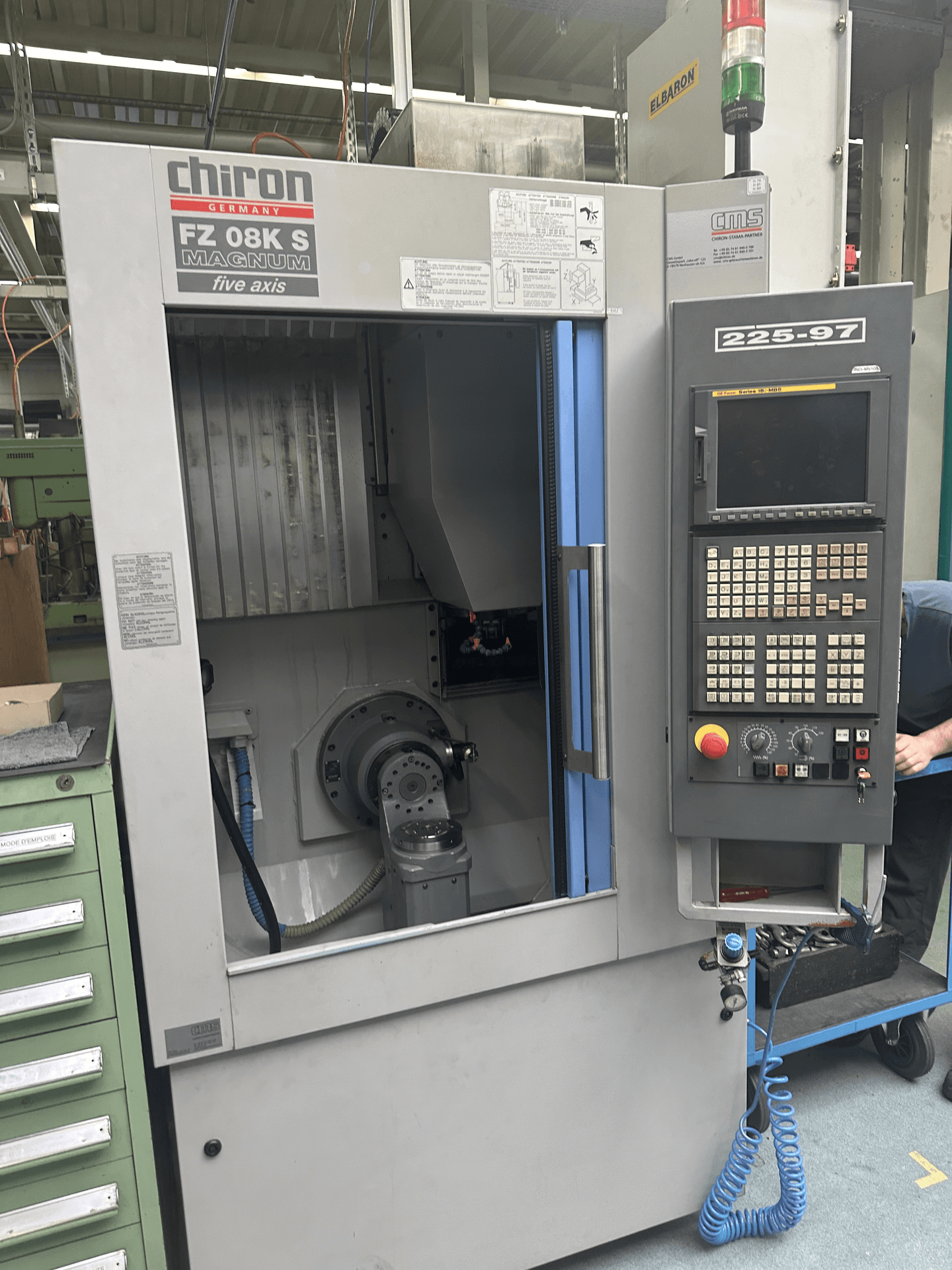

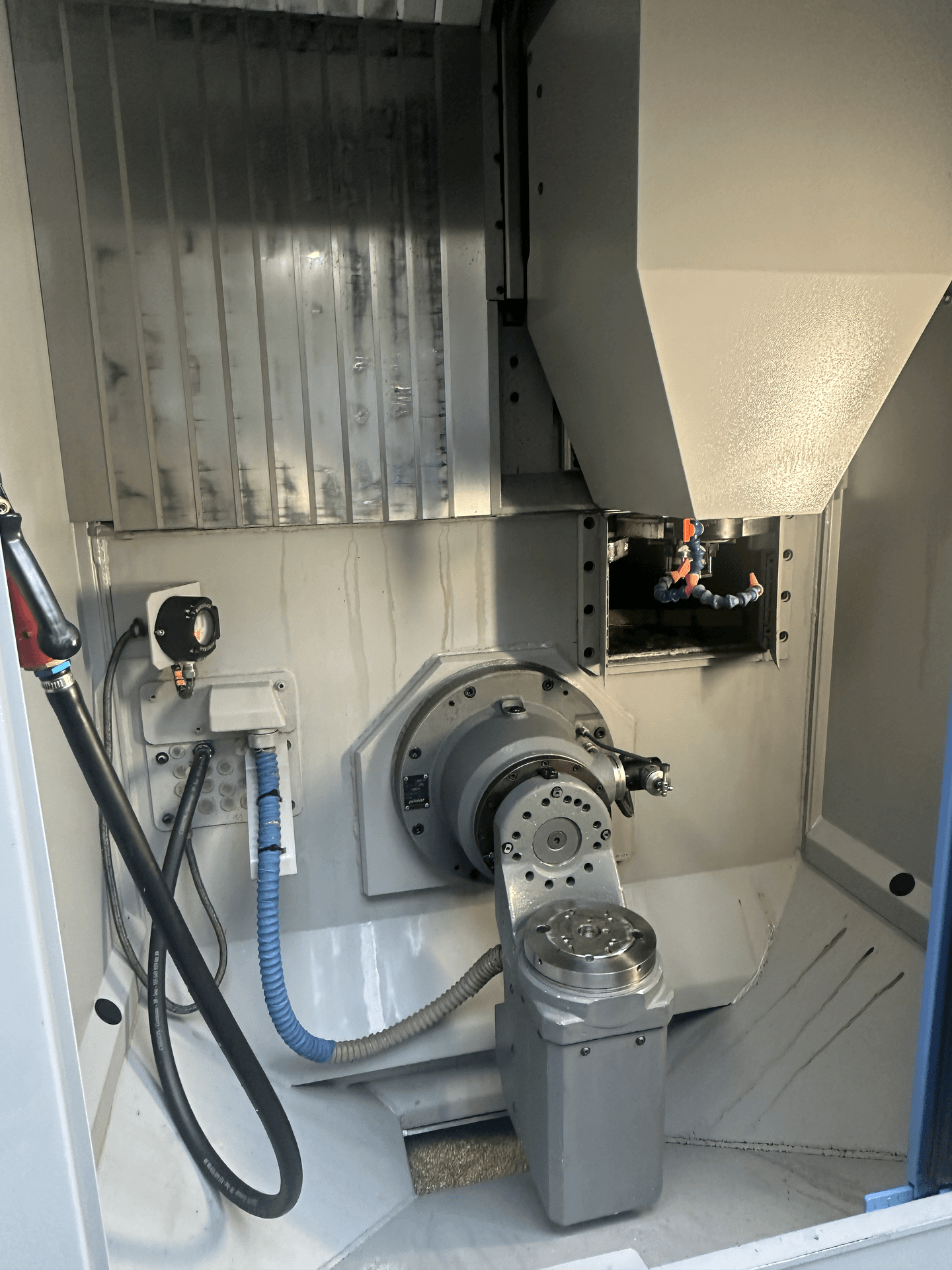

022715 - CHIRON FZ 08 KS Magnum

Description

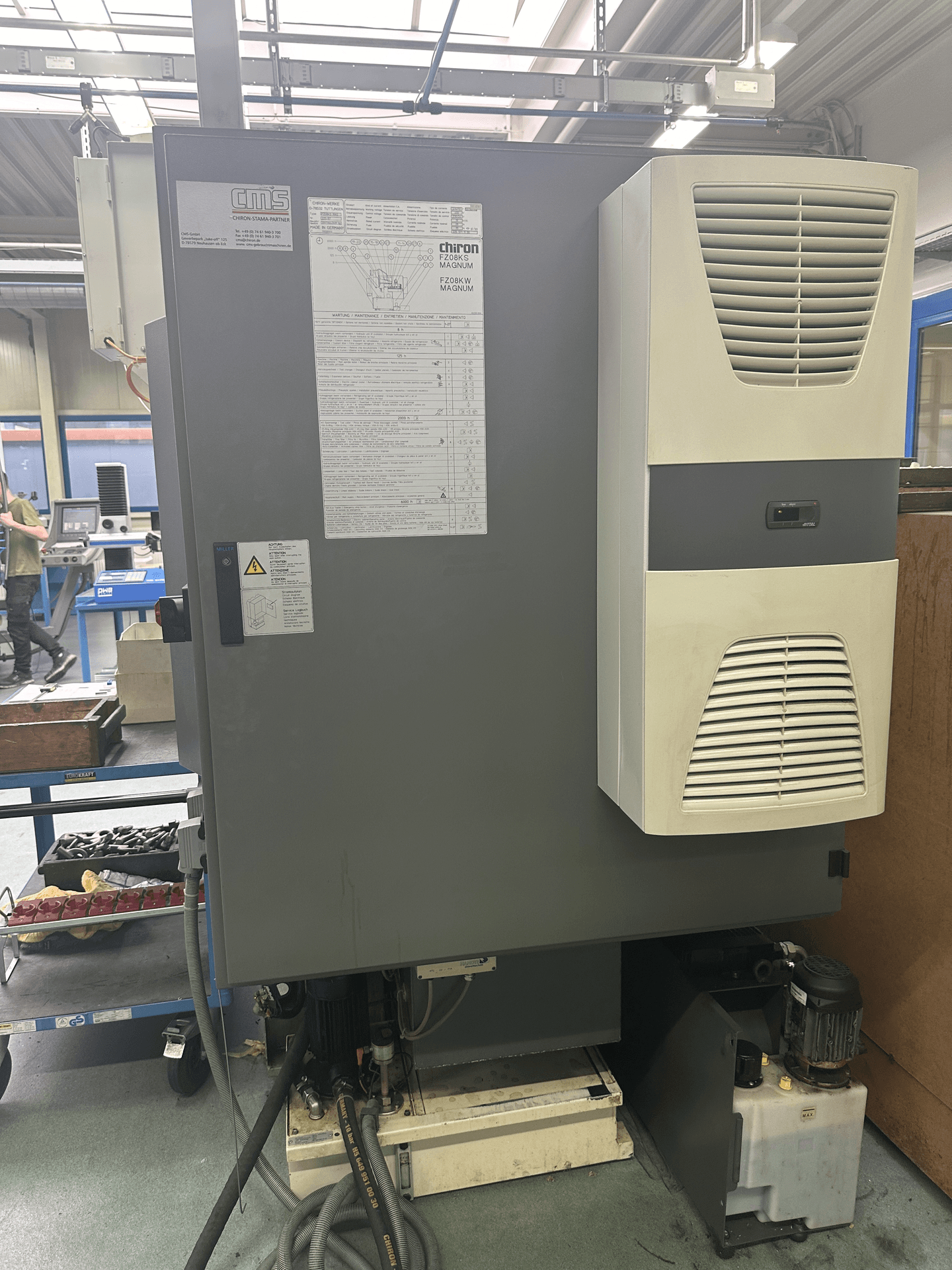

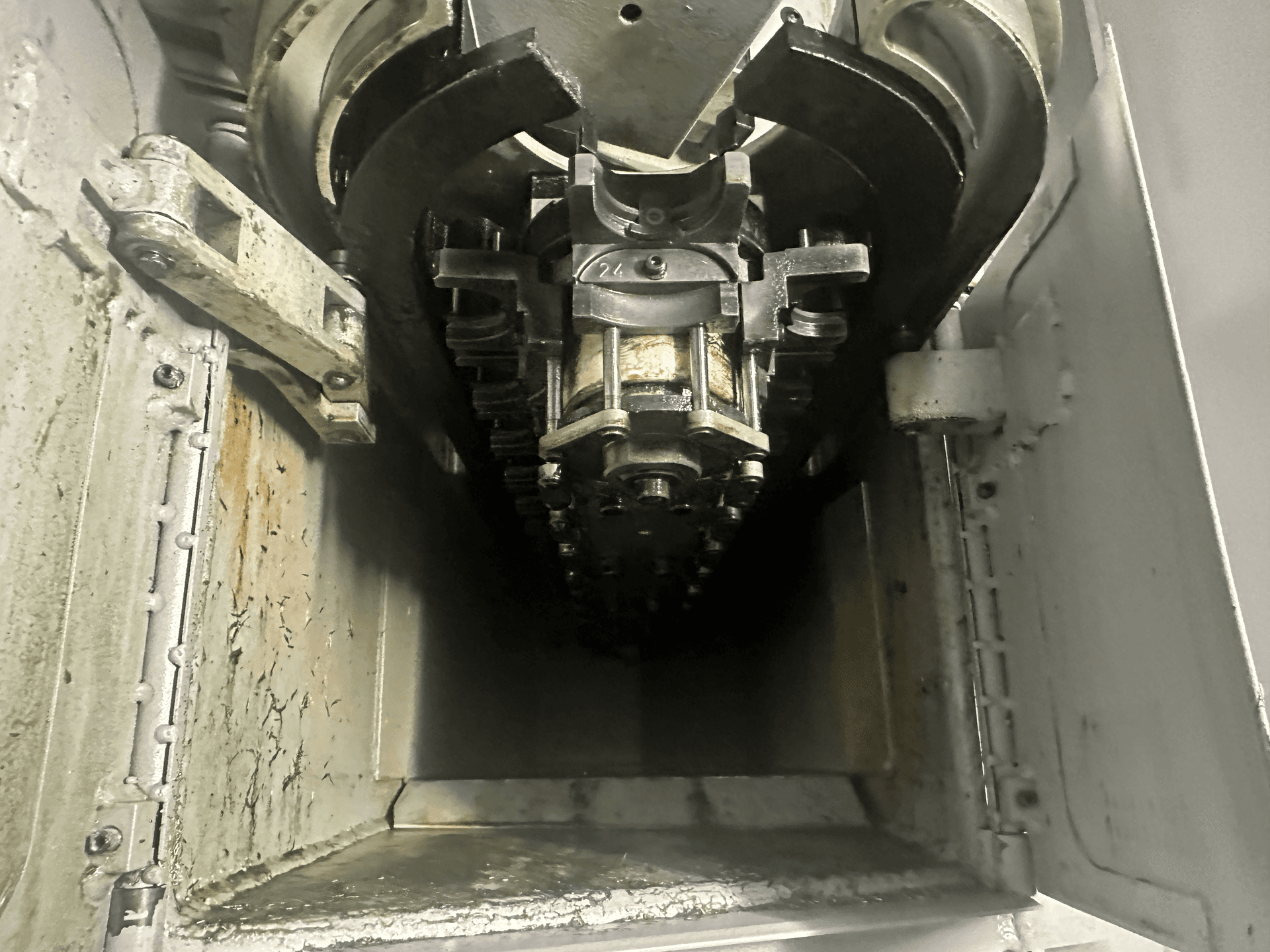

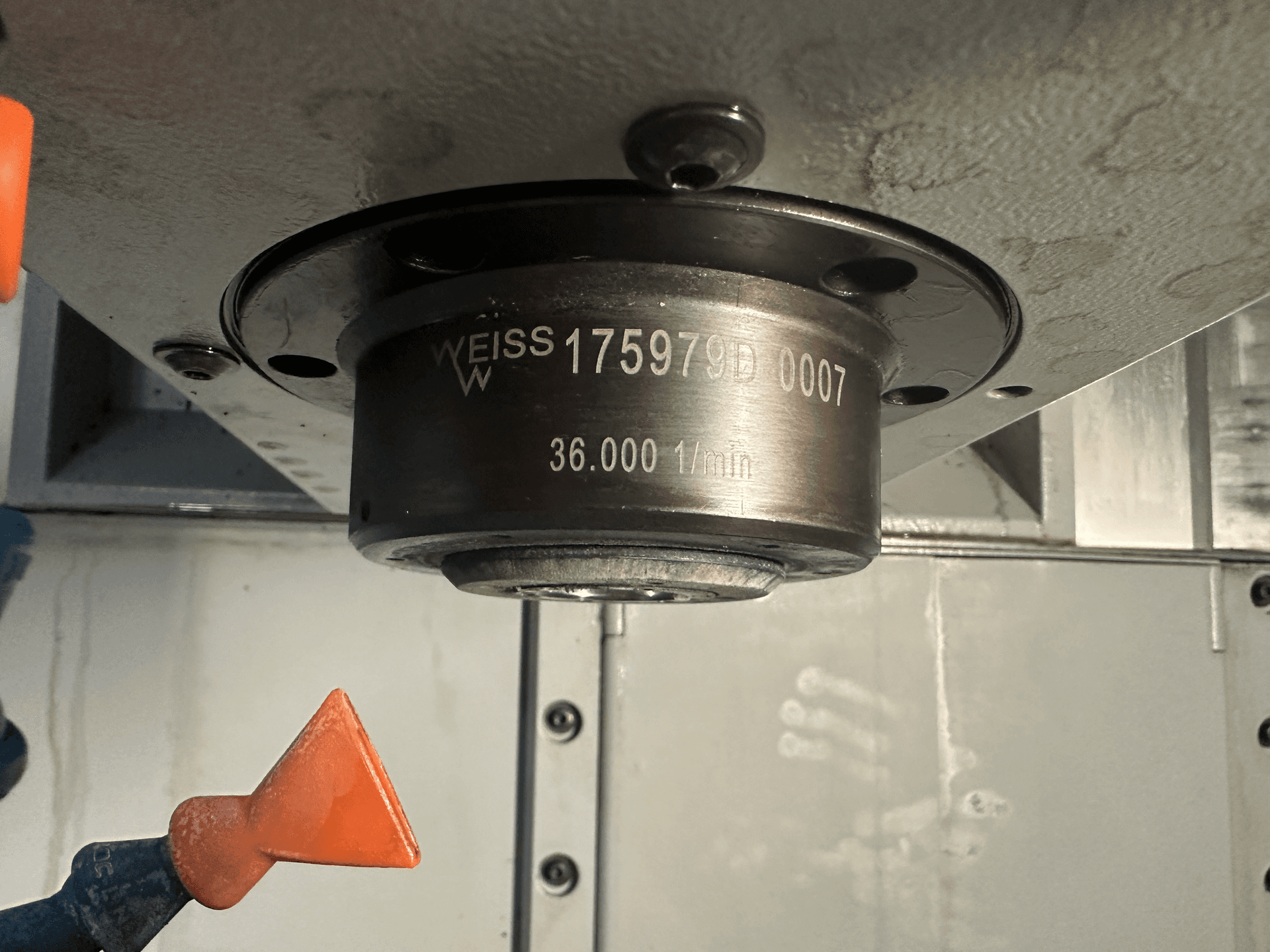

{"Number of axis total": "5", "Number of spindles": "1", "Longitudinal travel (X-axis)": "450 mm", "Transversal travel (y-axis)": "270 mm", "Vertical travel (z axis)": "310 mm", "Drill capacity": "12 mm", "Max. taping diameter M": "8", "Tool changer:": "", "Number of tools": "24", "Tool diameter max.": "47 mm", "Diameter with free adjacent pockets": "100 mm", "Tool lenght": "160 mm", "Max. tool-weight": "1.2 kg", "Time of tool changing": "0.8 / 2.3 s", "Average chip-to-chip time": "2.2 s", "Spindle nose: HSK-A": "40 DIN 69893", "Spindle speeds:": "", "from": "0 t/min", "up to": "36000 t/min", "Rapid traverse:": "75 m/min", "Air connect": "6 bar", "Voltage 50 Hz 3x": "400 Volt", "Spindle motor": "7 kW", "Total power required": "19 kVA", "Machine's weight about": "3400 kg", "Overall dimensions machine:": "", "Length": "2308 mm", "Width": "1405 mm", "Height": "2447 mm", "Various accessories:": "", "Tool break control": "", "Interface serial port RS 232": "", "Switch cabinet Air conditioner": "", "Status light": ""}
