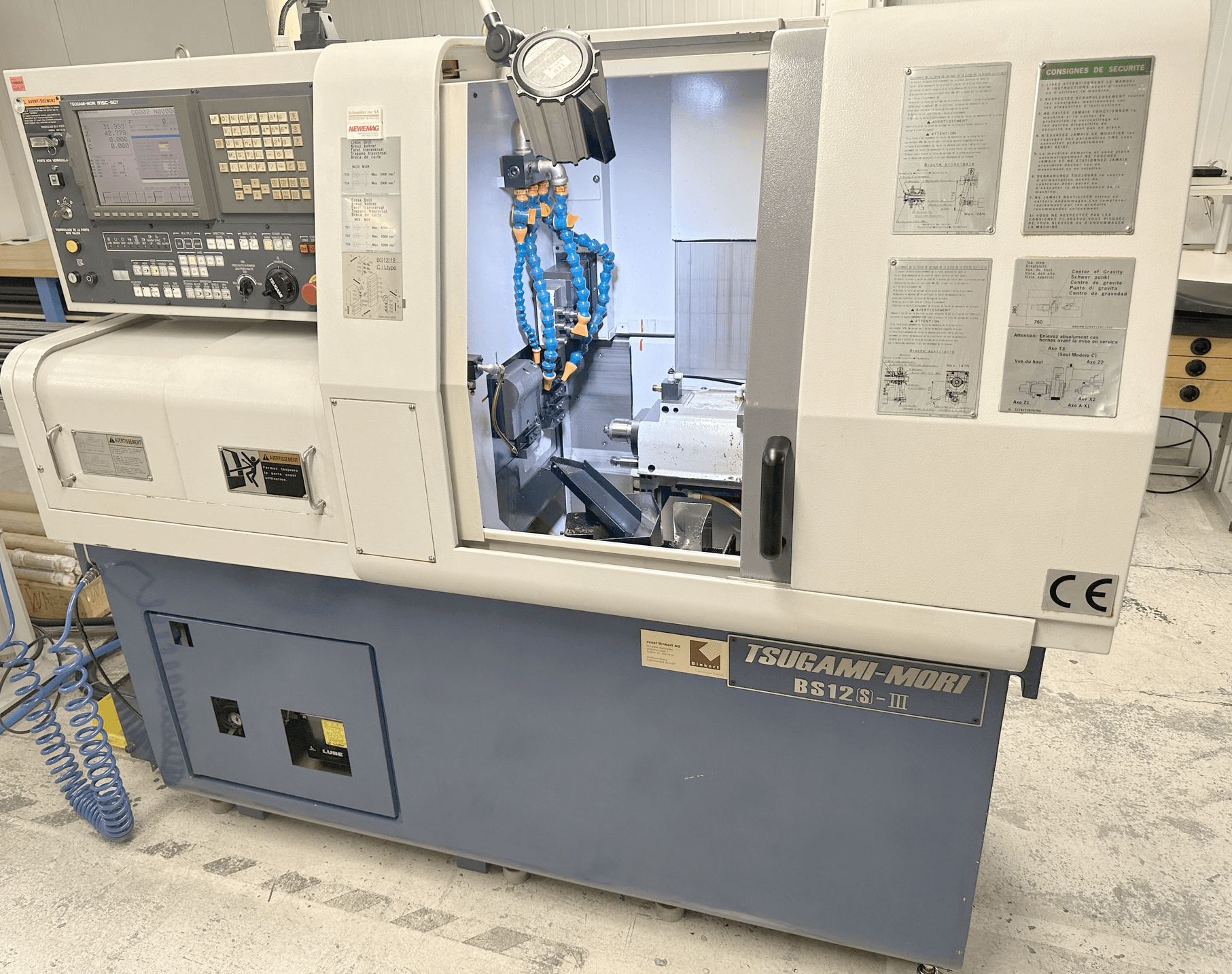

022714 - TSUGAMI-MORI BS-12CE(S)-III

Description

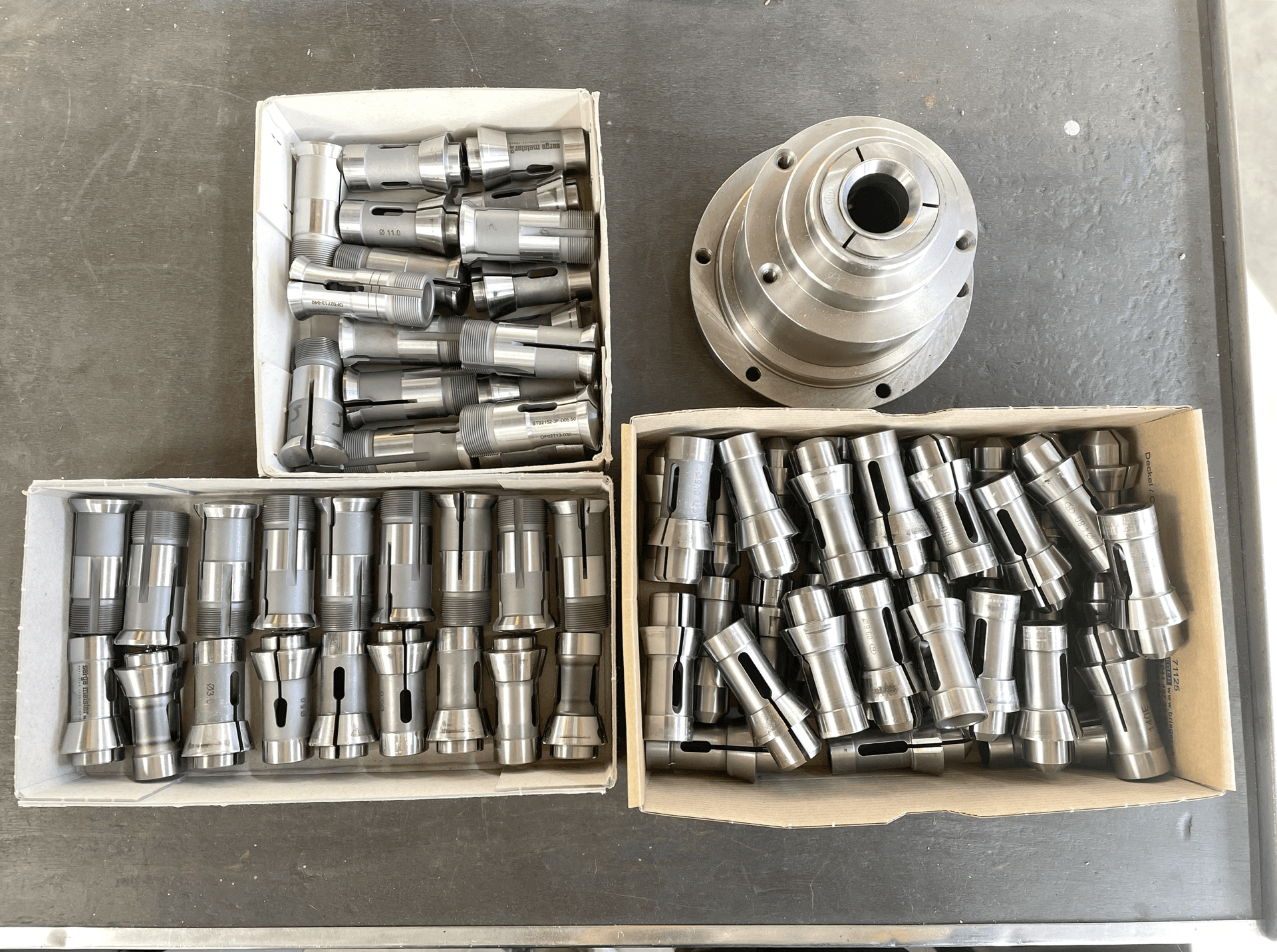

{"Number of axis total": "6", "Number of spindles": "2", "Turning diameter": "3 - 12 mm", "Maximum turning length": "210 mm", "Max. drilling diameter": "12 mm", "Max. threading diameter": "6 M", "Spindle speeds:": "", "stepless": "", "from": "1 mm/min", "up to": "6000 mm/min", "Back spindle:": "", "speeds:": "", "Tool-holder:": "", "Number of stations": "5", "number of tools": "5", "Turning tools": "3 pce", "Drilling tools": "3 pce", "Transverse processing tools": "3 pce", "Power of driven tools": "0.9 kW", "Tool lenght": "85 mm", "Tool shank cross section": "12 mm", "Counter-operation:": "", "number of driven tools": "2", "Feeds:": "", "Rapid traverse:": "18 m/min", "Spindle motor": "1.5 / 2.2 kW", "Power of back spindle": "0.75 / 1.1 kW", "Air connect": "4 bar", "Total power required": "9 kVA", "Machine's weight about": "2200 kg", "Overall dimensions machine:": "", "Length": "1870 mm", "Width": "1150 mm", "Height": "1685 mm", "Various accessories:": "", "Parts catcher": "", "Lamp": "", "Oil mist extractor": "", "Set of collets": "", "Status light": ""}
