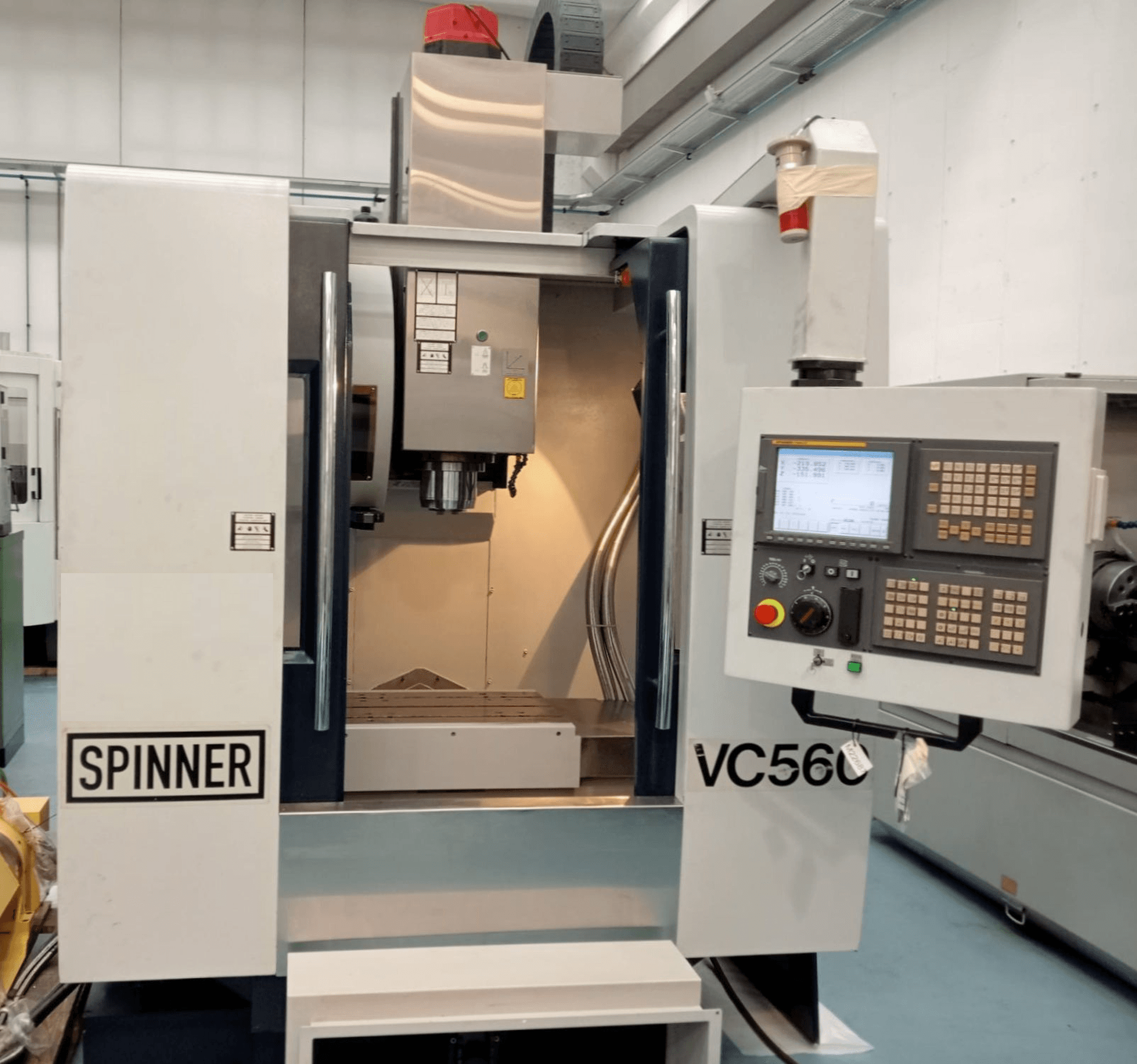

022687 - SPINNER VC-560

Description

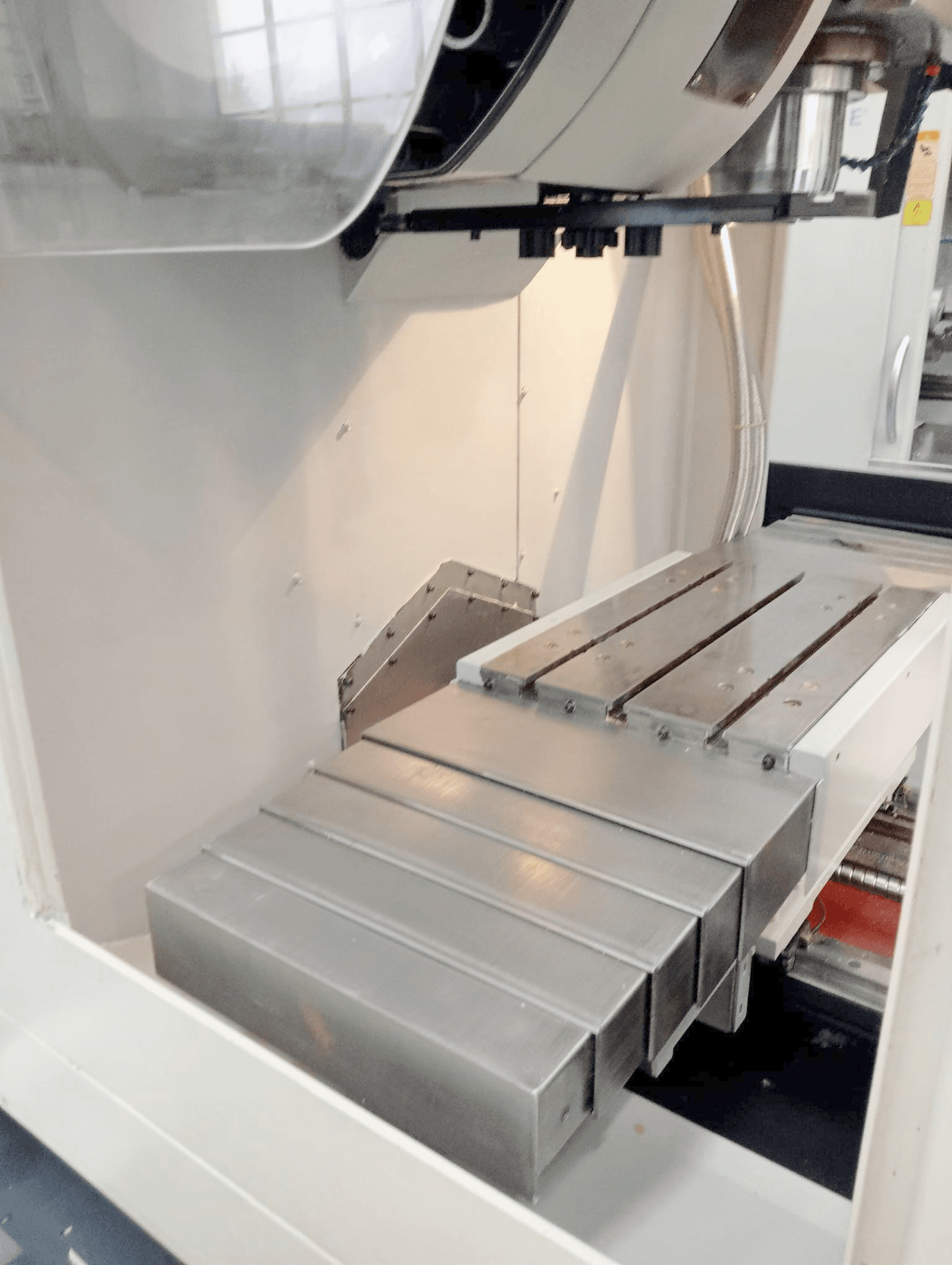

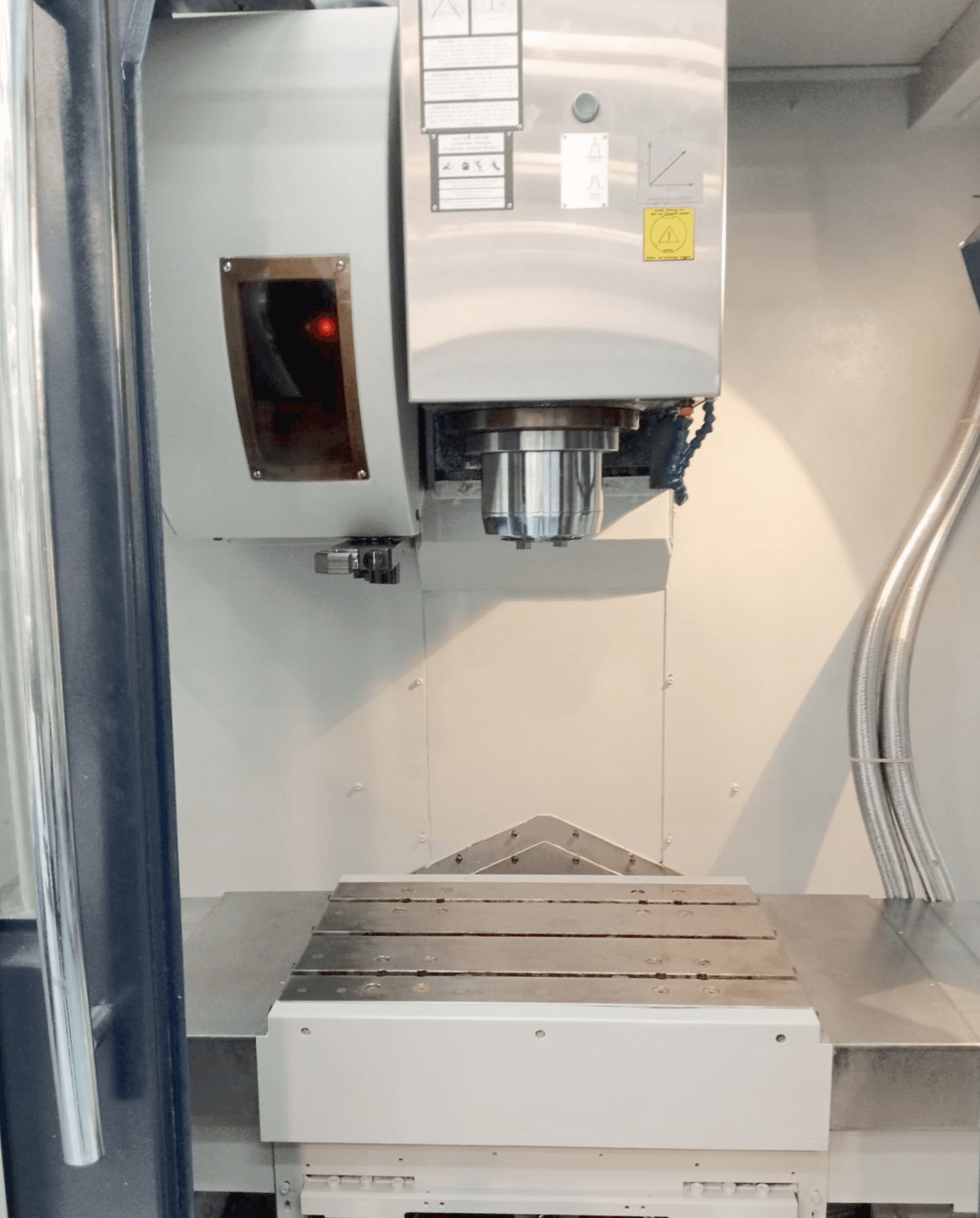

{"Number of axis total": "3", "Table length": "650 mm", "Table width": "410 mm", "Number of T-channels": "3", "T-channel width": "14 mm", "Table load max.": "250 kg", "Longitudinal travel (X-axis)": "560 mm", "Transversal travel (y-axis)": "410 mm", "Vertical travel (z axis)": "410 mm", "Tool magazine number of tool places": "24", "Tool diameter max.": "77 mm", "Diameter with free adjacent pockets": "125 mm", "Tool lenght": "200 mm", "Max. tool-weight": "5 kg", "Time of tool changing": "1.3 s", "Spindle nose SK": "40", "Spindle speeds:": "", "stepless": "", "from": "0 t/min", "up to": "12000 t/min", "Rapid traverse:": "48 m/min", "Voltage 50 Hz 3x": "400 Volt", "Total power required": "30 kW", "Machine's weight about": "4000 kg", "Overall dimensions machine:": "", "Length": "3000 mm", "Width": "2000 mm", "Height": "2500 mm"}
