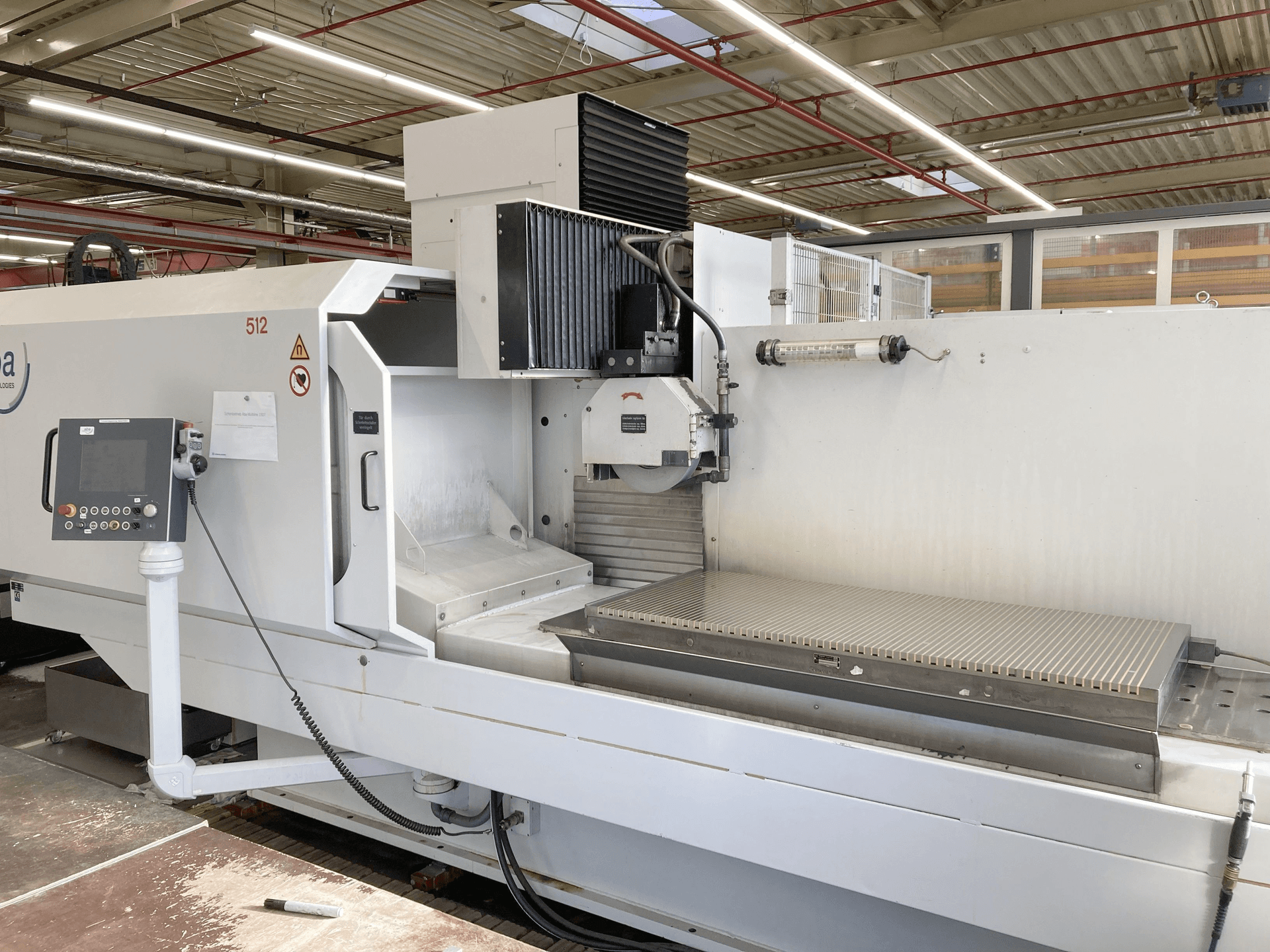

022580 - ABA MULTILINE 1507 A

Description

{"Table length": "2000 mm", "Table width": "600 mm", "Grinding length": "1500 mm", "Grinding width": "600 mm", "Table load max.": "2500 kg", "Max. distance from table": "", "to spindle-centreline": "900 mm", "Longitudinal travel (X-axis)": "1500 mm", "Cross travel (z-axis)": "750 mm", "Vertical travel (Y-axis)": "900 mm", "Automatic longitudinal feeds:": "", "stepless": "", "from": "50 t/min", "up to": "2500 t/min", "Automatic cross-feed:": "", "Automatic Vertical feed:": "", "Grinding wheel speeds:": "", "Diameter of grinding wheel": "400 mm", "Width of the grinding wheel": "60 mm", "Drilling cap. of grind.wheel": "127 mm", "Voltage 50 Hz 3x": "400 Volt", "Grinding spindle motor": "26 kW", "Total power required": "35 kW", "Machine's weight about": "11000 kg", "Overall dimensions machine:": "", "Length": "1500 mm", "Width": "700 mm", "Height": "3000 mm", "Various accessories:": "", "Paper filtration system": "", "Magnetic plate:": "", "Lamp": "", "Switch cabinet Air conditioner": ""}
