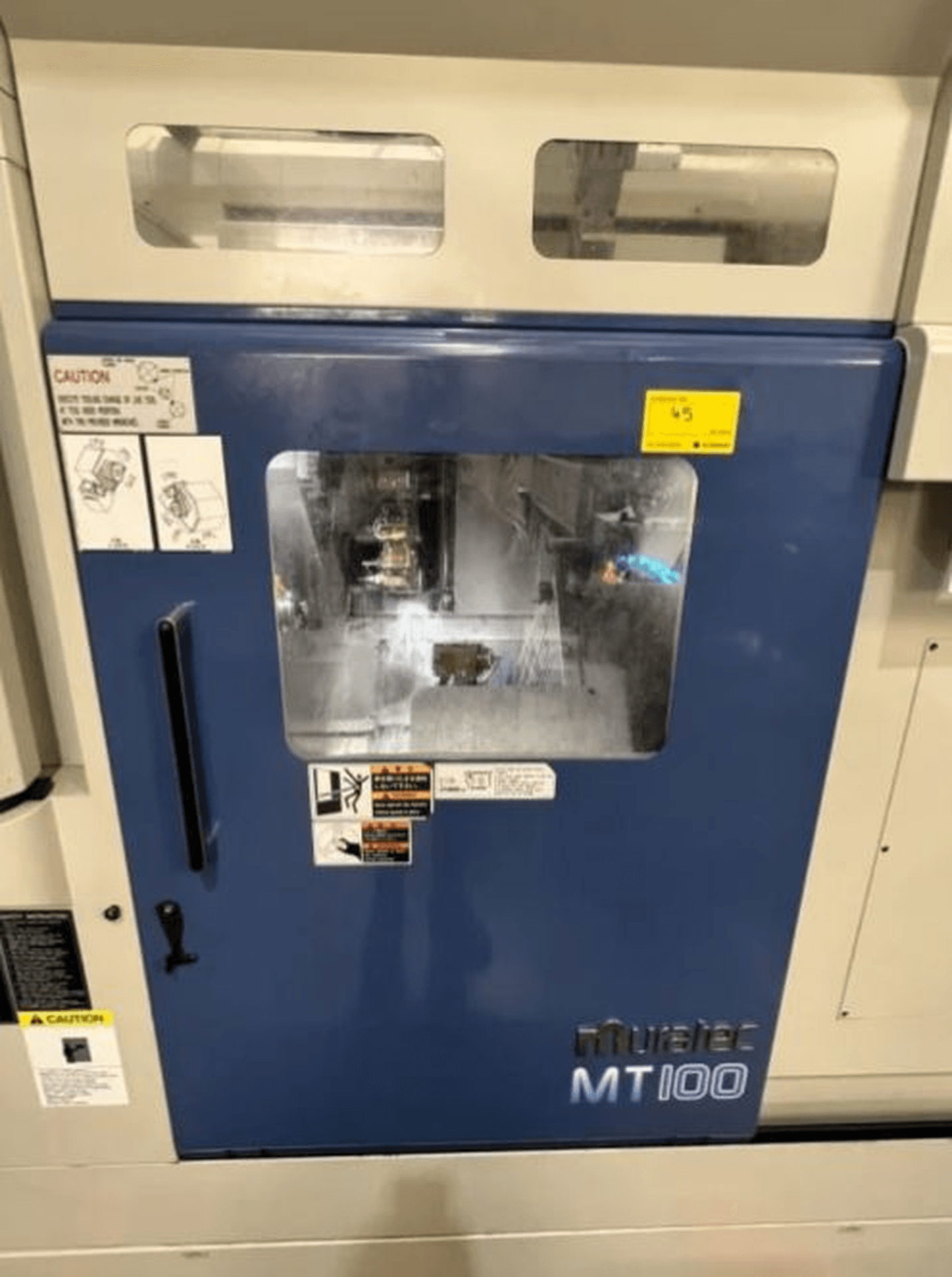

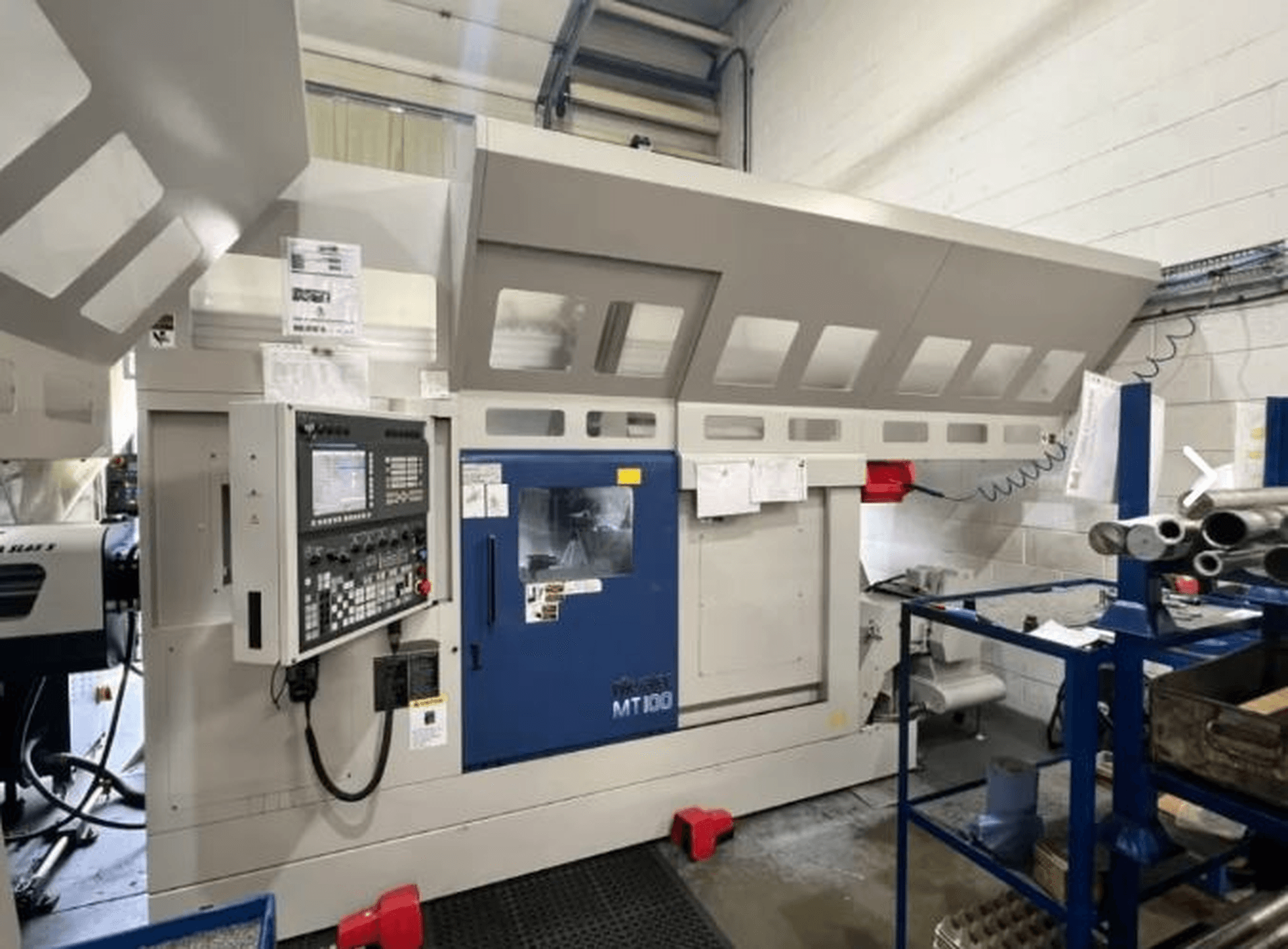

022543 - MURATEC MT 100

Description

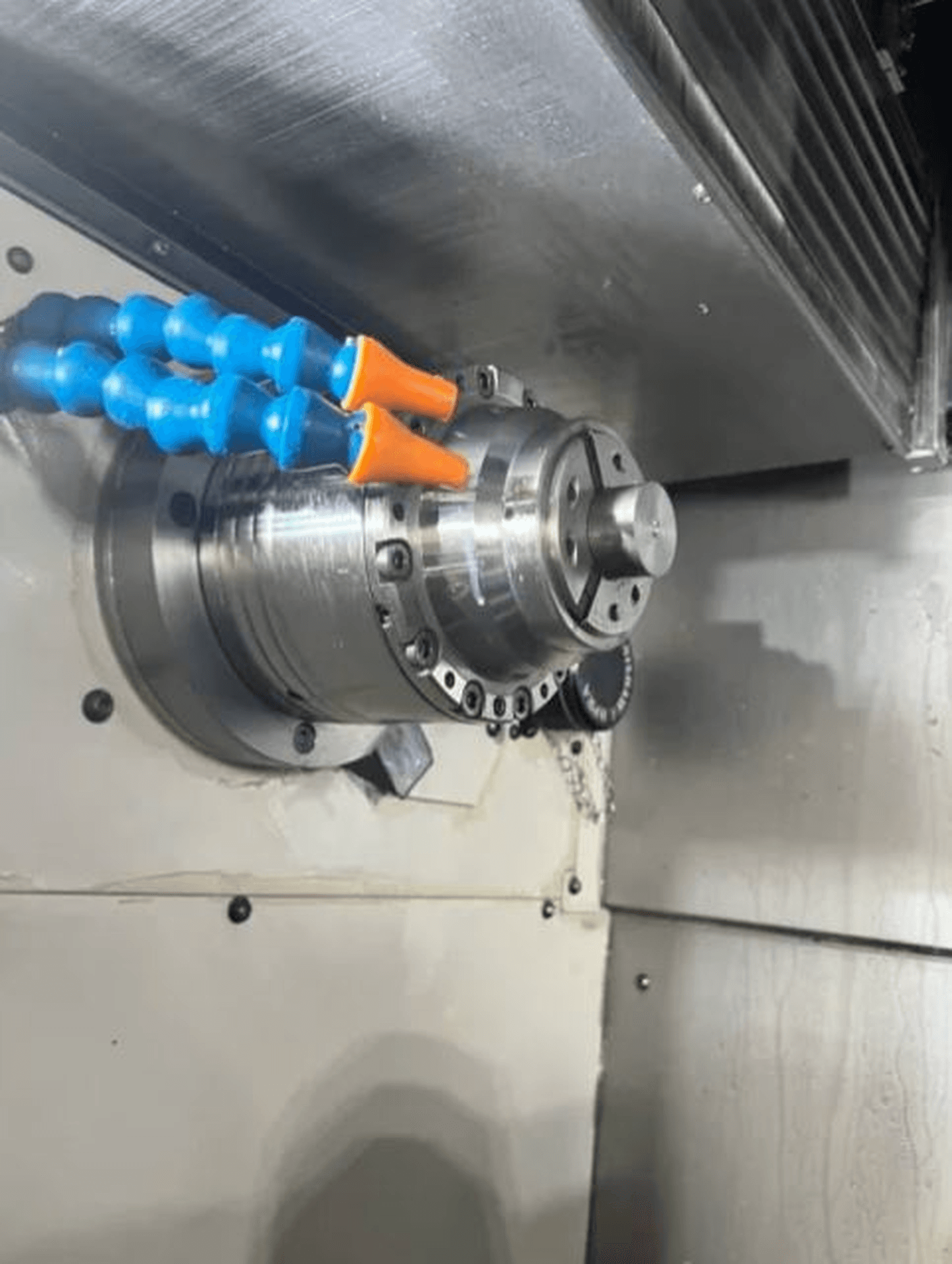

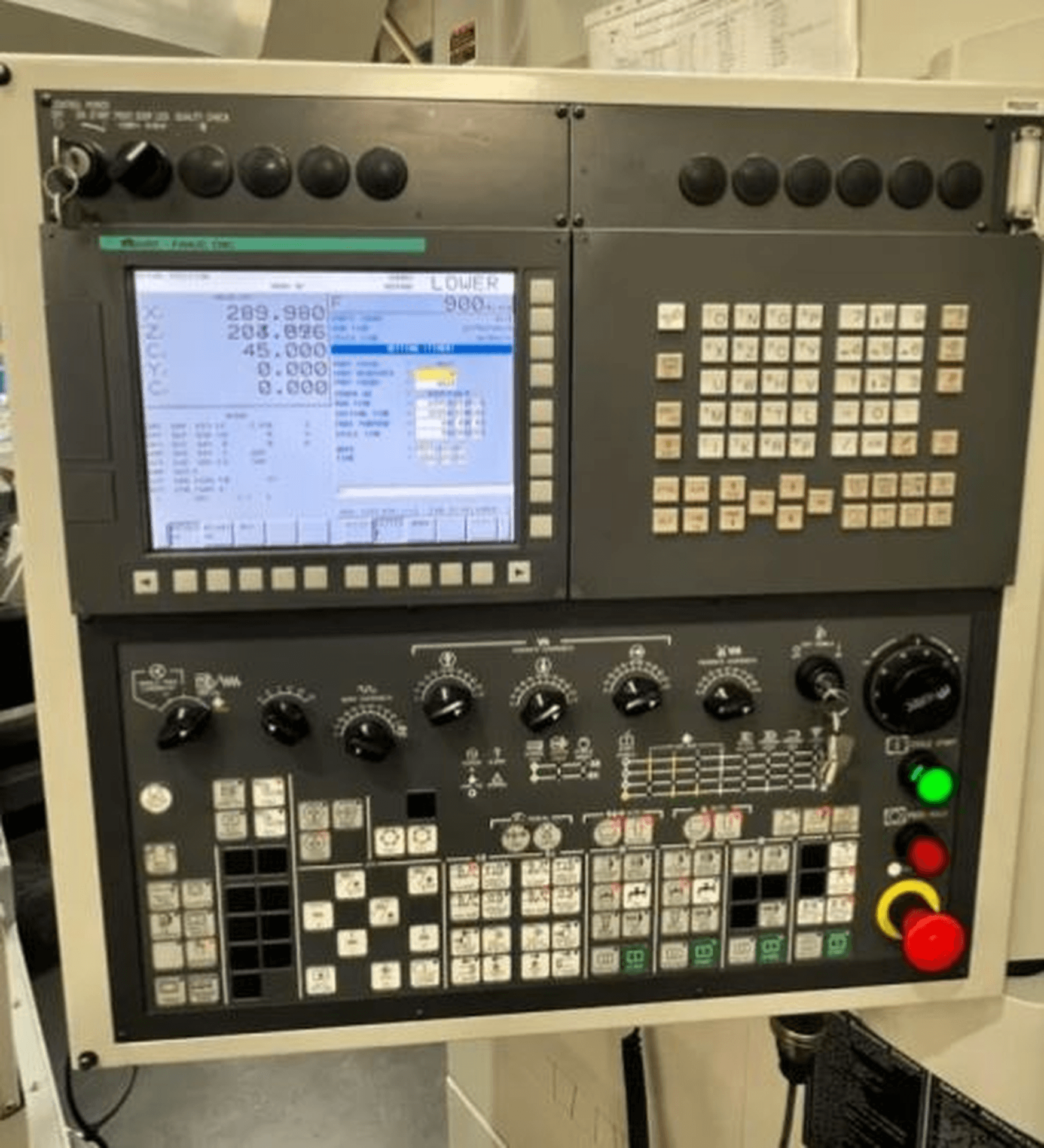

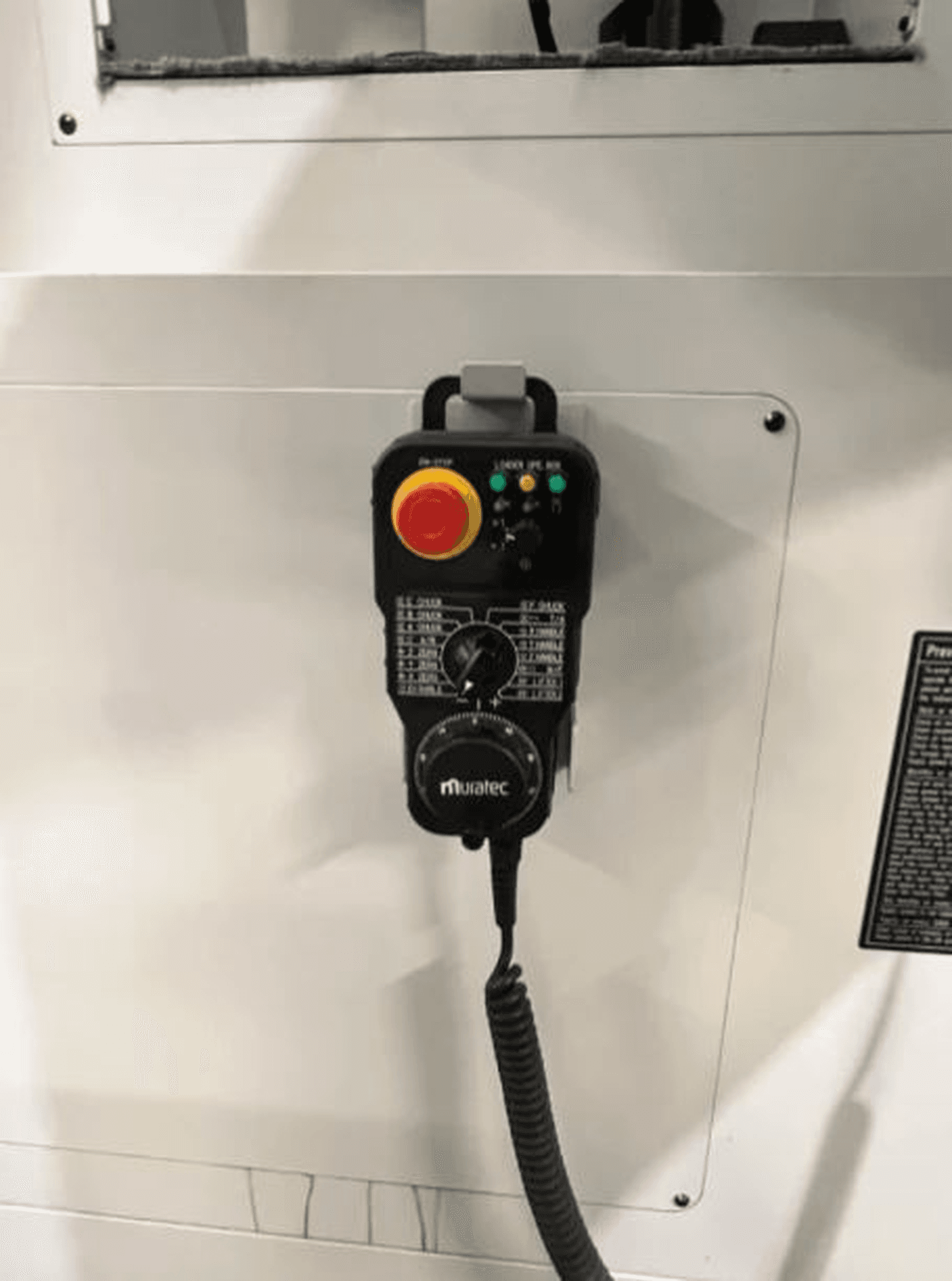

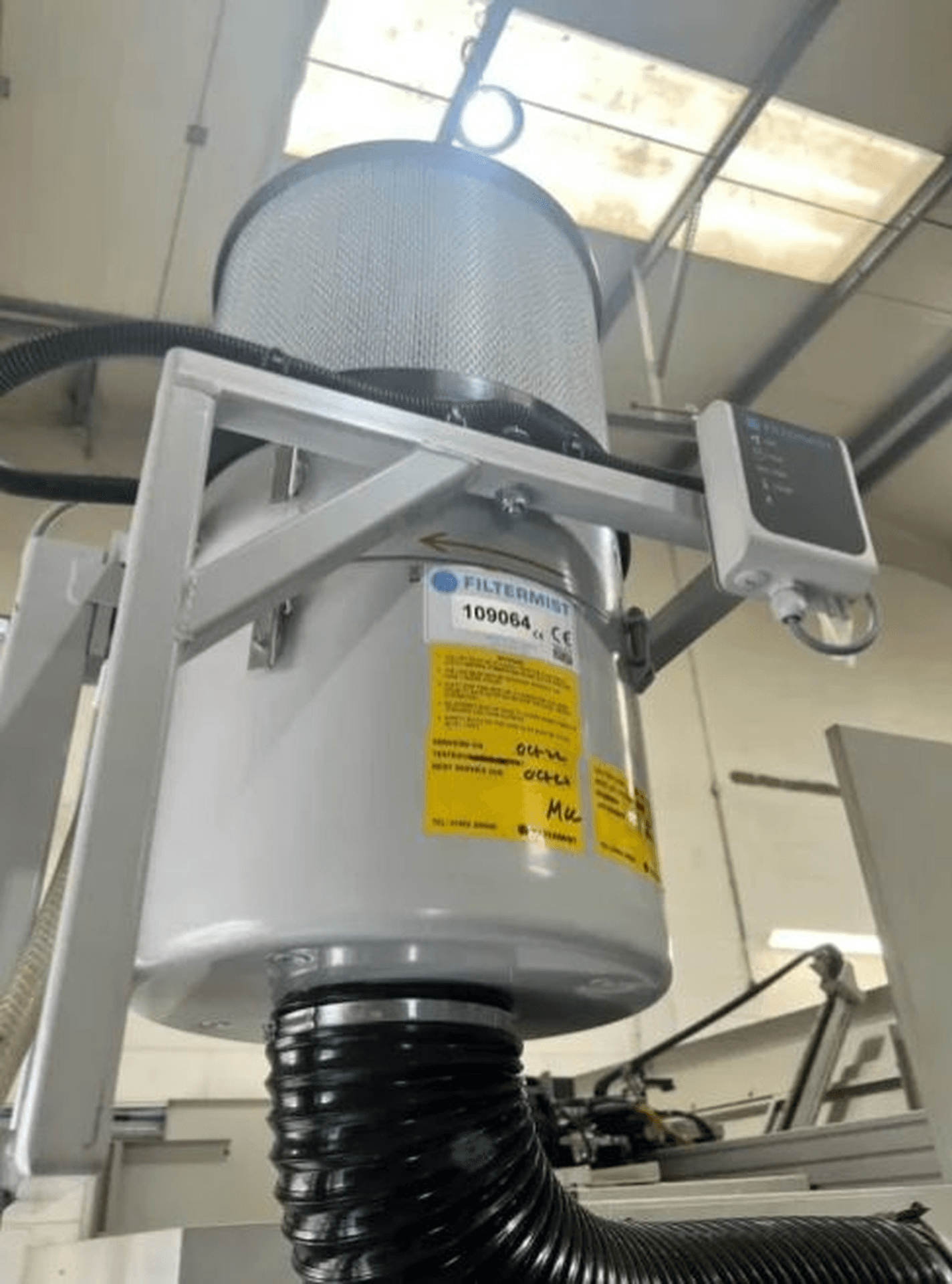

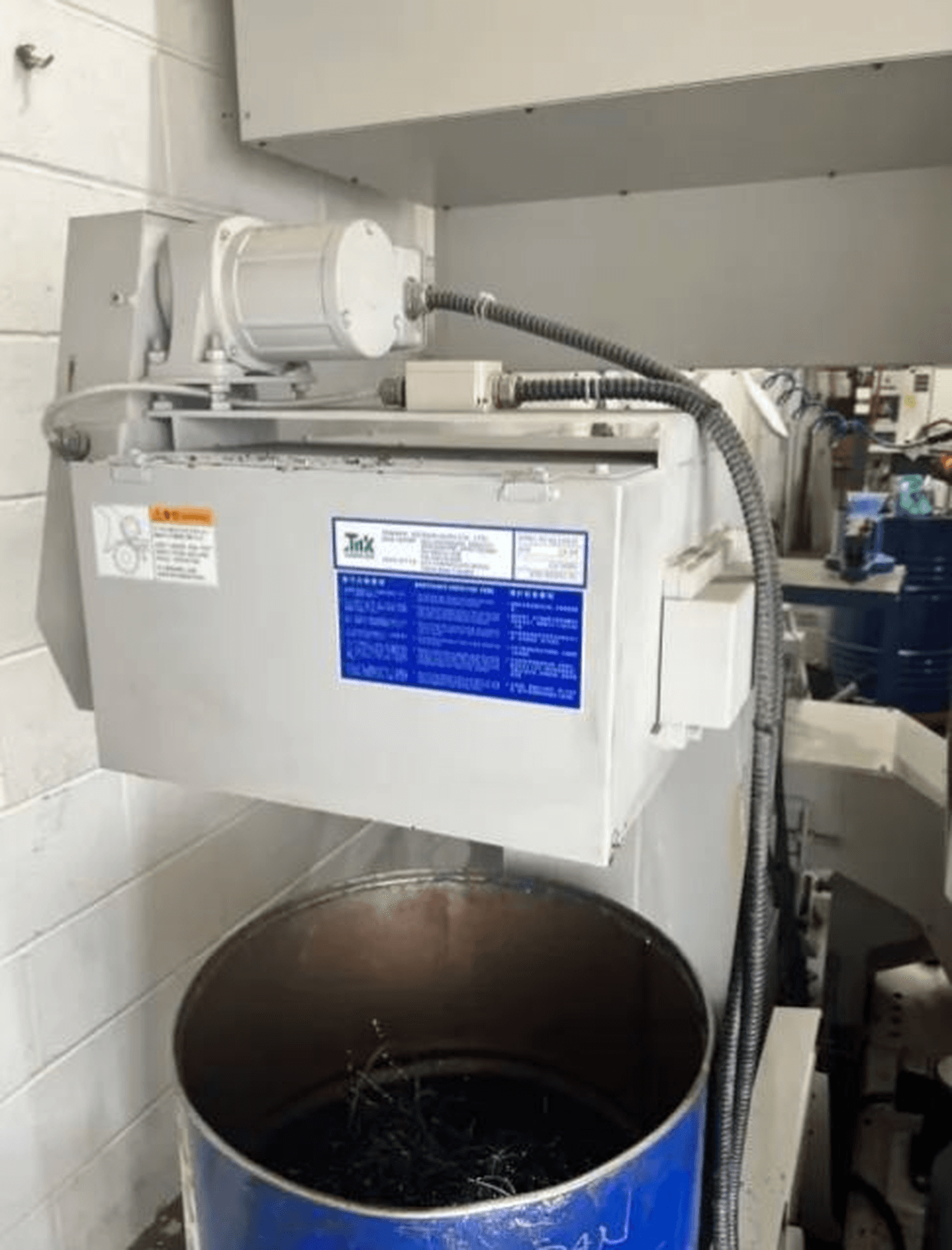

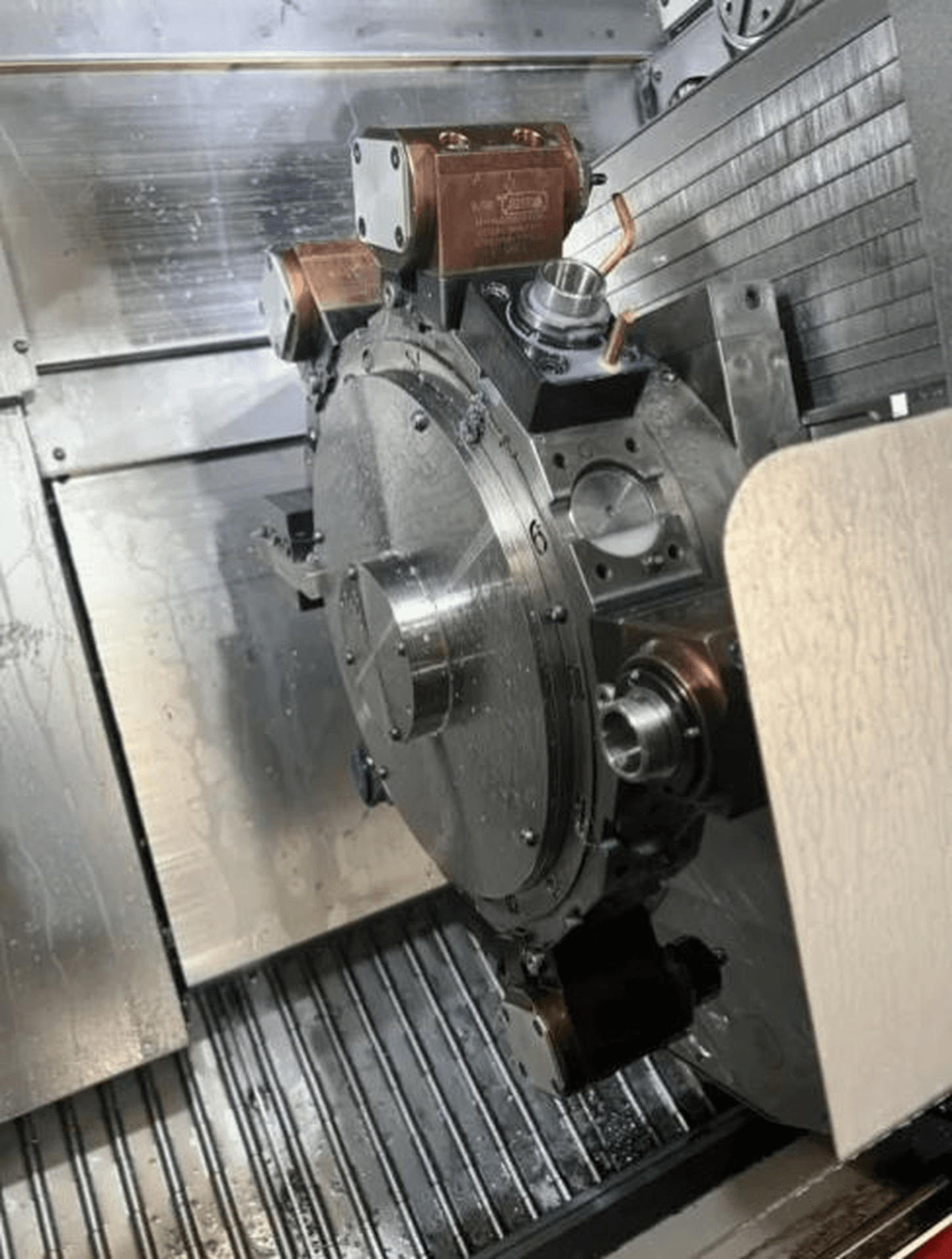

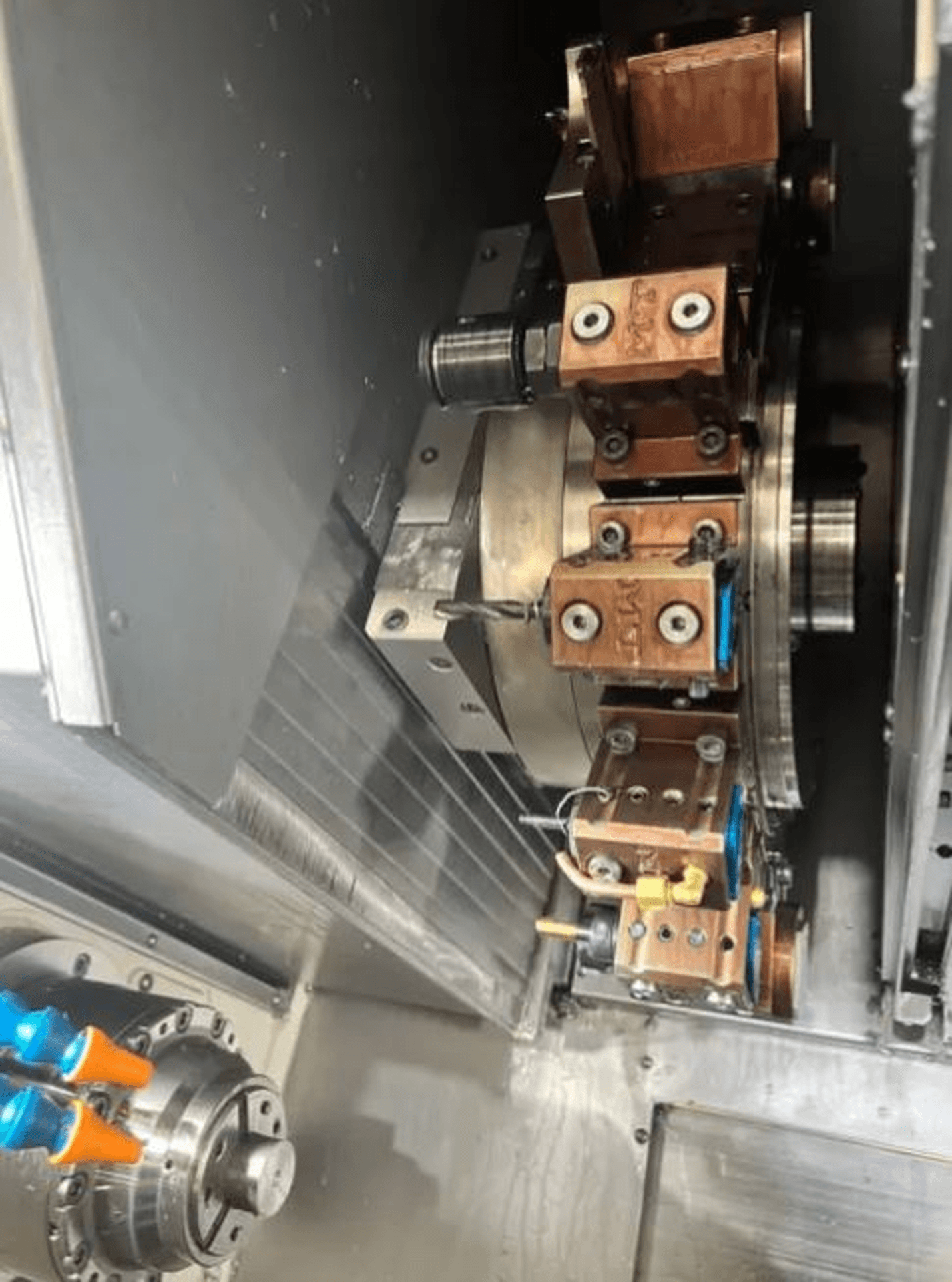

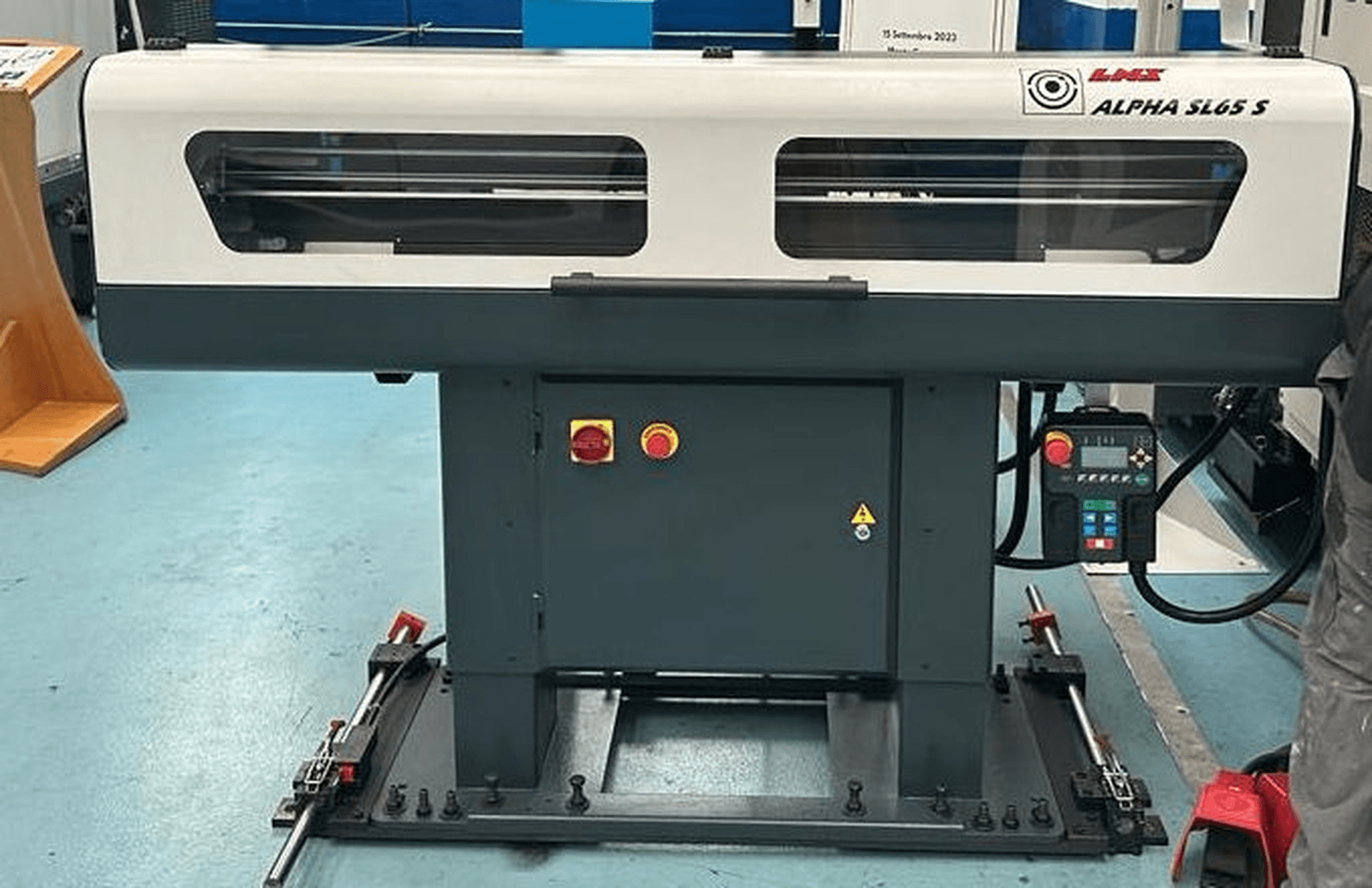

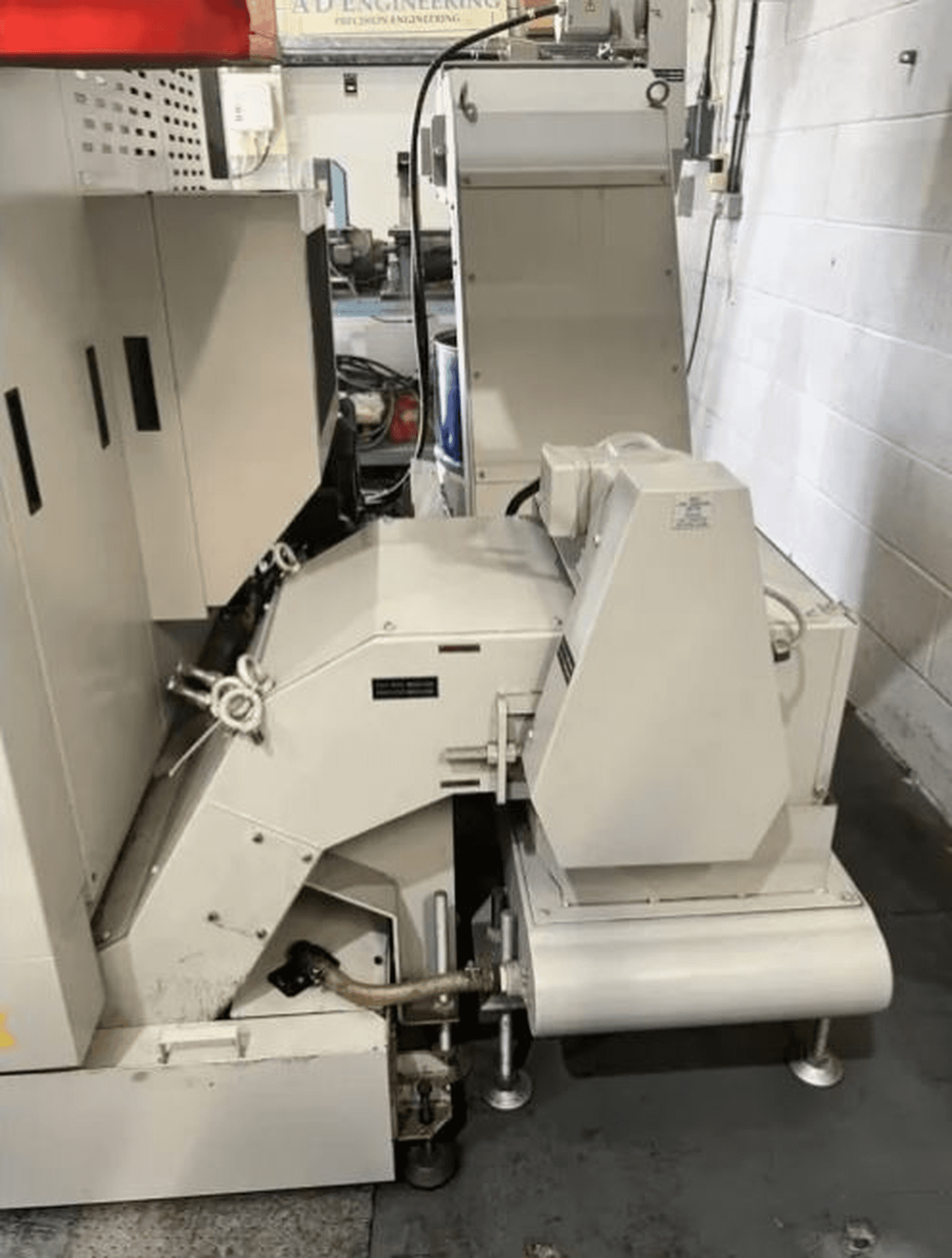

{"Number of turning spindles": "2", "Number of revolvers": "2", "Swing diameter": "190 mm", "Spindle nose": "JIS A2-5 mm", "Max. bar diameter": "51 mm", "Turret slide: number": "2", "Number of positions turret 1": "15", "Number of positions turret 2": "15", "Driven tools turret": "6000", "Power of driven tools": "2.2 kW", "Upper turret head:": "", "X axis": "150 mm", "Y axis": "+ / -30 mm", "Z axis": "620 mm", "Lower turret head:": "", "Main spindle:": "", "Spindle speeds:": "", "stepless": "", "from": "0 t/min", "up to": "6000 t/min", "Back spindle mobile:": "", "max. speed": "6000 t/min", "Back spindle stroke": "680 mm", "Rapid traverse X": "24 m/min", "Rapid traverse Z": "40 m/min", "Rapid traverse Y": "12 m/min", "Spindle motor": "11 / 7.5 kW", "Voltage 50 Hz 3x": "400 Volt", "Machine's weight about": "8000 kg", "Overall dimensions machine:": "", "Length": "4120 mm", "Width": "2130 mm", "Height": "2815 mm", "Various accessories:": "", "Set of collets": "HAINBUCH SK52BZIG", "Coolant system": "", "Oil mist extractor": "FILTERMIST FX4002", "Bar feeder": "LNS", "Type": "ALPHA SL65 S", "Handwheel electroinic": "", "C axis": "", "Chip conveyor": "", "Foot pedal": "", "Set of toolholders": "", "Measuring arm Renishaw": ""}
