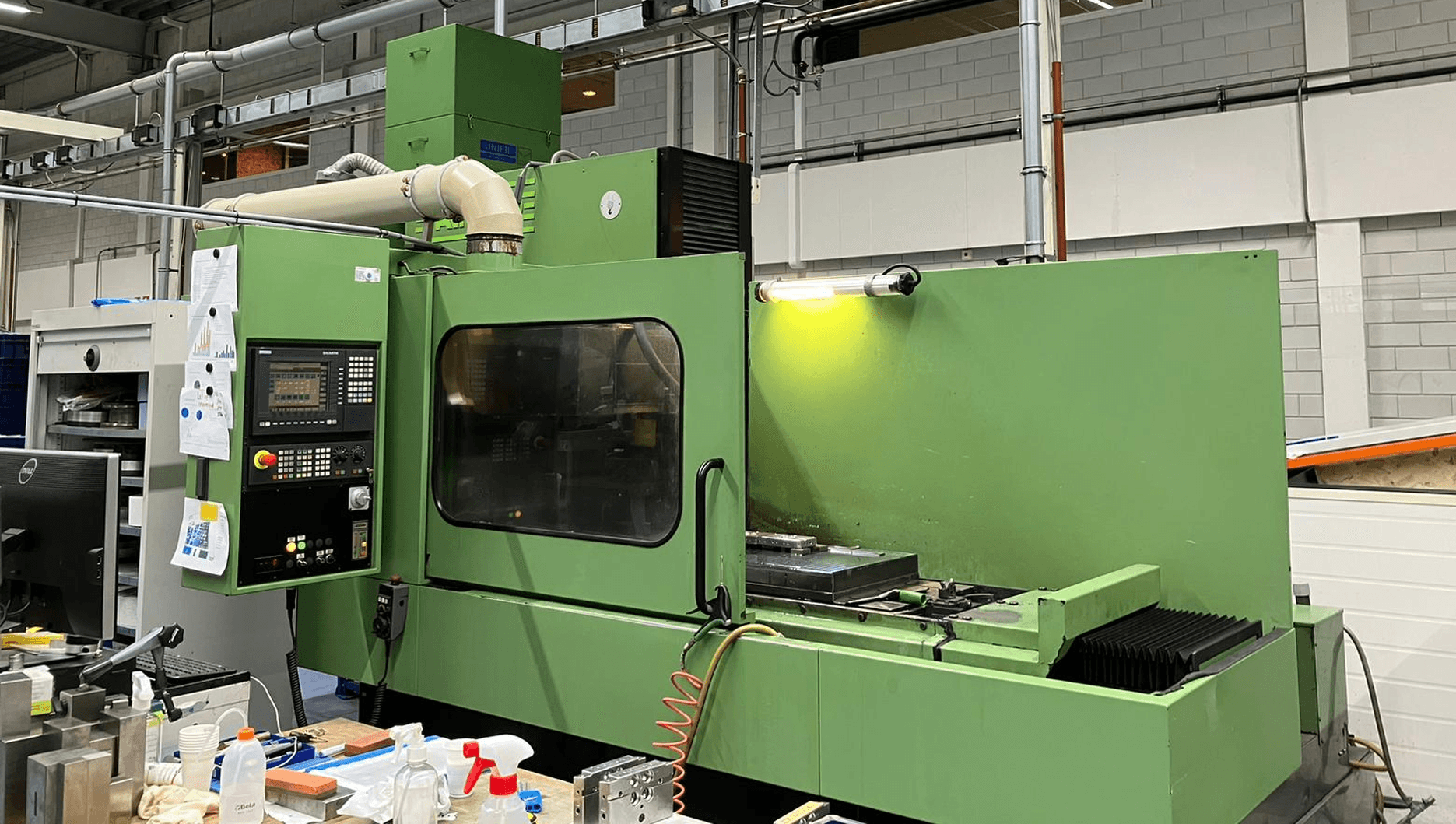

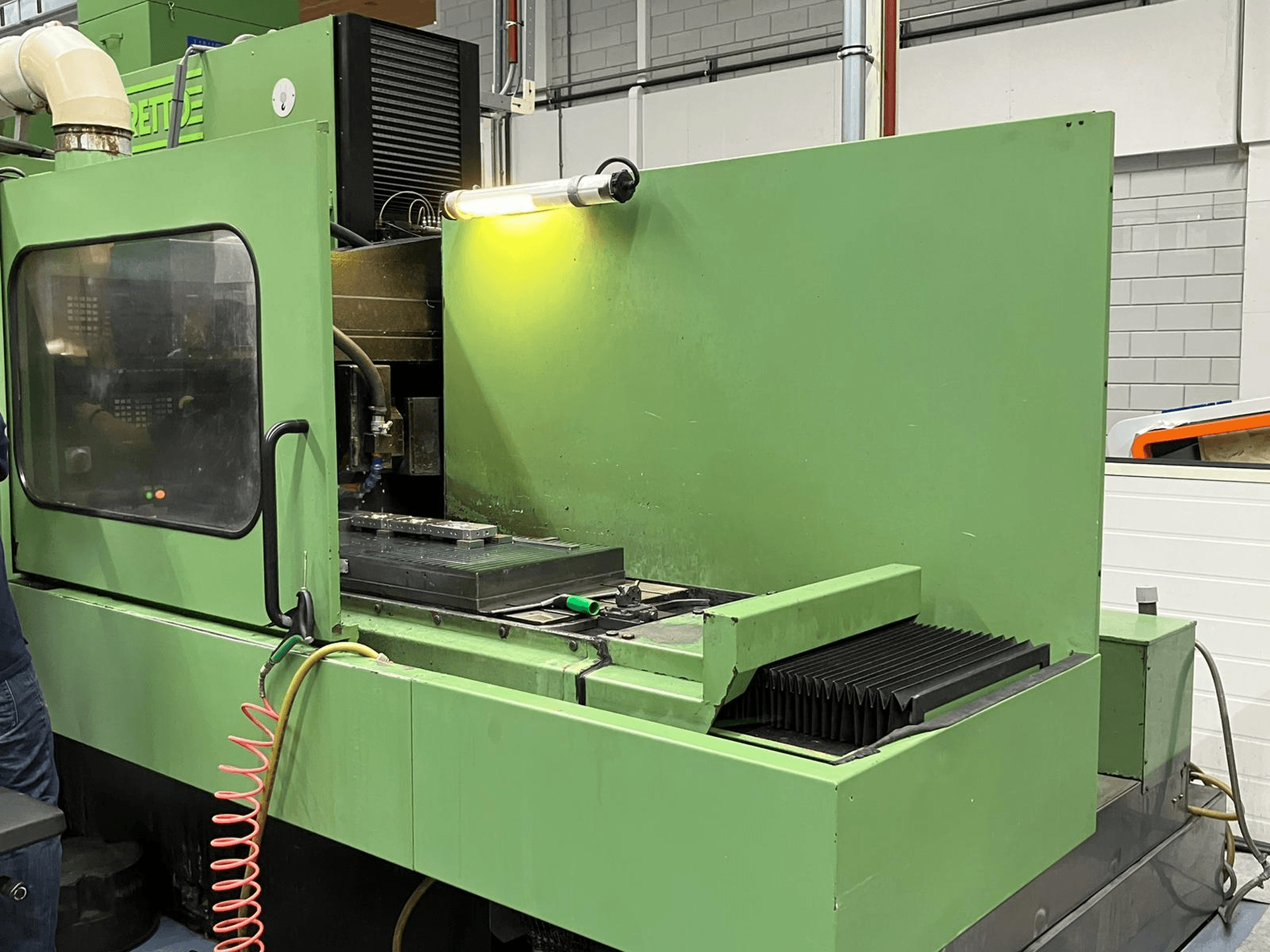

022500 - FAVRETTO MC 100

Description

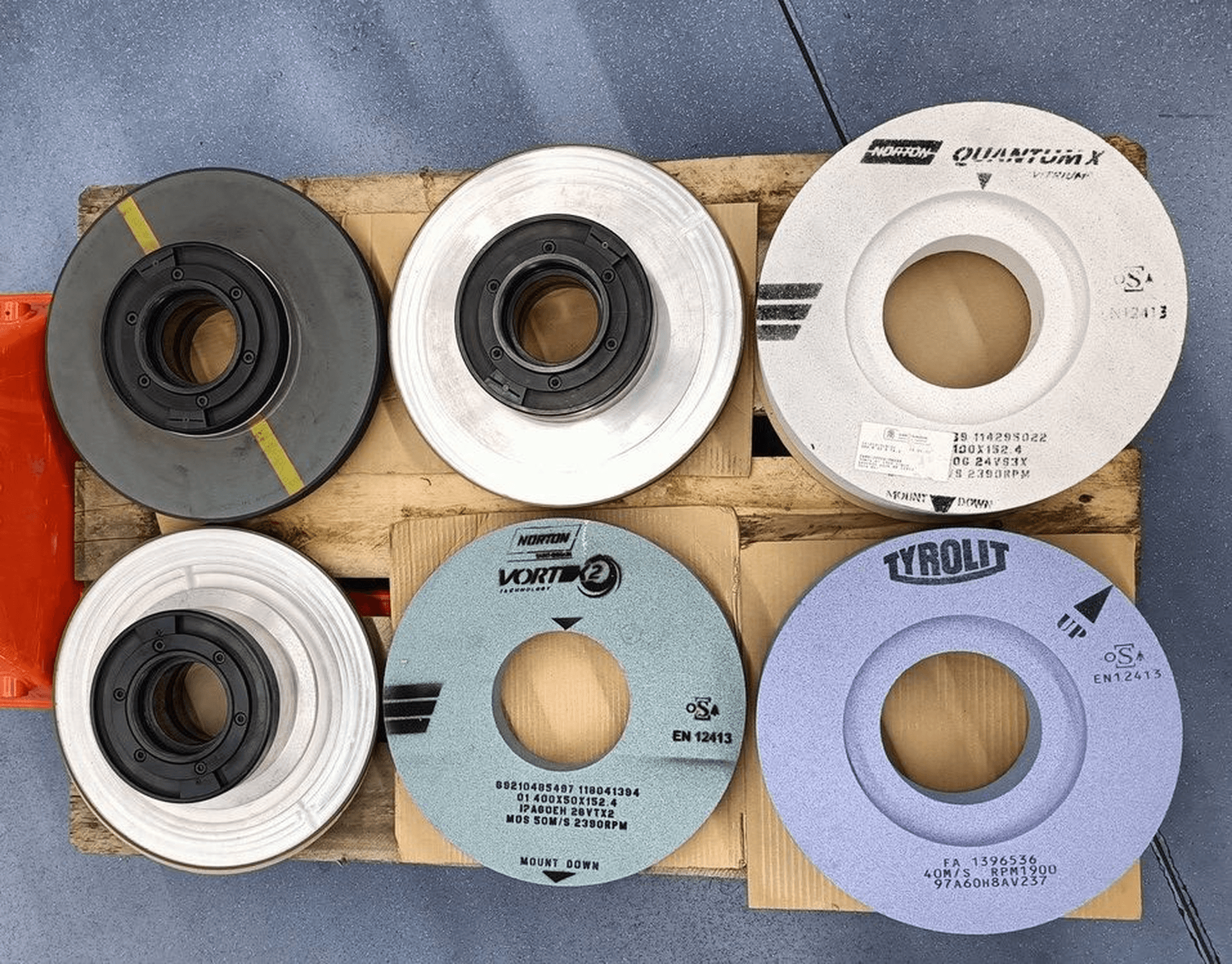

{"Table length": "1200 mm", "Table width": "500 mm", "Longitudinal travel (X-axis)": "1120 mm", "Cross travel (z-axis)": "635 mm", "vertical travel (Y-axis)": "690 mm", "Table load max.": "1000 kg", "Grinding length": "1000 mm", "Grinding width": "700 mm", "Grinding height over table": "650 mm", "Grinding wheel:": "", "Diameter": "406 mm", "Width": "500 mm", "Bore": "152 mm", "Grinding wheel speeds fix": "1400 t/min", "Table speeds:": "", "stepless": "", "from": "m/min", "up to": "2 m/min", "Automatic cross feed:": "", "Automatic vertical feed:": "", "Voltage 50 Hz 3x": "400 Volt", "Grinding spindle motor": "11 kW", "Total power required": "31 kW", "Machine's weight about": "7800 kg", "Overall dimensions machine:": "", "Length": "1000 mm", "Height": "2680 mm", "Various accessories:": "", "Coolant system": "", "Paper filtration system": "", "Electrical magnetic chuck": "", "Set of grinding wheels": "", "Lamp": ""}
