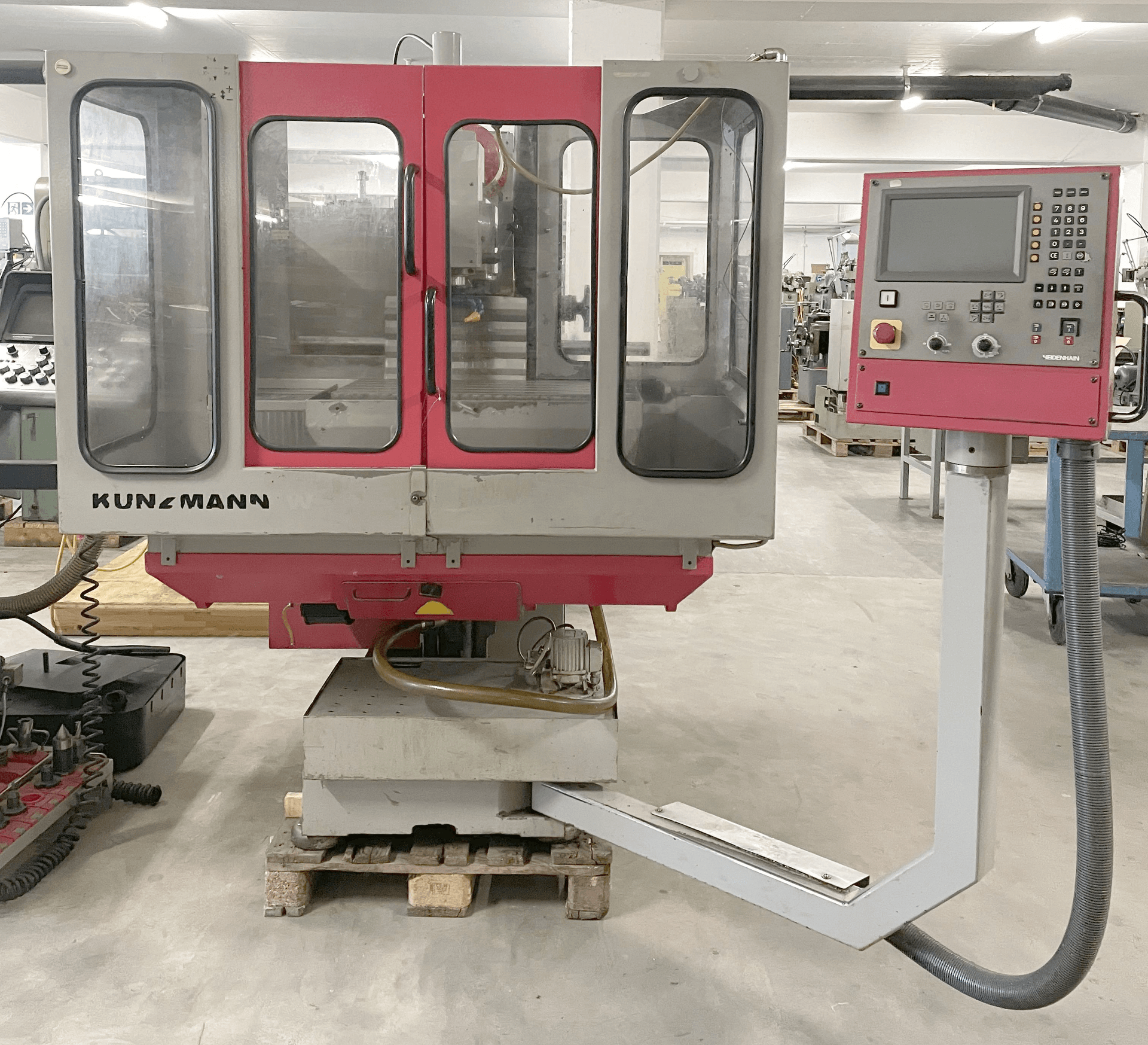

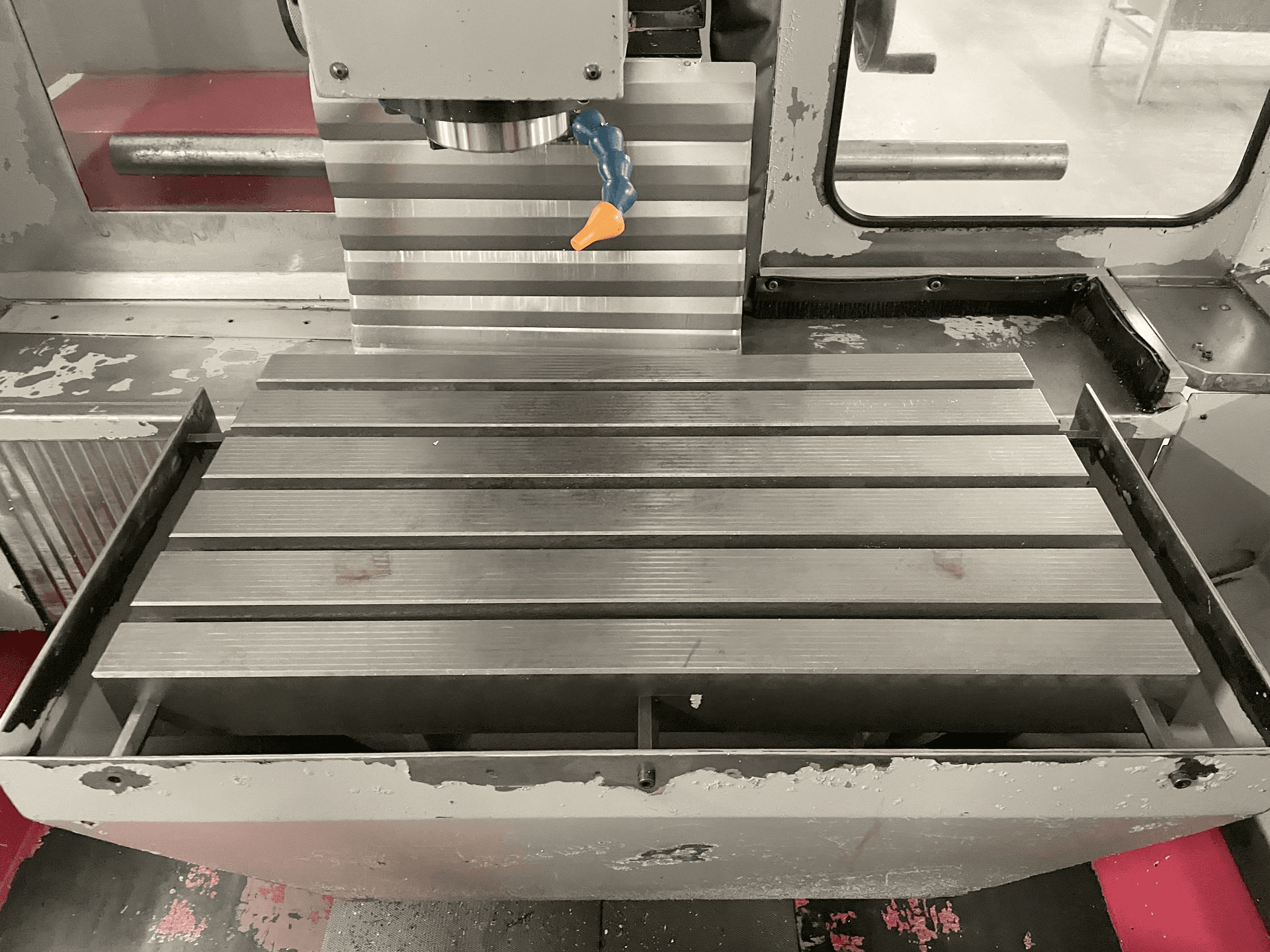

022429 - KUNZMANN WF 4/3

Description

{"Number of axis total": "3", "Table length": "650 mm", "Table width": "350 mm", "Number of T-channels": "5", "T-channel width": "14 mm", "Distance of the T-slots": "63 mm", "Table load max.": "250 kg", "Longitudinal travel (X-axis)": "400 mm", "Transversal travel (y axis)": "320 mm", "Vertical travel (z axis)": "400 mm", "Distance from vertical": "", "spindle to table": "140 - 540 mm", "Spindle speeds:": "", "stepless": "", "from": "50 t/min", "up to": "1000 mm/min", "Swivel range Vertical milling head": "+/-90 \u00b0", "Spindle nose: ISO": "40 DIN 69871", "Feeds:": "", "longitudinal from": "mm/min", "transversal from": "mm/min", "Rapid traverse: long.": "4 m/min", "Rapid traverse: transversal": "4 m/min", "Rapid traverse: vertical": "3 m/min", "Vertical quill travel": "60 mm", "Voltage 50 Hz 3x": "400 Volt", "Milling spindle motor": "5.5 kW", "Total power required": "15 kVA", "Time under power": "6652 Heures", "Operating time": "1584 Heures", "Working time": "940 Heures", "Noise level": "78 dB (A)", "Machine's weight about": "1300 kg", "Overall dimensions machine:": "", "Length": "2000 mm", "Width": "1950 mm", "Height": "1900 mm", "Various accessories:": "", "Rigide table": "", "Electronic hand held control": "", "Mechanical handwheels": "", "Full splash cabin": "", "Coolant system": "", "Automatic central lubrication": "", "Interface serial port RS 232": ""}
