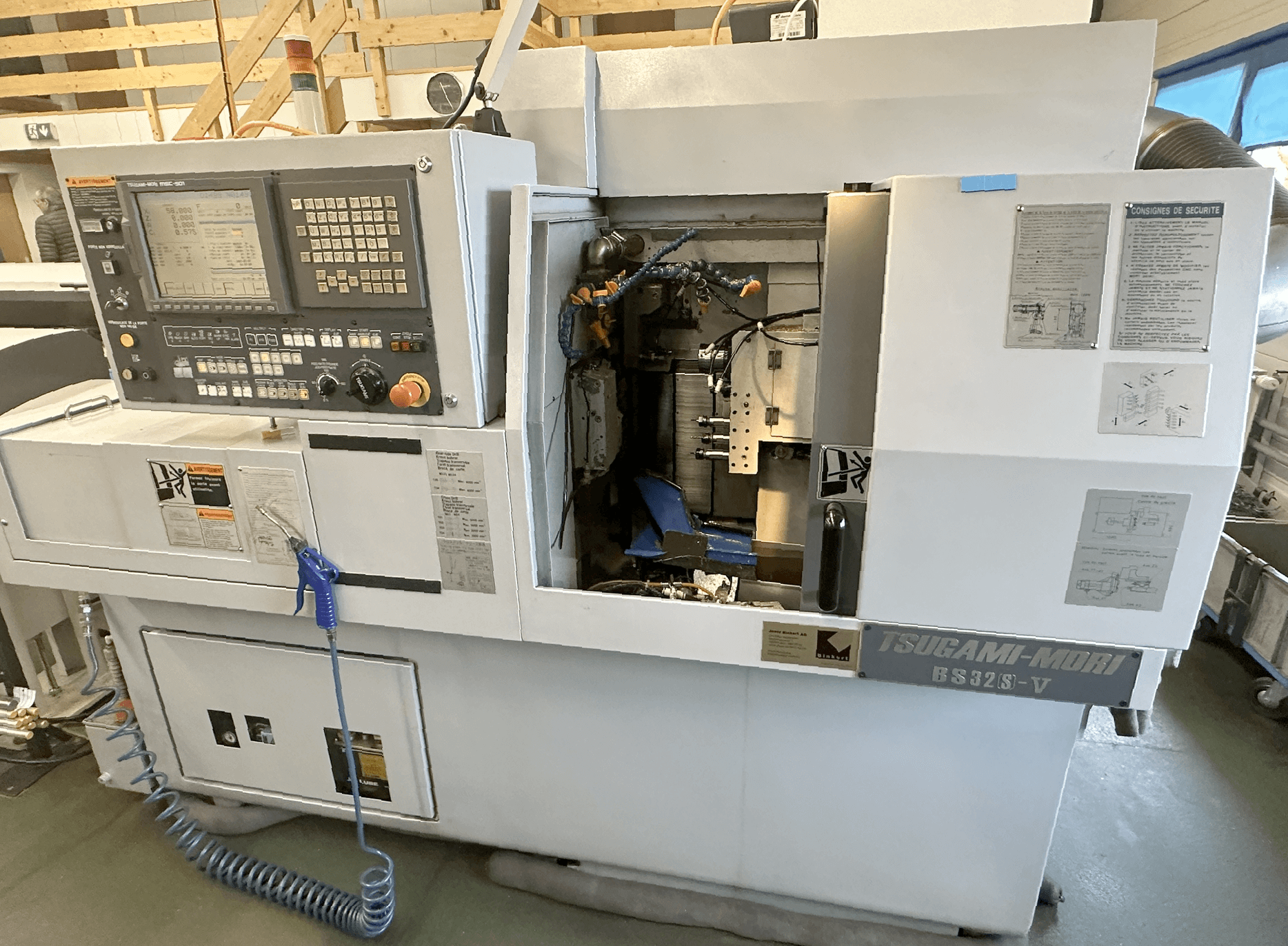

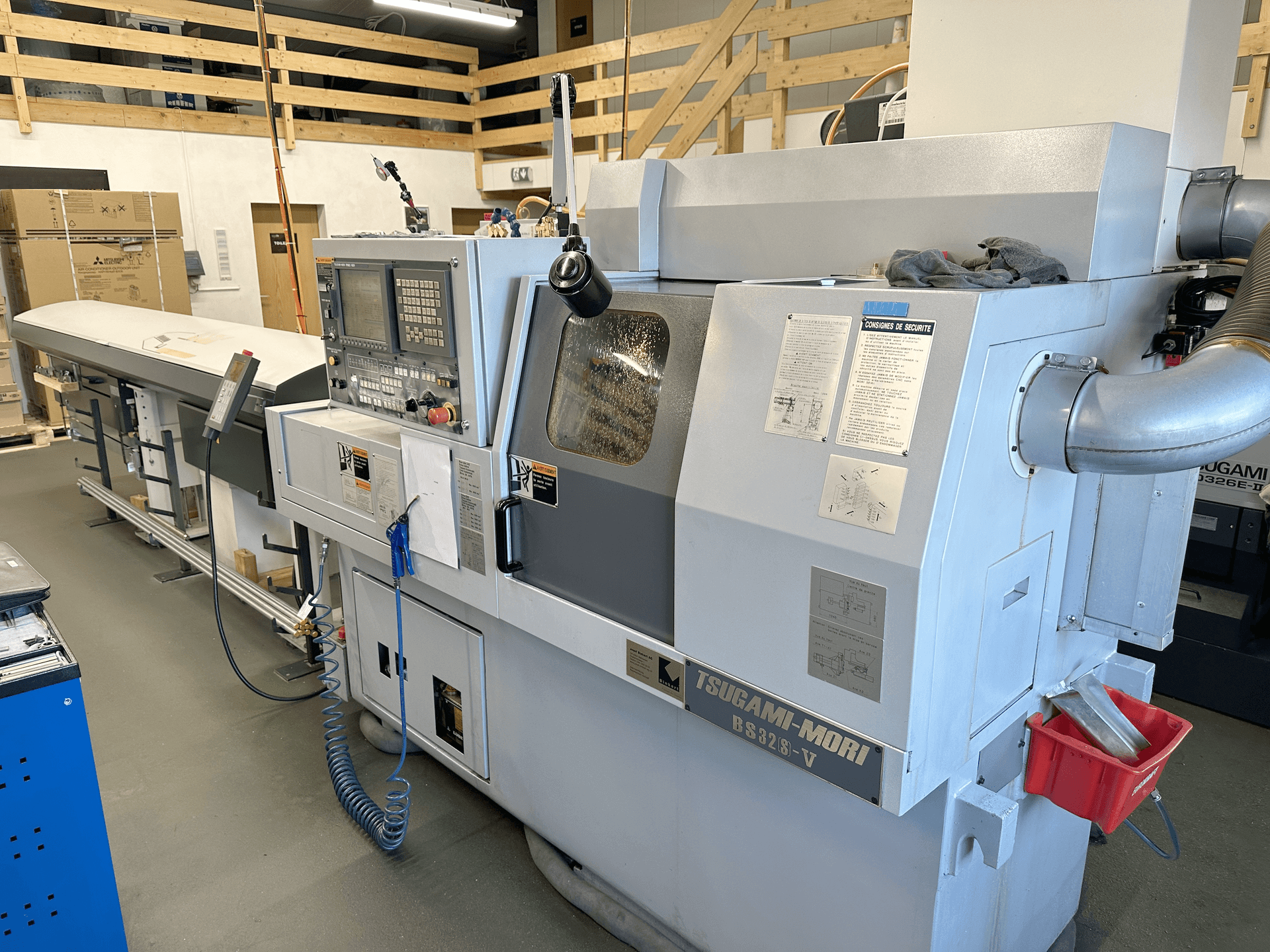

022346 - TSUGAMI-MORI BS32CE(S)-V

Description

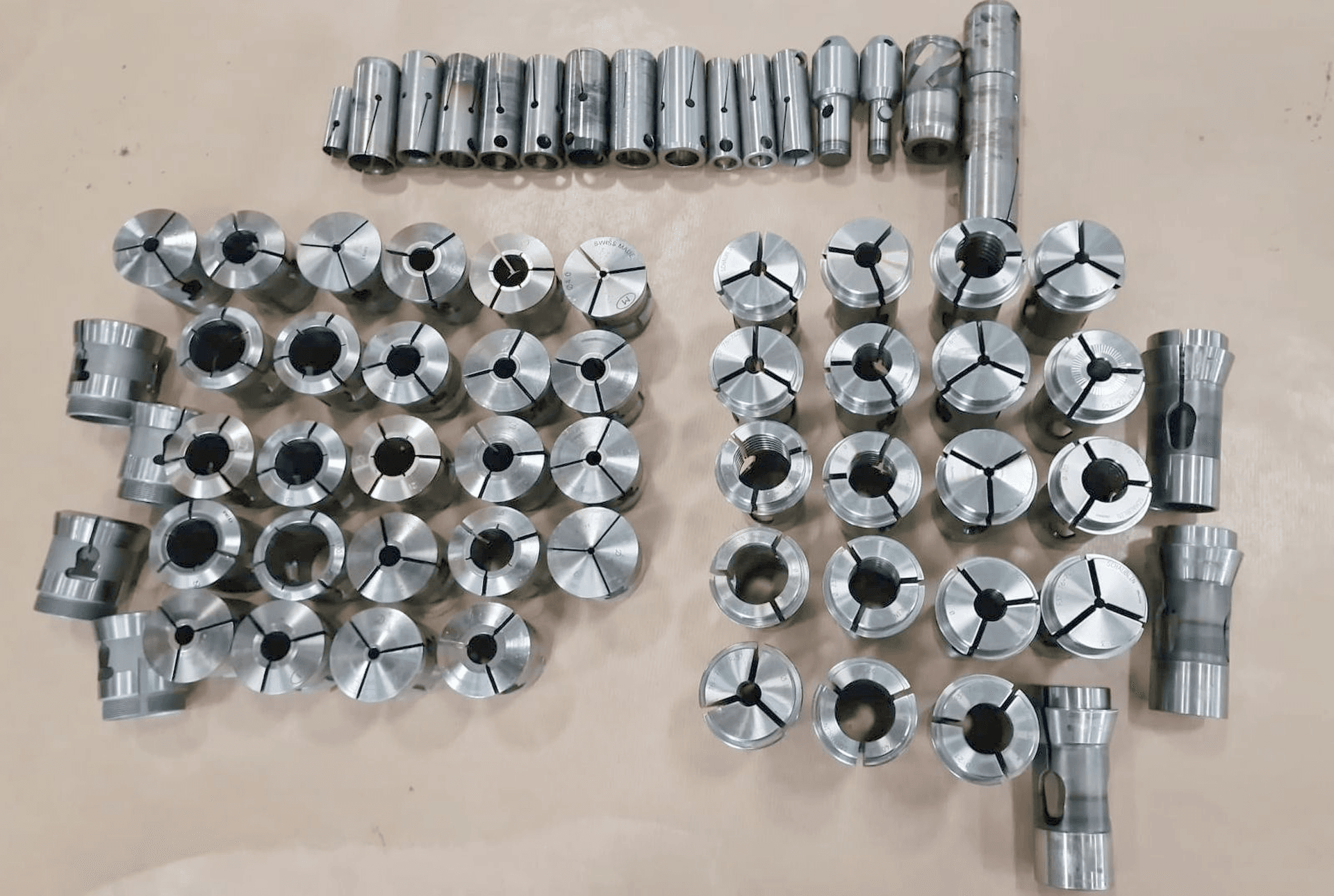

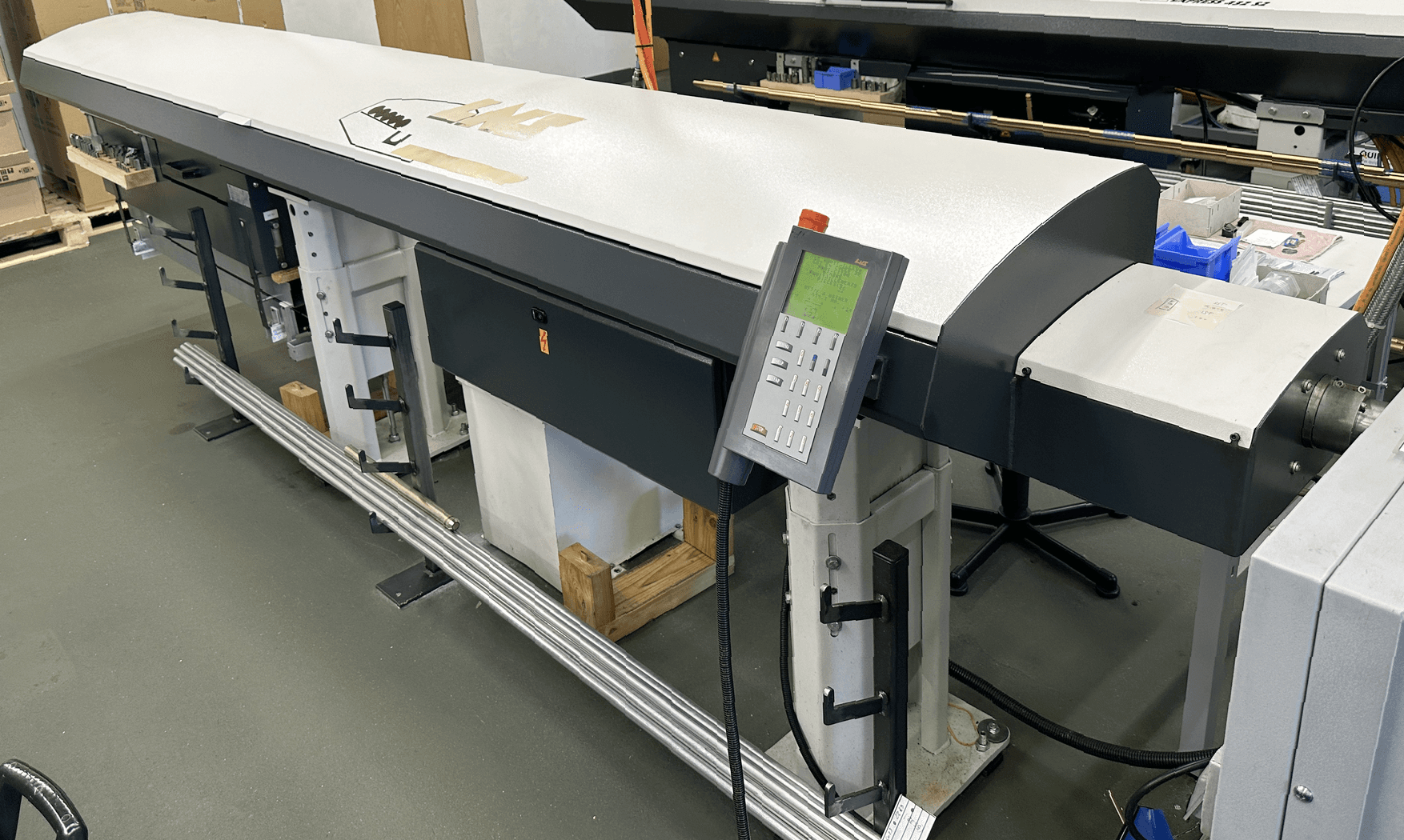

{"Number of axis total": "7", "Number of spindles": "2", "Max. turning diameter": "8 - 32 mm", "Maximum turning length": "250 mm", "Max. drilling diameter": "12 mm", "Max. threading diameter": "10 M", "Spindle speeds:": "", "stepless": "", "from": "1 mm/min", "up to": "6000 mm/min", "Back spindle:": "", "speeds:": "", "Inner taper type": "F37", "Tool-holder:": "", "Number of stations": "4", "number of tools": "20", "number of driven tools": "5", "Turning tools": "5 pce", "Drilling tools": "6 pce", "Transverse processing tools": "4 pce", "Spindle speeds (turning tools)": "200 - 5000 t/min", "Power of driven tools": "0.9 kW", "Feeds:": "", "Rapid traverse:": "20 m/min", "Spindle motor": "5.5 kW", "Power of back spindle": "2.2 kW", "Air connect": "5 bar", "Machine's weight about": "2800 kg", "Overall dimensions machine:": "", "Length": "2150 mm", "Width": "1500 mm", "Height": "1800 mm", "Various accessories:": "", "Bar loader number of bars": "", "Manufacturer": "LNS", "Type": "Express 332", "Length of bars max.": "3000 mm", "Bar diameter": "3 -32 mm", "Parts catcher": "", "Lamp": "", "Oil mist extractor": "", "Set of collets": "", "Interface serial port RS 232": "", "Status light": ""}
