022294 - KELLENBERGER 1000 U

Description

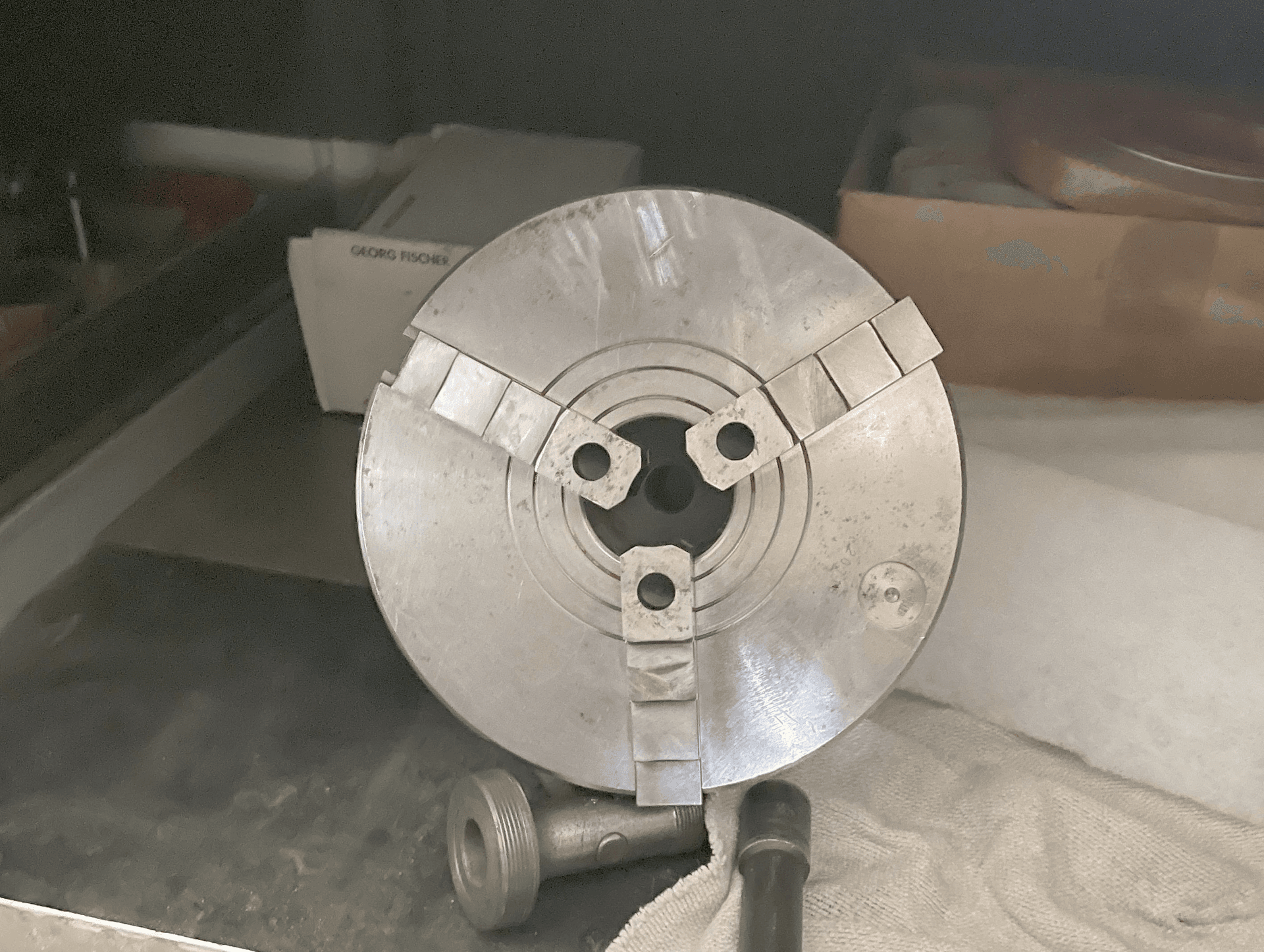

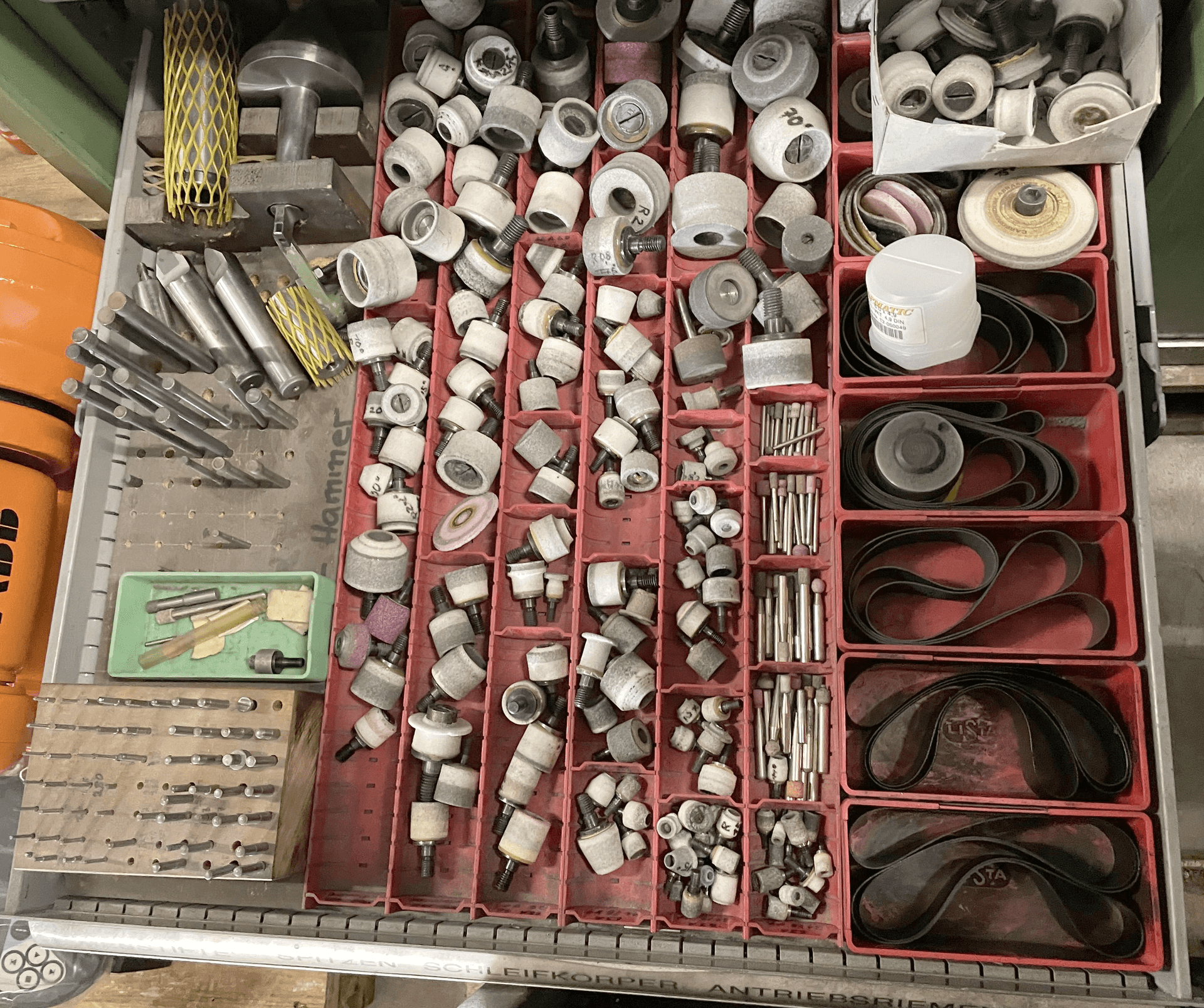

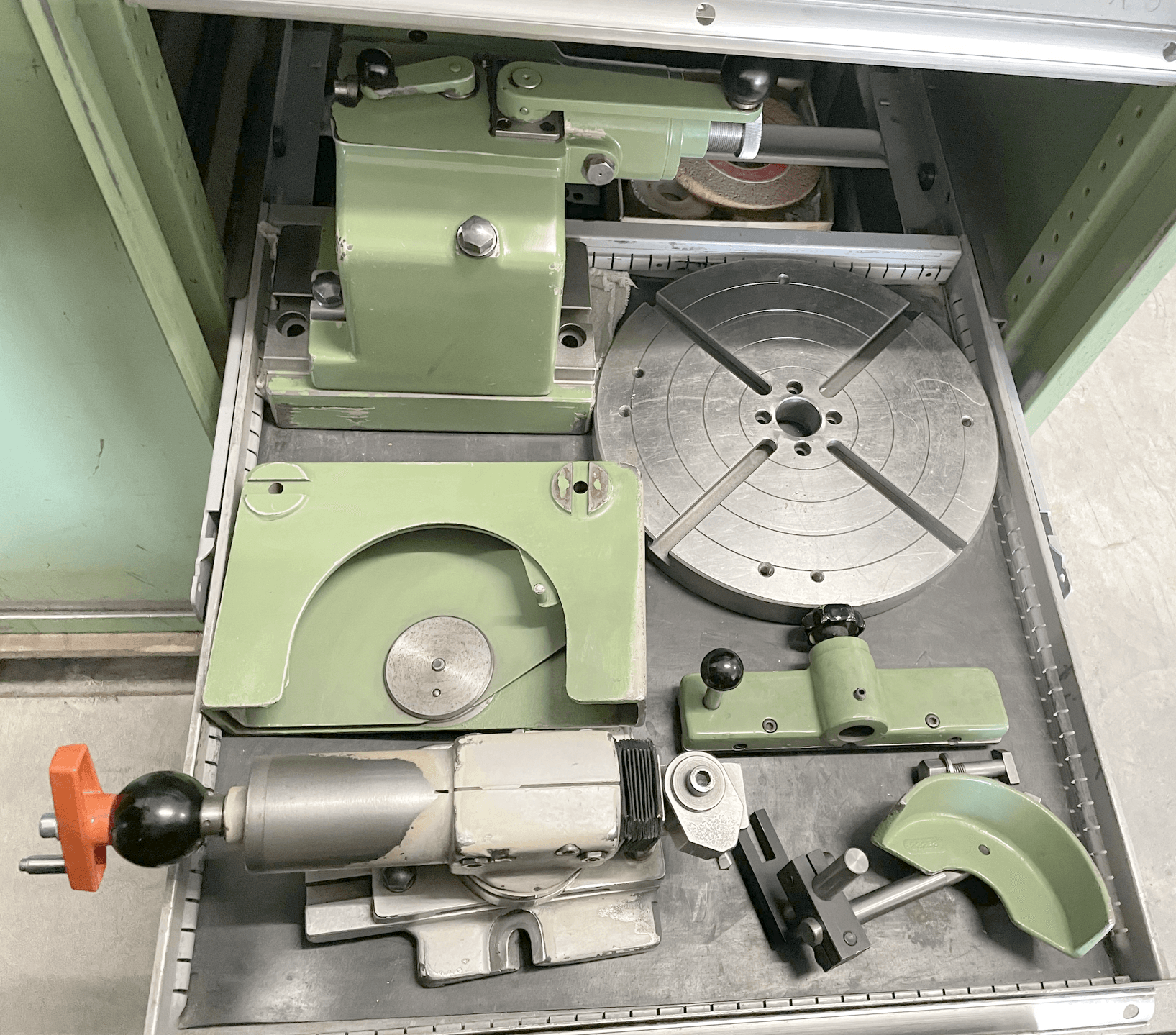

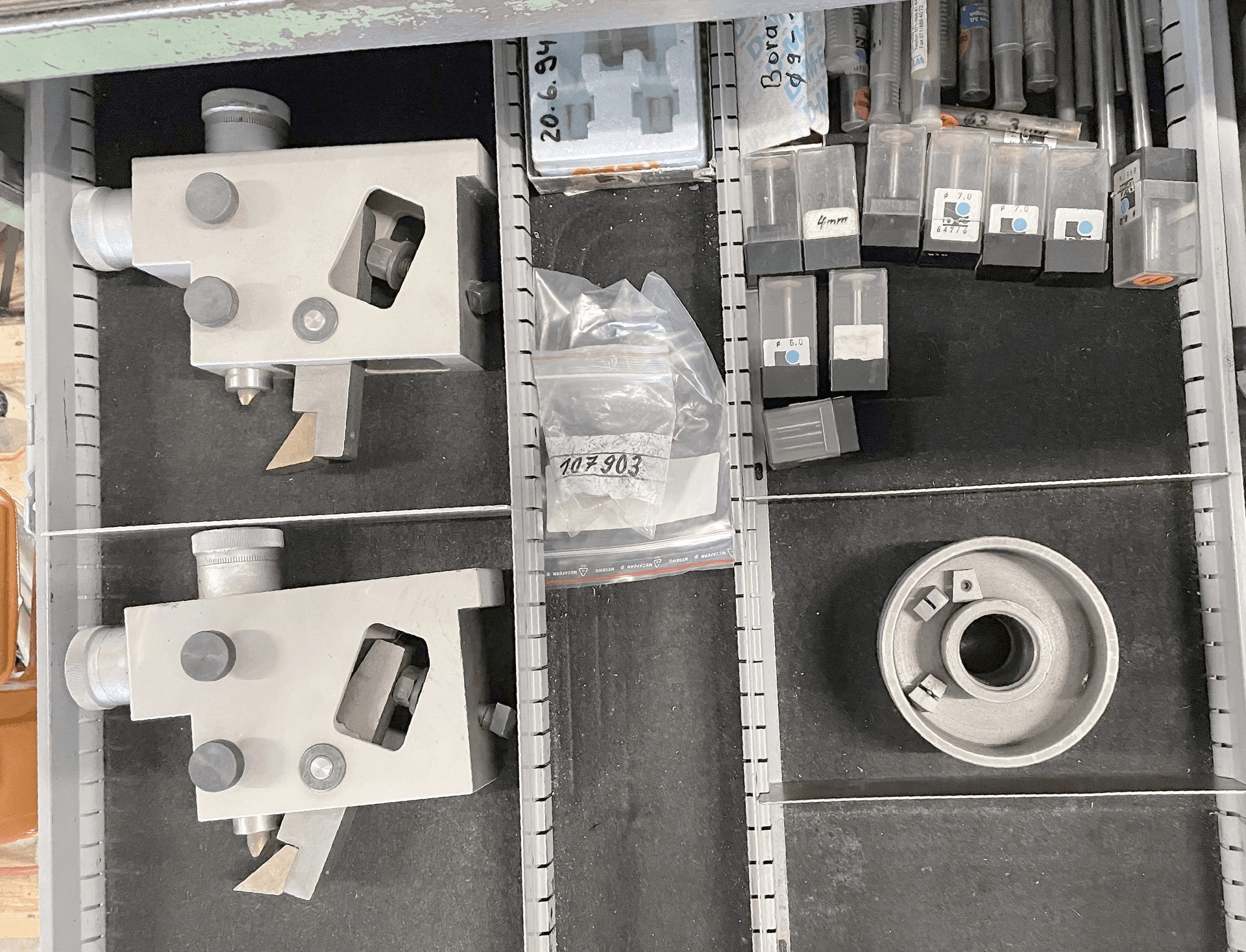

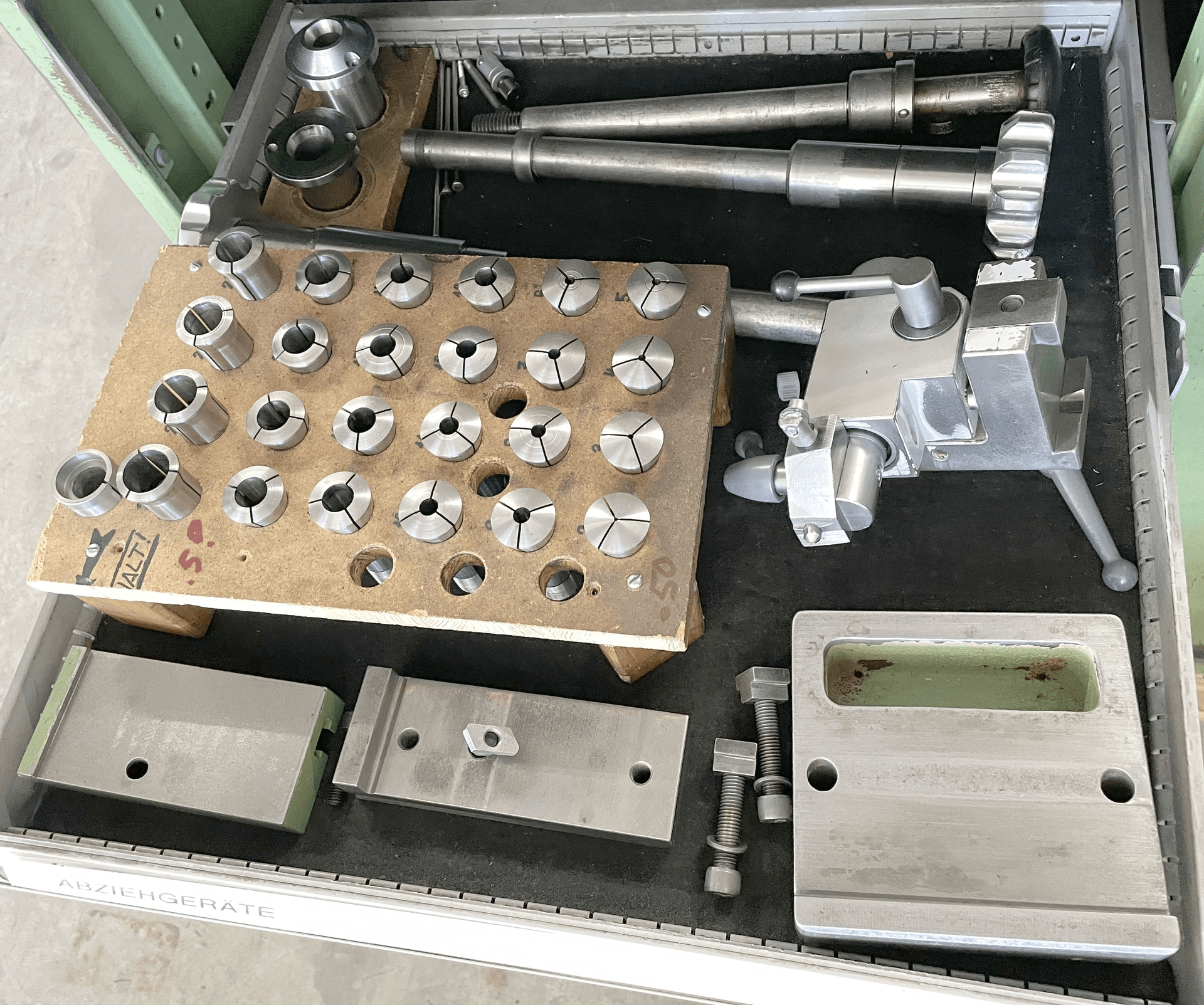

{"Centre height": "125 mm", "Distance between centres": "1000 mm", "grinding diameter": "480 mm", "Grinding wheel:": "", "Diameter": "400 mm", "Width": "50 mm", "Bore": "127 mm", "Grinding wheel speeds:": "", "number (steps)": "3", "from": "m/min", "up to": "6 m/min", "Angular displacement": "270 \u00b0", "Work piece spindle head:": "", "speeds:": "", "stepless": "", "rotatable": "360 \u00b0", "Inner taper type": "W20 / W25", "Spindle taper": "5 CM", "Taper in tailstock:": "3 CM", "Table angular displacement": "8 \u00b0", "Table speed:": "", "Voltage 50 Hz 3x": "380 Volt", "External Grinding wheel motor": "4 CV", "Workpiece spindle motor": "1 kW", "Machine's weight about": "2500 kg", "Overall dimensions machine:": "", "Length": "2860 mm", "Height": "1670 mm", "Various accessories:": "", "Tailstock with fine adjustement": "", "Internal grinding attachment": "", "Spindle speeds": "23000 t/min", "Side and angular dressing device": "", "Copying wheel dressing attachment": "", "3-jaw chuck diameter": "200 mm", "4-jaw face plate diameter": "340 mm", "Macnetic chuck diameter": "300 mm", "Coolant system": "", "Paper filtration system": "", "Set of grinding wheels": "", "Set of flanges": "", "Set of flanges for internal grinding": "", "Lamp": "", "Set two-jaw steady rest": "", "Three-jaw bezel folds open": "", "Set of collets": "W25", "Set of driving dogs": "", "Set of service tools": "", "Grinding wheel guard": "", "Safety device": "", "Set of elevation plates": "50 mm"}
