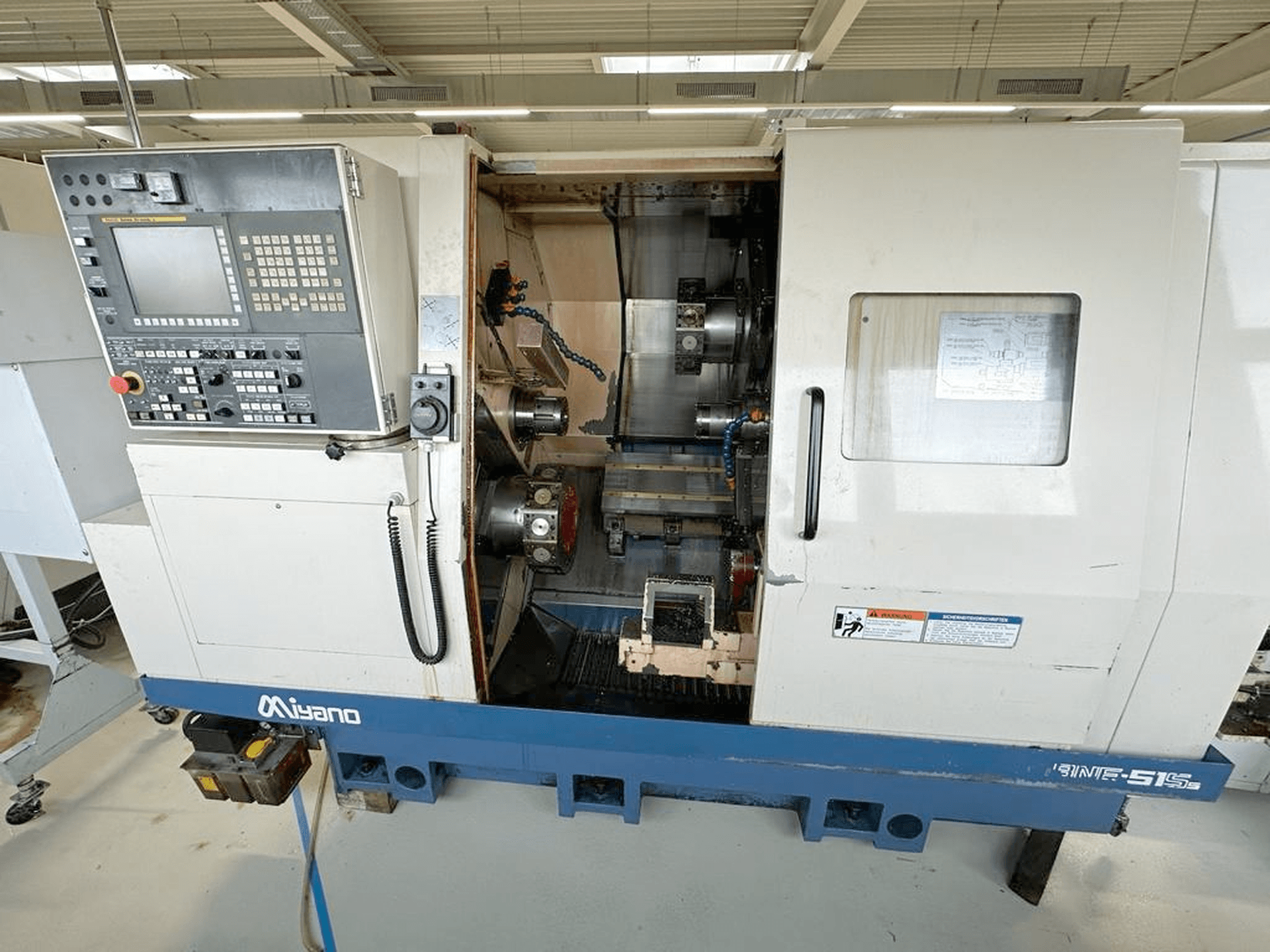

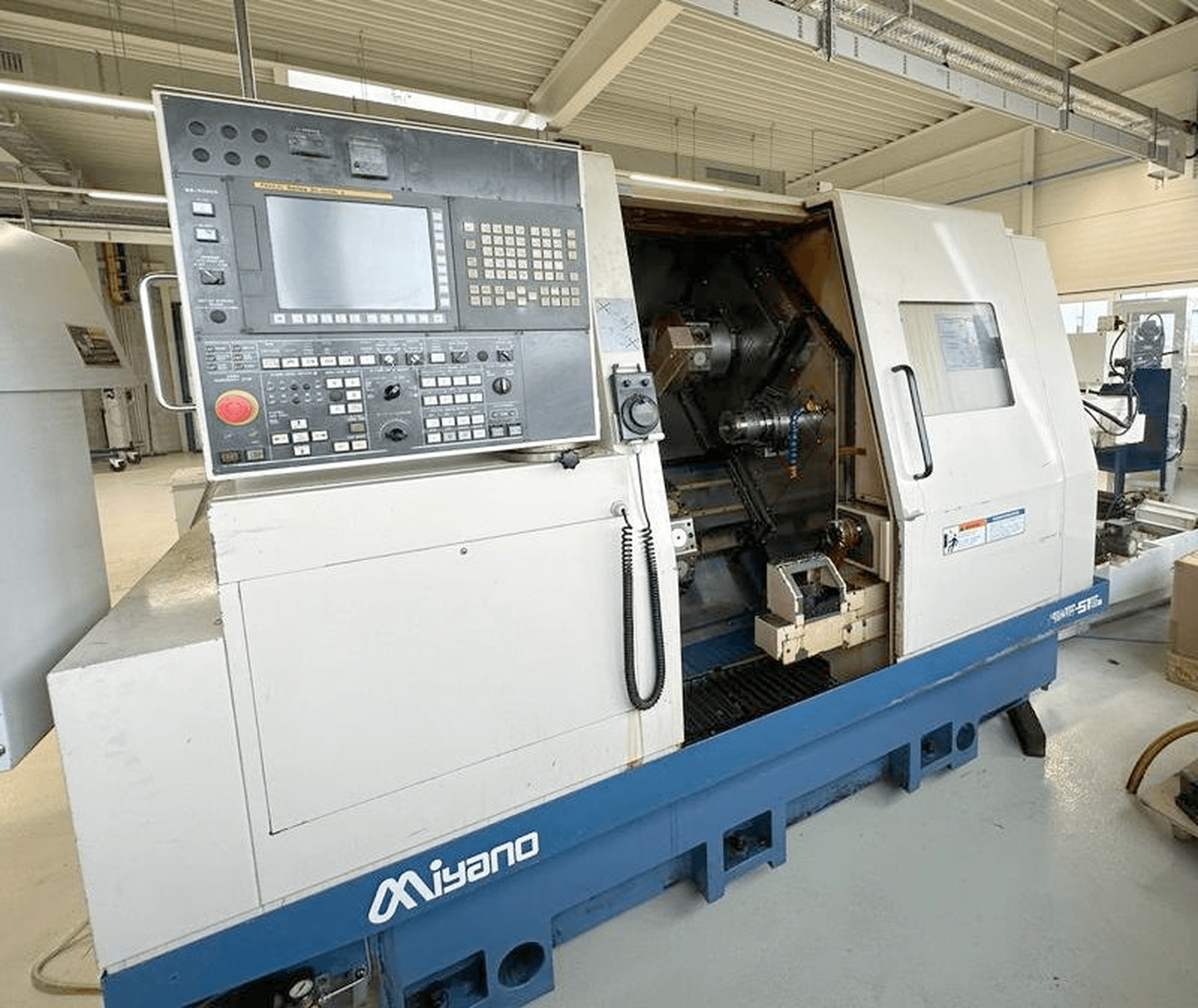

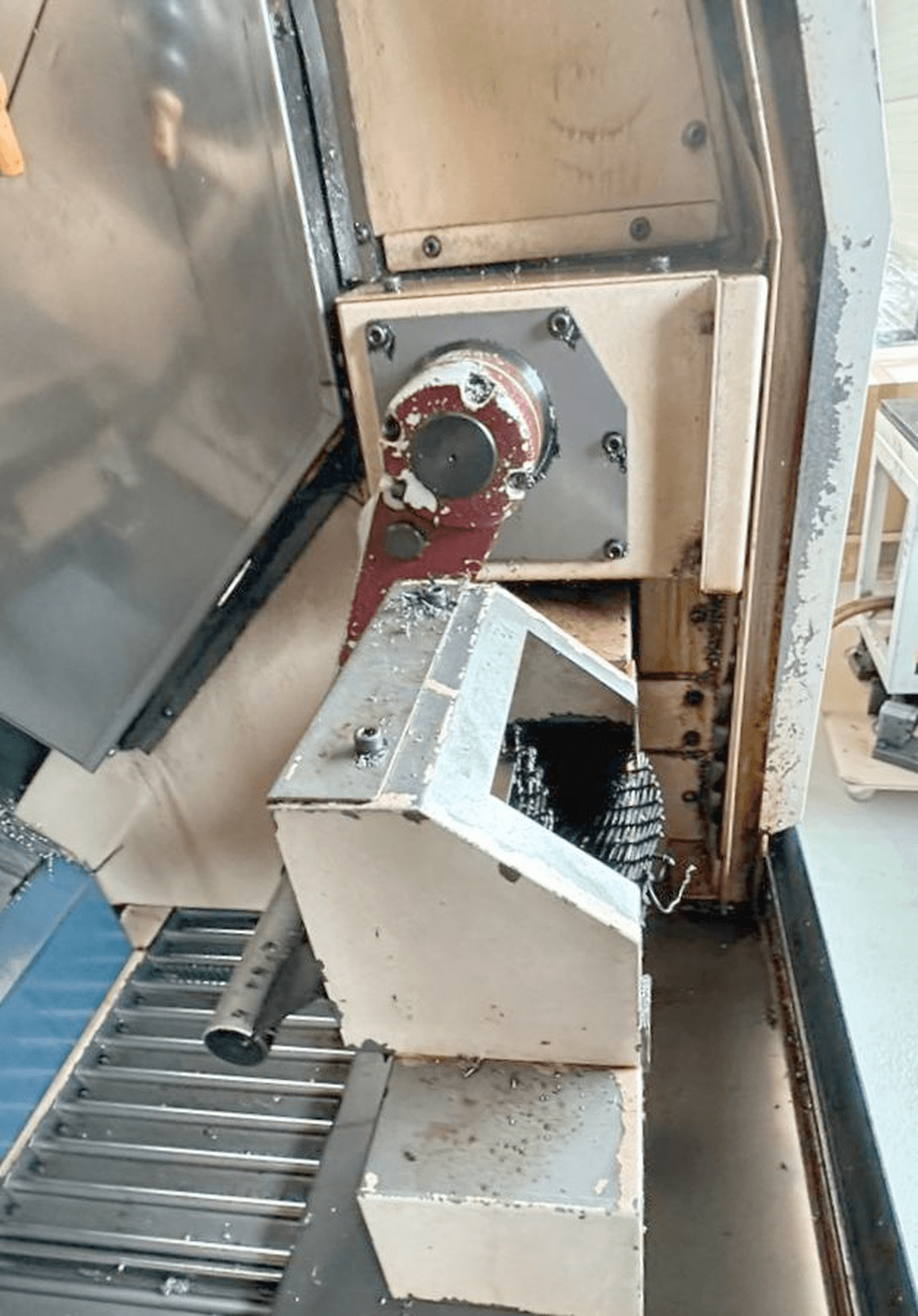

022222 - MIYANO BNE-51 S5

Description

{"Number of spindles": "2", "Number of revolvers": "2", "Maximum turning length": "90 mm", "Turret slide:": "", "Number of positions turret 1": "12", "Number of positions turret 2": "12", "Driven tools turret 1": "12", "Driven tools turret 2": "12", "Spindle speeds": "0 - 4000 t/min", "Tool shank cross section": "20 mm", "Power of driven tools": "2.5 kW", "Max. drill capacity": "13 mm", "Max. taping diameter M": "8", "Upper turret head:": "", "X axis": "145 mm", "Z axis": "380 mm", "Lower turret head:": "", "Main spindle:": "", "Spindle hole": "52 mm", "Max. bar diameter": "51 mm", "C axis (spindle,resolution)": "\u00b0", "Spindle speeds:": "", "stepless": "", "from": "0 t/min", "up to": "5000 t/min", "Spindle power": "11 / 15 kW", "Back spindle:": "", "max. speed": "7000 t/min", "Max. turning diameter": "41 mm", "Back spindle stroke": "450 mm", "Power of back spindle": "3.7 / 5.5 kW", "Feeds": "0.0001 - 60 mm/min", "Rapid traverse X": "18 m/min", "Rapid traverse Z": "20 m/min", "Spindle run time": "39000 Heures", "Air connect": "6 bar", "Voltage 50 Hz 3x": "380 Volt", "Total power required": "44 kVA", "Machine's weight about": "7800 kg", "Overall dimensions machine:": "", "Length": "2690 mm", "Width": "2080 mm", "Height": "1925 mm", "Various accessories:": "", "Coolant system": "", "Handwheel electroinic": "", "C axis": "", "Parts catcher": "", "Workpiece conveyor": "", "Chip conveyor": "", "Set of toolholders": "", "Status light": ""}
