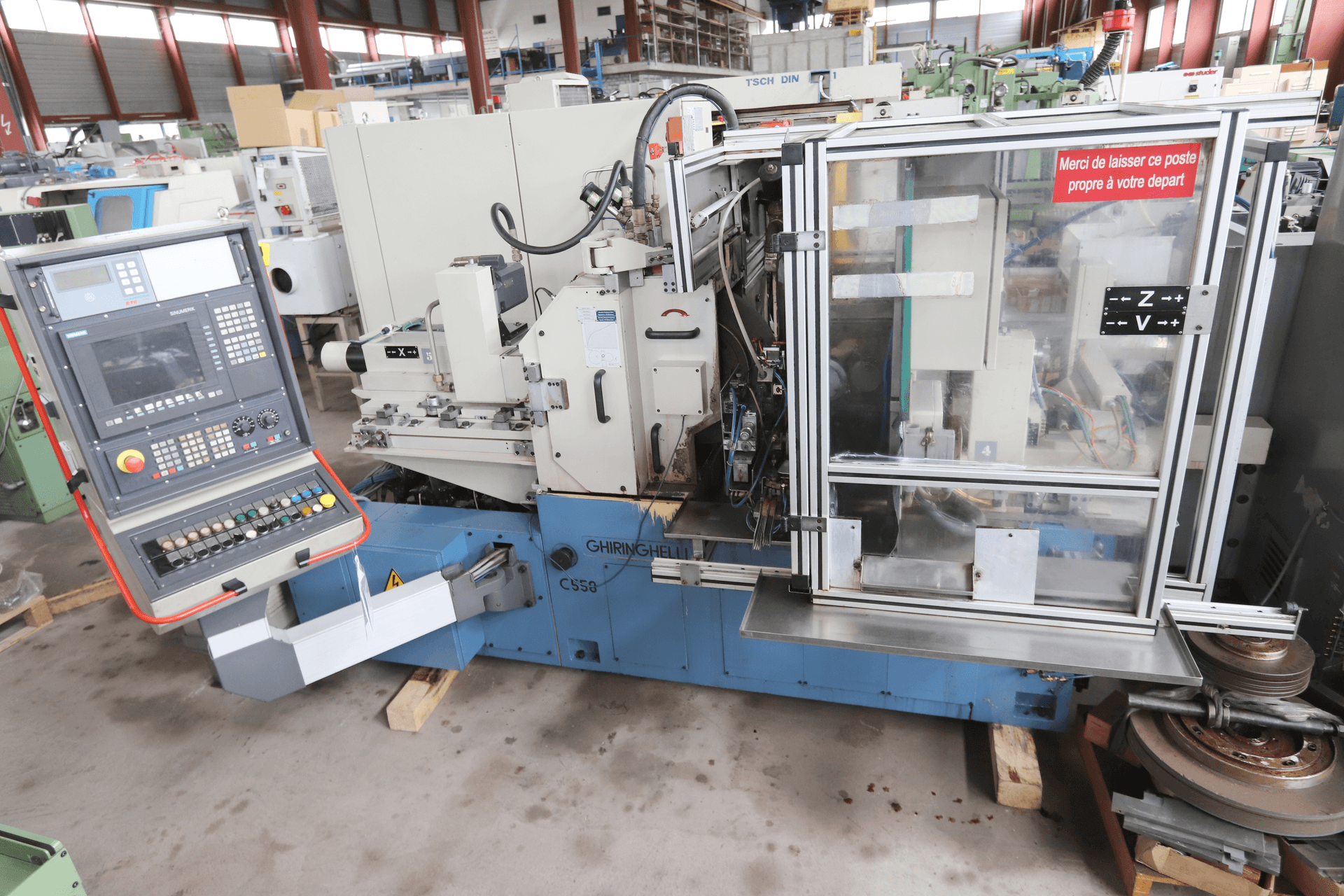

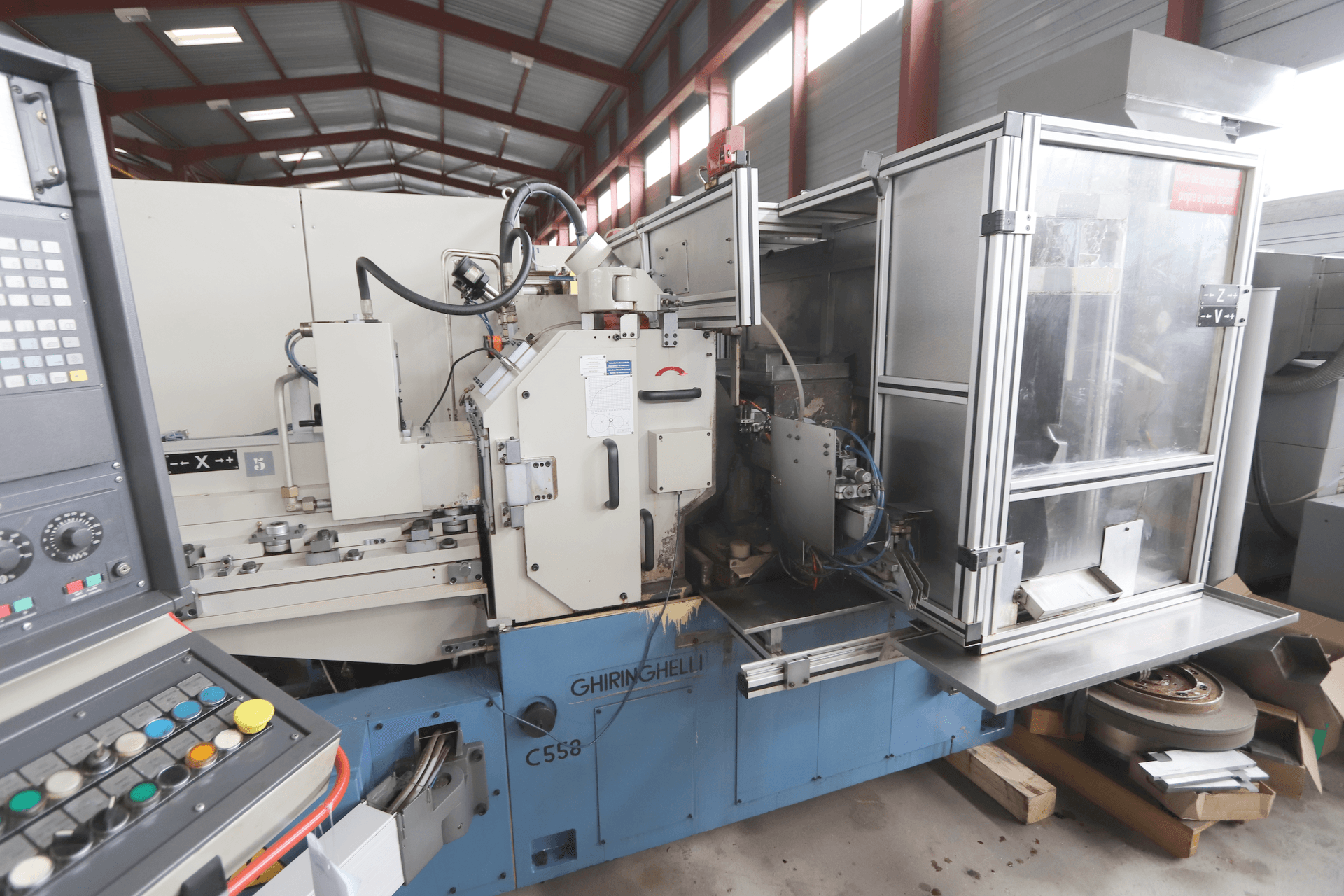

022171 - GHIRINGHELLI M150SP610

Description

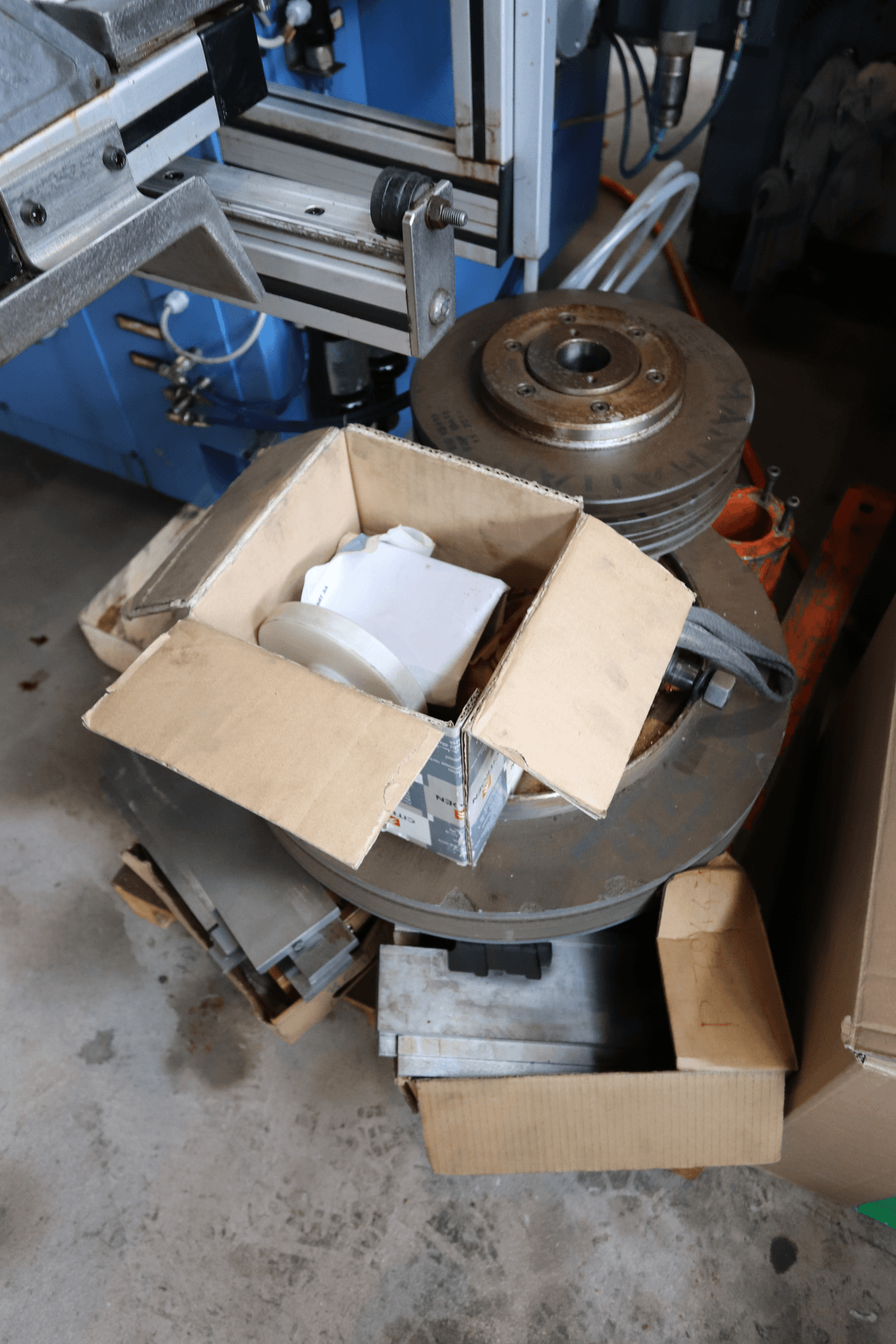

{"Min. grinding diameter": "1 mm", "Max. grinding diameter": "100 mm", "Max. workpiece length": "", "for infeed grinding": "140 mm", "Grinding wheel:": "", "diameter new wheel": "305 mm", "diameter used wheel": "220 mm", "Width": "3200 mm", "Bore": "305 mm", "Speed with new grinding wheel": "1409 t/min", "Speed with abraded grinding wheel": "1685 t/min", "Peripheral speed": "45 m/s", "Regulating spindle:": "", "Swivelling range": "-7 / +7 \u00b0", "Speeds:": "", "stepless": "", "from": "0 t/min", "up to": "140 t/min", "Dressing speed": "400 t/min", "Voltage 50 Hz 3x": "400 Volt", "Air connect": "5 bar", "Total power required": "45 kW", "Machine's weight about": "5800 kg", "Overall dimensions machine:": "", "Length": "6200 mm", "Height": "2542 mm", "Various accessories:": "", "New diamond wheel": "", "Automatic infeed grinding attachment": "", "Flange for grinding wheel": "", "Flange for regulating wheel": "", "Electronic balancing system": "MARPOSS E78", "Crushing profiling device": "", "Central lubrification": "", "Splash guard": ""}
