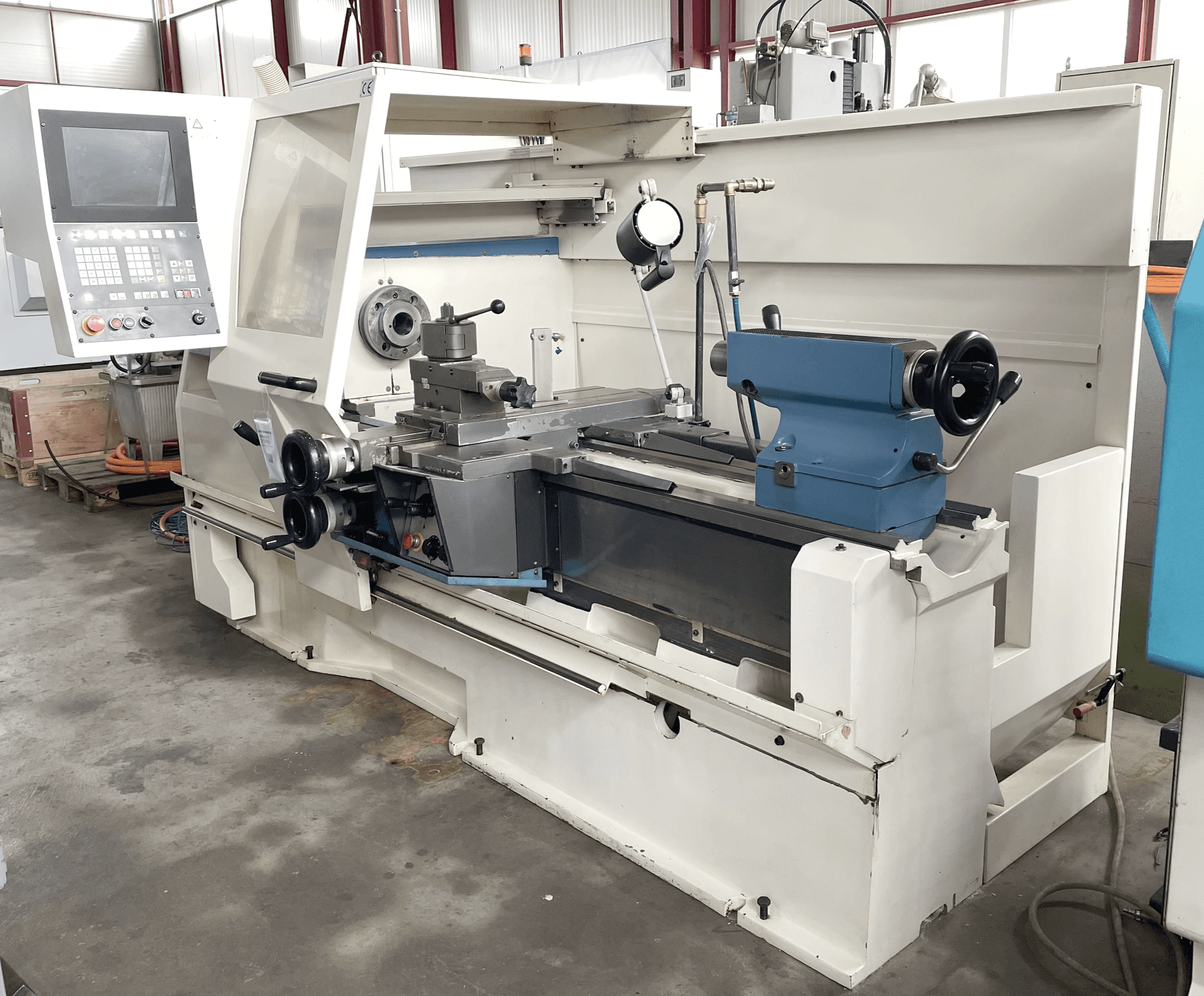

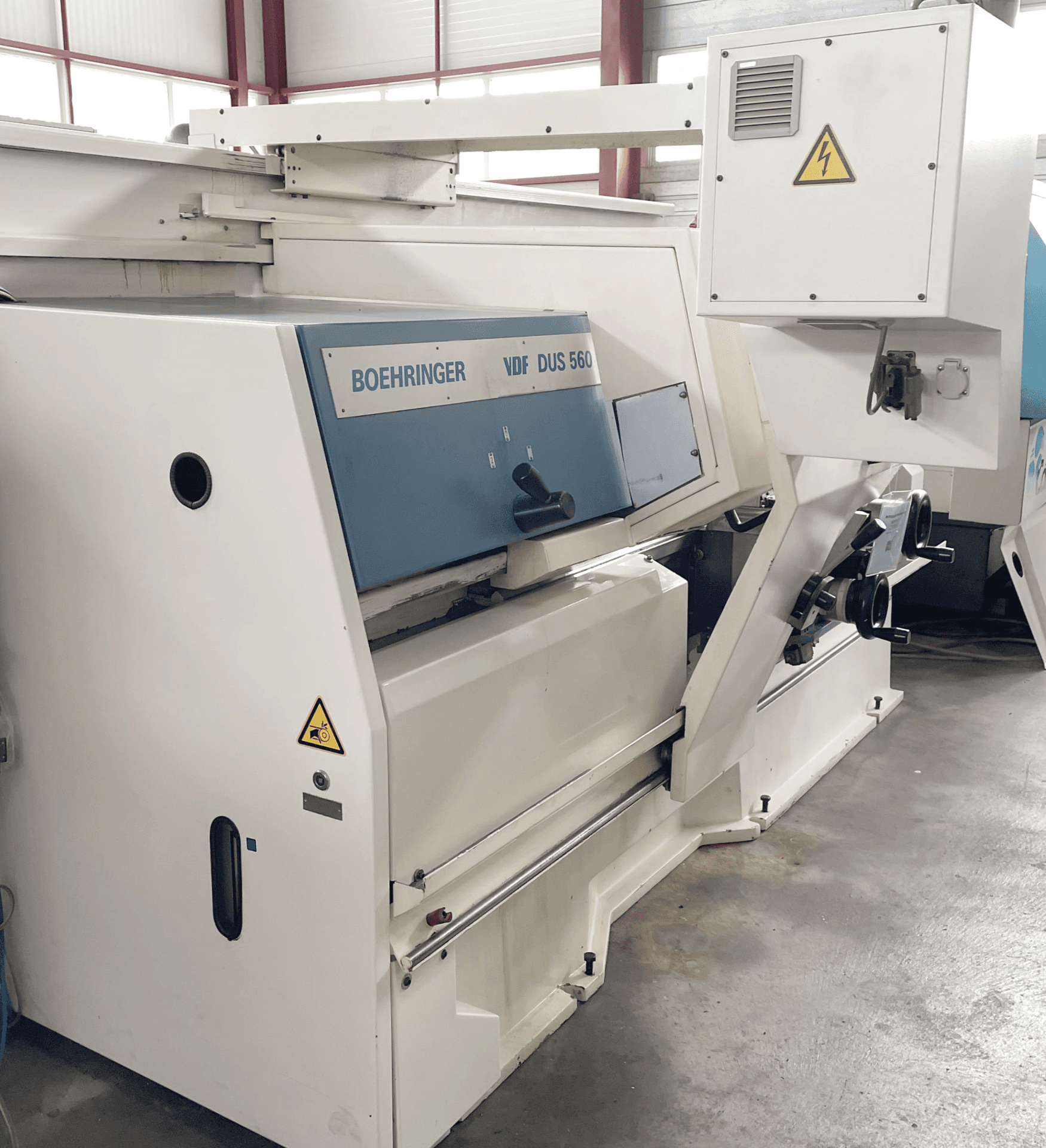

021885 - BOEHRINGER / VDF DUS 560

Description

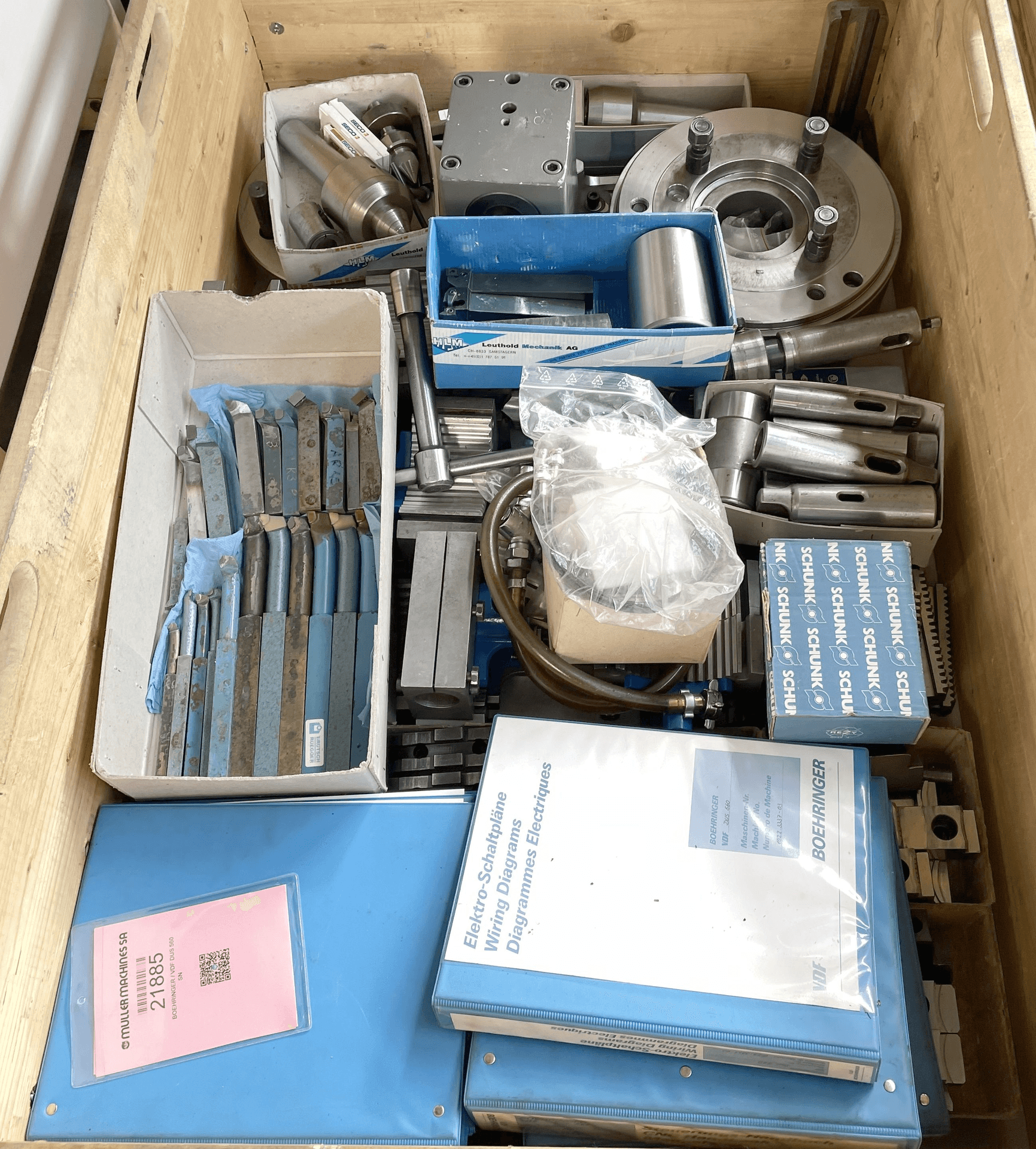

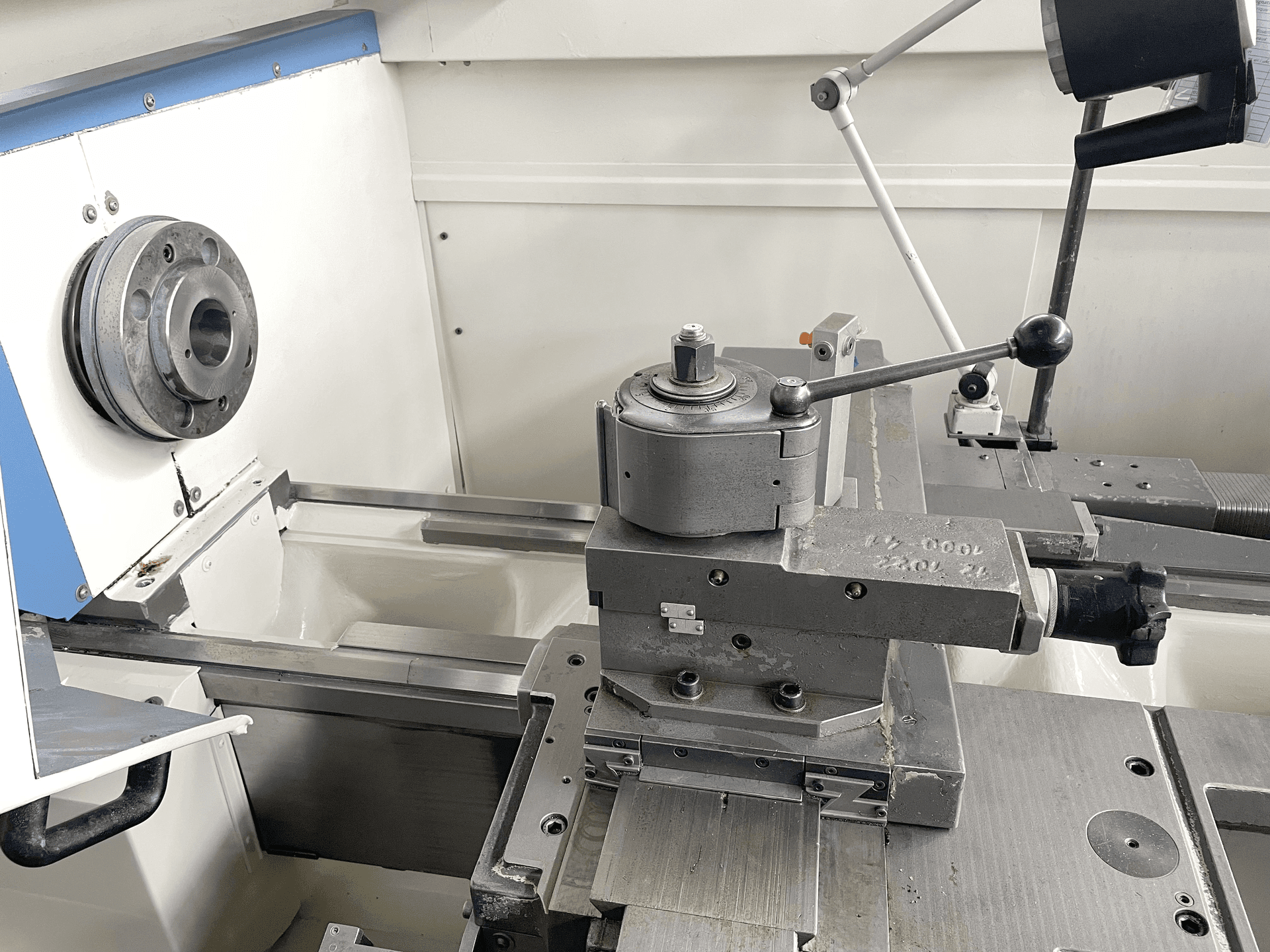

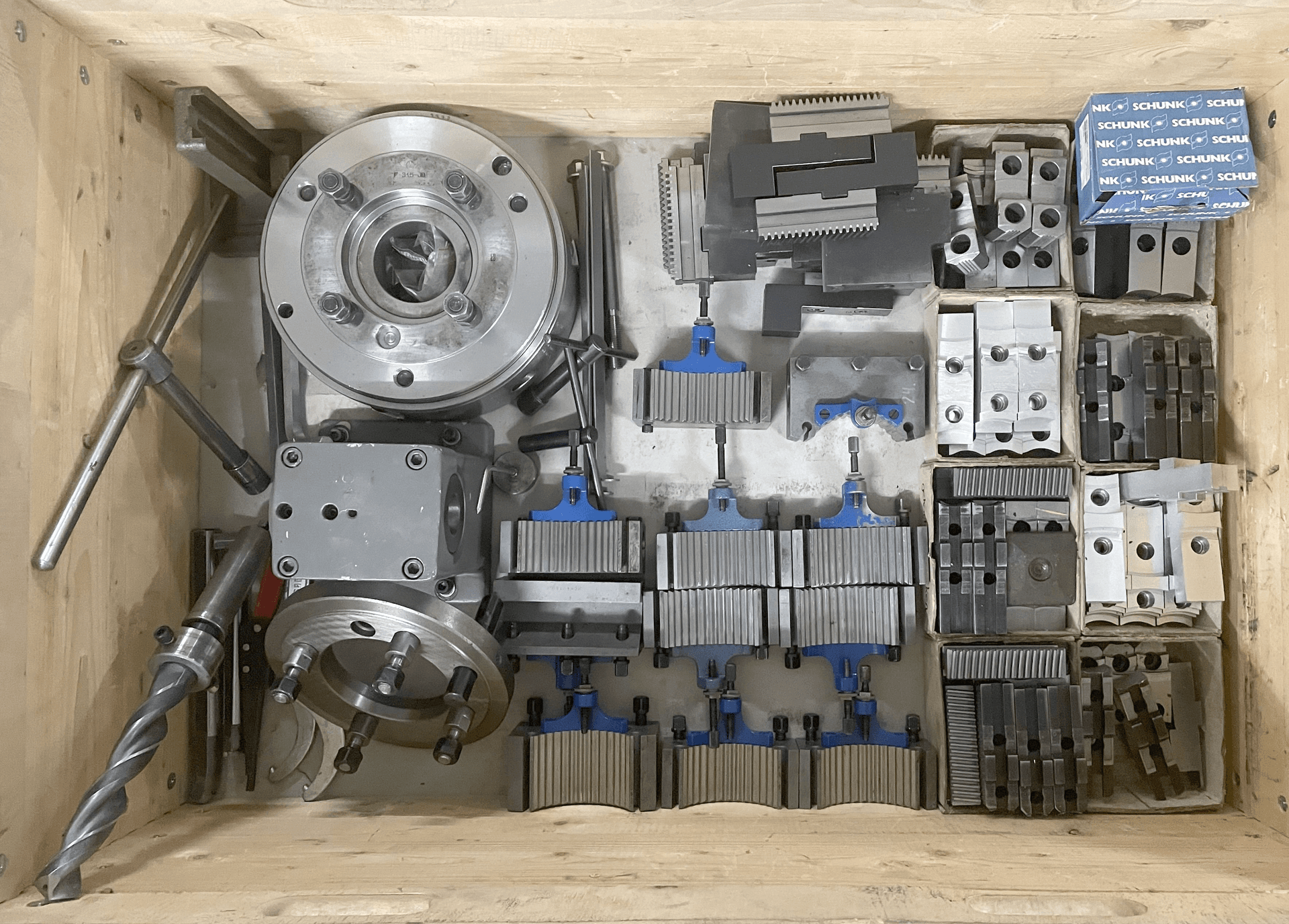

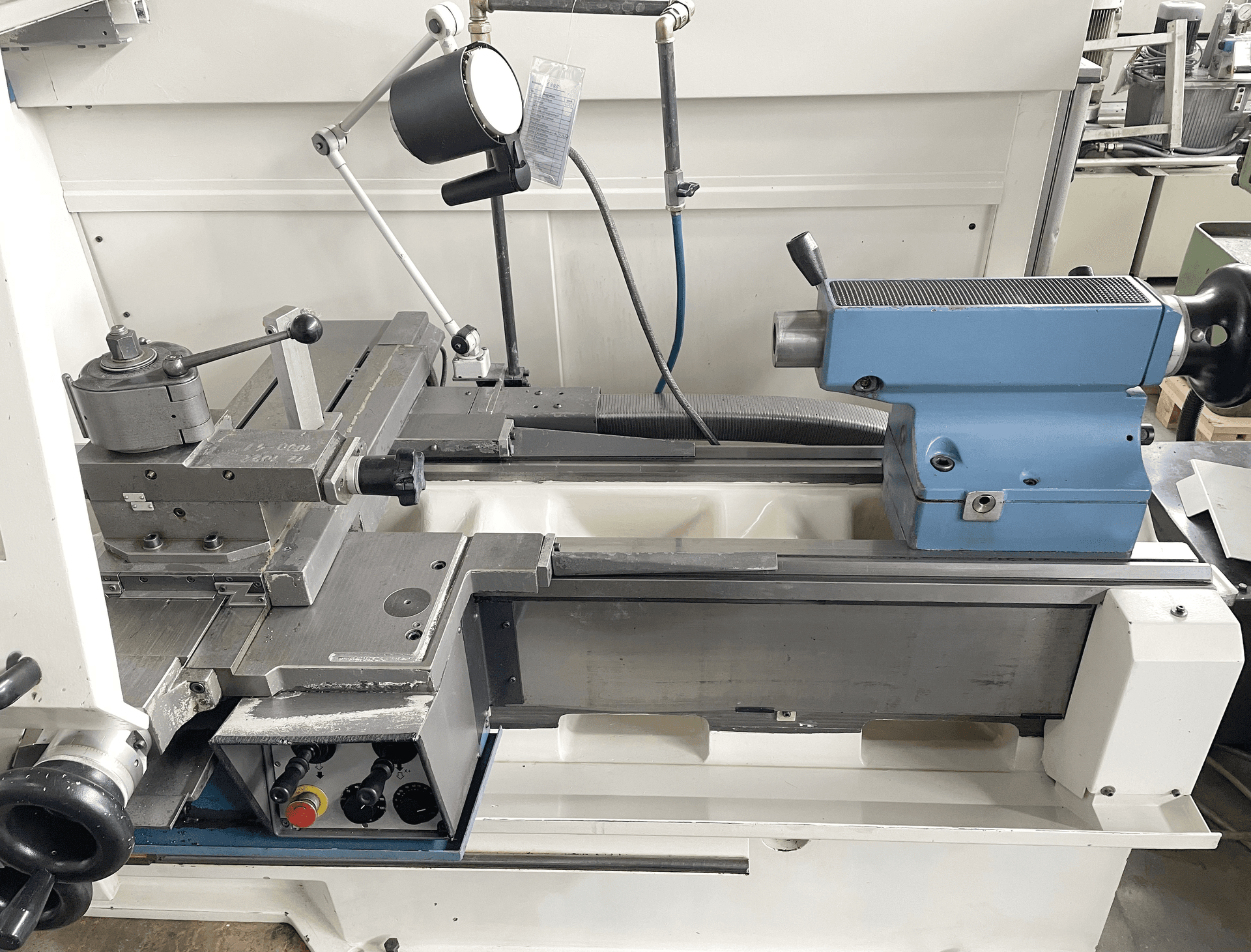

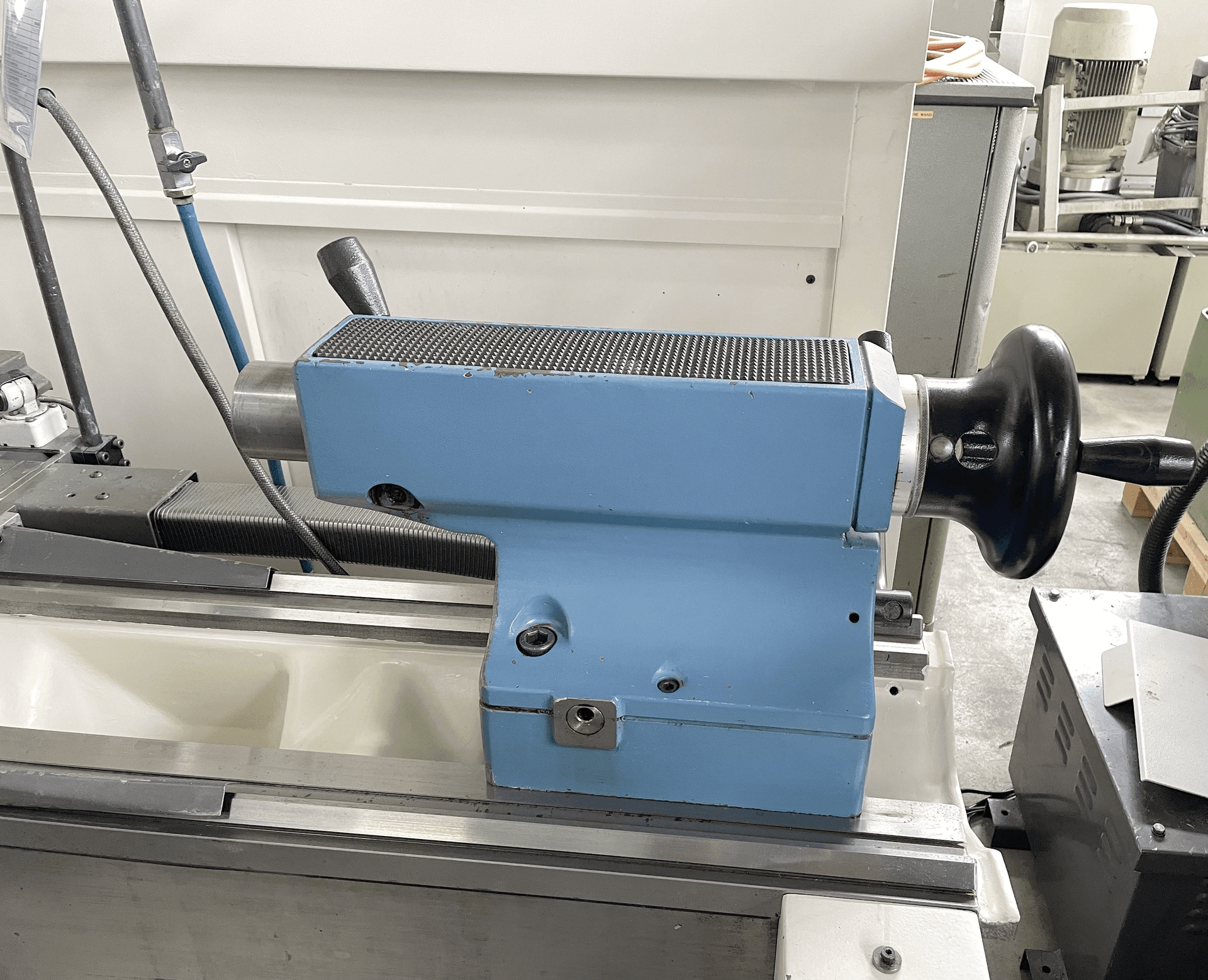

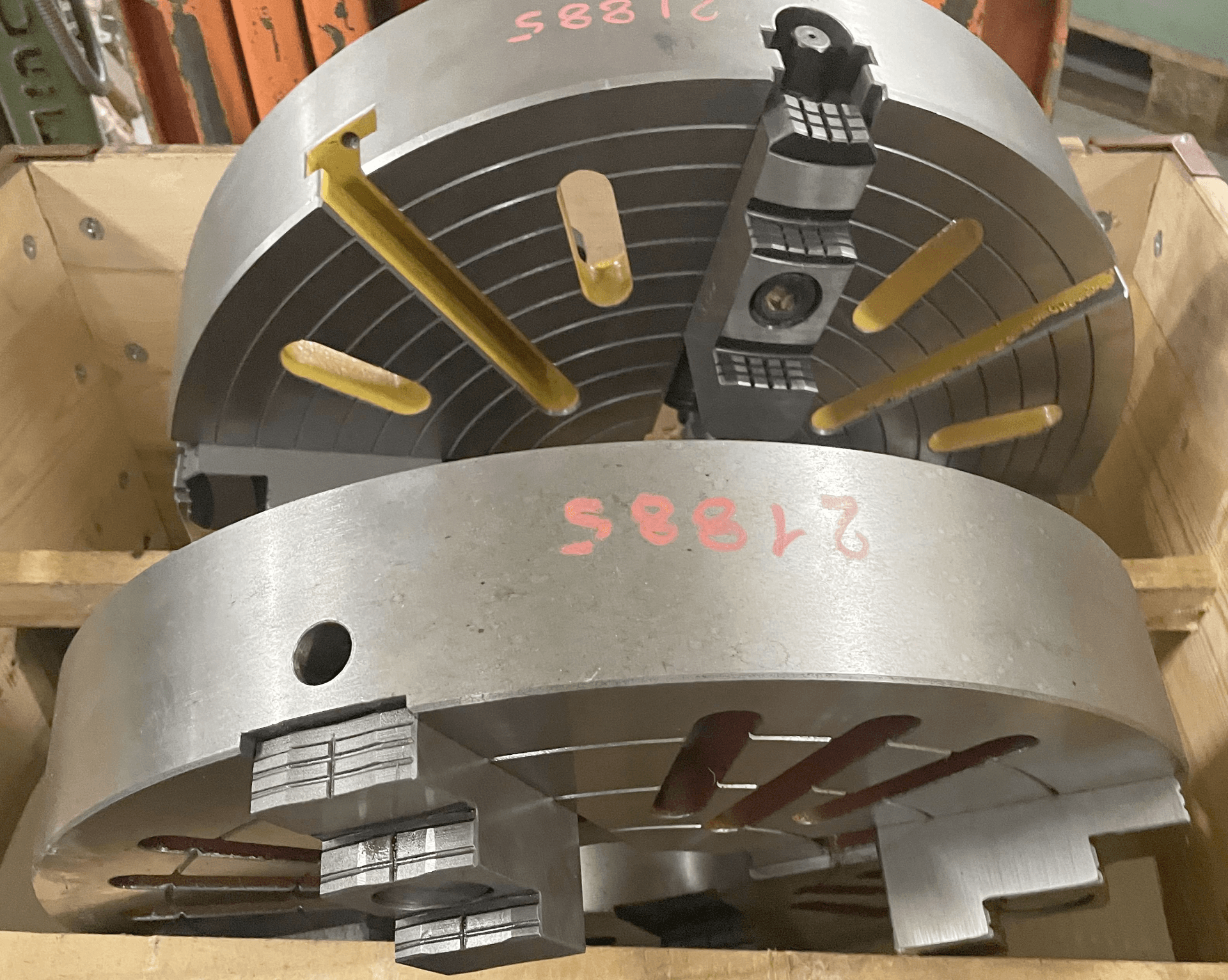

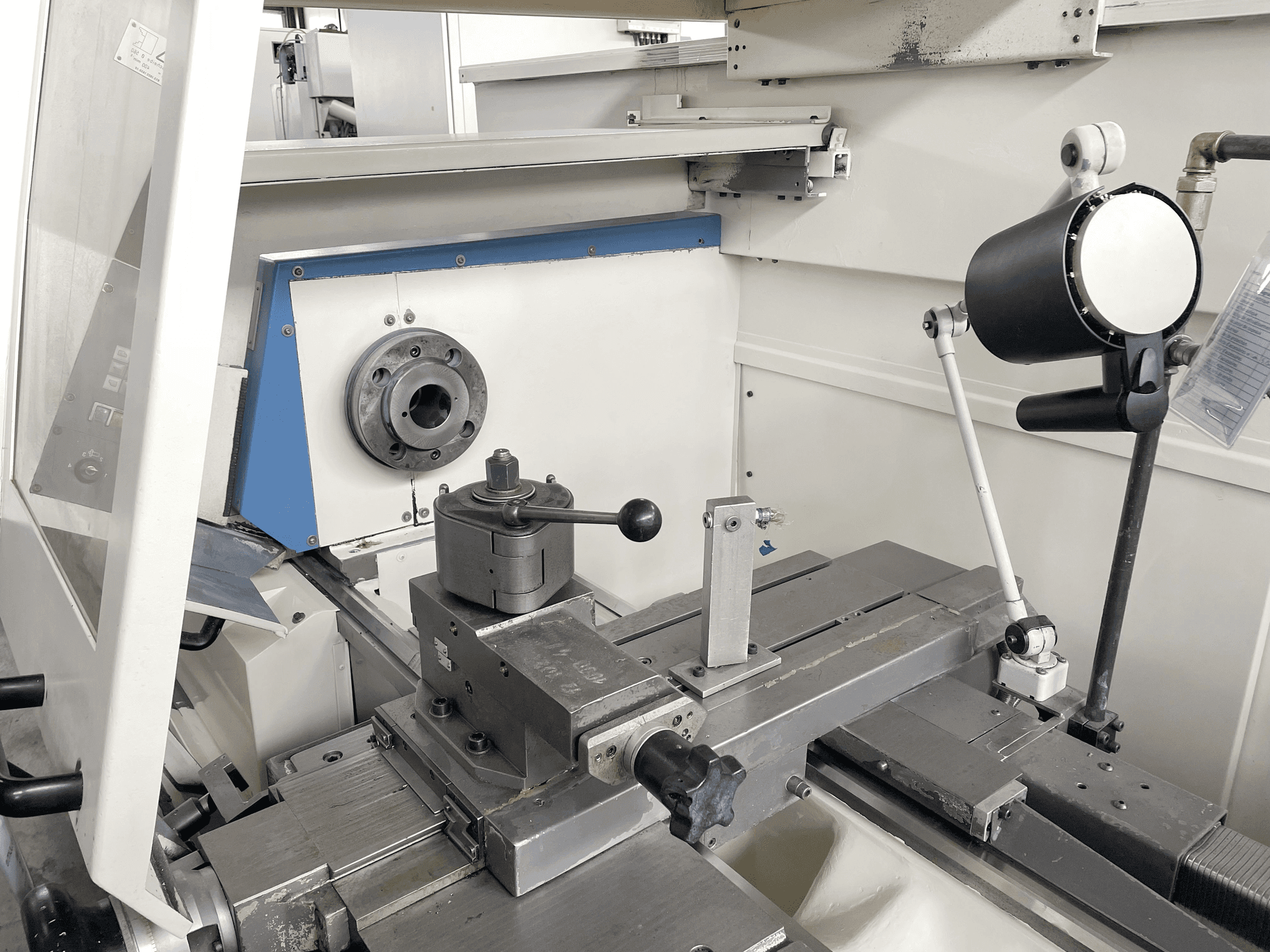

{"Centre height": "280 mm", "Distance between centres": "1500 mm", "Swing over cross-slide": "365 mm", "Swing over bed": "570 mm", "Spindle head": "DIN 55 027", "Spindle hole": "62 mm", "Spindle diameter": "80 mm", "Maximum turning length": "1500 mm", "Thread pitch:": "", "from": "3 t/min", "up to": "50 mm/t", "Main spindle:": "", "Spindle speeds:": "", "number (steps)": "2", "Spindle power": "19 / 15 kW", "Torque max.": "1800 / 1400 Nm", "Taper in tailstock:": "", "Morse taper": "5 CM", "Spindle stroke": "190 mm", "Feeds:": "", "longitudinal from": "0.01 mm/t", "transversal from": "mm/t", "Rapid traverse X": "5 m/min", "Rapid traverse Z": "10 m/min", "Voltage 50 Hz 3x": "400 Volt", "Noise level": "80 dB (A)", "Total power required": "35 kVA", "Machine's weight about": "5200 kg", "Overall dimensions machine:": "", "Length": "1200 mm", "Width": "400 mm", "Height": "1400 mm", "Dimensions electric cabinet:": "", "Various accessories:": "", "3-jaw chuck diameter": "300 mm", "4-jaw chuck diameter": "500 mm", "Set of soft jaws": "", "Set of hard jaws": "", "Lamp": "", "Tailstock": "", "Set of centers": "", "Rotary centre": "", "Chip conveyor": "", "Quick change tool": "MULTIFIX", "Set of tools": "", "Set of steel holders": "", "Set of reducing bushes": ""}
