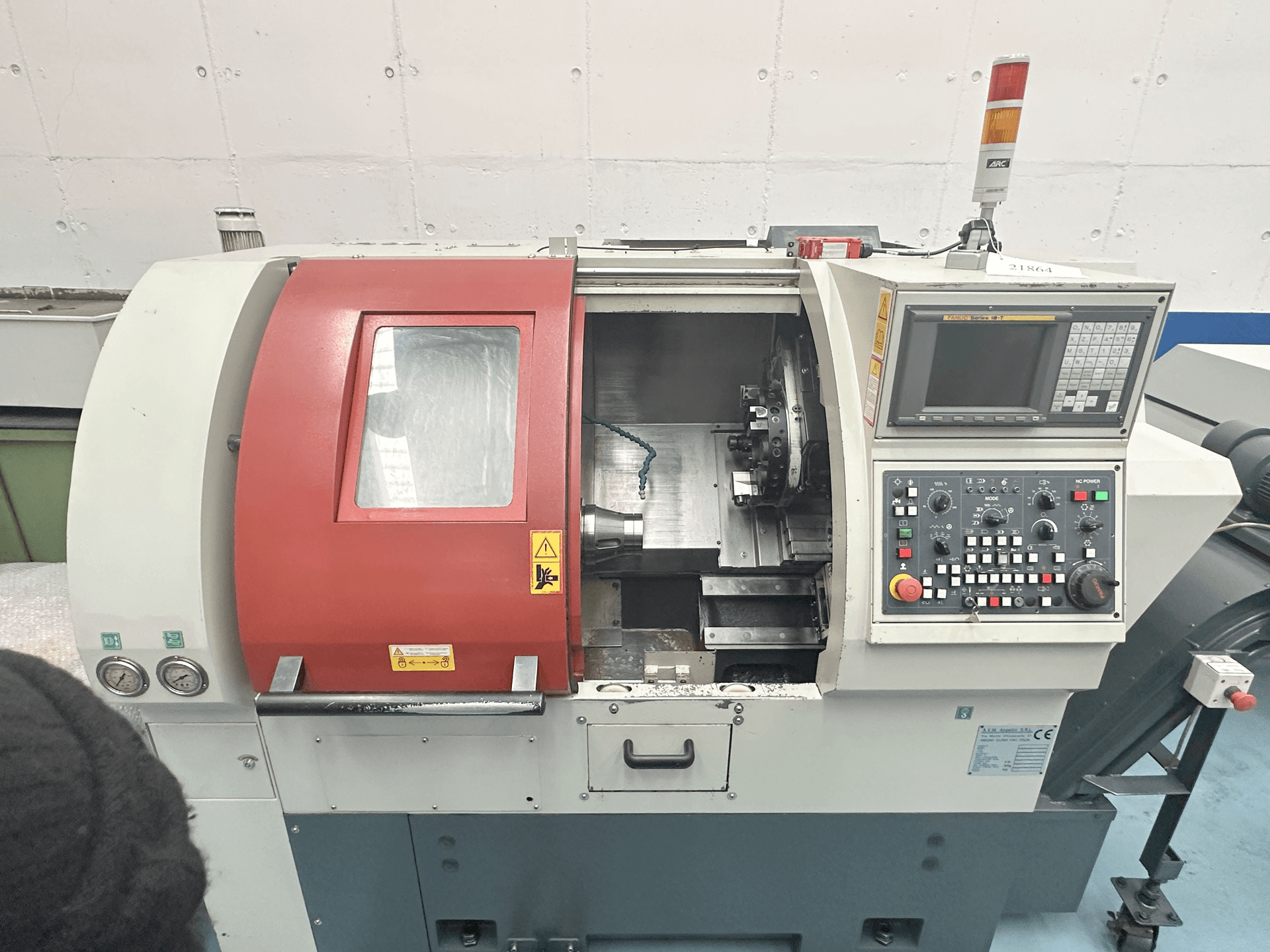

021864 - ANGELINI Clipper

Description

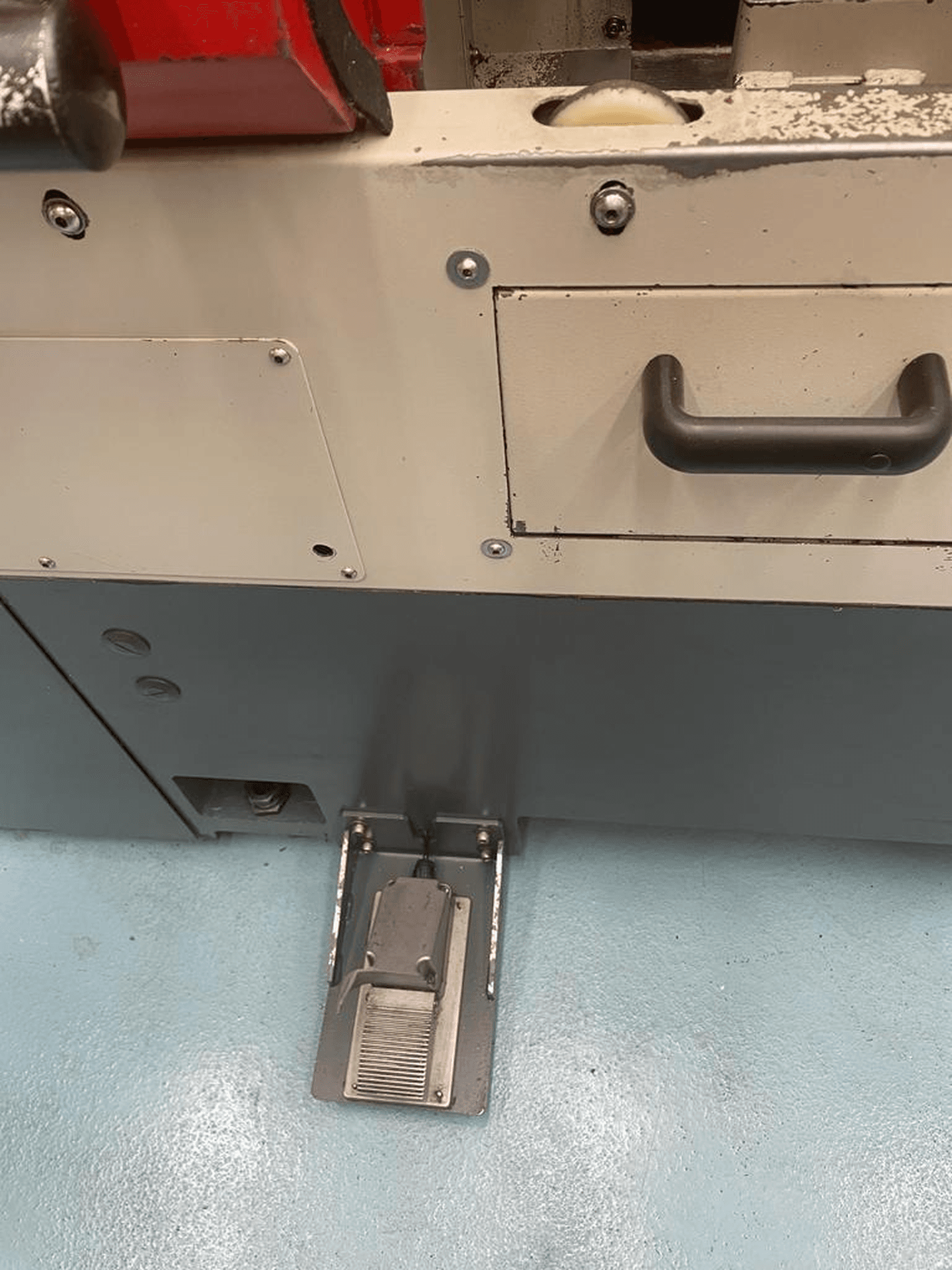

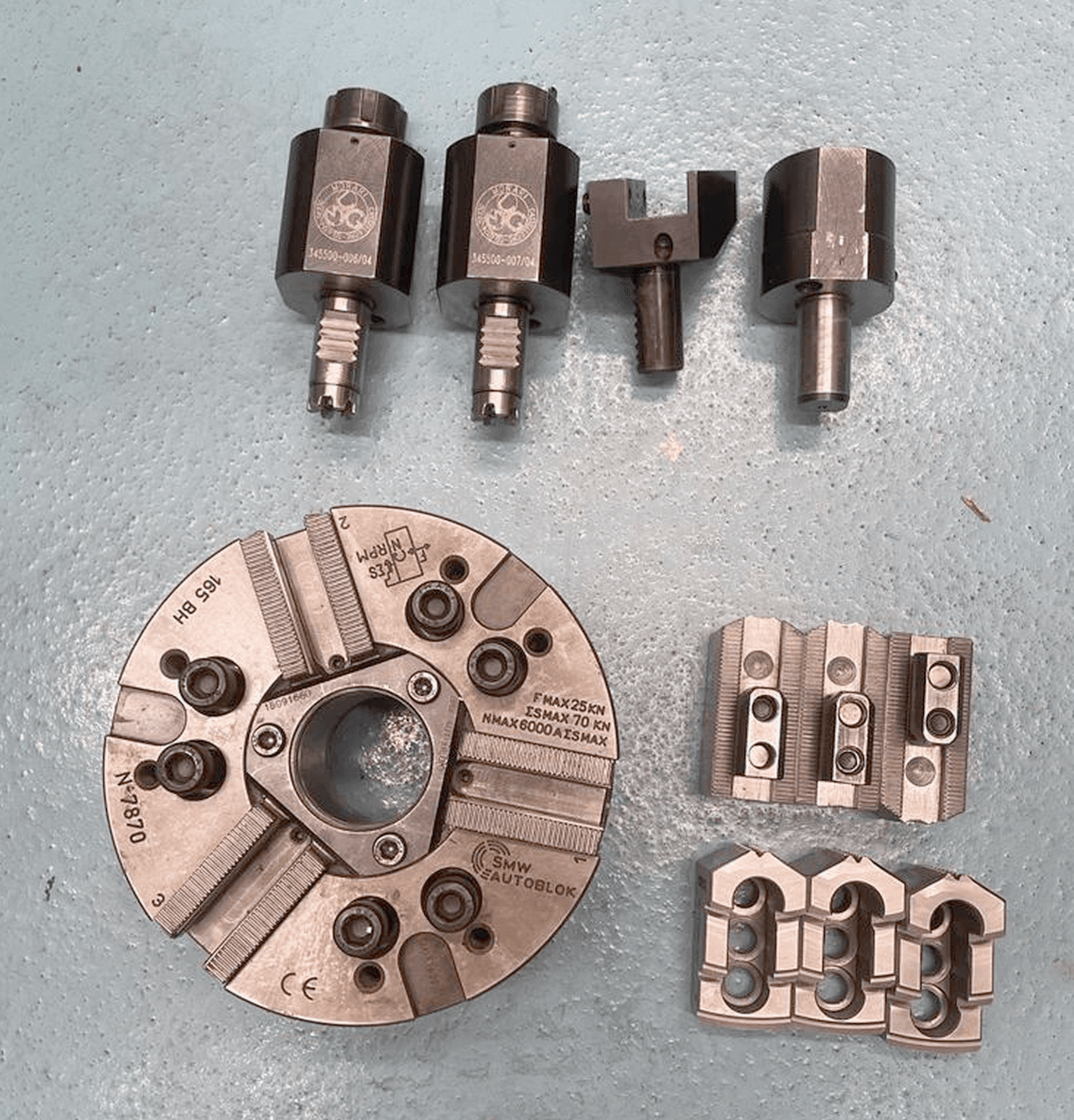

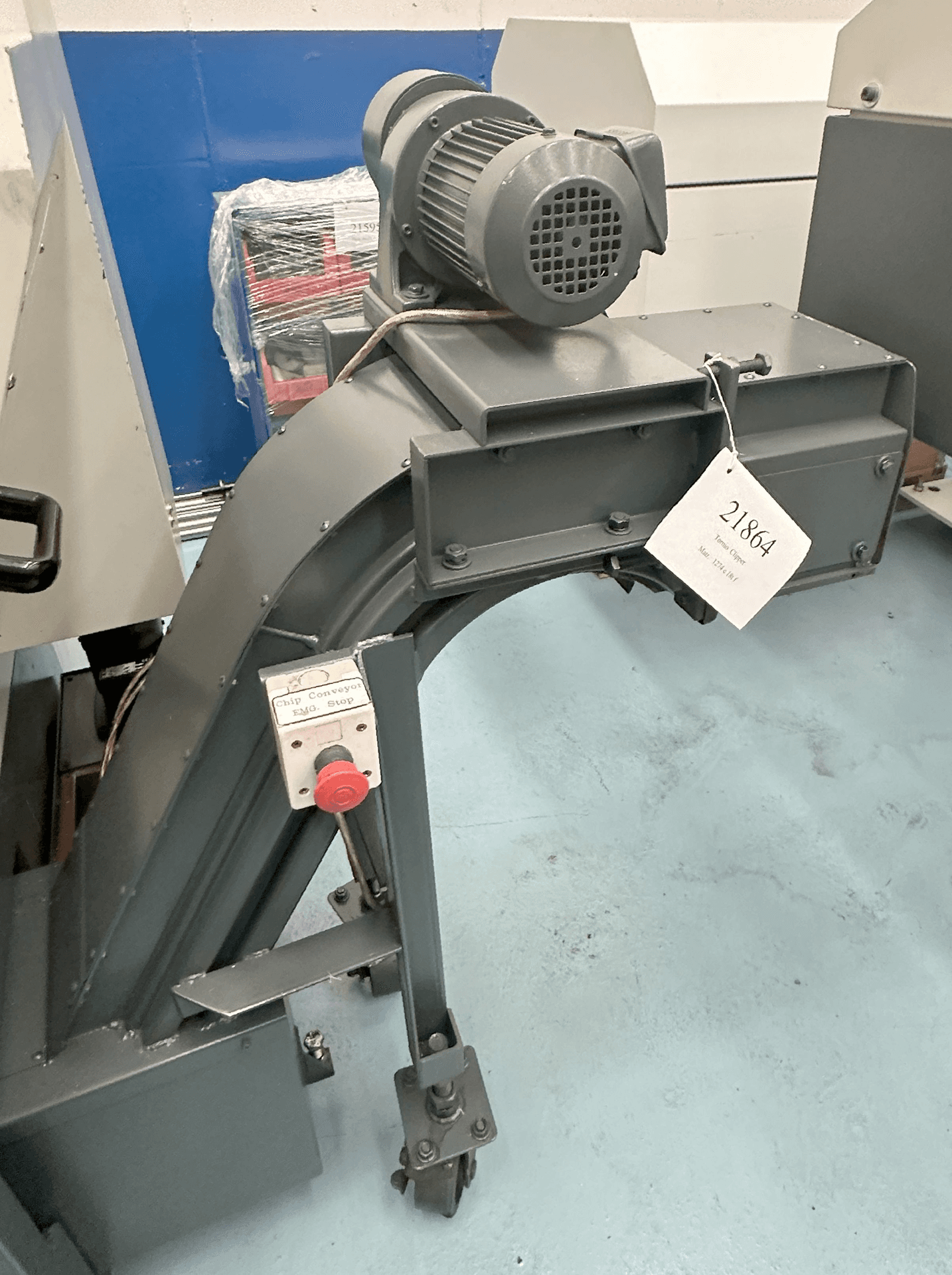

{"Number of axis total": "3", "Number of spindles": "1", "Number of revolvers": "1", "Distance between centres": "375 mm", "Swing diameter over bed": "480 mm", "Swing diameter over carriage": "380 mm", "Max. turning diameter": "250 mm", "Taper in spindle": "ASA 12-5", "Spindle hole": "42 mm", "Turret slide:": "", "Number of positions": "8", "Driven tools turret": "", "Main spindle:": "", "C axis": "", "Spindle speeds:": "", "stepless": "", "from": "0 t/min", "up to": "4500 t/min", "Rapid traverse:": "24 m/min", "Spindle motor": "7.5 kW", "Machine's weight about": "3000 kg", "Overall dimensions machine:": "", "Length": "1800 mm", "Width": "1450 mm", "Height": "1800 mm", "Various accessories:": "", "3-jaw chuck diameter": "165 mm", "Set of hard jaws": "", "Collet device": "", "Tailstock": "", "Parts catcher": "", "Chip conveyor": "", "Foot pedal": "", "Tool holder radial (nbr.)": "1", "Tool holders axial (nbr.)": "4", "Tool holder fix (nbr.)": "4", "Status light": ""}
