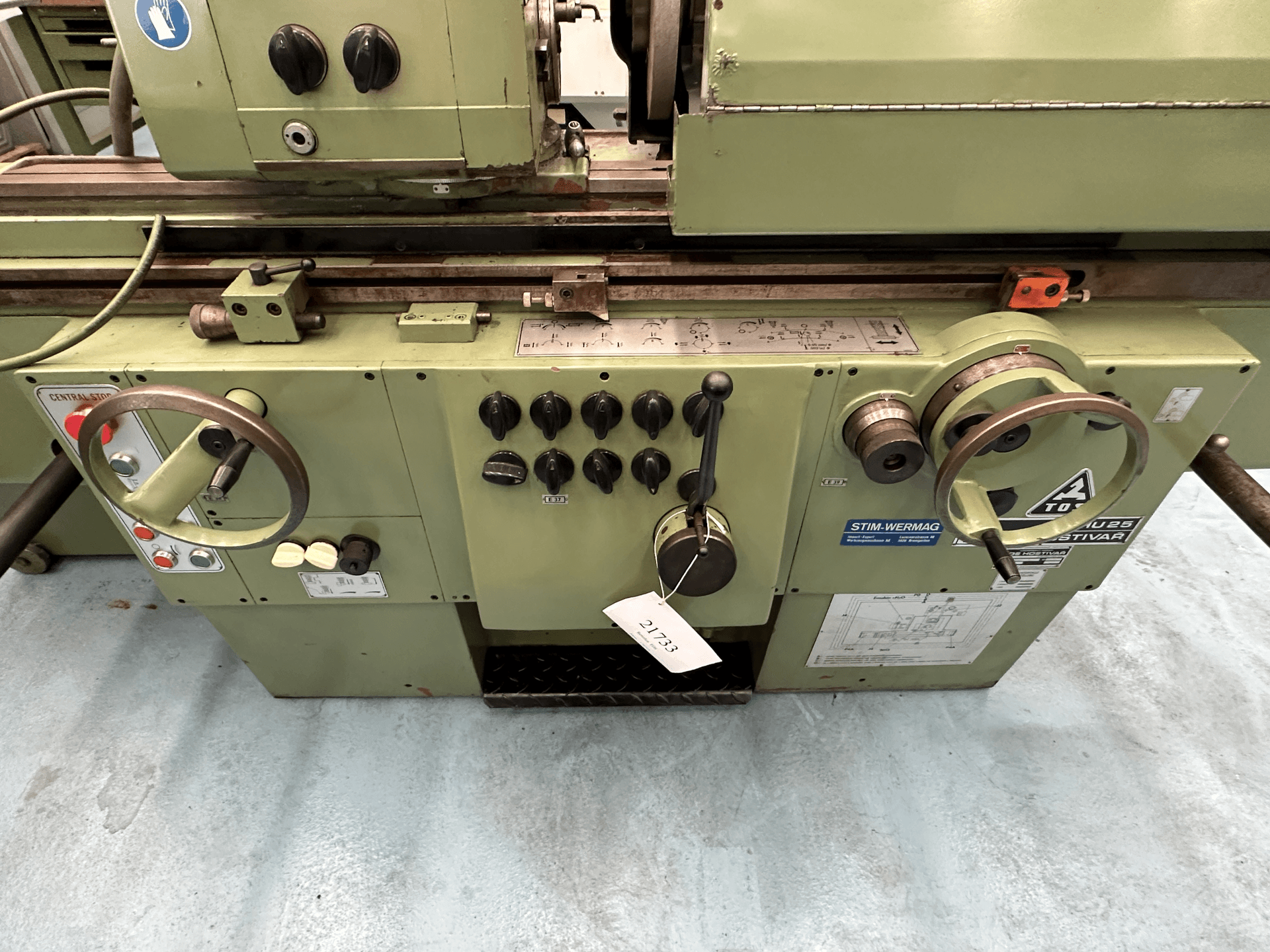

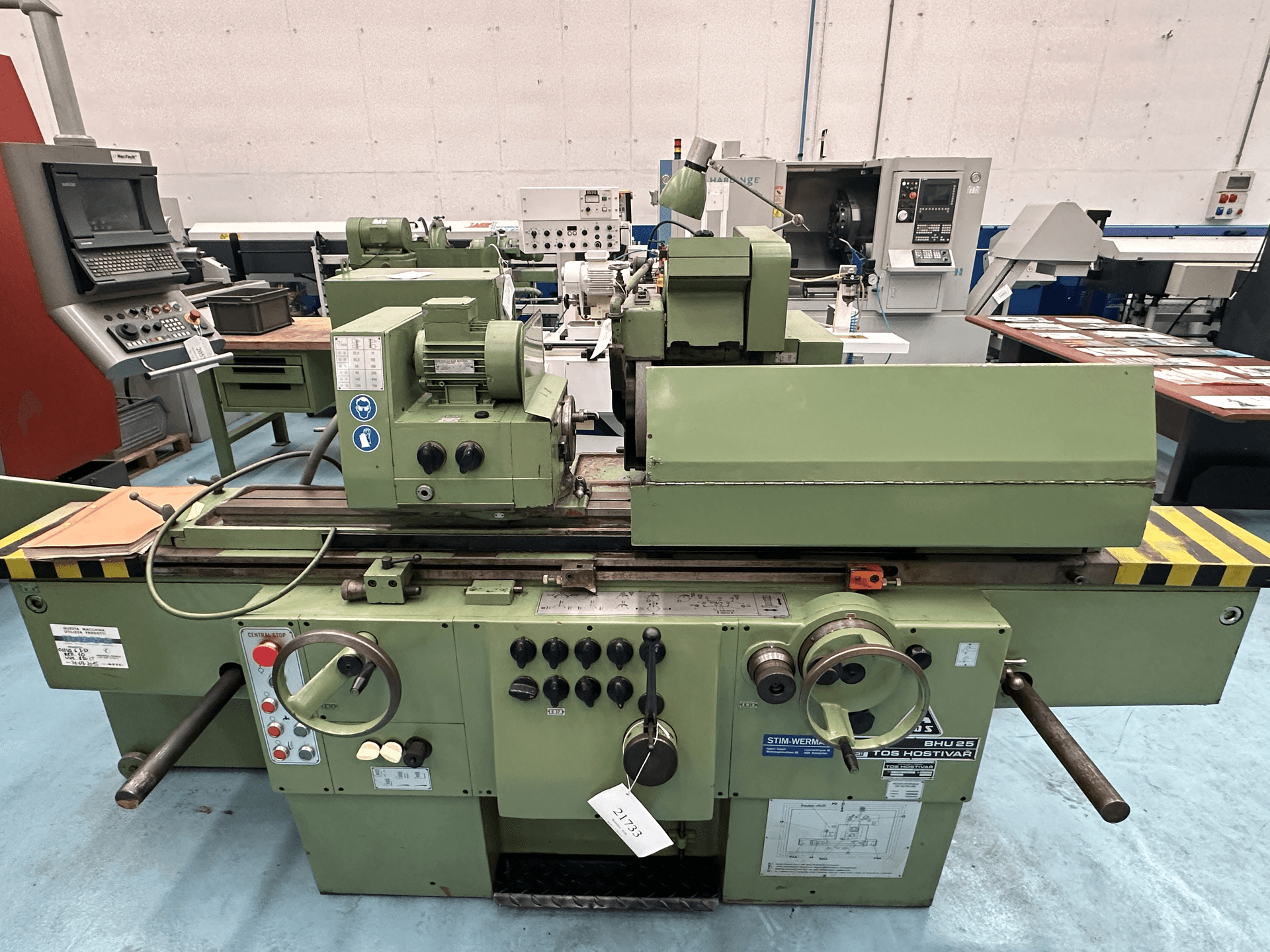

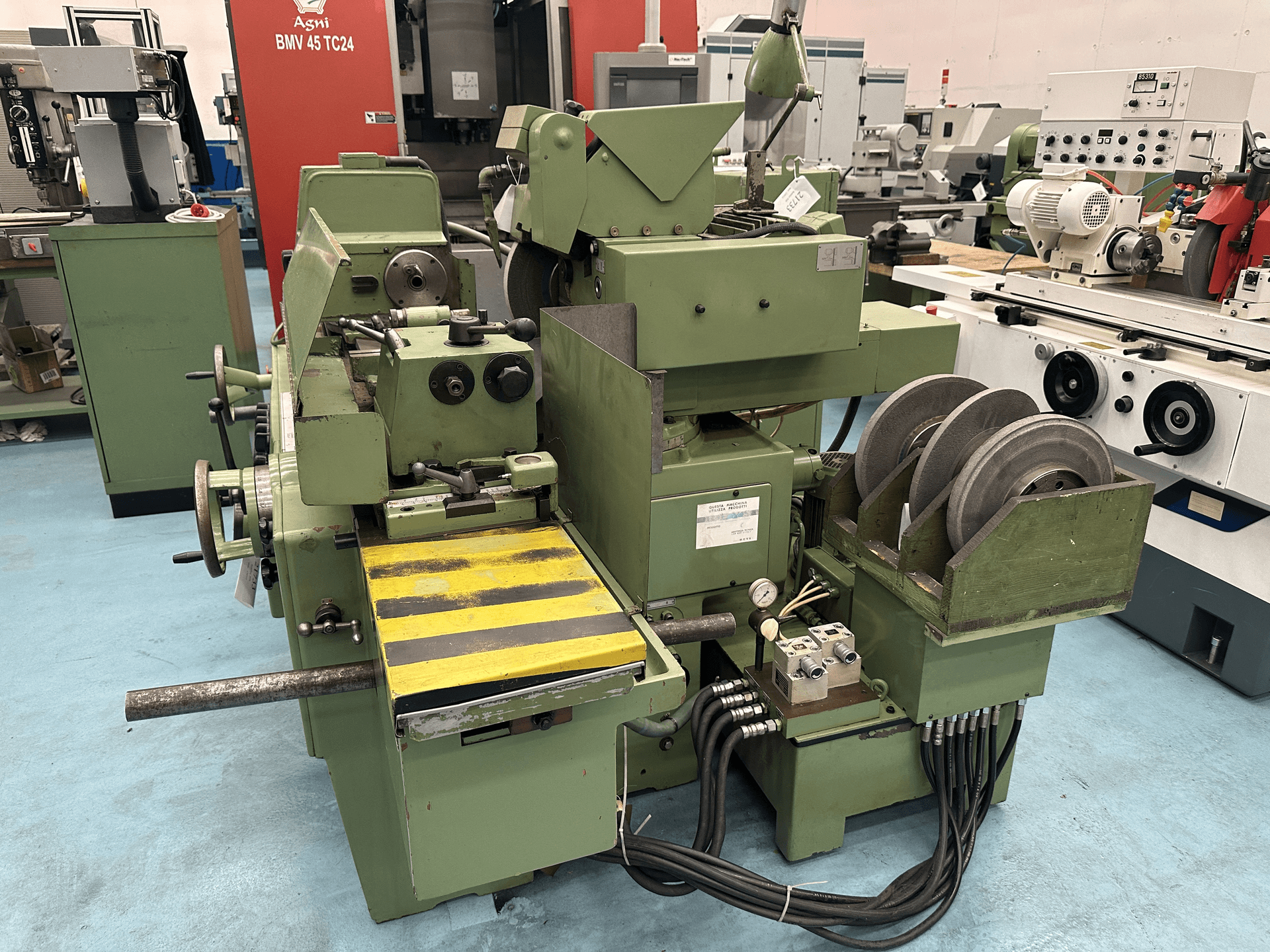

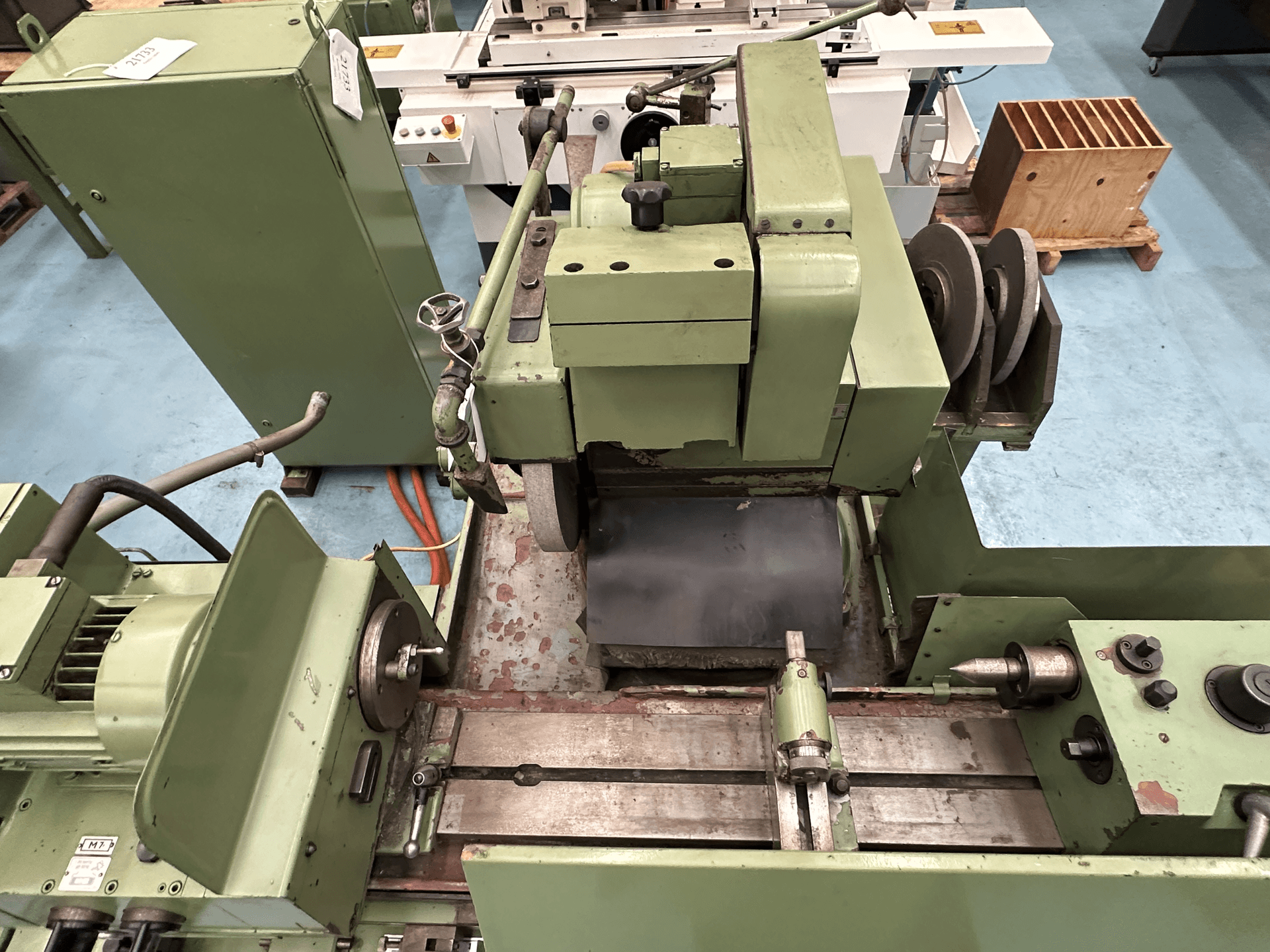

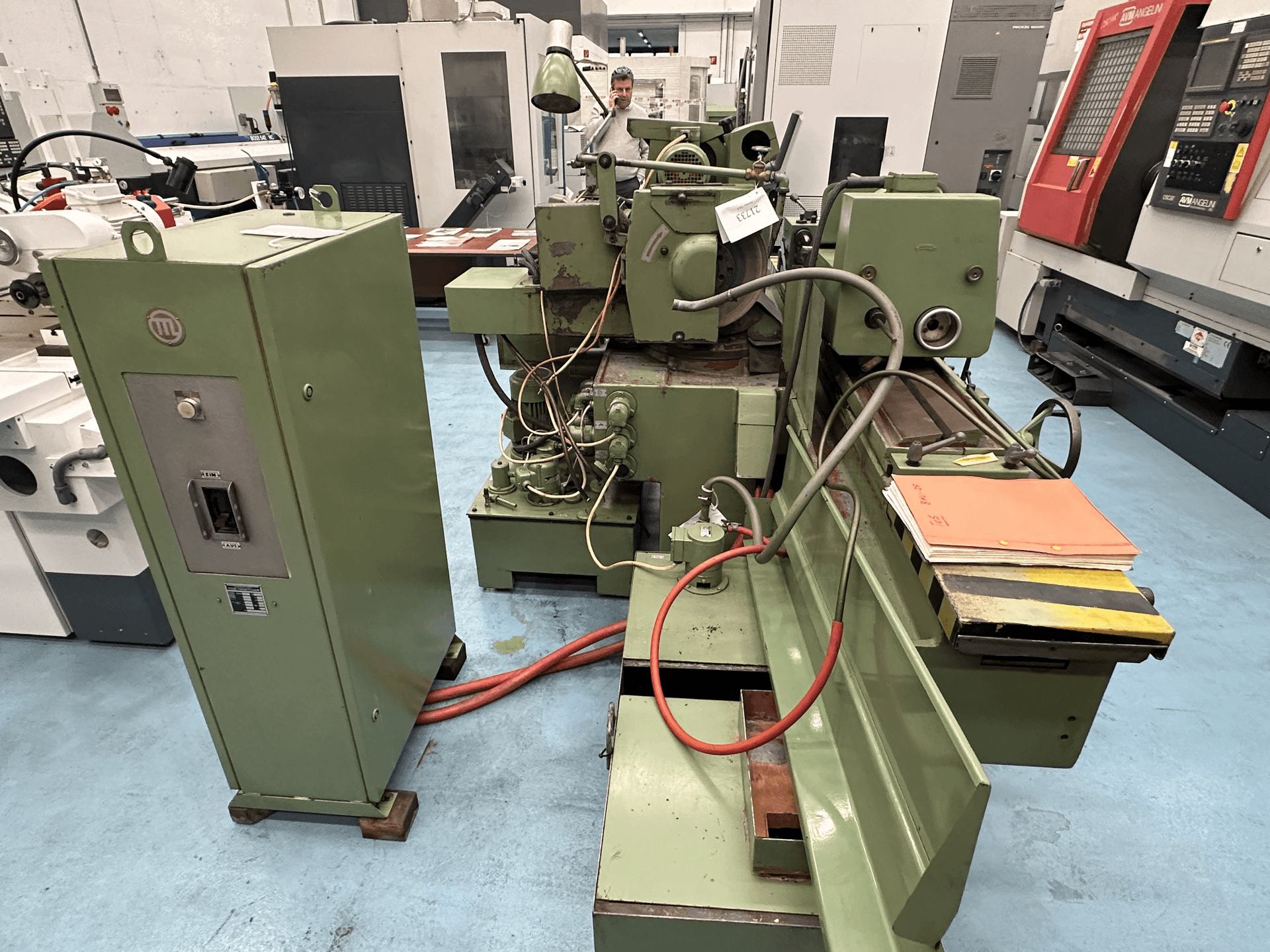

021733 - TOS BHU25

Description

{"Distance between centres": "1000 mm", "Swing diameter": "280 mm", "Max. Longitudinal travel": "1130 mm", "Max. transversal travel": "245 mm", "Grinding wheel:": "", "Diameter": "400 mm", "Width": "1400 mm", "Bore": "127 mm", "grinding wheel width": "63 mm", "Workpiece weight on centres max.": "60 kg", "Grinding wheel speeds:": "", "number (steps)": "12", "from": "22 t/min", "up to": "710 t/min", "Angular displacement": "+/-60 \u00b0", "Work piece spindle head:": "", "speeds:": "", "Swivelling range": "90 \u00b0", "Spindle taper": "4 CM", "Taper in tailstock:": "3 CM", "Table angular displacement": "+/- 7 \u00b0", "Voltage 50 Hz 3x": "380 Volt", "External Grinding wheel motor": "4 kW", "Total power required": "8 kVA", "Machine's weight about": "2500 kg", "Overall dimensions machine:": "", "Length": "1600 mm", "Height": "1300 mm", "Various accessories:": "", "Tailstock with fine adjustement": "", "Redressing device": "", "Coolant system": "", "Lamp": ""}
