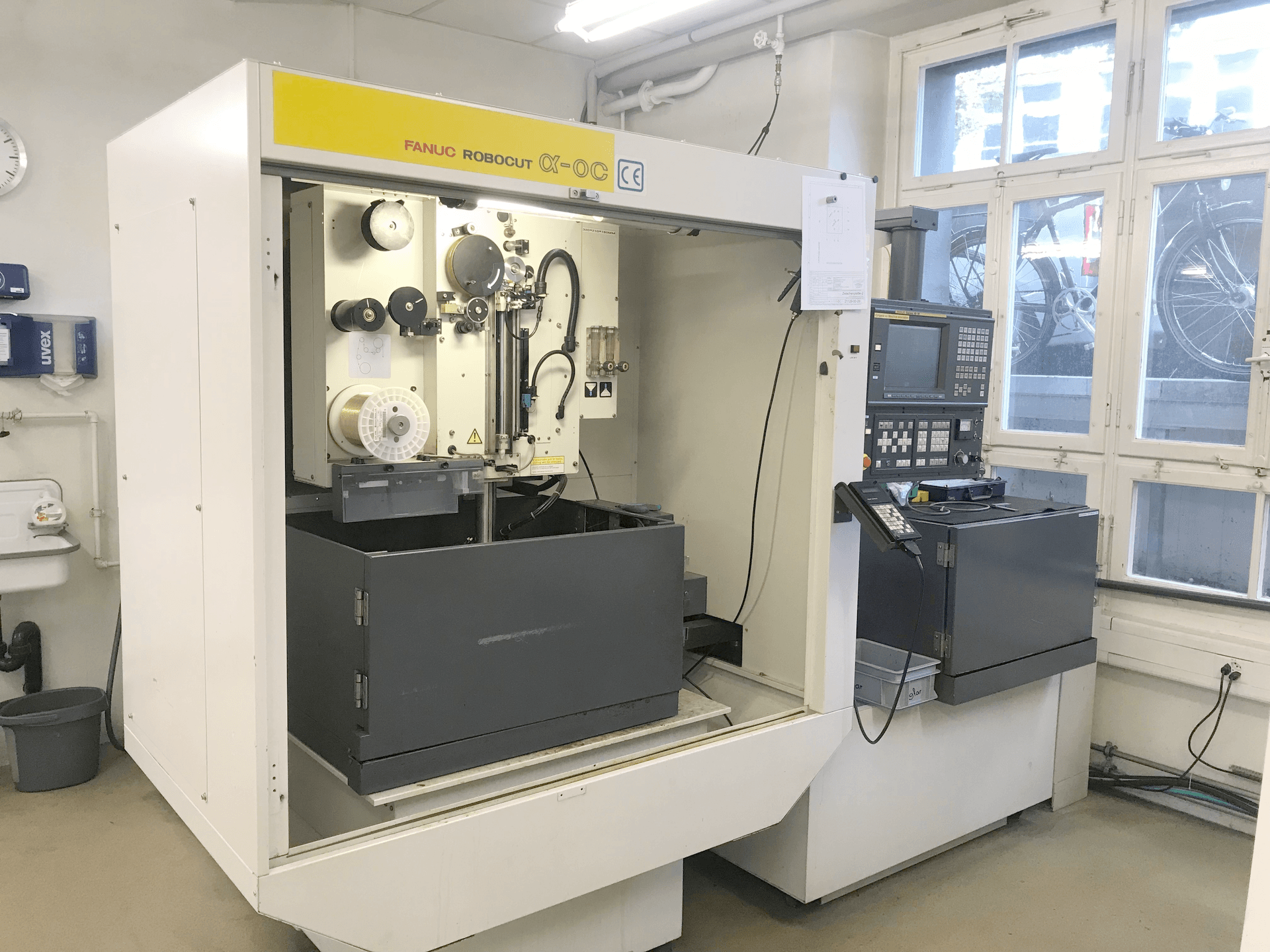

021706 - FANUC Robocut Alpha 0C

Description

{"Max. dimensions of work piece:": "", "Length": "1800 mm", "Width": "1600 mm", "Height": "2000 mm", "Table load max.": "250 kg", "Longitudinal traverse (X-axis)": "320 mm", "Cross traverse (Y-axis)": "220 mm", "Vertical travel (Z axis)": "180 mm", "U axis": "120 mm", "V-axis": "120 mm", "Rapid traverse:": "900 mm/min", "Taper-cut +/-": "30 \u00b0", "Diameter of electrode wire:": "", "from": "0.1 mm", "up to": "mm", "Max. coil weigth": "6 kg", "Total power required": "11 kVA", "Total volume of dielektric": "390 l", "Voltage 50 Hz 3x": "400 Volt", "Machine's weight about": "1500 kg", "Overall dimensions machine:": "", "Various accessories:": "", "Lamp": "", "Interface serial port RS 232": ""}
