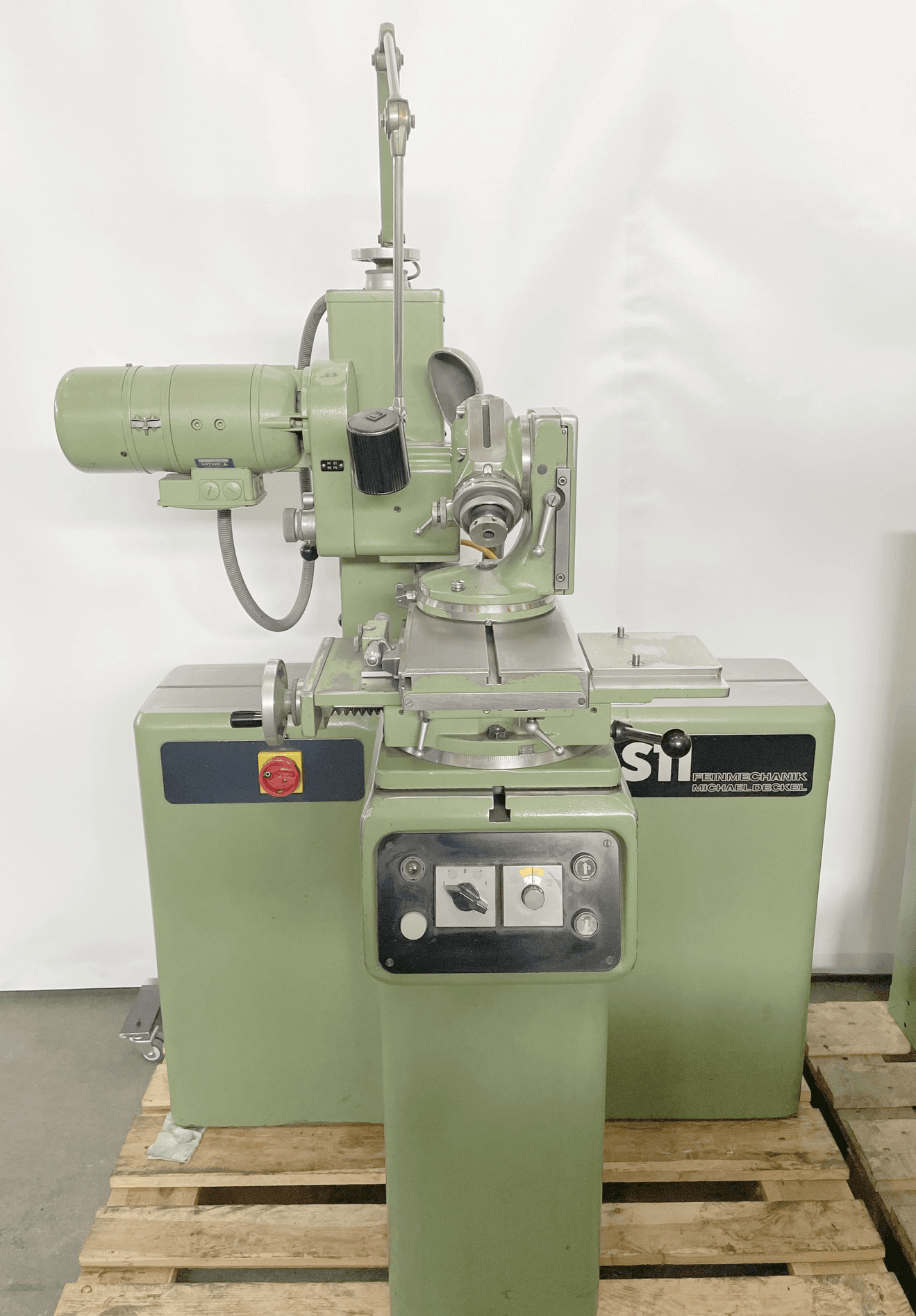

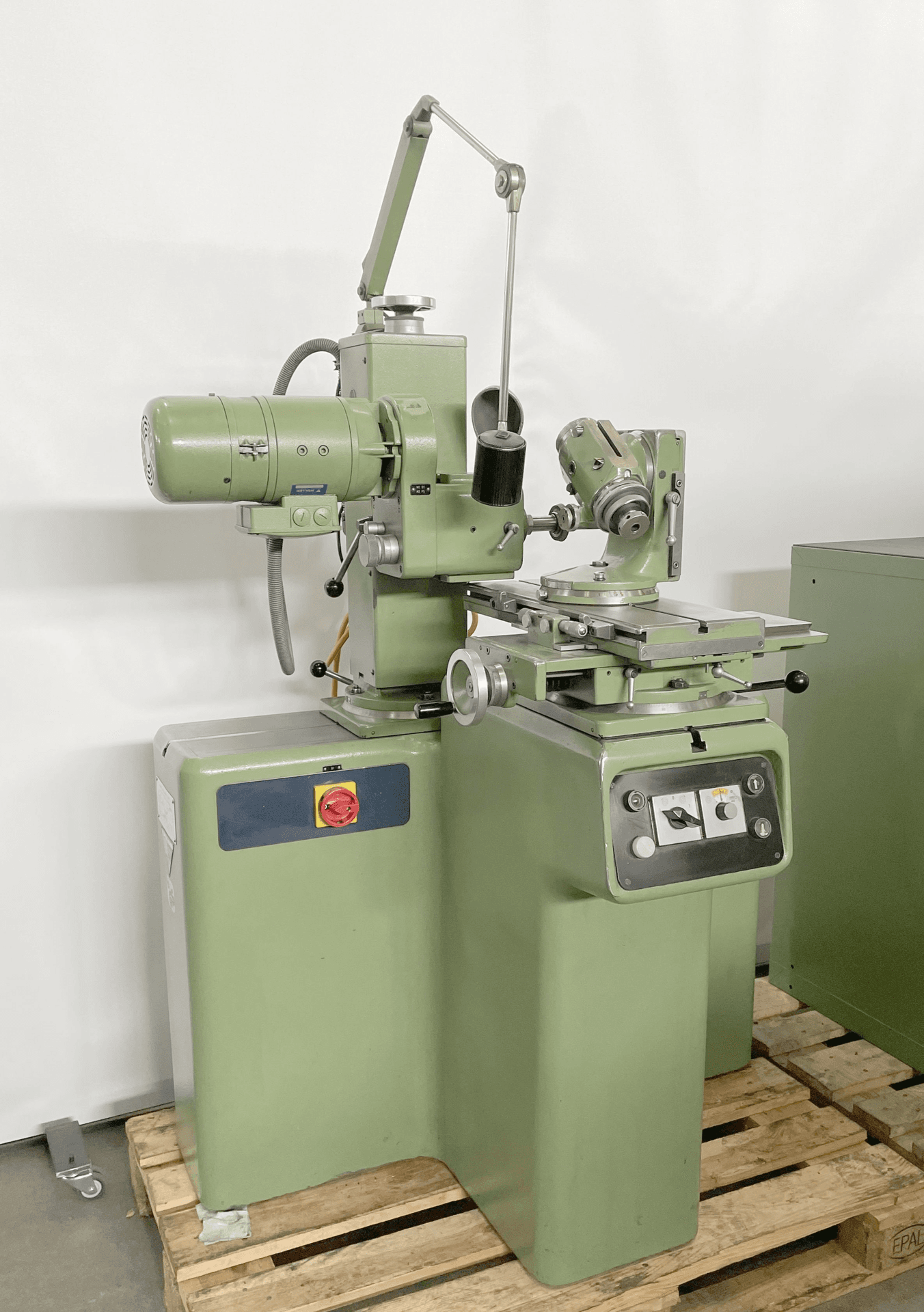

021649 - DECKEL S 11

Description

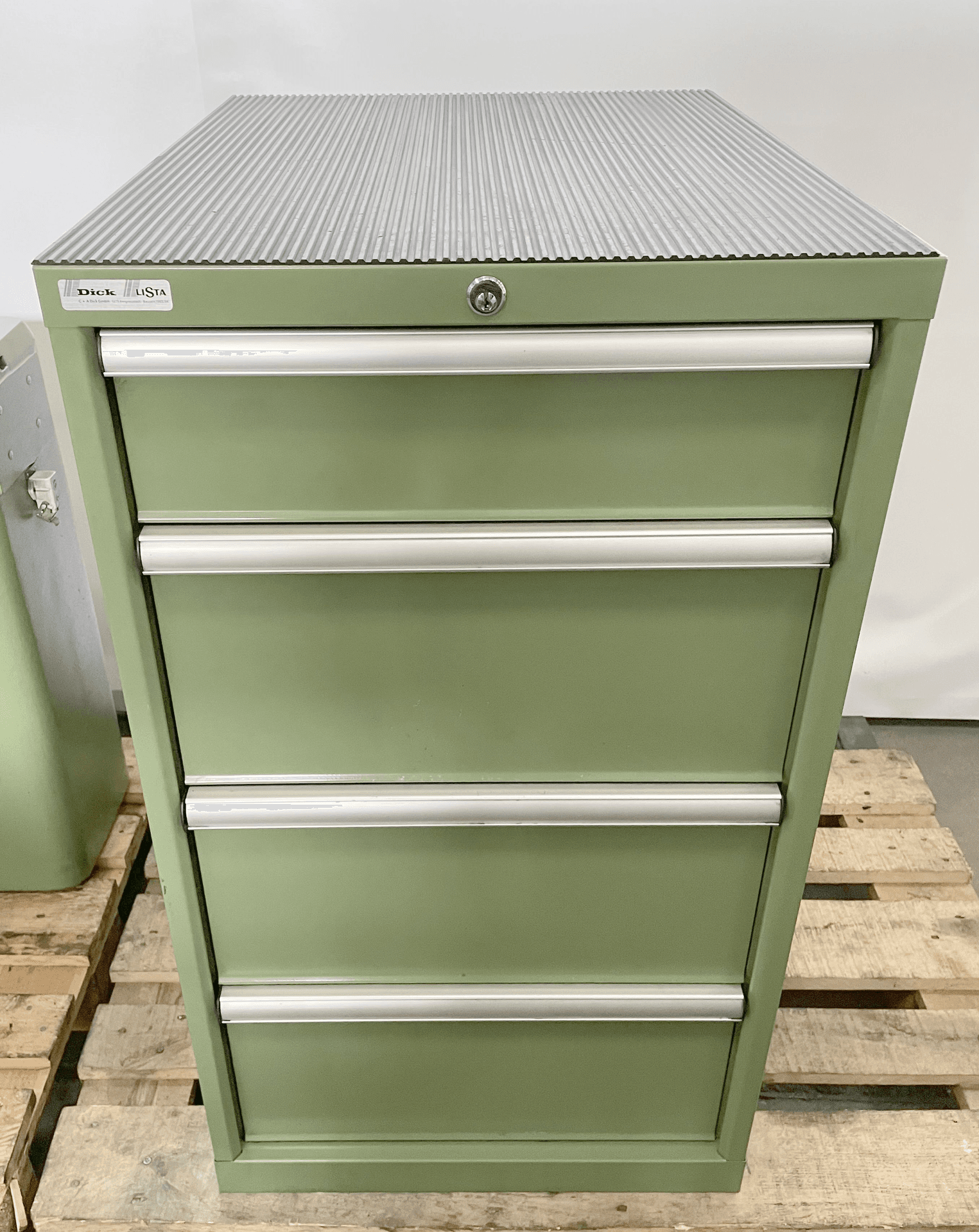

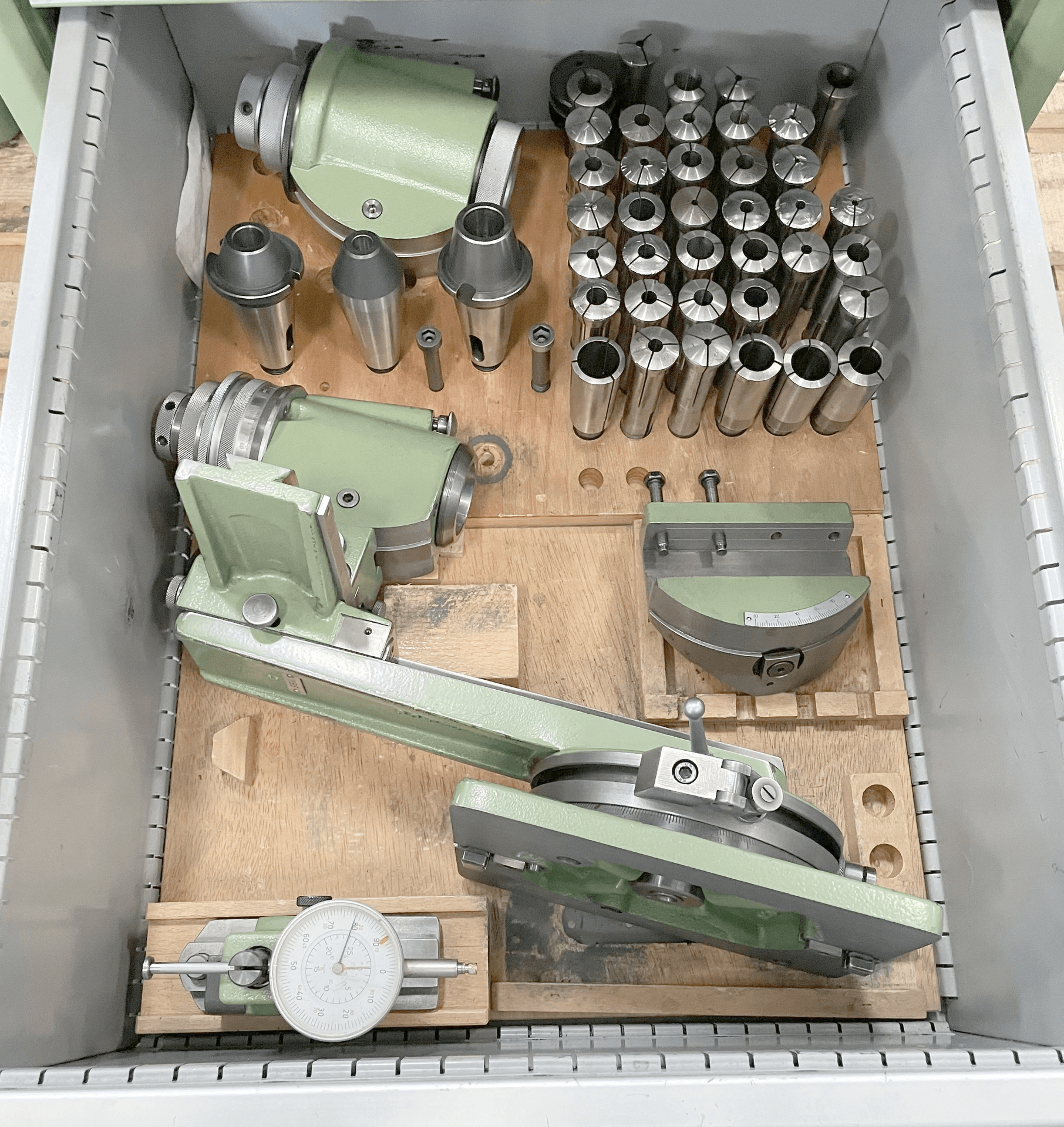

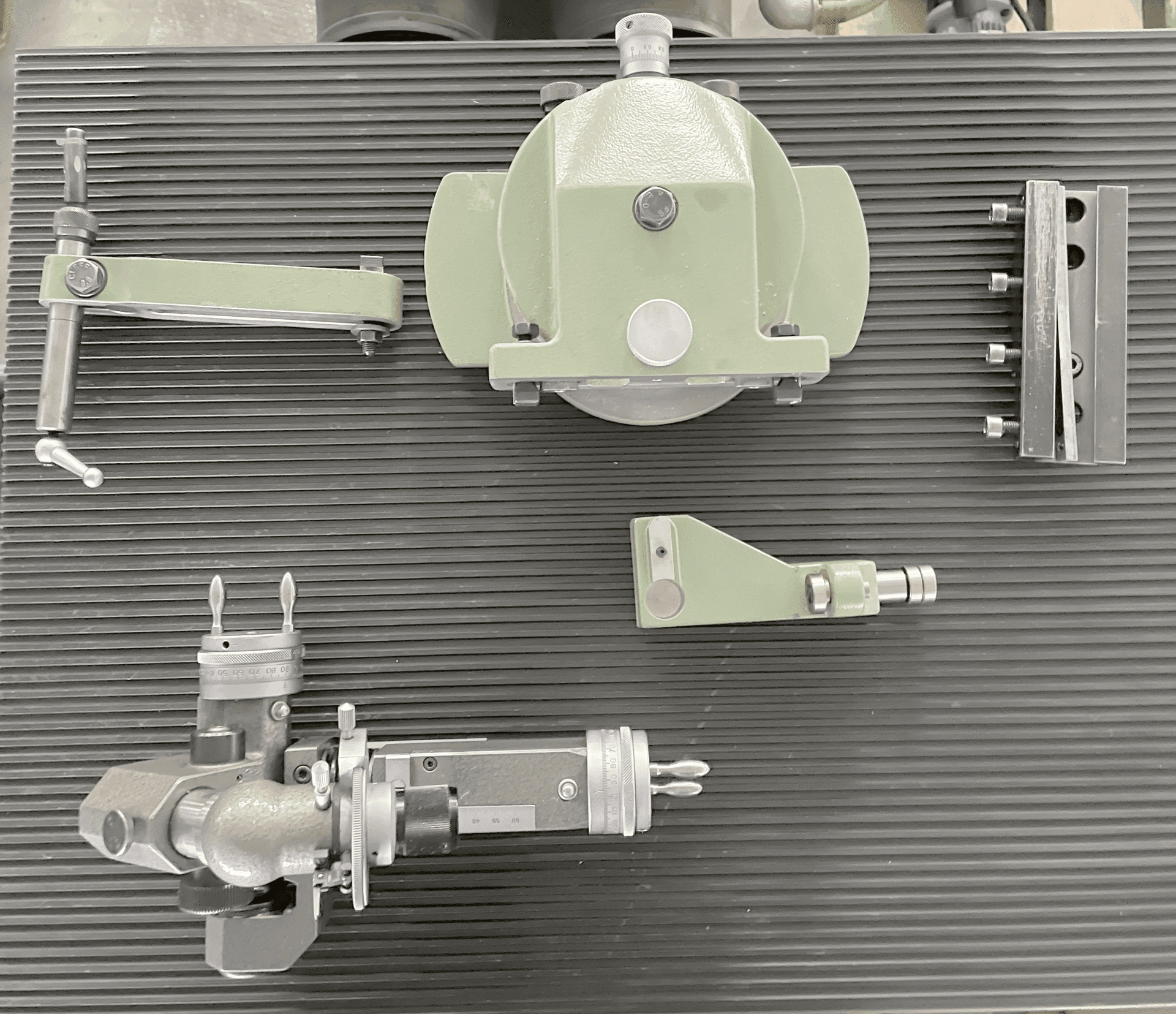

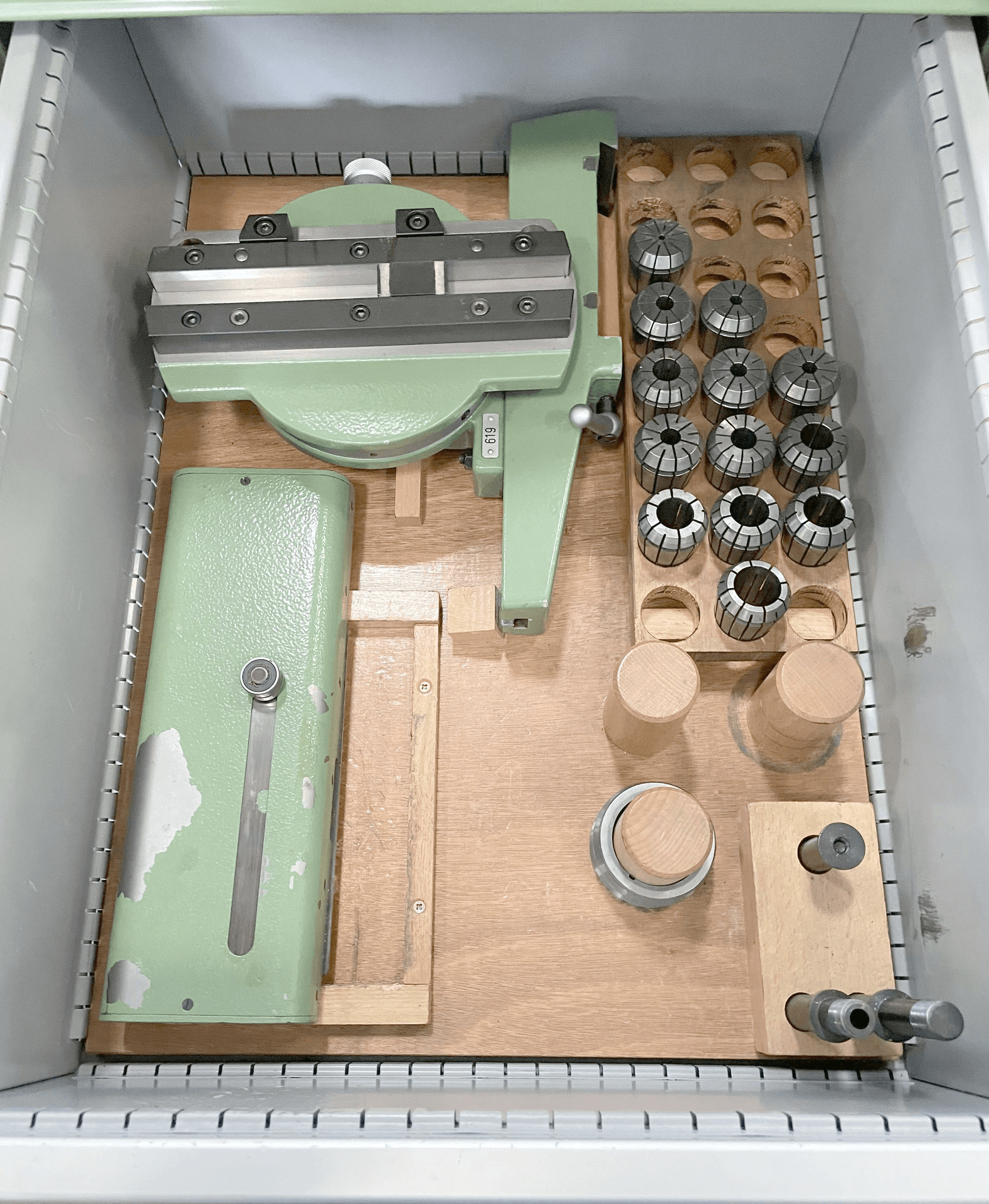

{"Centre height": "300 mm", "Distance between centres": "380 mm", "Table length": "500 mm", "Table width": "180 mm", "Max. grinding diameter": "238 / 620 mm", "Max. grinding wheel diamter": "125 mm", "Longitudinal way of table": "mm", "Transversal way of the table": "220 mm", "Axial motion:": "", "Crosswise": "100 mm", "Longitudinal": "190 mm", "Vertical": "325 mm", "Vertical adjustment of grinding head": "325 mm", "Slewing range of grinding head:": "", "horizontal": "360 \u00b0", "vertical": "360 \u00b0", "rotary axis of the grinding spindle head": "360 \u00b0", "Grinding spindle speeds:": "", "number (steps)": "2", "from": "400 t/min", "up to": "8000 t/min", "Voltage 50 Hz 3x": "380 Volt", "Grinding spindle motor": "1.3 kW", "Total power required": "2 kVA", "Machine's weight about": "500 kg", "Overall dimensions machine:": "", "Length": "1100 mm", "Width": "800 mm", "Height": "1760 mm", "Various accessories:": "", "Tool cabinet": "", "Dial gauge": "", "Set of collets": "ESX", "Dividing attachment universal": "", "Lamp": "", "Microscope": "", "Radius grinding attachment": "", "Spin- and relief grinding attachment": "", "Grinding wheel guard": ""}
