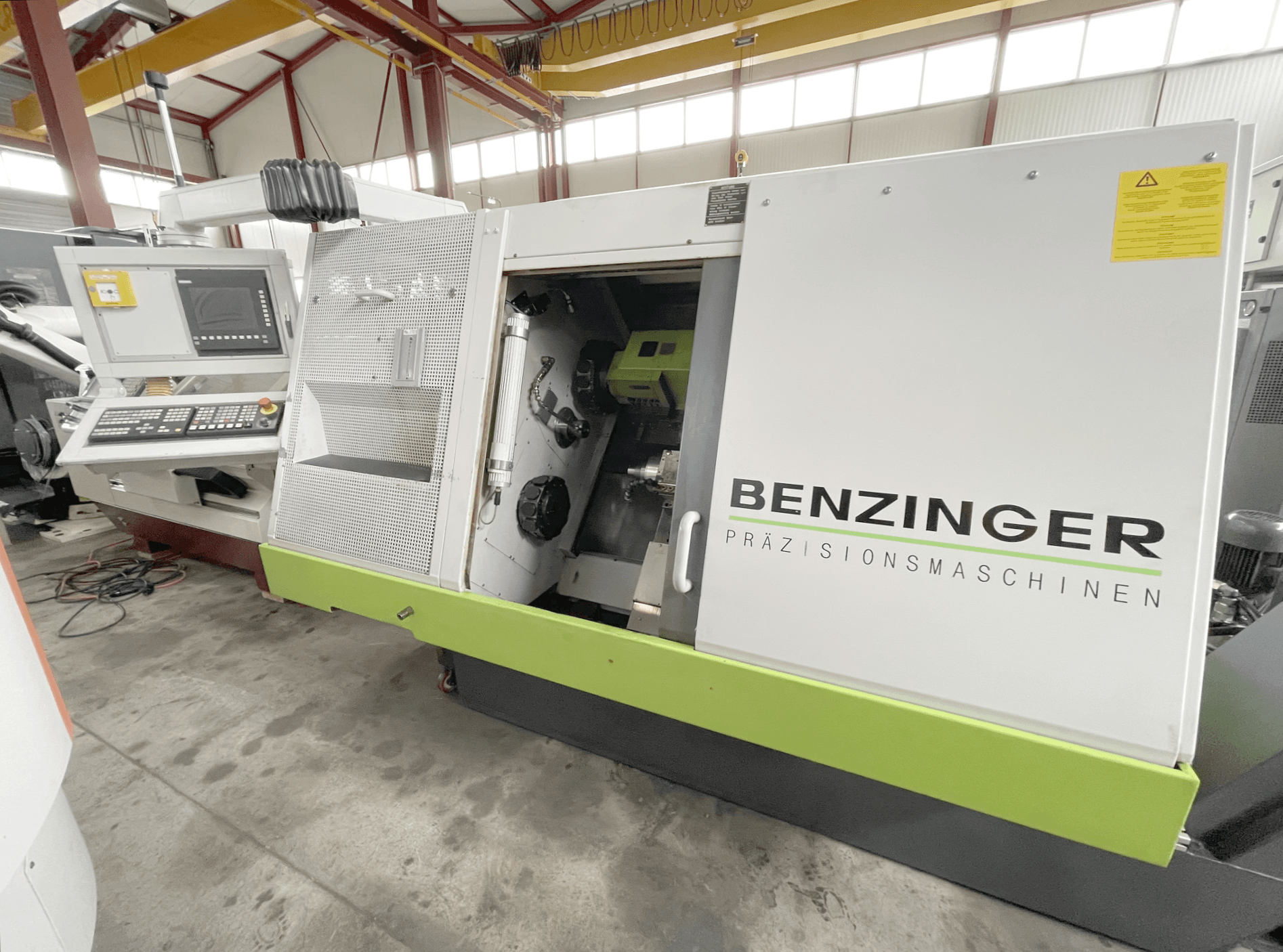

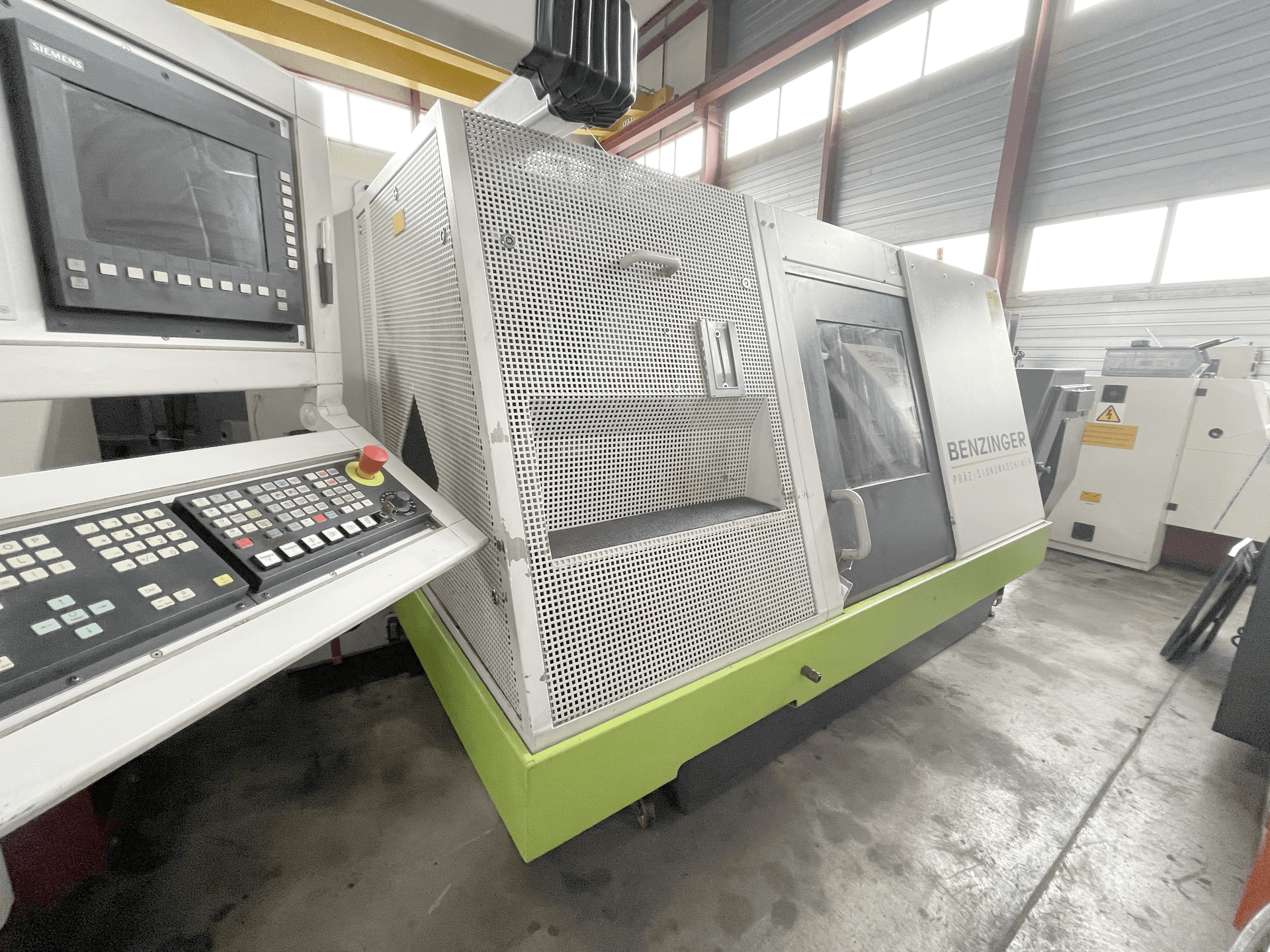

021405 - BENZINGER TNI-B6

Description

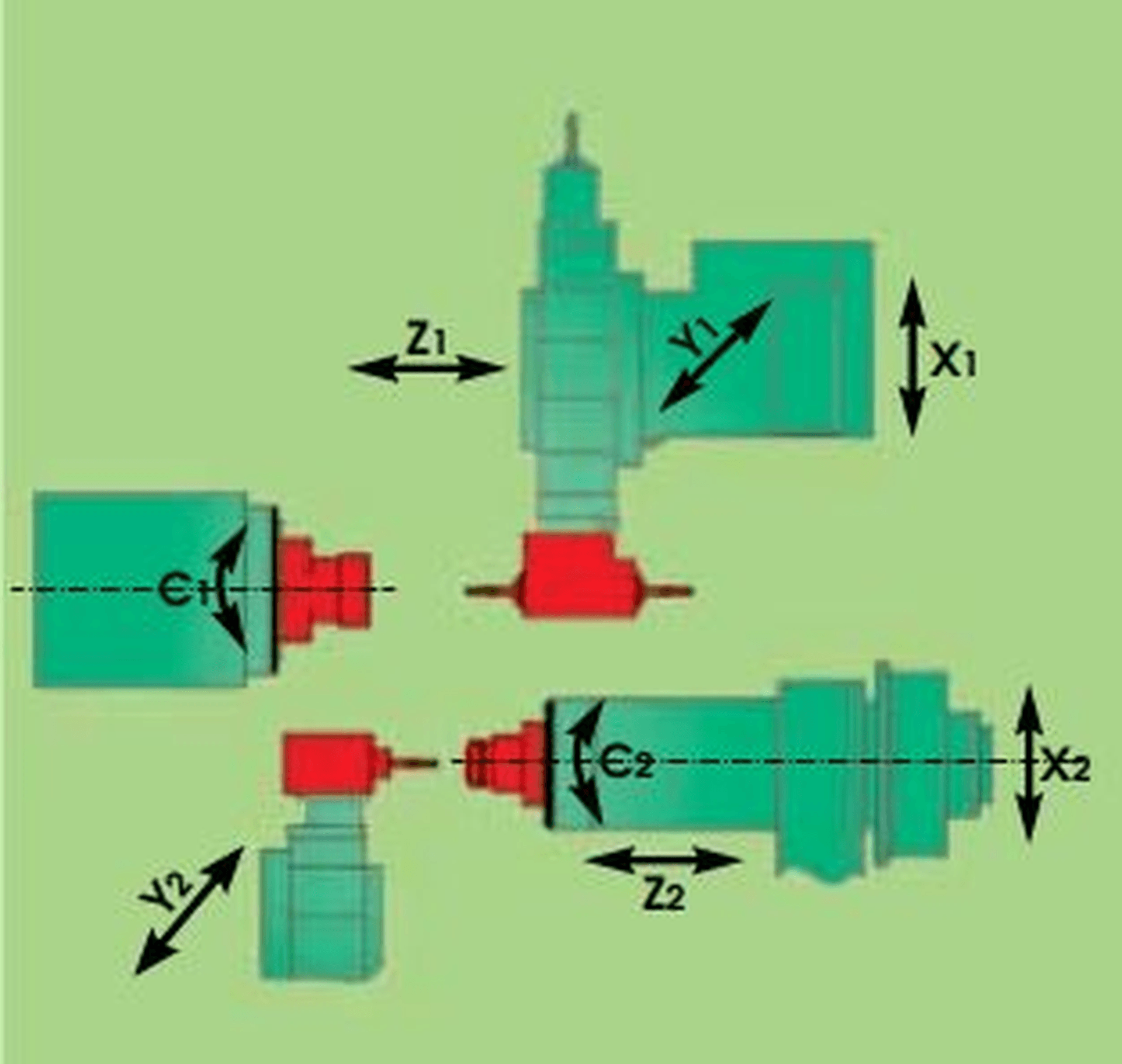

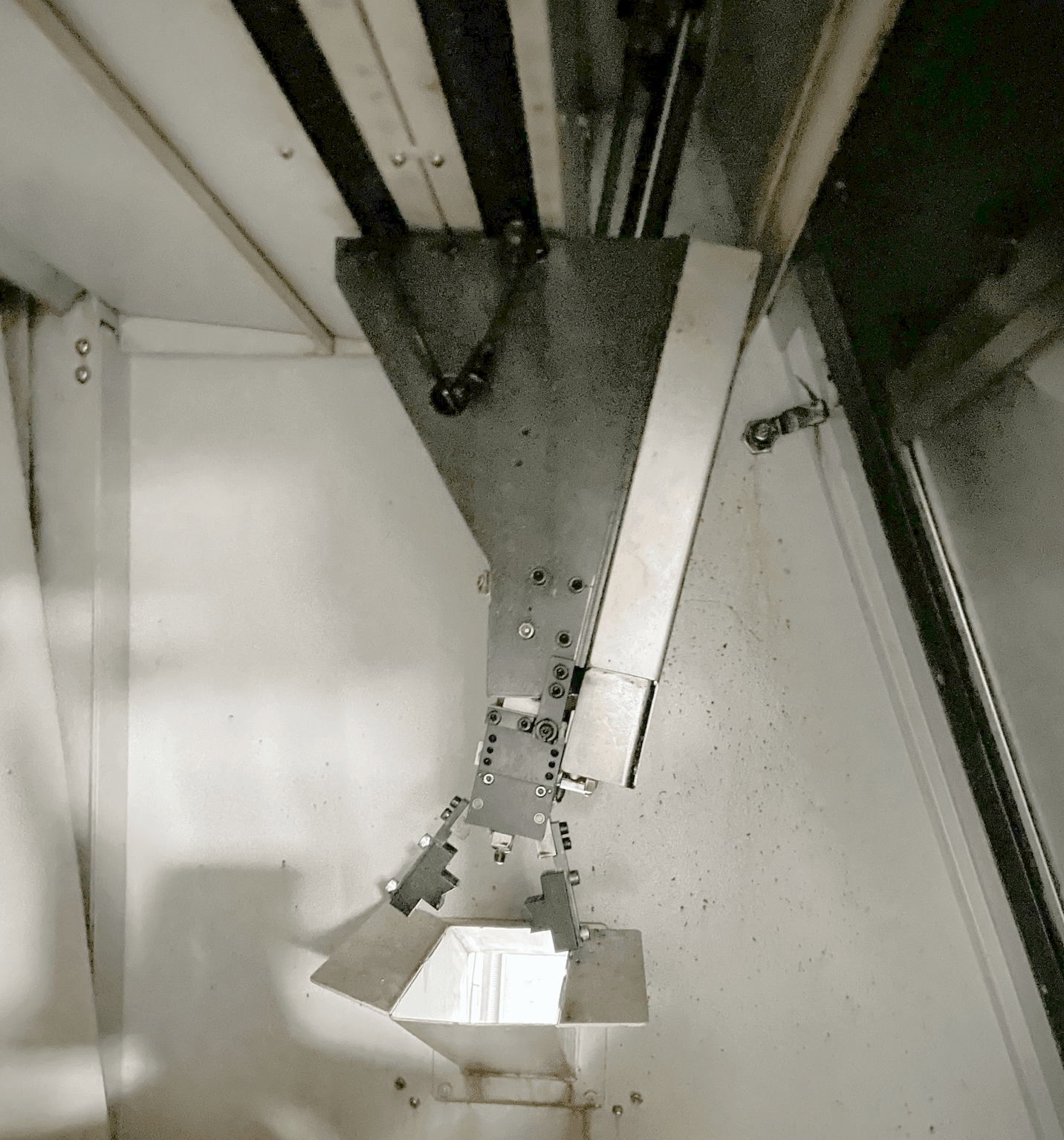

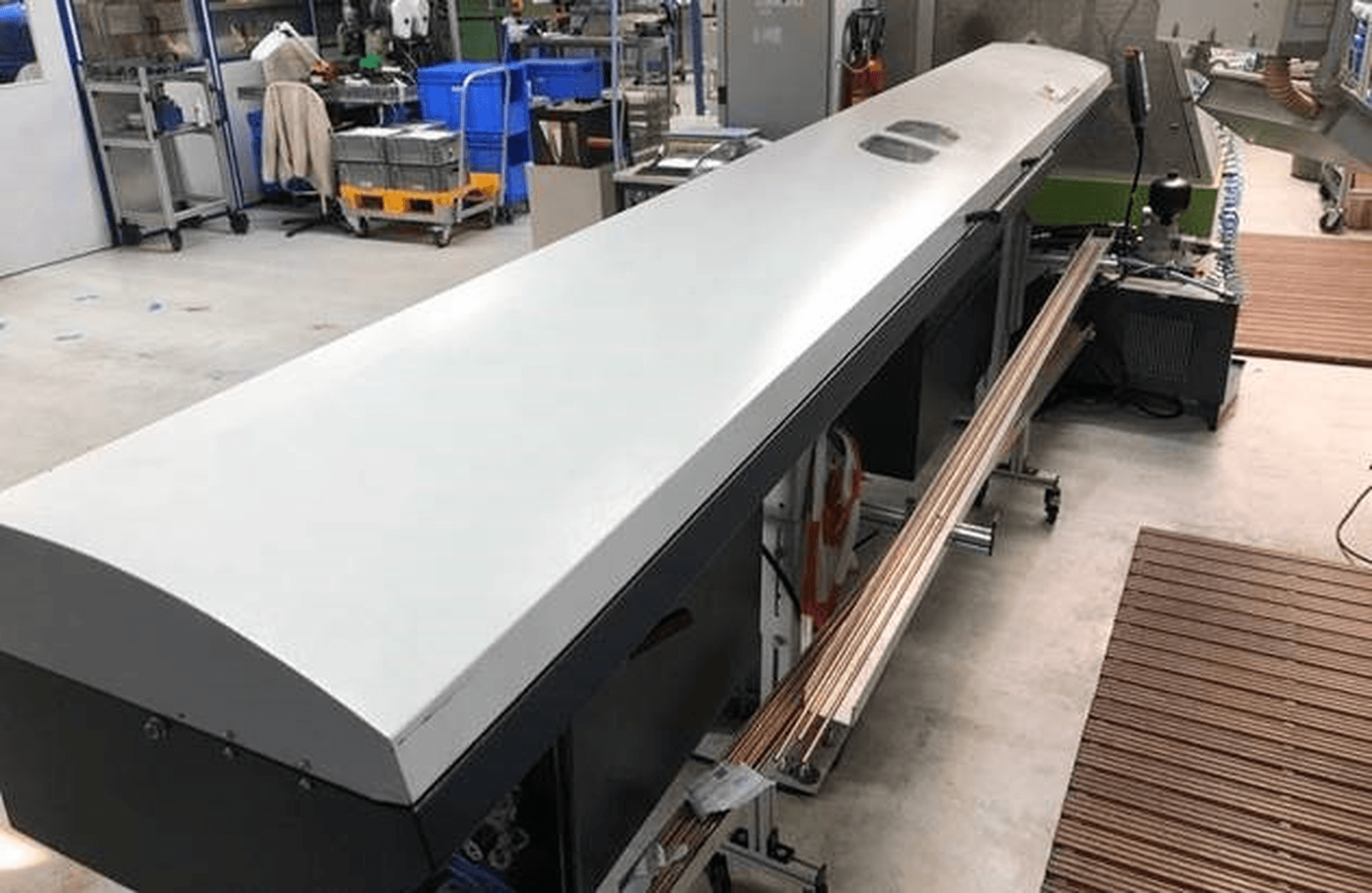

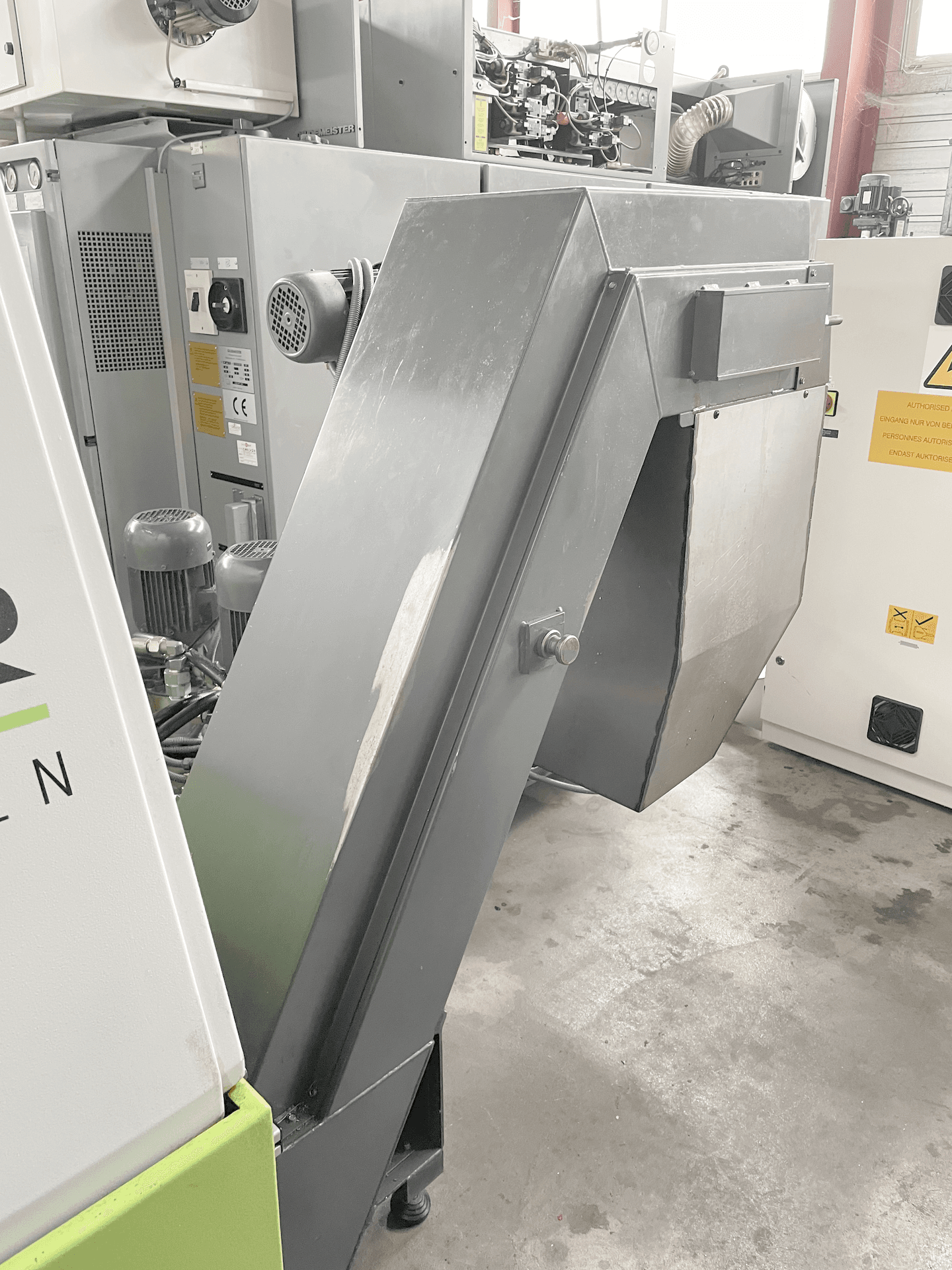

{"Number of axis total": "7", "Number of spindles": "2", "Number of revolvers": "2", "Spindle nose": "DIN 55026 A4", "Spindle hole": "32 mm", "Travels:": "", "X1": "180 mm", "X2": "195 mm", "Z1": "340 mm", "Z2": "440 mm", "Y1": "+40/-40 mm", "Y2": "+40/-25 mm", "Y axis": "70 (-30/+40) mm", "Turret slide: number": "2", "Number of positions turret 1": "16", "Number of positions turret 2": "12", "Driven tools turret 1": "16", "Driven tools turret 2": "12", "Spindle speeds": "6000 t/min", "Power of driven tools": "6 kW", "Spindle nose: VDI": "25 DIN 69880", "Main spindle:": "", "C axis": "", "Spindle speeds:": "", "stepless": "", "up to": "8000 t/min", "Back spindle mobile:": "", "max. speed": "8000 t/min", "Power of back spindle": "12 kW", "Spindle motor": "7 - 9 kW", "Air connect": "6 bar", "Voltage 50 Hz 3x": "400 Volt", "Total power required": "20 kW", "Machine's weight about": "4100 kg", "Overall dimensions machine:": "", "Length": "2350 mm", "Width": "1770 mm", "Height": "1925 mm", "Various accessories:": "", "Lamp": "", "Coolant system": "160 l", "Bar feeder": "LNS", "Type": "EXPRESS 332 S2", "Length of bars max.": "3000 mm", "Chip conveyor": "", "Unloading device": "", "Foot pedal": "", "Switch cabinet Air conditioner": "", "Fire extinguishing system (without bottle)": "", "Status light": ""}
