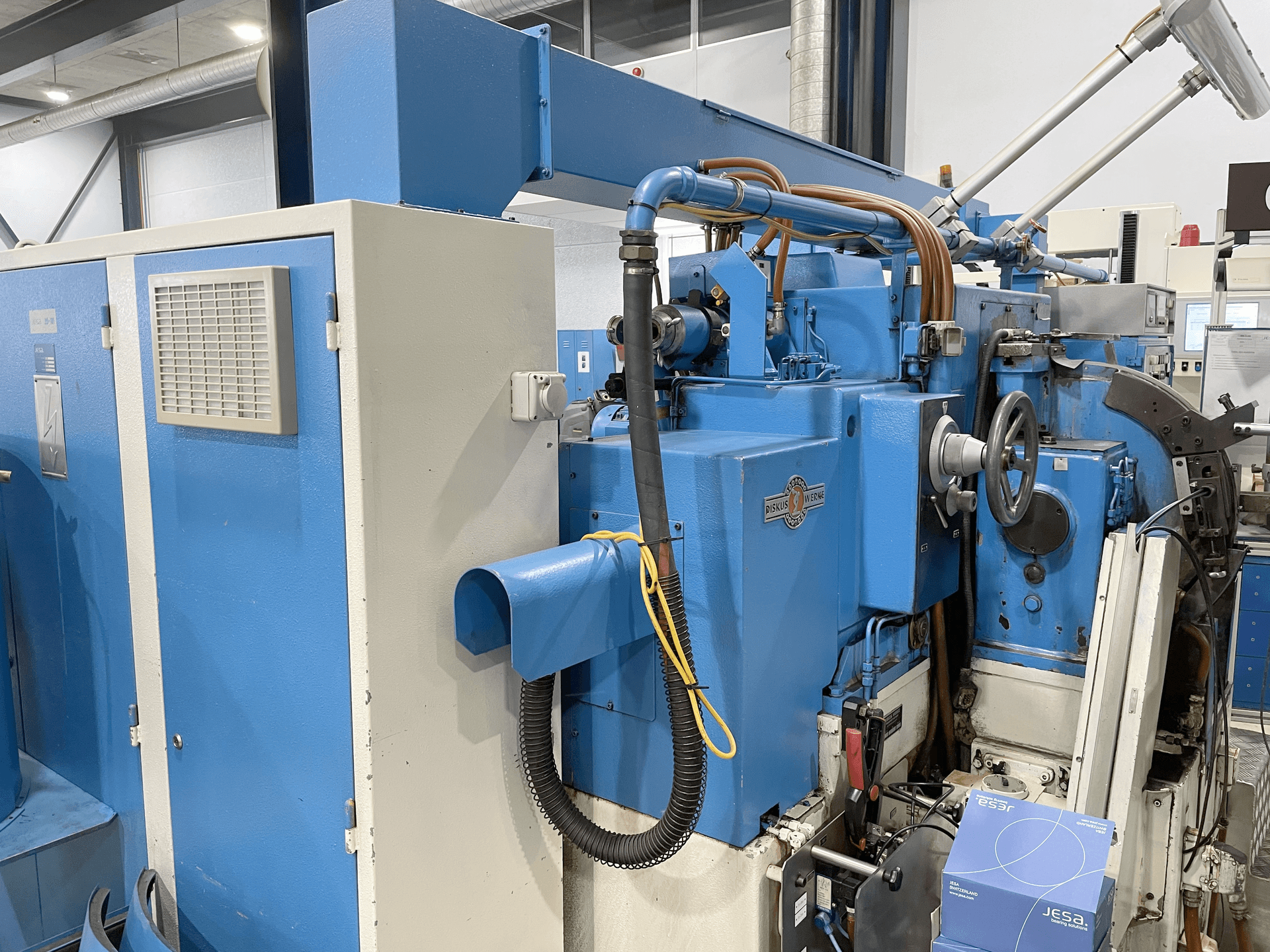

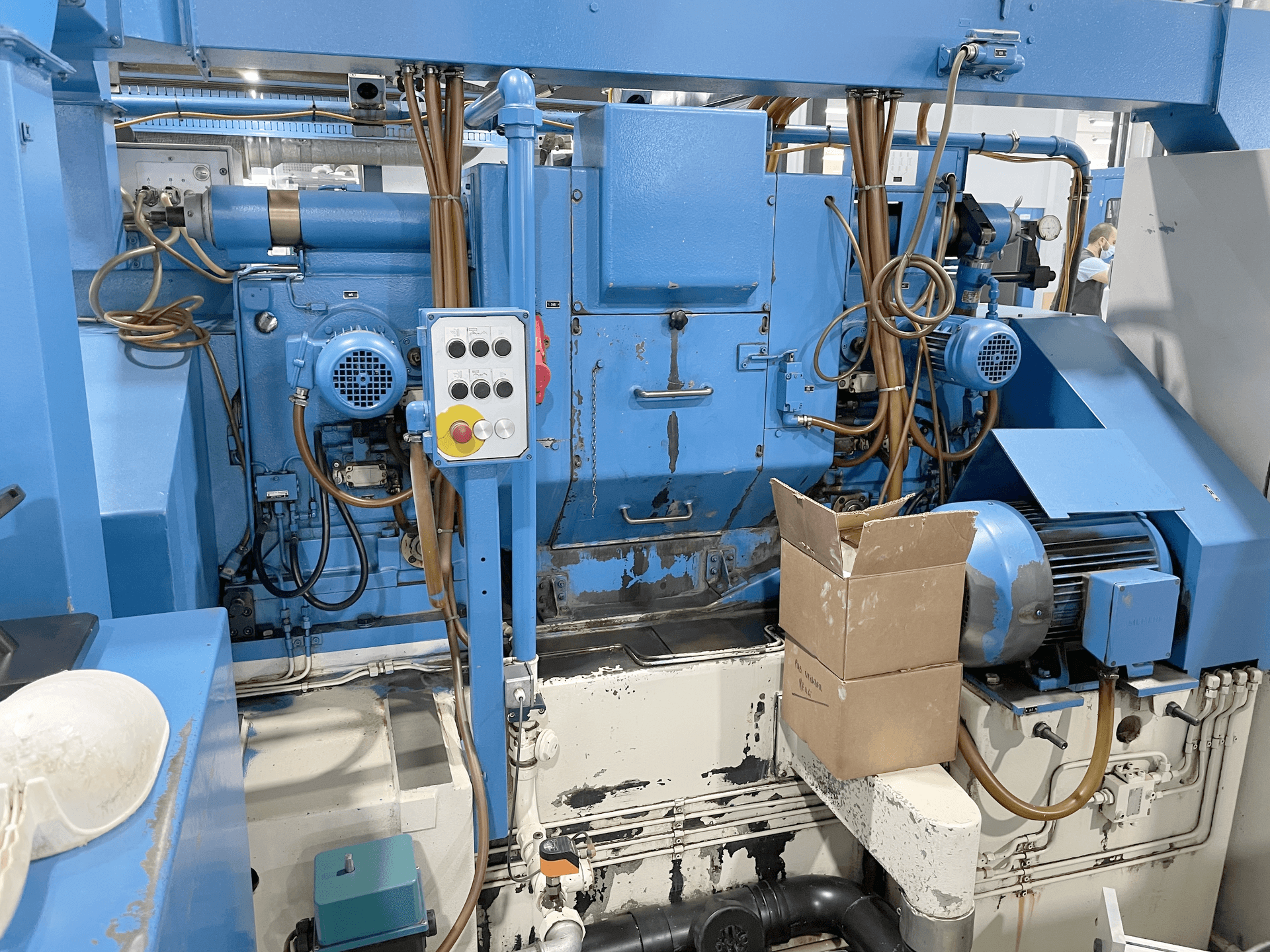

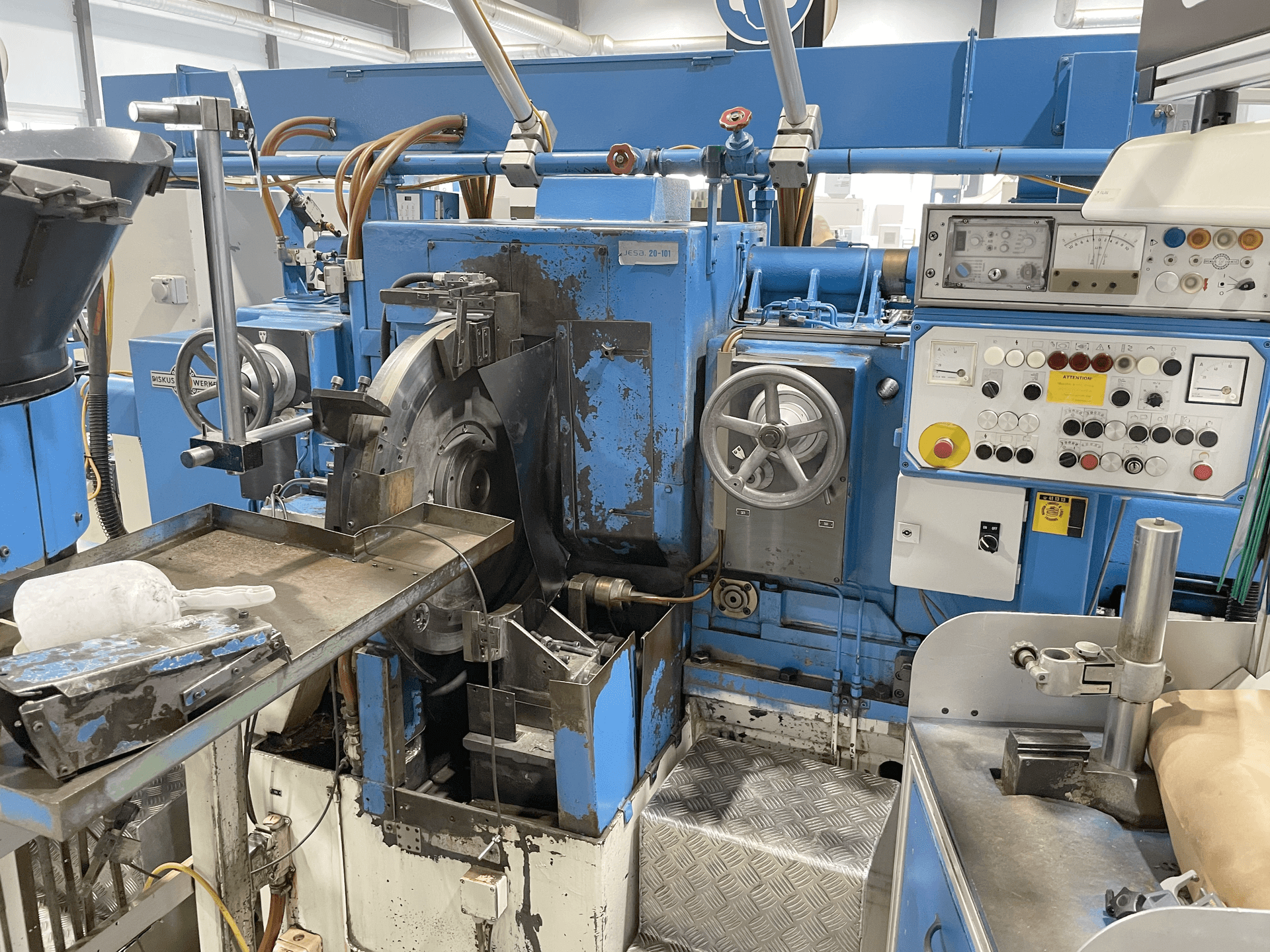

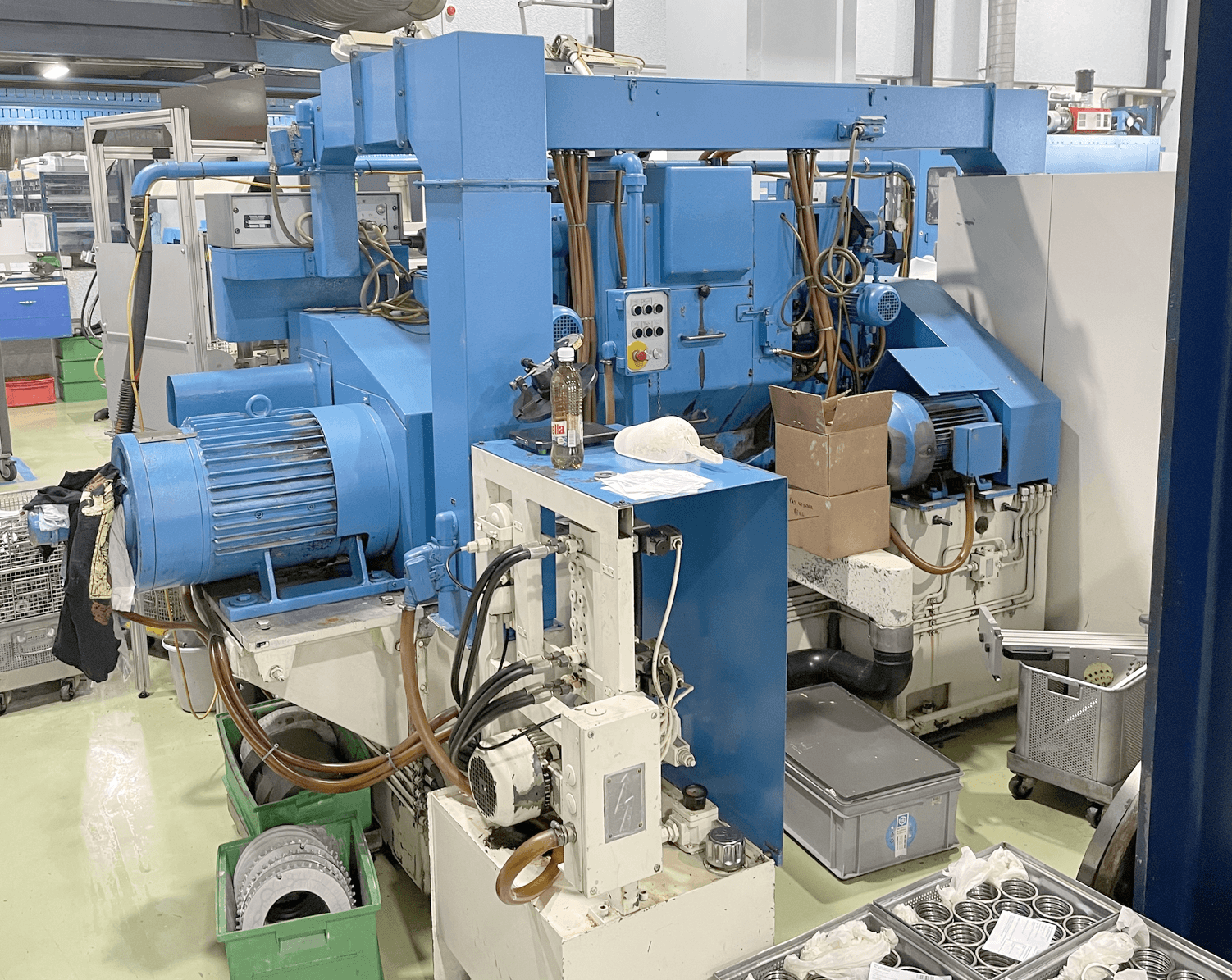

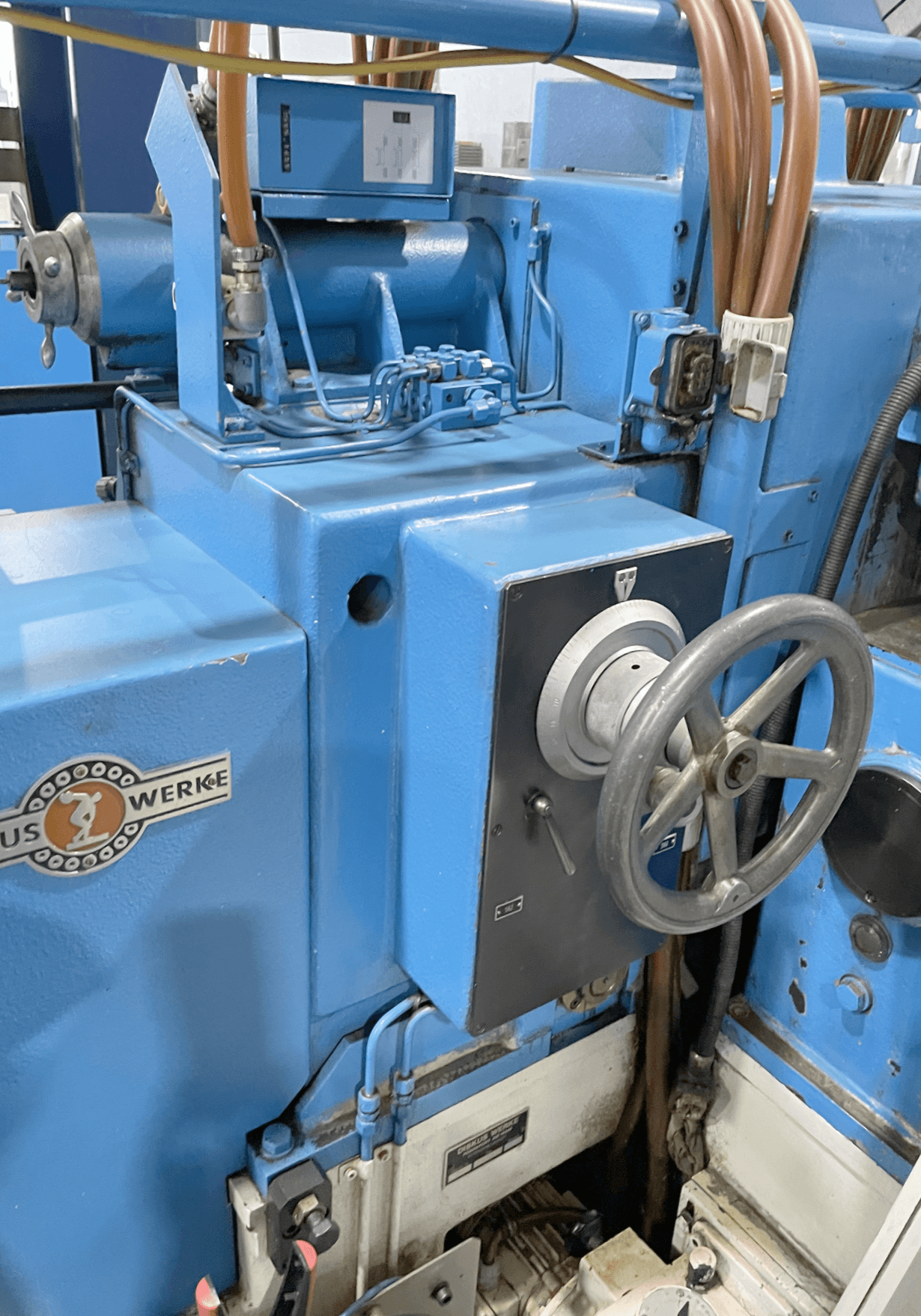

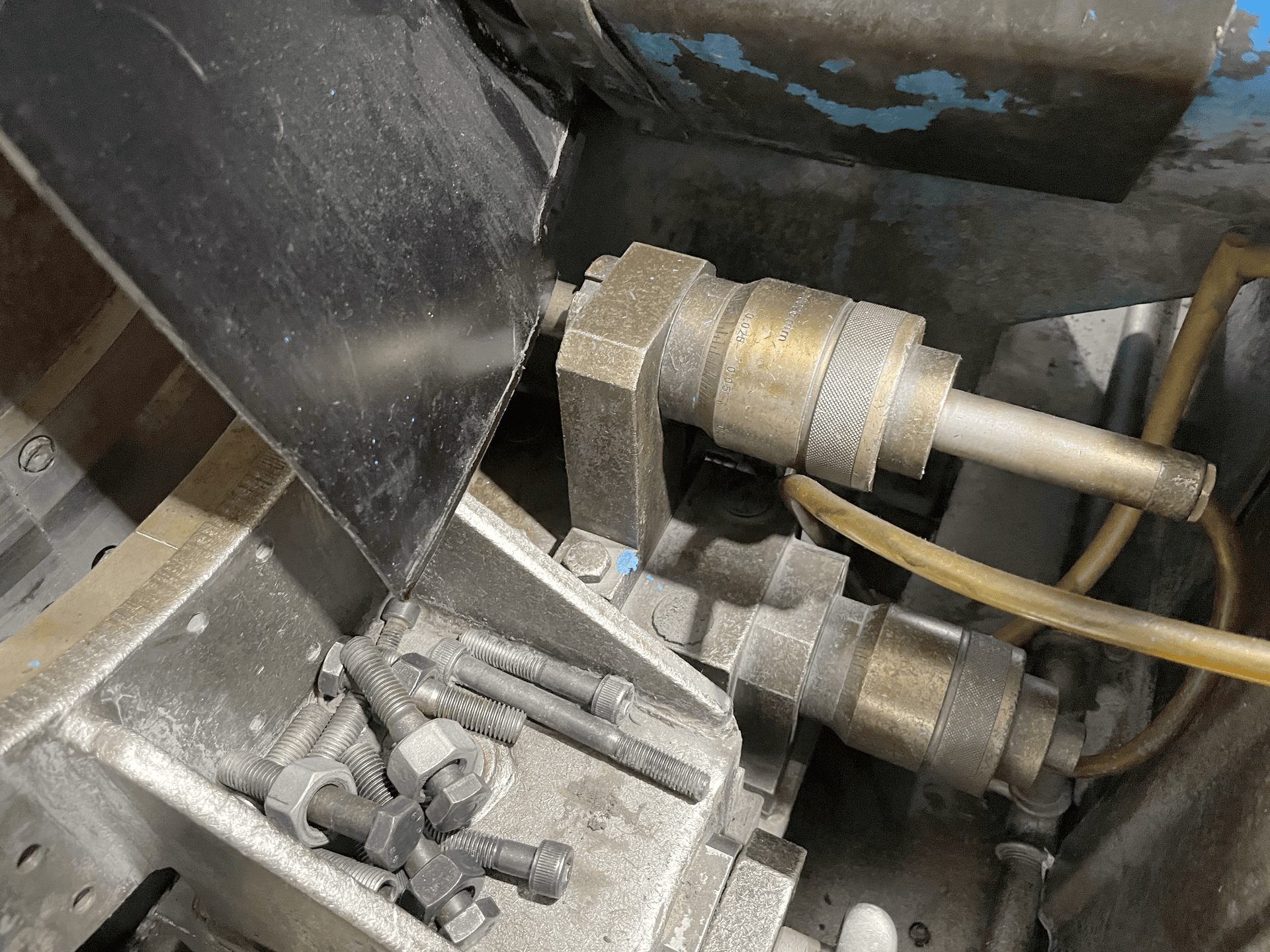

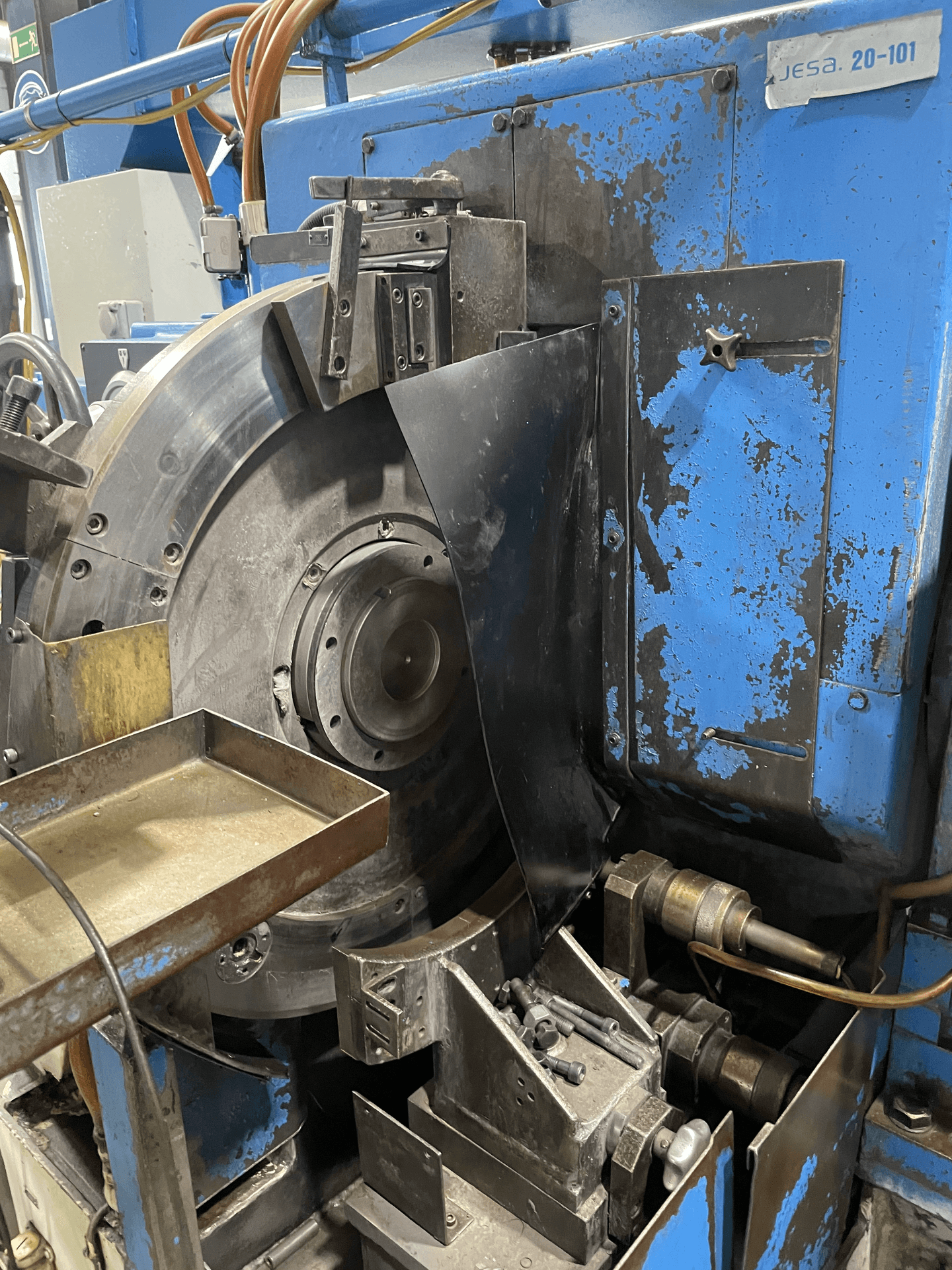

021401 - DISKUS DD 400 II CRM

Description

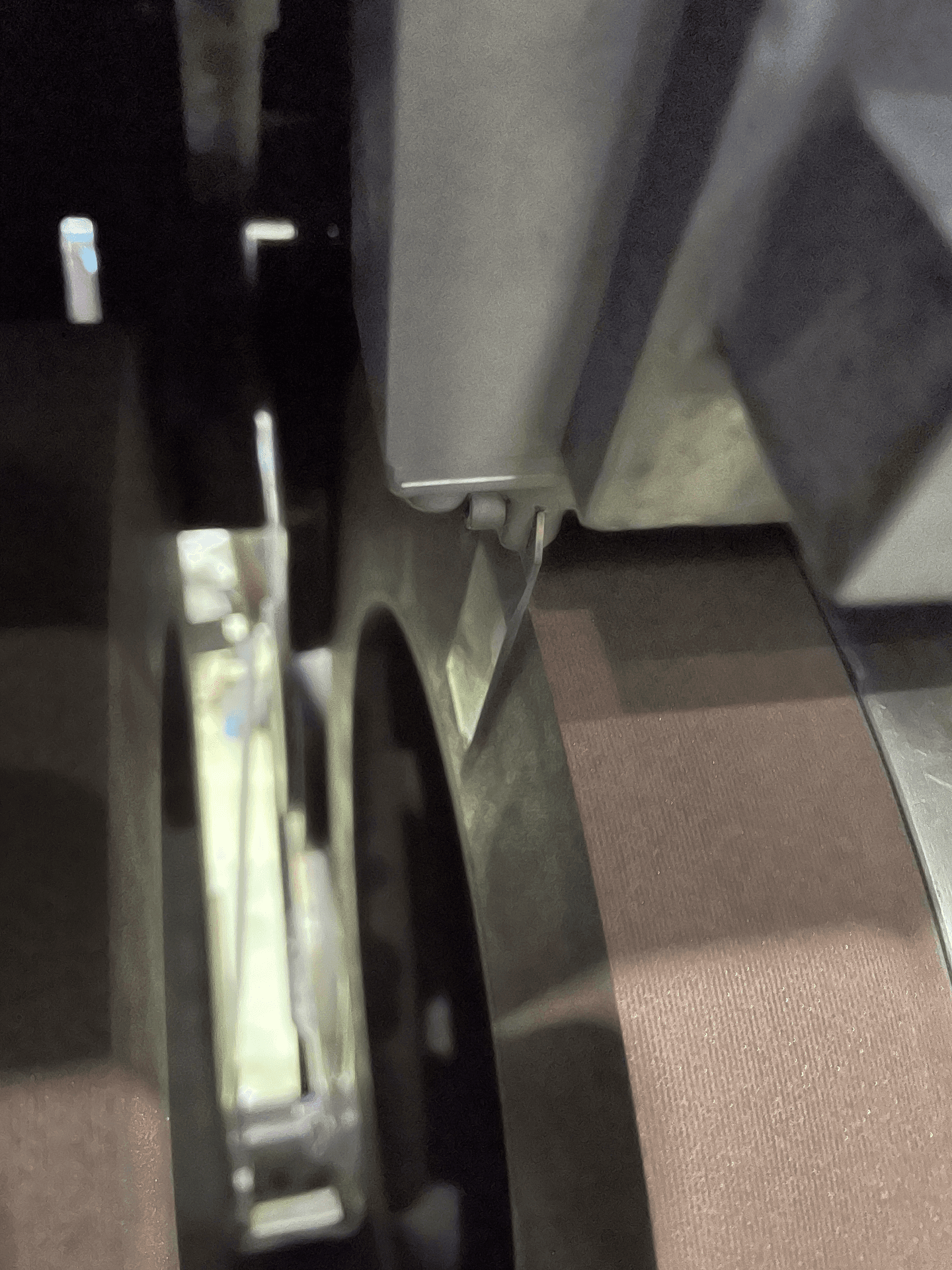

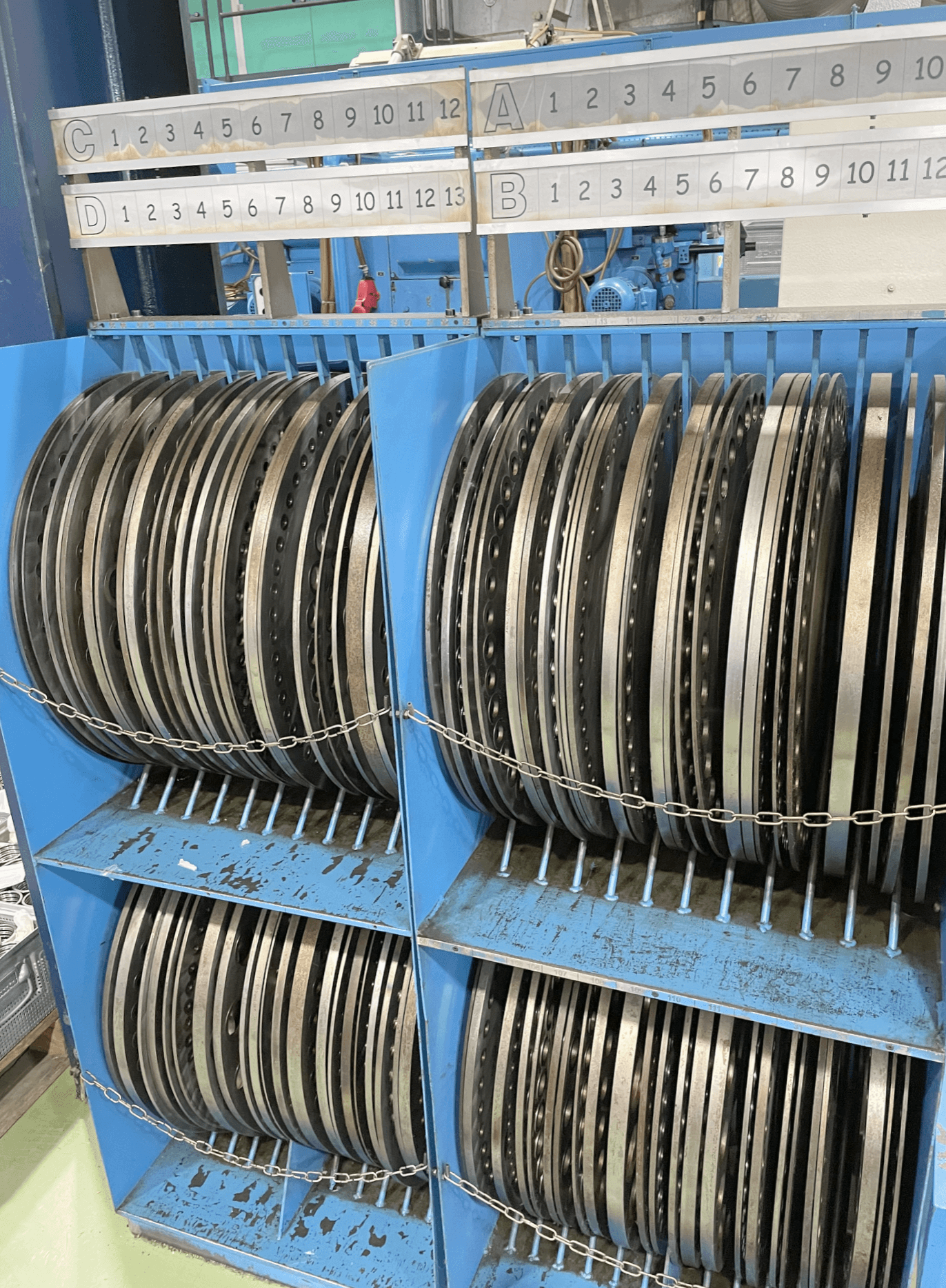

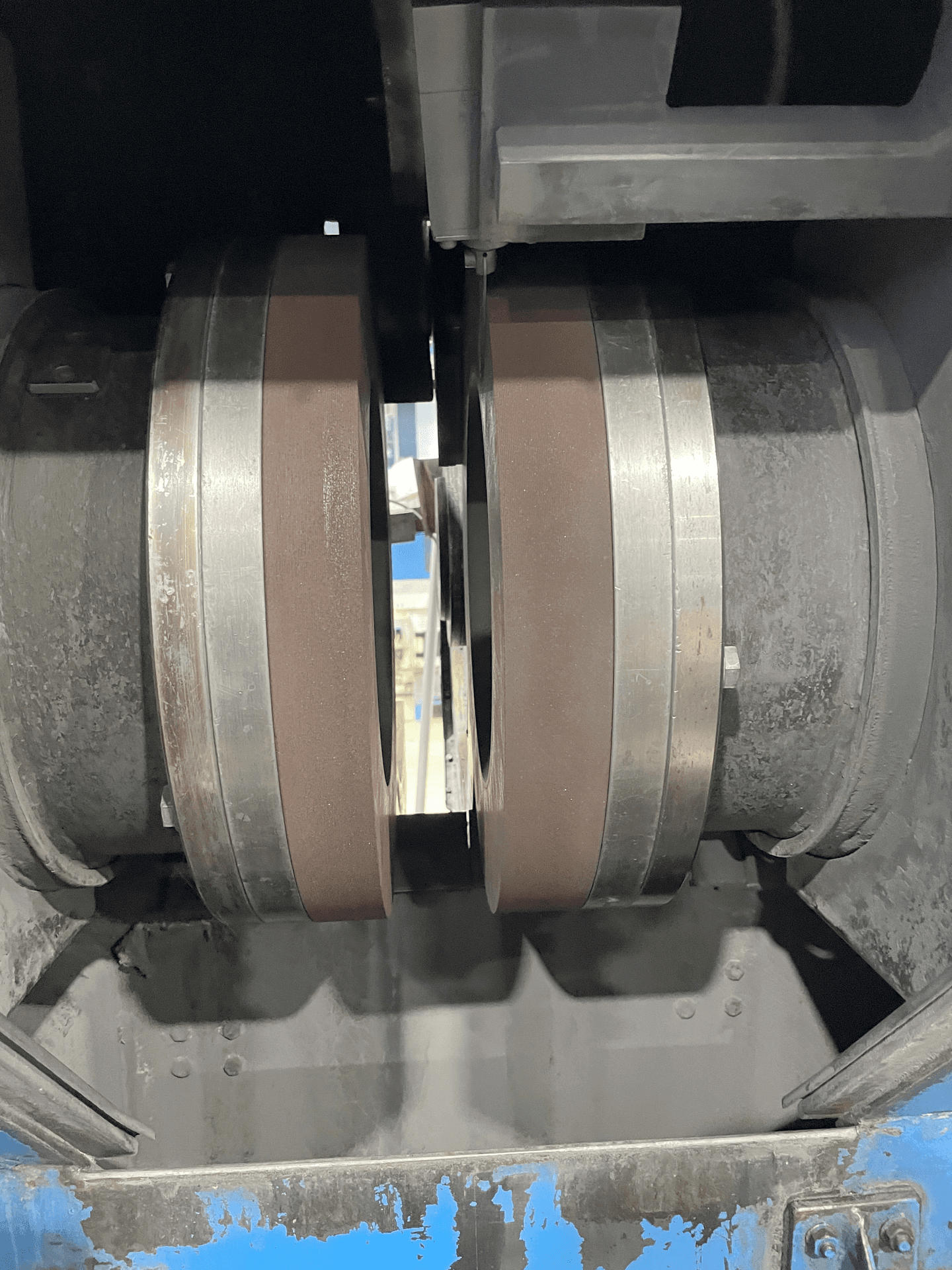

{"Max. work-piece height": "80 mm", "Grinding width": "40 mm", "Grinding wheel:": "", "outside diameter": "400 mm", "inside diameter": "250 mm", "Width / height": "50 mm", "Grinding wheel right side:": "", "Grinding wheel speeds:": "", "from": "135 t/min", "up to": "1435 t/min", "Peripheral speed": "3 - 30 m/s", "Grinding weehl left side:": "", "Rotation speed": "1150 t/min", "Feed range": "26 - 246 mm/s", "Voltage": "380 Volt", "Total installed power": "30 kW", "Machine's weight about": "4200 kg", "Overall dimensions machine:": "", "Length": "1800 mm", "Width": "400 mm", "Height": "2000 mm", "Dimensions electric cabinet:": "", "Various accessories:": "", "Coolant system": "", "Redressing device": "", "Measuring instrument": "IONIC", "Workpiece loader": "", "Automatic loading and unloading unit": "", "Set of grinding wheels": "", "Lamp": ""}
