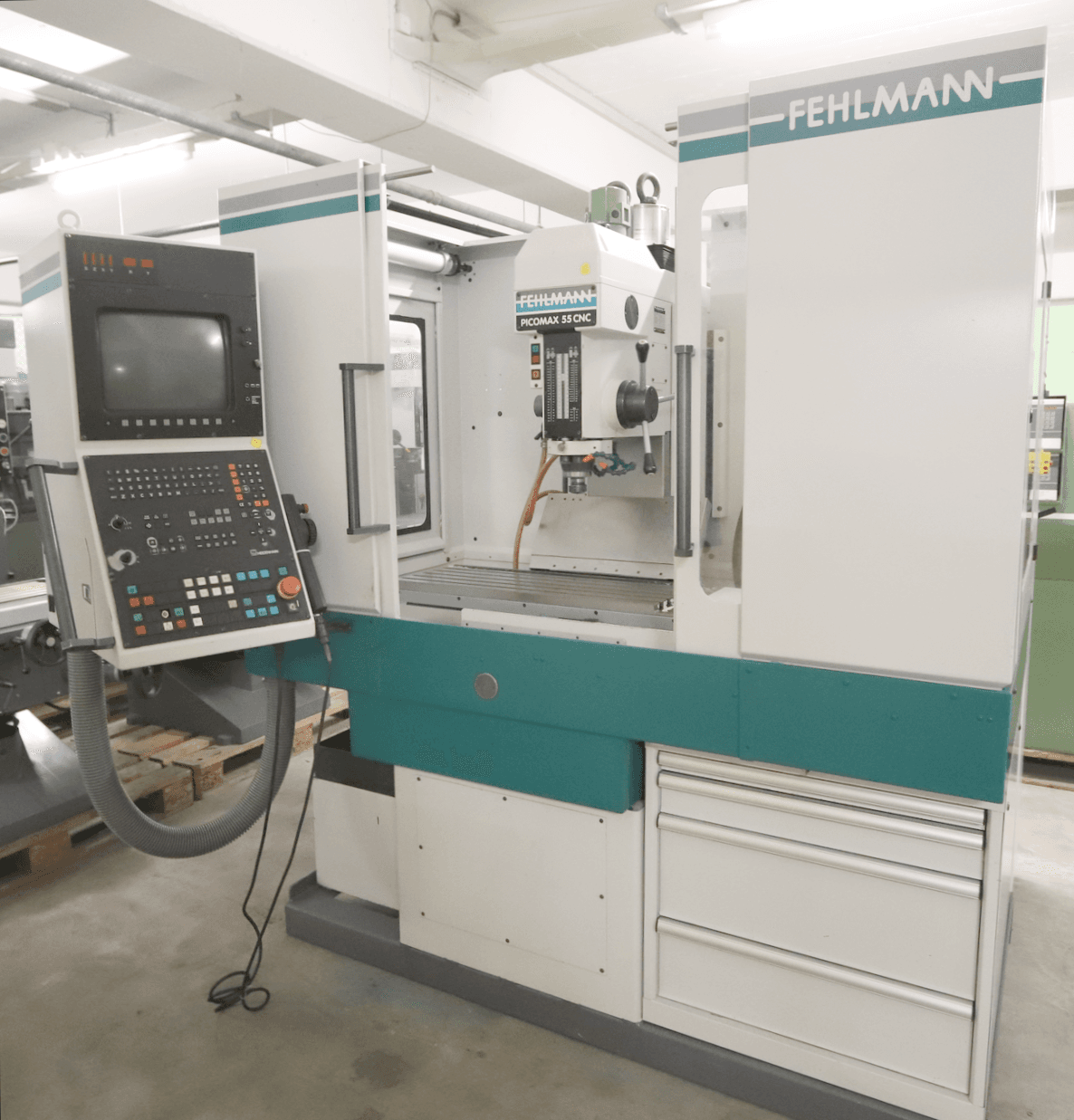

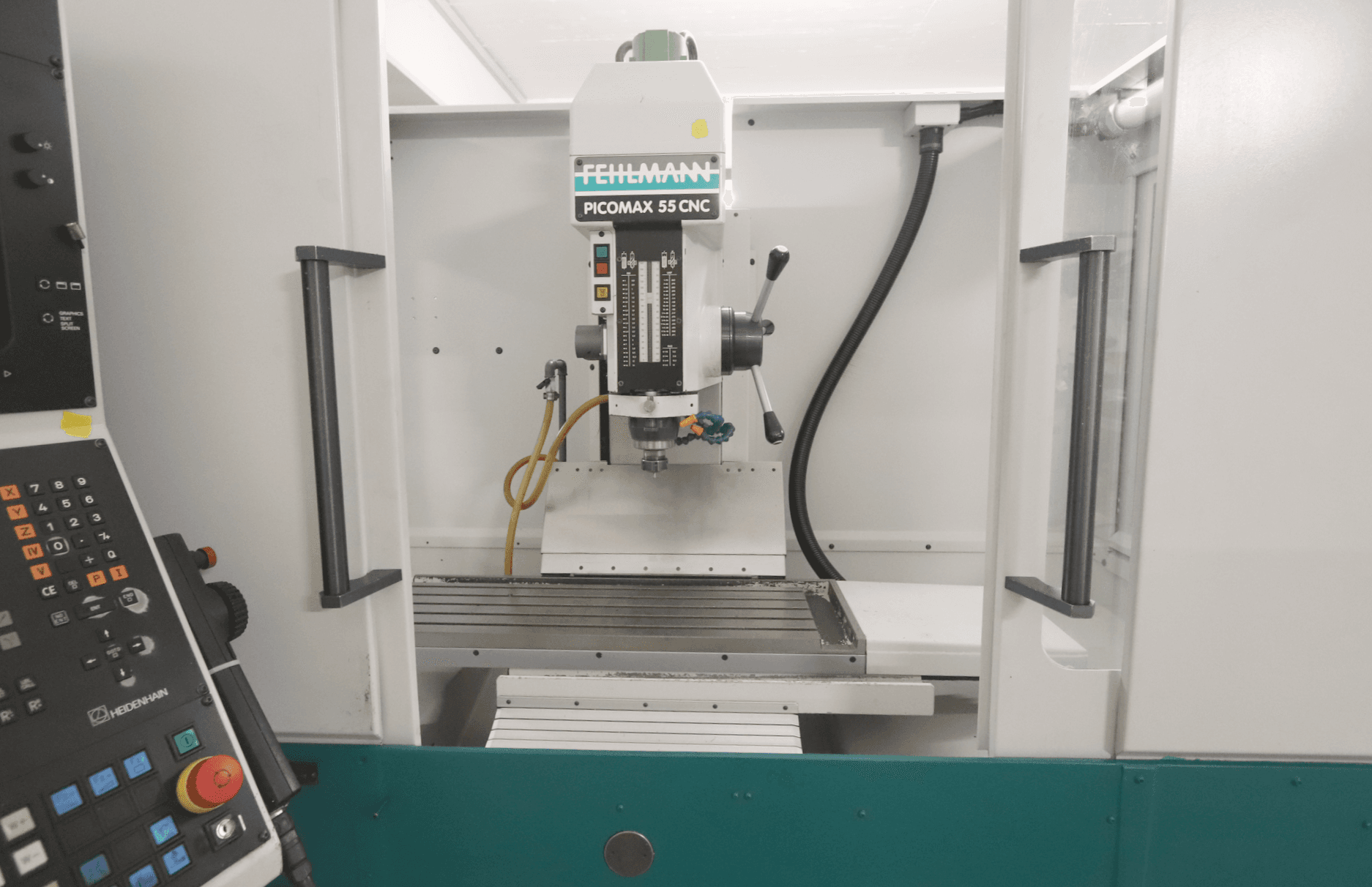

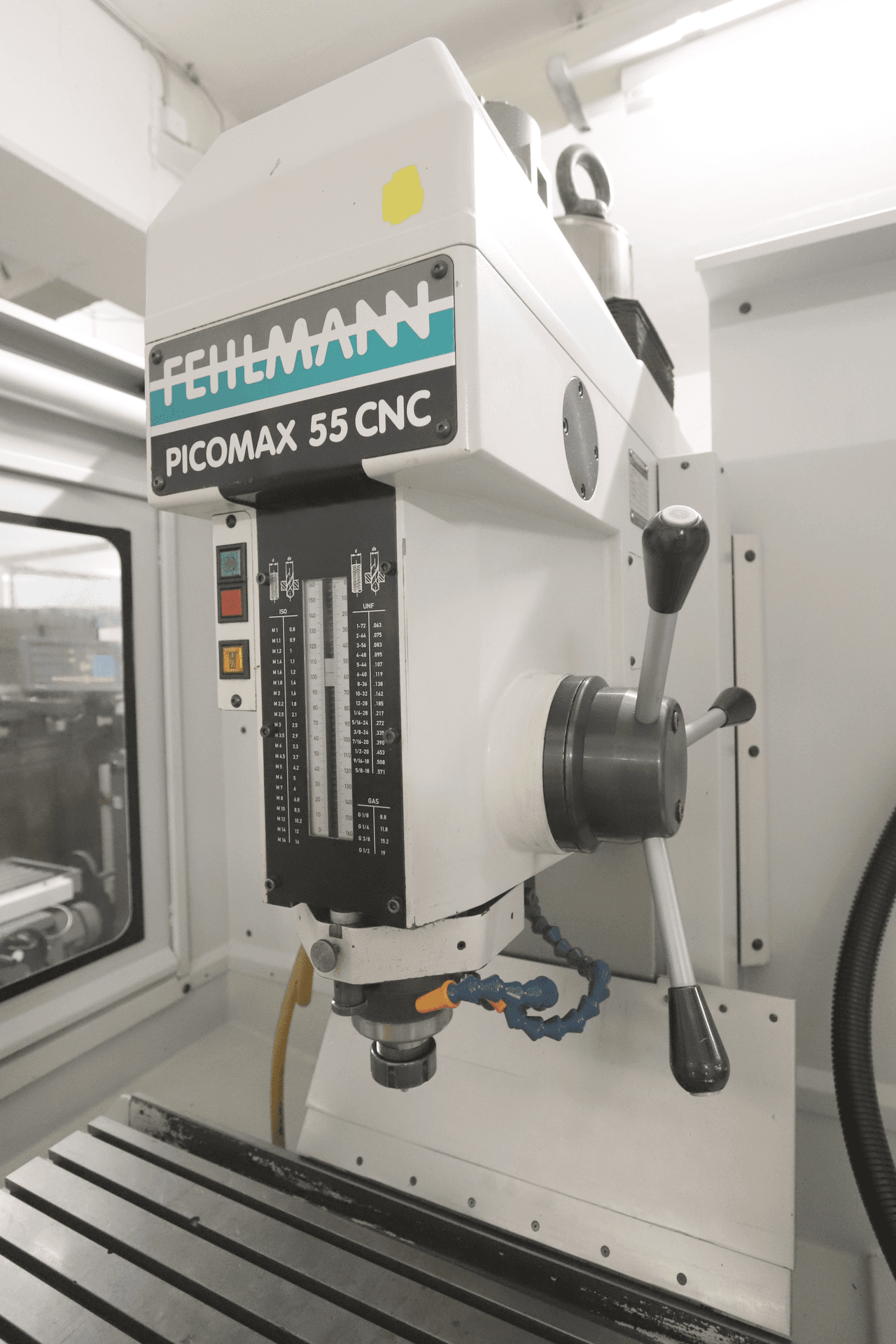

021232 - FEHLMANN Picomax 55 CNC

Description

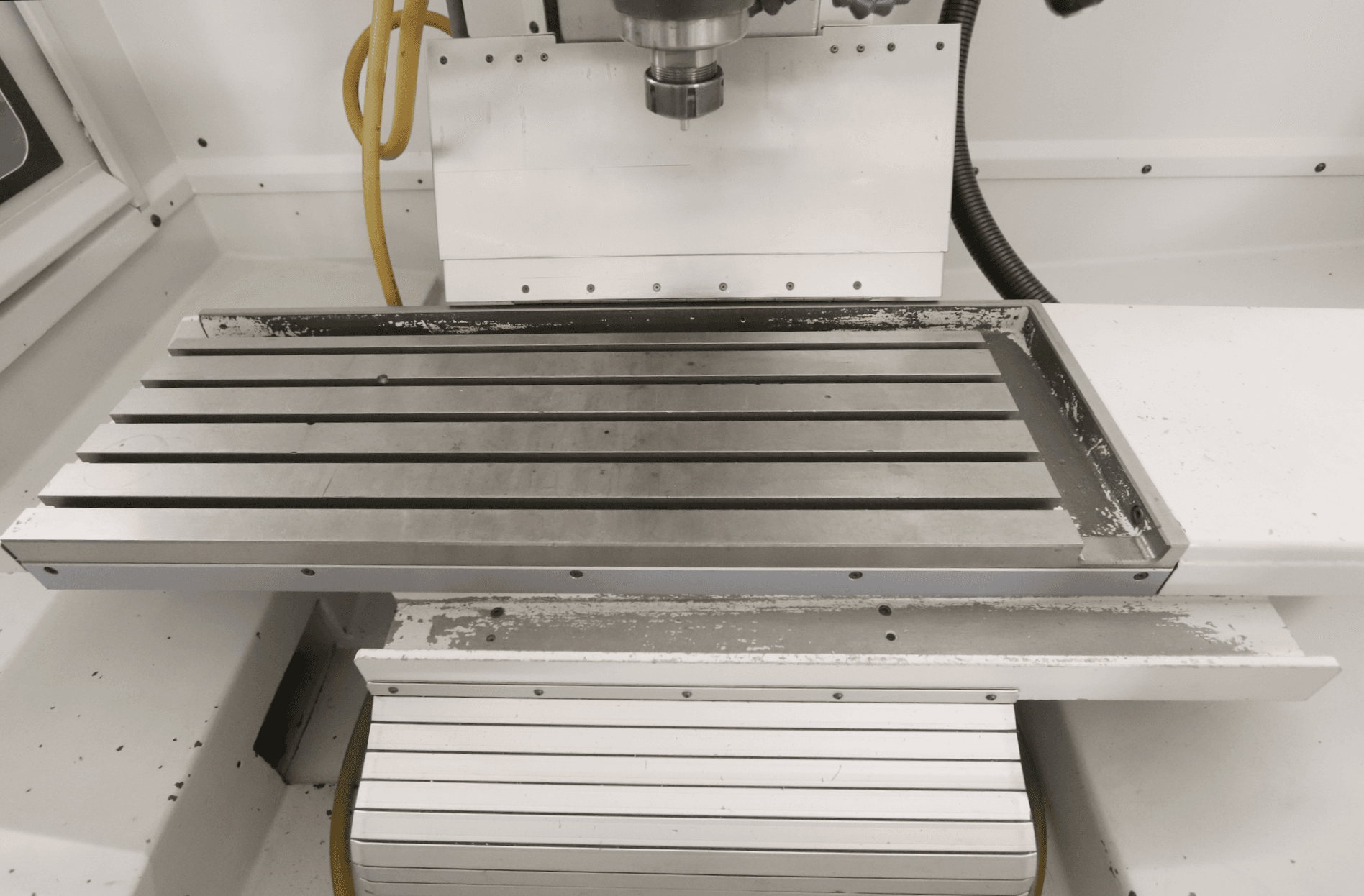

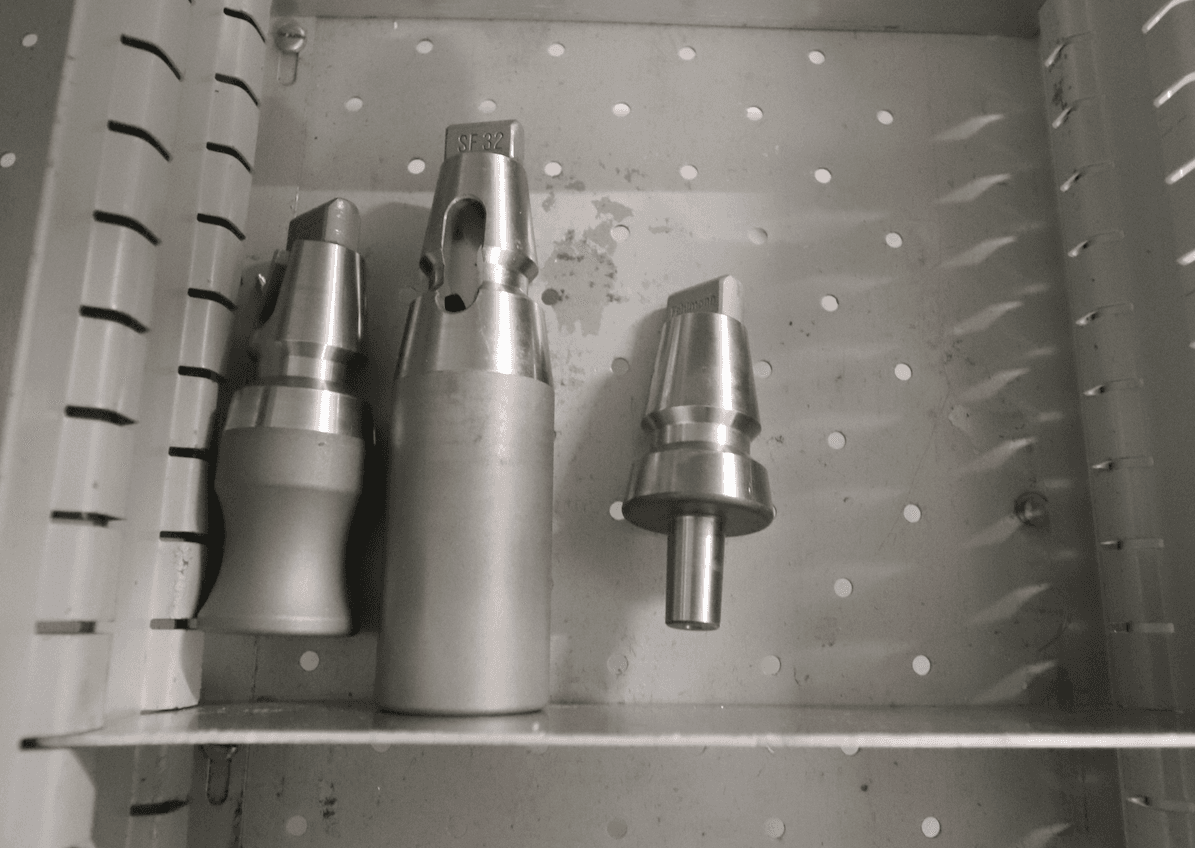

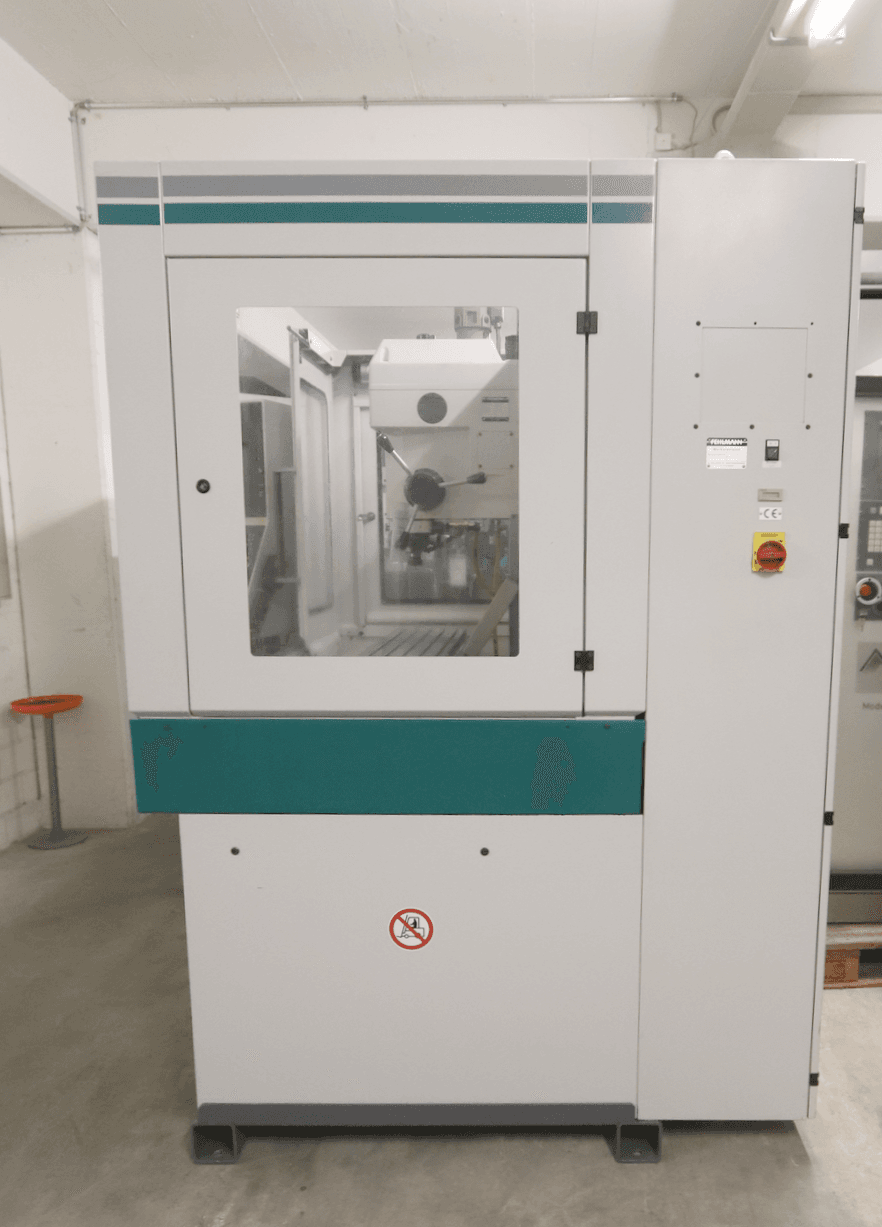

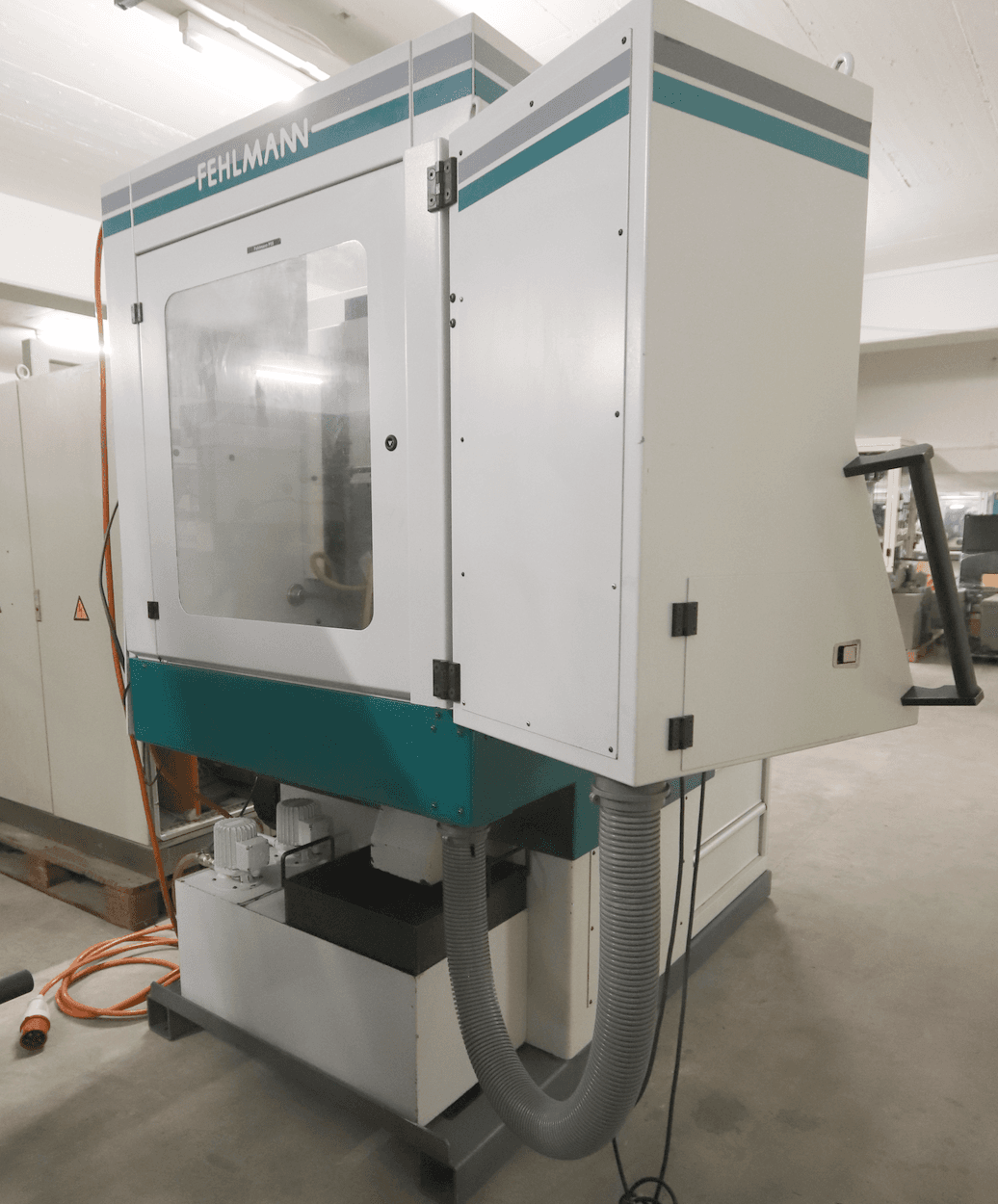

{"Drill capacity in steel": "25 mm", "Threat cutting in steel M": "16", "Milling capacity": "100 cm3/min", "Taper in spindle": "SF32", "Spindle speeds:": "", "from": "50 t/min", "up to": "10000 t/min", "Table length": "885 mm", "Table width": "320 mm", "Number of T-channels": "5", "T-channel width": "12 mm", "Distance of the T-slots": "50 mm", "Table load max.": "250 kg", "Height of table above floor": "1040 mm", "Min. distance from table to spindle": "0 mm", "Max. distance from table to spindle": "620 mm", "Longitudinal travel": "500 mm", "Transversal travel": "250 mm", "Vertical travel": "145 mm", "Feeds:": "", "X axis": "1 - 11000 mm/min", "Y axis": "1 - 11000 mm/min", "Z axis": "1 - 6000 mm/min", "W axis": "1 - 3600 mm/min", "Rapid traverse X": "11 m/min", "Rapid traverse Y": "11 m/min", "Rapid traverse Z": "6 m/min", "Voltage 50 Hz 3x": "400 Volt", "Power": "7 kW", "Total power required": "16 kW", "Machine's weight about": "2400 kg", "Overall dimensions machine:": "", "Length": "1920 mm", "Width": "1850 mm", "Height": "2400 mm", "Various accessories:": "", "Coolant system": "100 l", "Full splash cabin": "", "Handwheel electroinic": ""}
