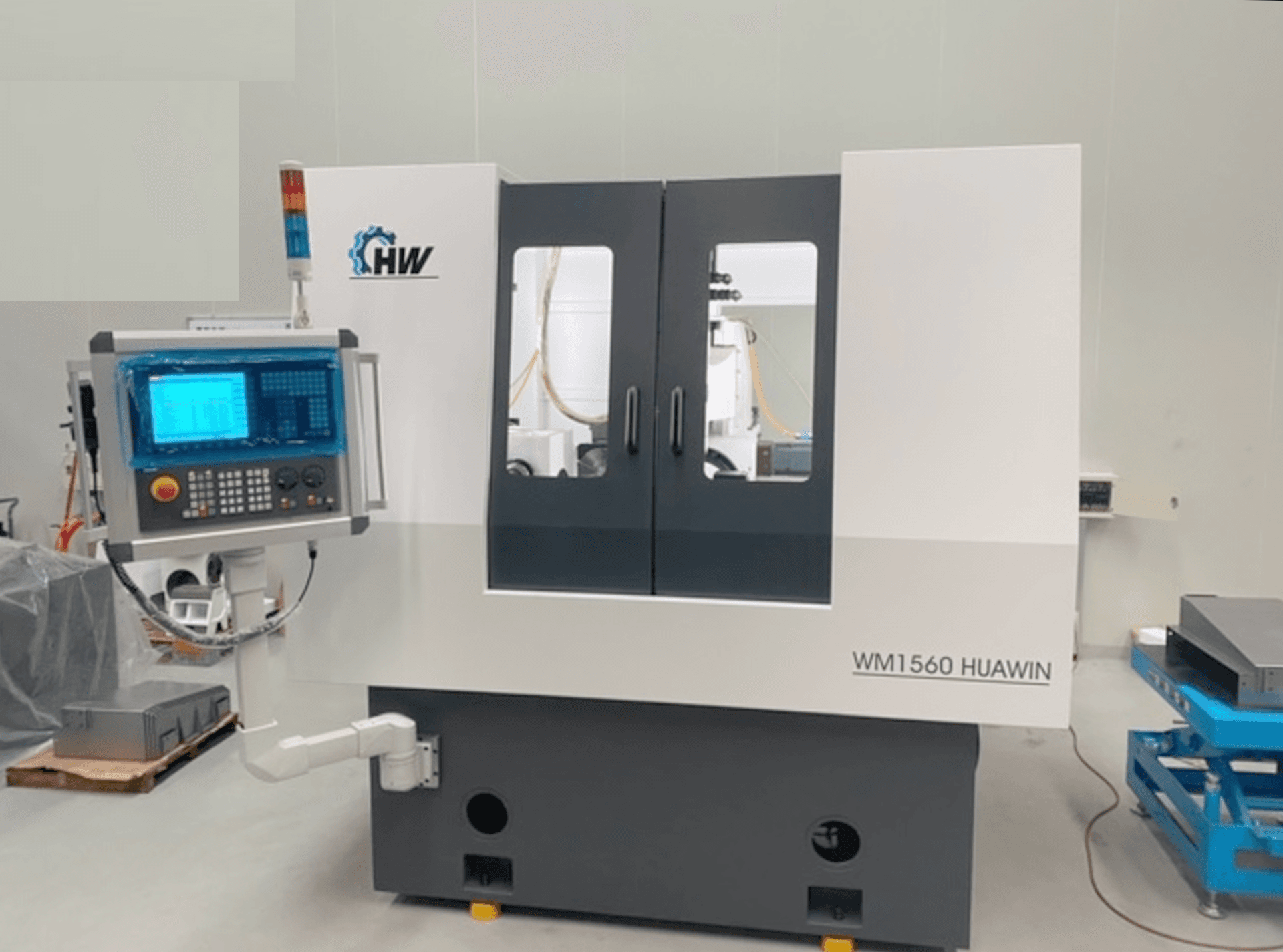

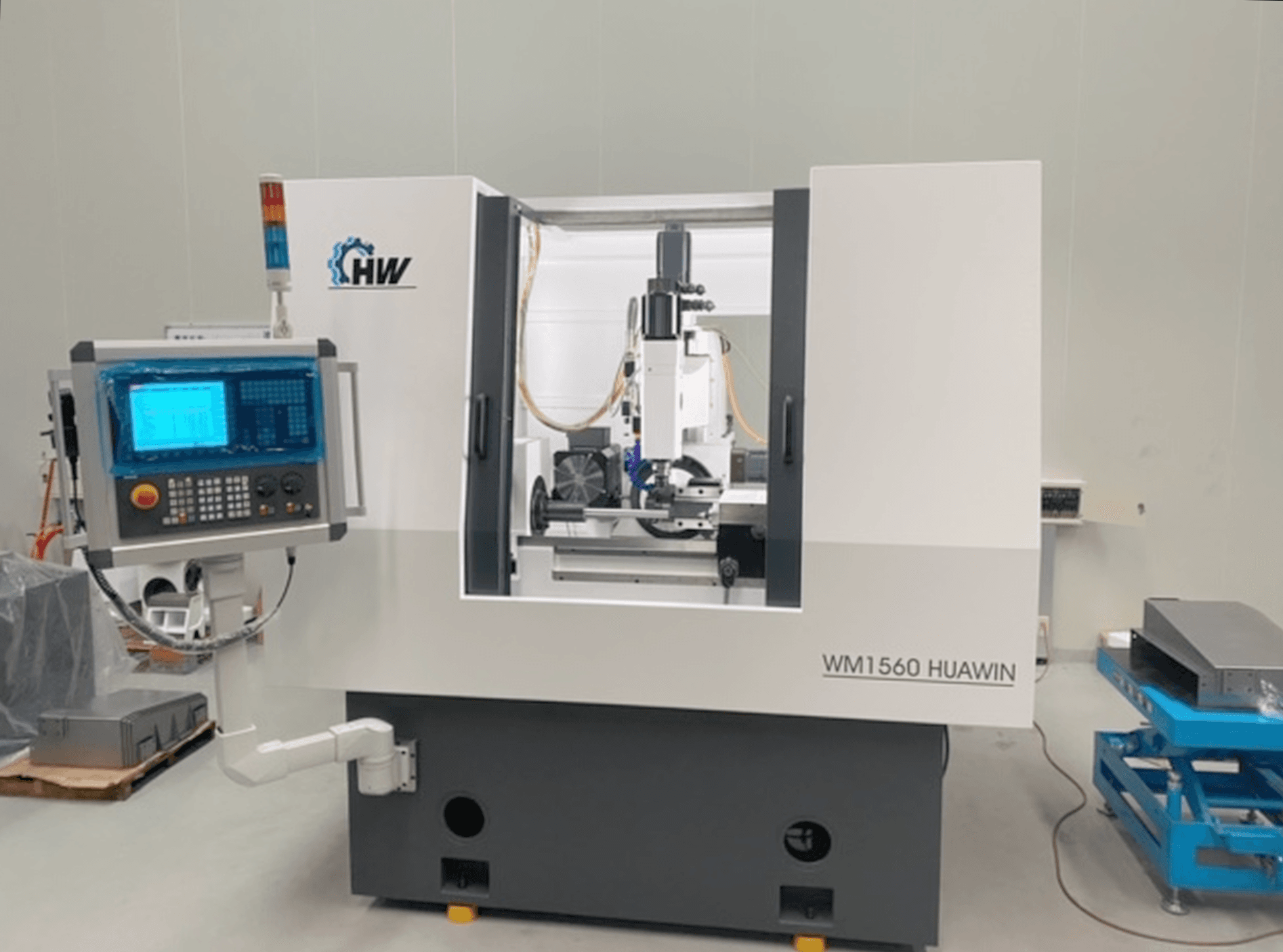

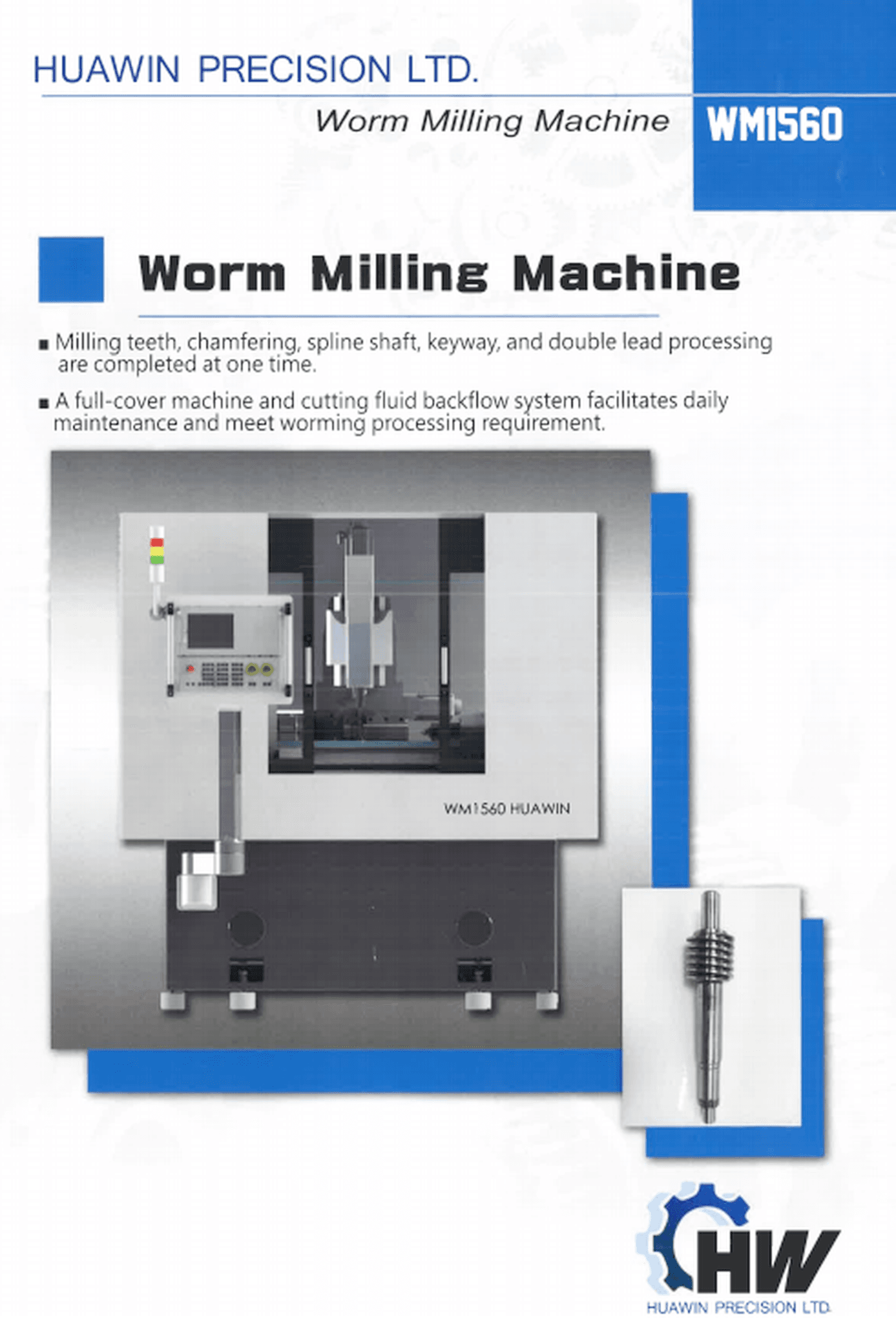

020885 - HUAWIN WM 1560

Price on request

Condition: NEW· Manufacturer: HUAWIN· Country: Switzerland

Description

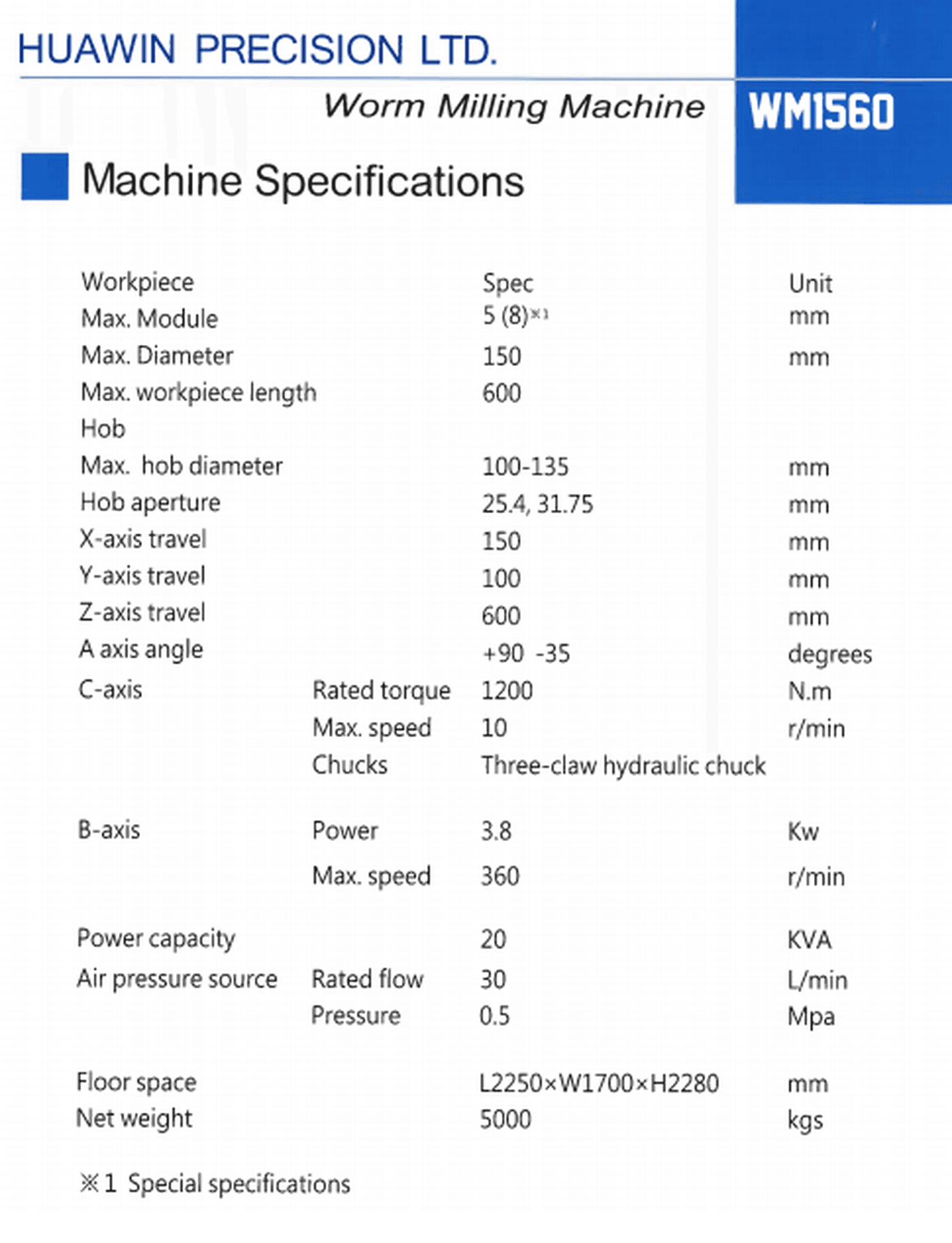

{"max. diameter": "150 mm", "Max. work piece length": "600 mm", "Module max.": "5 mm", "Cutter diameter": "100 - 135 mm", "Bore": "25.4 / 31.75 mm", "Milling cutter speeds": "360 t/min", "Drive milling spindle": "4 kW", "Travels:": "", "X axis": "150 mm", "Y axis": "100 mm", "Z axis": "600 mm", "A axis": "+90 / -35 \u00b0", "Work piece spindle speed": "10 t/min", "Torque max.": "1200 Nm", "Air connect": "5 bar", "Total power required": "20 kVA", "Machine's weight about": "5000 kg", "Overall dimensions machine:": "", "Length": "2250 mm", "Height": "1700 mm", "Width": "2280 mm"}
