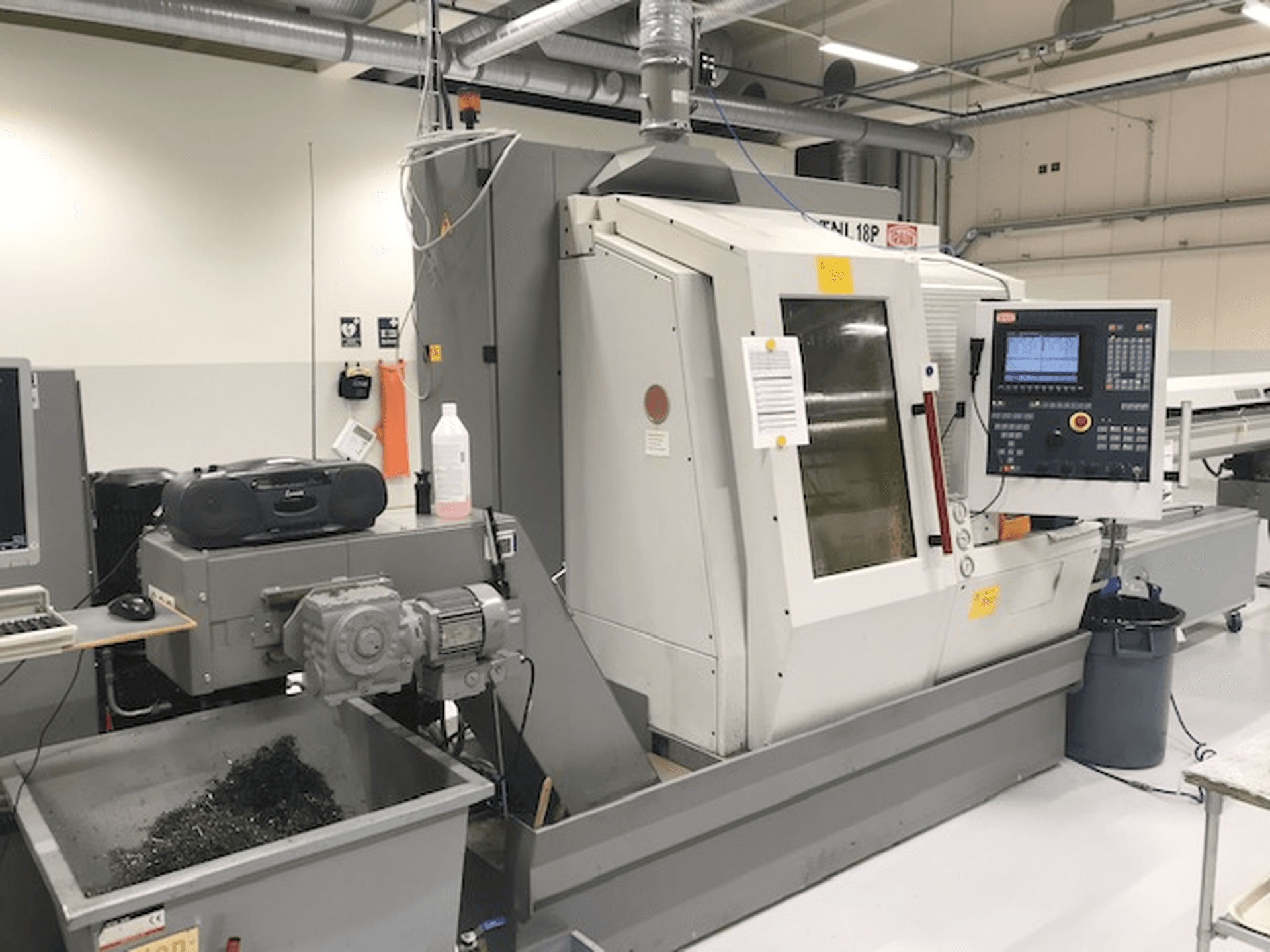

020677 - TRAUB TNL 18P

Description

{"Number of axis total": "", "Number of spindles": "2", "Turning length": "180 mm", "Max. bar diameter": "20 mm", "Collet device": "F25", "Spindle speeds:": "", "stepless": "", "up to": "6400 t/min", "Longitudinal travel (Z-axis)": "205 mm", "C axis (spindle,resolution)": "\u00b0", "Back spindle:": "", "Turret slide:": "", "numbers": "2", "Upper turret head:": "", "number of tools": "7", "number of driven tools": "3", "Spindle speeds (turning tools)": "6400 t/min", "X axis": "120 mm", "Lower turret head:": "", "Z axis": "250 mm", "Y axis": "-20 / +40 mm", "Counter-operation:": "", "Voltage 50 Hz 3x": "400 Volt", "Spindle motor": "2.2 / 3.7 kW", "Power of back spindle": "1.5 / 2.5 kW", "Total power required": "24 kVA", "Machine's weight about": "4000 kg", "Overall dimensions machine:": "", "Length": "2500 mm", "Width": "1460 mm", "Height": "2250 mm", "Various accessories:": "", "Driven tools (number)": "", "Toolholders": "", "Set of toolholders": "", "Set of quick change inserts": "", "Bar feeder": "", "Manufacturer": "FMB", "Type": "minimag 20", "Length of bars max.": "4200 mm", "Bar diameter": "2 - 23 mm", "Workpiece conveyor": "", "Chip conveyor": "", "High pression colant device": "30 bar", "Water cooler": "", "Paper filtration system": "", "Set of reducing bushes": "", "Tool Presetting block": "", "Guide sleeve": "", "Milling attachment": "", "Lamp": "", "Fire extinguishing system (without bottle)": ""}
