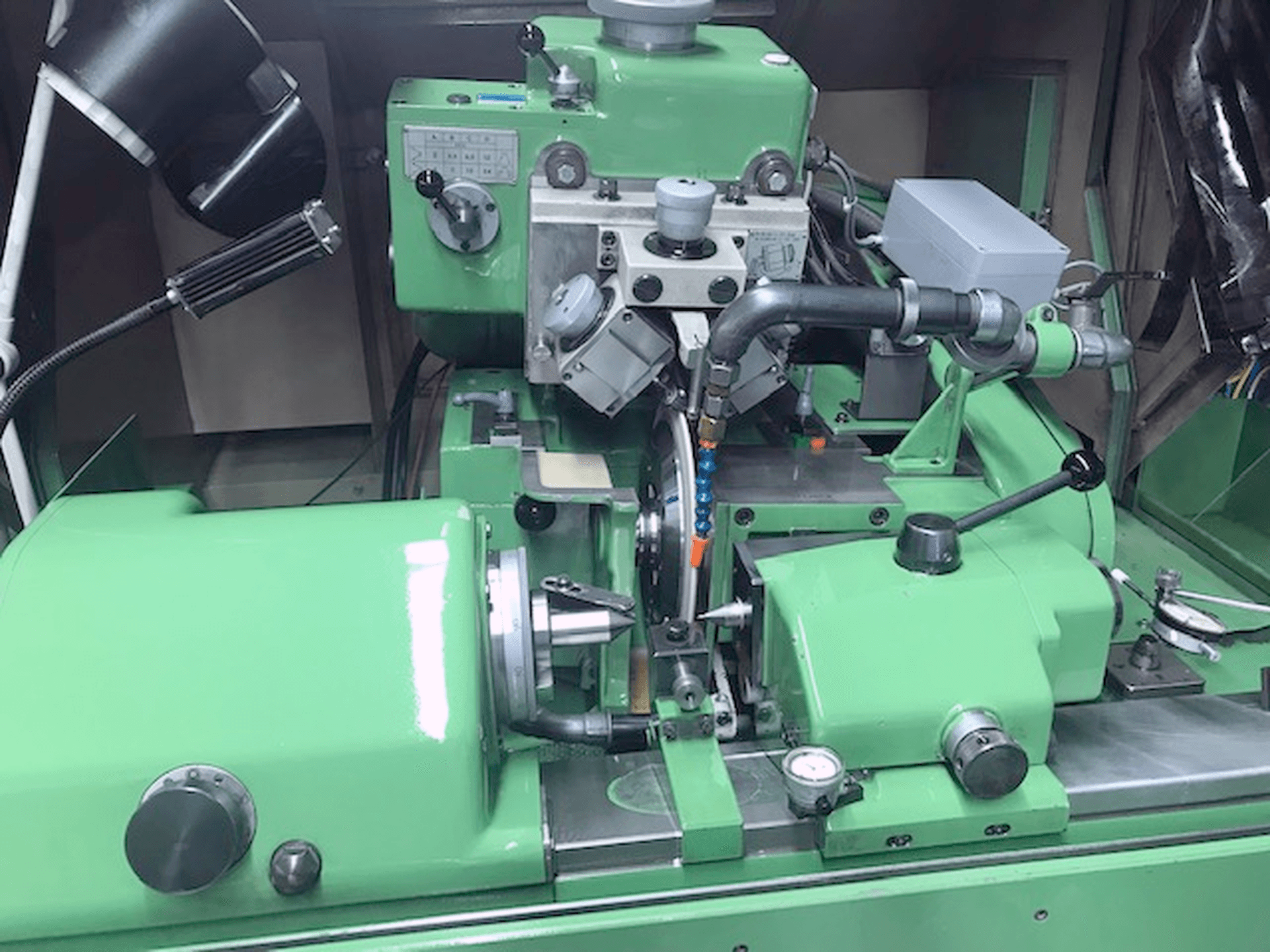

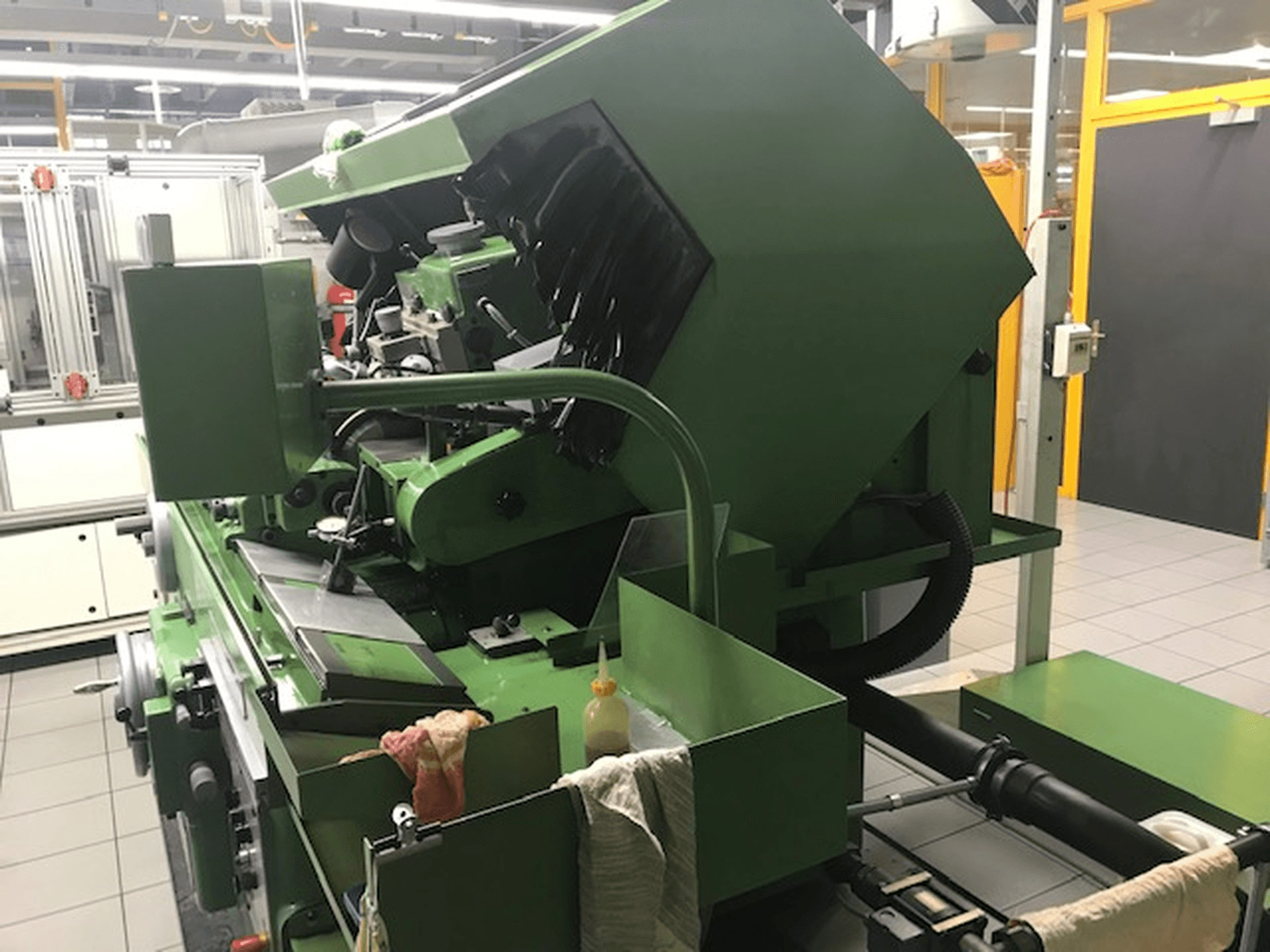

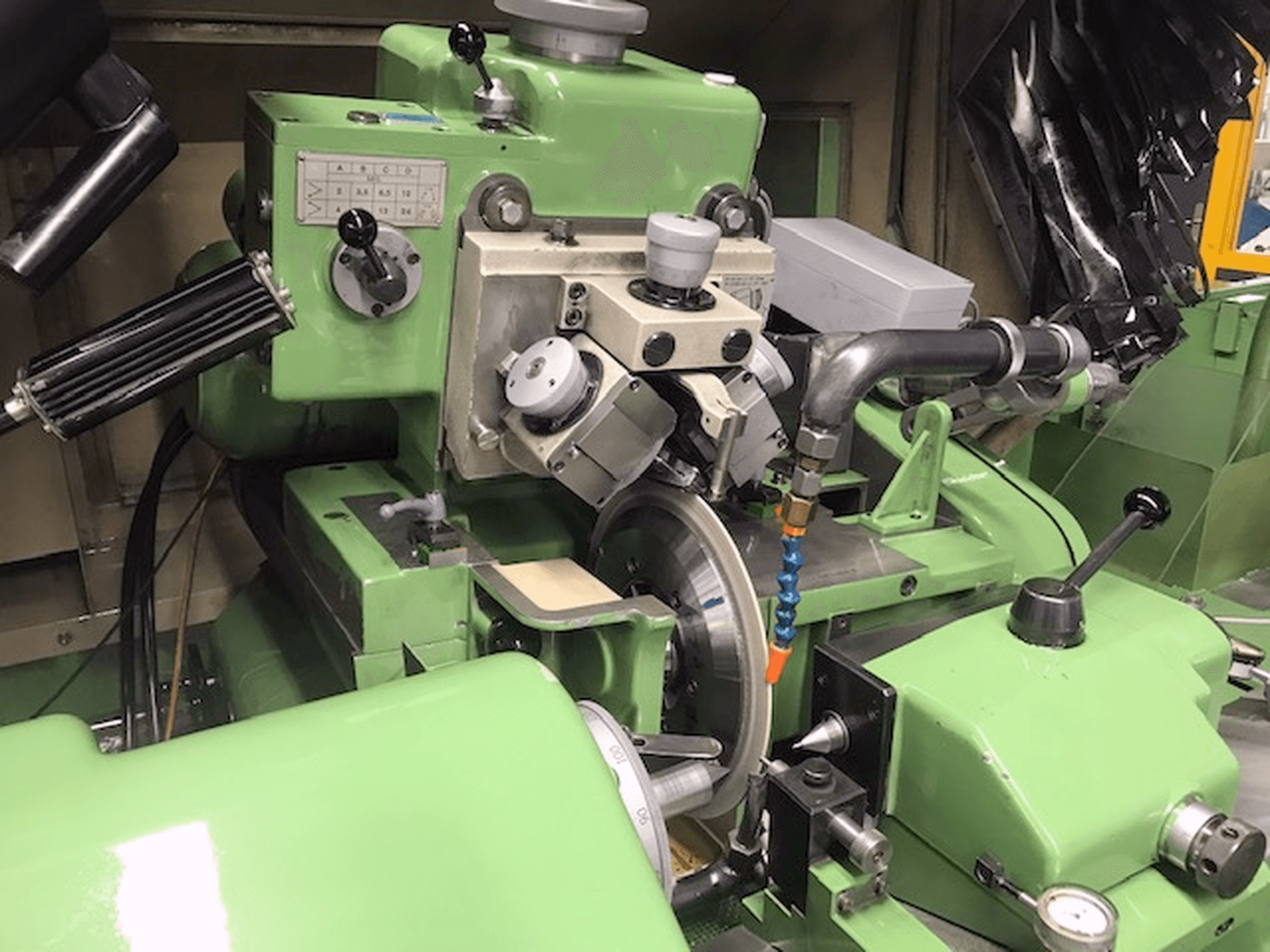

020643 - REISHAUER US

Description

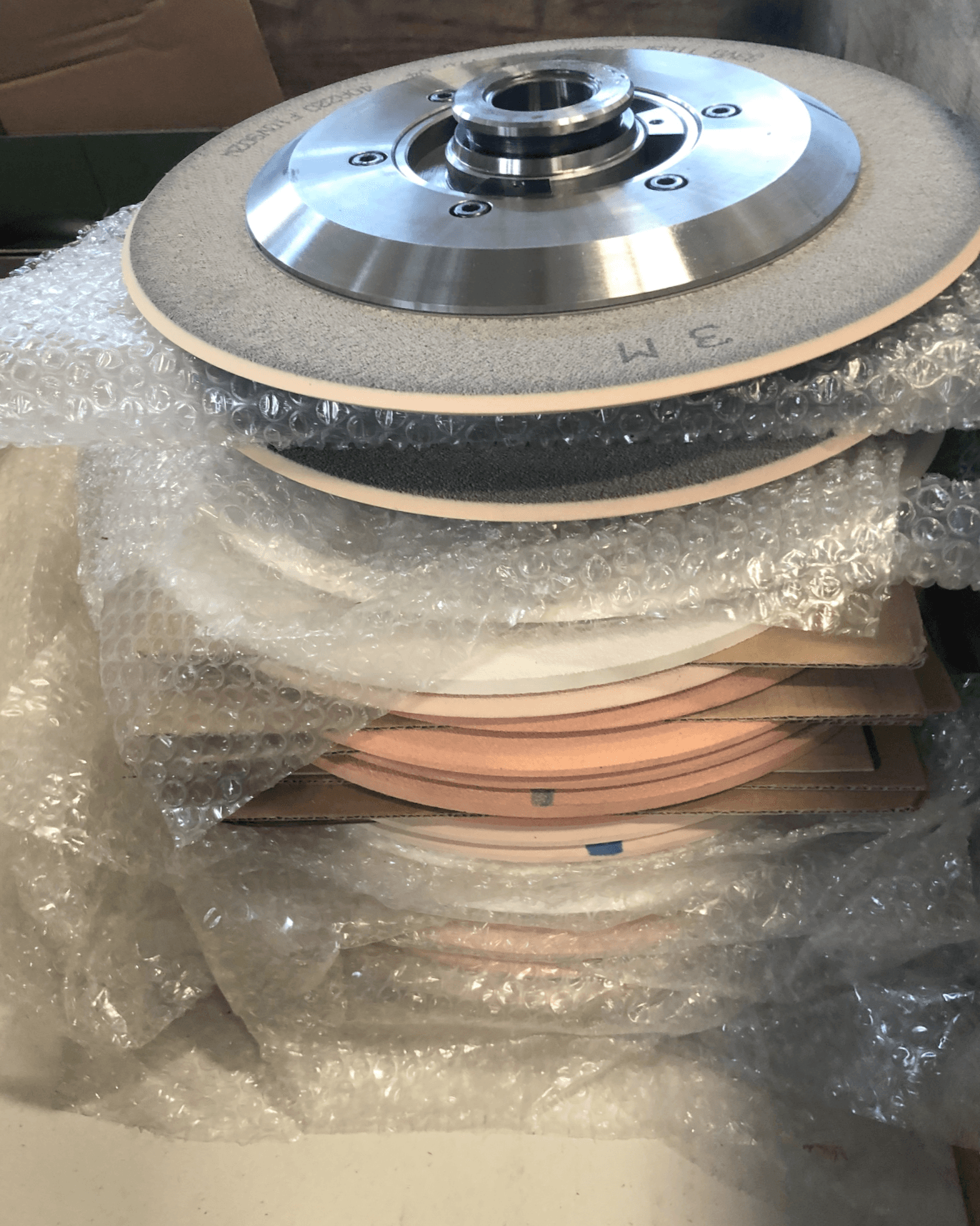

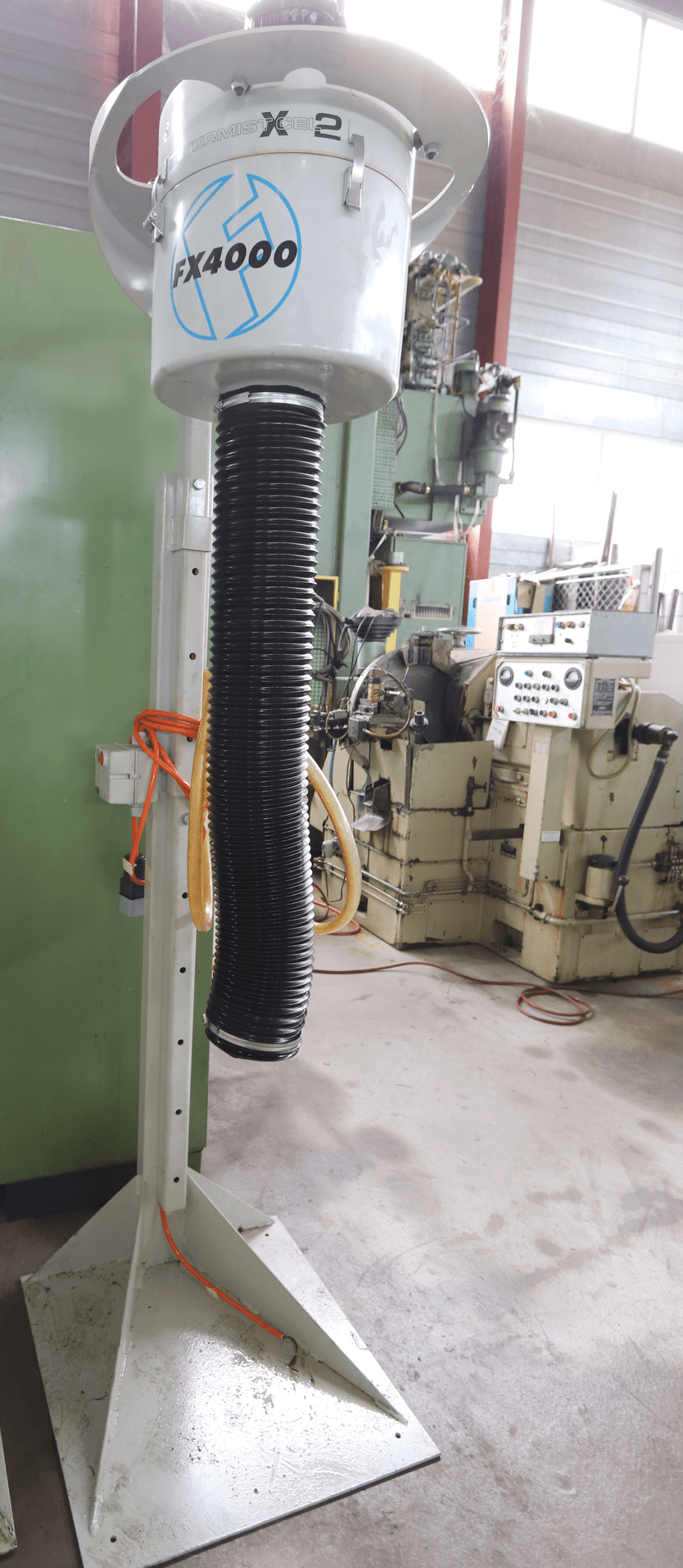

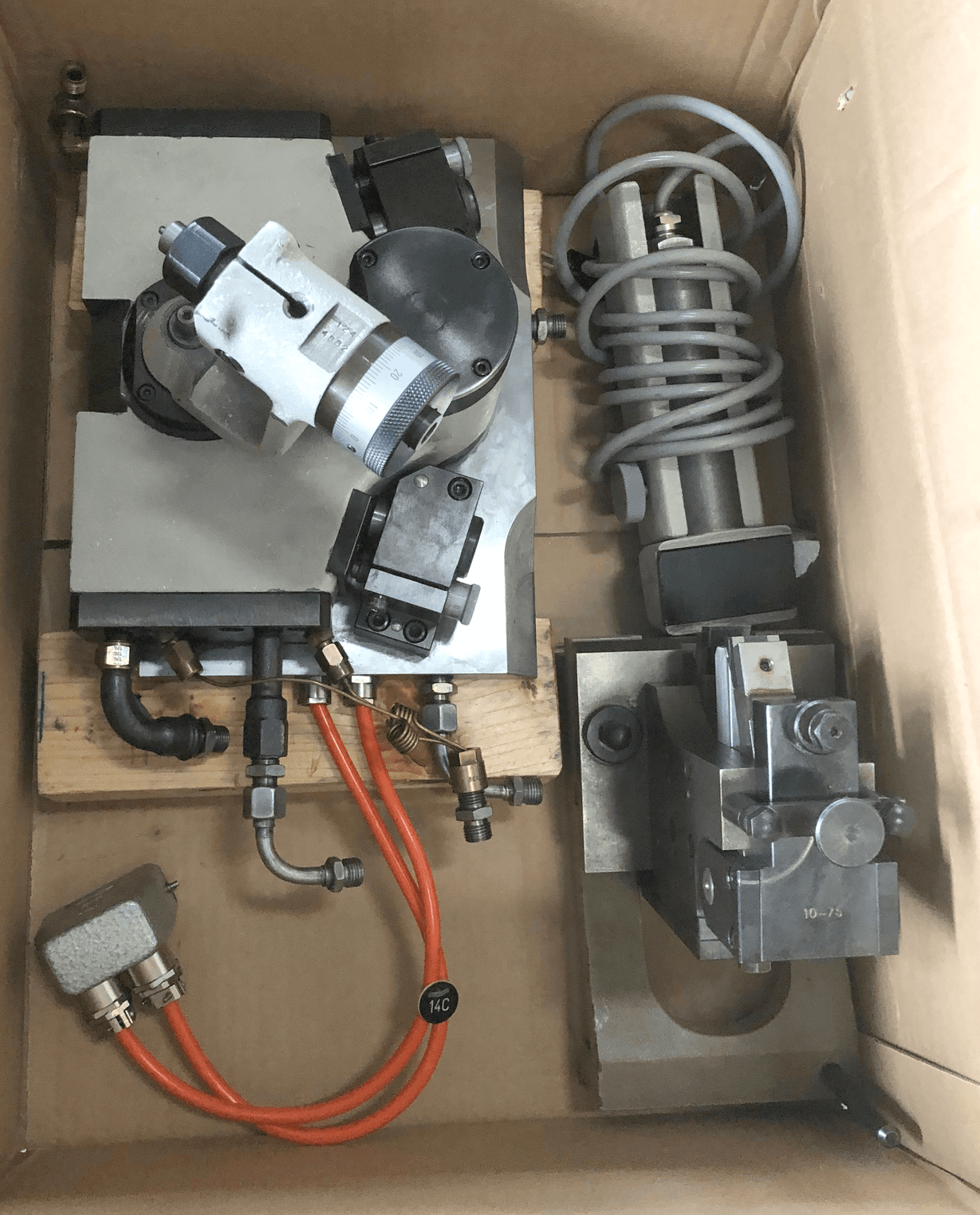

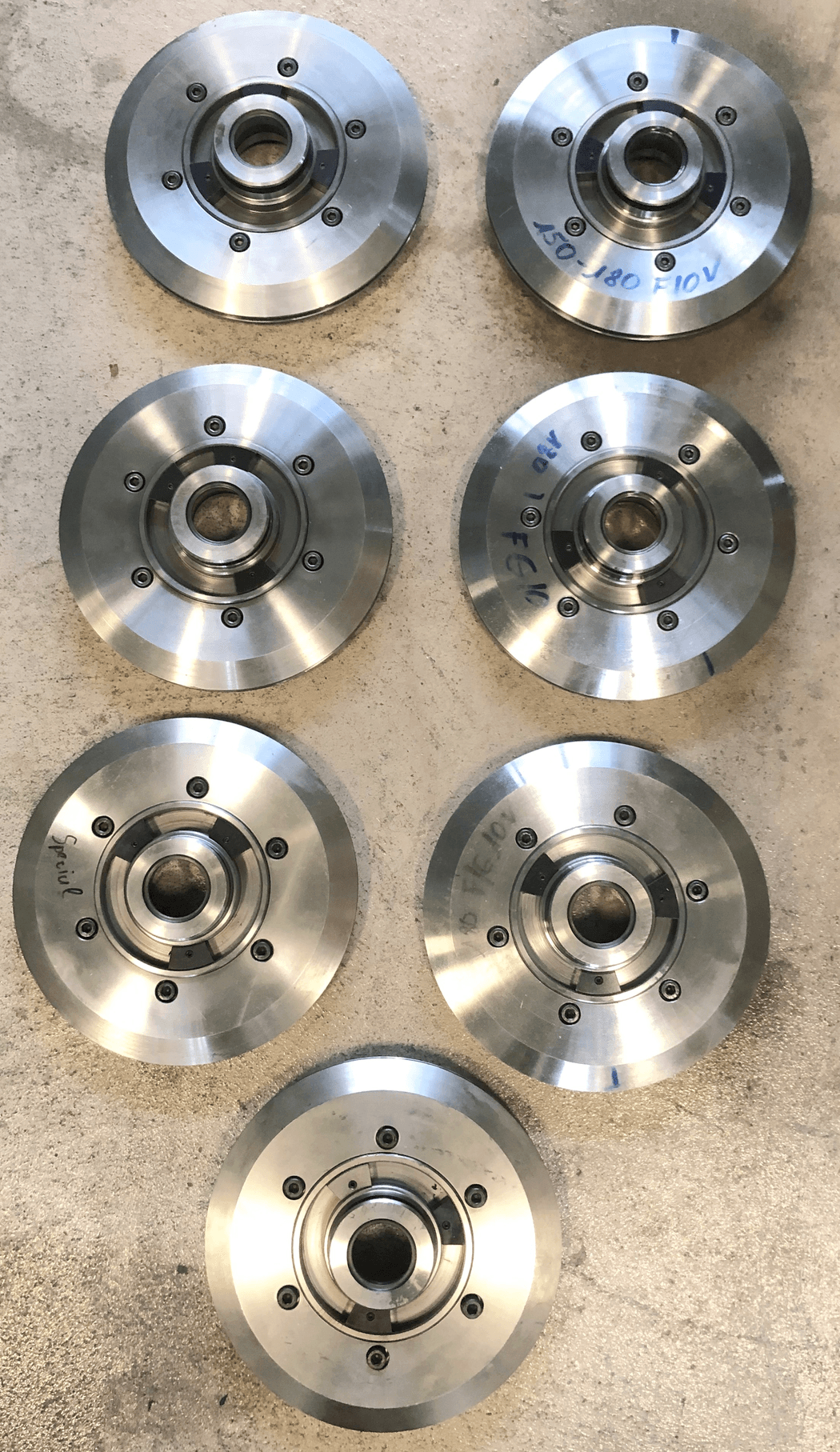

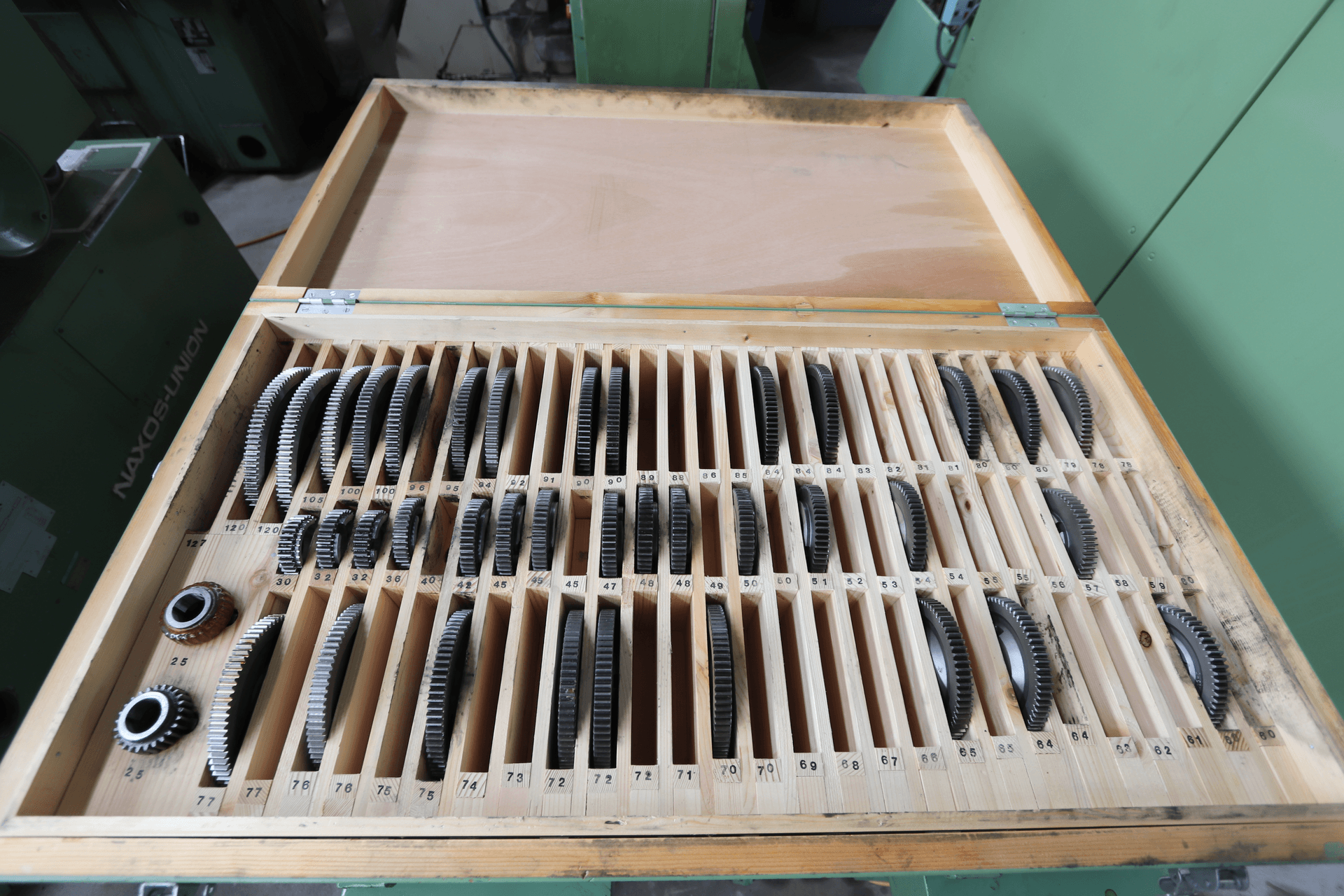

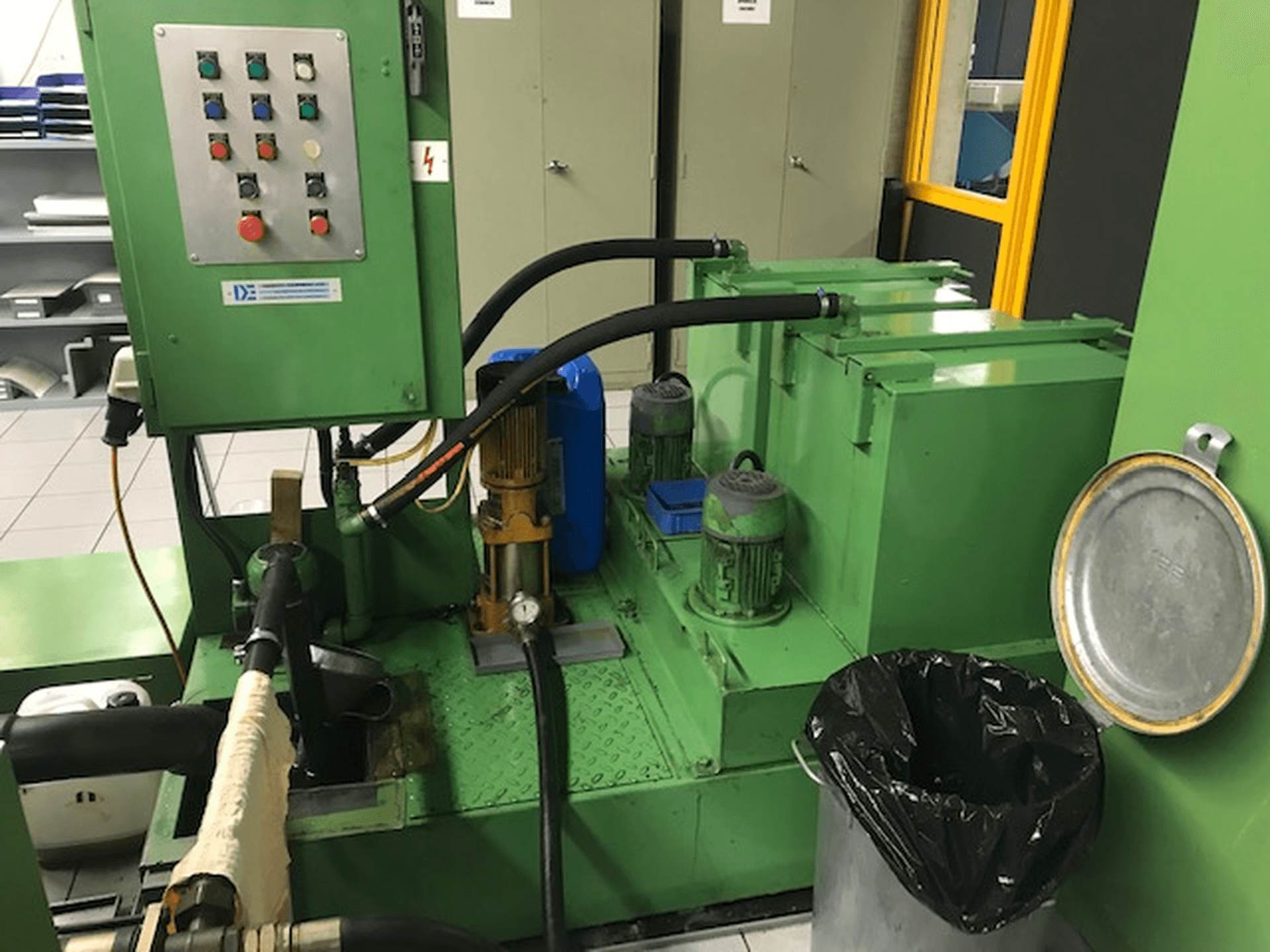

{"Max. grinding length": "450 mm", "Max. clamping length": "1055 mm", "Max. work piece diameter": "250 mm", "Thread diameter:": "", "min.": "4 mm", "max": "40 mm", "Workpiece spindle bore": "45 mm", "Workpiece weight on centres max.": "200 kg", "Thread pitch:": "", "Max. angle pitch +": "40 \u00b0", "Max. angle pitch -": "40 \u00b0", "Max. module": "10", "Grinding wheels:": "", "Diameter:": "", "Width:": "", "Bore": "40 mm", "Grinding-wheel speeds:": "", "number (steps)": "27", "from": "t/min", "up to": "160 t/min", "Work-piece spindle head speed:": "", "Voltage 50 Hz 3x": "380 Volt", "Grinding spindle motor": "4 kW", "Total power required": "15 kVA", "Machine's weight about": "4700 kg", "Overall dimensions machine:": "", "Length": "3300 mm", "Width": "1930 mm", "Height": "1800 mm", "Various accessories:": "", "Coolant system": "", "Set of grinding wheels": "", "Set of flanges": "", "Automatic profile/wheel trueing": "", "Rayon redressing device": "", "Travelling steady": "", "Set of gears": "", "Set of centers": "", "Oil mist extractor": "", "Lamp": ""}
