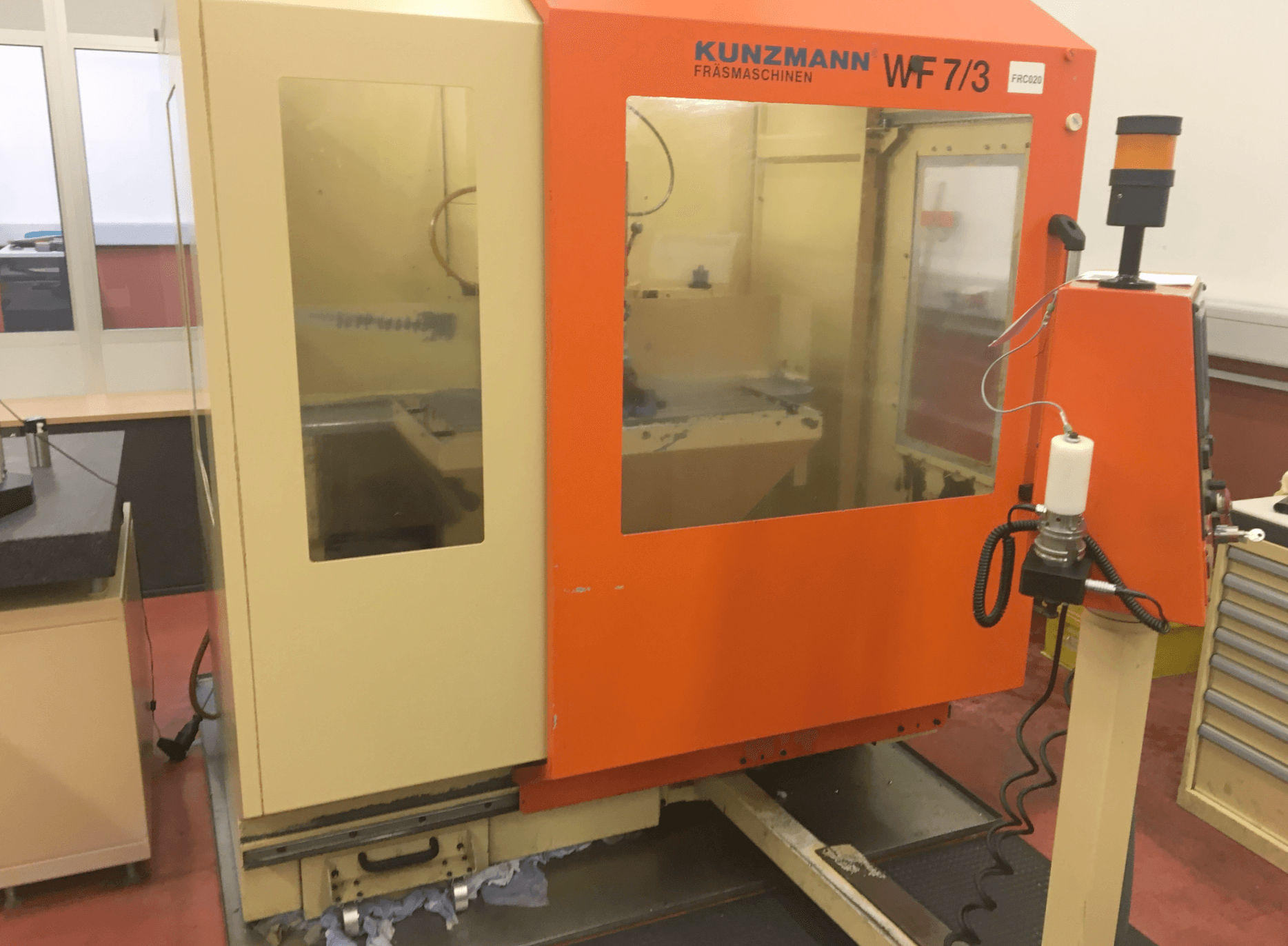

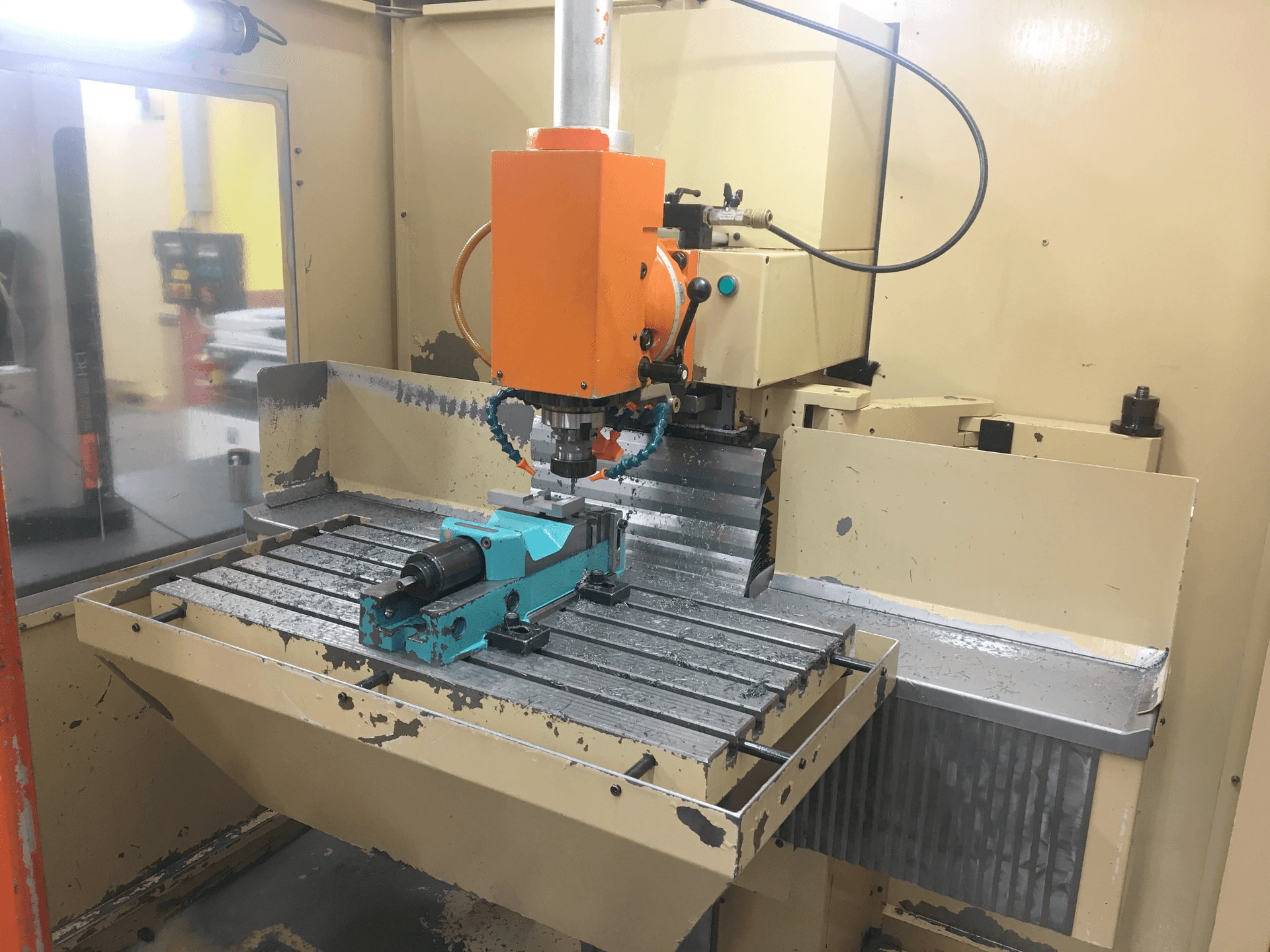

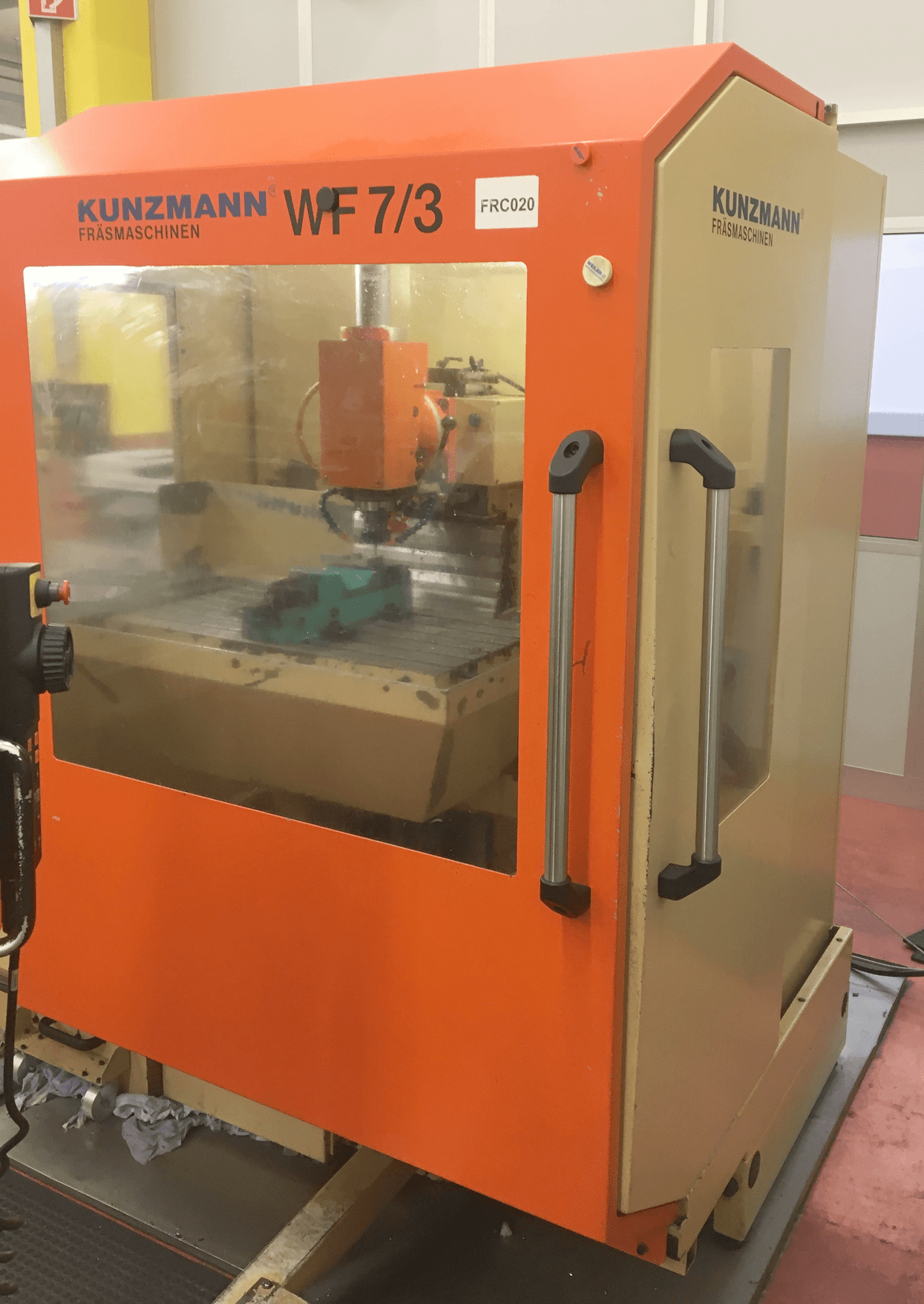

020606 - KUNZMANN WF 7/3

Description

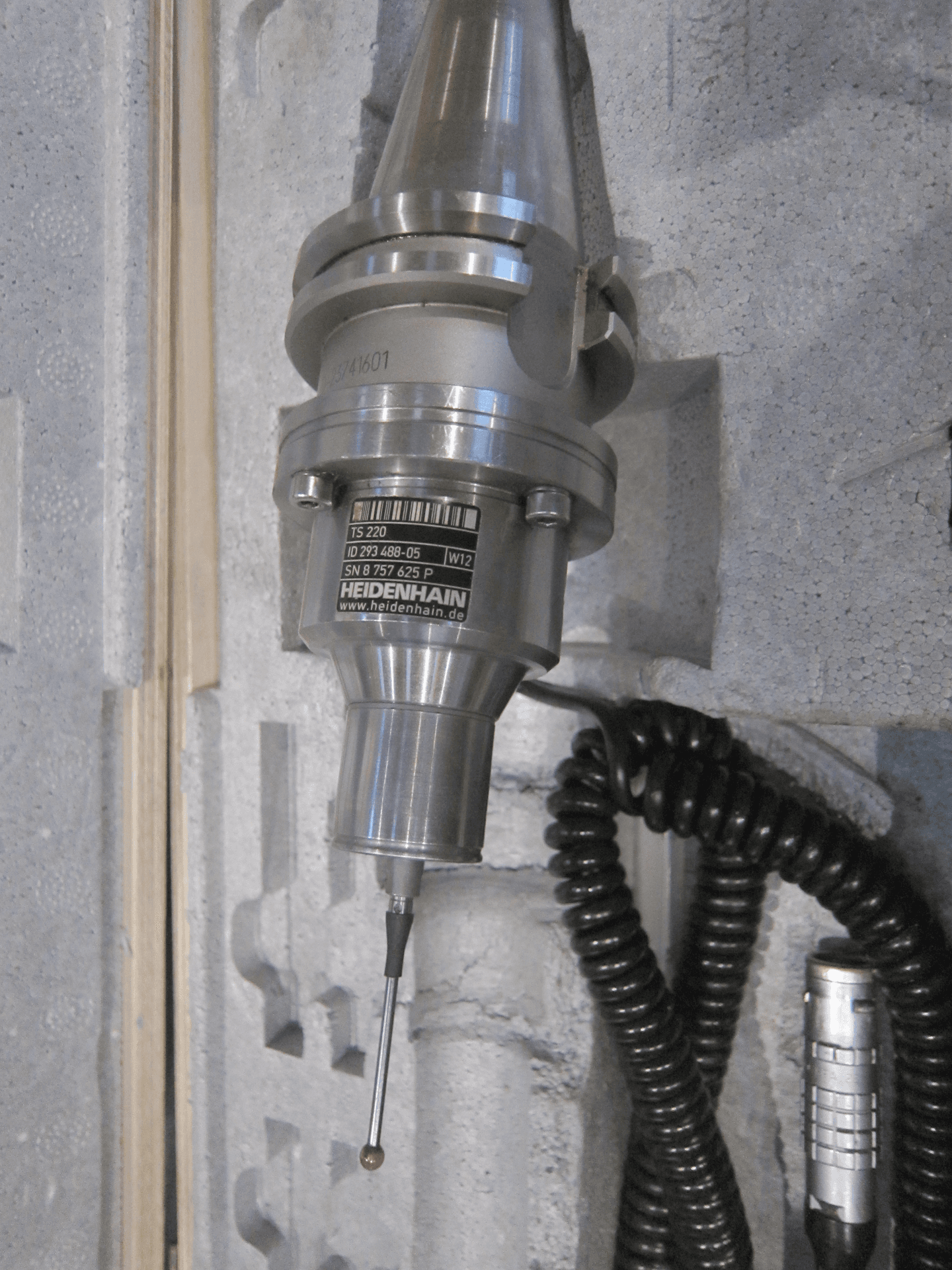

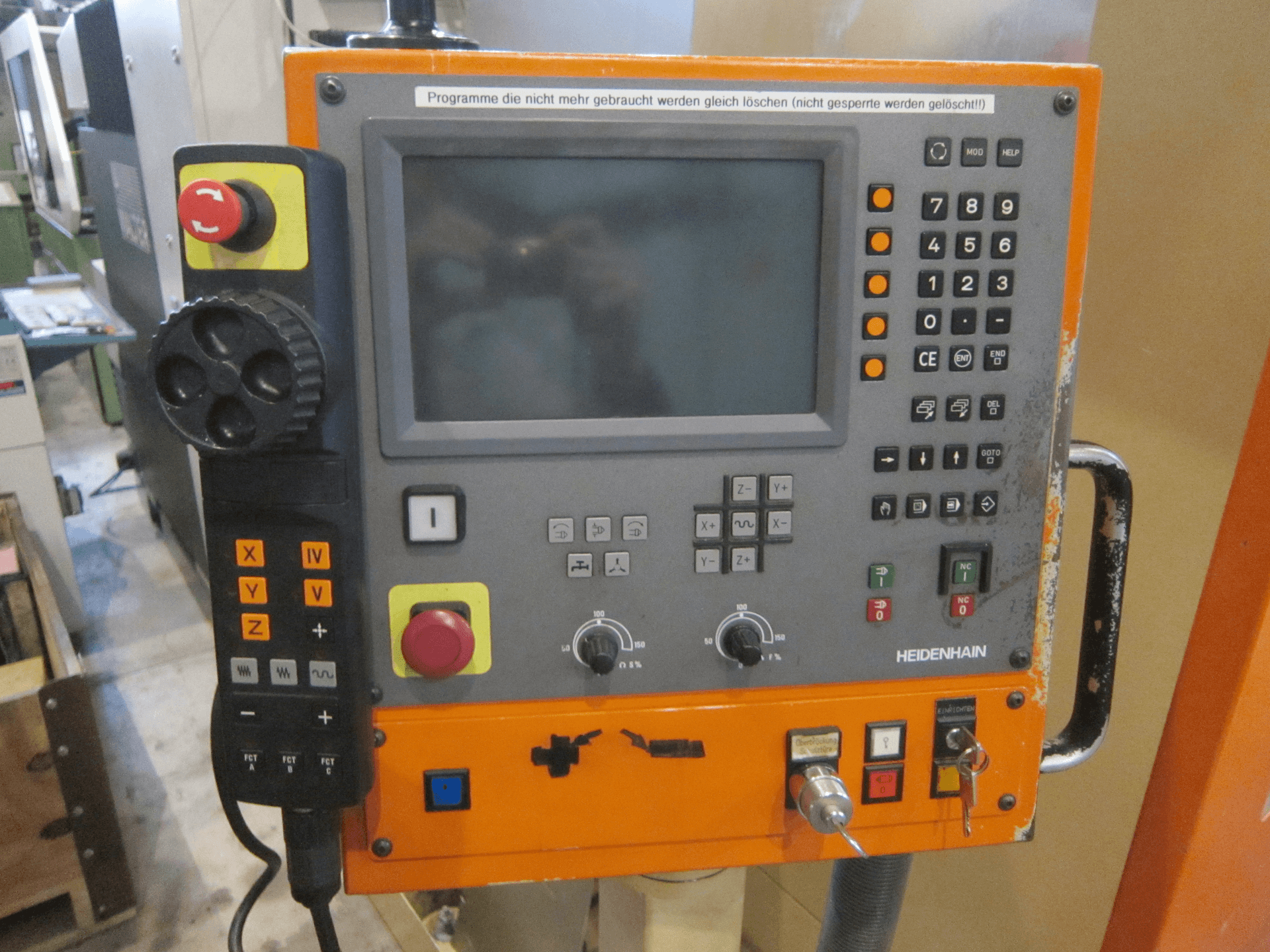

{"Number of axis total": "3", "Table length": "800 mm", "Table width": "425 mm", "Longitudinal travel (X-axis)": "600 mm", "Transversal travel (y axis)": "400 mm", "Vertical travel (z axis)": "400 mm", "Table load max.": "250 kg", "Distance from vertical": "", "spindle to table": "560 mm", "Taper in spindle:": "40 SK", "Spindle speeds:": "", "stepless": "", "horizontal from": "5 t/min", "up to": "2000 mm/min", "vertical from": "t/min", "from": "5 t/min", "Swivel range Vertical milling head": "+/- 90 \u00b0", "Feeds:": "", "longitudinal from": "mm/min", "transversal from": "mm/min", "vertical from": "mm/min", "Rapid traverse: long.": "10 m/min", "Rapid traverse: transversal": "10 m/min", "Rapid traverse: vertical": "8 m/min", "Vertical quill travel": "60 mm", "Voltage 50 Hz 3x": "400 Volt", "Milling spindle motor": "5.5 / 7 kW", "Total power required": "15 kVA", "Machine's weight about": "1800 kg", "Overall dimensions machine:": "", "Length": "2100 mm", "Width": "1800 mm", "Height": "2050 mm", "Various accessories:": "", "Rigide table": "", "Handwheel electroinic": "", "Measuring feeler gauge": "Heidenhain", "Vertical milling head": "", "Full splash cabin": "", "Coolant system": "", "Machine lamp": ""}
