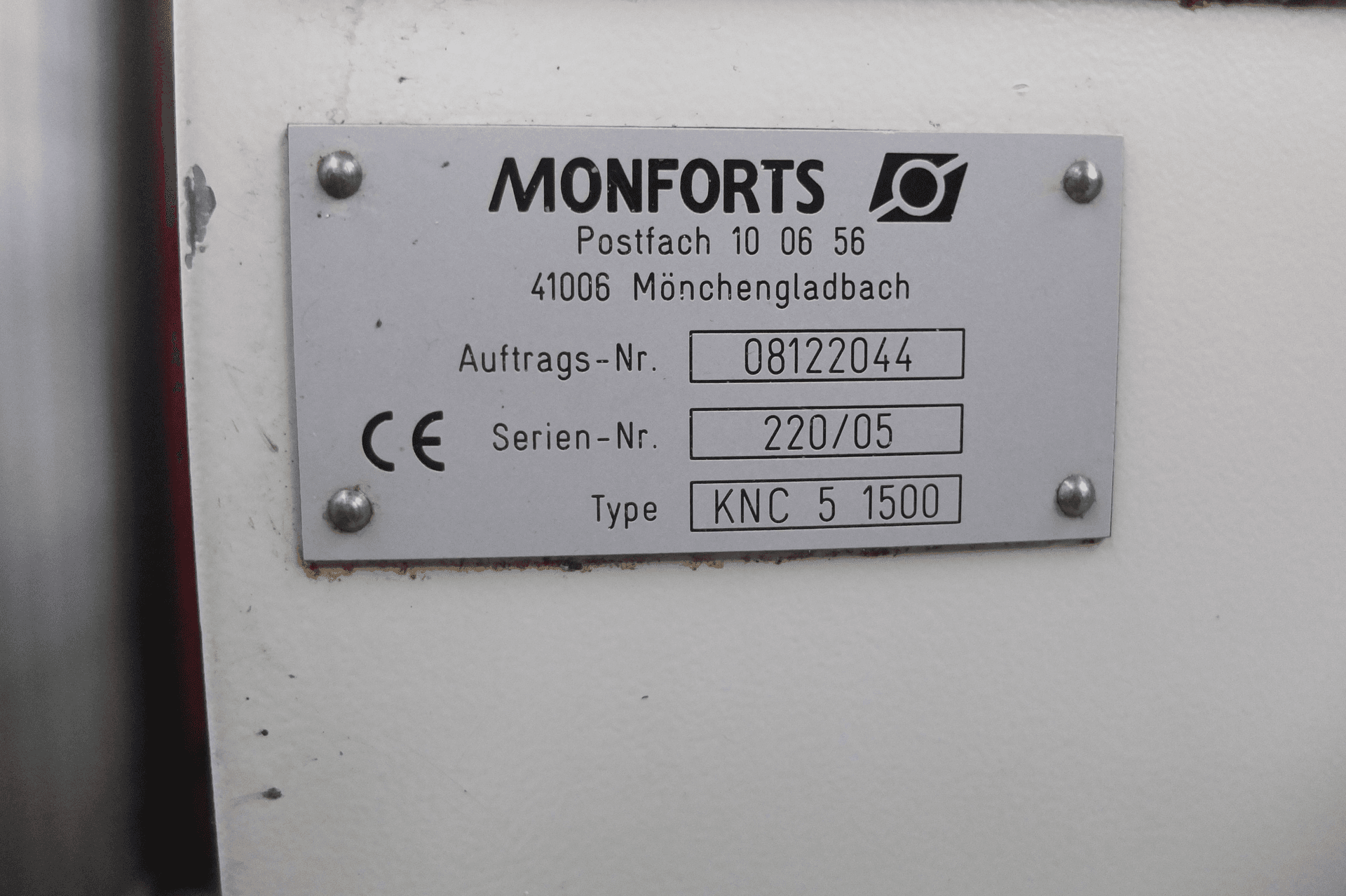

020432 - MONFORTS KNC 5 1500

Description

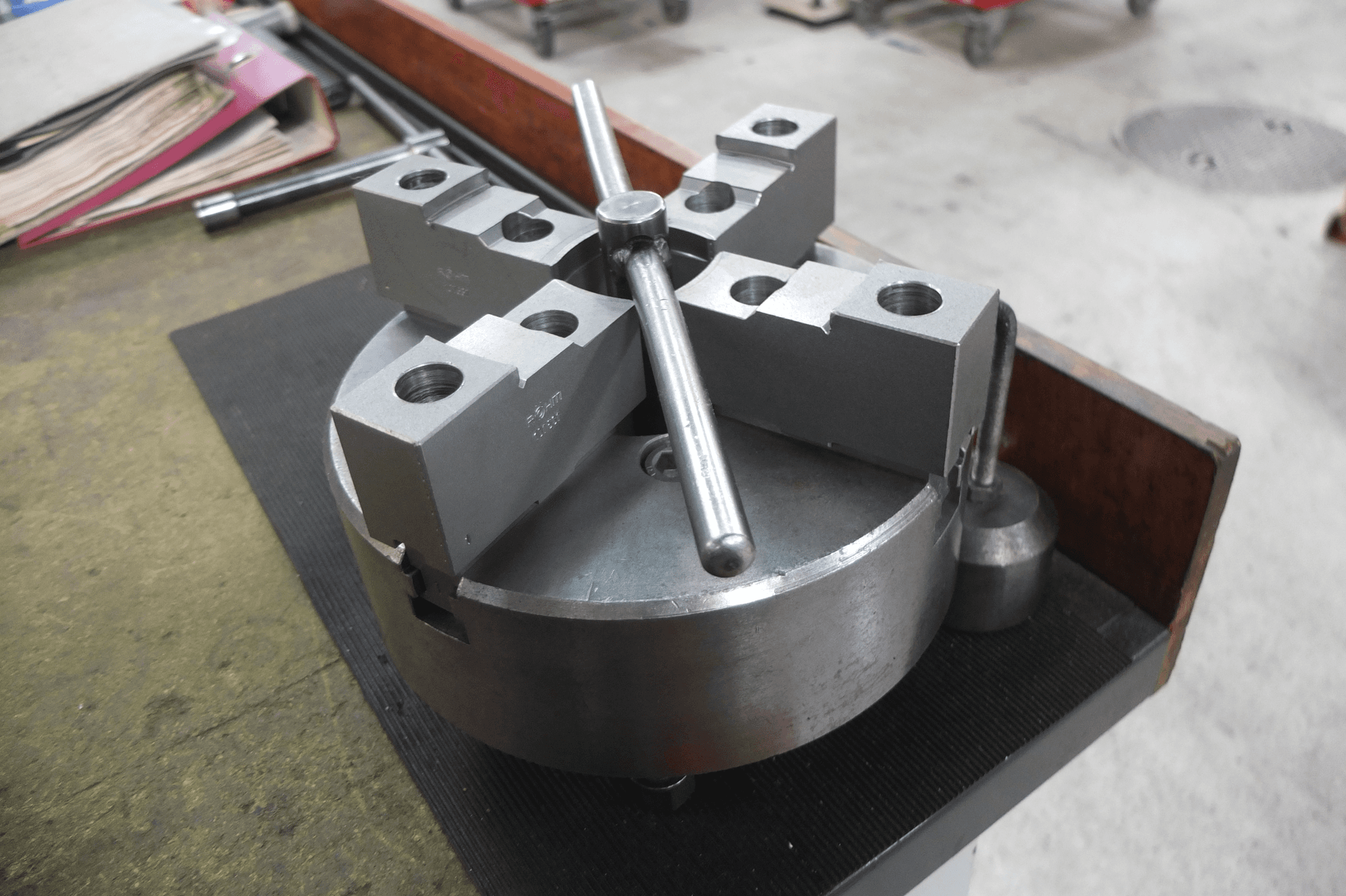

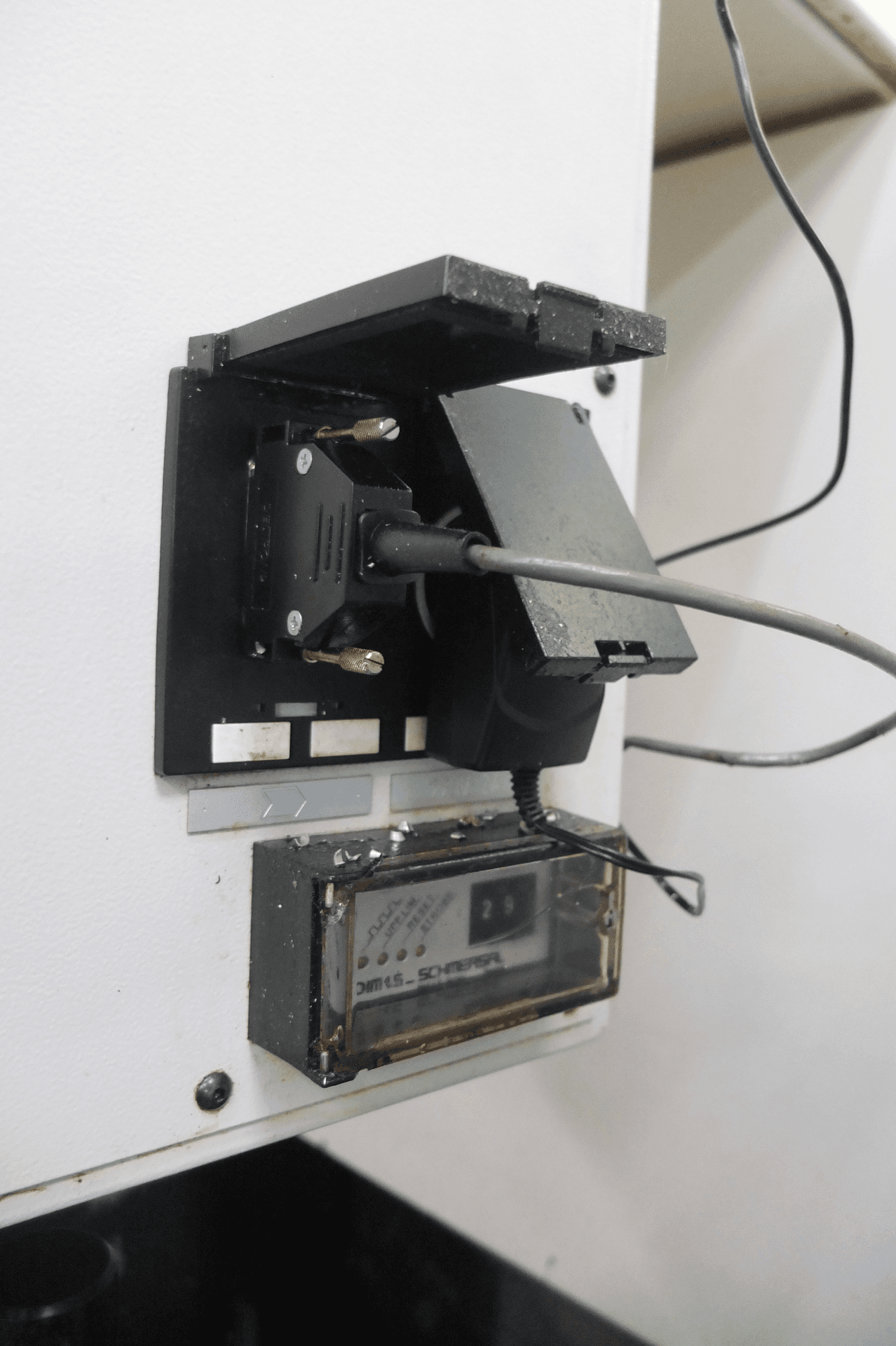

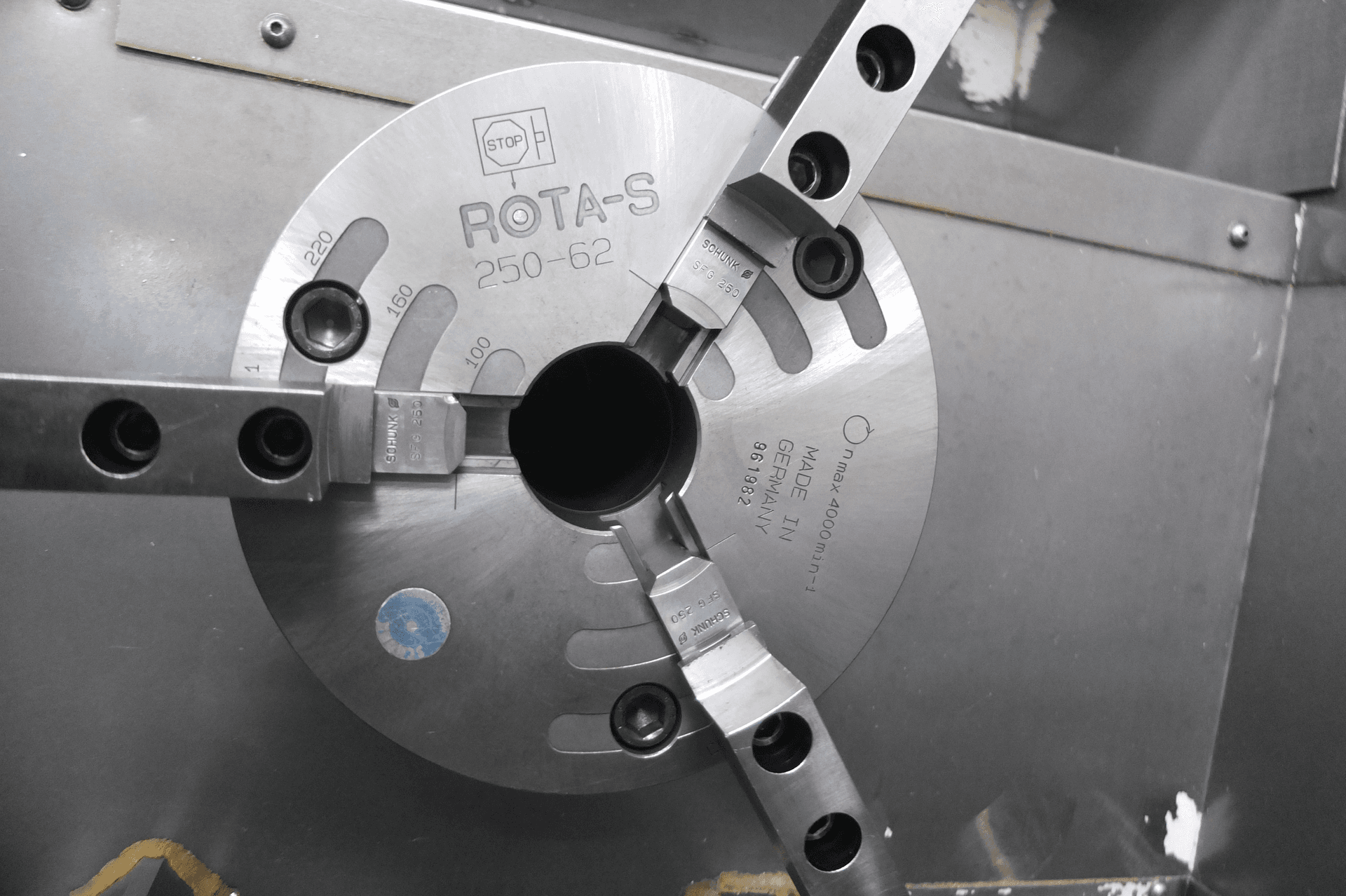

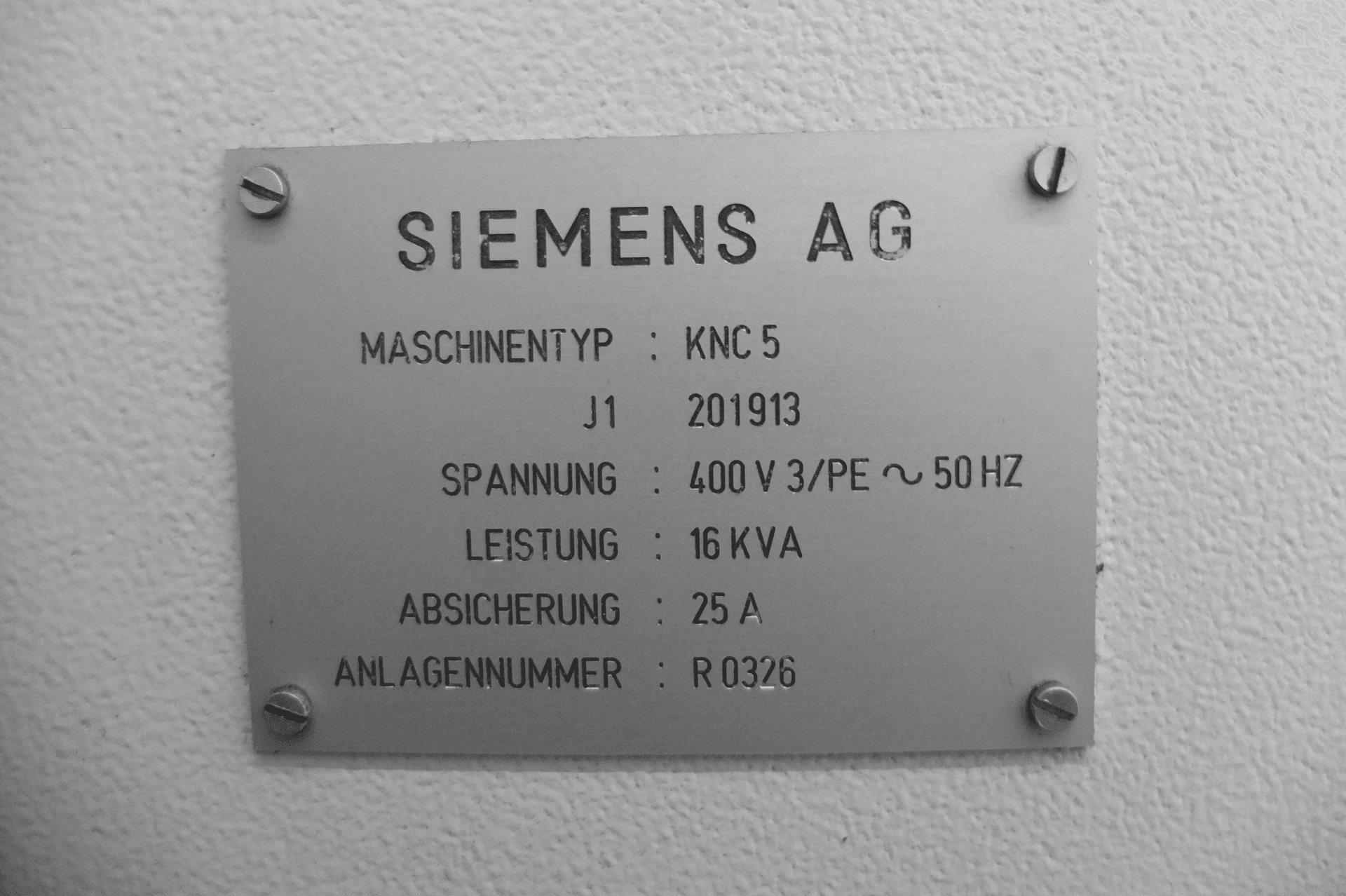

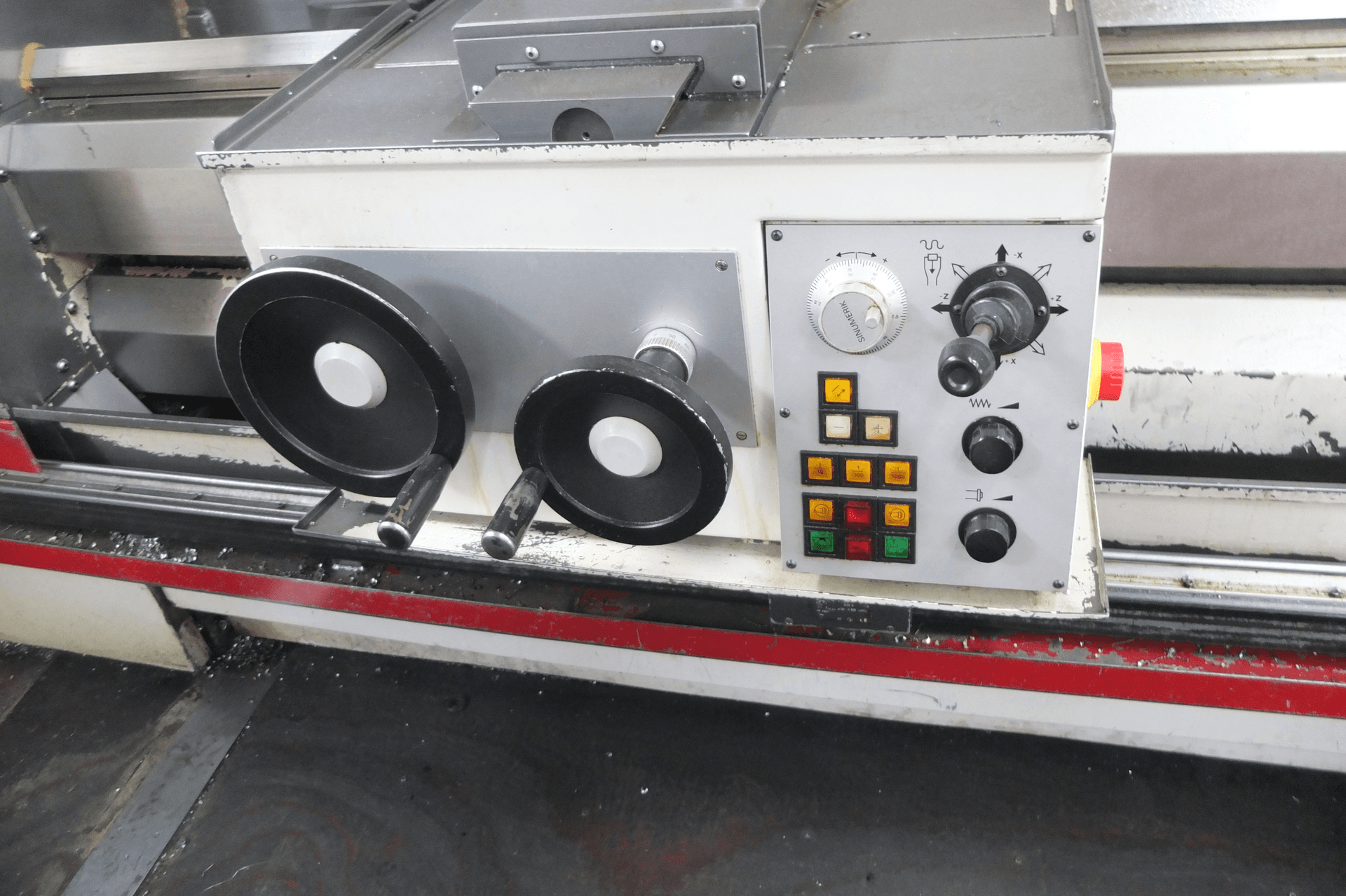

{"Centre height": "250 mm", "Distance between centres": "1500 mm", "Swing over cross-slide": "290 mm", "Swing over bed": "500 mm", "Taper in spindle": "DIN 55027", "Carriage:": "", "Transversal strocke (X axis)": "265 mm", "Spindle speeds:": "", "number (steps)": "3", "from": "3 t/min", "up to": "2800 t/min", "Taper in tailstock:": "", "Morse taper": "5 CM", "Spindle stroke": "160 mm", "Spindle diameter": "80 mm", "Rapid traverse X": "5 m/min", "Rapid traverse Z": "10 m/min", "Spindle motor": "16.5 kW", "Voltage 50 Hz 3x": "400 Volt", "Total power required": "16 kVA", "Machine's weight about": "3000 kg", "Various accessories:": "", "3-jaw chuck diameter": "ROTA-S 250 mm", "4-jaw chuck diameter": "250 mm", "Set of soft jaws": "", "Set of hard jaws": "", "Travelling steady": "", "Lamp": "", "Tailstock": "", "Coolant system": "", "Interface serial port RS 232": "", "Chip conveyor": "", "Set of steel holders": "", "Toolholders": ""}
